Newbie Winch Wiring Question

Discussion in '3rd Gen. Tacomas (2016-2023)' started by IdeaMan, Jan 27, 2020.

Page 4 of 5
  1. Jan 28, 2020 at 9:39 AM
    #61
    OnHartung'sRoad

    #61
    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    9,464
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    No fuse can = :bananadead:, Especially if you get into an accident or someone cuts the cable to steal your winch.

    If you don’t put a cut off switch on it, at least put a 500amp ANL fuse on it:

    https://www.bluesea.com/products/5137/ANL_Fuse_-_500_Amp

    OnHartung'sRoad, Jan 28, 2020
    #61
  2. Jan 28, 2020 at 1:40 PM
    #62
    tacomarin

    #62
    tacomarin ig: @travelswithchubbs

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    1,926
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack VO Drifter LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Brute force front bumper BAMF HC Dual swing out 285/75r17 BFG KO2 Front: ADS 2.5, EXT, RR, Clickers Rear: OME Dakar HD, ADS 2.5, EXT, RR, Clickers Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Stealth 6 17x8.5 wheels, matte dark bronze
    Good stuff. I've got to look at my aux panel and see which will mount up better. I originally liked the Blue Sea one because I thought it would be easier to mount. Now I'm thinking the Wirthco one might work better.

    tacomarin, Jan 28, 2020
    #62
    RyanDCLB[QUOTED] likes this.
  3. Jan 28, 2020 at 5:14 PM
    #63
    Georgia Native

    #63
    Georgia Native Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253296
    Messages:
    311
    Vehicle:
    4x4 DCLB 2017 SR5, 2019 4runner Offroad, 2021 SR Access Cab

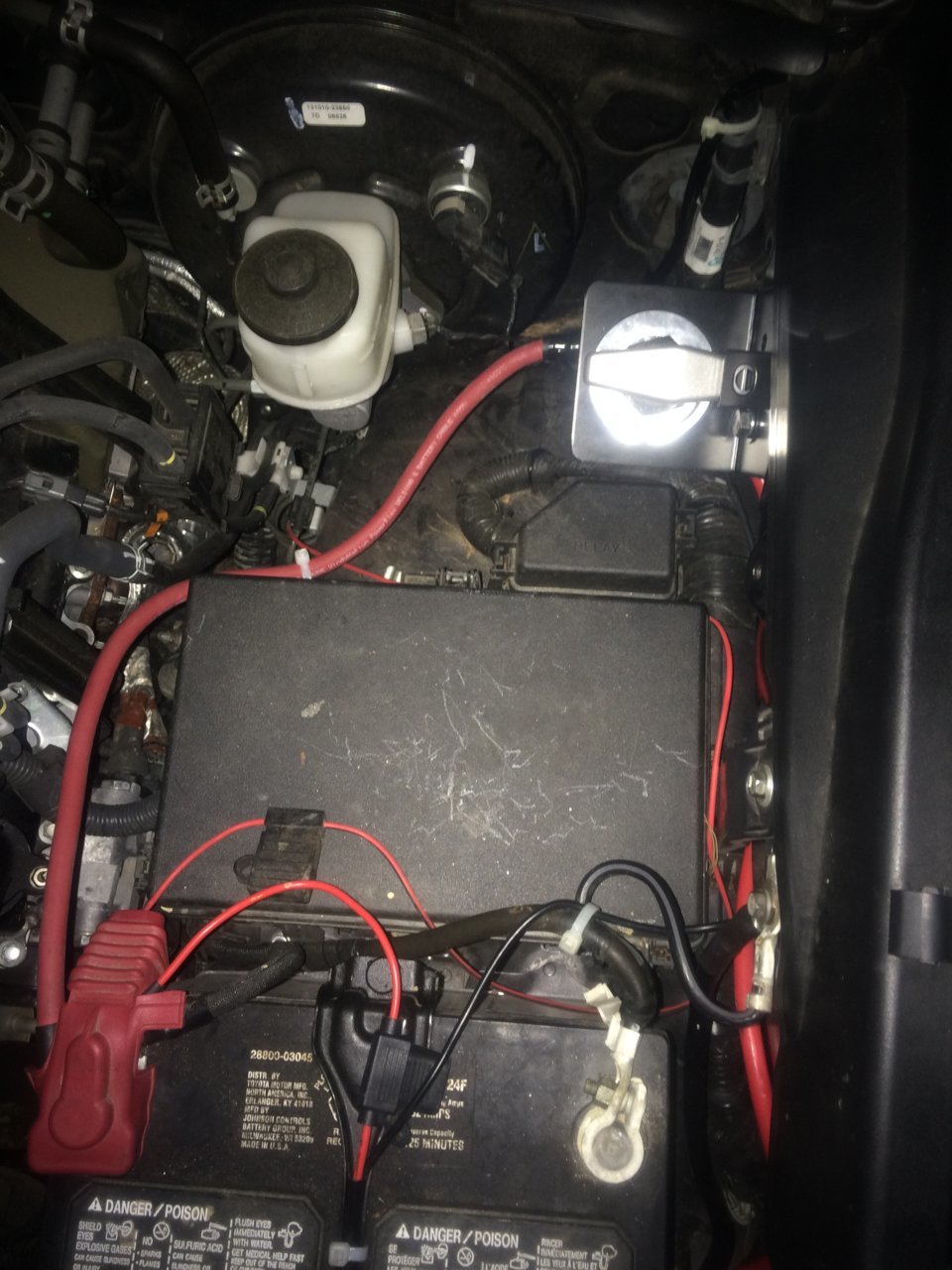

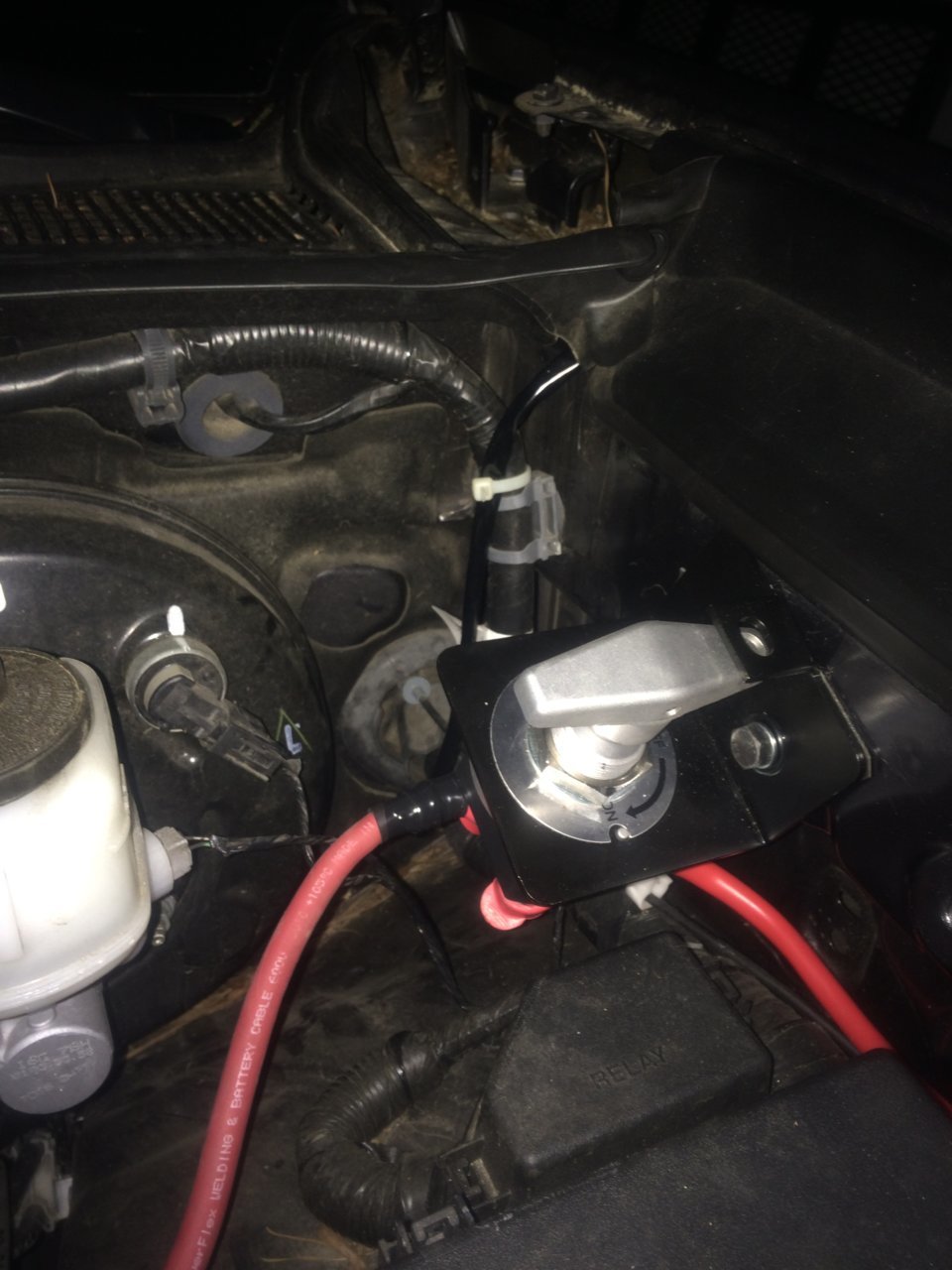

    This is how I did the mount for the Worth Co. I did not want to cram it up front and found more room near the brake fluid resevoir. There is actually a tapped oem bolt hole already available to use for the mount. I also used some double sided tape to act as a damper.3B386544-9362-4411-9965-F539BE7D714C.jpg3B386544-9362-4411-9965-F539BE7D714C.jpg D1EEE2FA-8DF6-43ED-AC65-C886FC84A11B.jpg

    Georgia Native, Jan 28, 2020
    #63
    tacomarin and RyanDCLB like this.
  4. Jan 28, 2020 at 6:55 PM
    #64
    BigWhiteTRD

    #64
    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,673
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    I used the 300 amp blue sea terminal fuse (MRBF Fuse),
    Crimp Terminals
    4PCS 1/0 AWG 3/8" and 4PCS 1/0 AWG 5/16" Copper Wire Lugs, Marine Battery Welding Lugs 0 Gauge Terminal Connectors and 8 PCS Ratio 3:1 Dual Wall Adhesive Heat Shrink Tubing
    https://www.amazon.com/gp/product/B07MGXH1KZ/
    Crimper
    BETOOLL 10 Ton Hydraulic Wire Terminal Crimper Battery Cable Lug Crimping Tool With 8 Dies
    https://www.amazon.com/gp/product/B01I31AX9U/

    And big wire https://skycraftsurplus.com/10awg-nickel-plated-aircaft-wire-white-m227593-01-9-rp8049.html
    (~$3.50 per foot for mil spec 1/0 wire)

    BigWhiteTRD, Jan 28, 2020
    #64
    RyanDCLB likes this.
  5. Jan 28, 2020 at 7:08 PM
    #65
    Gat_

    #65
    Gat_ Don’t be shattered.

    Joined:
    Dec 18, 2018
    Member:
    #276236
    Messages:
    878
    Bay Area, CA
    Vehicle:
    '19 Cement Tacoma TRD OR M/T
    Sorry in advance but I’m still learning here. What exactly does wiring the winch to a disconnect do?

    Last edited: Jan 28, 2020
    Gat_, Jan 28, 2020
    #65
  6. Jan 28, 2020 at 7:13 PM
    #66
    RyanDCLB

    #66
    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,510
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    So, besides protecting the wire from shorting out, the switch also helps if there is ever a "runaway winch" scenario. :thumbsup:

    RyanDCLB, Jan 28, 2020
    #66
    OnHartung'sRoad likes this.
  7. Jan 28, 2020 at 9:41 PM
    #67
    tacomarin

    #67
    tacomarin ig: @travelswithchubbs

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    1,926
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack VO Drifter LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Brute force front bumper BAMF HC Dual swing out 285/75r17 BFG KO2 Front: ADS 2.5, EXT, RR, Clickers Rear: OME Dakar HD, ADS 2.5, EXT, RR, Clickers Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Stealth 6 17x8.5 wheels, matte dark bronze
    To clarify, it allows you to turn the power off to the winch meaning that if something happens to your winch power line (e.g. damage it in a crash or erodes through the sheathing) it won’t short out on something and start a fire. And in addition to those, it allows you to keep someone from messing with your winch if they happen to have a remote.

    tacomarin, Jan 28, 2020
    #67
  8. Jan 28, 2020 at 10:22 PM
    #68
    RyanDCLB

    #68
    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,510
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    RyanDCLB, Jan 28, 2020
    #68
  9. Jan 28, 2020 at 10:55 PM
    #69
    Gat_

    #69
    Gat_ Don’t be shattered.

    Joined:
    Dec 18, 2018
    Member:
    #276236
    Messages:
    878
    Bay Area, CA
    Vehicle:
    '19 Cement Tacoma TRD OR M/T
    Gotcha, thank you guys. :thumbsup:

    Gat_, Jan 28, 2020
    #69
    tacomarin[QUOTED] likes this.
  10. Jan 30, 2020 at 8:27 PM
    #70
    RyanDCLB

    #70
    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,510
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR

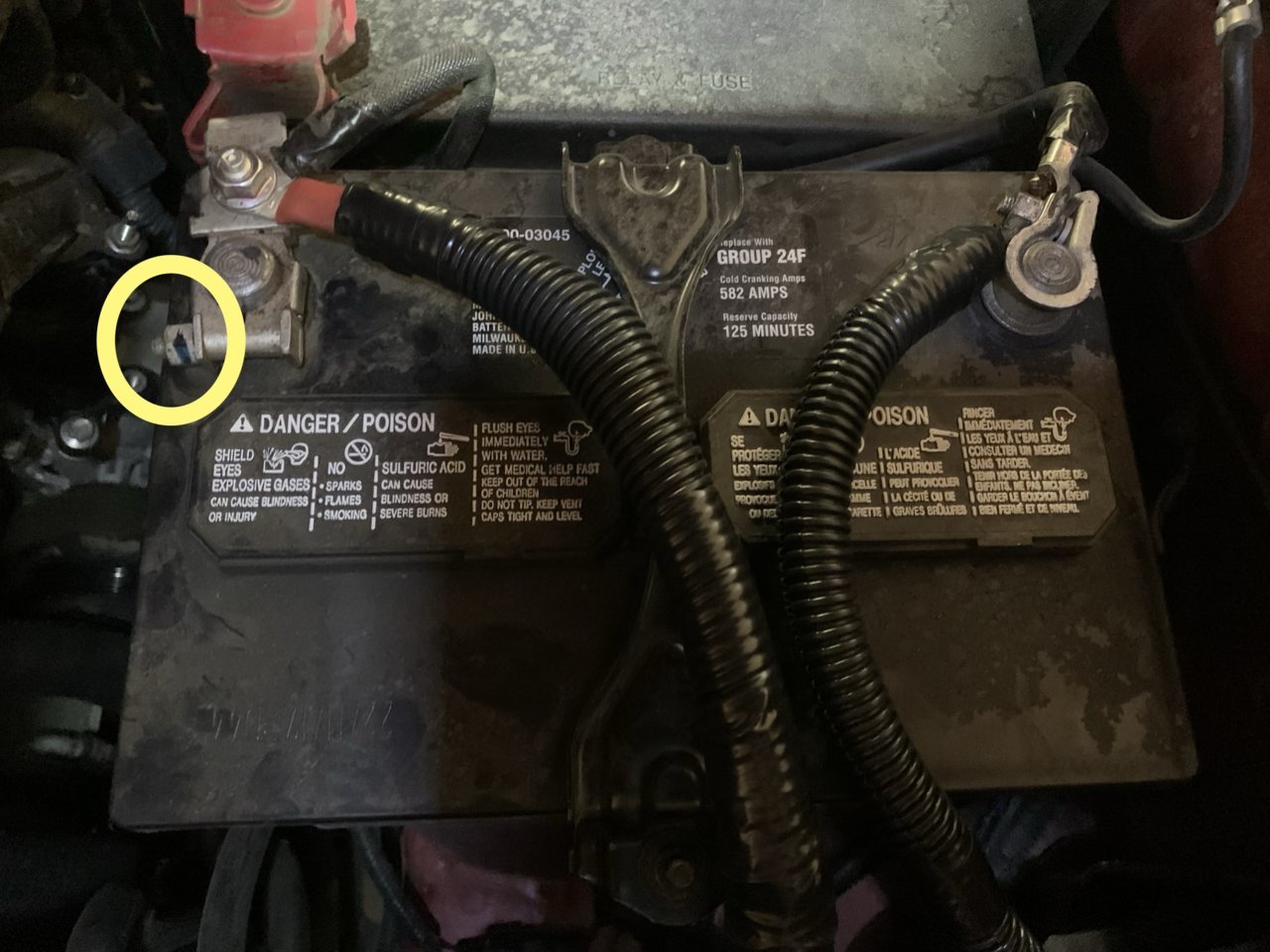

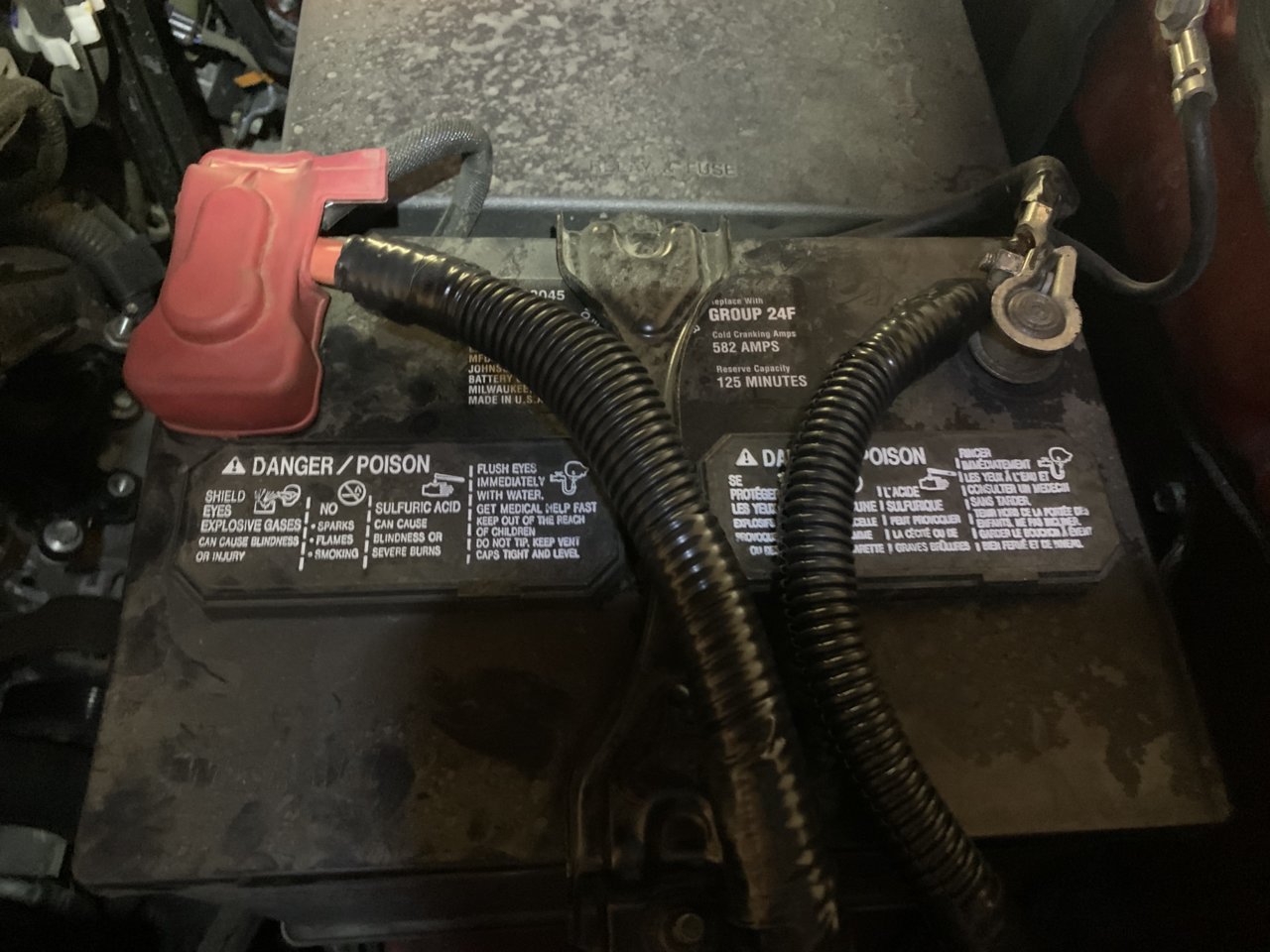

    This disconnect switch is turning out to be a minor pain...

    The Smittybilt X-20 has what looks like 5/16 crimp terminals on the end of the positive wire, but both the BlueSea switch and the WirthCo switch have 3/8" studs. I'll need to cut off the 5/16 crimp connector and replace it with a 3/8" connector to make it work. Also the wire for the winch seems like it's 4 gauge, and I ordered 2 gauge for the cable to the battery (not that big of a deal, just overkill) :annoyed:

    Last edited: Jan 30, 2020
    RyanDCLB, Jan 30, 2020
    #70
  11. Jan 31, 2020 at 2:47 AM
    #71
    BigWhiteTRD

    #71
    BigWhiteTRD Official thread killer (only crickets remain)

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    1,673
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto 4wd, 2012 AC SR5 4.0 MT 4wd
    If you have a long tapered punch, you can usually enlarge the ID of big terminals a little. Put terminal over an appropriate deep wall socket, and use punch down the middle to force ID larger.
    (In my experience)

    BigWhiteTRD, Jan 31, 2020
    #71
    hinmo24t and Georgia Native like this.
  12. Jan 31, 2020 at 4:37 AM
    #72
    Georgia Native

    #72
    Georgia Native Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253296
    Messages:
    311
    Vehicle:
    4x4 DCLB 2017 SR5, 2019 4runner Offroad, 2021 SR Access Cab
    Punch definitely works. I used a mill round file and removed just enought for the terminals to fit. I used a 2 gauge as well.

    Georgia Native, Jan 31, 2020
    #72
  13. Jan 31, 2020 at 8:10 AM
    #73
    RyanDCLB

    #73
    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,510
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    Got it. I'll try that and report back. :thumbsup: The crimps on the winch cable are super slim and there isn't much meat on either side...

    RyanDCLB, Jan 31, 2020
    #73
  14. Jan 31, 2020 at 8:13 AM
    #74
    Georgia Native

    #74
    Georgia Native Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253296
    Messages:
    311
    Vehicle:
    4x4 DCLB 2017 SR5, 2019 4runner Offroad, 2021 SR Access Cab
    My warn terminals are pretty slim too. Just go slow, and you should be fine. Good luck.

    Georgia Native, Jan 31, 2020
    #74
  15. Jan 31, 2020 at 8:17 AM
    #75
    Georgia Native

    #75
    Georgia Native Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253296
    Messages:
    311
    Vehicle:
    4x4 DCLB 2017 SR5, 2019 4runner Offroad, 2021 SR Access Cab
    Georgia Native, Jan 31, 2020
    #75
  16. Jan 31, 2020 at 10:01 AM
    #76
    RyanDCLB

    #76
    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,510
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR

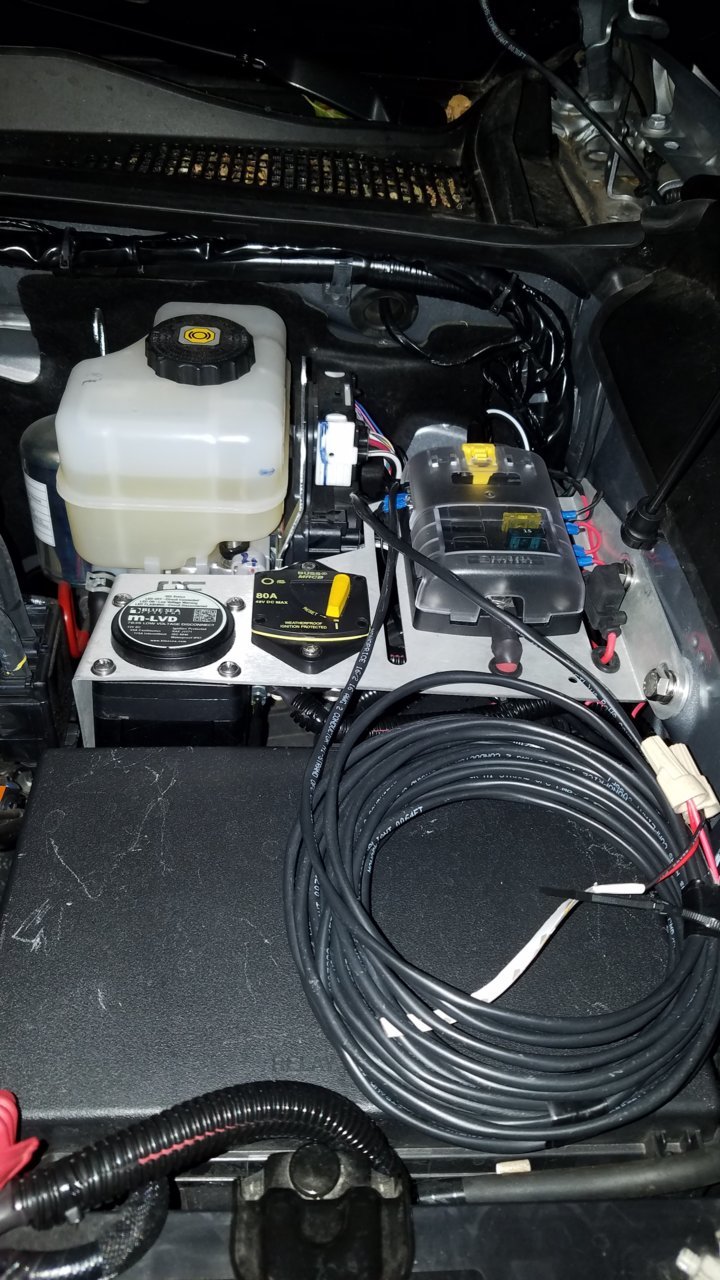

    I'm thinking closer to the battery because I've got a fuse panel in that spot.


    RyanDCLB, Jan 31, 2020
    #76
  17. Jan 31, 2020 at 10:48 AM
    #77
    Georgia Native

    #77
    Georgia Native Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253296
    Messages:
    311
    Vehicle:
    4x4 DCLB 2017 SR5, 2019 4runner Offroad, 2021 SR Access Cab
    Makes sense. Nice setup.

    Georgia Native, Jan 31, 2020
    #77
  18. Feb 14, 2020 at 6:13 PM
    #78
    Gat_

    #78
    Gat_ Don’t be shattered.

    Joined:
    Dec 18, 2018
    Member:
    #276236
    Messages:
    878
    Bay Area, CA
    Vehicle:
    '19 Cement Tacoma TRD OR M/T
    Would you happen to know if the OK4WD switch will fit the X20 wires/terminals without any modification unlike the wirth-co?

    Gat_, Feb 14, 2020
    #78
  19. Feb 14, 2020 at 9:37 PM
    #79
    RyanDCLB

    #79
    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,510
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    I can't confirm on the OK4WD switch, but I can confirm that I drilled out my X20 terminal to fit over the wirthco switch stud. :thumbsup:

    RyanDCLB, Feb 14, 2020
    #79
    BigWhiteTRD likes this.
  20. Feb 21, 2020 at 10:38 AM
    #80
    Gat_

    #80
    Gat_ Don’t be shattered.

    Joined:
    Dec 18, 2018
    Member:
    #276236
    Messages:
    878
    Bay Area, CA
    Vehicle:
    '19 Cement Tacoma TRD OR M/T
    Bummer. Just called OK4WD and they advised they run 3/8” studs as well.

    Gat_, Feb 21, 2020
    #80
    RyanDCLB likes this.
