Newbie Winch Wiring Question

Discussion in '3rd Gen. Tacomas (2016+)' started by IdeaMan, Jan 27, 2020.

  1. Feb 21, 2020 at 10:48 AM
    #81
    BrianPVan

    BrianPVan Well-Known Member

    Joined:
    Apr 12, 2017
    Member:
    #216082
    Messages:
    190
    Gender:
    Male
    First Name:
    Brian
    BC
    Vehicle:
    2017 DCSB OffRoad

    YES, you're good.

  2. Feb 23, 2020 at 4:26 PM
    #82
    Gat_

    Gat_ Don’t be shattered.

    Joined:
    Dec 18, 2018
    Member:
    #276236
    Messages:
    625
    Bay Area, CA
    Vehicle:
    '19 Cement Tacoma TRD OR M/T
    When you guys installed the negative terminal, did you have to split the ground wire and purchase that additional connector SDHQ recommended (SDHQ-02-3003-U1-E)? Or how’d you guys go about it? Thanks.

  3. Feb 23, 2020 at 4:28 PM
    #83
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    9,158
    Gender:
    Male
    First Name:
    Nick
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    I forget now. I believe I crimped a new connector on, but don't quote me.

  4. Feb 23, 2020 at 5:38 PM
    #84
    Shellshock

    Shellshock King Shit of Turd Island

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    15,519
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND

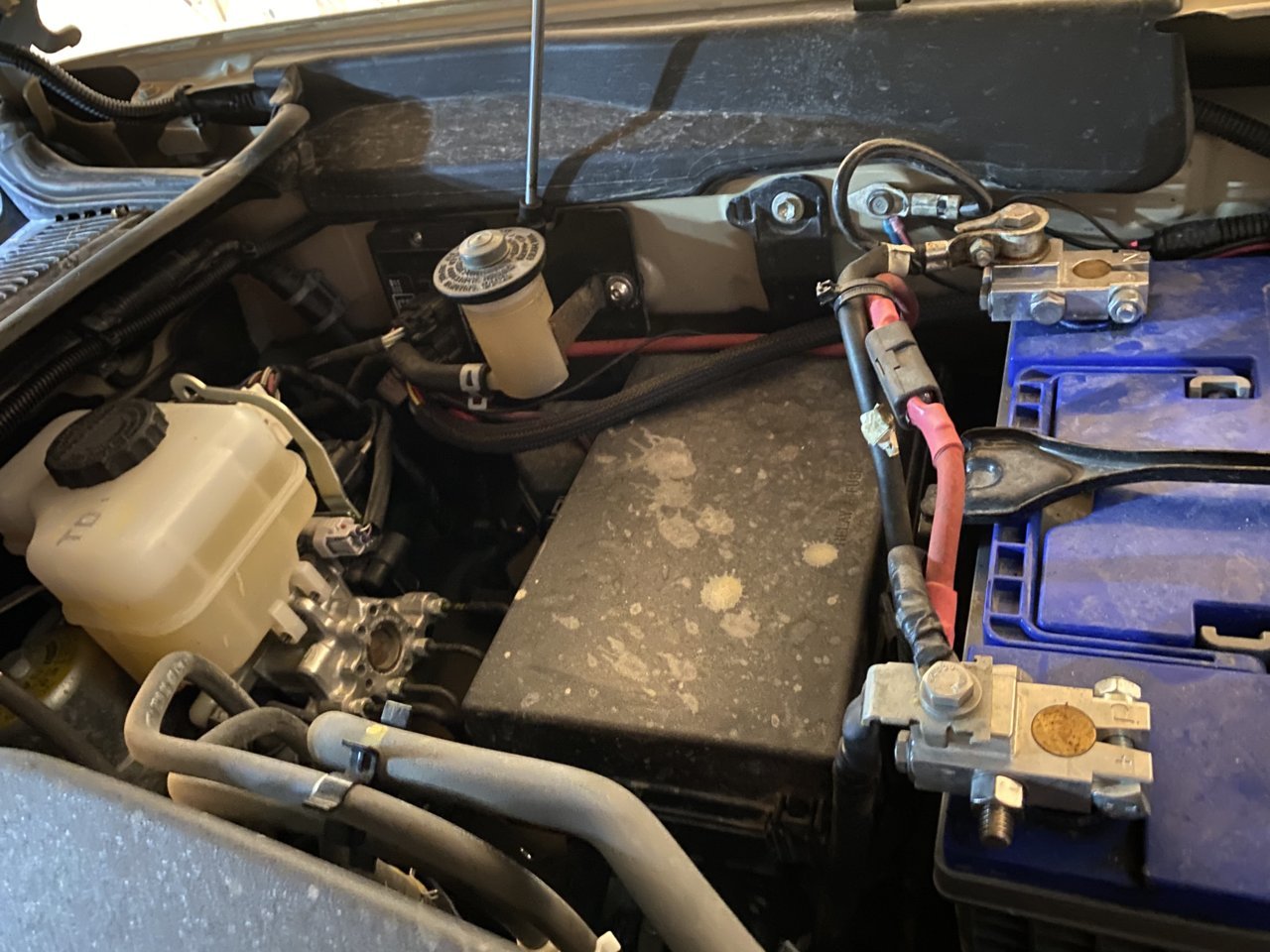

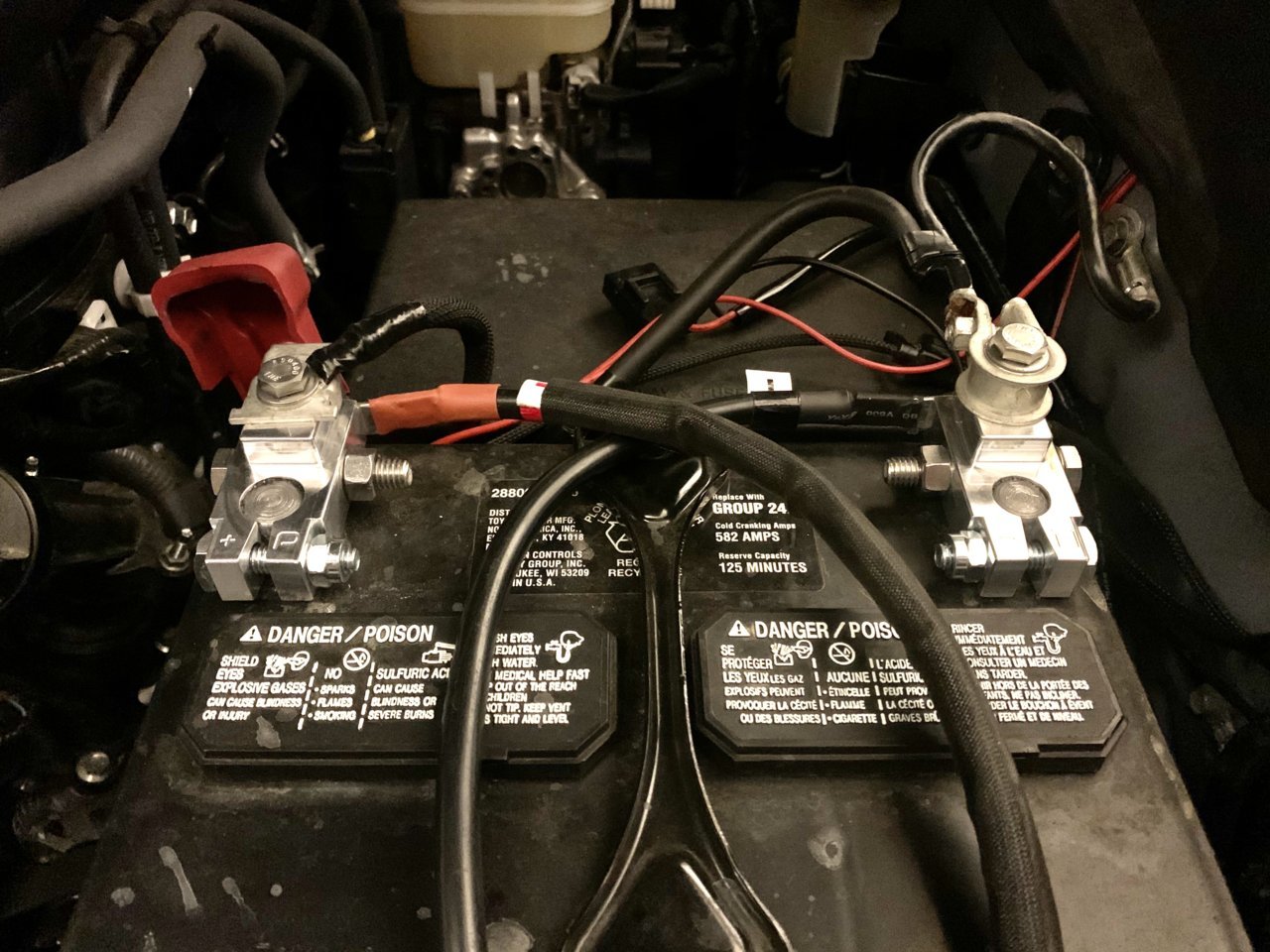

    I just put it on


  5. Feb 23, 2020 at 9:26 PM
    #85
    Gat_

    Gat_ Don’t be shattered.

    Joined:
    Dec 18, 2018
    Member:
    #276236
    Messages:
    625
    Bay Area, CA
    Vehicle:
    '19 Cement Tacoma TRD OR M/T
    Just did the same, thank you. Need to wire up a disconnect switch for the winch now.

  6. Mar 8, 2020 at 11:21 AM
    #86
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    1,592
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR

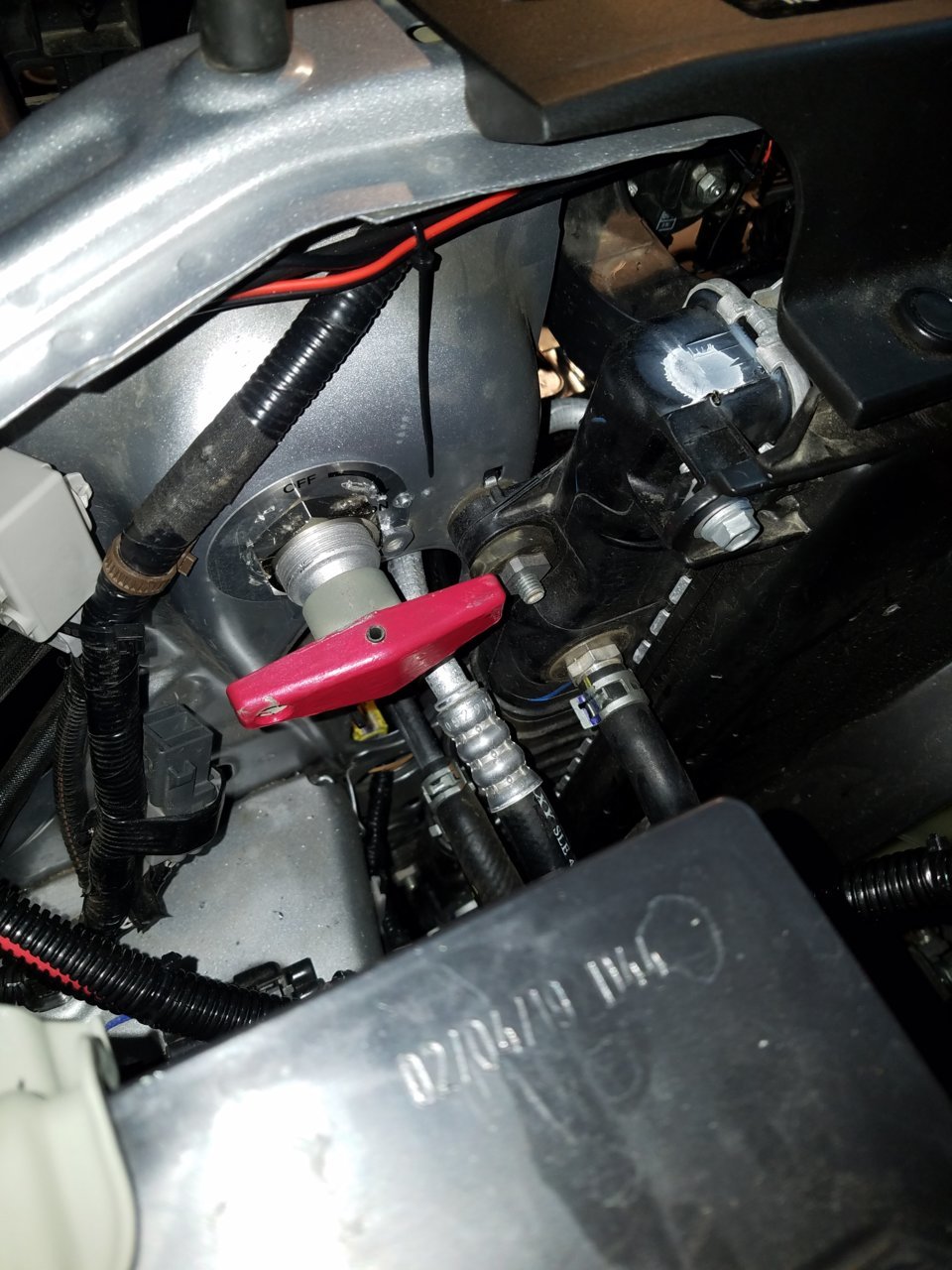

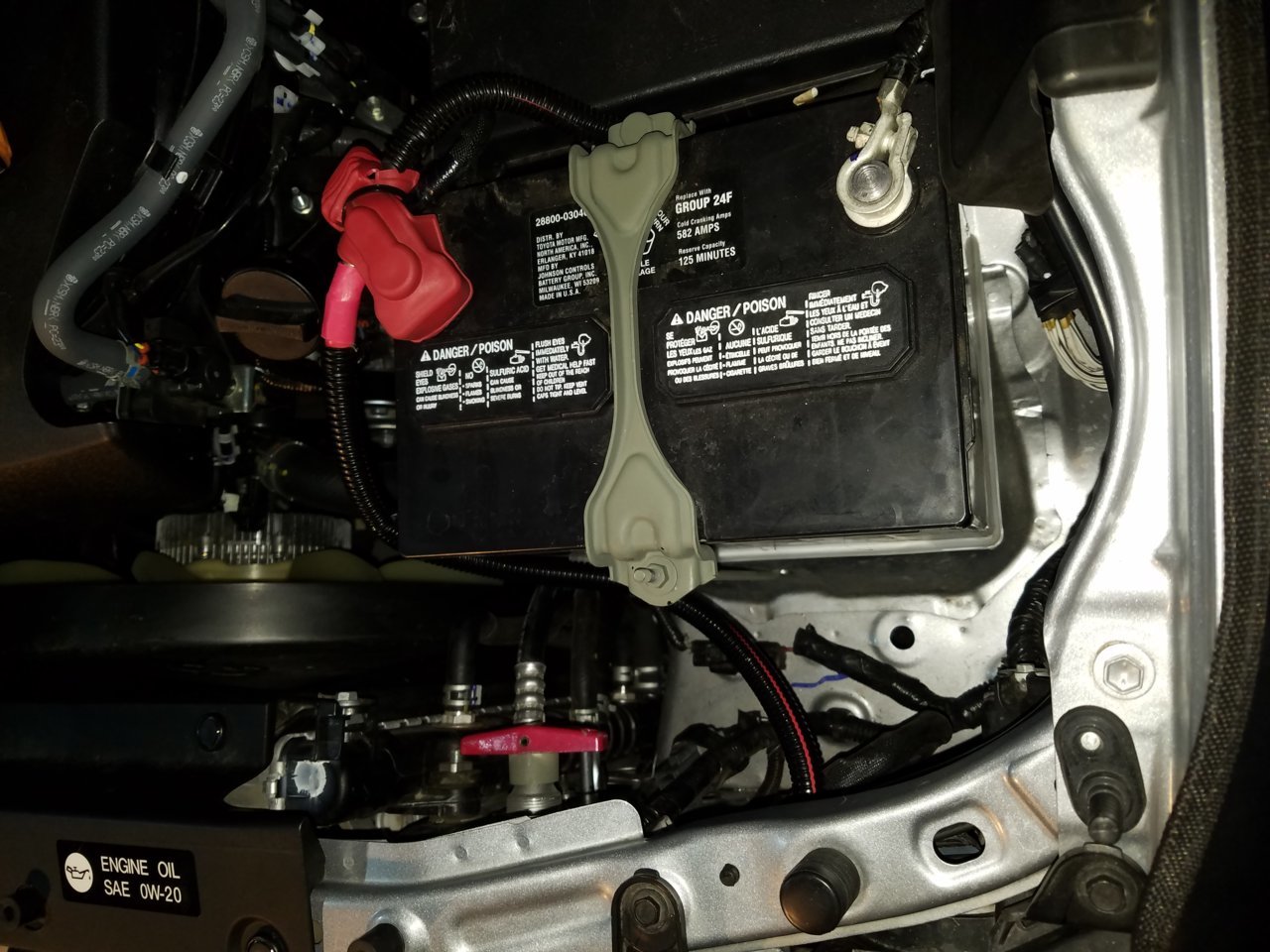

    Here's how I ended up installing my winch disconnect switch!:thumbsup:






    theesotericone and BigWhiteTRD like this.
  7. Mar 8, 2020 at 3:19 PM
    #87
    Georgia Native

    Georgia Native Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253296
    Messages:
    260
    Vehicle:
    4x4 DCLB 2017 SR5. 2019 4runner Offroad
    Thar worked out pretty well. Good job.

    RyanDCLB likes this.
  8. Apr 12, 2020 at 2:30 PM
    #88
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    1,394
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 285/75r17 BFG KO2 X-Bull Recovery Boards Front: ADS 2.5, EXT, RR, Clickers Rear: OME Dakar HD, ADS 2.5, EXT, RR, Clickers Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Stealth 6 17x8.5 wheels, matte dark bronze

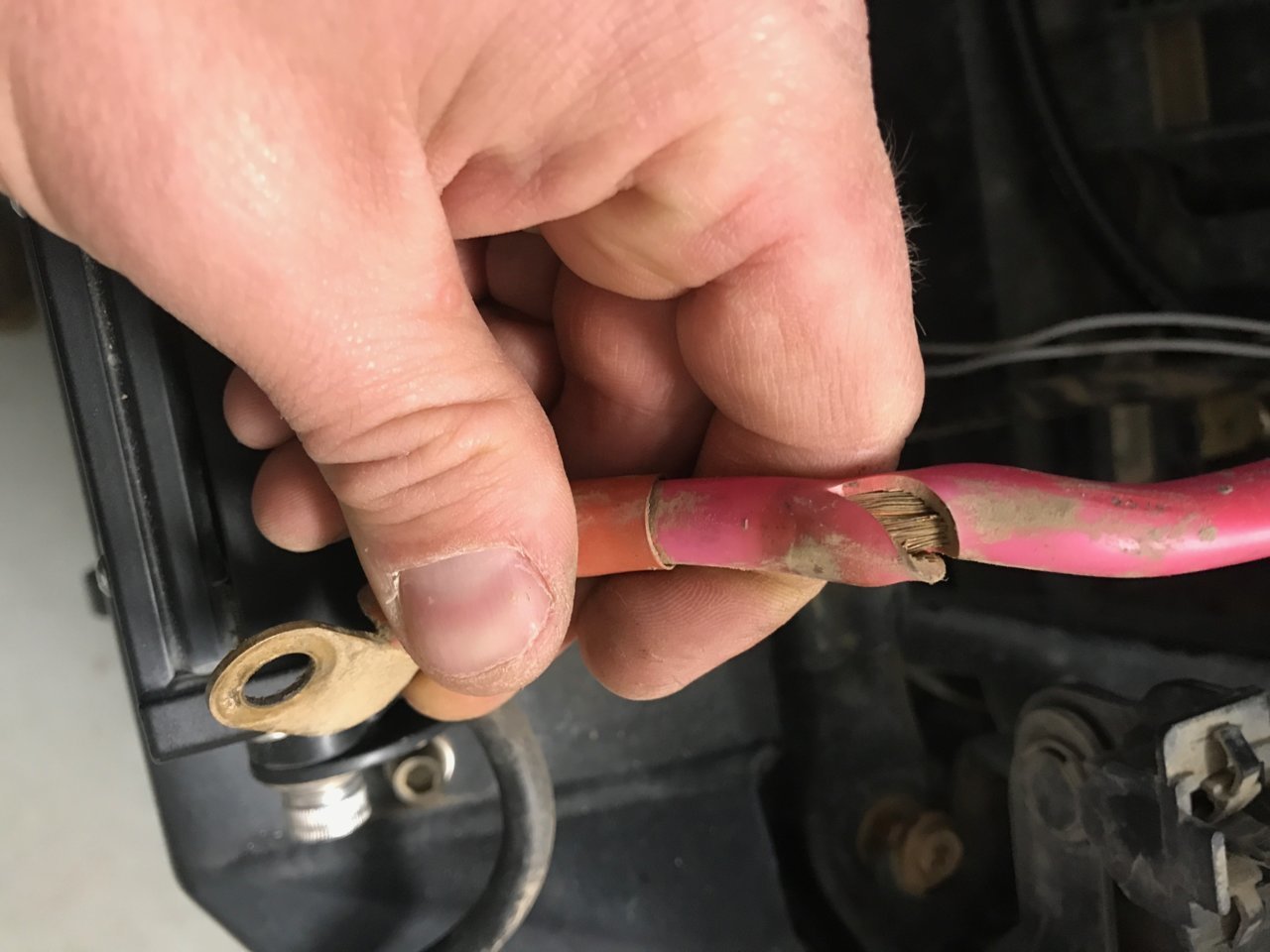

    A buddy of mine sent me this picture of his winch cable that he discovered while working on some other wiring.
    So this weekend I installed a disconnect. Man he got lucky.

    sbl23, Georgia Native and RyanDCLB like this.
  9. Apr 12, 2020 at 4:52 PM
    #89
    Georgia Native

    Georgia Native Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253296
    Messages:
    260
    Vehicle:
    4x4 DCLB 2017 SR5. 2019 4runner Offroad
    What caused it?

  10. Jul 6, 2020 at 6:13 PM
    #90
    Captbrad88

    Captbrad88 Well-Known Member

    Joined:
    Jul 18, 2018
    Member:
    #259774
    Messages:
    258
    Gender:
    Male
    First Name:
    Brad
    Vehicle:
    2018 Tacoma trd offroad
    2018 Tacoma
    Switch pro mounted to the SDQH mount
    North Star 27f battery
    KnuKonceptz terminals

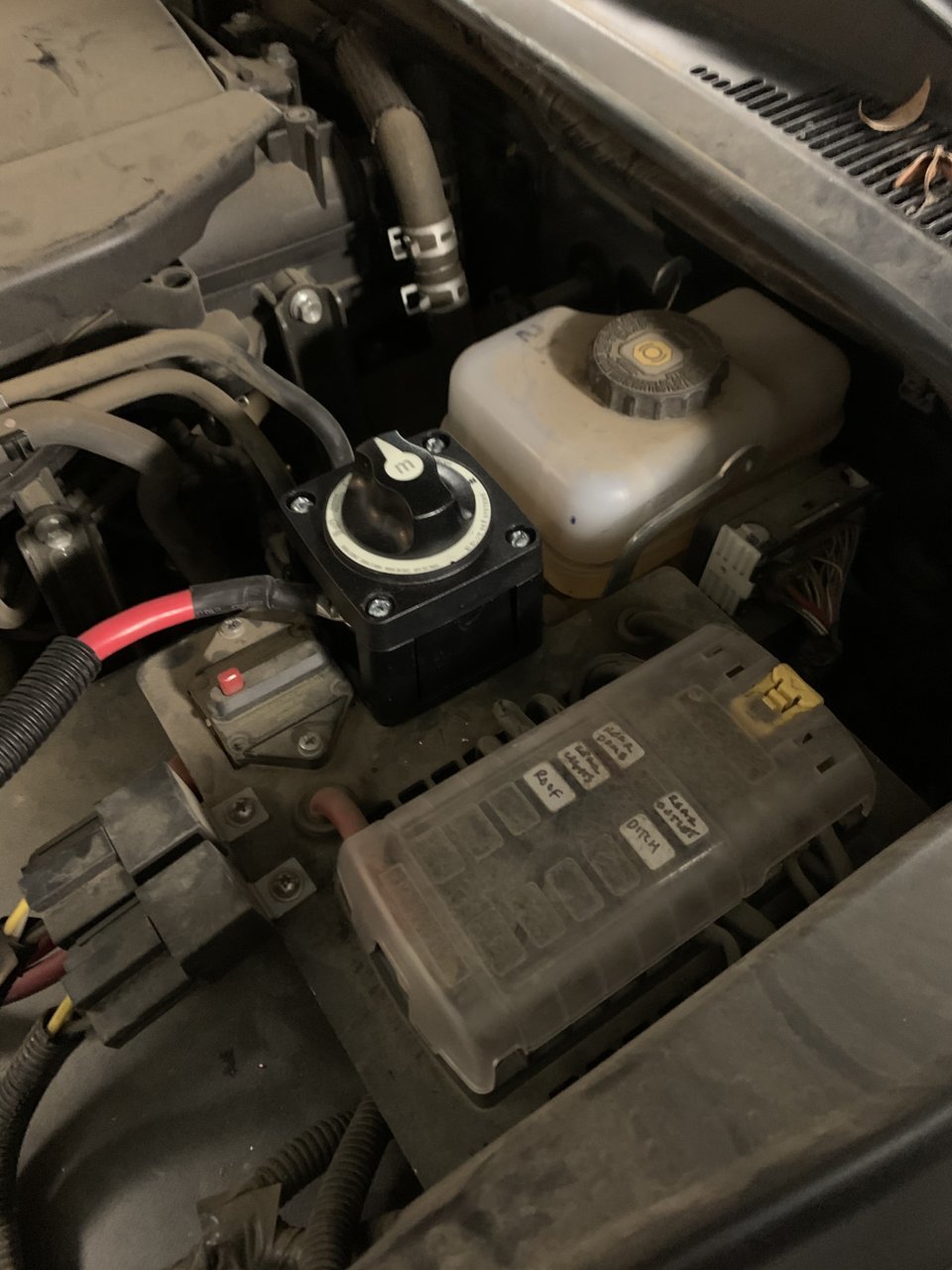

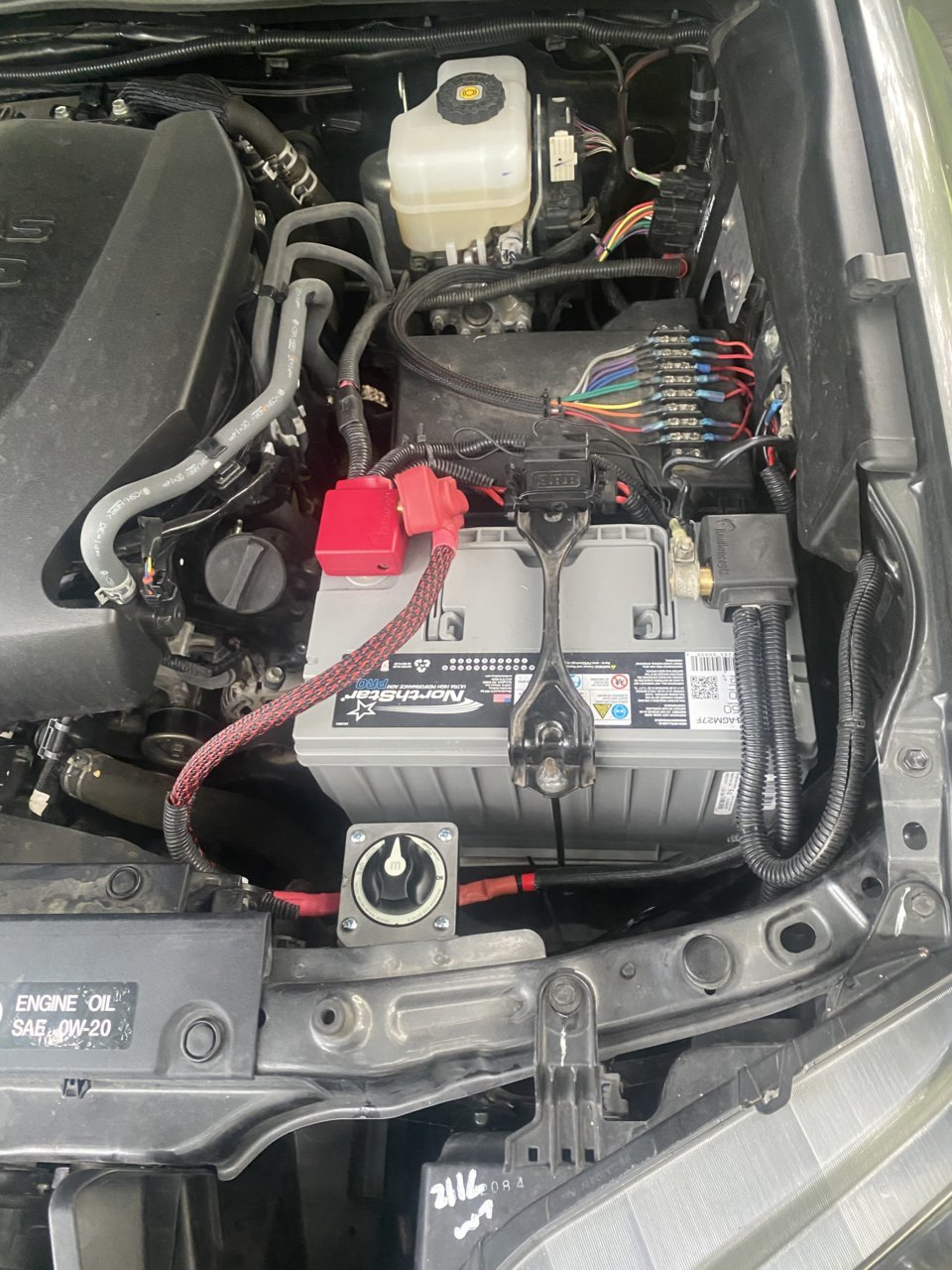

    Smittybilt winch hooked up the the blueseas 6006 kill switch. I’ve read that having the winch hooked straight to the battery wouldn’t be an issue, but found a guy on the forums that made a mount for the switch so figured some good insurance for the battery wouldn’t be dead after a month of sitting in between driving isn’t a bad idea.


    Murdoch33 and RyanDCLB like this.
  11. Aug 1, 2020 at 10:27 PM
    #91
    Murdoch33

    Murdoch33 Well-Known Member

    Joined:
    Feb 7, 2018
    Member:
    #243724
    Messages:
    785
    Gender:
    Male
    Vehicle:
    2018 Black TRD Pro
    Do you happen to have link to the switch mount? Did you have to change the terminal rings on your winch cable ?
