Nitori's OEM SR Foglight mod!

Discussion in '3rd Gen. Tacomas (2016+)' started by Nitori, Sep 17, 2016.

  1. Apr 4, 2022 at 1:29 PM
    #661
    kevin5500

    kevin5500 Member

    Joined:
    Mar 8, 2022
    Member:
    #392162
    Messages:
    15
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    2022 Tacoma SR Double Cab
    Crazy! Just finished mine: OEM LED fogs with black bezels, fog covers, OEM harness, Relay, OEM 2nd Gen switch, & switch illumination connector using Nitori’s directions for about $350. Shout out to @CaribeMakaira and @kmorgan3 for the added assistance!

    kmorgan3 likes this.
  2. Apr 4, 2022 at 1:40 PM
    #662
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,902
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    How many beers with the install?:burp:

  3. Apr 4, 2022 at 2:10 PM
    #663
    Dood86

    Dood86 Well-Known Member

    Joined:
    Dec 27, 2021
    Member:
    #385644
    Messages:
    45
    Gender:
    Male
    First Name:
    Kyle
    Everett, Washington
    Vehicle:
    21 tacoma sr long bed 2wd
    Led lights
    Waiting to hear back from the dealer for switch, harness and relay. Wanting to find someone local willing to assist.

    Last edited: Apr 4, 2022
  4. Apr 4, 2022 at 2:15 PM
    #664
    kevin5500

    kevin5500 Member

    Joined:
    Mar 8, 2022
    Member:
    #392162
    Messages:
    15
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    2022 Tacoma SR Double Cab
    Installed the lights, harness and relay one day and the switch on another day. Each took me around an hour taking my time. Installed a Start-X remote start while I had the dash apart. 2 beers for each segment and a Whiskey whilst I admired the finished product.

  5. Apr 4, 2022 at 2:19 PM
    #665
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,902
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Switch harness? Is that what they told you? Luv to know that "part" number...

  6. Apr 4, 2022 at 2:22 PM
    #666
    Dood86

    Dood86 Well-Known Member

    Joined:
    Dec 27, 2021
    Member:
    #385644
    Messages:
    45
    Gender:
    Male
    First Name:
    Kyle
    Everett, Washington
    Vehicle:
    21 tacoma sr long bed 2wd
    Led lights
  7. Apr 4, 2022 at 2:26 PM
    #667
    kevin5500

    kevin5500 Member

    Joined:
    Mar 8, 2022
    Member:
    #392162
    Messages:
    15
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    2022 Tacoma SR Double Cab
    One option: Stadium Toyota in Florida seemed to have good prices online with free shipping over $75. If you don’t get anywhere with the dealer….get the part numbers from Nitori’s post (pay attention to which method you are doing) and enter them on the Stadium Toyota website and they will send it all to you.

  8. Apr 4, 2022 at 2:27 PM
    #668
    kevin5500

    kevin5500 Member

    Joined:
    Mar 8, 2022
    Member:
    #392162
    Messages:
    15
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    2022 Tacoma SR Double Cab
    The harness goes to the fog lights not the switch.

  9. Apr 4, 2022 at 2:28 PM
    #669
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,902
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If you're waiting on the Dealer to provide the missing harness is what I meant, I'd like to know the part number. I do not think the dealer has one if your vehicle is not pre-wired.

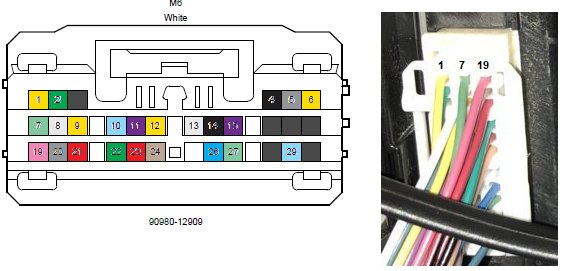

    You can verify that yourself by removing the cubby and looking at connector M6 position 26 for the blue wire.

  10. Apr 4, 2022 at 7:01 PM
    #670
    Metal Toy

    Metal Toy Well-Known Member

    Joined:
    Aug 2, 2019
    Member:
    #300963
    Messages:
    148
    Vehicle:
    2021 2.7L AC 4x4

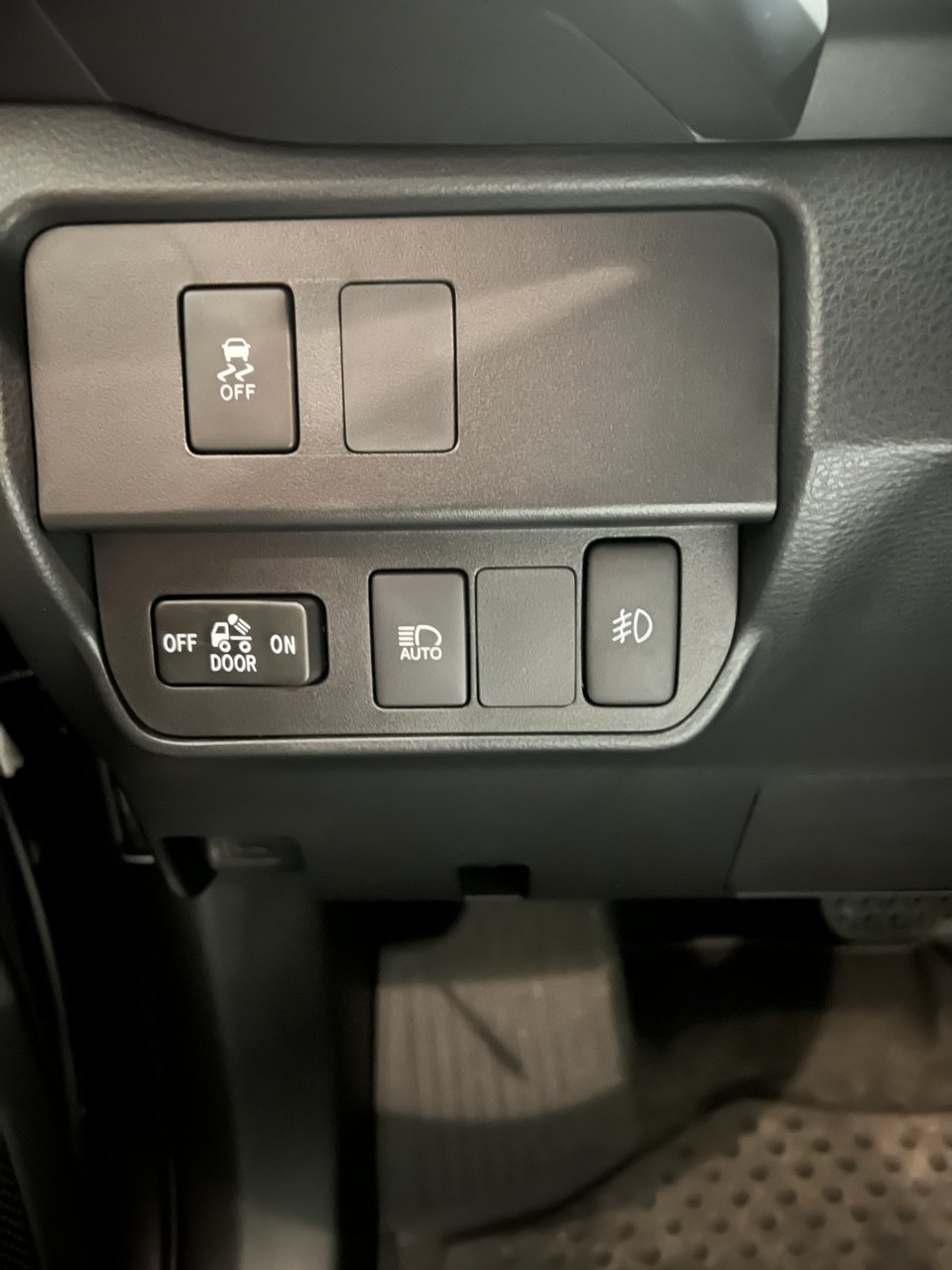

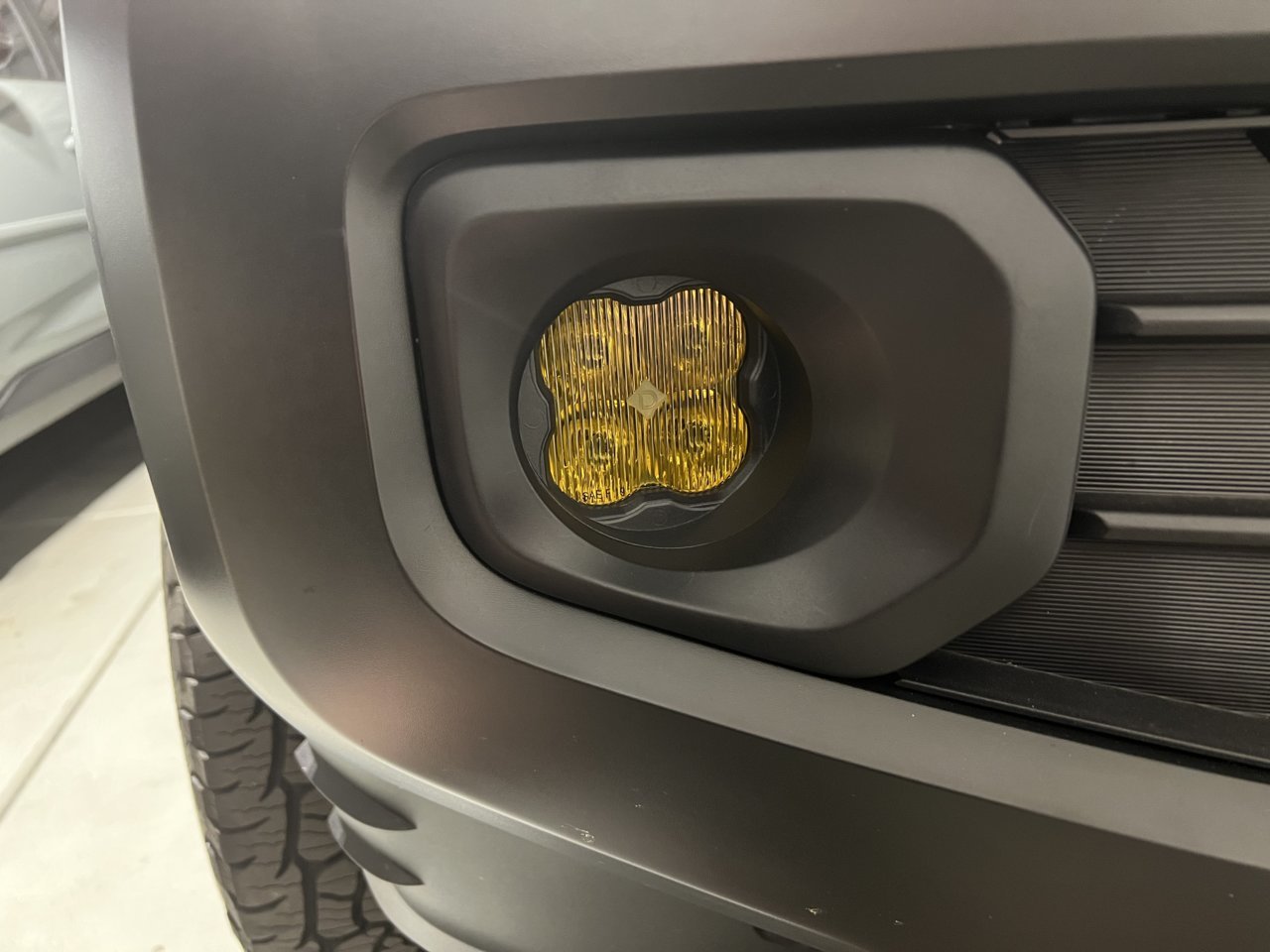

    Completed this on my 2021 4x4 SR AC. Everything worked perfectly following the instructions. I used all parts according to the write-up with a couple changes. First change, I used a custom wire harness built by @kmorgan3 instead of pulling wires from the oem wire harness for the illumination portion of the switch. Second change, I used Diode Dynamics SS3 led fogs. Couldn’t be happier with the results.

    B99BD1E7-81DB-4633-9DBD-233C6BD9C7BD.jpg 0A95B305-EE4F-4E73-AE61-829E136612F6.jpg

    I will get full front and evening pics once I get the truck out of the garage this upcoming weekend.

    erwigg and kevin5500 like this.
  11. Apr 4, 2022 at 7:11 PM
    #671
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,902
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

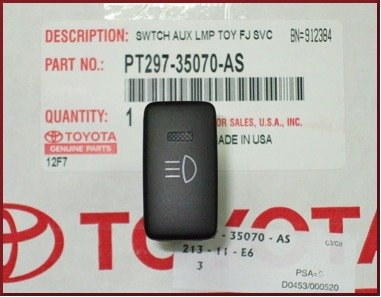

    Could've got one of these in there:

  12. Apr 4, 2022 at 7:31 PM
    #672
    Metal Toy

    Metal Toy Well-Known Member

    Joined:
    Aug 2, 2019
    Member:
    #300963
    Messages:
    148
    Vehicle:
    2021 2.7L AC 4x4
    I like the style/look of that switch. Would it be a direct replacement for the second gen switch and use the same connector?

  13. Apr 4, 2022 at 7:36 PM
    #673
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,902
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Nope, different connector and more wires. But doable.

  14. Apr 4, 2022 at 8:23 PM
    #674
    Metal Toy

    Metal Toy Well-Known Member

    Joined:
    Aug 2, 2019
    Member:
    #300963
    Messages:
    148
    Vehicle:
    2021 2.7L AC 4x4
    I was hopeful it would be a quick swap since it is a Toyota switch. Do you by chance have access to the pin connection diagram for the switch? Thanks sir!

  15. Apr 4, 2022 at 8:58 PM
    #675
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,902
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

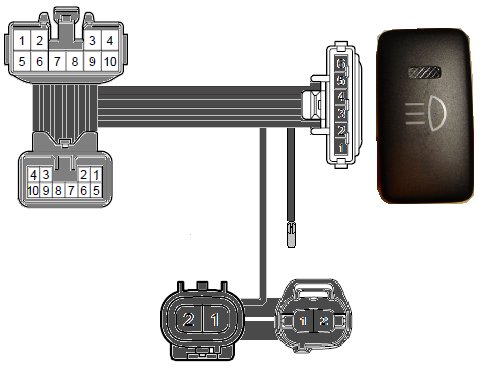

    I'm working with @daveeasa for a plug - play on that switch.

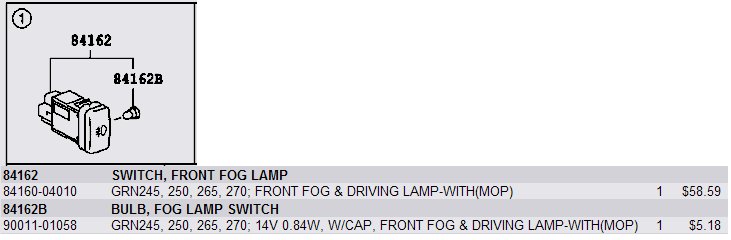

    Edit:

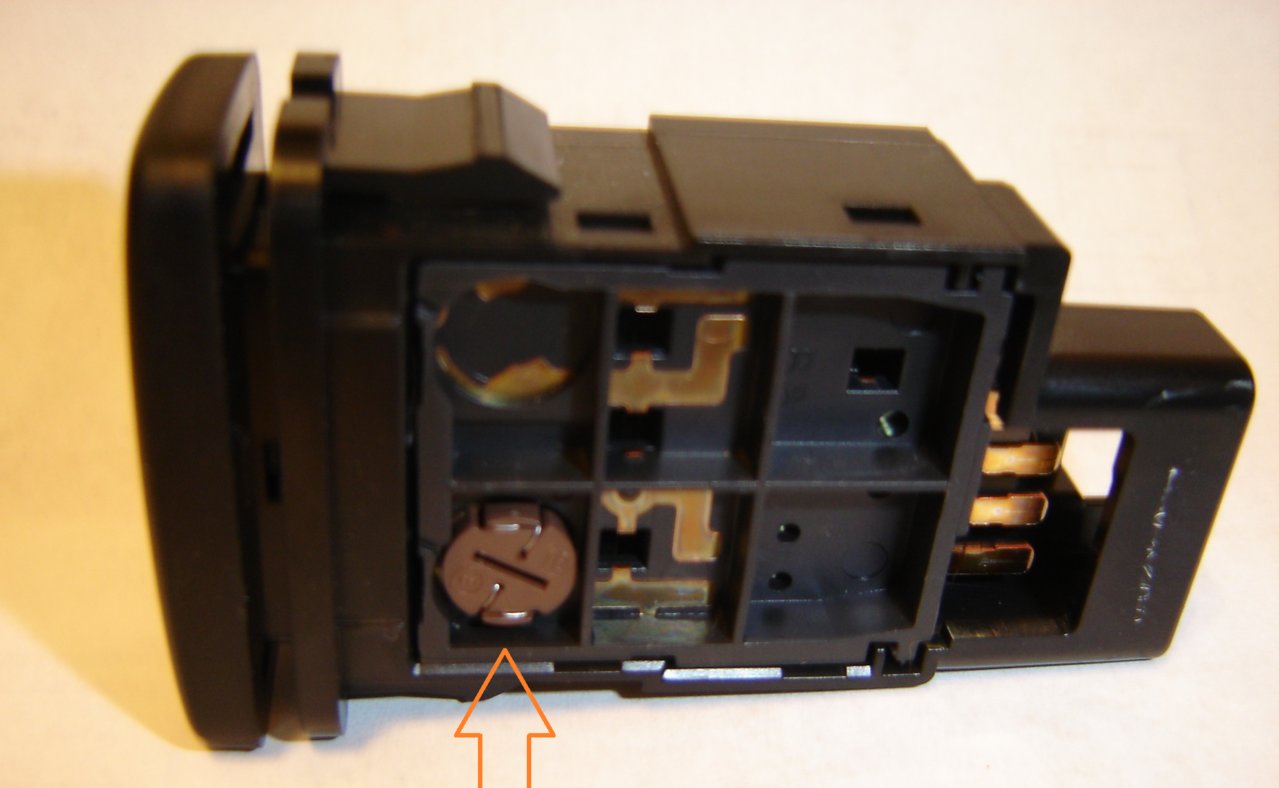

    For unwired Taco's. Switch bulbs (x2) would require a change to blue.

    Last edited: Apr 10, 2022
    Metal Toy and docjake like this.
  16. Apr 8, 2022 at 8:19 PM
    #676
    kevin5500

    kevin5500 Member

    Joined:
    Mar 8, 2022
    Member:
    #392162
    Messages:
    15
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    2022 Tacoma SR Double Cab
    Any tips on making the 2nd Gen fog switch light match the other lights on my 2022 dash? Thanks!

  17. Apr 8, 2022 at 8:21 PM
    #677
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,902
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Purchase a replacement switch bulb (blue) and swap it out.

    Scotfree likes this.
  18. Apr 8, 2022 at 8:25 PM
    #678
    kevin5500

    kevin5500 Member

    Joined:
    Mar 8, 2022
    Member:
    #392162
    Messages:
    15
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    2022 Tacoma SR Double Cab
    Thanks Caribe! Do you happen to know the part number for that or where I could purchase one? If not I’ll do more research. Thanks again!

  19. Apr 8, 2022 at 8:43 PM
    #679
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,902
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I don't know the part# for the blue...

    Last edited: Apr 8, 2022
    kevin5500 likes this.
  20. Apr 12, 2022 at 7:16 AM
    #680
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,902
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

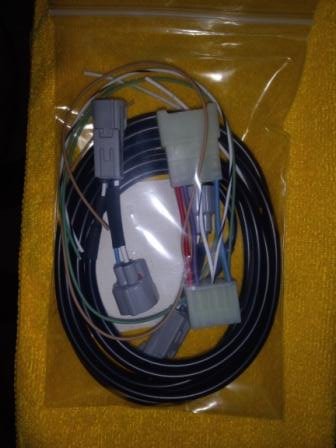

    Courtesy of Dave @daveeasa
