Nitori's OEM SR Foglight mod!

Discussion in '3rd Gen. Tacomas (2016+)' started by Nitori, Sep 17, 2016.

  1. Jun 2, 2022 at 7:39 PM
    #701
    chazmen

    chazmen Well-Known Member

    Joined:
    Dec 13, 2021
    Member:
    #384582
    Messages:
    101
    Gender:
    Male
    First Name:
    charlie
    Any potential issues with installing Diode Dynamics SS3 with just their basic Light duty 2 pin wire harness?

  2. Jun 24, 2022 at 5:20 AM
    #702
    cuser414

    cuser414 Active Member

    Joined:
    Aug 7, 2021
    Member:
    #373488
    Messages:
    38
    Vehicle:
    2021 tacoma SR5

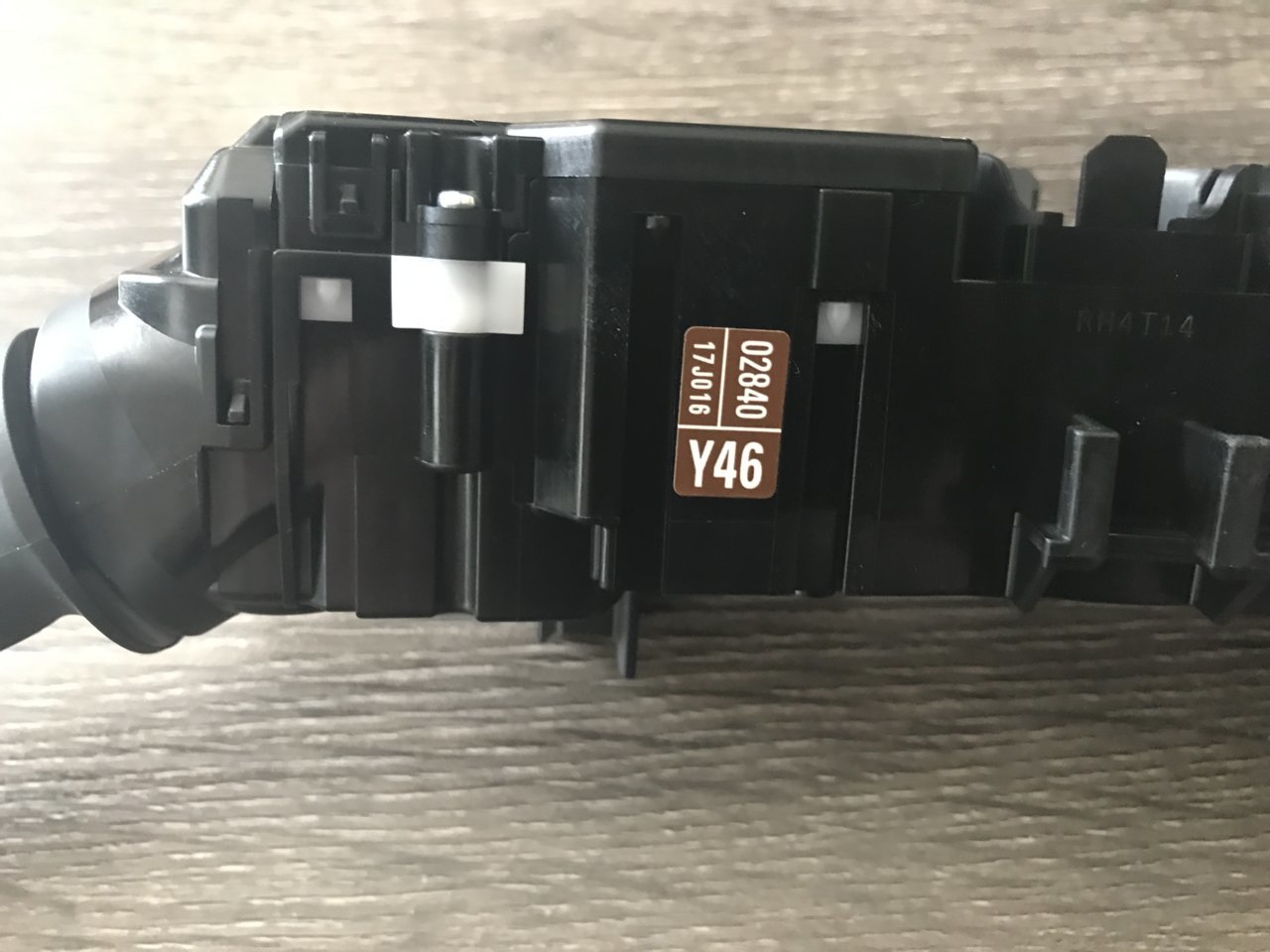

    Did Toyota change part numbers for the Turn signal stalk switch on the 2022? I pulled the one installed in my 2022 and it shows part number 0284017J016. I replaced with 84140-0R010 and everything seems to work as it should though.


  3. Jul 4, 2022 at 8:43 AM
    #703
    dan3213

    dan3213 New Member

    Joined:
    Jul 3, 2022
    Member:
    #400617
    Messages:
    2
    Gender:
    Male
    Would like to do this mod on my 22 SR. Anyone who has done this recently, can you share which Fog lights (part #) you went with? The part number in the OP is no longer carried by a lot of dealers, and those that still have it, it cost like $150+ per side. I'm fine with non-led fogs, just not sure which ones to buy. Thanks!

  4. Jul 4, 2022 at 10:42 AM
    #704
    dan3213

    dan3213 New Member

    Joined:
    Jul 3, 2022
    Member:
    #400617
    Messages:
    2
    Gender:
    Male
    I've came across part # PT85742192 & PT85742193. But those appear to be LED Fogs. Not sure if they'd work on my '22 SR, or how it would look; LED Fog lights with Halogen Headlights.

  5. Jul 5, 2022 at 9:15 AM
    #705
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    5,395
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Depends on the color temperature.

  6. Aug 5, 2022 at 11:06 AM
    #706
    tacomadre44

    tacomadre44 Member

    Joined:
    Aug 5, 2022
    Member:
    #402920
    Messages:
    5
    Gender:
    Male
    First Name:
    Bobby
    Vehicle:
    2022 White 4x4 Trail Edition
    Does anyone know which and where to get the fog light relay. I'm doing this install on my 22 Trail Edition that didn't come with fog lights.

  7. Aug 5, 2022 at 11:13 AM
    #707
    chazmen

    chazmen Well-Known Member

    Joined:
    Dec 13, 2021
    Member:
    #384582
    Messages:
    101
    Gender:
    Male
    First Name:
    charlie

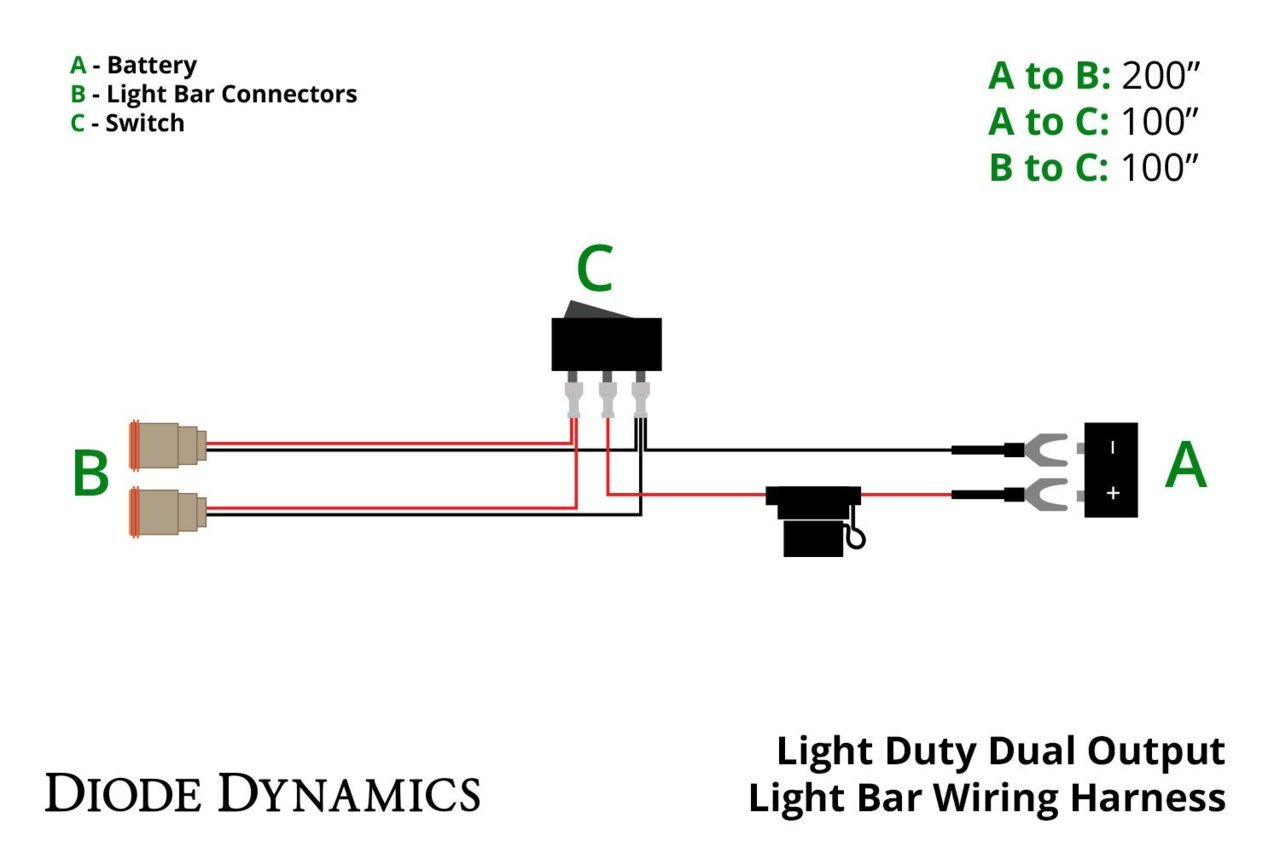

    I believe your able to install without the use of Relay if using the Diode Dynamics Light Duty Output 2-Pin Wire Harness


  8. Aug 5, 2022 at 1:13 PM
    #708
    tacomadre44

    tacomadre44 Member

    Joined:
    Aug 5, 2022
    Member:
    #402920
    Messages:
    5
    Gender:
    Male
    First Name:
    Bobby
    Vehicle:
    2022 White 4x4 Trail Edition
    I'm following the instruction so I bought the engine bay harness, the fog lights and a oem fog light switch. I just need the relay. The factory one is $75 and autozone nor O'Reilly has it. Does the 2020 or 2021 relay fit?

    If I do the Dynamics Light Duty Output 2-Pin Wire Harness will I still need the engine bay harness?

  9. Aug 5, 2022 at 1:35 PM
    #709
    davidstacoma

    davidstacoma Friendly Curmudgeon

    Joined:
    Nov 2, 2019
    Member:
    #309695
    Messages:
    3,643
    Gender:
    Male
    First Name:
    David
    NC
    Vehicle:
    2019 Tacoma SR Access cab - Utility
    *OEM Mods: Intermittent wipers, Fogs, Keyless Entry, Lomax
    A standard A/C relay for Toyota will work, I got mine from Amazon. The one I bought is no longer there but these list the OEM relay part number on post#1.
    https://www.amazon.com/Pack-Relay-9...=&hvlocphy=9009906&hvtargid=pla-1325432283761

    If you’re doing the post1 Nitori mod, the fog light symbol on your display will function as it should. If you’re doing a mod like posts above with a harness to the battery and switch you’re not doing the Nitori mod and the symbol on the dash display won’t illuminate when your fog lights are on.

  10. Aug 5, 2022 at 4:18 PM
    #710
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,963
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  11. Aug 5, 2022 at 6:55 PM
    #711
    tacomadre44

    tacomadre44 Member

    Joined:
    Aug 5, 2022
    Member:
    #402920
    Messages:
    5
    Gender:
    Male
    First Name:
    Bobby
    Vehicle:
    2022 White 4x4 Trail Edition

    Thank you.

  12. Aug 5, 2022 at 6:58 PM
    #712
    tacomadre44

    tacomadre44 Member

    Joined:
    Aug 5, 2022
    Member:
    #402920
    Messages:
    5
    Gender:
    Male
    First Name:
    Bobby
    Vehicle:
    2022 White 4x4 Trail Edition
  13. Aug 9, 2022 at 1:16 PM
    #713
    tcorriveau

    tcorriveau New Member

    Joined:
    Tuesday
    Member:
    #403177
    Messages:
    1
    Gender:
    Male
    First Name:
    Travis
    Vehicle:
    Barcelona Red 2022 Tacoma SR
    Remote start
    Mine came with the relay installed, but no fog lights.

    pinktaco808 likes this.
  14. Aug 10, 2022 at 8:18 AM
    #714
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    5,395
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Would it be possible to use an aftermarket relay also triggered by the switch to ground the wire to the computer(or one installed by me)? With no oem harness or relay the only thing the computer could do is activate the symbol on the dash. One thing I’ve noticed is the switches left of the wheel aren’t very visible.

    pinktaco808 likes this.
  15. Aug 10, 2022 at 8:50 AM
    #715
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,963
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If your Taco doesn't have the relay in the engine bay fuse/relay box, it might have the terminal to it. Have you verified if you have the interior blue wire?

  16. Aug 10, 2022 at 10:48 AM
    #716
    davidstacoma

    davidstacoma Friendly Curmudgeon

    Joined:
    Nov 2, 2019
    Member:
    #309695
    Messages:
    3,643
    Gender:
    Male
    First Name:
    David
    NC
    Vehicle:
    2019 Tacoma SR Access cab - Utility
    *OEM Mods: Intermittent wipers, Fogs, Keyless Entry, Lomax
    I’m not sure what you are asking or how you are thinking of wiring your fog lights. Doing the post 1 Nitori mod or something else? also not sure of how 2nd gen fogs are wired, perhaps Caribe has a schematic.

  17. Aug 10, 2022 at 11:14 AM
    #717
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,963
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    pinktaco808 likes this.
  18. Aug 10, 2022 at 7:41 PM
    #718
    tacomadre44

    tacomadre44 Member

    Joined:
    Aug 5, 2022
    Member:
    #402920
    Messages:
    5
    Gender:
    Male
    First Name:
    Bobby
    Vehicle:
    2022 White 4x4 Trail Edition
    Great job on these instructions!! This was started 6yrs ago by Nitori and it helped me install my fog lights. All I did was follow the instructions

    pinktaco808 likes this.
  19. Aug 10, 2022 at 8:44 PM
    #719
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    5,395
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Not prewired. No blue wire, no relay, and no harness. So I installed a set of oem lights hooked up to a Bussman rtmr and an aftermarket switch. The second relay would ground an added wire that takes the place of the blue wire only coming from the second relay instead of the lighting stalk.

    pinktaco808 likes this.
  20. Aug 10, 2022 at 8:59 PM
    #720
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    5,395
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Just the base model 5-lug ‘14 AC. It came prewired for the rear camera and had power mirrors, windows and door locks but nothing else. I’ve added heated seats, fogs, heated mirrors, F/R anytime cameras, on the fly air bags, oba, and a few other fixed odds/sods.
