No head/tail lights or turn signals, squirrel chewed ground at J4

Discussion in '2nd Gen. Tacomas (2005-2015)' started by farmerjj, Aug 22, 2024.

  1. Aug 22, 2024 at 7:52 PM
    #21
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,936
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Yeah. You have multiple fuses with a voltage loss.
    You can chase the dimmer issue. But you still have other issues you will eventually need to address.

  2. Aug 22, 2024 at 7:58 PM
    #22
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    Will do, thanks for all the tips, this should keep me busy. I'll report back tomorrow. My personal dome light is getting dim, time for a nap.

    I think I got 11.4ish volts with a multimeter from DIM slots 1 to 4 and 2 to 4 for high/low beams? I'll check that again in the AM, I might have slot numbers wrong, doesn't seem right if 2 is ground.

    Dm93[QUOTED] likes this.
  3. Aug 22, 2024 at 8:02 PM
    #23
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,698
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I prefer to use a test light for power and ground checks, it puts at least some load on the circuit. Voltage checks with a meter on a circuit that isn't loaded isn't a very good test.

    My White Tacoma and TnShooter like this.
  4. Aug 24, 2024 at 2:34 PM
    #24
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    Well something is very wrong here...no idea what.

    The HEAD relay #1/ground slot shows nothing (not zero, but blank screen/no light) when it is supposed to, using a test light with volt reading now. But (-) battery terminal to slot 1 shows +2.72V.

    The DIM relay #2/ground also shows nothing, until connected to (-) terminal, it shows 9.68V with high beams on, and 11V when lever pulled back for flashers.

    Also no power to DIM slots 1 and 3, but there is -12.3V at 4 and 5 no matter what I do with the headlight switch.

    AND...the HEAD 1 slot shows -6.5V from (+) battery, only with HBs on, low beams show nothing.
    HEAD also showing -12.3V from (+) to 3, and +12.3V from (-) to 5.

    The ground behind left kick panel is good, but the clip inside HEAD slot #1 does seem a bit loose?

    Last edited: Aug 24, 2024
    Dm93[QUOTED] likes this.
  5. Aug 24, 2024 at 2:57 PM
    #25
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,698
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I'll have to sit down and digest all that tonight, some of those readings may be correct but I need to look.

    farmerjj[QUOTED][OP] likes this.
  6. Aug 24, 2024 at 3:22 PM
    #26
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    Also, using the non-multimeter tester, all of the interior fuses are perfect, except for blank result on the TAIL 10A fuse.
    The multimeter's 10.4 and 9.5 from IG1no2 and 4WD fuse show as 12.3 with the fuses in,simple tester.

  7. Aug 24, 2024 at 3:45 PM
    #27
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    One other odd thing- I got blank from (-) battery to DIM slot 2/ground on all headlight switch settings, but when I turned off the ignition, the HEAD relay started clicking quickly because battery(-)/DIM#2 were still connected. But now it has stopped doing that for a while, the DIM relay when installed only buzzes sometimes too.

  8. Aug 24, 2024 at 4:03 PM
    #28
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,936
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    How in the world do you have power on pins 4 and 5 of the dimmer with the relay removed?
    -voltage just means the leads are “backwards”. Or that power is on the ground lead.

    Are you sure you are not confusing pins 1 and 3, with 4 and 5?

  9. Aug 24, 2024 at 4:12 PM
    #29
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    Pretty sure I double checked when I got it because it made no sense, I'll check again.

  10. Aug 24, 2024 at 4:33 PM
    #30
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    (+) battery does nothing connected to 1 or 3 (front/pass side), shows -12.4 to both 4 and 5 (center and driver side).
    The only reading there is from 2 is (-) battery to slot 2, high beams or flashers on, 9.7 or 11.

  11. Aug 24, 2024 at 5:14 PM
    #31
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,936
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Ok. That makes scenes.
    The headlight bulbs are a path to ground.
    So that would be correct.

    You need to check 1 and 3 going off the battery (-) Negative.
    Key On, Headlights On

  12. Aug 24, 2024 at 5:50 PM
    #32
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    Yep, that shows 100% blank, no power.

  13. Aug 24, 2024 at 6:06 PM
    #33
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    It's testing backwards, there's 9.7V or 11V from (-) battery to pin#2, and 12.4V from (+) battery to pins 4 and 5, it's coming in from 4 and 5 instead of 1 and 3.
    How can there be power coming from the headlights?
    1 and 3 are blank no matter switch settings or battery connection.

  14. Aug 24, 2024 at 6:27 PM
    #34
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,698
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Based on the readings I'm seeing this is looking like a Body ECU issue or and issue with the wires between the Body ECU and the relays.

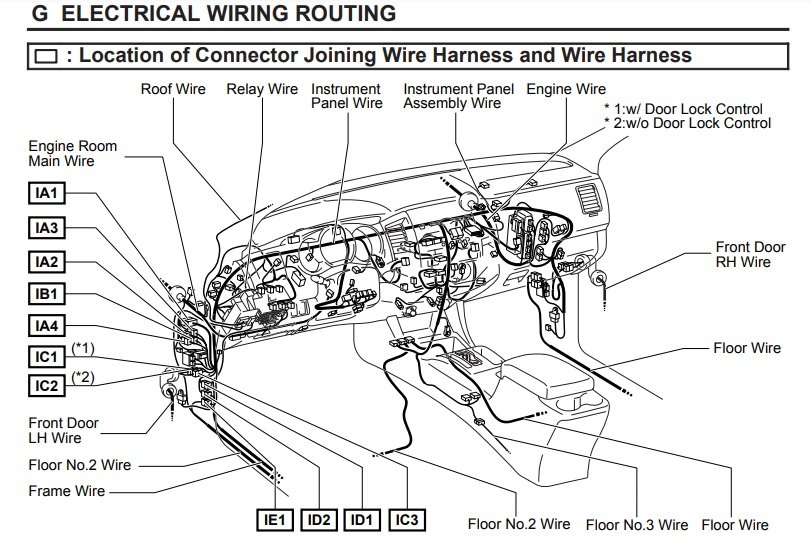

    I think we need to make the next checks at Connector IA1 above the left kick panel, Pin 29 (White) is the HEAD Relay control and Pin 30 (Yellow/Black) is the DIM Relay Control. Test light from Battery Positive backprobing those 2 wires should light up with the headlights on high beams.

    05-06 Instrument panel connector joining harness LH Side.jpg

    TnShooter likes this.
  15. Aug 24, 2024 at 7:19 PM
    #35
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    Getiing a dark probe on both of those.

  16. Aug 24, 2024 at 7:51 PM
    #36
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    The HEAD relay has correct(?) 12.3V at slots 3 and 5, but is showing 6.5V for (+) to ground slot #1 on high beams, 0V on low.
    2.7V for (-) to HEAD #1 at all times when key is on.
    9.7V for (-) to DIM #2 when high beams on.
    Why does 9.7 + 2.7 = 12.4?
    The correct amount of power is divided between 2 ground circuits where it shouldn't be?

  17. Aug 24, 2024 at 7:56 PM
    #37
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,698
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Well gona have to check things at the Body ECU.


    I think we need to check those grounds at 1H Pin 18 (White/Black) and 1L Pin 7 (White/Black).

    TnShooter likes this.
  18. Aug 25, 2024 at 4:44 PM
    #38
    farmerjj

    farmerjj [OP] Well-Known Member

    Joined:
    Aug 22, 2024
    Member:
    #455676
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2007 Tacoma 4.0L 4WD
    I cannot figure out which one is 1H.
    1L pin 7 seems fine, 12.4V.

    However I found this stripped wire? the red one next to green is maybe bad?

  19. Aug 25, 2024 at 5:21 PM
    #39
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,698
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    1H is the big connector on the backside of the box.


    That looks like an aftermarket alarm/remote start, we need to see what all thats tapped into as that could be causing our issues.

    TnShooter likes this.
  20. Aug 25, 2024 at 6:01 PM
    #40
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,936
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    When you locked your doors, did your head lights ever flash?

    I have a weird suspicion that there may be other things tapped into the circuit.
    And some aftermarket alarms use the headlights in the system.
