No-splice Trailer wiring?

Discussion in '4 Cylinder' started by Rajas, Aug 20, 2012.

  1. Aug 20, 2012 at 10:20 PM
    #1
    Rajas

    Rajas [OP] Member

    Joined:
    Oct 23, 2011
    Member:
    #65709
    Messages:
    23
    Gender:
    Male
    I am looking for a trailer hitch wiring harness that plugs into the tail lamps without splicing the wires, 2nd gen. Searched and didn't come up with anything, unless I missed something. I cannot use OEM as there is no plug in the main harness on the base model.

  2. Aug 20, 2012 at 10:32 PM
    #2
    DBurns

    DBurns Well-Known Member

    Joined:
    Jul 17, 2012
    Member:
    #82862
    Messages:
    55
    Gender:
    Male
    Texas
    Vehicle:
    2012 PreRunner SR5 Double Cab 4cyl
  3. Aug 21, 2012 at 5:31 AM
    #3
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,101
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
  4. Aug 21, 2012 at 6:23 AM
    #4
    Phil R

    Phil R Scofflaw

    Joined:
    Jul 24, 2012
    Member:
    #83337
    Messages:
    9
    Gender:
    Male
    First Name:
    Phil
    Live Oak, FL
    Vehicle:
    Base 4x4
    Hidden Hitch, WeatherTech Mats, Cargo Net

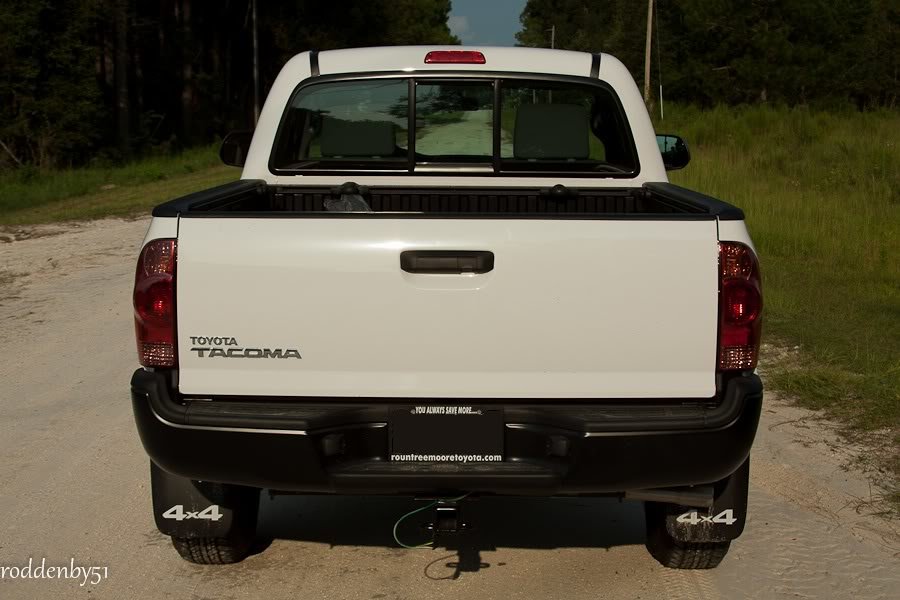

    2012 Base 4x4
    Wiring harness # 118496
    Hidden Hitch # 87581
    Both from etrailer.com

    [​IMG]

  5. Aug 22, 2012 at 8:08 PM
    #5
    Rajas

    Rajas [OP] Member

    Joined:
    Oct 23, 2011
    Member:
    #65709
    Messages:
    23
    Gender:
    Male
    Thanks for the responses. I am going to look into all of these and get one on the way!

  6. Aug 23, 2012 at 8:16 AM
    #6
    shemp

    shemp Well-Known Member

    Joined:
    Aug 23, 2012
    Member:
    #85354
    Messages:
    423
    Gender:
    Male
    All models have the plug. In fact, there are two plugs located behind the driver's kick panel, one of the two is very high up and difficult to reach.

  7. Aug 23, 2012 at 8:20 AM
    #7
    jtnyc

    jtnyc Well-Known Member

    Joined:
    Jul 27, 2012
    Member:
    #83524
    Messages:
    47
    Gender:
    Male

    Any pics of the location and what the plugs look like?

    I was looking at this kit from a different thread, but wasn't sure if my x-runner, which doesn't have a wiring harness yet, would have the plugs for them.

    http://www.amazon.com/gp/product/B004R3413I/ref=ox_sc_act_title_1?ie=UTF8&smid=A2RA9SXXTGVE9R

  8. Aug 23, 2012 at 9:42 AM
    #8
    vstrom

    vstrom Well-Known Member

    Joined:
    Dec 12, 2010
    Member:
    #47569
    Messages:
    112
    Gender:
    Male
    Hold on a sec.. so ALL tacomas are pre-wired? I have a base model 2010 Access 4x4 and I didn't see anything but I didn't really tear anything up to look. I had bought plug in type wiring harness a few years ago that seemed good, but then started to screw up all the electrics in the truck. I took it out and everything was fine.

    If my truck IS pre-wired somehow then I'll find the proper wiring this time.

    Need more info..

  9. May 21, 2013 at 8:39 AM
    #9
    jchav

    jchav Well-Known Member

    Joined:
    Nov 24, 2012
    Member:
    #91738
    Messages:
    97
    Gender:
    Male
    First Name:
    Justin
    Irving Tx
    Vehicle:
    Red 2.7L 4x4 Manual
    none yet
    Sorry to bump this old thread but does anyone have anymore info on this? I just bought a trailer hitch for my Base model reg cab 4x4 and I would like to wire it up with the factory towing harness. Is this possible or should I just look into the aftermarket products?

  10. May 22, 2013 at 6:43 AM
    #10
    Rajas

    Rajas [OP] Member

    Joined:
    Oct 23, 2011
    Member:
    #65709
    Messages:
    23
    Gender:
    Male
    There are not plugs on the base model reg cab. Usually the plug is on the harness in the left rear corner I believe. You definitely need aftermarket wiring.

  11. May 23, 2013 at 2:37 PM
    #11
    SouthernTaco

    SouthernTaco Active Member

    Joined:
    Jan 3, 2012
    Member:
    #69879
    Messages:
    42
    Gender:
    Male
    First Name:
    Scott
    Charleston, SC
    Vehicle:
    '10 PreRunner SR5 4-banger AC
    Not sure the year of your 2nd gen, but.....

    Plugs are behind the tail lamp covers on my 2010.

    I just installed the following (which is labeled for 2005-2010):

    Hopkins 4-flat wiring kit #43355
    Hopkins mounting bracket #48595

    20 minute easy install, works great.

  12. May 23, 2013 at 2:42 PM
    #12
    SouthernTaco

    SouthernTaco Active Member

    Joined:
    Jan 3, 2012
    Member:
    #69879
    Messages:
    42
    Gender:
    Male
    First Name:
    Scott
    Charleston, SC
    Vehicle:
    '10 PreRunner SR5 4-banger AC
  13. May 24, 2013 at 6:22 AM
    #13
    jchav

    jchav Well-Known Member

    Joined:
    Nov 24, 2012
    Member:
    #91738
    Messages:
    97
    Gender:
    Male
    First Name:
    Justin
    Irving Tx
    Vehicle:
    Red 2.7L 4x4 Manual
    none yet
    Thanks for the replies. I guess I will go with the aftermarket harness!
