noob help with backup camera...

Discussion in '2nd Gen. Tacomas (2005-2015)' started by xwillx93, Apr 2, 2011.

  1. Apr 2, 2011 at 4:06 PM
    #1
    xwillx93

    xwillx93 [OP] Well-Known Member

    Joined:
    Feb 13, 2010
    Member:
    #31321
    Messages:
    432
    Gender:
    Male
    First Name:
    Will
    Stuart, FL
    Vehicle:
    09 Tacoma
    MBRP "Cool Duals" dual side swept exhaust, Volant Intake, Blacked Out Tail lights, Touchscreen Kenwood DDx616 with a 10" Kicker CVR in a custom Box, 2 Kicker Comp 6" Speakers, Removed front and rear mud flaps, Weathertech Floormats, Kobalt Slim Toolbox, Chevrolet Air compressor
    I just picked up a Kenwood DDX616 and says its "back-up camera compatible" Do the Yotas come with a wiring harness for it? i have a 2009 reg cab with the camera, but how can i hook it up to my head unit? Or if theirs already a thread for this could you direct me to it? thanks guys

  2. Apr 2, 2011 at 4:11 PM
    #2
    MJonAgs32

    MJonAgs32 asphinctersayswhat?

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    9,349
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    check out my build
  3. Apr 2, 2011 at 8:42 PM
    #3
    Jerry Bear

    Jerry Bear Well-Known Member

    Joined:
    Feb 23, 2011
    Member:
    #51743
    Messages:
    144
    Gender:
    Male
    First Name:
    Jerry
    Mesquite, Texas
    Vehicle:
    2010 Access Cab
    tint, topper, receiver hitch, trailer wiring, topper lighting, cruise control, intermittent wipers, backup camera, auto-dim mirror
    This is for a 2010, but the 2009 should be the same or very close:

    You need something to convert the 12 VDC of your truck to 6 VDC and you need a shielded cable with an RCA plug on one end.

    Below and to the left of the steering wheel, there is a little hinged compartment. Open it fully, then pull it upwards and towards the rear of the truck to remove it. Now, you can see a fusebox.

    [​IMG]
    (photo borrowed from a post by DNahas: http://www.tacomaworld.com/forum/audio-video/30889-oem-camera-connection-below-dash.html Thanks, DNahas)

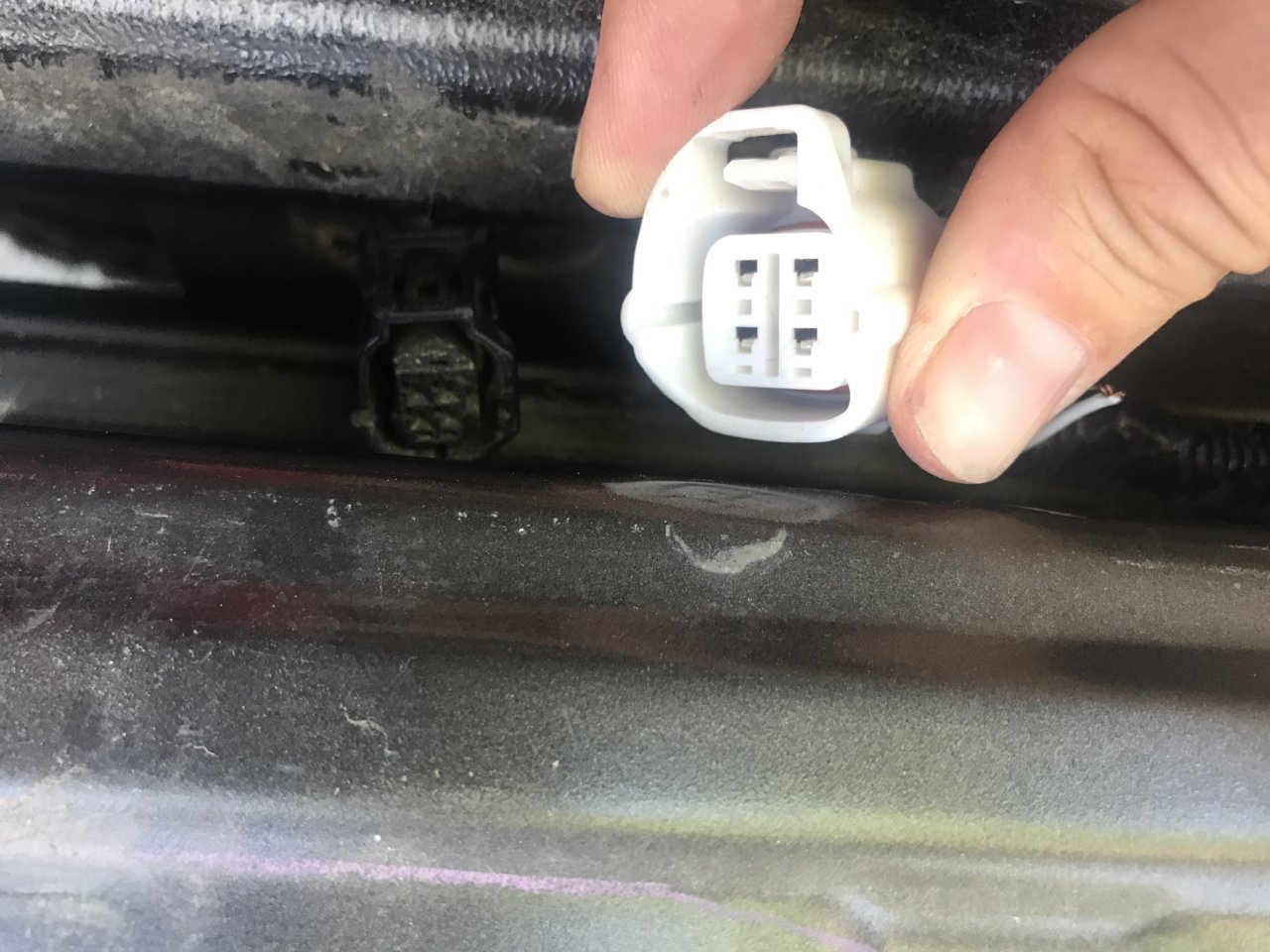

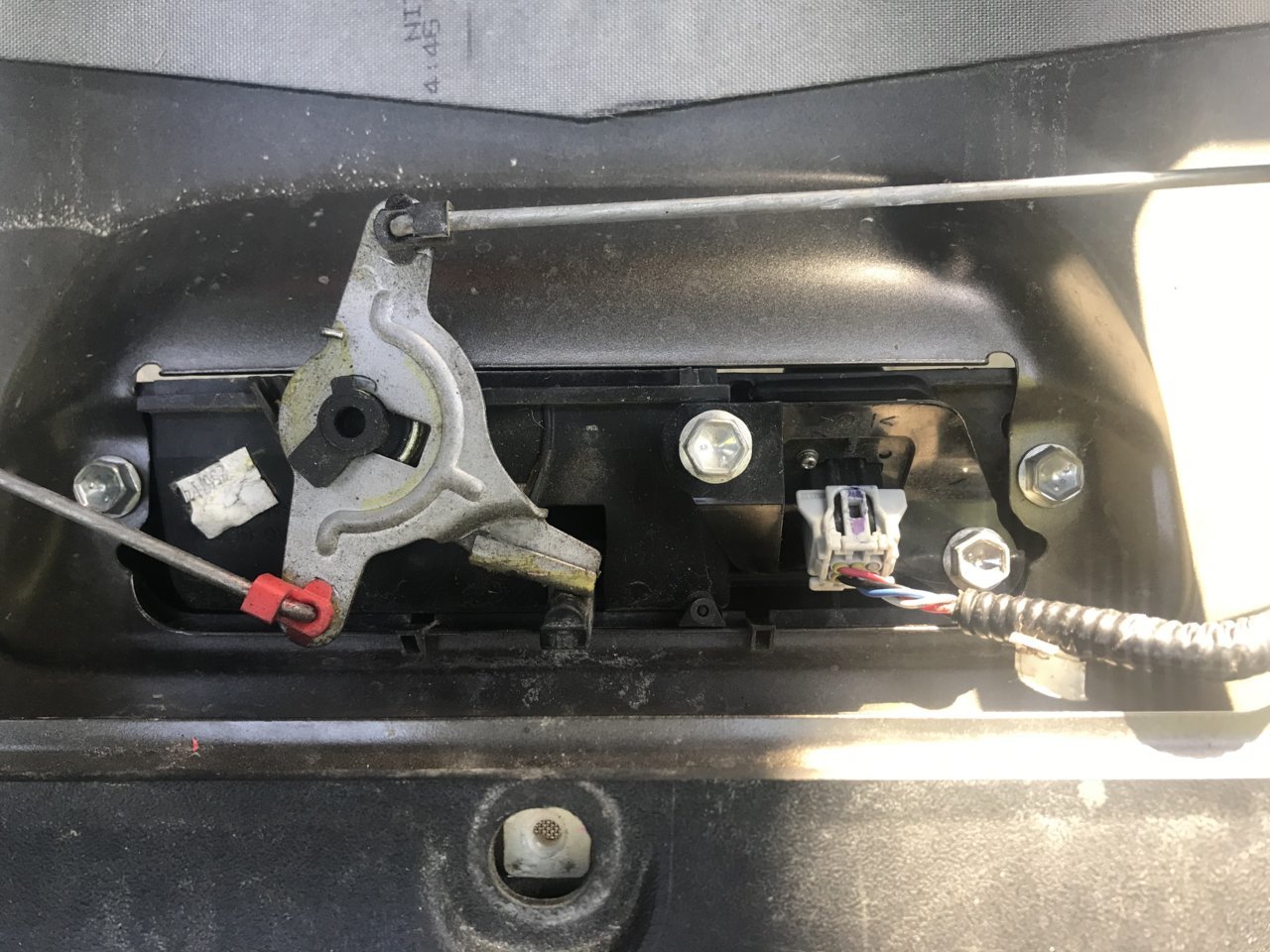

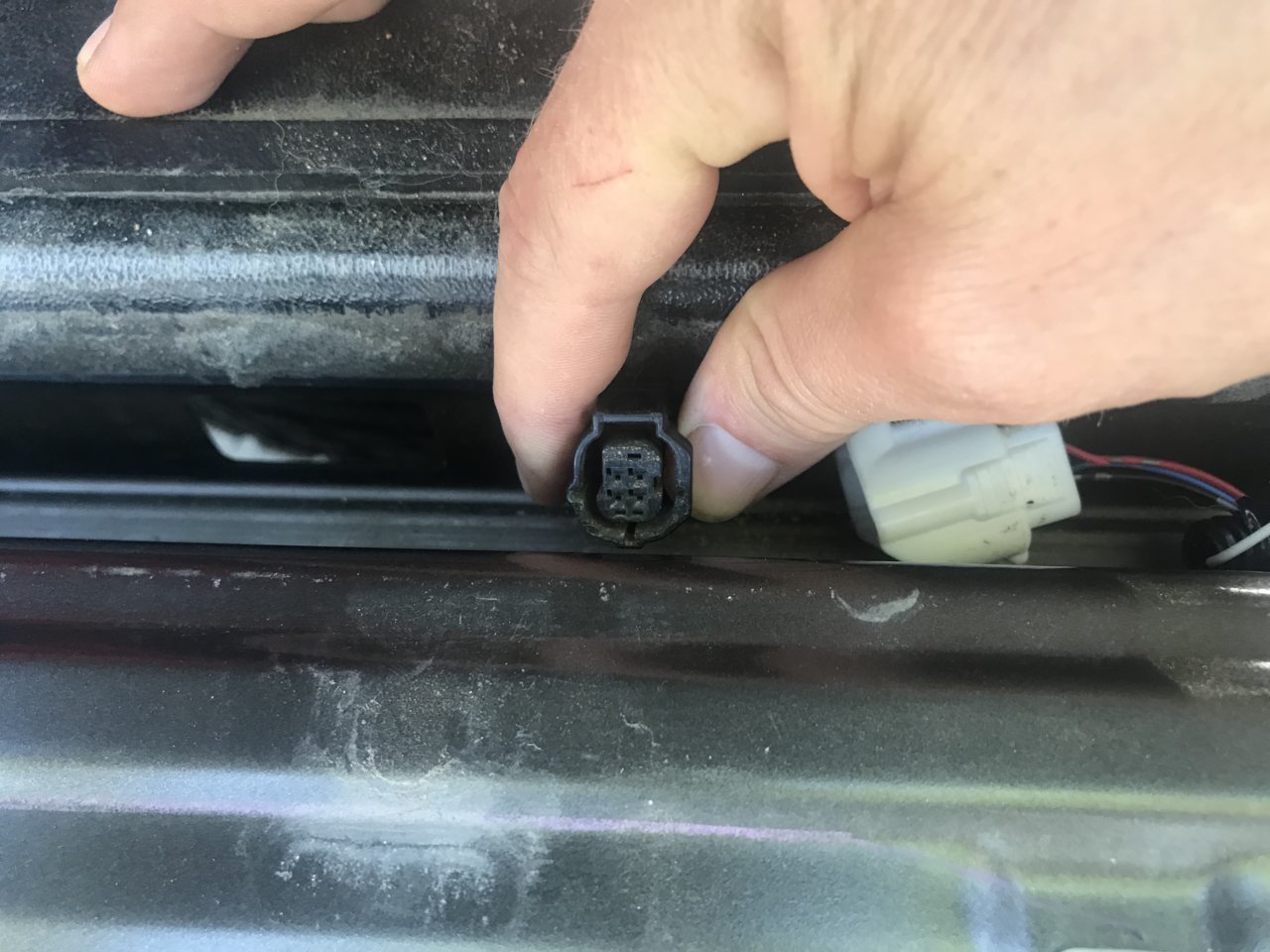

    At the upper left of the fusebox, there should be two white plug/socket assemblies. Unplug the lower one (Factory Camera connector). It should have four wires connected to it.

    The wires are:
    Black: +6 Volts DC supply to camera (connect to your 6 VDC source)
    White: Camera video output shield (connect to the shield of your RCA plug cable)
    Red: Camera video output (connect to the center of your RCA plug cable)
    Taped: 6 VDC ground (connect to your 6 VDC source)

    Your video quality will be better if you leave the Factory Camera connector unplugged. Be sure that you make your connections to the wires on the right side, not the socket on the left which is attached to the fusebox.

    Now, look at the white plug/socket assembly at the upper left of the fusebox, above the Factory Camera connector. It's numbered like this, looking at it from the right side:

    1 5
    2 6
    3 7
    4 8

    Pin 7 should have a red wire. Connect that red wire to the backup light input of your HU and the 12 VDC input of your 6 VDC source. Some trucks have another red wire, or a pink wire, on the same plug. Be sure that you connect to the right wire. The right wire should be at + 12 VDC when your backup lights are on, and 0 VDC when they are off.

    Be sure to go into the menu of your HU and turn on the backup camera.

    Good luck.

    A couple of notes:

    1. DNahas connected his video shield to the taped wire instead of the white wire. If I had been in his position, I would have done the same thing. That's the way it normally would be wired, but Toyota didn't do it the normal way. He was working without the electrical wiring diagram, so he didn't know. It worked, but the video quality will be better if you use the white wire.

    2. I've read elsewhere on this forum that the backup light wire on the upper plug is pink, not red. Maybe it is on other trucks, but on the 2010, the backup light wire on pin 7 is red.

  4. Apr 5, 2011 at 6:42 AM
    #4
    magneticgrayTRD

    magneticgrayTRD magneticgrayTRD

    Joined:
    Jun 25, 2010
    Member:
    #39433
    Messages:
    7
    Gender:
    Male
    First Name:
    Shaun
    B.G. KY
    Vehicle:
    2010 TRD Sport
    what do you use to convert 12vdc to 6vdc?? thanks!

  5. Apr 5, 2011 at 12:55 PM
    #5
    Jerry Bear

    Jerry Bear Well-Known Member

    Joined:
    Feb 23, 2011
    Member:
    #51743
    Messages:
    144
    Gender:
    Male
    First Name:
    Jerry
    Mesquite, Texas
    Vehicle:
    2010 Access Cab
    tint, topper, receiver hitch, trailer wiring, topper lighting, cruise control, intermittent wipers, backup camera, auto-dim mirror
    Here's how to build a 12 VDC to 6 VDC converter:
    http://www.toyotanation.com/forum/showthread.php?t=355342

    If I was going to build it, I would turn the 7806 around in the heat sink and use some caulk to glue the wires/pins to the heat sink. Otherwise, normal truck vibration would break off the pins.

    Also, I would put a fuse in series with the 12 VDC input. I would use the smallest value (1, 2, 3, or 5 Amp) that I could find locally.

  6. Apr 5, 2011 at 12:56 PM
    #6
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    I don't think regular cabs have the camera.
