Nudavinci's (Taco_Outlaw) 2013 DCSB Taco Build, Adventures and BS

Discussion in '2nd Gen. Builds (2005-2015)' started by nudavinci64, Jan 10, 2017.

  1. Jan 10, 2017 at 11:59 PM
    #1
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Current:

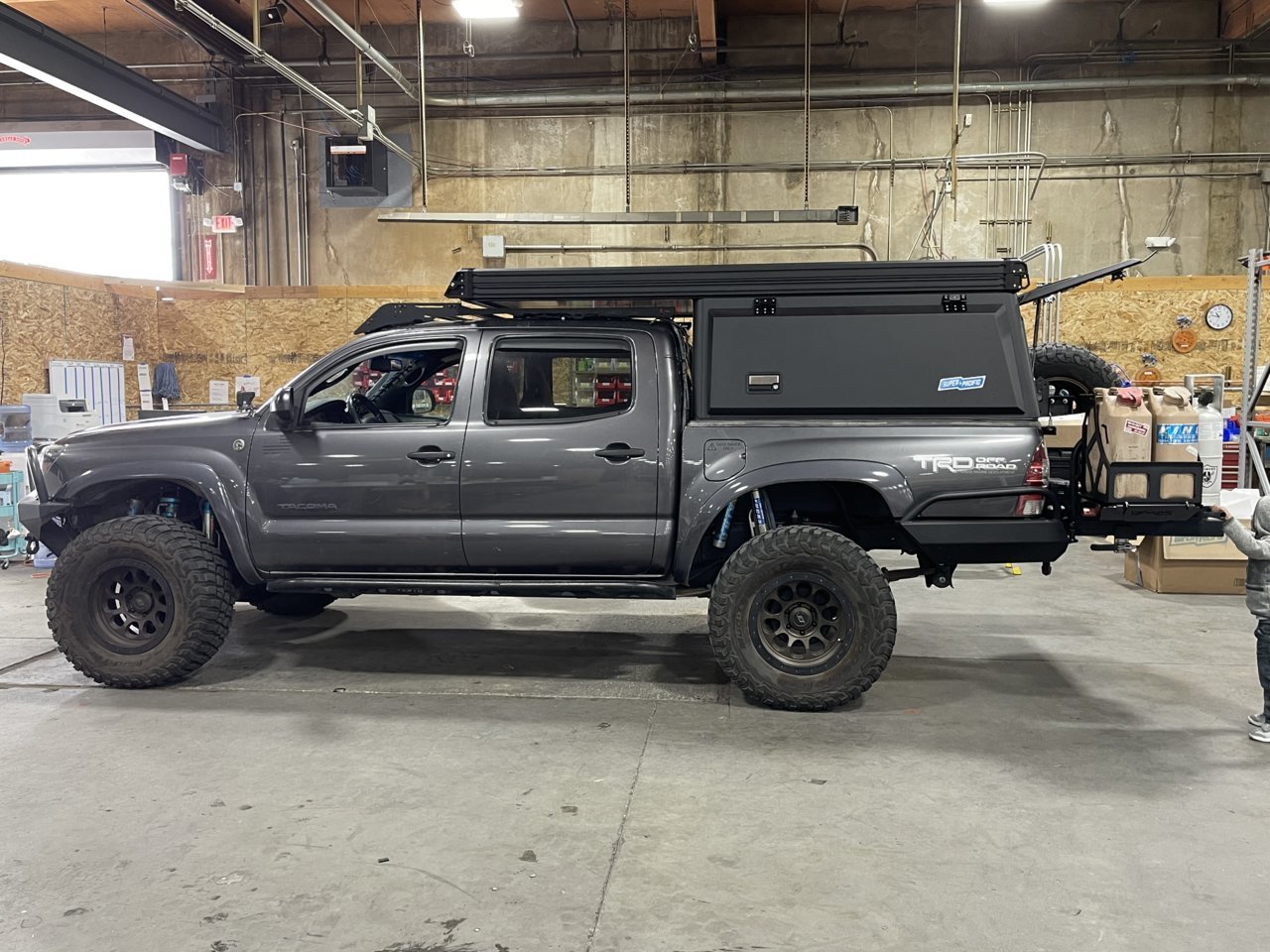

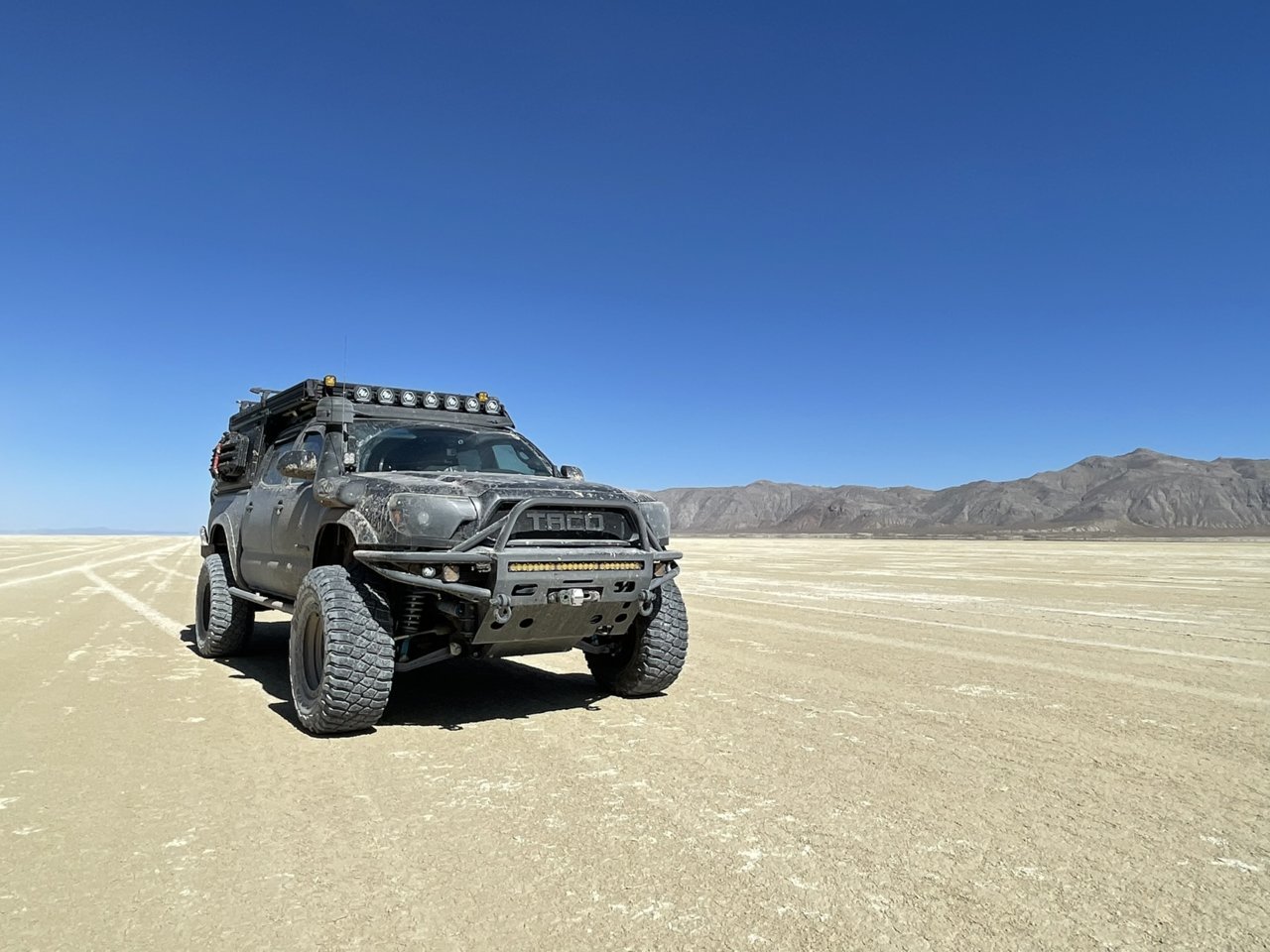

    8/8/2022

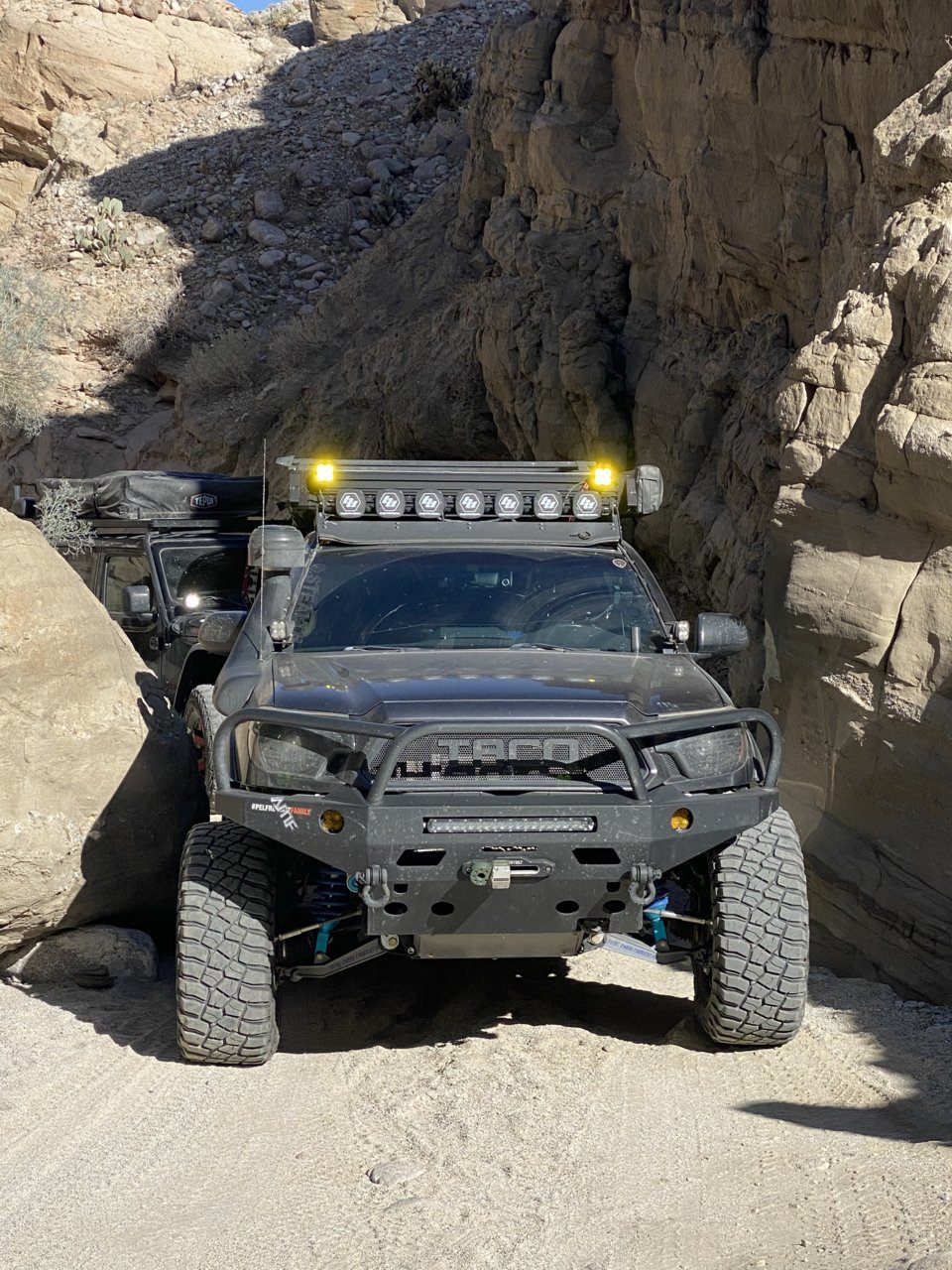

    4/11/2022

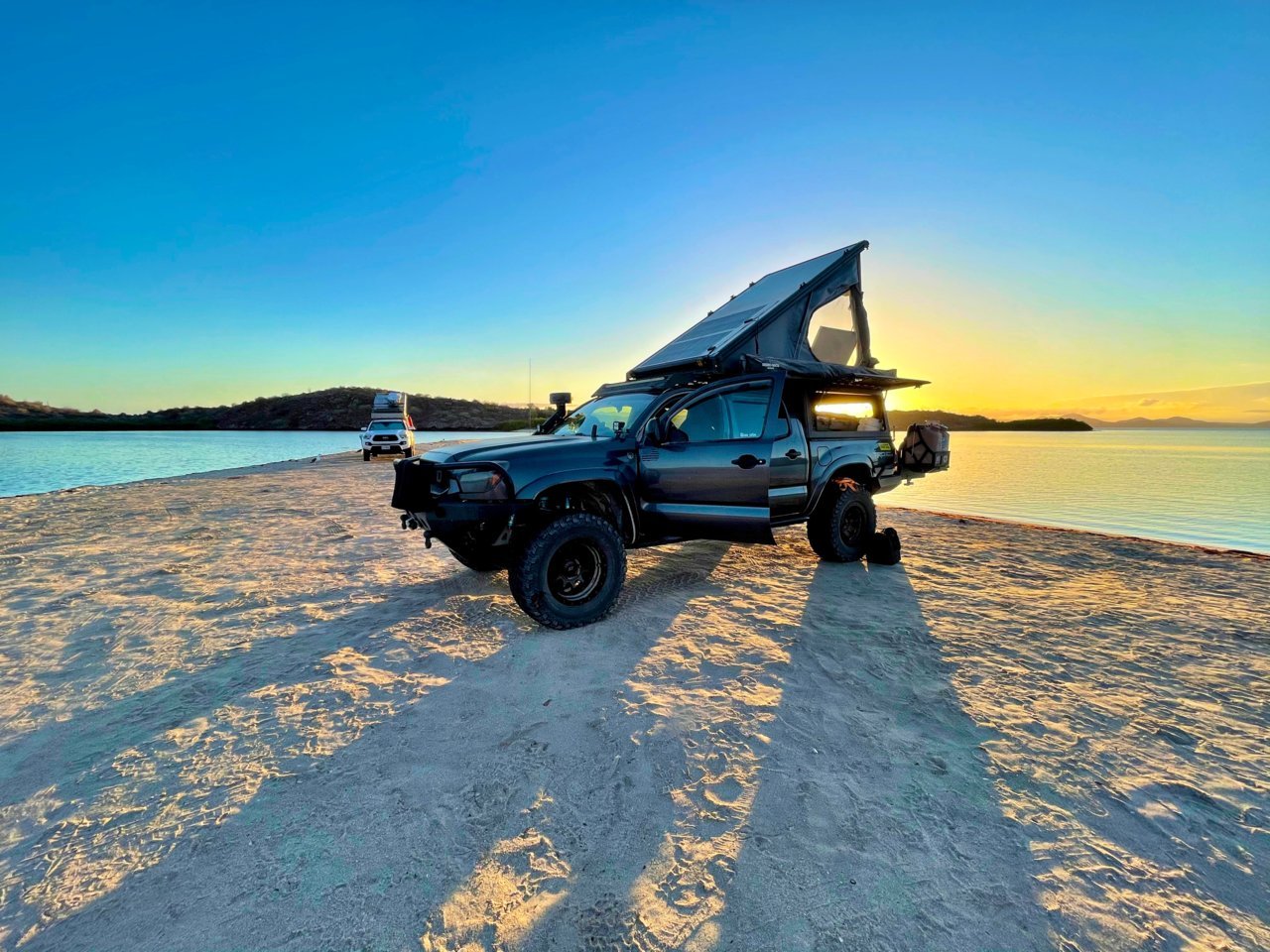

    5/2021

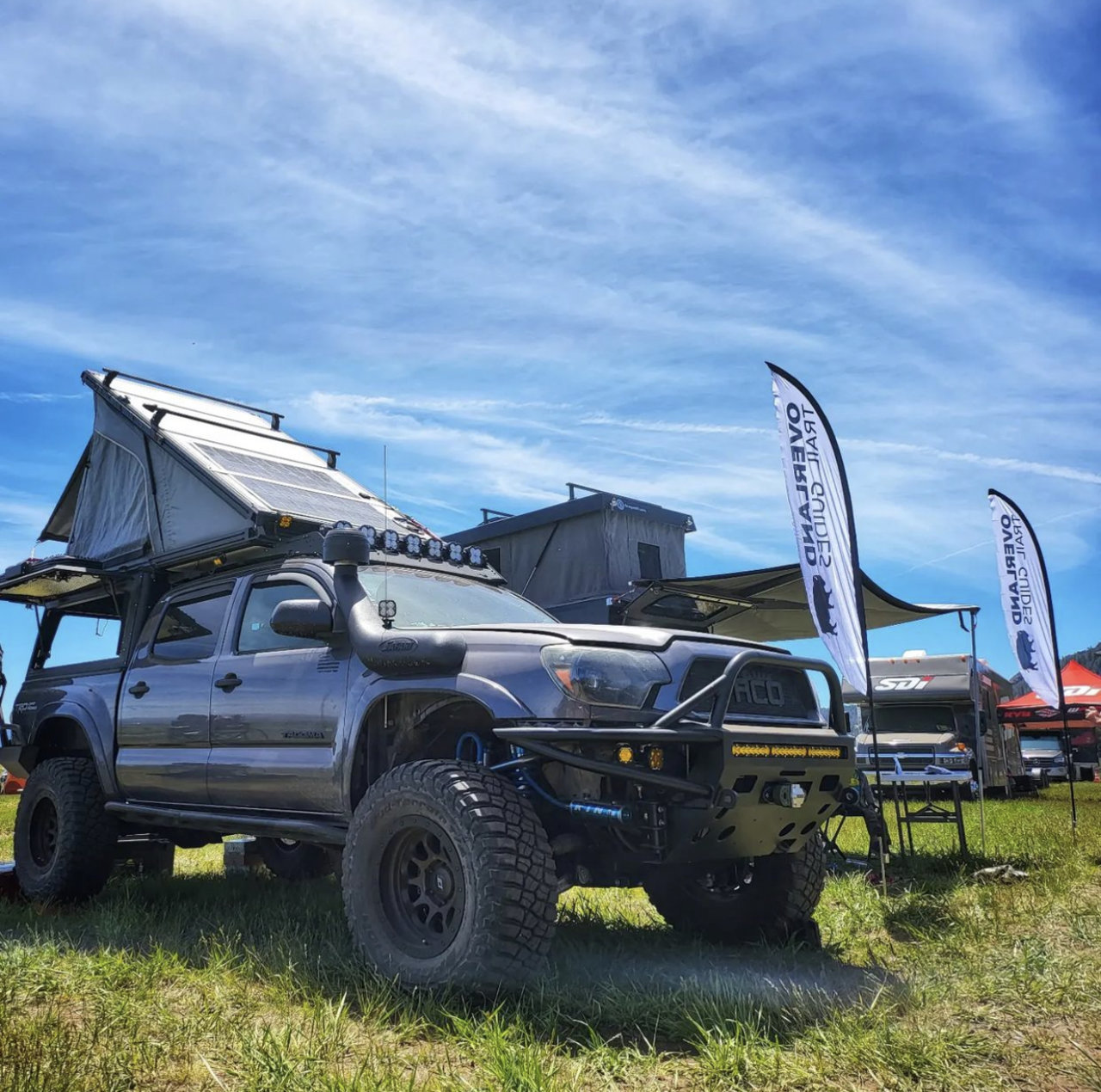

    4/23/2021

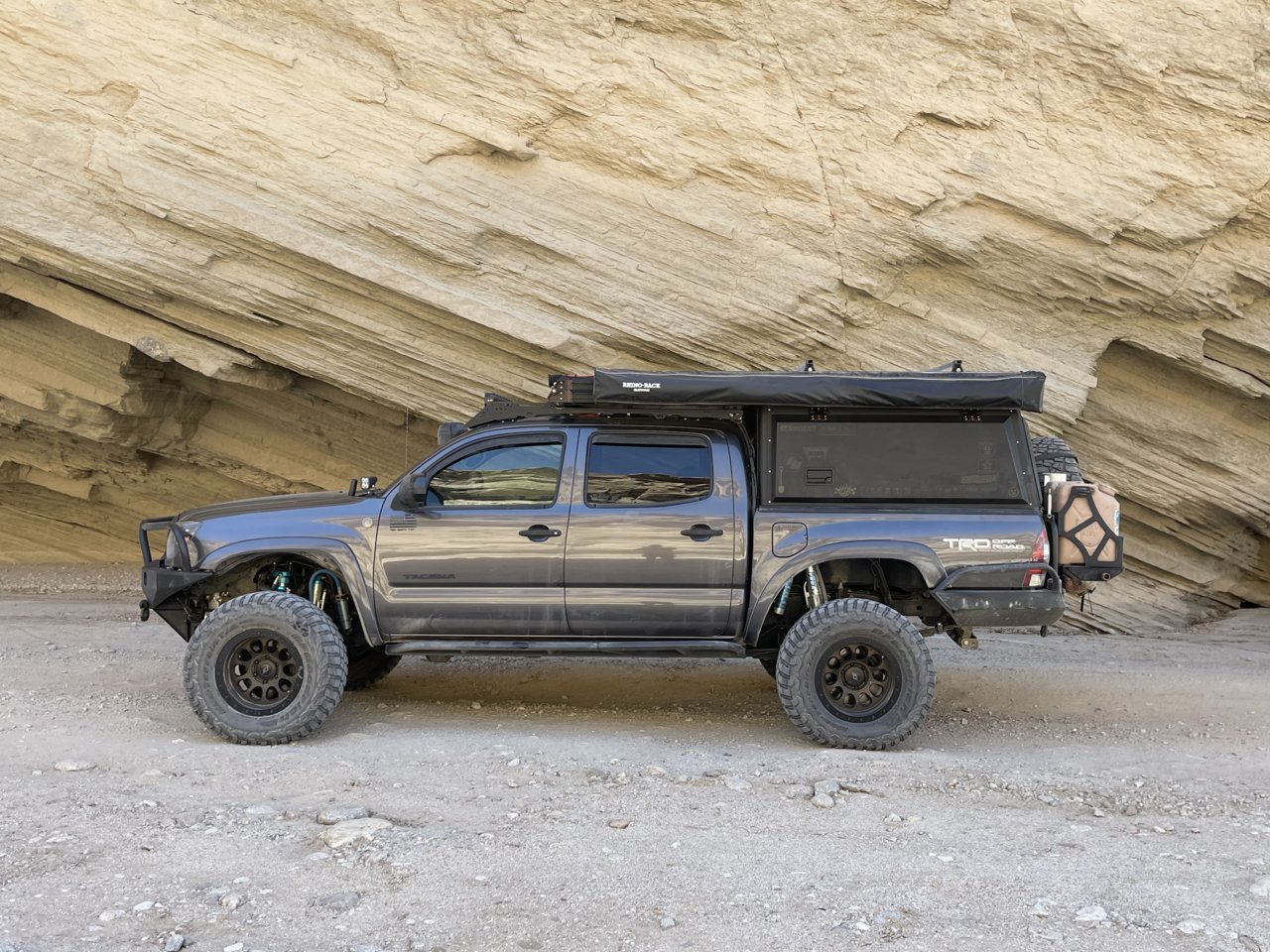

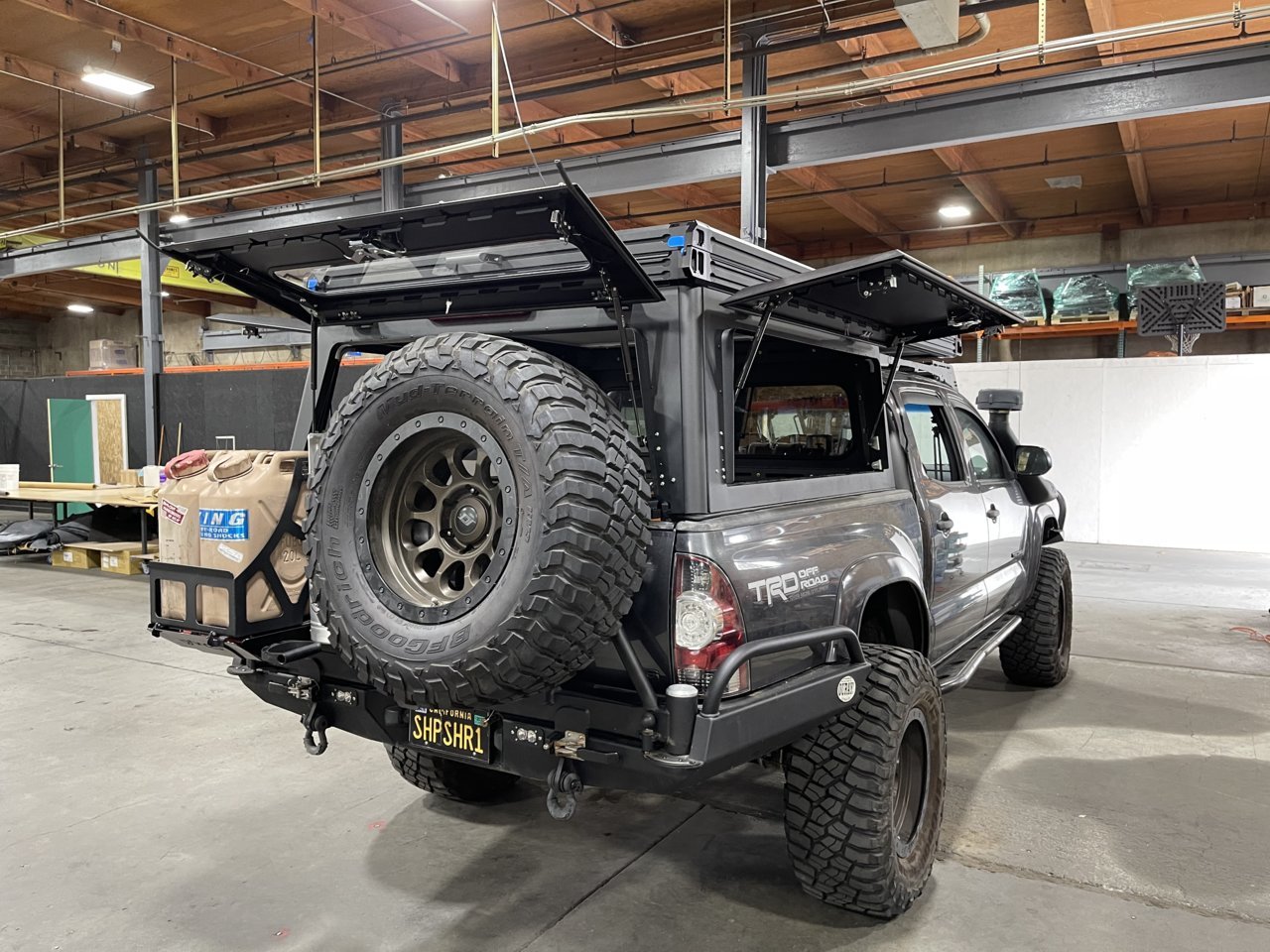

    Been through a few iterations and more to come but sitting clean with its new Super Pacific X1.


    5/11/2020
    S/C is alive and well. With so much work all done at once, there was definitely a moment of wondering if it was all going to work out. There have been issues, and I have been lead footing it around working on dialing the S/C in.



    3/29/2020

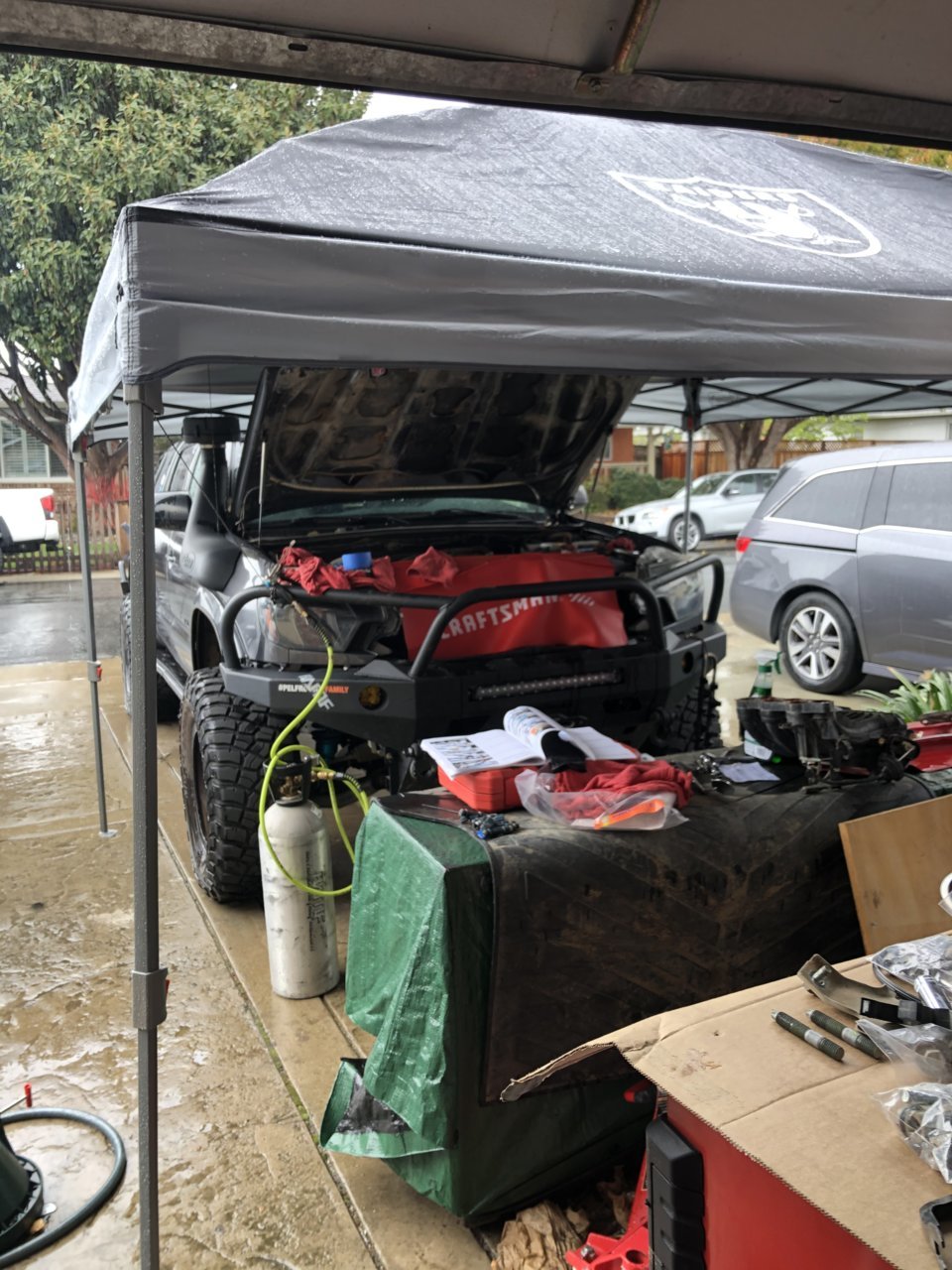

    Chipping away at SC while shelter in place is still going, and I between chasing the kid around. I swapped in the CSF radiator too. It’s soo shiny.


    3/14/2020

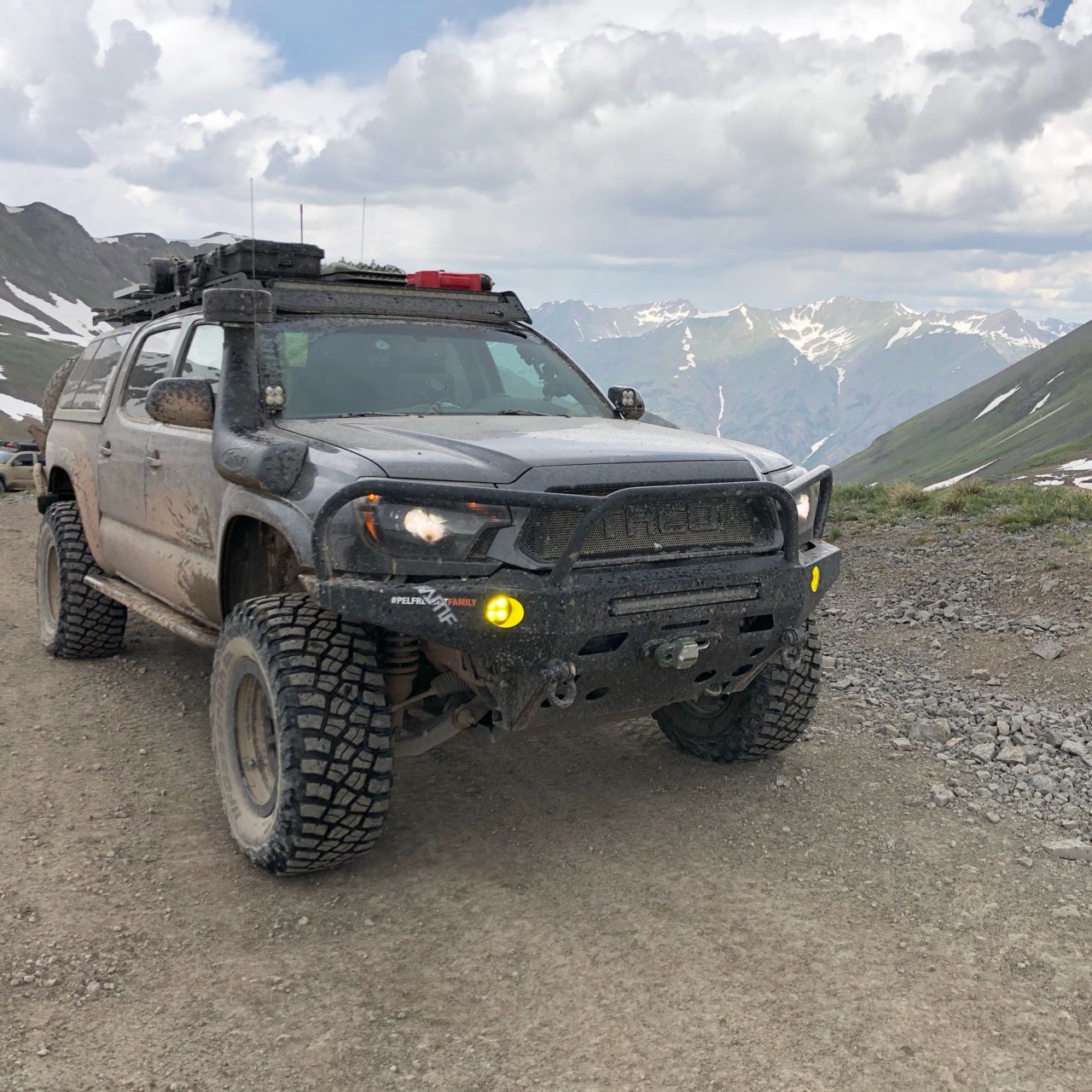

    8/1/2019

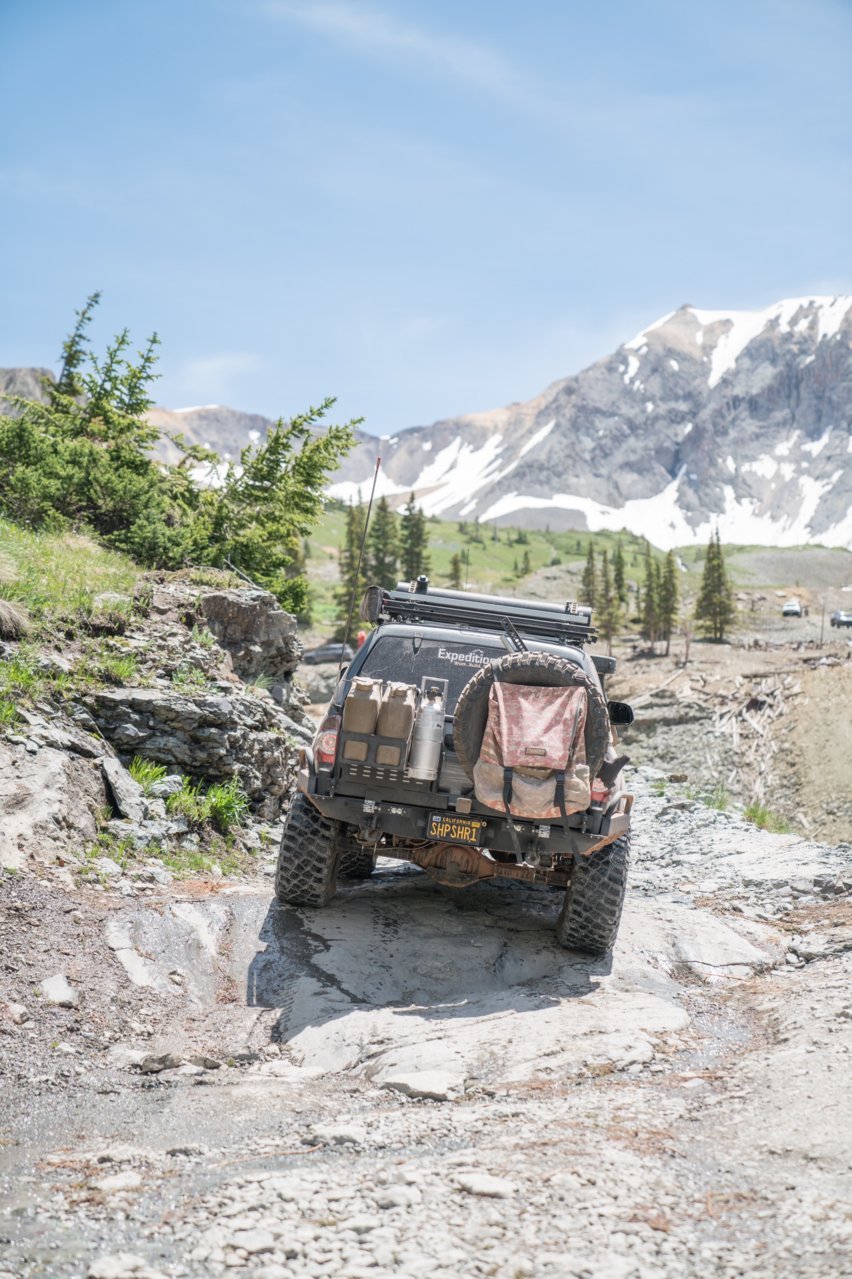

    BC93060C-96F5-464C-B732-61A92B003B15.jpg 2C0DD5D2-8C9C-4308-B396-41D9A9AACE88.jpg

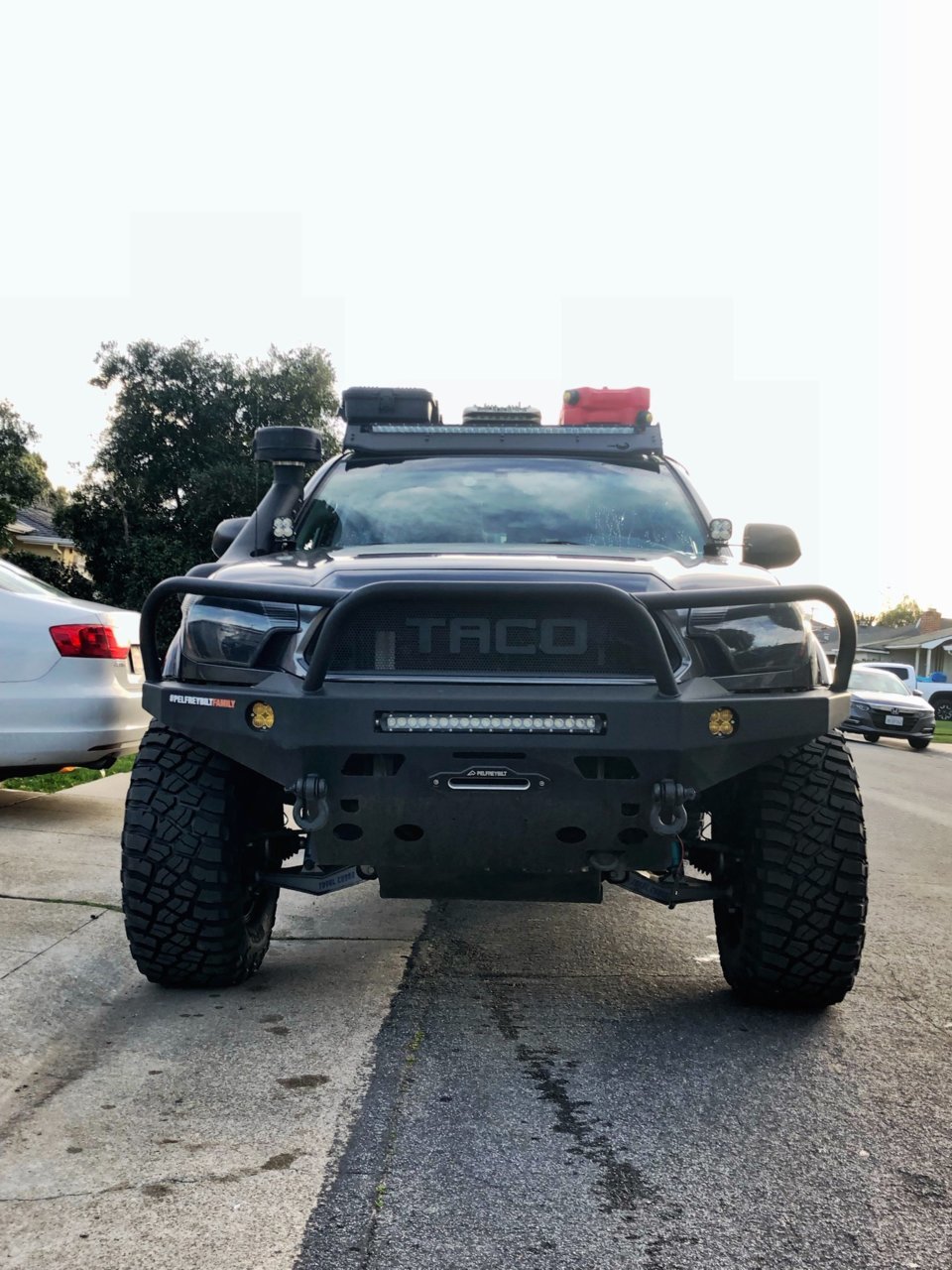

    3/29/19

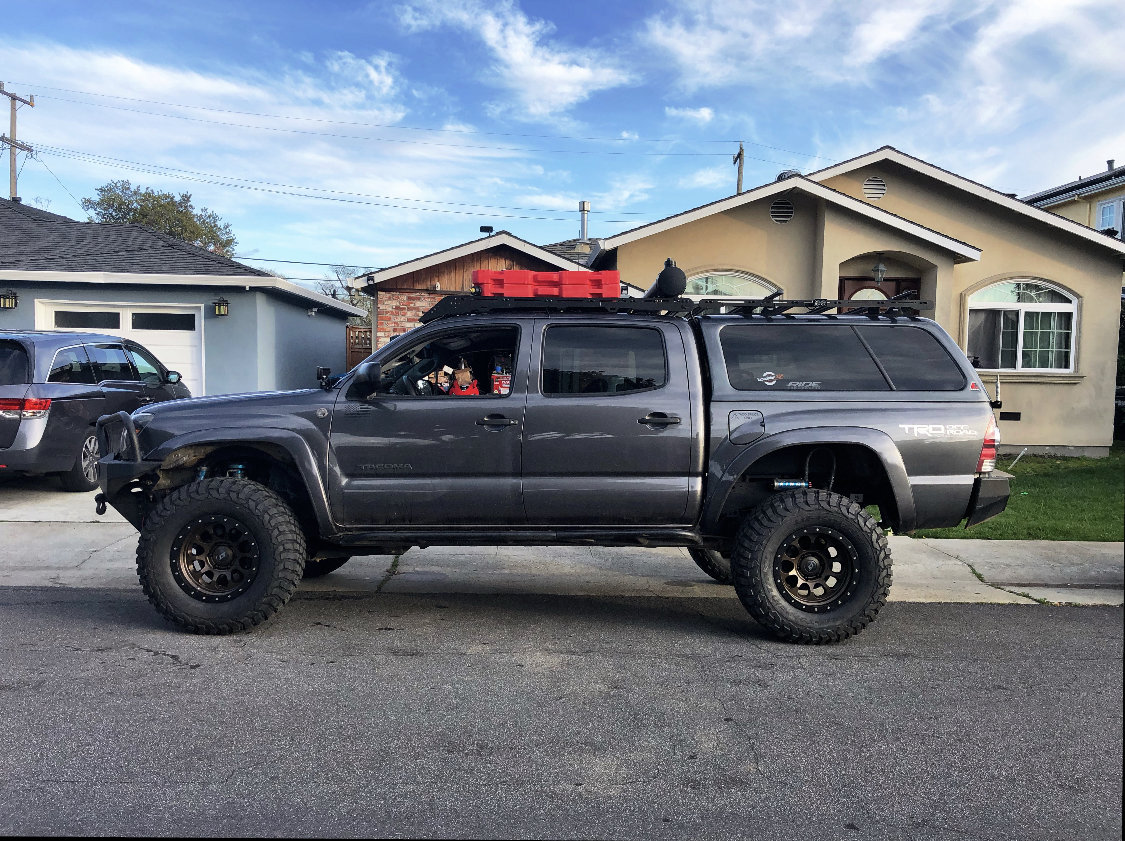

    17F59E9E-00B4-4DBE-AF1C-946924F4F56A.jpg D6BB38E9-14BC-4FB8-9AB0-E1BA633408DC.jpg

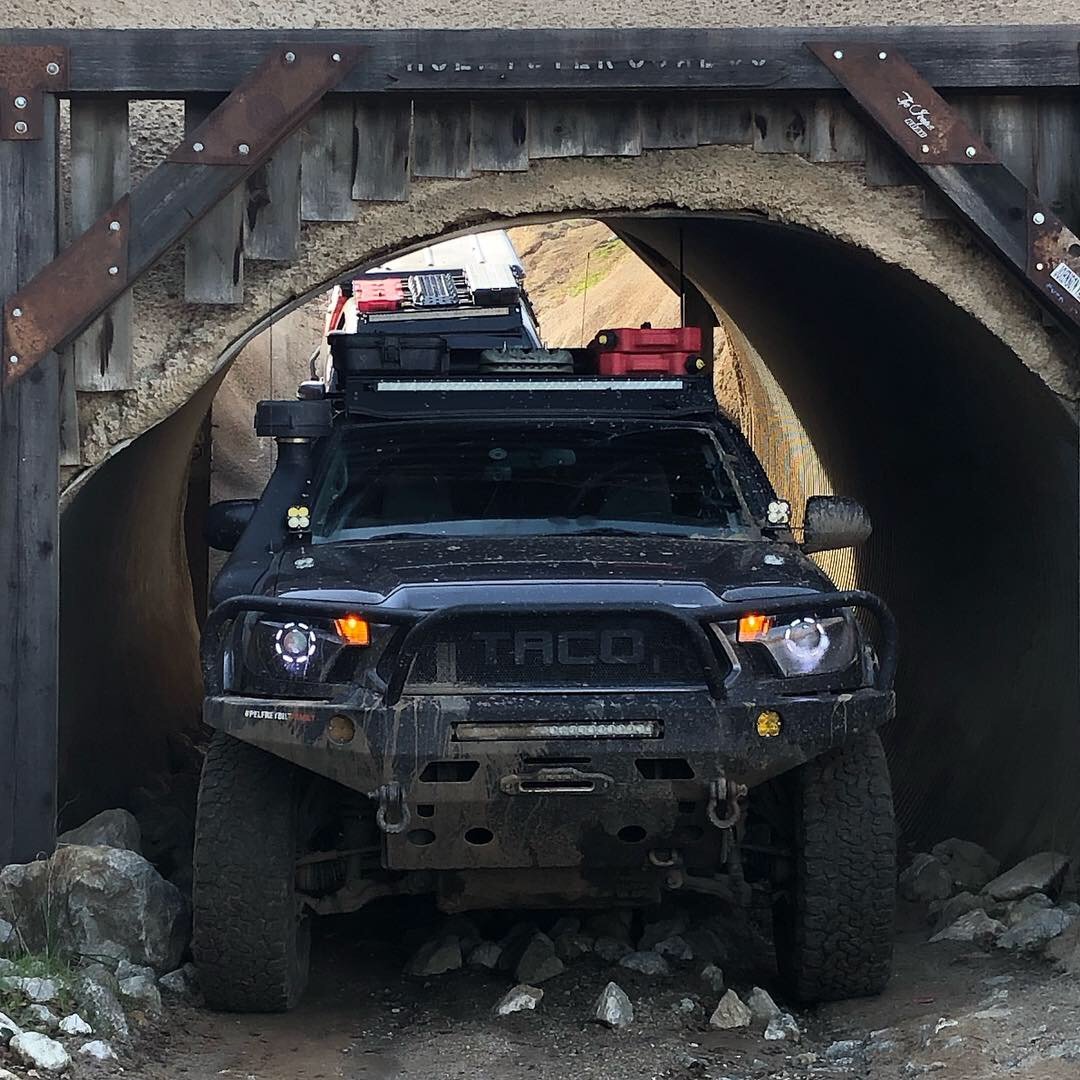

    Photo Jan 24, 4 39 10 PM (1).jpg

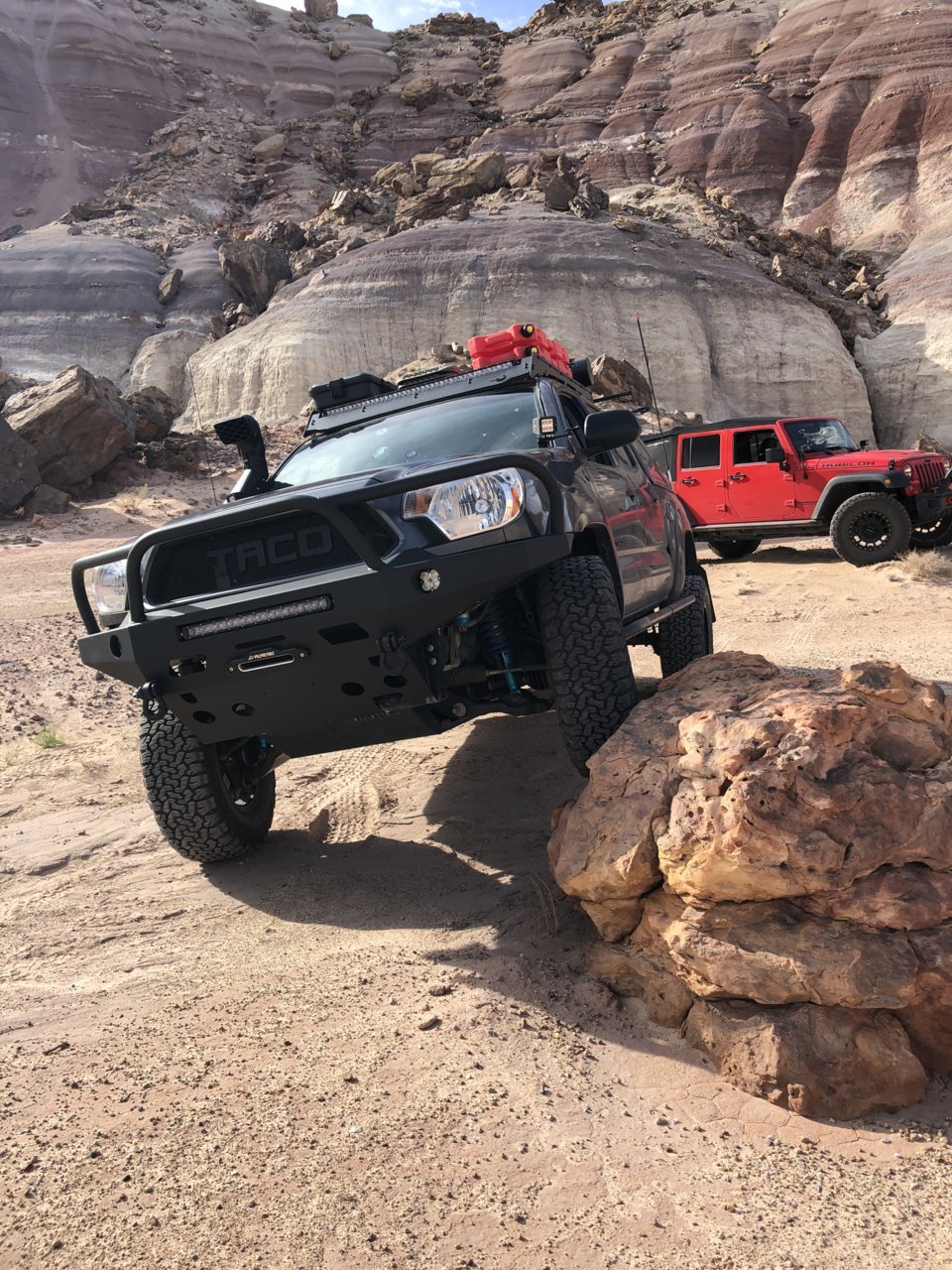

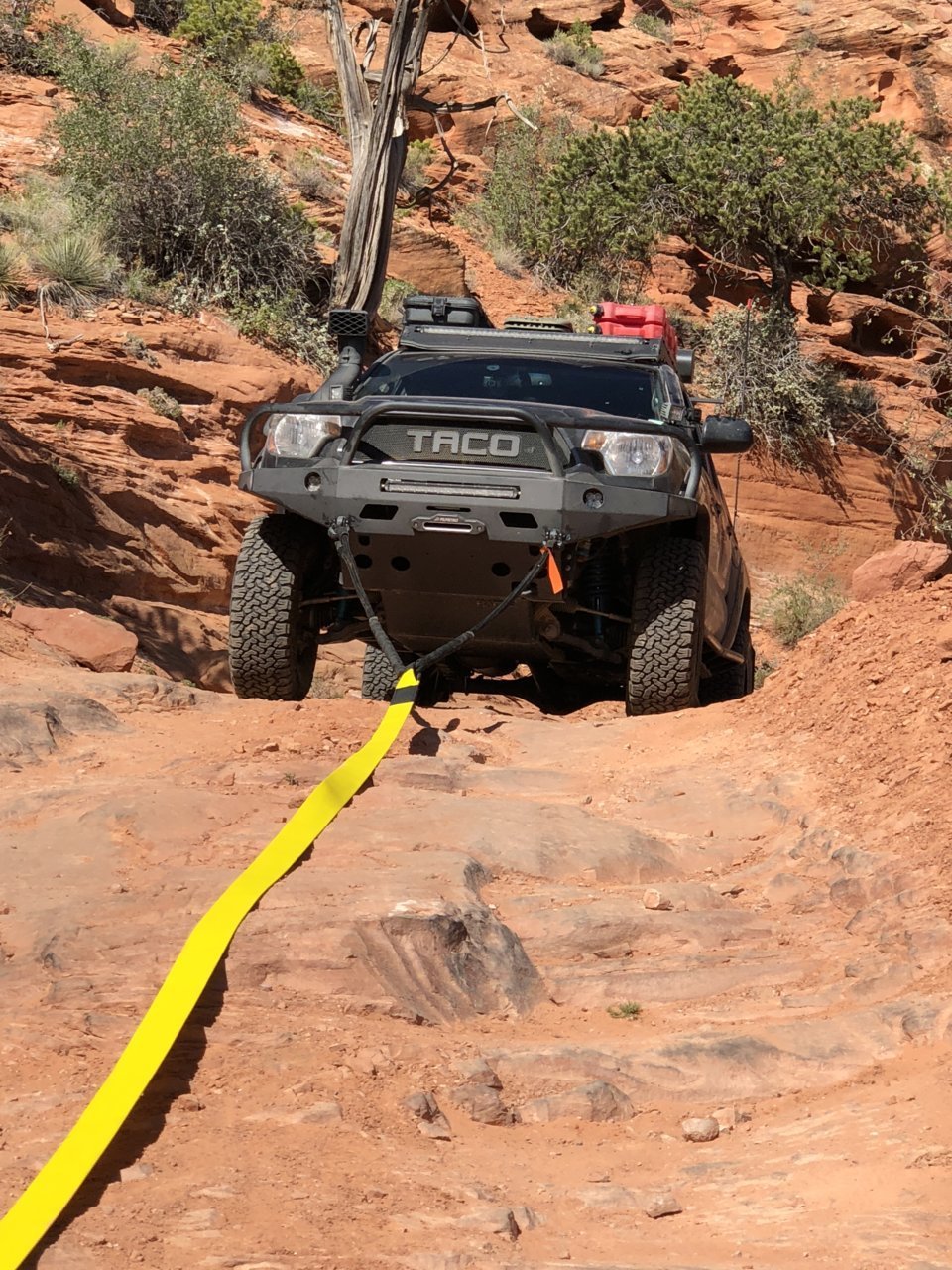

    5/30/18

    D4C5F307-D9AD-4D5B-8738-67DC4CE592C6.jpg F45E1440-7E7A-41FC-A361-84867ADA5C4C.jpg

    1/7/2017



    1/6/2013

    EC99AA4B-B14F-434C-866E-78624D583277.jpg 18070614-06DC-4CEE-BC09-D2801695EF8B.jpg


    I finally got around to getting some goods installed on my Taco.

    This site will be the death of me and the first line item in divorce!
    I am Building my Taco out to be ready for anything with my kids.
    I am big on doing my own work but some key folks/Companies have been a big part and Big thanks to
    My Brother for helping with the initial install - Nelson's Garage in Cayucos, CA
    Expo365
    Shaffers Offroad
    Milogen
    Accutune
    Mikes Custom Toys

    Truck:
    2013 Tacoma DCSB TRD Off-road
    4.0 V6 MGM - Supercharged
    4x4 AT

    TONS OF SHIT TRACKING SOME OF IT HERE:

    ENGINE/DRIVELINE:
    • Fumoto F-103N Engine Oil Drain Valve
    • UNI Filter UP-107 1" Clamp-On Breather
    • ECGS - Nitro gears 4.56 front/rear w/ Harrop E-Locker/front and rear/Factory E-Locker
    • TRD oil and radiator cap ( why not )

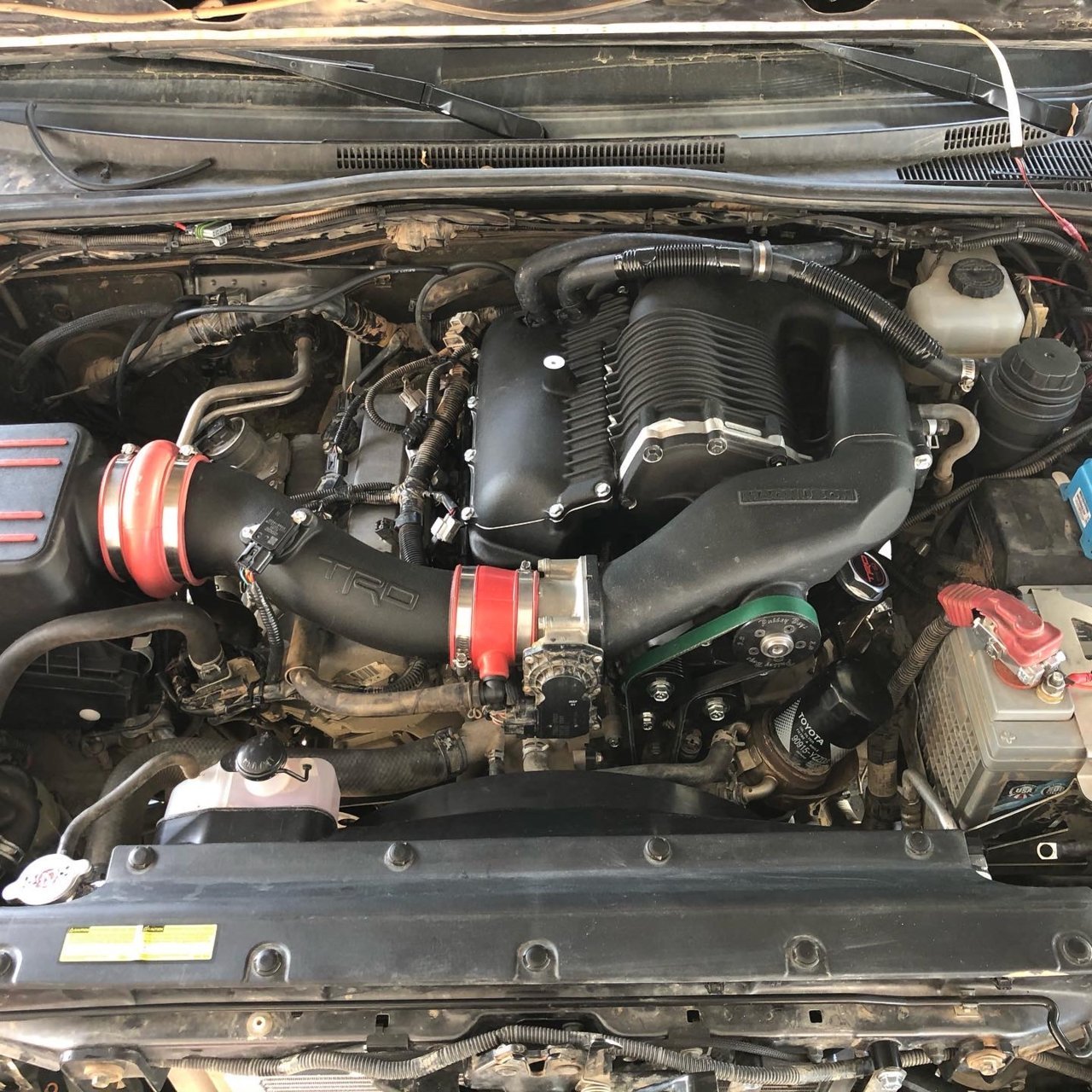

    • [SC] Magnuson Supercharger
    • [SC] RatioTek RTA750EHD Valve Body Kit
    • [SC] Gates OE RPM belt
    • [SC] NST SUPERCHARGER CRANK PULLEY
    • [SC] NST crank pulley, water pump pulley
    • [SC] NST Alternator pulley
    • [SC] FIC 650cc injectors
    • [SC] Filler neck reduction mod
    • *12196-38010 Tundra oil filler tube seal
    • *12185-38011 Tundra oil filler tube
    • [SC] TRD Tune and additional tuning (Engine tune from @JustDSM including Transmission v13 tune from @nd4spdbh
    • [SC] HP Tuner Tuned w/ Pro Add on
    • [SC] @mightytacoman Exhaust Cam Gears
    • [SC] Supercharger Valve adjustment for full close at WOT
    • [SC] CSF 7802 aluminum radiator (Tacoma Version)
    • Tacoma TRD Intake
    • [SC] AFE FJ Cruiser/4Runner aFe Performance Pro Dry S Air Filter 31-10208
    • [SC] FPR (Fuel Pressure Regulator) mod
    • [SC] Snout Cut to fit Quickchange Hub
    • [SC] PulleyBoys Qwikchange pulley kit 2.8 shimmed idlers 1/8" to line up better
    • [SC] Rousch HD Tensioner
    • [SC] LFP 50mm Billet Double Bearing
    • [SC] Lotek gauge pods
    • [SC] Speedhut custom - Boost/Vac gauge
    • [SC] Speedhut custom - Standalone Air/Fuel Wideband with Analog Out
    • Solid Offroad Motor Mounts
    • Solid Offroad Trans Mount
    • Derale 13750 Atomic-Cool Remote Cooler, Black
    • Derale 13021 -6AN x -6AN In-Line Fluid Thermostat
    • RIPP - Tacoma spec coil Packs - Revised
    • [SC] - Ruthenium NGK P/N: LFER7BHX/ 95125
    • [SC] - Mightytacoman oversized aluminum S/C resi
    • HPS Heater Hose Kit
    • [SC] - Restrictor Pin Mod
    • Exhaust Turn down Cut after Axle
    OV Tuning Handheld - 4.0 NA 91 Tune
    [SC] Gates Fleetrunner belt cut to fit 5 ribs for 2.8
    [SC] Tacoma/FJ Cruiser Franken TRD intake




    Installing:

    Ready to install:

    Pending Install:
    • JFR Y-Pipe (picked up NA version needs to be modified to a 3" collector, add 2 bungs some new connections, and good to go)


    SUSPENSION:

    Front

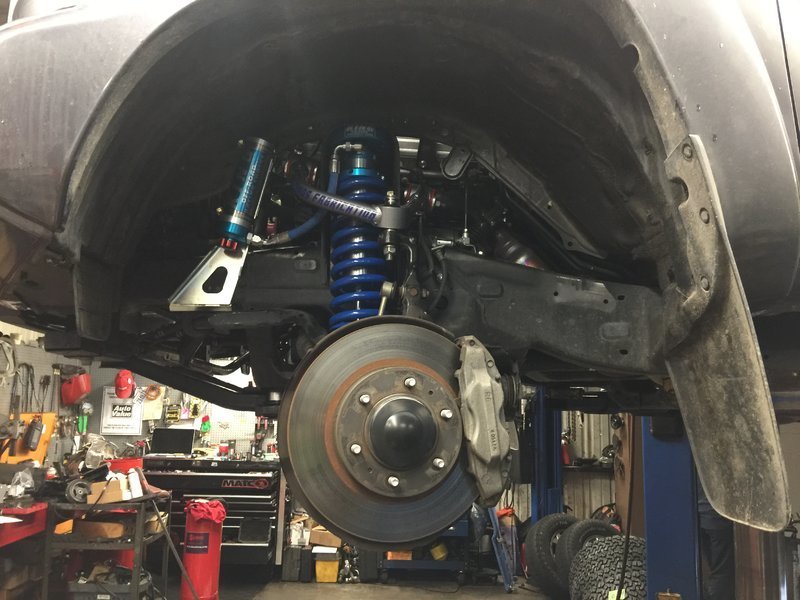

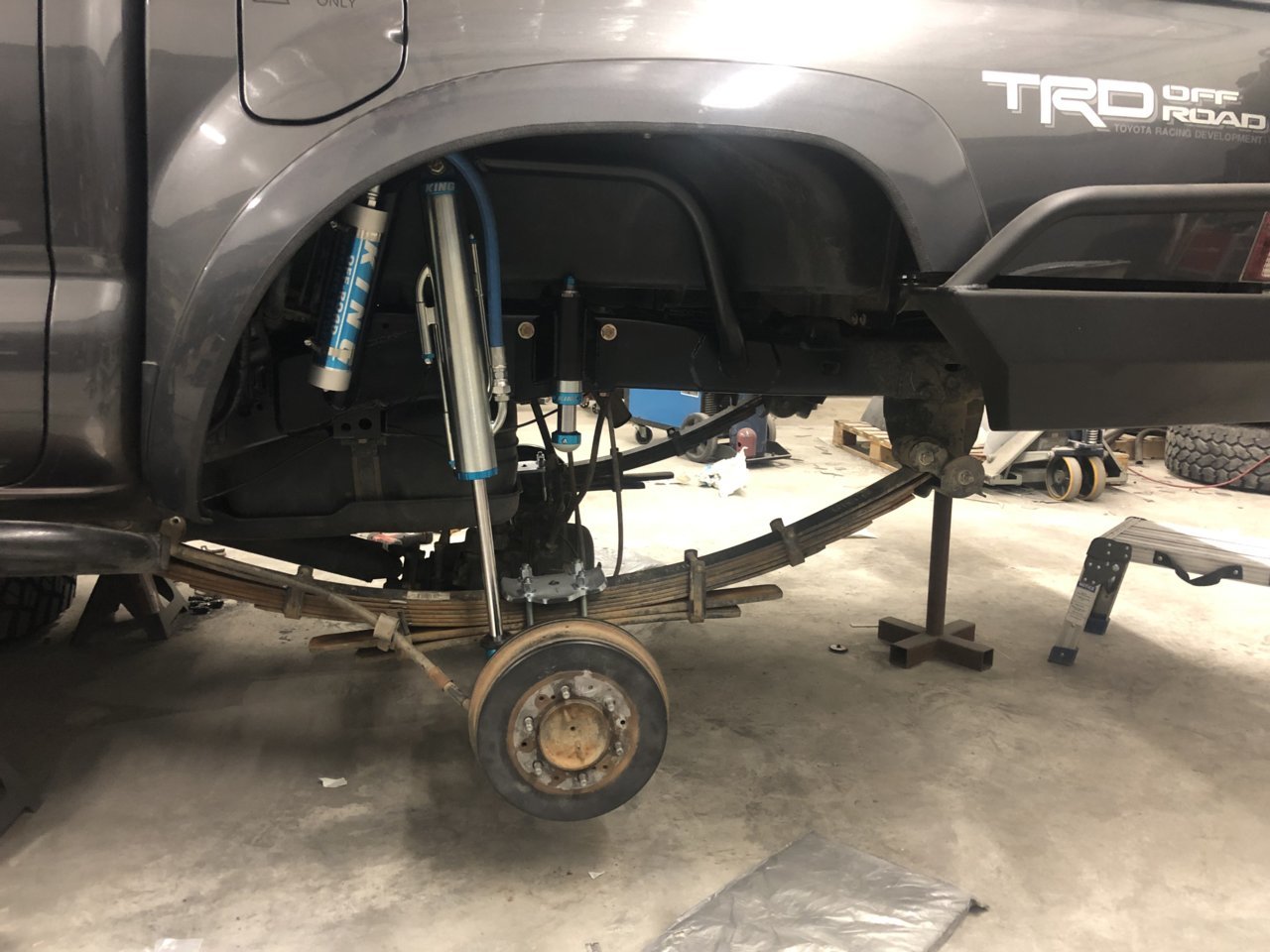

    • [*]TC Expo +2 Long Travel Front kit w/ King spec TC shock

    • TC King 8” LT coilovers w/ Adjusters - 700lb Eibach springs - accutuned
    • TC spec king bypasses for +2 kit - accutuned
    • Gusseted spindles w/ JD Fab gussets and double sheer w/ Heim end links
    • JD Fabrication Lower Arm pivots
    • TC shock hoops
    Total Chaos UCA
    Total Chaos Gusseted Spindles
    Total Chaos Stock length, Race LCA - Dual Shock
    King double bypass - front TC spec
    King 2.5 front Extended with 700lb springs with Adj and 2.5 rear shocks with Adj

    Rear

    • Milogen custom rear shock relocate
    • King 2512-BP3H-C Triple Bypass 12" shocks - a custom layout
    • Shaffer Offroad Custom - Cross brace for shock relocates
    • King BS2020 2" Hydro Bumps and mounts
    • Archive Garage Hammer hangars w/ 3.6" shackle
    • Archive High Clearance Cross Brace
    • Deaver - Custom Leaf Pack XXHD leaf pack
    • Wheelers UBolt Flip Kit with Strike Plate
    • OME DriveShaft Spacers
      [*]LROR Diff Drop Kit
      [*]Limit Straps on rear
    OME Dakar 2.75 Rear Leaf Pack
    OME 29XL Extra Leaf

    LROR U-Bolt Flip Kit with Sumo Bumps

    Braking

    Willwood Aero6-DS calipers w/ tr4 disc conversion
    2010+ 4Runner Front brakes w/ Slotted Rotors



    Misc

    • @Up2NoGood 2Lo Module
    • Removed swaybar

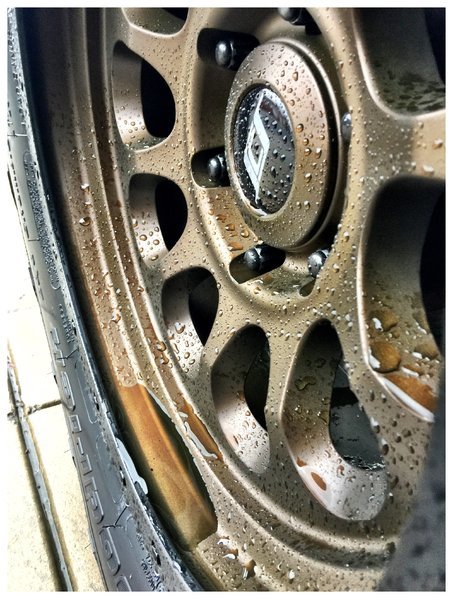

    • SCS Ray10 17" 17x9 -38 w/ matching spare
    • BFG KM3 315/70/17 tires
    SCS Ray10 17" 17x8.5 -12 w/ matching spare
    BFG K02 285/70/17 tires

    Installing:

    Ready to install:




    INTERIOR:

    • Audi S5 prestige front seats W/ planted brackets modified. Converted memory to non-memory
    • Rago Center console and bridge setup
    • Toyota all-weather floor
    • DIY Slide/Drawer setup (will be removed)
    • DIY Bed Platform (will be removed)
    • Focal ISC 165 and ISS 165 front and rear speakers
    • Dasaita 9" PX6 Android HU w/ Wireless CarPlay
    • NES Classic for the kids in the glove box
    • Dynomat extreme front/Rear doors
    • Noico Sound Deadening behind rear MOLLE panel and seat base rear seats.
    • MOLLE panel for behind the back seat
    • Toyota All-Weather Mats
    • Toyota Tacoma Glove Box Organizer
    • Vios Replacement Knobs for HVAC Panel
    • Rearview anytime Mod - switch, add a fuse, wire, etc...
    • iPad mini 3 4 w/ LeadNav and lifetime CaliMaps overlay.
    • Blackout interior - (Shifter Bezel, AC/Radio Surround)
    • Hilux 4x4 switch/Ring (Derped)- [Not lighting up but does work when tested]
    • BaoFeng UV-5R Dual Band Two Way Radio (Black) - Thanks @goblue82
    • 14'-15' Steering wheel controls - Pin 3 and 9 s8 to pin 24 on pin28 for full control on 2013 completed.
    • Derped Gauge rings
    • Derped Steering Control Toyota Emblem
    • Matte Black HVAC Panel
    • Ellis Precision Shift Knob w/ Custom TRD Taco Logo
    • Hypertech 730107 Speedometer/Odometer Re-calibrator
    • Backup Camera in the rearview mirror and HU (only works in Reverse on HU but working at any time on both)
    • Magellan MiVue 420 Dash Cam
    • SwitchPro 9100
    • Iggy switch panel and 2 switches (modified to fit SwitchPro)
    • President Andy CB w/ firestick antenna
    • RAM Laptop mount - when tuning the truck
    • MESO - dual-LED map lights
    • MESO - dual-LED Dome light
    • MESO - Molle roof rack
    • Console Vault
    • Fire Extinguishers x1 (Auto rated) - rear bed
    • SPDT Switches in Bed
    • KTJO In-Cab 120V AC Outlet
    • Rear seat USB charger port(s)
    • Expedition Essentials 2TPAM
    • MESO 3rd gen Grab handle adapters kit and 3rd gen black grab handles
    • Noico 80 mil Door, Floor, Rear Wall, roof
    • Noico 150 mil partial floor and roof
    • Noico 315 mil Floor and rear wall
    • Midland GMRS micro w/ 3db gain antenna
    • Pormido Rearview (front/rear) camera - 996
    • VLED footwell light setup front/rear
    RAM ball, oh shit, handle mod. Replaced both drivers side bolts with RAM balls
    Vehicle OCD™ (Organized Console Device) Toyota Tacoma Center Console
    Cheap Amazon Tablet window mount
    FJ Double Cab Rear Sunvisors
    Matte Black Radio Surround
    2014 Entune Plus Radio
    2015 Entune Premium Radio w/ Hondo Garage Basic Knobs



    Installing:

    • Blackout interior - (Paint grey-black, re-do headliner)
    • WeBoost with flip-down mount
    • WeBoost Fleet
    • Starlink goods

    EXTERIOR/BODY/ARMOR:

    Armor

    • BAMF SteelHybrid Single Hoop Bumper
    • Bruteforce dual swing-out rear bumper w/ dual jerry can and LP mount
    • BAMF 80" Sliders w/ Kick-out, Filler plates, and DOM upgrade (bolt-on but at probably sell or convert to weld on for stronger integrity.
    • BAMF Rear diff skid
    • BAMF Mid Skid
    • BAMF Trans Skid
    • BAMF 2nd Gen CB Mount
    BAMF CMC Plates
    LROR - E-Locker Guard
    Pelfreybilt Front fill steel - 3 hoop bumper
    Pelfreybilt 2005-2015 TACOMA Dual Swing Out HC REAR BUMPER (deposit made) - Got money back.
    BAMF - Hammer Hangers and Greaseable shackles (pending new Leaf Pack) - For Sales
    B.A.M.F. IFS Skid
    Pelfreybilt - Standard rear bumper


    Installing:

    • JD Fab front Skid

    Ready to install:

    • BAMF - Gas Tank Skid


    RokkBlokz oversized F/R
    Leer Shell w/ Rack Sliders
    Color Matched OEM Grill - Dupli-Color Rattle Job
    DYI pressurized waterport style for showers etiil
    Rac

    Installing:



    ELECTRICAL/LIGHTING:

    [Lighting]
    Retrofit Headlights w/ BLHM - w/ Philips HIDs
    Prism Halos
    Prism Daemon Eyes
    Baja Designs XL Linkable 7 light setup Clear
    Baja Designs Squadron Sport - Driving Combo - Ditch mounted
    Baja Designs Squadron -R wide cornering - fog light spot w/ amber lens
    Baja Designs s2 (for scene lighting) L/R. Wired up for 2 sets. Installed 2 on the left, 2 on the right
    Baja Designs S2 Flush Rear Mounts - Bumper
    Baja Designs S2 Rear Mounts - amber upper rear tent - rear chase location
    Baja Designs Squadron Amber wide cornering upper front tent
    GTFOoverland light setup for the SP X1
    Jumper LED - parking, reverse, and rear turn signal
    CaliRaisedLed 18W Pods, Ditch Mounts
    eBay 40” light bar - she dead
    eBay 20” light barp
    LED Strip in bed
    Baja Designs SAE Fog Amber


    [Electrical]
    Disabled DTRL to install SmartTap/Jumper - quick-change blinkers, different hazard modes.
    BlueSea stuff - 6AWG power to bed w/ 12 fuse BlueSea and breaker
    SwitchPros 9100
    HKB voltage booster
    6 fuse BlueSea Fuse Block
    10 position positive and negative terminals
    NorthStar 31AGM w/ Rago Fab battery cage
    LED Strip in the engine bay
    6 AWG power ran to bed w/ BlueSea 12 fuse panel, 6 switch panel, and BlueSea 12v panel
    OffGrid engineering Dual Battery Setup
    RedArc BCDC1225
    Dual Northstar 35AGM
    2 x 100 Watt Renogy solar panel
    2 x 110 Sun Power Flexible Solar Panels
    Victron Solar Bluetooth controller

    Installing
    Baja Designs S8 30" Amber
    Baja Designs S1 Wide Cornering Amber

    Ready to Install:
    Big 3 wiring
    Switch Pro 9100’s x2
    Switch Pro - Slave X 2
    Redarc Smart Start Battery Isolator - 12 Volt - 100 Amp - SBI12
    Baja Designs S1 Spot Clear
    Baja Designs S1 Wide Cornering Clear
    OffGrid engineering Dual Battery Setup - Updated Version for Solenoid

    Pending Install

    MISC:
    DIY Co2 air setup (Gentec 227C-150 Flow Regulator for Light-Duty Applications, random Husky connectors, Hose (Flexzilla), Tank (20lb), C02 tank)
    ARB Air Chuck
    ARB Digital Air Chuck
    ARB Digital Air Pressure Control Module
    ARB Deflator
    2 x 4 Gallon RotoPax Gasoline
    2 Gallon x 2 RotoPax Water
    Rotopax DLX Pack Mount x2
    Rotopax Self-Venting Spout
    Rotopax Extension x2
    Rotopax - Tacoma bed mounts
    CSI 53W fridge - DualZone
    CSI 50qt fridge
    Dometic 50qt fridge
    DIY 4 tire air up with couplers, flexzilla pro connections.

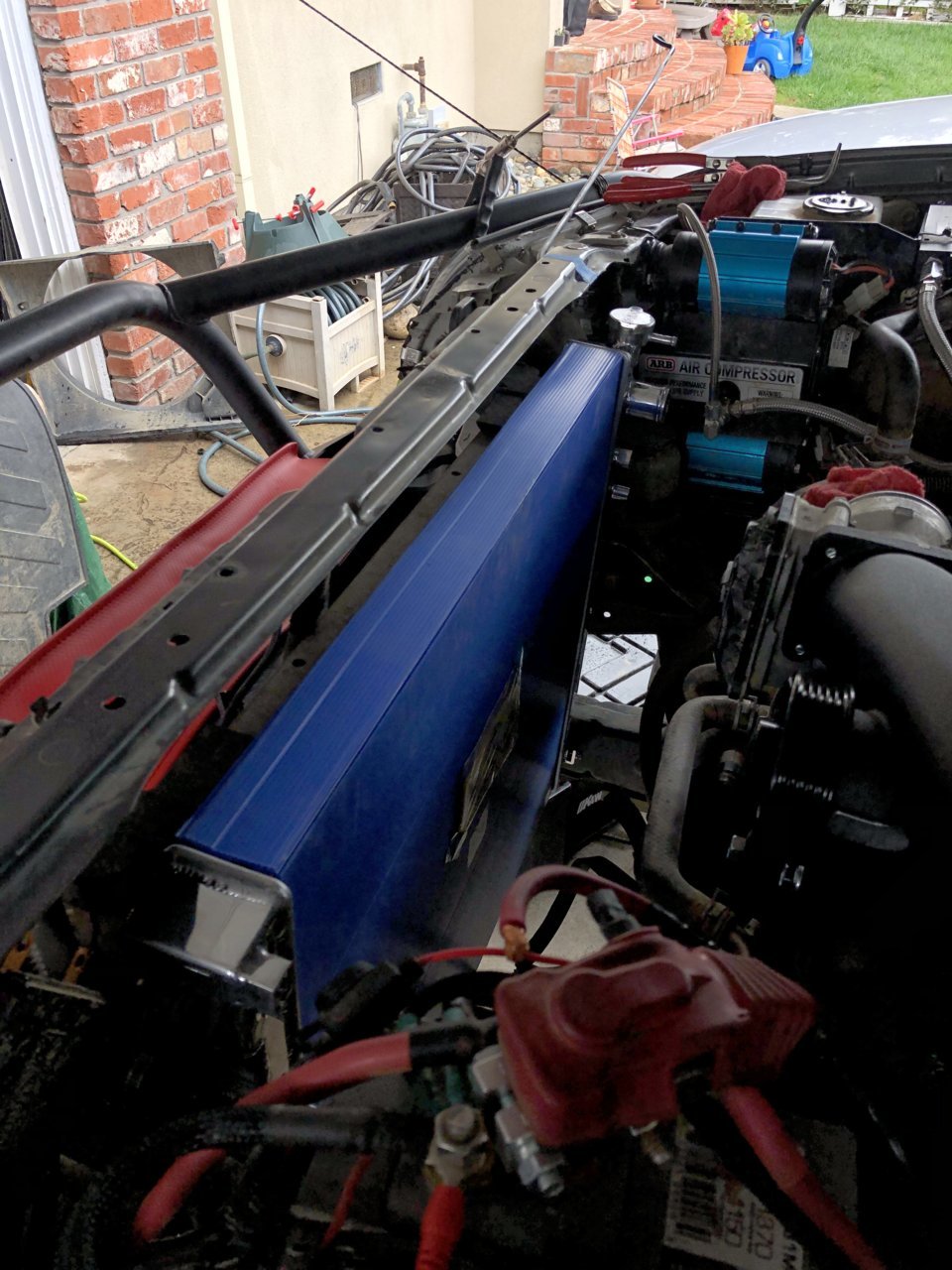

    ARB CKMTA24 Twin Air Compressor
    ARB Pressure Control Monitor
    Extreme Air 4 gallon air tank
    Various parts for extended onboard air
    4 x US Scepter Gas Jerry Can
    US Scepter Water Jerry Can
    US Scepter Gas Can converted to Water Pressure Can
    Expedition Essentials Bedside Compressor Mount Extension Harness
    Expedition Essentials Toyota Tacoma Bedside Compressor Mount


    RECOVERY:
    Maxtrax - BLACK x 4
    Expedition Essentials MaxTrax mount
    Warn Winch Zeon 12s Platinum
    Factor55 FlatLink - ODGReen limited
    Factor55 Rope Retention Pulley
    Factor55 Extreme Duty Tow Straps
    Factor55 Soft shackles
    Factor55 Shorty Strap II
    Factor55 Strap Wraps
    Gator Soft shackles
    Warn winch dampner

    ARB ARB705 2-3/8" x 30' Recovery Strap - 17500lbs
    TRED 1100 Recovery Tracks, Mounts, and Straps
    Smittybilt Receiver Hitch D Ring 3/4'
    Recovery Tool Mounts (QuickFists/DYI)
    Bully Tools 92510 12-gauge Round Point Shovel With Fiberglass D-grip handle
    Bully Tools 93520 Fiberglass Single Bit Axe with Hand-Finished Blade
    Krazy Beaver Shovel - All Black

    Hi-Lift 60" Extreme Lift (now some shorter height)
    Hi-Lift recovery winch kit
    SHMELL FAB PRODUCTS (Shmellmopwho) Hi-Lift Mounts
    Smittybilt Snatch Block
    Rugged Ridge Snatch Block
    DFG Tire table

    NEED TO INSTALL


    Tools
    Welding - picked up Millermatic 211

    SC Setup
    [SC] TO3110153 - FJ Fan Shroud and overflow
    ADD W1 Oil catch can - TBD may swap for Mishimoto baffled setup

    Holding off for now
    [SC] Gates K060696HD Belt for 2.5 Pulley
    [SC] PulleyBoys Qwikchange pulley kit 2.5
    [SC] Aluminum Fuel Rails
    *Inline Radium pulse damper
    *Aeromotive regulator
    *Aeromotive gauge
    *Various Fasster connections
    [SC] =156609]@Roostfactor[/USER] Pulley wrap mod
    [SC] Pulley RIP mod (TBD if I go 2.5 right away or may run if needed for 2.8)
    [SC] Bosch Auxiliary Pump upgrade
    [SC] AFE s2 CAI intake w/ coupe TRD cover (Will be up for sale)



    Suspension stuff
    New King 14" 700lb springs - will be for sales or with the sale of coil overs. not needed for LT setup

    Lighting
    Jumper LED - DTRL location

    Baja Designs SAE Fog wide cornering Amber
    Baja Designs S8 30" Amber
    Baja Designs s1 Spot Clear
    Baja Designs s1 Wide Cornering Amber

    Other
    Rago Rear window molle (3rd gen setup)
    TR4 Heated Side Mirrors with Puddle Lights
    KTJO Tailgate Lock (waiting on additional parts to be made)
    Pop & Lock
    Front Camera - RFCC TTG2 Car camera control switch system w/ Nakita camera (need to see if it will work with Android HU)
    Heated Seats - Front
    Fire Extinguishers x2 (Auto rated)

    Crap I need to Sell:
    [/SIZE]
    Stock offroad shocks, UCA, LCA, and leafs
    Double Cab Back cubbies
    4WD mudguards
    Rockblox mudguards
    W7 Oil Catch Can
    King Front 2.5 w/Adjusters - Ext
    King Rear 2.5 w/ Adjusters non-ext (but can be converted)
    King 2.5 2 tube TC spec bypasses
    Total Chaos UCA
    Total Chaos Race LCA dual shock
    2 Renogy 100 Watt panels
    31 AGM Northstar Battery w/ Rago Battery Cage
    King 650lb Coilovers (the first option goes to the Coilover purchase option).
    King 700lb Coilovers (the first option goes to the Coilover purchase option).
    Pop & Lock kit Tacoma (bought used never installed)
    Stock Floor Carpet Kit
    Stock Brake Calipers - Good Pads
    5th Gen T44 Calipers - Good Pads
    DBA 4000 T3 T4R Rotors (Front) - (need to sell)
    1 x TRD Brake Pads
    BAMF Hammer Hangars w/ Shackle - BNIB
    Bosch Auxiliary Pump upgrade - Supercharger pump
    Engineaire 4" Pre-cleaner Composite 150-465 cfm
    Pelfrey Steel Plate Bumper - Front Full Hoops - TBD
    2x TRED 1100 traction boards - unused but faded
    Pelfreybuilt Fuse Panel
    Powertray Fuse Panel
    2nd Gen JBL Nav Radio
    2nd Gen Entune Radio
    3rd Gen/Sienna Radio (Turns on, but some functions seem to be not working, has JBL faceplate but is not a JBL radio)
    Relentless Fab Hi-lift mounts
    DFG Tilting Fridge slide - won't work with the current setup

    Planned Items: - (When time/$$ permits


    Top Items:
    Upgrade to 200ah LifePO4 battery setup
    Upgrade to Merlin or Sunflare 3-400 watt solar setup
    Other misc things to support Battery/Solar setup
    Mild bed build-out with 80/20
    Move Fridge to Bed (TBD)
    9" or 10" rear end
    JD Fab HOWE TC Pump Steering Kit
    JD Fab Slide Rack or Basiker Tundra Rack or LC200 rack (TBD)
    Solid Chromoly tie rods
    Frame Gussets - Box Frame in various areas
    JD Fab inner fender kit
    Stage 8 Porting for S/C

    Possible items:
    ABS Kill switch
    Snomaster or Dometic Fridge
    Foldable 2nd gen mirrors
    Total Chaos shock tower gussets
    Cross Tube for BAMF HD Hangers
    Additional Gauges for possibly Transmission/Coolant/Oil
    Fog anytime mod
    Heated Seats - Rear
    Katzkin seats - Rear
    More Sound System stuff - JL Amp/DSP combo, JL W3 Shallow mount
    More Baja Design Lights to swap out the eBay specials
    Other Various Utility Gear and Storage Stuff (TBD)
    JD 934 Axles - TBD
    37” Tires

    S/C Stuff:
    [SC] Kelford cam shafts (TBD]

    Wish List:
    Supercharger
    LSX Swap or Stroker setup on the good of 4.0. likely not possible but who knows.

    LT Rear - not likely on this setup. Maybe Link setup due to weight. Far off for now.


    Trips:
    Frank Raines OHV - 2/25/2017
    2nd Annual Joshua Tree Chili Cook-off, pew pew 3/17-3/19/17
    Hollister OHV - 12/30/2017
    Frank Raines OHV - 1/27/2018
    Mojave Road - 3/2018
    Flint Trail - The Maze District, Canyonlands National Park 5/18-5/26/18
    Mendocino National Forest x-mas tree run 12-1-12/2/2018
    Hollister OHV 1/2019
    Trona Pinnacles 7/2019
    Whitmore Canyon (North Grand Canyon) - 7/2019
    The White Rim - Island of the Sky - Canyonlands - 7/2019
    Arches - Canyonlands - 7/2019
    FJ Summit - 7/2019
    * Stony Pass
    * Telluride - Imogene Pass
    * Engineer Pass
    * Southern Gulches - Mini, Minnie
    * Ophir Pass
    Mendocino National Forest x-mas tree 12/2019
    Tahoe National Forest 7/2020
    Gold lake (Plumas National Forest) 9/2020
    Oregon/PNW - April 2021 (pick up Superpacific X1)
    Baja - 5/2021
    Barney Riley - 6/2021
    Mendocino National Bear Creek 12/2021
    Anza Borrego April 2022

    Upcoming trips:
    Moab - 2020
    FJ Summit - 2020 - TBD due to COVID
    Big Sur - 9/2021
    FJ Summit 7/2021 - COVId
    Death Valley 2021 sometime
    [/SIZE]
    FJ Summit 7/2022
    Somewhere in AZ/UT 2022

    Death Valley 2022 - likely cancelled
    Mojave 2022 - TBD
    Black Rock Desert 2022 - tentative
    Baja November 2022 - tentative


    Attached Files:

    Last edited: Aug 10, 2022 at 8:39 PM
  2. Jan 11, 2017 at 12:07 AM
    #2
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    It Begins: (Images are missing for some reason) Need to re-upload them.

    Day 1: 1/8/2013


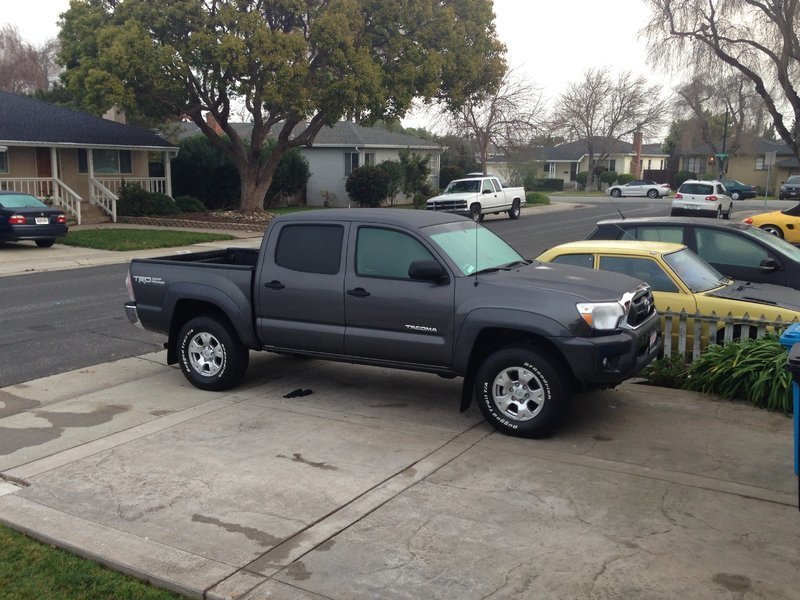

    Before the Build:


    1/7/2017 She received a major upgrade for her 4th birthday. I realized the day after I had picked her up 4 years ago to the day when we did the major update. Did not even realize it had been 4 years until Sunday and just shy of 40k miles.

    1/9/2017


    1/7/2017 Install Day:

    Big Thanks to my Brother for helping out on a Saturday. It also helps that he works as a Mechanic during the week and has access to the shop.

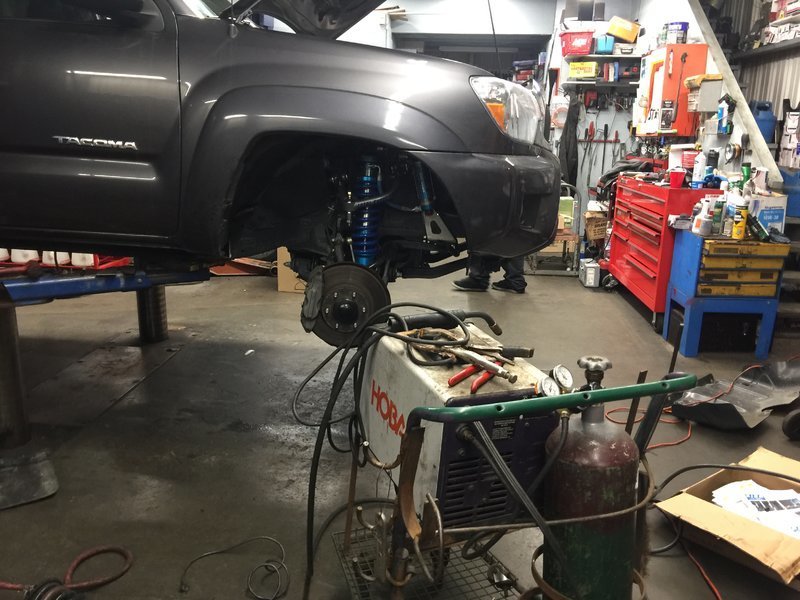

    Installing King 2.5 Extended Travel Front Coils and TC UCA:

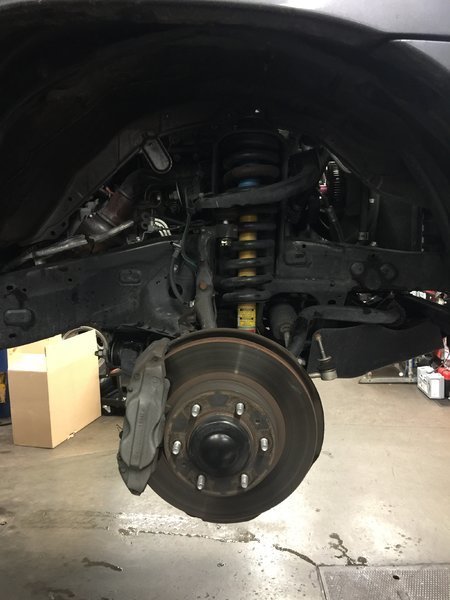

    Before we gut the Stock OR Front. Forgot to take measurements beforehand visually huge difference.


    Brother Wrenching way


    Almost seems sad that this was my setup compared to the Kings


    Total Chaos UCA's all ready to be installed. Make sure you clean out the threads for the fittings. Most were okay but one would not take the fitting.



    Already looking better with just the UCA installed


    Having a spring compressor at the shop made this much easier to adjust. We went with 1" of thread showing based on countless thread chasing to get a pre-spec.



    Time to put the front back together


    What a sight of beauty!

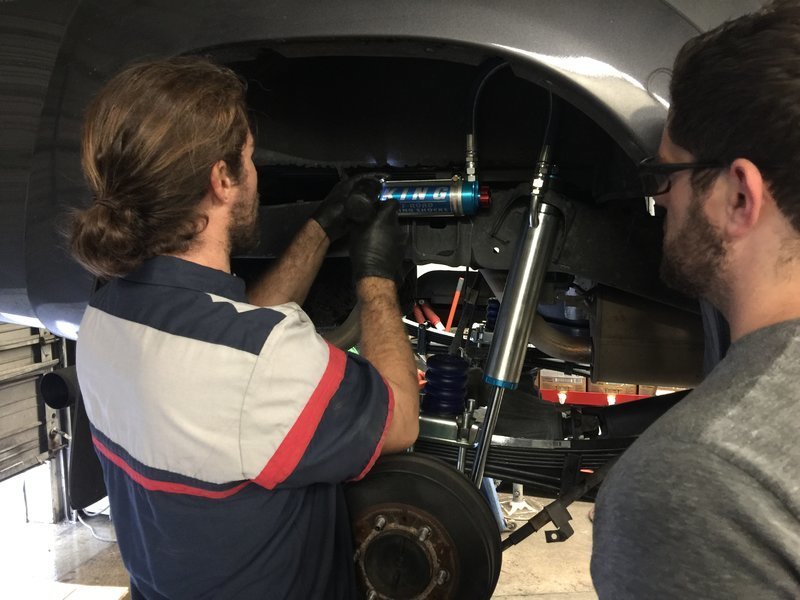

    Installing the Rear:

    Forgot to snap photos of most of the install but using a press at the shop made correcting the bad bushing alignment in the Dakar and rear bushings a piece of cake. Paired the Dakar with a U-Bolt Flip Kit w/ Sumo Bumps and King 2.5 w/ Adj



    Along with the setup we added the usual items to help with vibrations and such.

    Low Range Off Road Diff Drop



    OME Driveshaft Spacer


    Low Range OffRoad E-Locker Guard

    Inexpensive mod to protect a pricy item on the truck. Forgot to take a closeup of the guard but we had to grind a few corners down in order to fit. They only make a Gen 1 guard and not a Gen 2 but a few corners adjusted it fit perfectly.


    Wheels and Tires

    Cab Mount Chop
    with the tire upgrade this was going to happen either way. While we had it up on the rack, Brother busted out the shop grinder and Welder and quickly got these taken care of.

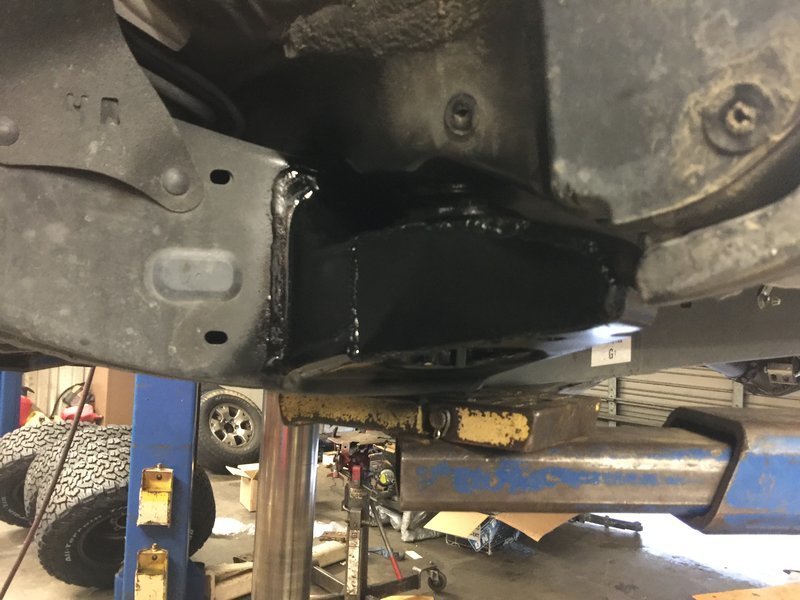

    In a perfect world we would done this with a better method but a grinder was all we had.


    Turned out pretty good with my Brothers skills. Very clean.

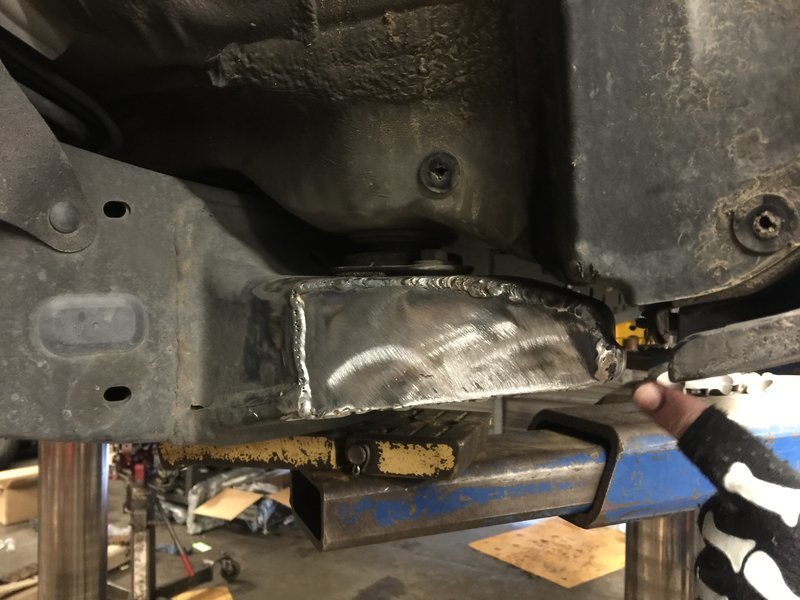

    My Brother did not like the Weld job due to the welder we had but in the end it does the job.



    Did not have any flat black paint but blasted it with some semi-gloss Rustoleum for now. Will go back and blast it with a flat black later on.

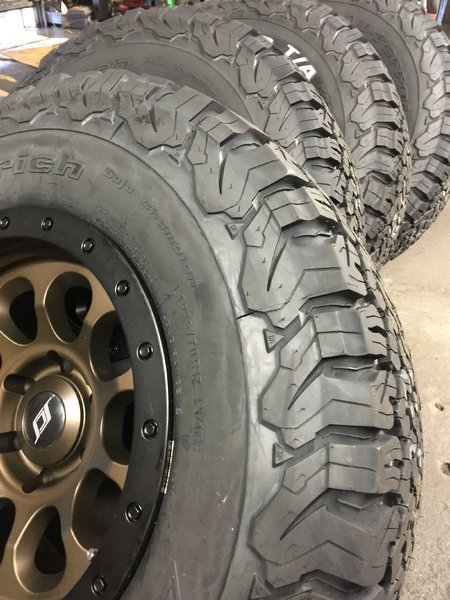

    Pretty straight forward. Picked them up from @SCSPerformance and had the tires mounted down the street at @4wheelparts

    Went back and forth on different sizing options and knew I had to go big. 285/70/17 was the winner. Bigger would have been great but this is a good start with minor mods to fit. We ended up removing front mud flaps Fr/Rear. I will need to trip the lower front fender as it does rub under load when turning but general driving is okay for now.

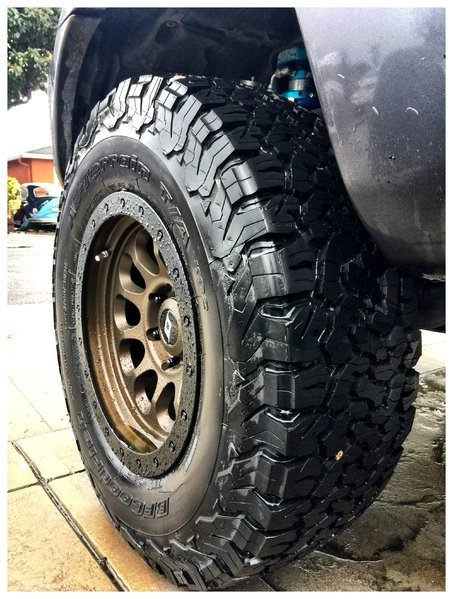

    Niece showing off the finished product (and for size height reference)


    Was not able to get it aligned but Brother did a quick and dirty alignment adjusting camber and Toe. Castor visually seems ok. Years of experience and a tape measure, not too bad I would say.


    Can't wait to get to some more goodies. Prinsu Rack, Grill and Sliders are probably at the top of the list right now.

    Sits slightly higher in the front. The truck does have a set of tires in the back, the old suspension and some other items in the box up top. Leaning towards adding the OME Dx29L to give it the extra lift and higher spring rate. Eventually I will add bumper and prissy rack. I like the setting in the front now. Did not have time to adjust it lower after we rolled it out. It was close as it depends on where its parked.

    Last edited: Oct 10, 2019
    Athlaos likes this.
  3. Jan 11, 2017 at 12:10 AM
    #3
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....

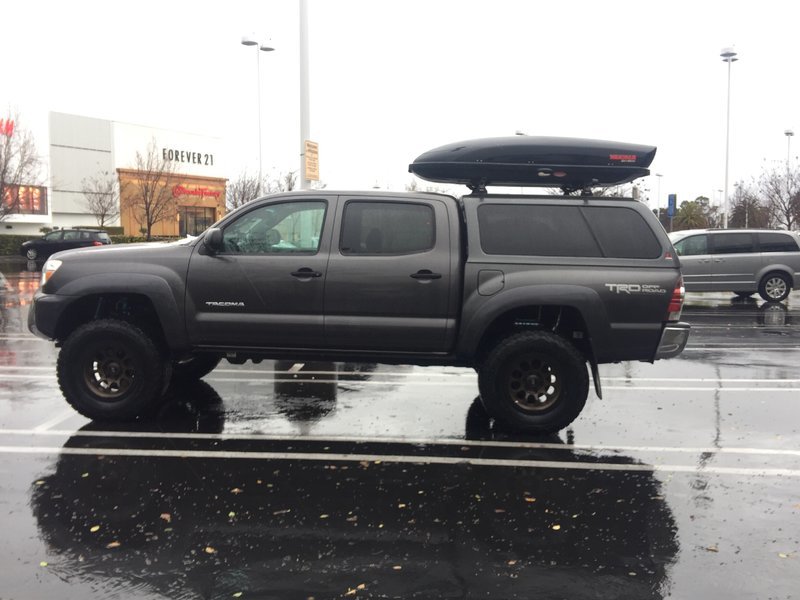

    Raining like crazy here in NorCal. Those @SCSPerformance wheels looks so bad ass. They also double as rain catchers for survival out in the back country.

  4. Jan 11, 2017 at 12:13 AM
    #4
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....

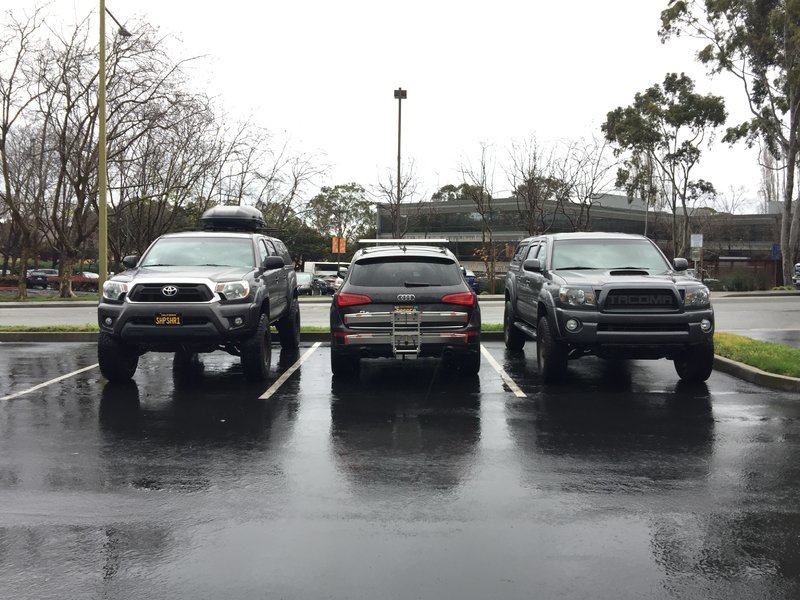

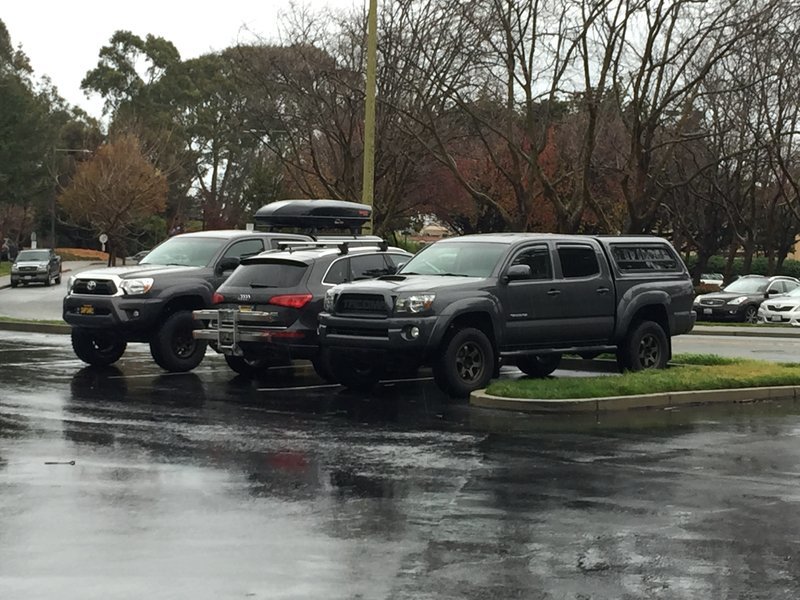

    Shot a couple pictures at work today with @TRlPPlN.
    IMG_5105.jpg IMG_5108.jpg

    TRlPPlN and Dalandser like this.
  5. Jan 11, 2017 at 12:48 AM
    #5
    alvinfromhawaii

    alvinfromhawaii Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    597
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Looking good! I'm liking the look of those Ray10s. Now I know what they will look like on my truck. :p I use to work near Bridgepoint at the techpark too, I'm in San Bruno now.

  6. Jan 11, 2017 at 3:07 AM
    #6
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Nice! I live in San Mateo but also work in San Bruno. The work shots were off Grundy down the street from Cherry.

  7. Jan 11, 2017 at 4:39 AM
    #7
    Bentrodder

    Bentrodder PeeRunner Fanboy

    Joined:
    Oct 11, 2014
    Member:
    #140142
    Messages:
    6,542
    Gender:
    Male
    First Name:
    Peter
    Cotati, CA.
    Vehicle:
    2015 DCLBFTMFW TRD Sport
    Kings and a TW DECAL!!!
    Looking good! That's awesome to have acces to a shop like that.

  8. Jan 11, 2017 at 9:45 AM
    #8
    alvinfromhawaii

    alvinfromhawaii Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    597
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Oh, I think I've seen your truck in the parking lot before. I work on Cherry as well near the Walmart building. I don't drive my truck that often to work but it would be great to meet up on a day that I do.

  9. Jan 11, 2017 at 11:14 AM
    #9
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Ah grey or black tacoma with 18" and I think a prinsu or similar rack on it? Only modded Tacoma in the walmart lower lot which is across the street from me.

  10. Jan 11, 2017 at 11:15 AM
    #10
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Yah it was a super time saver. Def different than being crammed in the driveway. Also it was storming pretty bad so we were indoors, thank god.

    Bentrodder likes this.
  11. Jan 11, 2017 at 1:21 PM
    #11
    alvinfromhawaii

    alvinfromhawaii Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    597
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Mine is a gray Tacoma w 17" bronze wheels and Prinsu rack. But I rarely drive it to work since I live on the other side of the bay. Might be someone else's

    Last edited: Jan 11, 2017
  12. Jan 11, 2017 at 2:58 PM
    #12
    TRlPPlN

    TRlPPlN Pavement Cruiser

    Joined:
    Jan 14, 2009
    Member:
    #12595
    Messages:
    1,287
    Gender:
    Male
    Bay Area, CA South SF to be precise
    Vehicle:
    MGM DCSB 09 DC TRD Sport 4x4 - Family Hauler
    Your truck dwarfs over my mall crawler!! looks good though. I seen that Tacoma at Walmart across from us. He has cab rack but not sure if it's a Prinsu.

    BTW i hope you greased your ujoints while it was up on the rack. It's not like it would matter now though you should be able to crawl under your truck with ease.

  13. Jan 11, 2017 at 4:00 PM
    #13
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    ah they may have been 17". I have not seen it, in awhile but its the only one I have seen around the area. if your ever around let me know. I am generally there T/TH.

    alvinfromhawaii likes this.
  14. Jan 11, 2017 at 4:01 PM
    #14
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    I don't recall if we did or not. Truck has not even hit 40k miles yet.

  15. Jan 11, 2017 at 4:02 PM
    #15
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    pretty sure its the same one. I snapped a photo of it awhile back when I was trying to get ideas for my truck.

  16. Jan 11, 2017 at 9:07 PM
    #16
    TRlPPlN

    TRlPPlN Pavement Cruiser

    Joined:
    Jan 14, 2009
    Member:
    #12595
    Messages:
    1,287
    Gender:
    Male
    Bay Area, CA South SF to be precise
    Vehicle:
    MGM DCSB 09 DC TRD Sport 4x4 - Family Hauler
    55k on mine and it took 7-9 pumps until all 4 seals started to purge old grease. It was the first time doing it on the truck. The dealer wouldn't check that.

  17. Jan 11, 2017 at 10:43 PM
    #17
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Maybe I'll check it later. Your truck is a few years older as well.

  18. Jan 12, 2017 at 7:10 AM
    #18
    R09ster

    R09ster Well-Known Member

    Joined:
    Apr 6, 2013
    Member:
    #101482
    Messages:
    615
    Gender:
    Male
    First Name:
    Josh
    OK
    Vehicle:
    06 SSM DCSB TRD Sport
    debadged, Bilstein 5100 all around (fronts at 1.75" sport coils), Skyjacker softride 1.5" AAL, Firestone Ride Right Airbags, 17X8.5 Method NVs, 285/70/r17 Falken Wildpeak AT3W, US Offroad hidden winch mount, grillcraft grill, Sypder Auto projector headlights, blackedout LED taillights, bed extender, bedrack w/CVT Mt Shasta tent,
    Very nice build. I'm liking those rims. I've really been wanting some Method NVs, but those Ray 10s are another 4lbs lighter...might go with the rays.

    nudavinci64 [OP] likes this.
  19. Jan 12, 2017 at 9:03 AM
    #19
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Do it. Save he weight in tires if it's a big deal. I had no ideas which wheels until I saw the Ray10s in brushed copper (decided bronze was a better choice) but for the lol and price it was a no brainer.

  20. Jan 14, 2017 at 9:20 PM
    #20
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    8,323
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....

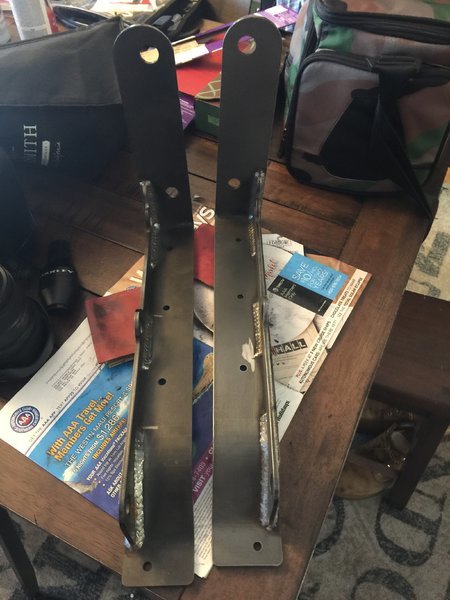

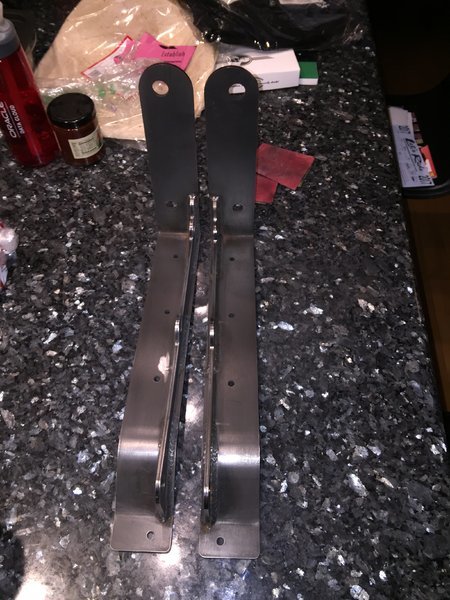

    @Bentrodder bed supports all prepped and ready for painting. Hopefully well get these taken care of tomorrow.

    IMG_5147.jpg IMG_5148.jpg IMG_5155.jpg

    Pirhett and Bentrodder like this.

Products Discussed in

To Top
