NVdeserted's Experiment

Discussion in '2nd Gen. Builds (2005-2015)' started by nvdeserted, Jun 25, 2011.

  1. Jun 25, 2011 at 11:00 PM
    #1
    nvdeserted

    nvdeserted [OP] Well-Known Member

    Joined:
    Nov 27, 2008
    Member:
    #11062
    Messages:
    1,307
    Gender:
    Male
    Reno, NV
    Vehicle:
    2009 Tacoma TRD OR Access Cab
    Electric Dynolock tailgate, TrailGear Slides, , 285/75-16 Yoko Geolanders on Wheelers Type B, SAW 2.0 front and back, Camburg b/j UCA, 1.5" AAL, Ubolt flip, ARB bump.
    Howdy, I figure I've done enough experimenting and modding to my Tacoma to contribute to the archives.

    Here goes, little story to date first: Bought him (first vehicle I ever owned that was a he...) brand new in Reno, winter 2008. I've been wheeling and building Jeeps for the 10 years prior to the Taco, got a bit of addiction to rockcrawling and soon just needed a solid daily driver that could get me into the mountains. I planned on getting the Taco w/OR package, add a shell, and just leaving it totally stock. After a few mild wheeling trips, I soon learned that althought my Taco could make it, it would need a bit more height and bigger/better tires to meet my needs and to not get damaged. Being my first ever vehicle with independent front suspension, I had alot to learn about lifing it.

    My first move was getting a "leveling kit" (spacer) off Ebay, and adding some 265/75-16 BFG ATs. That worked well for a bit, but I didn't like the changes to the handling of the spacer and it actually brought the front heigher than the rear; so then I added a 1" block to the rear to even it out. Then, I didn't like the stance, so I added some Spidertraxx spacers to widen it up.
    After a few more months, I hit one of my old favorite trails, it's real rocky/slow/rutty and although the suspension perfromed well enough, after 2 hours the shocks were getting overheated and became squishey and bouncy... time to get some better shocks. I ended up getting SAW 2.0s at all 4 corners. Added a 1.5" AAL and Ubolt Flip around this time, took the block off.
    Thought I was set, then after a nasty snow/mud hill climb getting almost too out of control for my liking (still made it) I decided it was time for some mudders. I had run many sets of the old BFG MTs, but hadn't ever tried the KM2's... just happened upon a good deal on some new Cooper Discoverer STTs, mounted up, all set...

    Not quite, the mudders really amplified my lack of caster on the highway, plus I was hoping to get more travel out of the front: Picked up some Camburg ball-joint UCAs, installed, aligned, and was happy: http://www.tacomaworld.com/forum/suspension/85859-camburg-ball-joint-uca-install.html

    Now that I was getting where I wanted to go, I realized how low the truck still was, time for some sliders: my local shop got me a great deal on some raw TrailGear sliders, I had them fabbed up for bolt on. I chose bolt on for a few reasons, 1. I've bent sliders on the past, so I didn't want bent sliders welded to my Taco, if I were to bend them, 2. sliders get abused, it's nice to be able to take them off for paint and repair, 3. If I sell the Taco some day, I will return it to stock and sell the aftermarket stuff separately.
    Next, I could never get over having a truck with a plastic front end, and I figure I might as well add a winch to it at some point: picked up an ARB bumper, looks/functions great.

    Most recent: I'm a huge fan of tall/skinny tires, after seeing a few on here running the 255/85s, I figured it was time. Also, in the last year, my work commute has changed from 5 miles a day to 40 miles a day... I was over wasting any more mudders on my now 99% street miles. Problem, there is only one tire that comes in a 255/85 that is NON mud terrain, and it's a mild highway tire to boot. So 255s were out, for now. I happend to stop by a Discount tire on lunch to have them test fit a 285/75-16 just to see what I might be getting into if I were to go this route... 24 hrs later I had a set of Yokohama Geolanders in a 285 on my truck. I have no idea why I picked this tire other than I really like them (had a set on an old work truck), the price was right, and they wouldn't be 'wasted' on my work commute.

    I did some preliminary fender trimming, and just went straight to the body-mount chop. After clearing any present rub spots, I decided to go find some rocks to 'flex' on to see if I had chopped enough... whoa! major rubb-age in the rear fender. Cab mount was cut enough, but it hit everywhere else from there out. Dremmel, grinder, sledge, pliers, and an hour later, the drivers side is almost done. It's funny how cutting on vehicles goes: the first bit is tedious, I spent 45 minutes cutting the smallest bit of fender flare to get it just right...it still rubbed so I spent 20 minutes cutting off a little more just right... then it still rubbed so I siad F-it and filled 1/2 a 5gal bucket with plastic and metal in about 30 minutes, ha! Should be done with the hacking and bending tomorrow. Then clean it up and paint next weekend.

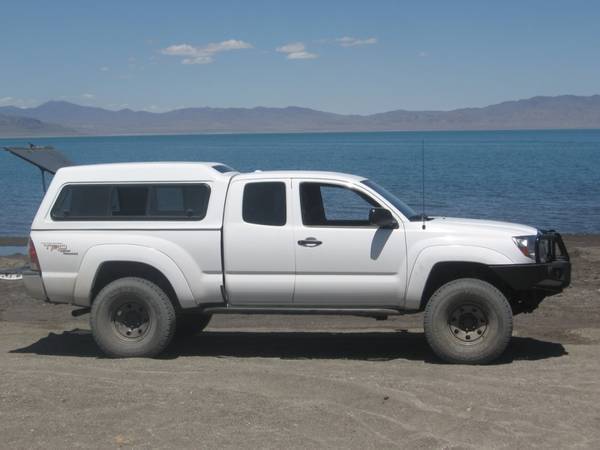

    Current setup, 6-25-2011

    Truck: 2009 Tacoma TRD Off Road, Access cab, white
    Body: ARB Bump+Fogs, A.R.E. MX "tall" shell, TrailGear bolted on sliders,
    Tires: 285/75-16 Yokohama Geolander AT/s Load D.
    Wheels: Wheeler's black Steelies 'Type B' 16x8, 4" backspacing
    Suspension Front: SAW 2.0 c/os, Camburg ball-joint UCA, no swaybar
    Suspension Rear: SAW 2.0 shocks, stock leafpack + 1.5" Wheelers AAL, Allpro Ubolt flip kit,
    Other Mods: Dynolock electric tailgate lock, Trailer plug relocated to bumper, cheap Hi-Lift mount, Monkey fists for shovel, $1 CB drop, turned 'beeps' off, removable 'over w/wells' bed, sheet of plywood covered in carpet padding for the dogs,
    Some products I've experimented with on the Taco: Spidertraxx wheel-spacers, 1" rear block, Ebay "leveling kit", Cooper STTs, Staun tire deflators,
    List of things to do: High clearance rear bumper, OBA, Winch,

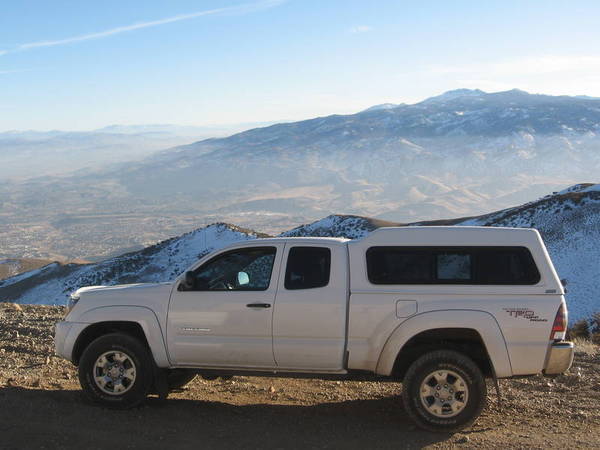

    Brand new:
    [​IMG]

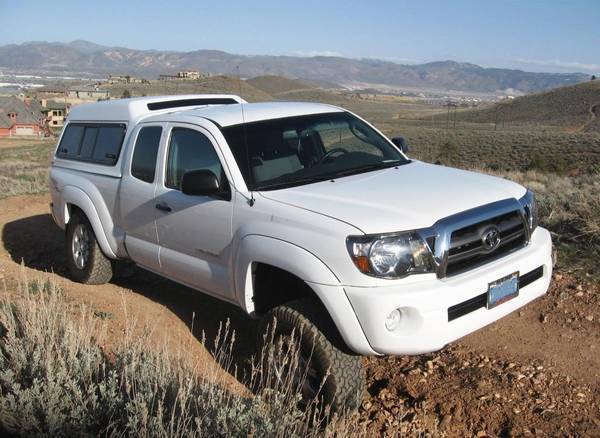

    Pre-SAWs etc:
    [​IMG]

    Last year:
    [​IMG]

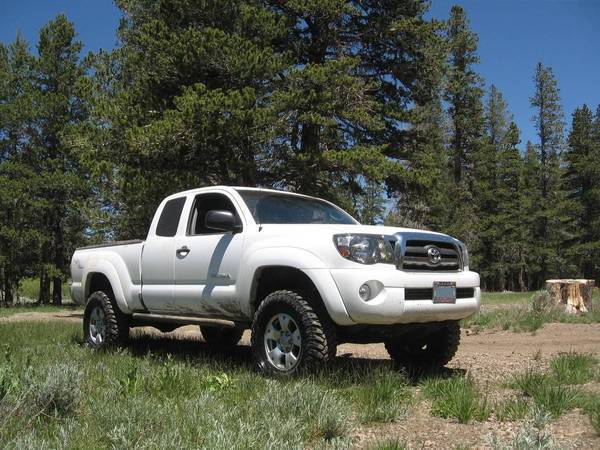

    Just like this one: 265/75-16, spidertraxx spacers, about 2.5" lift (for those looking)
    [​IMG]
    [​IMG]

    6/30/2011
    [​IMG]

    3/9/2012
    [​IMG]

  2. Jun 25, 2011 at 11:24 PM
    #2
    nvdeserted

    nvdeserted [OP] Well-Known Member

    Joined:
    Nov 27, 2008
    Member:
    #11062
    Messages:
    1,307
    Gender:
    Male
    Reno, NV
    Vehicle:
    2009 Tacoma TRD OR Access Cab
    Electric Dynolock tailgate, TrailGear Slides, , 285/75-16 Yoko Geolanders on Wheelers Type B, SAW 2.0 front and back, Camburg b/j UCA, 1.5" AAL, Ubolt flip, ARB bump.

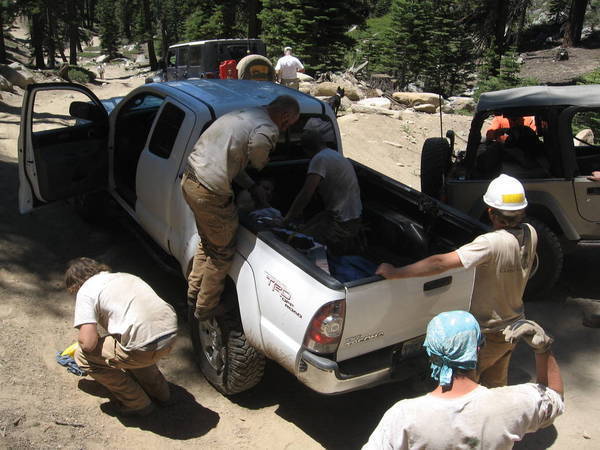

    Had to share this picture, it shows why Tacomas are better than Jeeps for most things. The person laying in the bed was a dirtbike accident I came across during work at Lake Tahoe. He was severly concussed and possible C-spine. These dudes helped me load him, then they rode down in the bed, holding him steady on a bumpy trail to meet the ambulance.

    [​IMG]

  3. Jun 26, 2011 at 5:48 PM
    #3
    nvdeserted

    nvdeserted [OP] Well-Known Member

    Joined:
    Nov 27, 2008
    Member:
    #11062
    Messages:
    1,307
    Gender:
    Male
    Reno, NV
    Vehicle:
    2009 Tacoma TRD OR Access Cab
    Electric Dynolock tailgate, TrailGear Slides, , 285/75-16 Yoko Geolanders on Wheelers Type B, SAW 2.0 front and back, Camburg b/j UCA, 1.5" AAL, Ubolt flip, ARB bump.

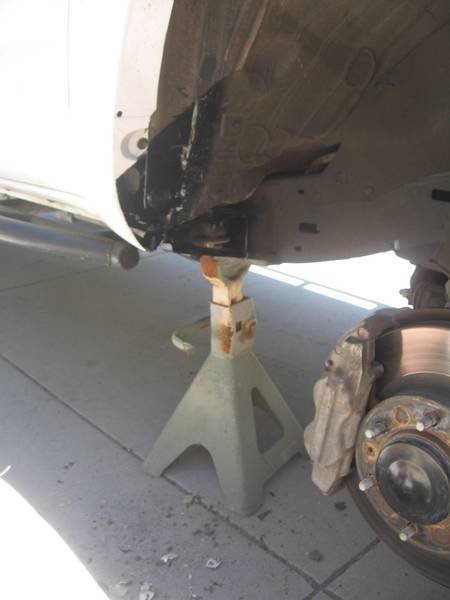

    Fender chopping today. My 285s rubbed bad, moslty I attribute it to my 4" backspacing instead of 4.5"... apparently makes quite a difference at the back of the wheel-well. Anyway, began trimming the other day and figured I'd just chop it all back today and just be done with it, chopping anyway. I finished everything today to fit the 285s without any rubbing; next time I have time I will box the cab mount in and fiberglass and/or epoxy the fender hole and beaten pinch weld; then file/paint/make look nice last.

    Start:
    [​IMG]

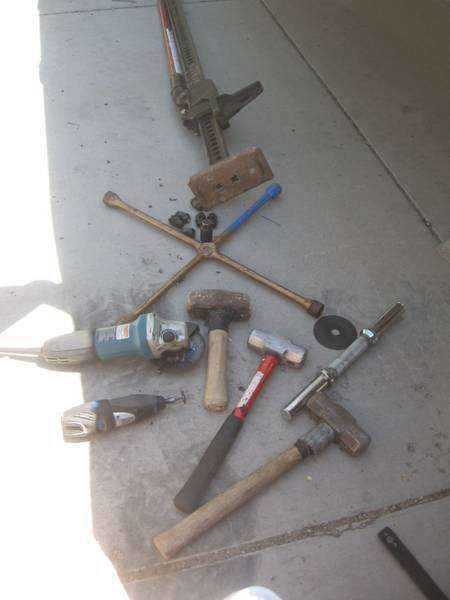

    Gathered 'Fender Tools':
    [​IMG]

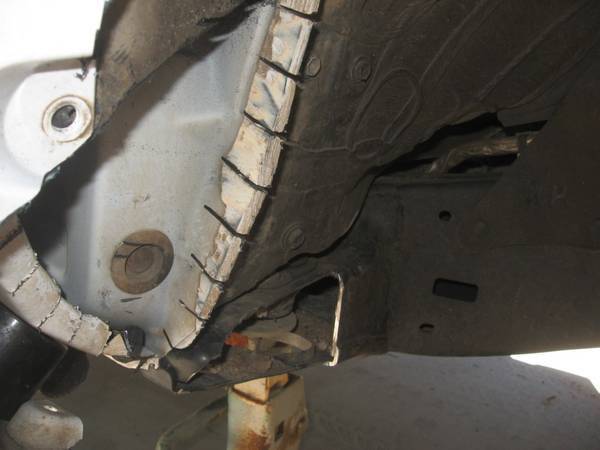

    Decided to notch all the areas I wanted to fold:
    [​IMG]

    Quick spray paint to keep everthing fresh untill I decide how I want to finish it + could be a few weeks till I have time again:
    [​IMG]

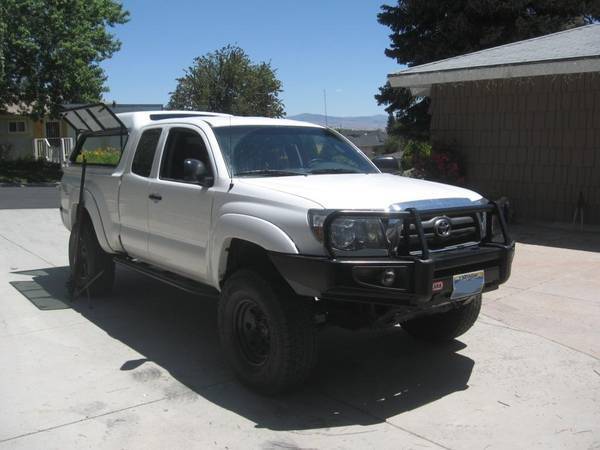

    Can't even tell from a few feet back:
    [​IMG]

  4. Mar 3, 2012 at 10:23 PM
    #4
    nvdeserted

    nvdeserted [OP] Well-Known Member

    Joined:
    Nov 27, 2008
    Member:
    #11062
    Messages:
    1,307
    Gender:
    Male
    Reno, NV
    Vehicle:
    2009 Tacoma TRD OR Access Cab
    Electric Dynolock tailgate, TrailGear Slides, , 285/75-16 Yoko Geolanders on Wheelers Type B, SAW 2.0 front and back, Camburg b/j UCA, 1.5" AAL, Ubolt flip, ARB bump.
    Been a while since I looked at this... time for an update. I like where the truck is at but I've started to address the cosmetics to get them to my liking.

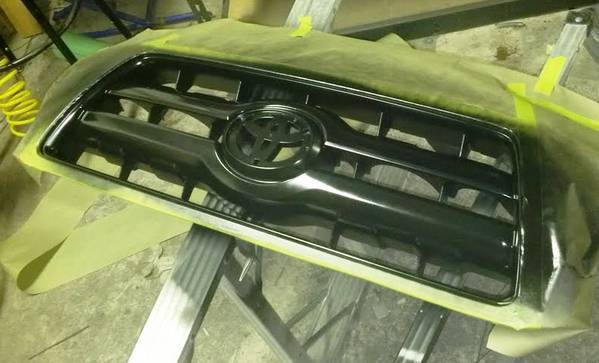

    Did the BHLM and blacked out the grill:
    [​IMG]

    [​IMG]

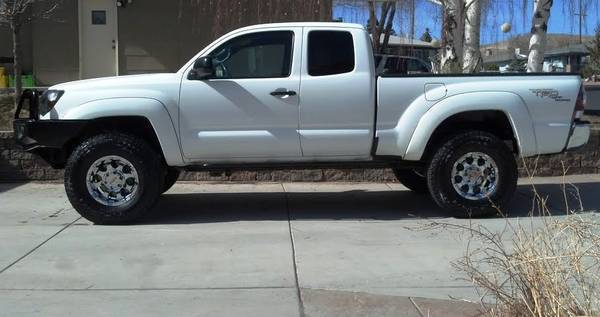

    I got tired of the black steel wheels and picked up some chrome Moto Metal 955s:
    [​IMG]

    More to come...

  5. Mar 3, 2012 at 10:30 PM
    #5
    nvdeserted

    nvdeserted [OP] Well-Known Member

    Joined:
    Nov 27, 2008
    Member:
    #11062
    Messages:
    1,307
    Gender:
    Male
    Reno, NV
    Vehicle:
    2009 Tacoma TRD OR Access Cab
    Electric Dynolock tailgate, TrailGear Slides, , 285/75-16 Yoko Geolanders on Wheelers Type B, SAW 2.0 front and back, Camburg b/j UCA, 1.5" AAL, Ubolt flip, ARB bump.

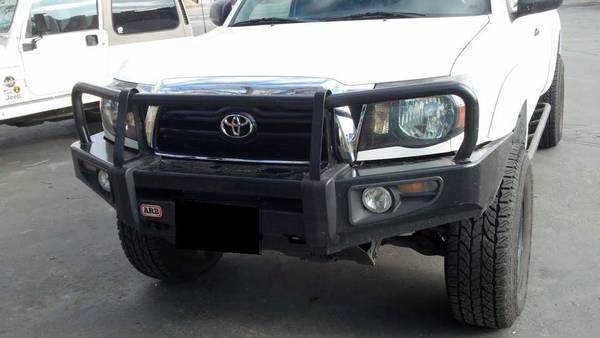

    Today was a big day for the Taco. The ARB bumper I like so much has been asking me to paint it white. I've been very hesitant to white-out it, but we'll see how it looks tomorrow.

    Here's what went down today:

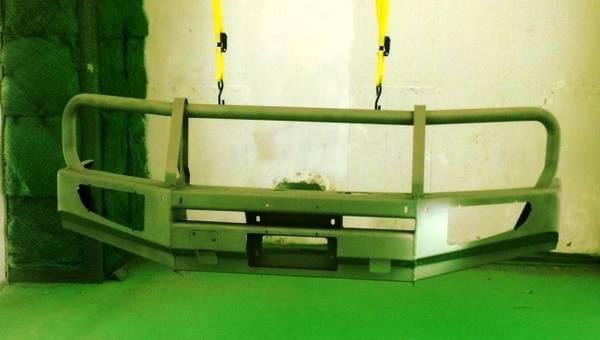

    I gave it a good white metal sandblast... no more black powdercoat! This cell phone pic is crap, but it looked so good just blasted I was tempted to clearcoat it and go...
    [​IMG]

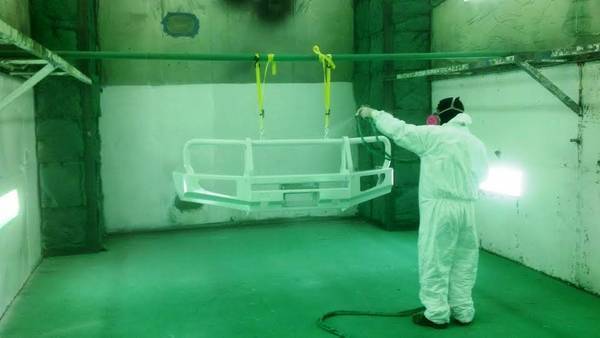

    My painter, Johnny, matched up some paint and sprayed it:
    [​IMG]

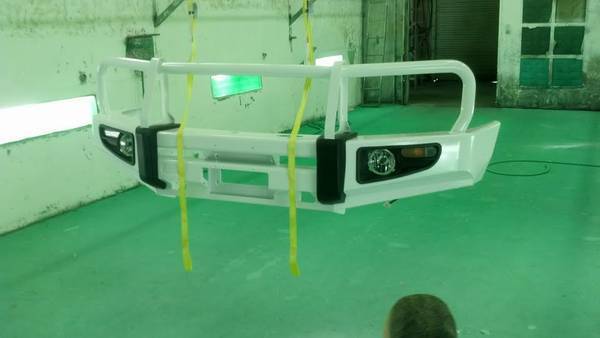

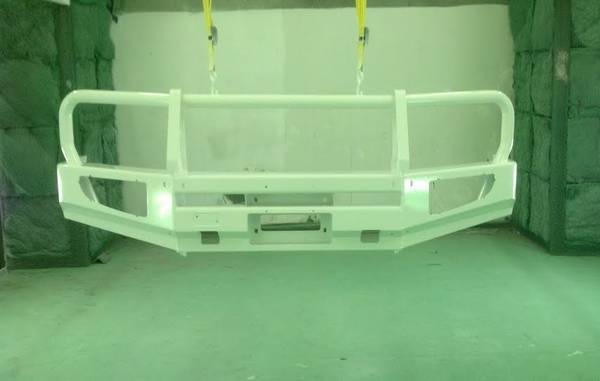

    Gonna let it cure over night, then I'll mount it up tomorrow:
    [​IMG]

    Fingers crossed. I hope it looks good. If not, I've got plenty of black laying around.

  6. Mar 3, 2012 at 10:33 PM
    #6
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,959
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    I think it's gonna be awesome

  7. Mar 4, 2012 at 9:45 AM
    #7
    BulletToothTony

    BulletToothTony Gold Member

    Joined:
    Feb 20, 2008
    Member:
    #4833
    Messages:
    11,480
    First Name:
    You can call me Susan if it makes you happy.
    Looking good man

  8. Mar 4, 2012 at 9:55 AM
    #8
    skidooman

    skidooman I'm your huckleberry

    Joined:
    Apr 6, 2011
    Member:
    #54438
    Messages:
    4,682
    Gender:
    Male
    First Name:
    TJ
    Idaho
    Vehicle:
    sold everything
    Sub'd. :popcorn:

  9. Mar 4, 2012 at 12:48 PM
    #9
    nvdeserted

    nvdeserted [OP] Well-Known Member

    Joined:
    Nov 27, 2008
    Member:
    #11062
    Messages:
    1,307
    Gender:
    Male
    Reno, NV
    Vehicle:
    2009 Tacoma TRD OR Access Cab
    Electric Dynolock tailgate, TrailGear Slides, , 285/75-16 Yoko Geolanders on Wheelers Type B, SAW 2.0 front and back, Camburg b/j UCA, 1.5" AAL, Ubolt flip, ARB bump.
    Duh dunna duuuuuuunnn!

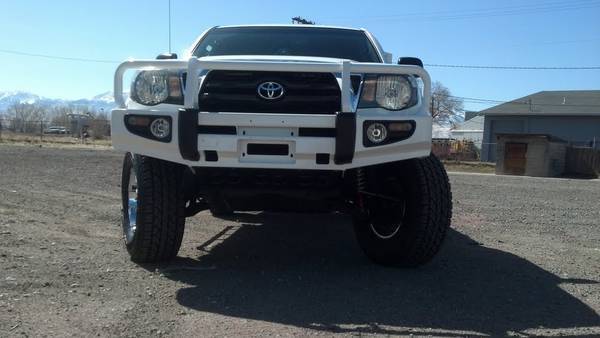

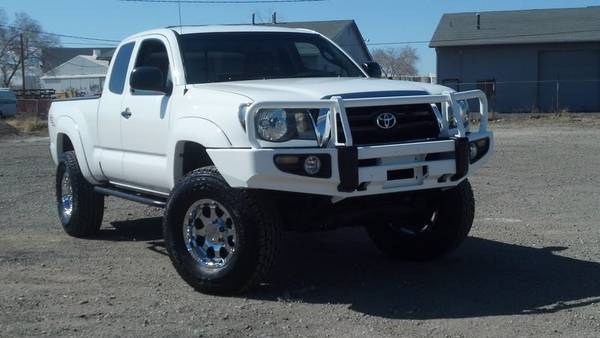

    Well shit, turns out I like the white:
    [​IMG]

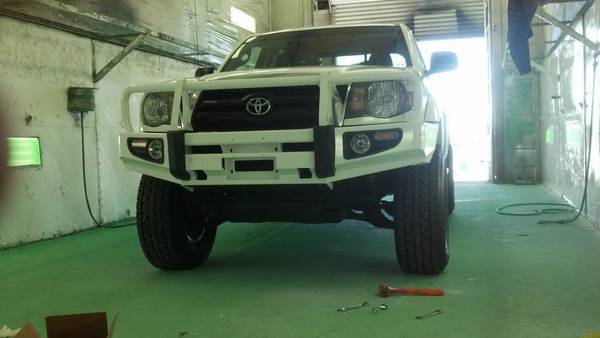

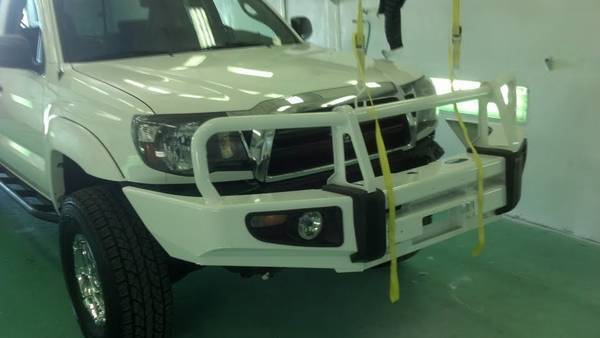

    Being single handed today, using the straps was a much better way to mount this without extra hands:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  10. Mar 4, 2012 at 12:50 PM
    #10
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,959
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Looks great dude :thumbsup:

  11. Mar 4, 2012 at 1:06 PM
    #11
    ChamYota

    ChamYota AKA Crash Bandicoot

    Joined:
    Jul 6, 2011
    Member:
    #59431
    Messages:
    8,202
    Gender:
    Male
    First Name:
    Cam
    Clemson,South Carolina
    Vehicle:
    05 PreRunner AND 82' Toyota P/U 4wd
    H1 Morimoto projector with XB35 4300K bulbs with Mini-gatling gun shrouds, BHLM. Debadged,OEM roof rack,TW sticker,Sockmonkey Beside decals,265/70/16 Nitto terra grapplers with dick cepek DC'2 wheels,weathertech floor liners(front/back),USA Spec Ipod reader,Scanguage II,Bestop Supertopper and more in the works...
    That looks great!

  12. Mar 4, 2012 at 2:16 PM
    #12
    skidooman

    skidooman I'm your huckleberry

    Joined:
    Apr 6, 2011
    Member:
    #54438
    Messages:
    4,682
    Gender:
    Male
    First Name:
    TJ
    Idaho
    Vehicle:
    sold everything
    Yup. I like it too. Looks good.

  13. Mar 4, 2012 at 2:19 PM
    #13
    RenoTacoma

    RenoTacoma Petrol head

    Joined:
    Jun 1, 2010
    Member:
    #38185
    Messages:
    868
    Gender:
    Male
    First Name:
    Sloan
    Reno, nevada
    Vehicle:
    09 Base 4x4 Tacoma
    Mid-travel soon
    Man that looks good!

  14. Mar 4, 2012 at 4:02 PM
    #14
    BulletToothTony

    BulletToothTony Gold Member

    Joined:
    Feb 20, 2008
    Member:
    #4833
    Messages:
    11,480
    First Name:
    You can call me Susan if it makes you happy.
    that looks super clean in white

  15. Mar 4, 2012 at 6:00 PM
    #15
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    Looks good!
