NYCO's '06 Boosted Blue Betty

Discussion in '2nd Gen. Builds (2005-2015)' started by NYCO, May 18, 2011.

  1. Mar 12, 2019 at 6:06 PM
    #6661
    ETXTacoma

    ETXTacoma TTC #050 in the 903

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    15,686
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, General Grabber X3s, Snorkel, Prinsu, Front Bumper, Baja Design Lighting, Blue Ridge Overland Gear, etc, etc.
    Negative, have not done that yet, but will be looking to do that.

  2. Mar 18, 2019 at 5:39 AM
    #6662
    NYCO

    NYCO [OP] go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,471
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    another productive weekend on the trucks.. got my driveshaft back from Bill's Driveshaft (ended up shortening it 2") and got that installed on Saturday.. finished wiring up the rear locker and started to relocate my front locker and compressor switches...

    back in business!

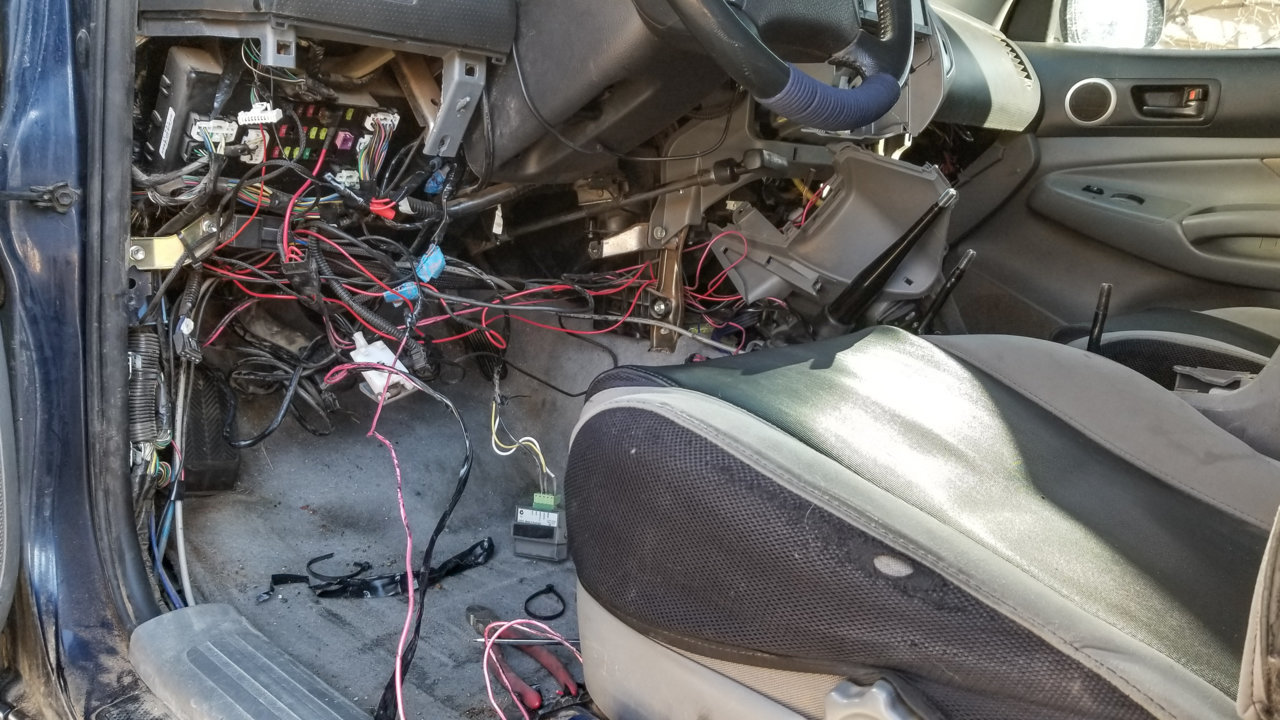

    got to sort through a giant mess of wires... relocated my compressor switch from the engine bay into the truck and moved the front locker from left of the steering wheel to in front of my shifter... while in there, gutted all other wires since i'm going to a switch pro..


    new layout of awesomeness... L>R compressor, front ARB, rear ARB, ADD switch



    after getting the truck buttoned up again, turned our attention to the FJ... didn't get as far as i'd like, but we got the flush mount baja designs squadrons installed in the bumper and LP6's mounted up... the warrior bumper did not have fogs originally, so we had to cut the holes...what a pain, but glad it's done! thanks @tdubd for helping out with the projects :cheers:



    on the next episode of Bob's Garage, get some power to the BD awesomeness just mounted on the FJ via S-Tech Switch System and get power back to the truck's lights via Switch Pro 9100

    tdubd, Torspd, Deathbysnusnu and 3 others like this.
  3. Mar 18, 2019 at 10:10 AM
    #6663
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    7,578
    Gender:
    Male
    First Name:
    Ryan
    Lives: Yelm WA/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff

    Gotta link for that add switch?

  4. Mar 18, 2019 at 10:13 AM
    #6664
    NYCO

    NYCO [OP] go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,471
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
  5. Mar 18, 2019 at 10:58 AM
    #6665
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    7,578
    Gender:
    Male
    First Name:
    Ryan
    Lives: Yelm WA/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
  6. Mar 18, 2019 at 11:08 AM
    #6666
    NYCO

    NYCO [OP] go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,471
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    yea some of those important switches are nice to clearly define some times :)

  7. Mar 18, 2019 at 11:59 AM
    #6667
    NYCO

    NYCO [OP] go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,471
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    the way the switch was originally installed by RST, engaging ADD was down... so i had to rotate my switch so the cover made sense..

  8. Mar 18, 2019 at 12:01 PM
    #6668
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    7,578
    Gender:
    Male
    First Name:
    Ryan
    Lives: Yelm WA/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    Yeah noticed that on the page and your pic

  9. Mar 25, 2019 at 5:46 AM
    #6669
    NYCO

    NYCO [OP] go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,471
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    3 weekends left to wrap up all projects... got damn close to getting both the S-Tech in the FJ and Switch Pro in the Taco hooked up this weekend... one great thing about making these changes is purging all of the old wires that have been cluttering up the trucks..

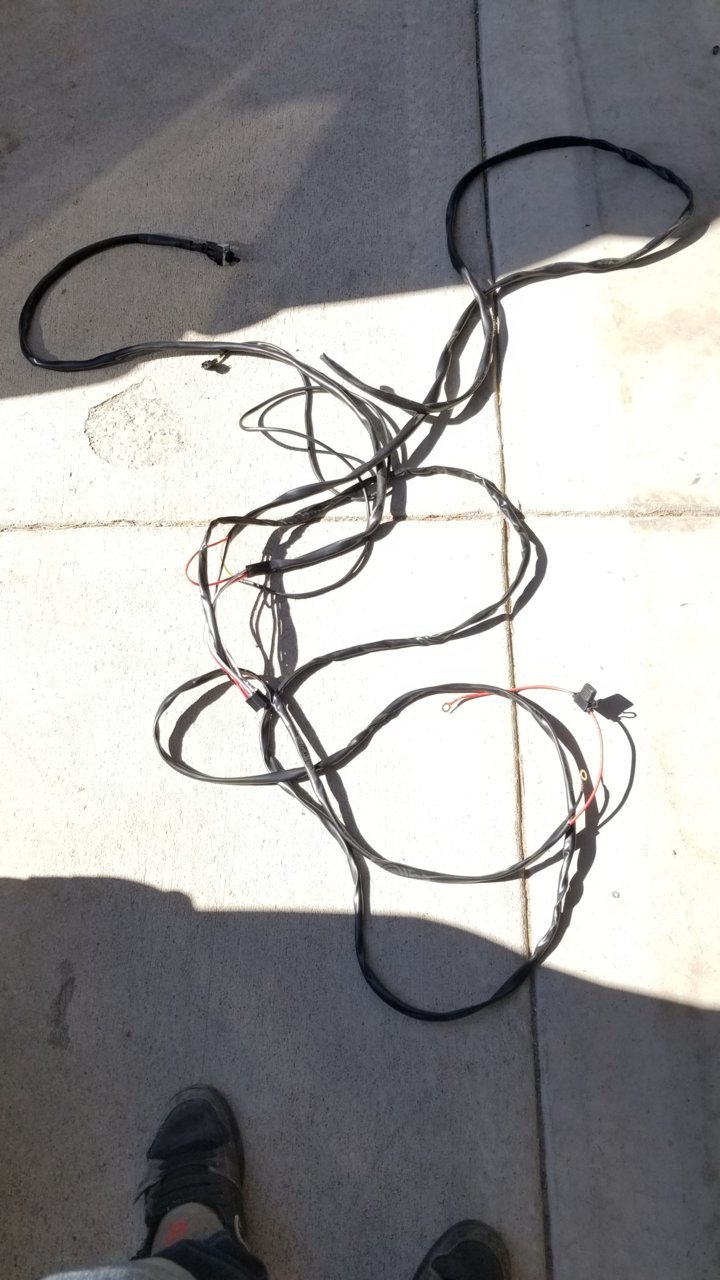

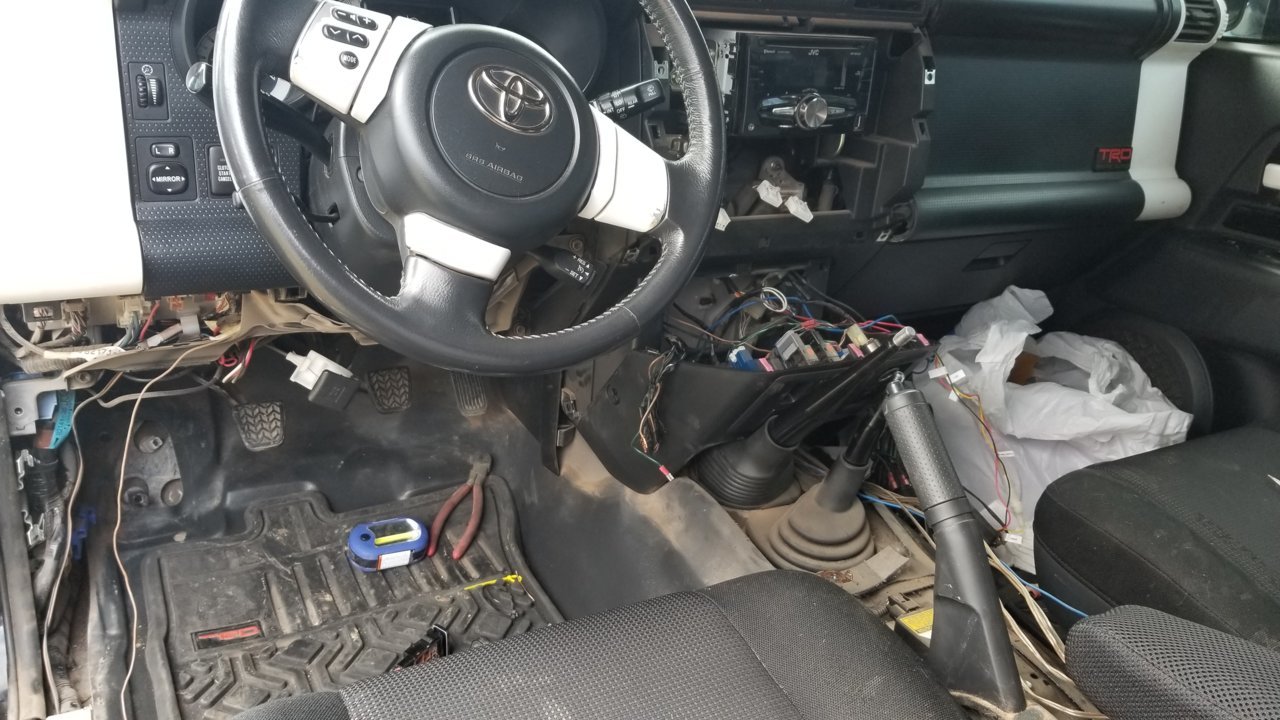

    spent my saturday afternoon cleaning out unneeded items from the FJ prepping for the S-Tech install... i have an Insane Audio headunit going in as well, so the dash remains apart for another weekend..

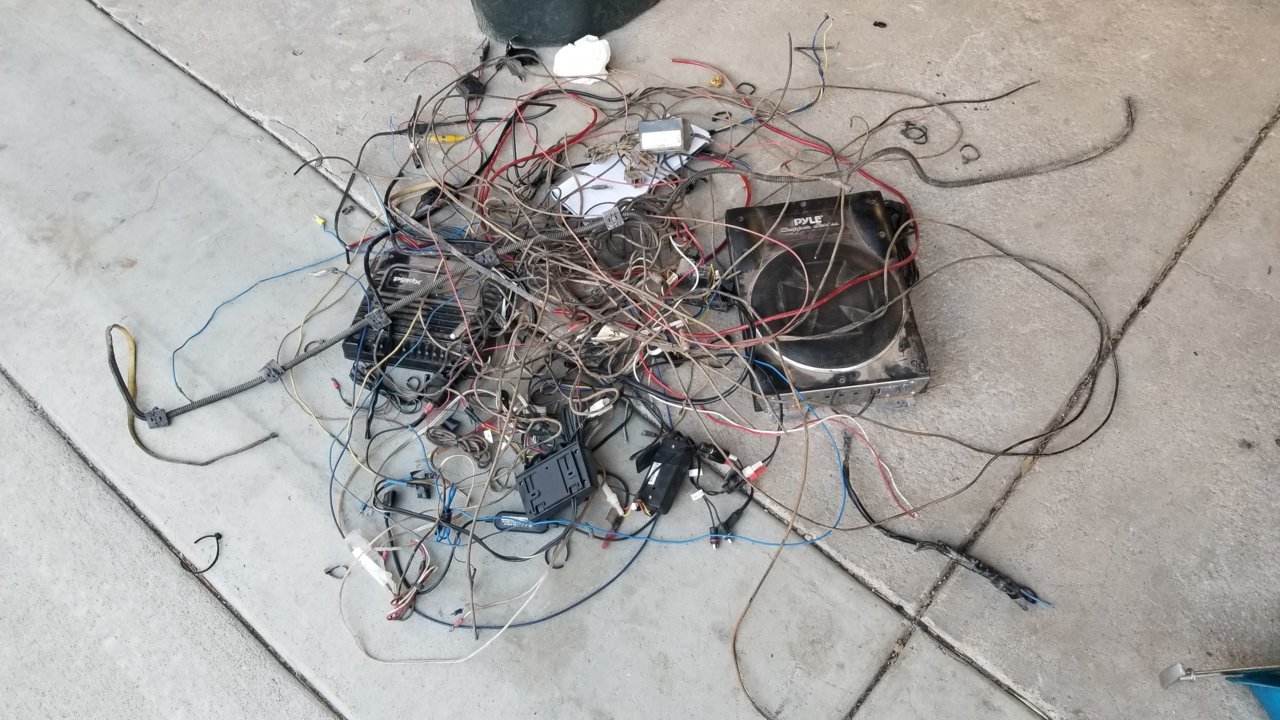

    crazy the amount of crap i pulled out of the FJ from the prior owner that was never being used..

    after cleaning out old wires and removing the old rock light distribution block, i found a spot by the secondary battery to mount the S-Tech. Overall pretty straight forward install. not as fancy as the Switch Pro, but pretty simple. run a wire inside for the switch panel, wire to a add-a-fuse to an ignition source, ground and power... there are six butt ends ready to go that you put your desired output in and clamp down. i have a blue seas fuse block still there which i use to run all the accessory grounds too...

    next up was getting some shit wired up.. first up LP6.. .step one, cut off 80% of the harness

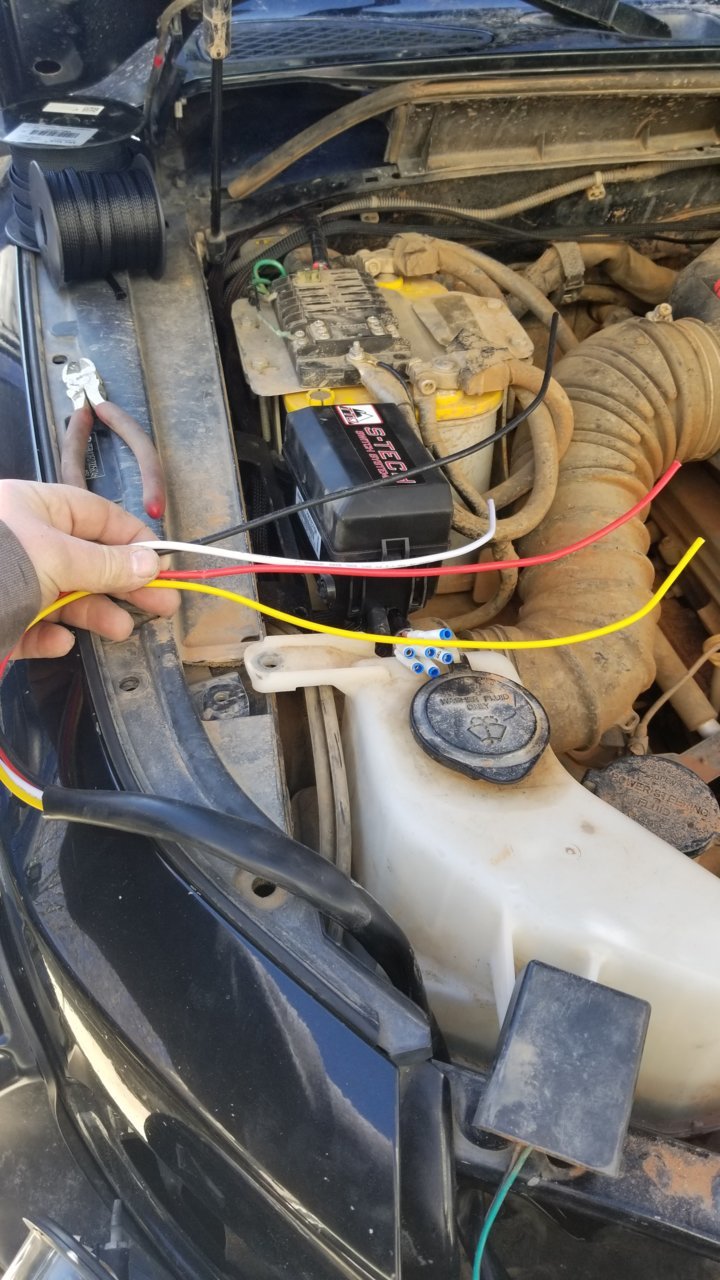

    step two, figure out which wire does what... black = ground, yellow = connect to marker lights to control amber backlighting, red = low output, white = high output

    the baja designs squadrons took a little extra effort since there was no harness made. they include plugs to connect to the lights, so i made my own harness...

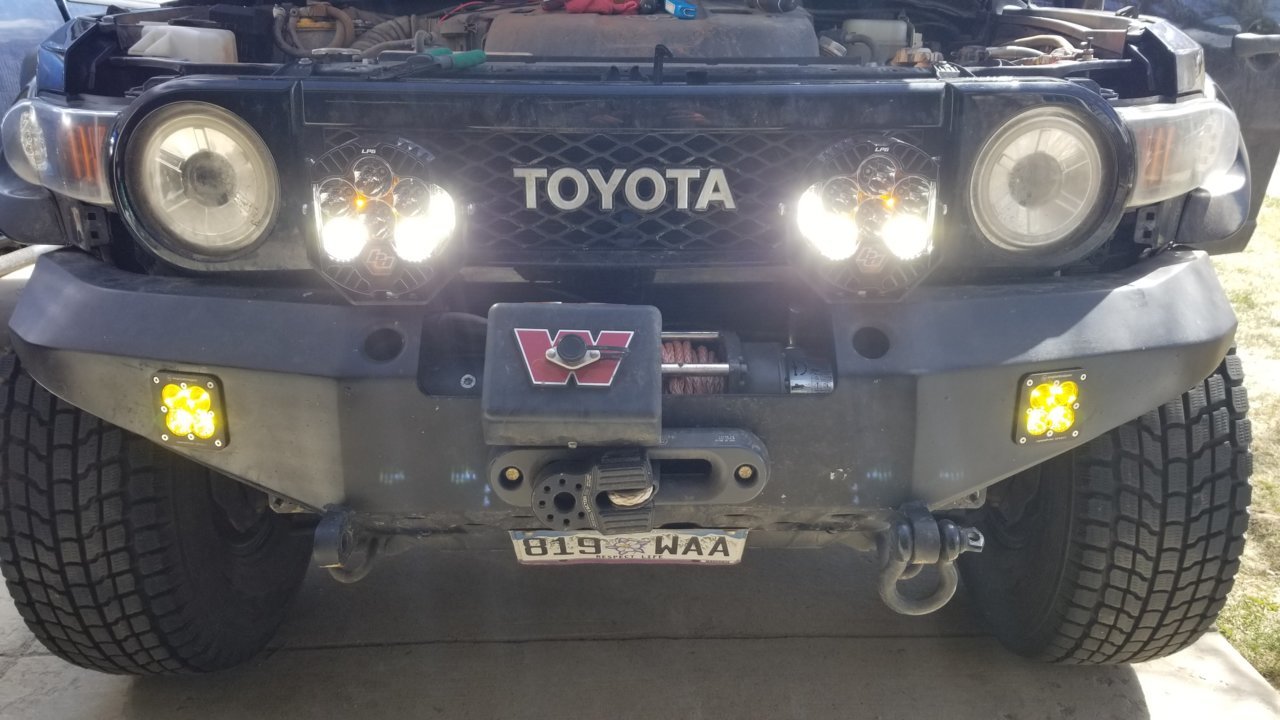

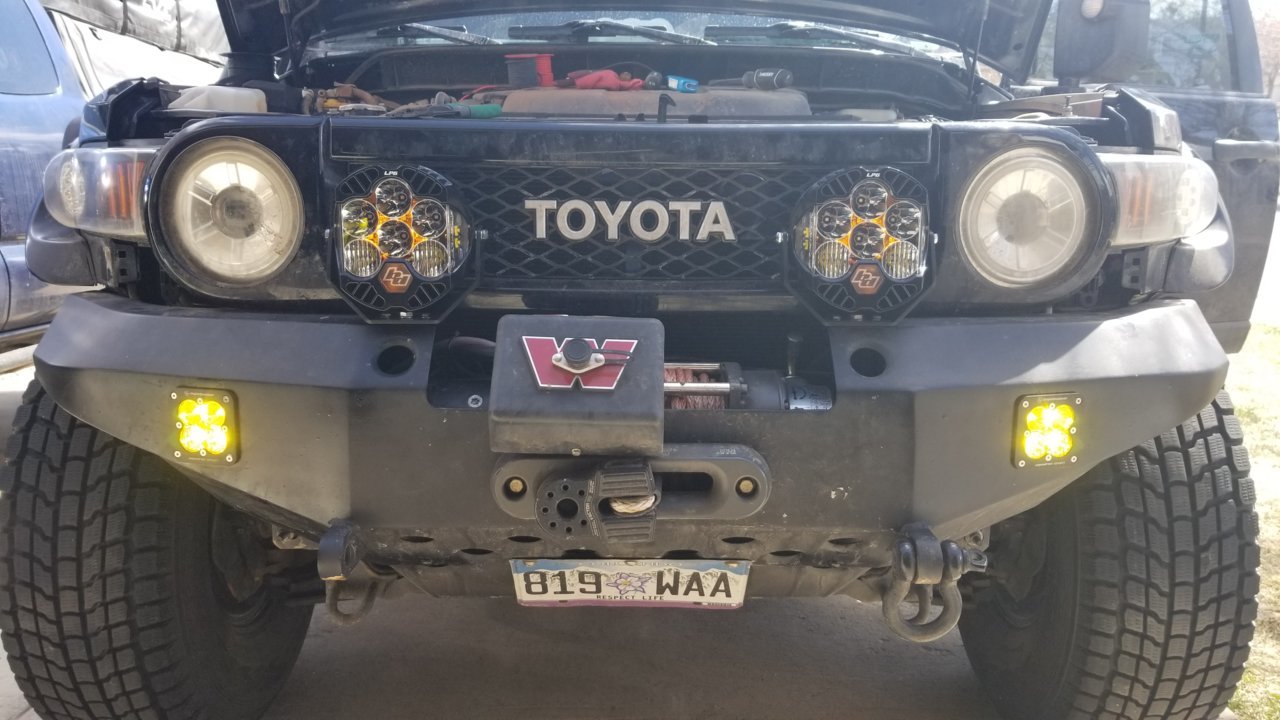

    and the results....

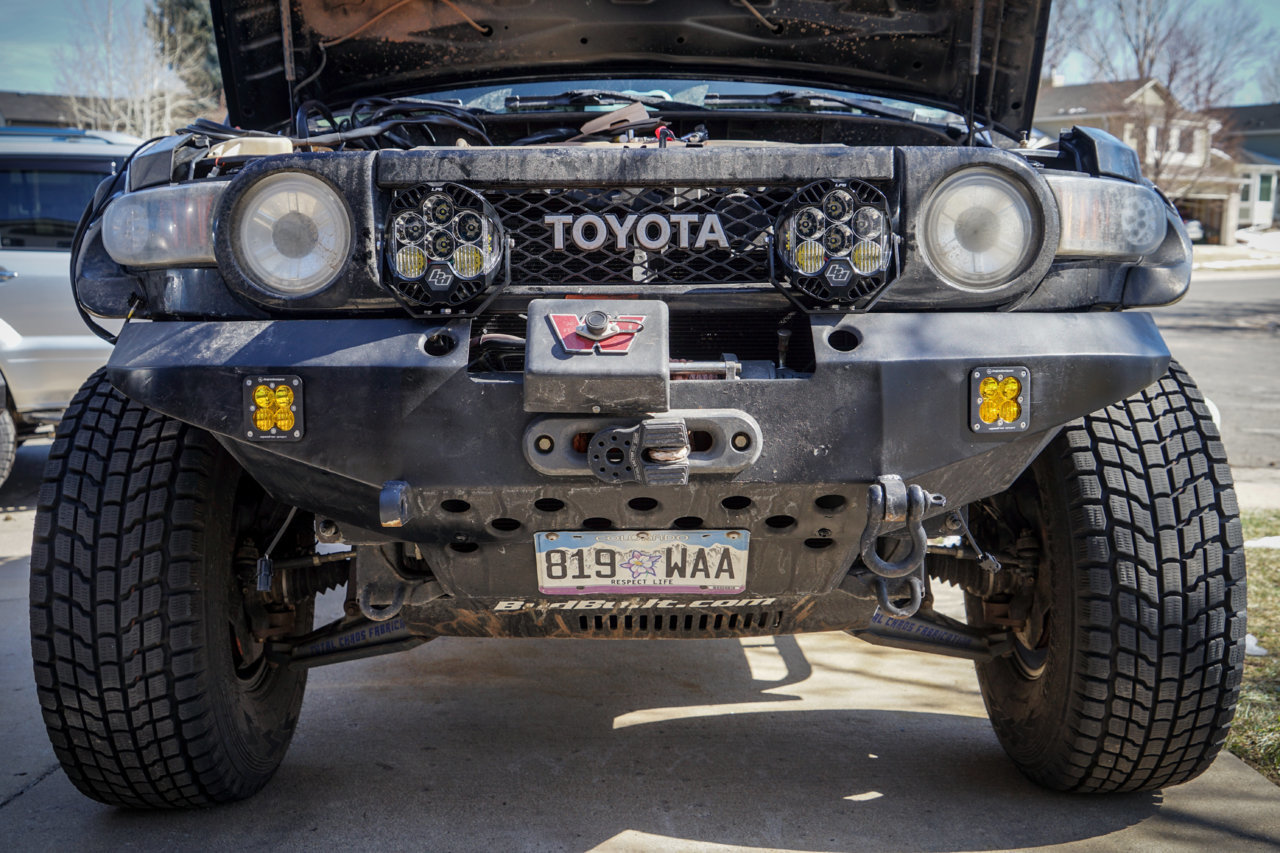

    squadrons with LP6 ambers

    squadrons with LP6 lows

    squadrons with LP6 highs



    can't wait to get this in the desert and see what they can really do!!!

    not many pics from the taco progress... uninstalled my ditch lights. ran my switch pro wire inside and mounted the switch panel.

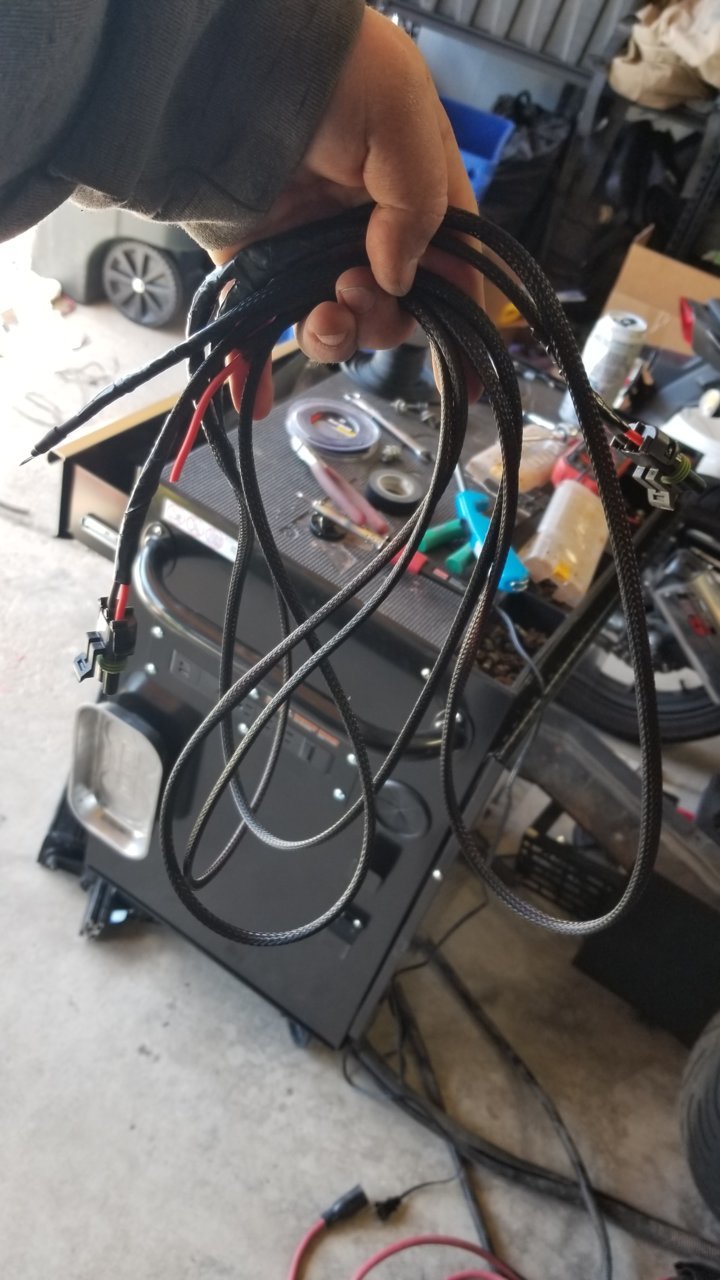

    made a mount for the switch pro and distribution block. ran the output wires to the distribution block, then ran out of daylight.


    next weekend will be connecting all the lights back up and adding some new lights to both rigs. hopefully install the Insane Audio in the FJ too.

    weekend after will be full fluid changes on both rigs and tire rotations. FJ spark plugs.

    final weekend before trip will be checking every nut and bolt...

    SilverGhost, JLink and Torspd like this.
  10. Mar 29, 2019 at 2:34 PM
    #6670
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,177
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    Looking good. I convinced my brother in law to get a switch pros and now I’d like to rip out all my old switches and start over.

    How are you wiring the lp6’s?
    I was thinking I’d do Amber with running lights or something, low with high beams, high with switch.. maybe?

  11. Mar 29, 2019 at 2:50 PM
    #6671
    NYCO

    NYCO [OP] go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,471
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    it comes with a double throw switch...one for high and one for low.

    i cut that all off since we're running the S-Tech in the FJ... so we'll have one button for high and one for low. the key is DO NOT HAVE BOTH ON AT THE SAME TIME! so if you do a switch pro or similar setup, you need to get that in your head to turn one off before turning the other on.. the switch pro has a double throw option built in where you can have two outputs function where the both can't be on which would be great for those lights.

    yellow wire for the ambers is tapped into the marker light/running lights.

    it was a great feeling getting rid of all the wires between the two trucks...i really wish they had this when i first started.. it's a big reason why i waited to get any additional lights on the FJ for so long... waiting to pick a route like this and do it clean. all of the old wiring was from the prior owner...

  12. Mar 29, 2019 at 4:28 PM
    #6672
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,177
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    Thanks for all the info. Yea I wish they made these when I first started. Same thing with led lights.. been through more lights than I can count, just trying to keep up lol.

    mr.trd likes this.
  13. Mar 30, 2019 at 12:49 PM
    #6673
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    74,697
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    Wait you can't have the low and high beam on at the same time??? Wtf?

  14. Mar 30, 2019 at 12:55 PM
    #6674
    NYCO

    NYCO [OP] go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,471
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    when you use the high setting, the low goes on... but if you have power going to both wires, you can mess up the internal circuit..

    look at the pics above, you can see the high has all lights on.

    @Gramps knows a bit more about what happens when you do that.. since he did it

  15. Mar 30, 2019 at 1:19 PM
    #6675
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    74,697
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    Ahhh so the low circuit only fires the low floods and the "high" sends power to everything.

    Double the electricity double the light right? :p

  16. Mar 30, 2019 at 1:47 PM
    #6676
    NYCO

    NYCO [OP] go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,471
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    seems legit

  17. Apr 16, 2019 at 3:46 PM
    #6677
    ToyotaRoamer86

    ToyotaRoamer86 Well-Known Member

    Joined:
    Jun 20, 2017
    Member:
    #221993
    Messages:
    188
    Gender:
    Male
    First Name:
    Brandon
    Frisco, CO
    Vehicle:
    2007 Tacoma TRD Sport
    Fox 2.5 coilover with SPC, AllPro EXPO springs with 2.0 Resi, 285 on factory wheels with SpiderTrax
    Switch Pros is the way to go! Also big thumbs up on the LP from BAJA DESIGNS

  18. Apr 20, 2019 at 6:04 AM
    #6678
    Gramps

    Gramps My walker is faster than your Prius!

    Joined:
    Feb 7, 2011
    Member:
    #50695
    Messages:
    14,325
    Gender:
    Male
    First Name:
    Gramps
    Colorado! Where else?
    Vehicle:
    07 TRD DC 4x4
    A small handful of select mods.
    Or so I thought. :D

    I don't know why they don't put something on the board to not let it overload by mistake. Cool thing is they warranted it. Sent my LP9s back and they put new boards in them and sent th back to me.

    Blackdawg likes this.
  19. Aug 1, 2019 at 12:38 PM
    #6679
    NYCO

    NYCO [OP] go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    18,471
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    not that anyone cares, but placing this here as a service record... replaced lower uniballs over the weekend and got a fresh alignment... 240k 'ish... thanks you @Toytec Lifts for having some in stock for the last minute decision :cheers:

    delta joints planned for later in the summer...

  20. Aug 1, 2019 at 1:58 PM
    #6680
    RockyMtnTRD

    RockyMtnTRD Wanderlust.

    Joined:
    May 4, 2011
    Member:
    #56088
    Messages:
    6,546
    Gender:
    Male
    First Name:
    Noah
    Colorado
    Vehicle:
    '11 TRD OR
    hack job
    What made you decide it was time? I think ill need to replace upper & lower sometime soon.
