O2 (Air/Fuel Ratio) Sensor Replacement, Bank 1 - 5VZ-FE, w/ Manual Transmission

Discussion in '1st Gen. Tacomas (1995-2004)' started by SwampYota, Aug 30, 2016.

  1. Aug 30, 2016 at 2:29 PM
    #1
    SwampYota

    SwampYota [OP] Strange things are afoot at the Circle K

    Joined:
    Apr 11, 2016
    Member:
    #184044
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Jon
    Concord, North Carolina
    Vehicle:
    '03 Tacoma SR5 TRD 5VZ-FE, 5 Speed
    Floor mats
    About a month ago I pulled into the QT in Rock Hill, SC because gas was an insanely cheap $1.67/gallon. I filled up the tank and before I could pull out of the parking lot my CEL lit up bright and orange. I'm not sure if that was just a strange coincidence or not but it meant a detour to the parts store for a free code reading was in order. The truck registered a P0031 code which is the Oxygen (A/F) Sensor Heater Control Circuit Low (Bank 1 Sensor 1).

    I looked through the site and didn't see a tutorial specific to the 5FZ-FE w/ manual transmission so I figured it's about time I did my part and add a little more information to TW so here we go.*

    *Please note, I am not a Toyota Certified Technician, I'm not a mechanic period. This is a fairly simple procedure if you know how to turn a wrench. That said, if you decide to follow a "how-to" on the internet you're responsible for the outcome.

    Step 1. Locate your 02 sensor

    Before you read any further, this is for the first gen 3.4L engine with a manual transmission. If that's not what you're driving this isn't the thread for you. There will be slight differences mainly in location of components and part #'s between this setup and others. Your sensor will be located between your catalytic converter and downpipe at a 40 degree angle pointing towards your driver side. I chose the Denso part #234-9003 because the consensus on TW is that OEM parts are the way to go. I got mine on AutoAnything.com for around $20 less than the local parts store with free shipping.

    Step 1 - O2 Sensor Location.jpg

    Step 2. Loosen the nuts

    The two nuts holding this on have been subjected to years of abuse, mud and heat so you have to loosen them. I sprayed mine with PB Blaster once a day for three days prior to working on it while waiting for the part to come in. It should go without saying but, you will be spraying chemicals above your face into filth. Be smart, wear some sort of eye protection.

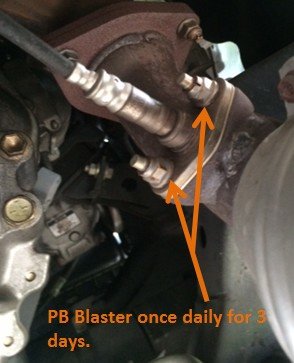

    Step 2 - Blaster Bolts.jpg

    Step 3. Into the cab

    The electrical connection for the 3.4L w/ manual transmission is above the transmission, impossible to reach from underneath. To disconnect you have to come at it from above. Remove your manual transmission and 4WD transfer case shifter knobs.

    Step 3 - Shifter Knobs.jpg

    Step 4. Remove the Console

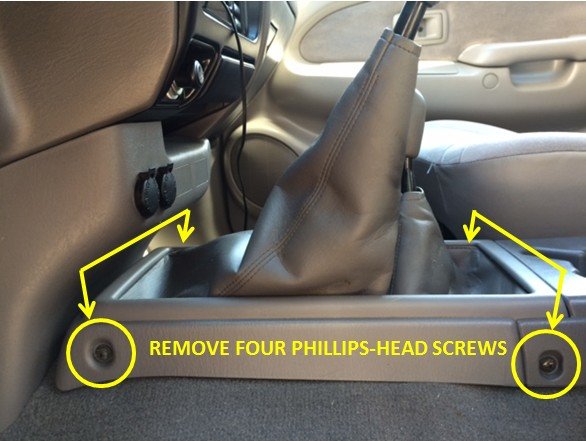

    The plastic cover around the shifter boots is held in place by four Phillips head screws. Remove these screws and carefully pull the console towards the dash and up. Once off, clean the decade's worth of coffee and dirt off it. Don't eat the french fry you find underneath.

    Step 4 - Phillips Head Screws.jpg

    Step 5. Remove the Shifter Boots

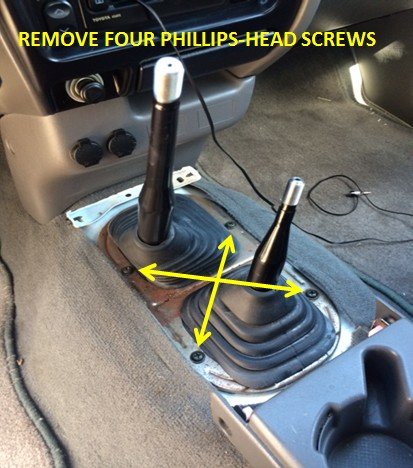

    Beneath the plastic console and boot covers are the rubber shifter boots and four more Phillips head screws. Remove the screws and pull the boot plate out.

    Step 5 - Phillips Head Screws.jpg

    Step 6. Electrical Connection

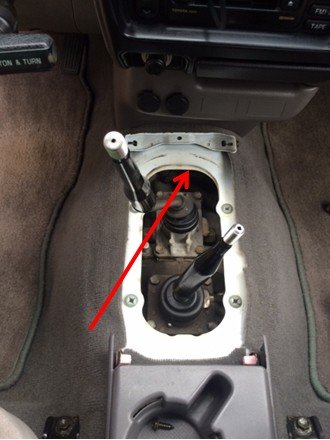

    The electrical connection that your 02 sensor, bank 1 is plugged into is held in place with a clip and pointing towards the engine. It can be found by reaching into the opening on the end nearest the dash. It is impossible, for me anyway, to disconnect without removing it from the clip.*

    *I've seen online where people say you should disconnect the battery before unplugging the O2 sensor and others say you don't. I disconnected the battery before going any further. At worst, I have to reset my stations and the clock I can't see behind the steering wheel.

    Step 6 - Electrical Connection.jpg

    Step 7. Release from Clip

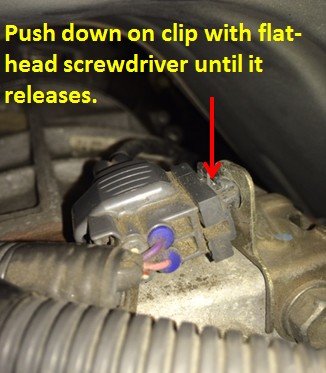

    Using a small flat head screwdriver, push the clip in on the right side of the electrical connection. Carefully jiggle it out. I found that using my phone's camera to see what I'm doing and the flashlight on it were helpful. As you've no doubt figured out by now, space is tight.

    Step 7 - Release Clip.jpg

    Step 8. Disconnect from the Exhaust

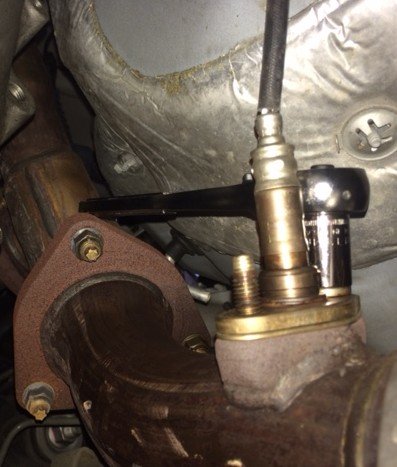

    Get back under the truck. The two nuts you've been spraying with PB Blaster are now ready to be removed. The bolt closest to you is a breeze. The one closer to the transmission is kind of a pain. If you put the socket at the angle I have in the picture it is possible, albeit slow. If you have tools that work better please put in the comments what you used.

    Step 8 - Disconnect from Exhaust.jpg

    Step 9. Fish the 02 Sensor up into the Cab

    Pull the O2 sensor off the two bolts, make sure to remove the gasket and get back in the cab. Grab the end with the electrical connection and pull the sensor up into the cab.

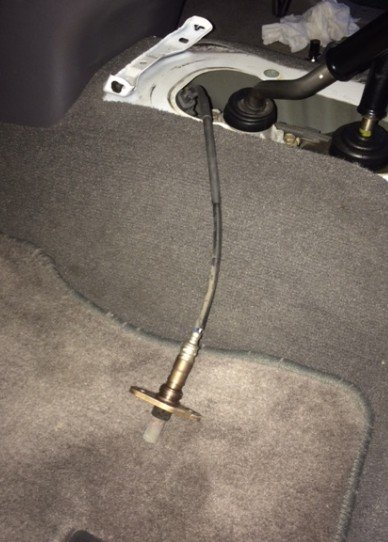

    Step 9 - Pull O2 Sensor up Into Cab.jpg

    Step 10. Disconnect the O2 Sensor

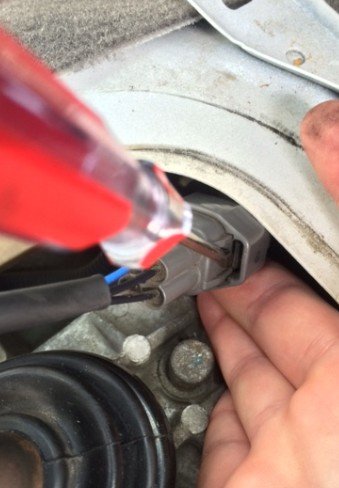

    Now that the sensor is no longer clipped to the transmission and the part is pulled into the cab the electrical connection is at an angle where it's possible to disconnect without donking up your hand or the connection. Using your flat head screw driver again, push the clip out and carefully disconnect the sensor from the connection.

    Step 10 - Disconnect from Wire Harness.jpg

    Steps 11 - Beer.

    The hard part is over. Now you need to plug your new O2 sensor into the connection, put the sensor back through the hole, stick the electrical connection back to the clip on the transmission (if you didn't get pissed off and just snap it off) crawl underneath and put the new gasket and sensor back into the exhaust location over the two bolts. Use the original nuts and tighten it back. Connect your battery. Start up the truck and check you CEL. Mine cut off immediately. Put the shifter boots back on attaching with the four screws, put the console back on attaching with the four screws, test drive, park it, remove keys, shut door, open fridge, consume beer.

  2. Aug 30, 2016 at 7:55 PM
    #2
    McMash

    McMash The only thing better than light bars? Sarcasm.

    Joined:
    Nov 28, 2015
    Member:
    #170899
    Messages:
    580
    Gender:
    Male
    First Name:
    Tyler
    Gig Harbor, Wa.
    Vehicle:
    '04 Tacoma AC TRD 4x4
    Great write up! Though, I was under the impression that Toyota called that sensor the Air/Fuel sensor, and not an O2 sensor?

  3. Aug 31, 2016 at 9:47 AM
    #3
    skeezix

    skeezix Well-Known Member

    Joined:
    Oct 31, 2010
    Member:
    #45512
    Messages:
    1,634
    Gender:
    Male
    Colorado
    Vehicle:
    1998 Limited
    Informative write-up, good pix, and nicely written :) !

  4. Sep 3, 2016 at 5:36 AM
    #4
    SwampYota

    SwampYota [OP] Strange things are afoot at the Circle K

    Joined:
    Apr 11, 2016
    Member:
    #184044
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Jon
    Concord, North Carolina
    Vehicle:
    '03 Tacoma SR5 TRD 5VZ-FE, 5 Speed
    Floor mats
    Thanks McMash. It's 6 of 1, half a dozen of the other. The correct term for the bank 1 sensor in front of the catalytic convertor is the air/fuel sensor but when you go to the parts store to pick it up or even search the part # online a lot of places are calling it an oxygen sensor. I'm going to edit the title regardless.

    Here's a better explanation I found:

    The ECM uses an oxygen sensor to ensure the air/fuel ratio is correct for the catalytic converter. Based on the oxygen sensor signal, the ECM will adjust the amount of fuel injected into the intake air stream.

    There are different types of oxygen sensors, but two of the more common types are:

    • the narrow range oxygen sensor, the oldest style, simply called the oxygen sensor.

    • wide range oxygen sensor, the newest style, called the air/fuel ratio (A/F) sensor.

    Also used on very limited models in the early 90s, was the Titania oxygen sensor.

    OBD II vehicles require two oxygen sensors: one before and one after the catalytic converter. The oxygen sensor, or air/fuel ratio sensor, before the catalytic converter is used by the ECM to adjust the air/fuel ratio. This sensor in OBD II terms is referred to as sensor 1. On V-type engines one sensor will be referred to as Bank I Sensor 1 and the other as Bank 2 Sensor 1. The oxygen sensor after the catalytic converter is used by the ECM primarily to determine catalytic converter efficiency. This sensor is refer-red to as sensor 2. With two catalytic converters, one sensor will be Bank 1 Sensor 2 and the other as Bank 2 Sensor 2.

    McMash likes this.
  5. Sep 3, 2016 at 5:37 AM
    #5
    SwampYota

    SwampYota [OP] Strange things are afoot at the Circle K

    Joined:
    Apr 11, 2016
    Member:
    #184044
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Jon
    Concord, North Carolina
    Vehicle:
    '03 Tacoma SR5 TRD 5VZ-FE, 5 Speed
    Floor mats
    'preciate it skeezix!

  6. Sep 3, 2016 at 9:02 AM
    #6
    McMash

    McMash The only thing better than light bars? Sarcasm.

    Joined:
    Nov 28, 2015
    Member:
    #170899
    Messages:
    580
    Gender:
    Male
    First Name:
    Tyler
    Gig Harbor, Wa.
    Vehicle:
    '04 Tacoma AC TRD 4x4
    Very interesting, thank you! When it comes to OBD2 stuff, I am lost. I didn't realize they were the same part. Toyota had different part numbers for them, and the front one was CONSIDERABLY more expensive, for whatever reason.

  7. Sep 3, 2016 at 5:17 PM
    #7
    SwampYota

    SwampYota [OP] Strange things are afoot at the Circle K

    Joined:
    Apr 11, 2016
    Member:
    #184044
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Jon
    Concord, North Carolina
    Vehicle:
    '03 Tacoma SR5 TRD 5VZ-FE, 5 Speed
    Floor mats
    No you're right they are different parts and the bank 1 sensor is more expensive. Just some people people still call them both O2 sensors.

  8. Sep 26, 2016 at 11:33 AM
    #8
    quetzal

    quetzal Well-Known Member

    Joined:
    Apr 19, 2014
    Member:
    #128011
    Messages:
    1,465
    Gender:
    Male
    First Name:
    Mario
    Long Beach, CA
    Vehicle:
    '02 XtraCab SR5 TRD 4x4 5spd
    All-Pro UCAs, King 2.5 C/Os, All-Pro Expo Leafs, Bilstein 10" Shocks
    Marking - my truck threw a P1135 CEL.

  9. Jul 15, 2017 at 1:03 PM
    #9
    greentacoluke

    greentacoluke New Member

    Joined:
    Apr 13, 2014
    Member:
    #127605
    Messages:
    2
    Gender:
    Male
    NC
    Vehicle:
    Green 04 3.4L V6 4wd
    K&N cold air intake, Flowmaster American Thunder exhaust system,
    Just replaced my O2 sensor with the help of this thread, it was very helpful. Probably cut my time in half! Step 11 was my favorite though!

    SwampYota [OP] likes this.
  10. Jul 15, 2017 at 1:06 PM
    #10
    SwampYota

    SwampYota [OP] Strange things are afoot at the Circle K

    Joined:
    Apr 11, 2016
    Member:
    #184044
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Jon
    Concord, North Carolina
    Vehicle:
    '03 Tacoma SR5 TRD 5VZ-FE, 5 Speed
    Floor mats
    I'm glad it was helpful!

    greentacoluke likes this.
  11. Jul 15, 2017 at 4:12 PM
    #11
    Currygoat

    Currygoat Well-Known Member

    Joined:
    May 8, 2017
    Member:
    #218518
    Messages:
    228
    Bay Area, California
    Vehicle:
    2002 Tacoma 2.4 5 Speed
    Rims, 4600 Bilsteins, K&N filter
    I just did this last month on my 2.4. The only problem I had was removing the nuts off the bolts. They were rusted completely round and I was forced to file them down so I could get a wrench around them. I installed the sensor and then covered the bolts with after anti sieze prior to putting the nuts back on. I didnt have to pull the shifter cover as the 2.4 has a larger cable. I used OEM denso sensor as well.

    http://densoautoparts.com/find-my-part/vehicle-selection

  12. May 19, 2018 at 11:58 AM
    #12
    JakesTacoTRD

    JakesTacoTRD "Winona the Tacoma"

    Joined:
    Aug 26, 2017
    Member:
    #228090
    Messages:
    252
    Gender:
    Male
    First Name:
    Jacob
    Gainesville, FL
    Vehicle:
    2001 White Tacoma SR5 TRD 4x4 5 speed

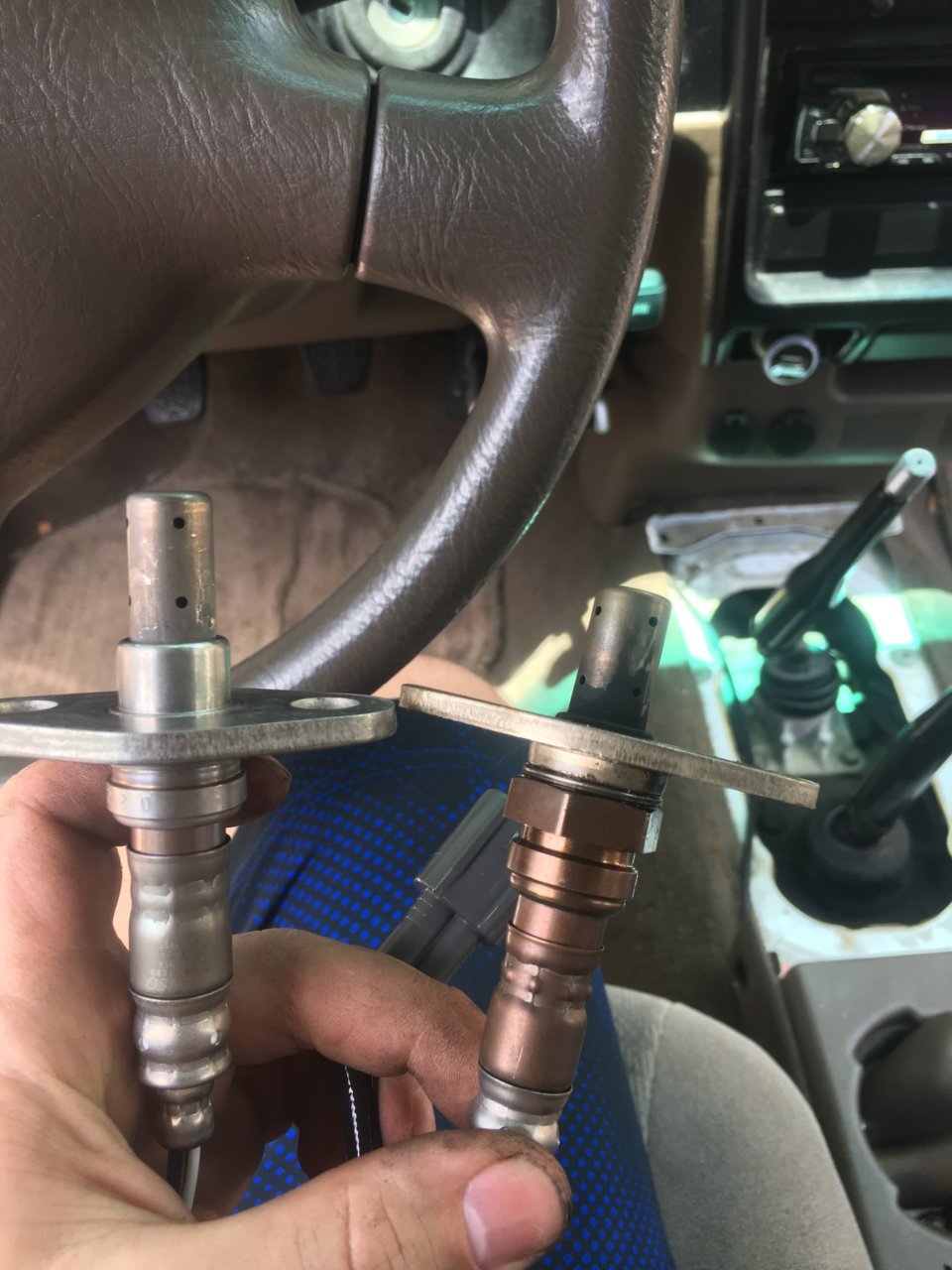

    Awesome write up! I used Denso sensor which looked a lot different from the unmarked POS aftermarket one the PO put in it.

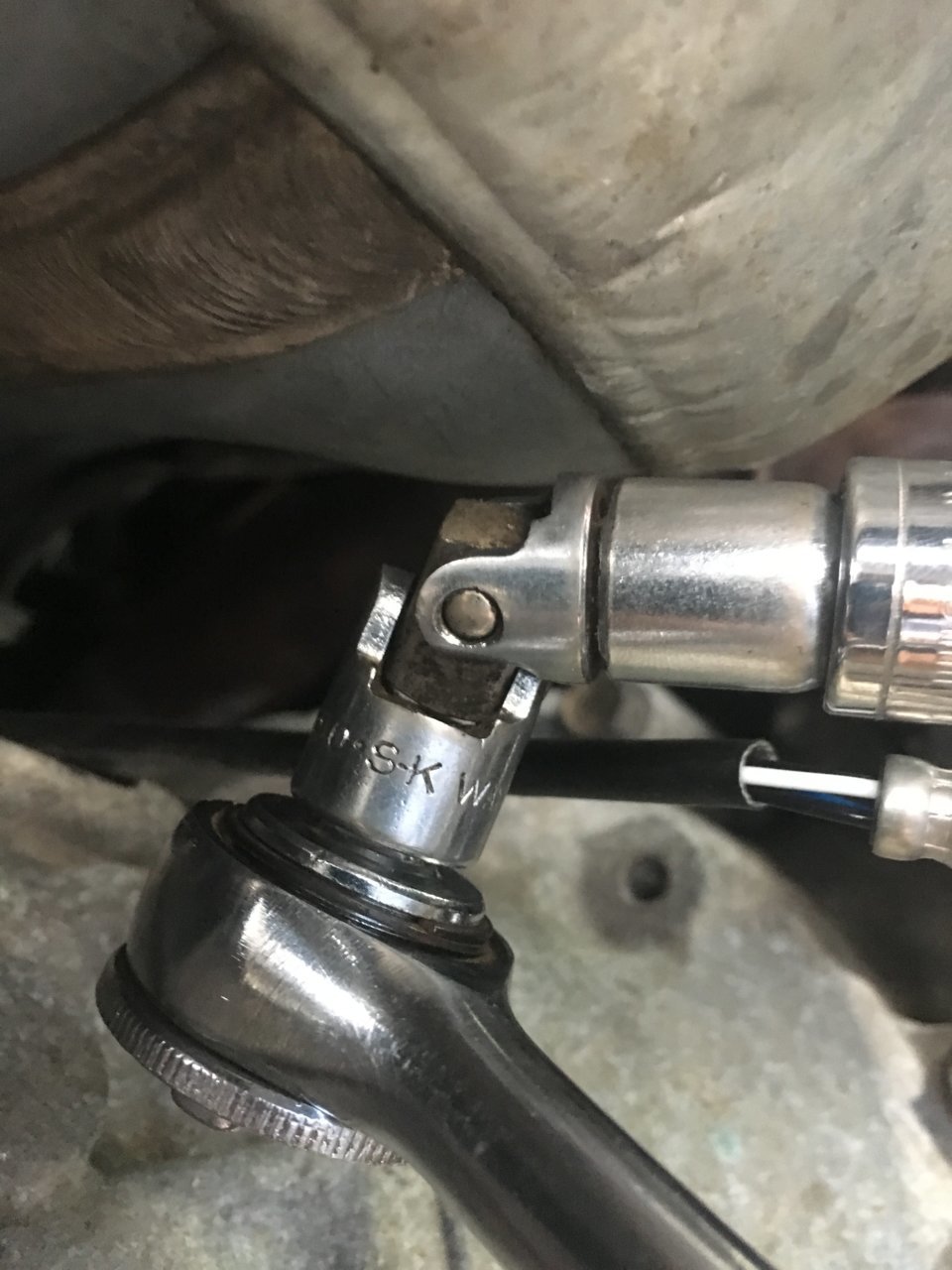

    Also I used this pivot attachment for the bolt closest to the transmission and worked greatC9FE8EAF-E33E-45B5-AFBC-32DCD165AEB4.jpg3C5F31FF-AE8A-4D56-945E-149E68FCD641.jpg Also found a nice ball of stuff3D6DBD41-71BE-47E9-93C0-528387CA398A.jpg

    SwampYota [OP] likes this.
  13. May 19, 2018 at 12:53 PM
    #13
    SwampYota

    SwampYota [OP] Strange things are afoot at the Circle K

    Joined:
    Apr 11, 2016
    Member:
    #184044
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Jon
    Concord, North Carolina
    Vehicle:
    '03 Tacoma SR5 TRD 5VZ-FE, 5 Speed
    Floor mats
    Ooh that pivot attachment would’ve been nice. I’ll have to get one of those. Thanks for adding that for future reference!

    JakesTacoTRD likes this.
  14. Aug 7, 2018 at 5:38 PM
    #14
    Golftrail

    Golftrail New Member

    Joined:
    Jun 15, 2018
    Member:
    #256511
    Messages:
    1
    Gender:
    Male
    After much internet research and YouTube videos, I had given up on finding the connector even after accessing from inside the cab. One last check before calling a mechanic led me to this posting which was exactly my Taco model. Instructions and photos were right on, and I finished the replacement in 30 minutes, easy-peas. The hardest step for me was getting the darn clip removed, but after that, a breeze, CEL cleared and running smooth now. Thanks for saving me several $$.

    JakesTacoTRD and SwampYota [OP] like this.
  15. Aug 7, 2018 at 6:57 PM
    #15
    SwampYota

    SwampYota [OP] Strange things are afoot at the Circle K

    Joined:
    Apr 11, 2016
    Member:
    #184044
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Jon
    Concord, North Carolina
    Vehicle:
    '03 Tacoma SR5 TRD 5VZ-FE, 5 Speed
    Floor mats
    That’s great man, glad it helped! :cheers:

  16. Oct 2, 2020 at 11:13 AM
    #16
    johnnywasaburningforest

    johnnywasaburningforest Member

    Joined:
    Sep 20, 2020
    Member:
    #341353
    Messages:
    10
    Gender:
    Male
    Vehicle:
    2003 Tacoma TRD
    None
    Hey hey ! Finally I came across the right thread here.... I have a 2003 Tacoma 6cyl manual transmission and I had been scratching my head why I couldn't see the electrical connection for this thing and why I felt
    it running to / on top of the transmission. Yes, this explains it all ! Can anyone confirm again the Denso part number - Densso 234-9003 - This is specific for manual transmisisons? I called the dealer to try and verify, and they said that part number comes up on their end but didn't necessarily say for manual transmissions. I think it's the right one though ? Seems to be as the cabling looks/ feels longer than the pics I see for folks doing this with automatic transmissions where the electrical connection is all down below, a bit easier to tend with. Thanks in advance!!

    JakesTacoTRD likes this.
  17. Oct 2, 2020 at 11:34 AM
    #17
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,792
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    Best Denso part look up and to purchase identical replacements
    https://densoautoparts.com/find-my-part.aspx

  18. Oct 5, 2020 at 5:46 PM
    #18
    johnnywasaburningforest

    johnnywasaburningforest Member

    Joined:
    Sep 20, 2020
    Member:
    #341353
    Messages:
    10
    Gender:
    Male
    Vehicle:
    2003 Tacoma TRD
    None
    ok well here is a fun one... so I have an 03 Tacoma 6 cyl, TRD, manual transmisson and while I was changing out the upstream O2 sensor (this thread was great), when removing the shift knobs (because I am dumb and didn't even think about it) I severed the wire inside the knob that is for the on the fly 4wd button trigger. How you even get this knob off without severing this wire is beyond me. And now I have this severed connection and the 4wd wont engage because, well, the severed wire. Fun. I am digging into this now to see how it gets fixed but if anyone has any insight, I am all ears. It looks like there is a plug connection downstream from this but how you would even get at without removing the knob seems odd too ?

  19. Feb 5, 2021 at 11:08 AM
    #19
    SATX_Tacos

    SATX_Tacos Active Member

    Joined:
    May 22, 2019
    Member:
    #294024
    Messages:
    33
    Gender:
    Male
    San Antonio
    Vehicle:
    '02 Tacoma TRD Pre-Runner
    Anybody if this would be the same for an Automatic?
