OBA question: Where did you mount the quick disconnect?

Discussion in '2nd Gen. Tacomas' started by gordynor, Dec 29, 2010.

  1. gordynor

    gordynor [OP] Well-Known Member

    Joined:
    Nov 30, 2010
    Member:
    #46955
    Messages:
    59
    Gender:
    Male
    First Name:
    Daniel
    San Diego
    Vehicle:
    2011 MGM Double Cab 4x4 TRD Off Road
    Steering intermediate shaft TSB, Rear leaf TSB, Bilstien 5100 F&R, Viair 400 mounted under the hood, rear diff breather, re-routed crossmember exhaust, fixed GPS mount, in-dash CB radio, double din HU, trimmed mud flaps, etc...
    I'm not ready to do a full OBA with a tank (etc), but I have mounted a Viair 400H under the hood and plan to use it primarily for tires. The only question I have now is where to run the line for the quick disconnect(s). I had originally planned to just pop the hood and connect the hose, but I realized that the hose would scratch the heck out of my front quarter panels after I've covered them with dirt/mud from a trail run. I'd like to have a QD in the front and one in the back, but need ideas on placement. I want it out of sight, located where the hose won't drag across the body and out of the way of as much dirt as possible.

    On a side note, any ideas on covers for the QD's?

  2. kilo

    kilo Solo Member

    Joined:
    Apr 10, 2007
    Member:
    #1283
    Messages:
    646
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2007 Dbl cab long bed TRD Sport
    custom sliders, 3" Old Man Emu lift, onboard air, custom surf-rod mount, custom bed rack, ARB bumper, Budbuilt fuel tank skid-plate
    Mine is now mounted on my rear bumper. I have a custom steel bumper and drilled a hole and used a bulkhead fitting to secure it. My hose is long enough to get to both tires on each side. Prior to getting the bumper I had the same set up on my hitch but was sometimes a pain to get to if the truck was covered in mud. Covering the fitting is a good idea to keep debris out of it. Never crossed my mind to do so, but a cheap cover would be a vacuum plug. You can get those at any parts store for less than 3 bucks. I'm at work right now so I'll post some pics when I get to the house.

  3. gordynor

    gordynor [OP] Well-Known Member

    Joined:
    Nov 30, 2010
    Member:
    #46955
    Messages:
    59
    Gender:
    Male
    First Name:
    Daniel
    San Diego
    Vehicle:
    2011 MGM Double Cab 4x4 TRD Off Road
    Steering intermediate shaft TSB, Rear leaf TSB, Bilstien 5100 F&R, Viair 400 mounted under the hood, rear diff breather, re-routed crossmember exhaust, fixed GPS mount, in-dash CB radio, double din HU, trimmed mud flaps, etc...
    Awesome - a pic would help. That sounds like what I'm thinking of. The reason for the QD up front is to help buddies air up, too.

  4. bigmooze

    bigmooze Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12437
    Messages:
    787
    Gender:
    Male
    First Name:
    Richard
    Belle River, ON
    Vehicle:
    2009 4x4 access cab SR5
    Bilstein 5100's all round (0" up front with stock springs), 265/75/16 Goodyear Wrangler Duratracs, K&N 63 Series Aircharger Kit, Flowmaster Super 44 Muffler, Delta Champion Toolbox, fog lights, back-up lights, Sirius satellite radio with PA15-TOY, Midland 1001z CB radio with 2' Firestik II antenna, Weathertech floor mats, AVS sill protectors, Marathon SuperHides Seatcovers (Universal Digital Camo), trimmed front mud flaps, Viair 20005 OBA, Warn W650D driving lights and W650F fog lights on N-Fab light bar, Hi-Lift X-treme jack with off road accessories, TracRac "TracONE" system
    A perfectly-timed thread :popcorn:. Just about to tackle this myself.

    Where did you get the bulkhead fitting from?

  5. kilo

    kilo Solo Member

    Joined:
    Apr 10, 2007
    Member:
    #1283
    Messages:
    646
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2007 Dbl cab long bed TRD Sport
    custom sliders, 3" Old Man Emu lift, onboard air, custom surf-rod mount, custom bed rack, ARB bumper, Budbuilt fuel tank skid-plate

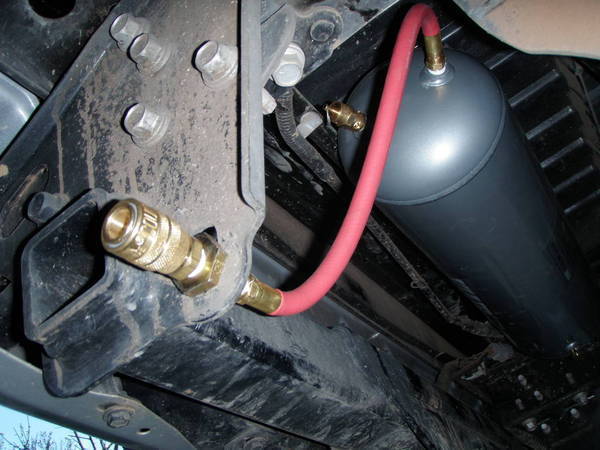

    here is a pic of my old set up that I had in my profile. I'll get you some of the new set up in a couple of hours.

    [​IMG]

  6. kilo

    kilo Solo Member

    Joined:
    Apr 10, 2007
    Member:
    #1283
    Messages:
    646
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2007 Dbl cab long bed TRD Sport
    custom sliders, 3" Old Man Emu lift, onboard air, custom surf-rod mount, custom bed rack, ARB bumper, Budbuilt fuel tank skid-plate

    I purchased my hose and fittings for all of this from a local hose supplier called STUART Hose and Pipe Company. You should be able to get them at Lowes or Home Depot. I know that they carry all sorts of brass fittings for this type of stuff and they should have the Bulkhead fitting as well.

  7. bigmooze

    bigmooze Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12437
    Messages:
    787
    Gender:
    Male
    First Name:
    Richard
    Belle River, ON
    Vehicle:
    2009 4x4 access cab SR5
    Bilstein 5100's all round (0" up front with stock springs), 265/75/16 Goodyear Wrangler Duratracs, K&N 63 Series Aircharger Kit, Flowmaster Super 44 Muffler, Delta Champion Toolbox, fog lights, back-up lights, Sirius satellite radio with PA15-TOY, Midland 1001z CB radio with 2' Firestik II antenna, Weathertech floor mats, AVS sill protectors, Marathon SuperHides Seatcovers (Universal Digital Camo), trimmed front mud flaps, Viair 20005 OBA, Warn W650D driving lights and W650F fog lights on N-Fab light bar, Hi-Lift X-treme jack with off road accessories, TracRac "TracONE" system
    Thanks.

  8. kilo

    kilo Solo Member

    Joined:
    Apr 10, 2007
    Member:
    #1283
    Messages:
    646
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2007 Dbl cab long bed TRD Sport
    custom sliders, 3" Old Man Emu lift, onboard air, custom surf-rod mount, custom bed rack, ARB bumper, Budbuilt fuel tank skid-plate

    Here is my fitting location.

    [​IMG]
    [​IMG]

    And here is what a bulkhead fitting looks like.

    [​IMG]

    Hope this gives you some ideas.








    .

  9. gordynor

    gordynor [OP] Well-Known Member

    Joined:
    Nov 30, 2010
    Member:
    #46955
    Messages:
    59
    Gender:
    Male
    First Name:
    Daniel
    San Diego
    Vehicle:
    2011 MGM Double Cab 4x4 TRD Off Road
    Steering intermediate shaft TSB, Rear leaf TSB, Bilstien 5100 F&R, Viair 400 mounted under the hood, rear diff breather, re-routed crossmember exhaust, fixed GPS mount, in-dash CB radio, double din HU, trimmed mud flaps, etc...
    Awesome - very helpful. Now if I can just find all of the parts... Home Depot & Lowes are not very well stocked on stuff like bulkheads. Even t-fittings are hard to find.

  10. TacoBaja

    TacoBaja Well-Known Member

    Joined:
    Jun 11, 2010
    Member:
    #38739
    Messages:
    53
    Gender:
    Male
    First Name:
    John
    High Desert
    Vehicle:
    Tacoma
    What type of compressor do you use, and where is it mounted?

    John

  11. kilo

    kilo Solo Member

    Joined:
    Apr 10, 2007
    Member:
    #1283
    Messages:
    646
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2007 Dbl cab long bed TRD Sport
    custom sliders, 3" Old Man Emu lift, onboard air, custom surf-rod mount, custom bed rack, ARB bumper, Budbuilt fuel tank skid-plate
    I have the VIAIR something? I don't remember the model. It's mounted under the hood next to the big fuse box thing.

    [​IMG]
    [​IMG]
    [​IMG]

  12. toku58

    toku58 Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,029
    Gender:
    Male
    HAWAII
    Vehicle:
    4x4 Beast!
    6" Fabtech Stage II, 17x9" Centerline Eclipse rims, with 12.5x35x17" BFG KM2's. On board air system,Toyota skid plate, spidertrax wheel spacers, TRD CAI w/AFE ProDry filter (21-90045),Flowmaster Dual exhaust, GrillCraft grill w/custom emblem, Custom Shifter, BushWacker fender flares, Hood struts, Underhood lights, TW driveshaft, Wet Okole seat covers, Dashlight mod, Many other little things to make the truck complete!
    My entire system is bolt on.
    [​IMG]

    Compressor is mounted under the bed compartment.
    [​IMG]

  13. gordynor

    gordynor [OP] Well-Known Member

    Joined:
    Nov 30, 2010
    Member:
    #46955
    Messages:
    59
    Gender:
    Male
    First Name:
    Daniel
    San Diego
    Vehicle:
    2011 MGM Double Cab 4x4 TRD Off Road
    Steering intermediate shaft TSB, Rear leaf TSB, Bilstien 5100 F&R, Viair 400 mounted under the hood, rear diff breather, re-routed crossmember exhaust, fixed GPS mount, in-dash CB radio, double din HU, trimmed mud flaps, etc...
    So far, I think I've decided to run a hose & QD to the tow hitch and mount it under the bed, out of direct sight (but within easy reach). I think I'll use a T fitting and run another line to the front though.

    Has anyone run a hose & QD to the front? Got pics? Ideas for placement?

  14. sam_i02

    sam_i02 Well-Known Member

    Joined:
    Mar 15, 2010
    Member:
    #33304
    Messages:
    144
    Gender:
    Male
    First Name:
    Samir
    Kanata, Ontario
    Vehicle:
    05 PreRunner AccessCab
    BHLM, Satoshi grill, D-rings, Relentless Fab recovery shackle, DRL, Firestone RideRite airbags, WO seatcovers, added temp gauge, custom interior lights.
    Just saw this thread. Some places to score fittings/parts on the cheap are:
    - Harbor Freight in the US (i got all the fittings and hose I needed from here). If you dont have a local store, you can order off their website.
    - Princess Auto Parts in Canada.

  15. AKTACO420

    AKTACO420 Well-Known Member

    Joined:
    Feb 2, 2010
    Member:
    #30538
    Messages:
    1,144
    Gender:
    Male
    First Name:
    RETODD
    Anchorage AK
    Vehicle:
    2009 tacoma
    bucket seats grille craft mesh grille and lights behind grille

  16. kilo

    kilo Solo Member

    Joined:
    Apr 10, 2007
    Member:
    #1283
    Messages:
    646
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2007 Dbl cab long bed TRD Sport
    custom sliders, 3" Old Man Emu lift, onboard air, custom surf-rod mount, custom bed rack, ARB bumper, Budbuilt fuel tank skid-plate
    Thank you.

    [​IMG]

  17. gordynor

    gordynor [OP] Well-Known Member

    Joined:
    Nov 30, 2010
    Member:
    #46955
    Messages:
    59
    Gender:
    Male
    First Name:
    Daniel
    San Diego
    Vehicle:
    2011 MGM Double Cab 4x4 TRD Off Road
    Steering intermediate shaft TSB, Rear leaf TSB, Bilstien 5100 F&R, Viair 400 mounted under the hood, rear diff breather, re-routed crossmember exhaust, fixed GPS mount, in-dash CB radio, double din HU, trimmed mud flaps, etc...
    Yeah, that's a real nice touch. :)

  18. TacoBaja

    TacoBaja Well-Known Member

    Joined:
    Jun 11, 2010
    Member:
    #38739
    Messages:
    53
    Gender:
    Male
    First Name:
    John
    High Desert
    Vehicle:
    Tacoma
    Ok Kilo, I like where it is, hadn't thought of that location. I have a 2006 and took a photo of the "empty space" - does my photo appear to be what you started with for space?

    With a gauge, you must have a tank mounted somewhere as well??? How large of a tank?

    My Viar is a 400p model, I'll dig it out in a day or two and see if I might squeeze it in the same location.

    I appreciate the help.

    John

    left fender well 03.jpg

  19. gordynor

    gordynor [OP] Well-Known Member

    Joined:
    Nov 30, 2010
    Member:
    #46955
    Messages:
    59
    Gender:
    Male
    First Name:
    Daniel
    San Diego
    Vehicle:
    2011 MGM Double Cab 4x4 TRD Off Road
    Steering intermediate shaft TSB, Rear leaf TSB, Bilstien 5100 F&R, Viair 400 mounted under the hood, rear diff breather, re-routed crossmember exhaust, fixed GPS mount, in-dash CB radio, double din HU, trimmed mud flaps, etc...
    I located mine under the hood on the passenger side up near the windshield. There's a *huge* space there with three bolts already sticking out. I made some brackets to fit those three bolts to the four mount points on the compressor. It works great there and there's enough space to easily install the thing...

    I picked up a few parts today. I'll be running the leader to a manifold where I'll mount a safety valve (designed to open at 115 PSI, in case I forget to snap in my air chuck before turning the thing on...) and then branch two hoses - one to the front and one to the rear. For now I'll find a spot and just zip tie the QDs in place. But I still want to hard mount the QDs with bulkhead fittings eventually. Once I decide on a final mount point front & rear I'll get the bulkhead fittings and make it permanent.

    I should be doing the work this weekend. I'll try to grab some pictures to show you all what I come up with.

  20. kilo

    kilo Solo Member

    Joined:
    Apr 10, 2007
    Member:
    #1283
    Messages:
    646
    Gender:
    Male
    San Antonio, Texas
    Vehicle:
    2007 Dbl cab long bed TRD Sport
    custom sliders, 3" Old Man Emu lift, onboard air, custom surf-rod mount, custom bed rack, ARB bumper, Budbuilt fuel tank skid-plate
    That's the exact spot. Except I don't have that small black box on the fuse box. I can see that I could have that smaller box and the a/c will still fit there. I have a 2.5 gal viair tank mounted under the bed. It sits between the rear bumper and spare tire. I have not put my spare back since doing this and not sure if it would fit with the tank there?



    I had to build a bracket as well. I thought about putting it on that side but where you mounted yours I have all the metal break lines going into that manifold thing. There is room next to it but decided against it.

    Here is the bracket I built so the a/c sits level and a pic of the area where you mounted yours and why I couldn't do so.

    [​IMG]
    [​IMG]

    Hope this helps.




    .
