OBDLink Bluetooth Permanent Install

Discussion in 'Technical Chat' started by Brainless, Mar 15, 2011.

  1. Mar 15, 2011 at 8:16 PM
    #1
    Brainless

    Brainless [OP] Well-Known Member

    Joined:
    Feb 27, 2011
    Member:
    #51993
    Messages:
    71
    Gender:
    Male
    First Name:
    Greg
    Moses Lake, WA
    Vehicle:
    11 TRD Off-Road 6sp manual
    I figured i would post a quick how to.

    If you have the OBDLink Bluetooth (link) and planning on installing it permanently in your truck, here is what I did:

    1.) Download the necessary software and tools:
    -STN Term (at the bottom of the page)​

    2.) Update the firmware:
    -connect the OBDLink via usb to the computer​
    -extract (unzip) the downloaded firmware​
    -run "StnFirmwareUpdater.exe" from the extracted file​
    -make sure the correct com port and firmware file are selected and select "upload firmware"​
    -if it succeeded close the updater.​

    3.) configure the sleep settings:
    -run "stnterm.exe" you downloaded.​
    -select the correct com port and click ATI, you should get a response with the current version​
    -type in "STSLVLW >14.00, 2" (this wakes the device if the voltage is greater than 14 volts for 2 seconds) click send, you should get a "ok" response.​
    -type in "STSLVLS <13.80, 30" (this will put the device in sleep state if the voltage is less than 13.80 volts for 30 seconds) click send, you should get a "ok" response.​
    -type in "STSLVL on,on" (this turns on both voltage sleep and wake triggers) click send, you should get a "ok" response.​

    4.) verify that the settings and commands worked:
    -click "ATZ" in stnterm (this reboots the device) you should get a "ok" response.​
    -type in "STSLCS" (this shows the current power save settings) click send, you should get a list that should look like this:
    Code:
    CTRL MODE:  NATIVE
    PWR_CTRL:   LOW PWR = LOW
    UART SLEEP: OFF, 1200 s
    UART WAKE:  ON,  0-30000 us
    EXT INPUT:  LOW = SLEEP
    EXT SLEEP:  OFF, LOW FOR 3000 ms
    EXT WAKE:   ON,  HIGH FOR 2000 ms
    VL SLEEP:   ON,  <13.80V FOR 30 s
    VL WAKE:    ON,  >14.00V FOR 2 s
    VCHG WAKE:  OFF, +0.20V IN 1000 ms

    if all the settings look correct you are good to go. ​

    5.) Make sure it works:
    -Plug it into your truck and watch the alternating led, if it goes off after 30 seconds it is in sleep mode.​
    -Start the engine, the led should come on and alternate again.​
    -Your good to go!​


    notes:
    I did this with a 2011 V6 WITH the tow package (larger battery and alternator), you may have to adjust the voltages to your truck.

    If at any time the commands do not reply with "ok" use the ATZ to reboot the OBDLink at try the command again.

    I am using a DROID2, I have both DashCommand and Torque for Android. (they both work with the OBDLink)

    Any questions just ask :)

  2. Mar 15, 2011 at 8:42 PM
    #2
    Brainless

    Brainless [OP] Well-Known Member

    Joined:
    Feb 27, 2011
    Member:
    #51993
    Messages:
    71
    Gender:
    Male
    First Name:
    Greg
    Moses Lake, WA
    Vehicle:
    11 TRD Off-Road 6sp manual

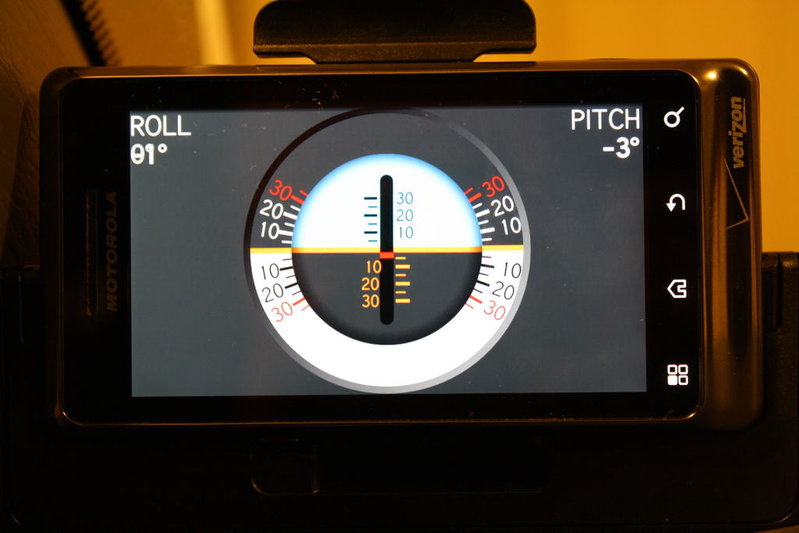

    couple pics:

    (sorry for the dirty screen, and yes i know the fuel level isn't working)






  3. Mar 15, 2011 at 10:14 PM
    #3
    SlimDigg

    SlimDigg Resident MMA Fanatic

    Joined:
    Sep 1, 2010
    Member:
    #42613
    Messages:
    1,437
    Gender:
    Male
    Calgary, AB
    Vehicle:
    2001 TRD Double Cab Limited 4x4
    OME 881, Bilstein 5100, Icon AAL, Wheelers Anti-Sway kit, aFe Pro Dry-S Air Filter, Deck Plate Mod, Rear Diff Breather Mod, GE Nighthawk Platinum headlights, Wet Okole Seat Covers, Husky Liners. LED Tail Lights
    Is dashcommand worth the cash? I just started using Torque today, my hong kong obd reader arrived.

    I haven't heard of DashCommand i've been using CarHome. At 50 bucks i'm probably not going to get DC either.

  4. Mar 15, 2011 at 10:51 PM
    #4
    Brainless

    Brainless [OP] Well-Known Member

    Joined:
    Feb 27, 2011
    Member:
    #51993
    Messages:
    71
    Gender:
    Male
    First Name:
    Greg
    Moses Lake, WA
    Vehicle:
    11 TRD Off-Road 6sp manual
    I am also using Car Home right now, the only reason to get DashCommand would be for the logging/tracking abilities. it calculates things in the background (runs scripts) for things like mpg and 3 trip sets.

    For now Torque is the way to go, it is way faster update rate at the moment.

  5. Mar 15, 2011 at 10:53 PM
    #5
    Brainless

    Brainless [OP] Well-Known Member

    Joined:
    Feb 27, 2011
    Member:
    #51993
    Messages:
    71
    Gender:
    Male
    First Name:
    Greg
    Moses Lake, WA
    Vehicle:
    11 TRD Off-Road 6sp manual
    is the reader you have the same chip/interface as obdlink?

  6. Mar 16, 2011 at 12:11 AM
    #6
    SlimDigg

    SlimDigg Resident MMA Fanatic

    Joined:
    Sep 1, 2010
    Member:
    #42613
    Messages:
    1,437
    Gender:
    Male
    Calgary, AB
    Vehicle:
    2001 TRD Double Cab Limited 4x4
    OME 881, Bilstein 5100, Icon AAL, Wheelers Anti-Sway kit, aFe Pro Dry-S Air Filter, Deck Plate Mod, Rear Diff Breather Mod, GE Nighthawk Platinum headlights, Wet Okole Seat Covers, Husky Liners. LED Tail Lights
  7. Mar 17, 2011 at 10:13 AM
    #7
    Brainless

    Brainless [OP] Well-Known Member

    Joined:
    Feb 27, 2011
    Member:
    #51993
    Messages:
    71
    Gender:
    Male
    First Name:
    Greg
    Moses Lake, WA
    Vehicle:
    11 TRD Off-Road 6sp manual
    bump

    does anyone have the OBDLink?

  8. Nov 8, 2011 at 4:25 AM
    #8
    gov875

    gov875 WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    683
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights
    does this mean that if you have hands-free calling via bluetooth that your phone can't sync to that since it's synced up with the OBDLink?

    this looks sweet but i'm defnitely not trying to give up my hands free calling

  9. Nov 8, 2011 at 4:25 AM
    #9
    gov875

    gov875 WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    683
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights
    ps sorry for the thread revival!

  10. Nov 9, 2011 at 9:02 AM
    #10
    KenpachiZaraki

    KenpachiZaraki Its Wicked Flow BITCHES!!

    Joined:
    May 24, 2009
    Member:
    #17581
    Messages:
    3,569
    Gender:
    Male
    First Name:
    Alex •﹏•
    Lubbock
    Vehicle:
    05 TRD OffRoad Poser ψ(`∇´)ψ
    ALL POSER- Afe Pro Dry S drop in filter, 3" AP leaf pack, Eibach w/5100's up front, 5100's rear, Fog Light Mod, ABS off mod, Dash Light MOD, Doug Thorley Long Tube Headers, Wicked Flow Bitches MAX Muffler, 4" floods, 20", 43" light bars, 265/75/16 Hankook Dynapro ATm, oil catch can, rear diff breather relocate, Custome Sliders, SOS concepts Front bumper, Demon Eye Mod, backlit TRD emblem on bumper, Morimoto D2S projectors,
  11. Jan 16, 2014 at 7:00 PM
    #11
    Justus

    Justus fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    6,803
    Gender:
    Male
    First Name:
    Brock
    Paso Robles
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    :spy: sleep settings............ zombie bump, I know....but I am curious about this sleep setting and need to sub for later.
