OEM 2014 Tacoma Navigation Radio

Discussion in '2nd Gen Tacoma Parts Marketplace (2005-2015)' started by FLTrucks, Oct 14, 2013.

  1. Jan 24, 2014 at 6:39 AM
    #201
    superskaterxes

    superskaterxes Active Member

    Joined:
    Jan 6, 2014
    Member:
    #120029
    Messages:
    42
    Gender:
    Male
    Has anyone figured out the re-wire for the steering wheel controls to work on a 2009?

    thanks,

  2. Jan 25, 2014 at 11:09 AM
    #202
    Phil5393

    Phil5393 Well-Known Member

    Joined:
    Nov 29, 2012
    Member:
    #92123
    Messages:
    378
    Gender:
    Male
    First Name:
    Phil
    Long Island, New York
    Vehicle:
    TRD Sport

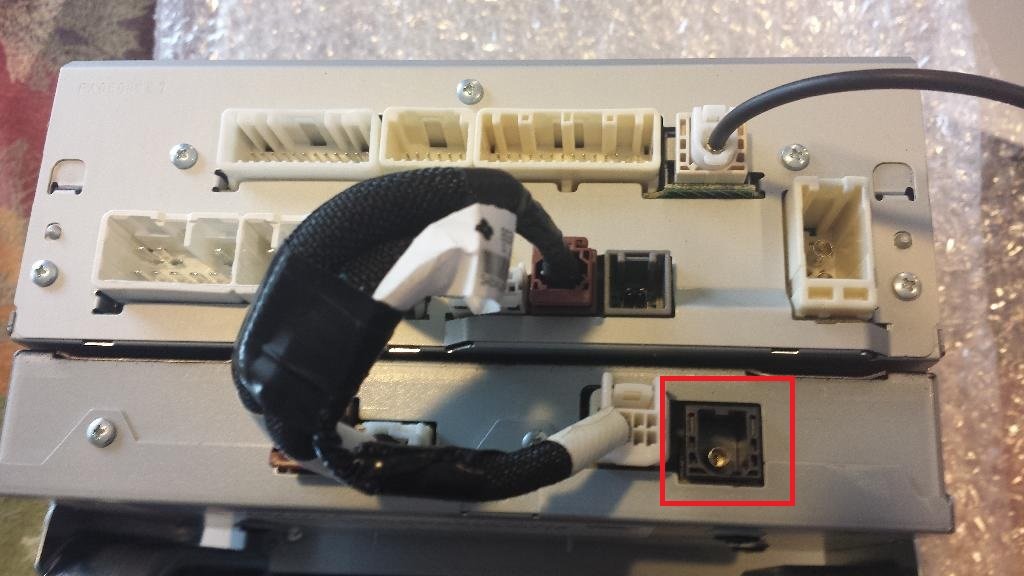

    I got my radio today with the xm module does an antenna plug in here? and if so what antenna can use? I already took my old radio out and don't want to put the new one in until I know if I need to plug an antenna in Thanks


    Last edited: Jan 25, 2014
  3. Jan 25, 2014 at 11:11 AM
    #203
    Danmcw45

    Danmcw45 Well-Known Member

    Joined:
    Dec 9, 2012
    Member:
    #92771
    Messages:
    67
    Gender:
    Male
    First Name:
    Dan
    Philadelphia
    -TRD supercharger -Truxedo lo-pro qt tonneau -Wet okole front seat covers -17" method fat five wheels -2014 Tacoma entune/nav headunit - black badges - flowmaster dual exit cat-back exhaust, swapped 50 series muffler for a super 40 series muffler for more sound
    Did your radio come with the xm box? Did you request it?

  4. Jan 25, 2014 at 11:15 AM
    #204
    Phil5393

    Phil5393 Well-Known Member

    Joined:
    Nov 29, 2012
    Member:
    #92123
    Messages:
    378
    Gender:
    Male
    First Name:
    Phil
    Long Island, New York
    Vehicle:
    TRD Sport
    I requested it. It was extra but im wondering if I need an antenna that plugs into the xm box it seems like I do but im not sure.

  5. Jan 25, 2014 at 11:17 AM
    #205
    Danmcw45

    Danmcw45 Well-Known Member

    Joined:
    Dec 9, 2012
    Member:
    #92771
    Messages:
    67
    Gender:
    Male
    First Name:
    Dan
    Philadelphia
    -TRD supercharger -Truxedo lo-pro qt tonneau -Wet okole front seat covers -17" method fat five wheels -2014 Tacoma entune/nav headunit - black badges - flowmaster dual exit cat-back exhaust, swapped 50 series muffler for a super 40 series muffler for more sound
    Yea i know you will need the antenna . The trucks with stock nav/xm has the shark fin antenna on the roof. And thats where both xm and nav antennas are stock. Who did you get your unit from FLtrucks?

  6. Jan 25, 2014 at 11:28 AM
    #206
    Phil5393

    Phil5393 Well-Known Member

    Joined:
    Nov 29, 2012
    Member:
    #92123
    Messages:
    378
    Gender:
    Male
    First Name:
    Phil
    Long Island, New York
    Vehicle:
    TRD Sport
    Yeah my truck is a 2013 but i didnt have xm stock so i dont have the shark fin antenna on the roof i need to find what antenna i can use that will work that's not the shark fin

  7. Jan 25, 2014 at 11:29 AM
    #207
    Danmcw45

    Danmcw45 Well-Known Member

    Joined:
    Dec 9, 2012
    Member:
    #92771
    Messages:
    67
    Gender:
    Male
    First Name:
    Dan
    Philadelphia
    -TRD supercharger -Truxedo lo-pro qt tonneau -Wet okole front seat covers -17" method fat five wheels -2014 Tacoma entune/nav headunit - black badges - flowmaster dual exit cat-back exhaust, swapped 50 series muffler for a super 40 series muffler for more sound
    I wanth the xm in my truck. And also thinkin when i do get it about ordering the shark fin and installing that also. Who did u get your unit from?

  8. Jan 25, 2014 at 11:34 AM
    #208
    Phil5393

    Phil5393 Well-Known Member

    Joined:
    Nov 29, 2012
    Member:
    #92123
    Messages:
    378
    Gender:
    Male
    First Name:
    Phil
    Long Island, New York
    Vehicle:
    TRD Sport
    I got my unit from fltrucks I heard the shark fins are expensive and I would like to try and stay away from that option. I hope one of those small square antennas would work that i can put on the roof

  9. Jan 25, 2014 at 11:34 AM
    #209
    Danmcw45

    Danmcw45 Well-Known Member

    Joined:
    Dec 9, 2012
    Member:
    #92771
    Messages:
    67
    Gender:
    Male
    First Name:
    Dan
    Philadelphia
    -TRD supercharger -Truxedo lo-pro qt tonneau -Wet okole front seat covers -17" method fat five wheels -2014 Tacoma entune/nav headunit - black badges - flowmaster dual exit cat-back exhaust, swapped 50 series muffler for a super 40 series muffler for more sound
    Yeaa that wouldnt be badd..

  10. Jan 25, 2014 at 12:52 PM
    #210
    regdunlop

    regdunlop Member

    Joined:
    Oct 30, 2013
    Member:
    #115586
    Messages:
    8
    Gender:
    Male
    North Jersey
    Vehicle:
    2021 TRD PRO
    I have one of these radios from fltrucks installed it on my 2012 dbl cab interested in getting the xm module for it my truck has shark fin antenna previous radio had xm built in anyone know what the cost is for the XM module and can i use the antenna i already have installed in the truck

  11. Jan 25, 2014 at 4:44 PM
    #211
    osubeav818

    osubeav818 Well-Known Member

    Joined:
    Mar 9, 2013
    Member:
    #99339
    Messages:
    124
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    13 Regular Cab, SuperWhite, Debadged
    Viper 350hv, Bakflip Fibermax, Pop n lock

  12. Jan 26, 2014 at 5:02 AM
    #212
    yogster

    yogster merkwürdigliebe

    Joined:
    Sep 4, 2013
    Member:
    #111814
    Messages:
    114
    Gender:
    Male
    First Name:
    Tom
    Massachusetts
    Vehicle:
    13 Black DCLB SR5
    DCLB Black 4WD Illumination dial from 4runner, Flyzeyes LED. Hardwire GPS and Valentine1 with BlendMount mirror mount, TRD shift knob, tube steps, swapped out for signal lamp mirrors. Garmin Eco-Route HD for Bluetooth ODBII Diagnostics, 2014 Entune Plus w Navigation, Leer 100XL dome light wired to dome circuit, pop&lock tailgate and cap locks.
    I wrote this up in another post

    The wire that carries the signal is already there. There are two wires plus ground. All of the button press signals from the control pads are fed through the spiral cable assembly to the s8 connector on steering column then to radio.

    Option 1 - buy controls with voice button for 12-13. This will set you back almost 300.00 unless you can find a salvage set (I've looked!). The controls are only sold as a complete set (left and right assembly)

    Option 2 - buy controls for 2014. Will set you back about the same. This will give you the voice control button with no mods. It will also give you a few extra buttons - "return", "left/right", "enter/ok". This however requires running a 4th wire from the appropriate pin on the 28 pin connector to the s8 connector. Not too difficult if you have wiring diagram, correct pins, and can solder.

    In either case you will need to remove center steering wheel pad/airbag. That's about a 10 minute eAsy job.

    Last edited: Jan 26, 2014
  13. Jan 26, 2014 at 5:38 AM
    #213
    yogster

    yogster merkwürdigliebe

    Joined:
    Sep 4, 2013
    Member:
    #111814
    Messages:
    114
    Gender:
    Male
    First Name:
    Tom
    Massachusetts
    Vehicle:
    13 Black DCLB SR5
    DCLB Black 4WD Illumination dial from 4runner, Flyzeyes LED. Hardwire GPS and Valentine1 with BlendMount mirror mount, TRD shift knob, tube steps, swapped out for signal lamp mirrors. Garmin Eco-Route HD for Bluetooth ODBII Diagnostics, 2014 Entune Plus w Navigation, Leer 100XL dome light wired to dome circuit, pop&lock tailgate and cap locks.
    First this only applies to those replacing a 2013 or 2014 base audio touch screen with a 2014 nav unit NON JBL, however some info may apply elsewhere.

    1. Trucks that did NOT come with sat or nav will NOT have sat, Nav antennas or antenna cables.

    2011 and prior the SDARS antenna was a color matched bump about 2" square located on roof. These are available from Toyota in your trucks color (obviously 2011 colors) for about $60. They come with about 4 inches of antenna lead and two holes must be drilled in roof. Use a STEP drill for drillling holes. Other drills will mangle thin sheet metal. You will still need to procure an antenna cable from Toyota. The part numbers for cables like this are hard to track down, and probably expensive. Making your own is not really an option. VAIS tech has some options, but they are for connecting this (or other OEM antennas) to an aftermarket system.



    I don't think GPS was an option for 2011. GPS antennas are sometimes located in the dash for OEM. Toyota does this on a few models, and this is the antenna FLTrucks provides if you buy a NAV unit from him. SDARS antennas almost always seem to be located on the roof. Maybe because of the different frequencies involved.

    2012 and up trucks have a Shark Fin antenna on roof. This houses both GPS and SDARS antennas. You can buy this antenna, but it will cost you dearly. As much as $600. Same cable problems will be present, actually doubled, because you will need to bring the GPS signal down to the radio as well.

    2. The SDARS tuner some of you have purchased with the nav unit is standard across Toyota's line. The only difference is the cables connecting to the HU, and the mounting brackets. Some Toyotas like Camrys mount this unit in the trunk. You can readily find the tuner on line for about $150-$200, but the connecting harness and antenna will be a problem.

    3. A better option to go with for satellite is something like this:

    http://toyotaofmcdonoughparts.net/p...a-and-scion-xm-satellite-radio-tuner-kit-2013

    It comes with the antenna, and plugs right into the factory radio. I don't believe there's any functionality difference, but I don't have the unit. Perhaps the Gracenote album art will not be displayed not sure.

    Last edited: Jan 26, 2014
  14. Jan 26, 2014 at 8:35 AM
    #214
    metal4130

    metal4130 Well-Known Member

    Joined:
    Nov 10, 2013
    Member:
    #116263
    Messages:
    69
    Gender:
    Male
    First Name:
    Eric
    Central IL
    Vehicle:
    13 DCSB PreRunner


    Is the 2013 spiral cable the same as the 2014??

  15. Jan 26, 2014 at 8:51 AM
    #215
    Phil5393

    Phil5393 Well-Known Member

    Joined:
    Nov 29, 2012
    Member:
    #92123
    Messages:
    378
    Gender:
    Male
    First Name:
    Phil
    Long Island, New York
    Vehicle:
    TRD Sport

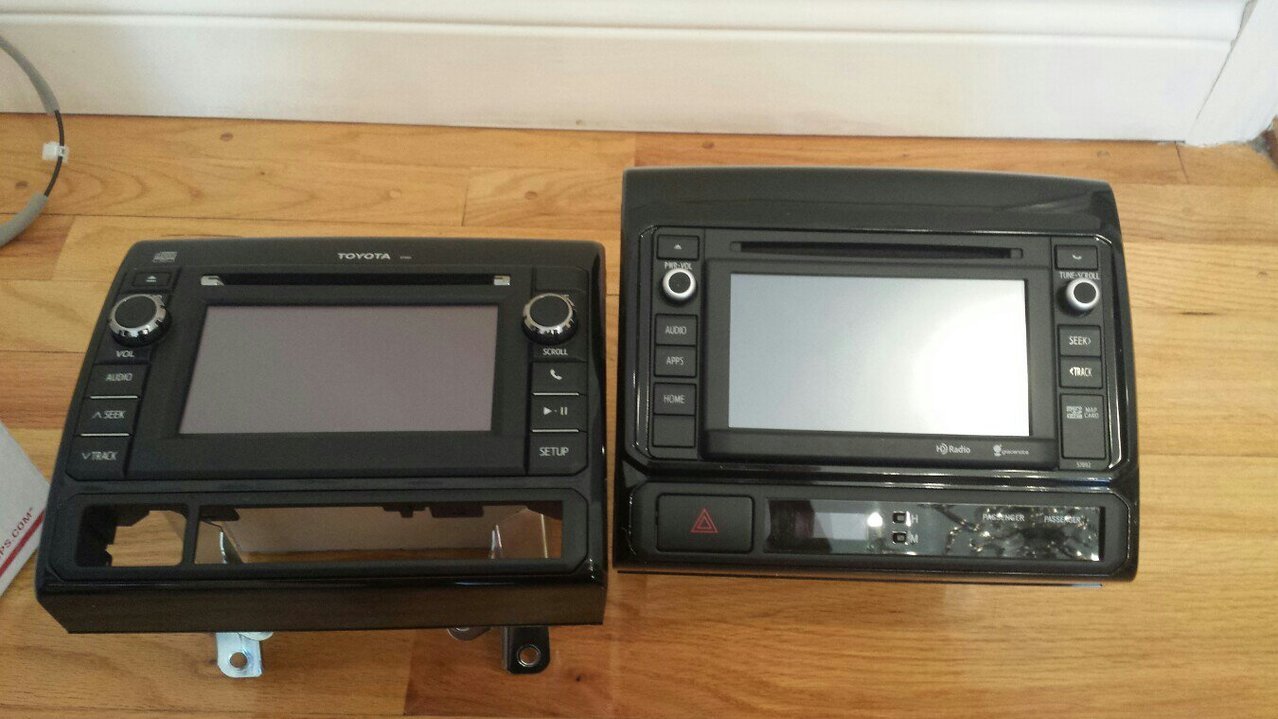

    2013 next to 2014 ju2e6aby_369807df3e1d377ec61879d3e4636b8f9413015e.jpg

  16. Jan 26, 2014 at 10:39 AM
    #216
    yogster

    yogster merkwürdigliebe

    Joined:
    Sep 4, 2013
    Member:
    #111814
    Messages:
    114
    Gender:
    Male
    First Name:
    Tom
    Massachusetts
    Vehicle:
    13 Black DCLB SR5
    DCLB Black 4WD Illumination dial from 4runner, Flyzeyes LED. Hardwire GPS and Valentine1 with BlendMount mirror mount, TRD shift knob, tube steps, swapped out for signal lamp mirrors. Garmin Eco-Route HD for Bluetooth ODBII Diagnostics, 2014 Entune Plus w Navigation, Leer 100XL dome light wired to dome circuit, pop&lock tailgate and cap locks.


    It should be. From the wiring diagrams they appear to be same part.


    The S8 connector has the connector for the 4th wire. At some point I'll pull off the Pad and check continuity between the appropriate pin on the Spiral cable connector and the S8 connector just to confirm.

  17. Jan 26, 2014 at 11:35 AM
    #217
    metal4130

    metal4130 Well-Known Member

    Joined:
    Nov 10, 2013
    Member:
    #116263
    Messages:
    69
    Gender:
    Male
    First Name:
    Eric
    Central IL
    Vehicle:
    13 DCSB PreRunner
    Very good. I too would like to get the voice control button on my 2013. If the 2014 set up would only take one additional wire it might be worth going that route as well.

  18. Jan 26, 2014 at 12:24 PM
    #218
    smgcon

    smgcon Well-Known Member

    Joined:
    Aug 20, 2013
    Member:
    #110836
    Messages:
    136
    Gender:
    Male
    First Name:
    Geoff
    Vernon, BC
    Vehicle:
    2013 DBC
    Thanks Yogster! I appreciate you sharing your expertise..

  19. Jan 26, 2014 at 12:30 PM
    #219
    yogster

    yogster merkwürdigliebe

    Joined:
    Sep 4, 2013
    Member:
    #111814
    Messages:
    114
    Gender:
    Male
    First Name:
    Tom
    Massachusetts
    Vehicle:
    13 Black DCLB SR5
    DCLB Black 4WD Illumination dial from 4runner, Flyzeyes LED. Hardwire GPS and Valentine1 with BlendMount mirror mount, TRD shift knob, tube steps, swapped out for signal lamp mirrors. Garmin Eco-Route HD for Bluetooth ODBII Diagnostics, 2014 Entune Plus w Navigation, Leer 100XL dome light wired to dome circuit, pop&lock tailgate and cap locks.
    If I end up doing this, I'll post the info here. I've already run the wire to the S8 connector from the radios r15 28 pin connector.


    I'll probably end up purchasing the 2014 controls, and selling my 2013 controls to recoup some of the cost. Optimally, I could find them on salvage or ebay. Tough though.


    I won't test the continuity until then, as I only want to remove the assembly once. I know the voice control will work. Actually, I won't need to test, as I'll put the new controls in and the additional left/right enter/ok will work or they won't.


    I'm looking for the price online for the 2014 controls. I may ask Jorge at Camelback for a price, as they are not available to joe consumer yet. Best I found for 2013 controls was $286 or something like that. If the 2014 controls are in that range Ok, if they are like some ridiculous $4-$500, I won't be doing this - with the 2014 controls!
