OEM backup camera retrofit on a 2007

Discussion in 'Audio & Video' started by SLQ, May 7, 2010.

  1. May 7, 2010 at 2:02 PM
    #1
    SLQ

    SLQ [OP] Member

    Joined:
    Mar 13, 2010
    Member:
    #33149
    Messages:
    6
    Gender:
    Male
    central coast
    Vehicle:
    07 prerunner Dbl cab TRD sport

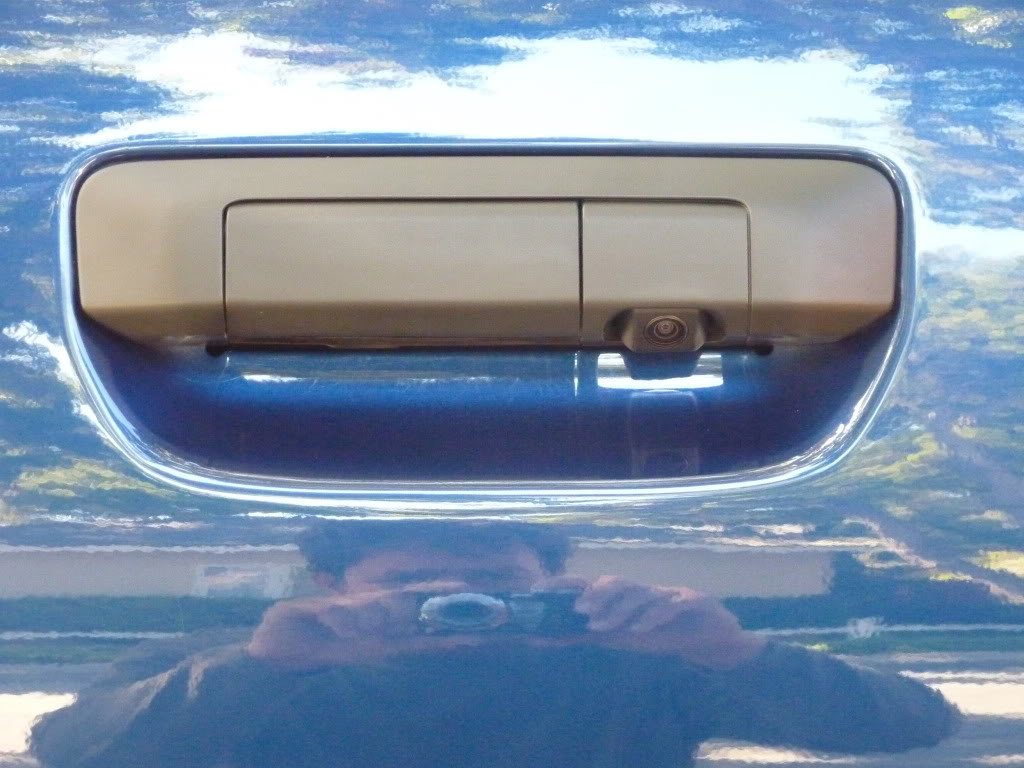

    I am looking for some guidance before I hook up the +12vdc to my OEM camera on my 2007 Tacoma. I am trying to figure out how to wire it into my Pioneer Avic z110bt . There are 4 wires from the camera.

    pin 1 white
    pin 2 red
    pin 3 blue
    pin 4 black

    Here is my guess

    Red = +12vdc
    black= 12vdc return
    white= video
    blue = shield

    If anybody would like to help me on this please, Is this correct??? Thanks
    [​IMG]

    [​IMG]

  2. Jun 8, 2010 at 2:31 AM
    #2
    SLQ

    SLQ [OP] Member

    Joined:
    Mar 13, 2010
    Member:
    #33149
    Messages:
    6
    Gender:
    Male
    central coast
    Vehicle:
    07 prerunner Dbl cab TRD sport
    My 2007 does not have the camera wires under the dash so if any one could help with this. I dont want to fry my camera by hooking up the power to the wrong wires


  3. Jun 8, 2010 at 2:46 AM
    #3
    06ToyTaco

    06ToyTaco Well-Known Member

    Joined:
    Dec 7, 2008
    Member:
    #11369
    Messages:
    192
    Gender:
    Male
    CA
    Vehicle:
    06 4x4 DCLB Sr5 Silver
    OME 885X, 1.5" AAL + TSB, LR UCA
    Info given to me by billyjoe.

    1 CV- (White) Camera Video Negative
    2 CV+ (Red) Camera Video Positive
    3 CGND (Blue) Camera GND (Shield)
    4 CB+ (Black) Camera Power

  4. Jun 9, 2010 at 8:48 AM
    #4
    SLQ

    SLQ [OP] Member

    Joined:
    Mar 13, 2010
    Member:
    #33149
    Messages:
    6
    Gender:
    Male
    central coast
    Vehicle:
    07 prerunner Dbl cab TRD sport
    Very much apprecited!

  5. Dec 3, 2010 at 5:16 PM
    #5
    Tacoma843

    Tacoma843 Member

    Joined:
    Dec 3, 2010
    Member:
    #47105
    Messages:
    20
    Gender:
    Male
    First Name:
    Jordan
    Charleston SC
    Vehicle:
    2005 Toyota Tacoma 4wd
    Was this the correct wirring, or what is what color applies to what function?

    RED?
    BLUE?
    WHITE?
    BLACK?

    Which is RCAs power Ground etc??
    Thanks

  6. Dec 4, 2010 at 7:29 AM
    #6
    SLQ

    SLQ [OP] Member

    Joined:
    Mar 13, 2010
    Member:
    #33149
    Messages:
    6
    Gender:
    Male
    central coast
    Vehicle:
    07 prerunner Dbl cab TRD sport
    Anzboi's recommendation was correct:)
