OEM Blower Motor Resistor Wiring

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jarett92, Aug 14, 2019.

  1. May 10, 2023 at 7:37 AM
    #41
    Canada_Yoda

    Canada_Yoda New Member

    Joined:
    Apr 16, 2023
    Member:
    #422590
    Messages:
    1
    Gender:
    Male
    First Name:
    Brad
    Vehicle:
    2012 Tacoma

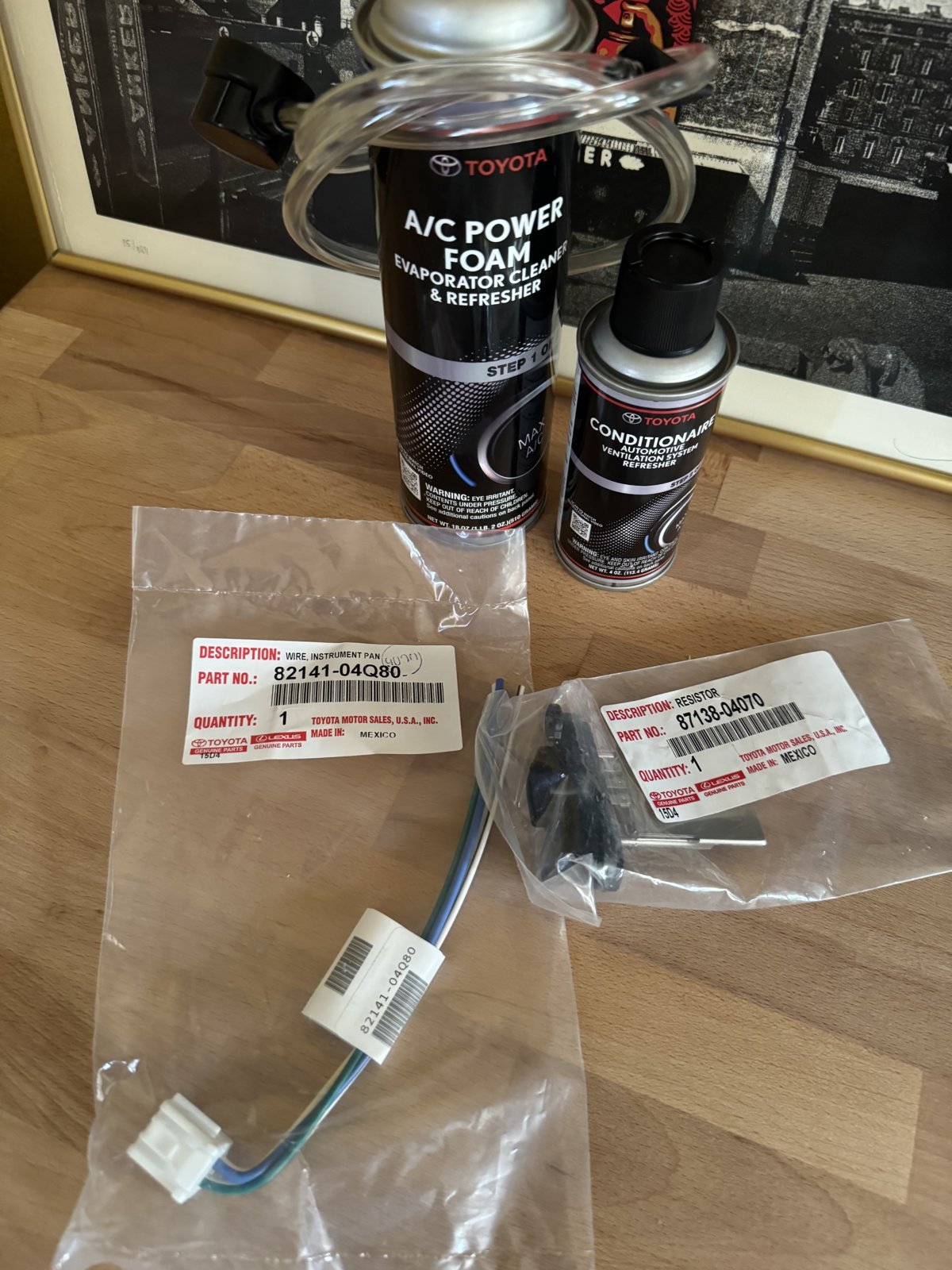

    Big thanks to all as this just happened to my 2012 tacoma yesterday. Buying parts shortly but it turns out Toyota now carries the adapter plug sold separately of course to accompany the air flow resistor.
    But again thanks to all.

  2. May 19, 2023 at 1:01 PM
    #42
    Jay9777

    Jay9777 Member

    Joined:
    May 12, 2023
    Member:
    #424513
    Messages:
    12
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    2005 Red Tacoma 4x4 5ft Manual
    Just finished installing old harness to new harness using this method and worked perfect. Thank you Choads.

  3. May 19, 2023 at 3:45 PM
    #43
    dtaco10

    dtaco10 Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258356
    Messages:
    804
    Gender:
    Male
    First Name:
    Dave
    Anoka County, Minnesota
    Vehicle:
    2010 White Tacoma 4x4, 4.0, Auto
    Just did this and it worked for me.

    Pabloeeto likes this.
  4. Jun 1, 2023 at 7:11 PM
    #44
    Charn Gill

    Charn Gill Member

    Joined:
    Sep 7, 2015
    Member:
    #163621
    Messages:
    5
    First Name:
    Charn
    Vehicle:
    2007 Tacoma double cab trd sport

    Can confirm. This is the way. Just did it on my 2007 Toyota Tacoma. 23/06/01

    Pabloeeto likes this.
  5. Jun 30, 2023 at 2:47 PM
    #45
    Pabloeeto

    Pabloeeto Well-Known Member

    Joined:
    Jun 10, 2014
    Member:
    #131724
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Paul
    San Diego
    Vehicle:
    06 DCSB TRD Sport 4x4
    K&N filter, 3.5 Aux input mod, Fox 2.0 Coilovers, Fox 2.0 Resi Shocks, Element UCAs, Old Man Emu Dakar Leaf pack.
    Just wanna thank y'all for the info, I just got done doing mine. I wired it incorrectly the first time just going by the a b c d layout on the connectors and had the two middle speeds swapped. It's all good now.

  6. Feb 9, 2024 at 8:17 AM
    #46
    Geeves77

    Geeves77 Well-Known Member

    Joined:
    Feb 16, 2020
    Member:
    #319439
    Messages:
    2,011
    Gender:
    Male
    First Name:
    Mark
    Northeast
    Vehicle:
    2011 Tacoma DCSB
    3 inch Icon lift with UCA’s
    All I can say is Thank You, for all this information as I’m going through this right at this very second, lol

    nightcrawler likes this.
  7. Jun 8, 2024 at 6:05 AM
    #47
    nightcrawler

    nightcrawler Well-Known Member

    Joined:
    Apr 8, 2009
    Member:
    #15733
    Messages:
    368
    Vehicle:
    ‘17pro
    Last edited: Jun 8, 2024
  8. Jun 8, 2024 at 6:27 AM
    #48
    Geeves77

    Geeves77 Well-Known Member

    Joined:
    Feb 16, 2020
    Member:
    #319439
    Messages:
    2,011
    Gender:
    Male
    First Name:
    Mark
    Northeast
    Vehicle:
    2011 Tacoma DCSB
    3 inch Icon lift with UCA’s
    Had to do mine last month. Easy stuff

    nightcrawler likes this.
  9. Jun 8, 2024 at 6:56 AM
    #49
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    6,794
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    High speed is direct so the resistor is not carrying the load the ideal is to have at least one speed for defrost/heat no matter what. Every step changes the resistance hence the speed except for high. On low it is a pretty good current draw so any poor connection creates and even greater current draw and tends to melt things.

    Dm93 likes this.
  10. Jun 8, 2024 at 7:00 AM
    #50
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,653
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    High speed will kill the switch eventually especially if you use it alot as all the current for high has to go through the switch.
    https://www.tacomaworld.com/threads...lay-mod-prevent-blower-switch-failure.827331/

  11. Jun 8, 2024 at 7:09 AM
    #51
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    6,794
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    It all ready does. It takes X current to run the blower no matter what speed so when you change to a lower speed the motor still has the same current draw plus a greater resistance to slow it down to a lower speed. It's not for nothing the resistor is right in the air stream it gets hot!

  12. Jun 8, 2024 at 7:37 AM
    #52
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,653
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Yes there is still current going through the switch on the other speeds but it's lower than on high speed and doesn't cause much issue, the resistor gets hot because it's dropping voltage across it and voltage drop (resistance to current flow) in a circuit generates heat.

    Pretty much all the blower switches I've seen failed have been on the high speed leg unless they run high through a relay.

  13. Jun 8, 2024 at 7:41 AM
    #53
    vtdog

    vtdog Well-Known Member

    Joined:
    Apr 9, 2009
    Member:
    #15767
    Messages:
    666
    Gender:
    Male
    NH
    I have done my 2011 twice. The first replacement was with an ebay part. That fix lasted only 10 weeks. The second fix was made using OEM part from on-line dealer. That part has lasted over 3 years without issue. Although it is an easy fix, if it breaks again I will probably have to pay to have it done. I don't think that I can "pretzel" myself anymore between the seat and the dash as my back seems to have a recurrent issue. Still though, an especially easy fix with the new plug.

    This site contains affiliate links for which the site may be compensated.
    #53
  14. Jun 8, 2024 at 9:41 PM
    #54
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,222
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    As resistance increases, current decreases.
    As resistances decreases, current increases.
    You'll have more current on the High speed switch terminal, then you will on the lower speed terminals.

  15. Aug 26, 2024 at 2:46 PM
    #55
    Steveo2

    Steveo2 Active Member

    Joined:
    Feb 26, 2012
    Member:
    #73706
    Messages:
    27
    Gender:
    Male
    First Name:
    Steve
    Hill Country, TX
    Vehicle:
    '11 TRD & '70 Vette
    My air speed control stopped working found multiple threads and seems to be a very common problem. Bought the new resister from Toyota for $40 this morn, but it has the square plug, damn, can't change it. Plugged the old one back in and it's working...WTF? Prolly wont work correctly for long so I plan to get the proper pigtail. Here is my question - Why would the flat connector be an issue?? Thx

  16. Aug 26, 2024 at 6:59 PM
    #56
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,653
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    The stock flat connector has connection issues so they updated it to the newer square connector & resistor (per TSB 0062-21) that don't have as many issues.


    Attached Files:

  17. Aug 27, 2024 at 6:07 AM
    #57
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    6,794
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    Have a good look at where the wire connect to the resister and make sure there are no signs of over heating on any of the resister pins.

  18. Aug 27, 2024 at 6:50 AM
    #58
    Steveo2

    Steveo2 Active Member

    Joined:
    Feb 26, 2012
    Member:
    #73706
    Messages:
    27
    Gender:
    Male
    First Name:
    Steve
    Hill Country, TX
    Vehicle:
    '11 TRD & '70 Vette
    I get that but my question was why would the square connector cause the issue??

  19. Oct 3, 2024 at 12:42 PM
    #59
    2013XSPX

    2013XSPX Well-Known Member

    Joined:
    Nov 29, 2015
    Member:
    #170975
    Messages:
    2,609
    Gender:
    Male
    First Name:
    Matt
    GA/FL Border
    Vehicle:
    2013 XSP-X
    Pelfreybilt front/rear, RCI underneath, Morimoto Headlights, Prinsu racks, SCS Brushed Copper Ray 10's, EO Sliders, Baja Designs and Rigid lights, Inca 4x4 Camper
    I just picked up the square updated one today. I've ran through two cheap replacements.

  20. Jan 9, 2025 at 1:34 PM
    #60
    MyBlackTacomaTruck

    MyBlackTacomaTruck New Member

    Joined:
    Nov 18, 2020
    Member:
    #347125
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2006 TRD 4x4 crew cab 6 spd w diff locker

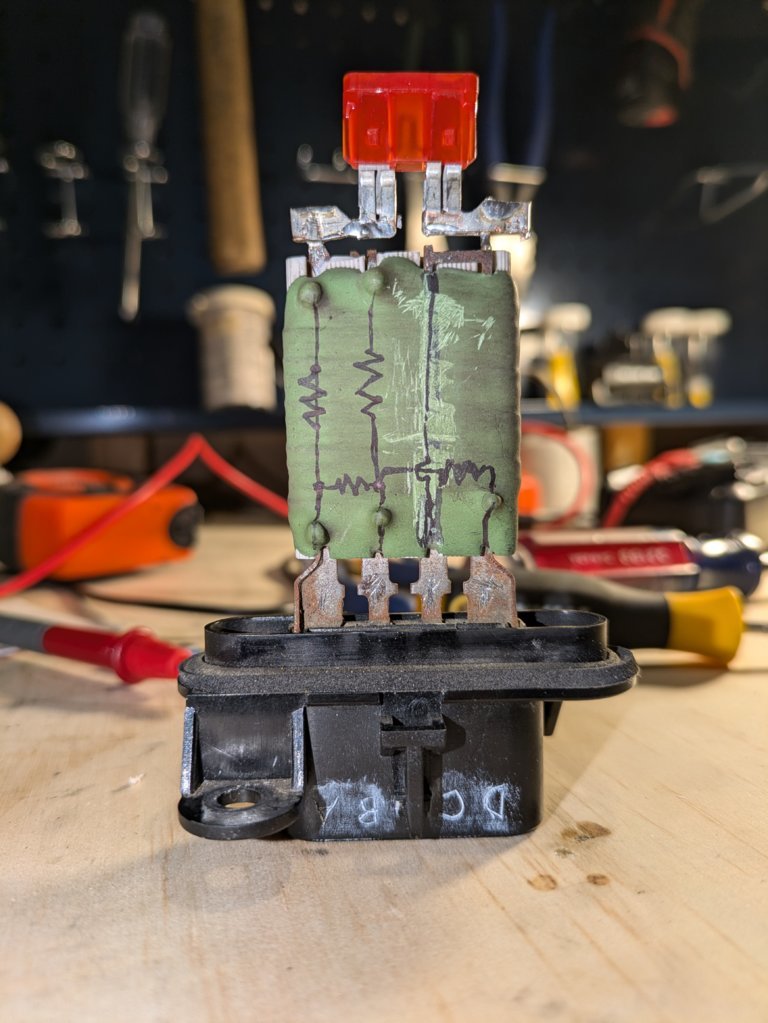

    400w Inverter mod, blower resistor mod
