    Quick Links: What Double DIN kit for 2014 TRD Sport? 2014 Tacoma double cab system questions Is it possible to upgrade the sound but keep the factory head unit? INSTALL: Steering Wheel Interface 2006 Taco 4d 4wd JBL ( SWI-JACK ) Pioneer AVH-2300NEX w\ backup cam install in 2005 Tacoma Finished my install, JL Stealthbox + AppRadio in 2013 Taco

OEM Camera Connection below Dash

Discussion in 'Audio & Video' started by DNahas, Mar 19, 2009.

Page 11 of 18
  1. Mar 26, 2017 at 4:32 PM
    #201
    huff.jeremy

    #201
    huff.jeremy Well-Known Member

    Joined:
    Dec 11, 2009
    Member:
    #27387
    Messages:
    128
    Gender:
    Male
    Illinois
    Vehicle:
    2010 MagGray SR5 Access Cab, 4x4, 2.7L, 5spd
    OME 884's, OME shocks, Wheelers 1.5" AAL, Light Racing UCA, Jason Fiberglass top, URD Short Shifter, Fog Lights
    I just completed this mod in my 2010 2.7 Manual, with a Pioneer 3800.

    I used a heavy RCA (like the ones for a pre-amp connection) and soldered the connections... the video output on the h/u is as clear as the mirror video. No lines and no loss of resolution.

    Additionally, if anyone else does this mod and can't find the red reverse-signal wire in the kick panel, my truck's wire was a thick light purple wire. It took me an hour to dig up a wiring schematic to confirm... maybe the red wire is for the autos and purple for manuals?

    huff.jeremy, Mar 26, 2017
    #201
    Doughnut Spaghetti likes this.
  2. Mar 26, 2017 at 4:42 PM
    #202
    TacoDawgfan

    #202
    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    I also used a heave gauge cable, even gold plated. I actually used a video from a Heavy set of component cables. I ripped them apart since I couldn't find anything better and didn't want to go spend money on anything if I didn't have to. But o also tried some other wires and really couldn't tell a difference. Only change was when I turned off the rear view camera. So it seems to me that spitting the signal was the culprit.

    TacoDawgfan, Mar 26, 2017
    #202
  3. Mar 27, 2017 at 8:05 AM
    #203
    floodedkiwi

    #203
    floodedkiwi Well-Known Member

    Joined:
    Feb 27, 2013
    Member:
    #98631
    Messages:
    1,787
    Gender:
    Male
    First Name:
    Ken
    Naw'lins, Louisiana
    Vehicle:
    2019 GMC AT4
    Dog.
    Just did this on my 2013 Baja with a Pioneer HU, and it works like a champ. The biggest issue I had was locating the parking brake wire and I ended up T-tapping it at the switch under the dash because I couldn't find it anywhere else, so a little blood and left over skin is now up under the dash.
    Thanks for the write up and the extra notes....

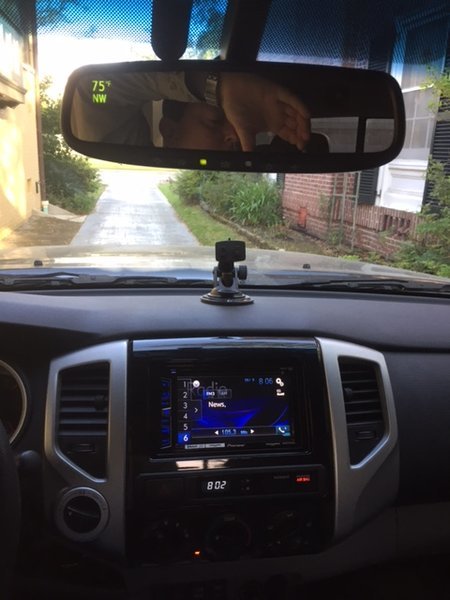

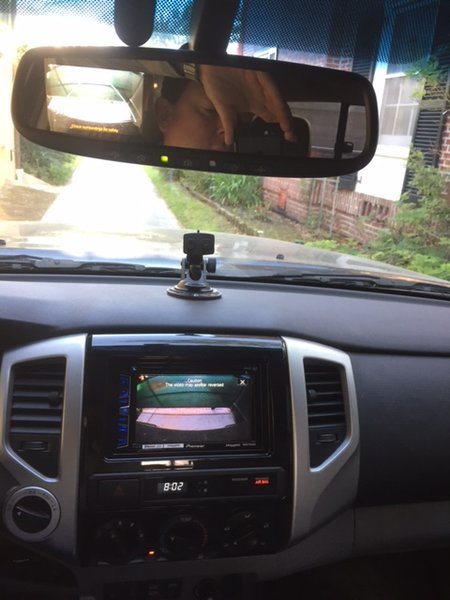

    IMG_7146.jpg IMG_7147.jpg

    floodedkiwi, Mar 27, 2017
    #203
  4. Apr 7, 2017 at 2:04 PM
    #204
    JAG1

    #204
    JAG1 New Member

    Joined:
    Feb 7, 2017
    Member:
    #209874
    Messages:
    2
    Gender:
    Male
    First Name:
    John
    Nashville, TN
    Vehicle:
    2012 DCSB Sport 4x4
    So what would be the procedure if you only want to have the video show up in the HU and stop showing in the mirror (not duplicate in both places)?

    JAG1, Apr 7, 2017
    #204
  5. Apr 7, 2017 at 5:56 PM
    #205
    TacoDawgfan

    #205
    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    Someone did a thread on here about how to do this if I remember correctly. I would like mine to stay off in the mirror since it splits the signal and apparently weakens it causing the black line issue. It goes away if I turn the mirror image off. But the mirror display keeps turning itself back on.

    TacoDawgfan, Apr 7, 2017
    #205
  6. Apr 23, 2017 at 4:12 PM
    #206
    DT52

    #206
    DT52 Member

    Joined:
    Apr 23, 2017
    Member:
    #217094
    Messages:
    8
    Gender:
    Male
    First Name:
    Duncan
    Vehicle:
    2011 Tacoma TRD 6 speed Manual
    Kenwood DNX893S Headunit

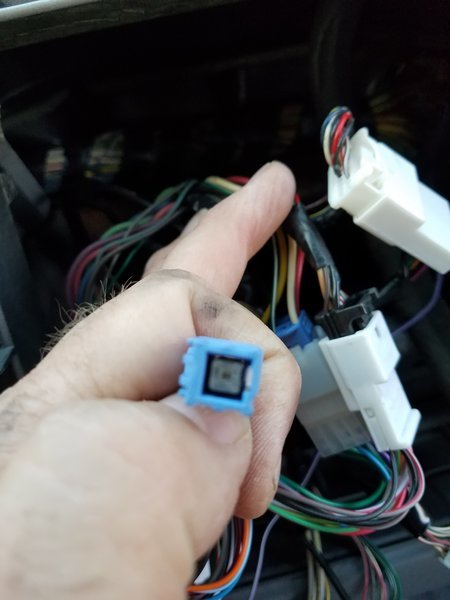

    Mine is a standard 2011. I had to disconnect the purple/white from my idatalink harness and do this and now it works.

    DT52, Apr 23, 2017
    #206
  7. Apr 23, 2017 at 4:22 PM
    #207
    DT52

    #207
    DT52 Member

    Joined:
    Apr 23, 2017
    Member:
    #217094
    Messages:
    8
    Gender:
    Male
    First Name:
    Duncan
    Vehicle:
    2011 Tacoma TRD 6 speed Manual
    Kenwood DNX893S Headunit

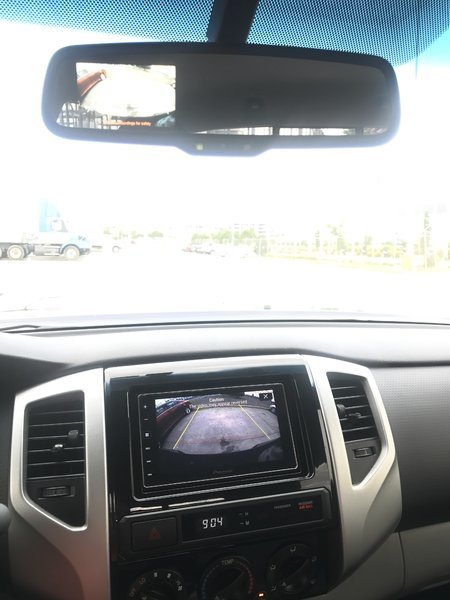

    Everything with this install worked and I have rear camera working on my head unit and rear view mirror. This wire was left over after I installed my Kenwood DNX893S using idatalink. I think its a power antenna wire, but I'm not sure. Anyone know for sure what it is?

    DT52, Apr 23, 2017
    #207
  8. Apr 23, 2017 at 4:44 PM
    #208
    Drainbung

    #208
    Drainbung Somedays you are the show....

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    9,310
    Gender:
    Male
    First Name:
    Bob
    Fallabama, NV
    Vehicle:
    10 DCLB
    TRD Fleshlight
    Sirius/XM antenna

    Drainbung, Apr 23, 2017
    #208
  9. Apr 23, 2017 at 5:18 PM
    #209
    DT52

    #209
    DT52 Member

    Joined:
    Apr 23, 2017
    Member:
    #217094
    Messages:
    8
    Gender:
    Male
    First Name:
    Duncan
    Vehicle:
    2011 Tacoma TRD 6 speed Manual
    Kenwood DNX893S Headunit
    Last edited: May 25, 2017
    This site contains affiliate links for which the site may be compensated.
    DT52, Apr 23, 2017
    #209
  10. Apr 30, 2017 at 6:05 AM
    #210
    pastorman

    #210
    pastorman Member

    Joined:
    Jul 13, 2016
    Member:
    #191922
    Messages:
    16
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2017 Tacoma TRD Off Road
    Hey everyone! Getting ready to install Sony XAV-AX100 into my 2009 Taco. A couple of quick questions - When you tapped into the red reverse wire, did you use D pin connector like you did for the Video or use a vampire clip? Second, Is it necessary to tap into the parking brake wire since this unit does not have a DVD player - videos?

    Thanks

    UPDATE: Worked like a charm! Thanks

    Last edited: May 1, 2017
    pastorman, Apr 30, 2017
    #210
  11. May 2, 2017 at 4:19 PM
    #211
    RevAdam

    #211
    RevAdam Impressive Member

    Joined:
    Aug 17, 2011
    Member:
    #61854
    Messages:
    1,272
    Gender:
    Male
    First Name:
    Adam
    Upstate SC
    Vehicle:
    11 TRD OR 4x4
    Icom 5100 radio, Baja Rack, Kenwood 6980, ARB Bull Bar, Lightforce HID lights, Warn winch, LED lights, 5100s, Switchbacks, Redarc TowPro
    This site contains affiliate links for which the site may be compensated.
    RevAdam, May 2, 2017
    #211
  12. May 2, 2017 at 7:19 PM
    #212
    DT52

    #212
    DT52 Member

    Joined:
    Apr 23, 2017
    Member:
    #217094
    Messages:
    8
    Gender:
    Male
    First Name:
    Duncan
    Vehicle:
    2011 Tacoma TRD 6 speed Manual
    Kenwood DNX893S Headunit

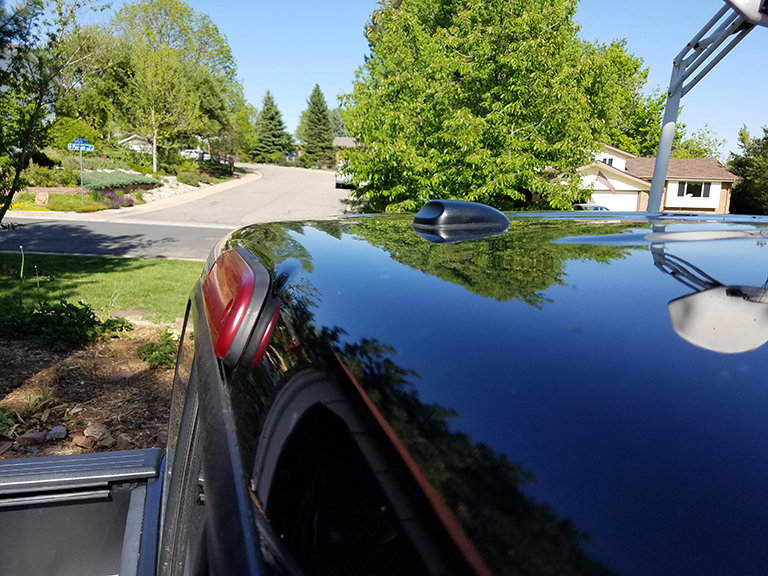

    I bought my 2011 Tacoma used and it has a shark fin antenna. I'll post what happens when I get the connector and install it. It's on it's way from China.

    DT52, May 2, 2017
    #212
  13. May 9, 2017 at 3:08 PM
    #213
    TegoTaco

    #213
    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    7,218
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    ‘13 SUPERCHARGED DCLB TRD SPORT

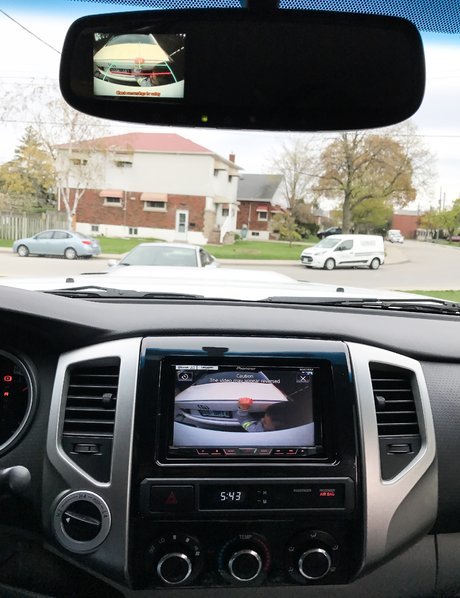

    Success!


    TegoTaco, May 9, 2017
    #213
  14. May 9, 2017 at 3:09 PM
    #214
    TegoTaco

    #214
    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    7,218
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    ‘13 SUPERCHARGED DCLB TRD SPORT

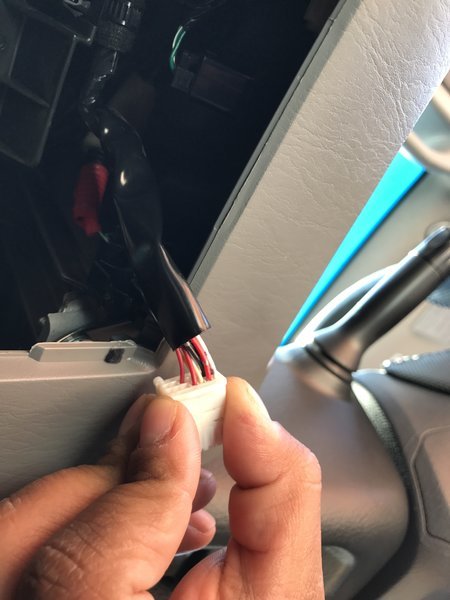

    Just trying to figure out the back up trigger on my harness, there's 3 red wires...which one do I tap into??


    TegoTaco, May 9, 2017
    #214
  15. May 25, 2017 at 7:32 PM
    #215
    DT52

    #215
    DT52 Member

    Joined:
    Apr 23, 2017
    Member:
    #217094
    Messages:
    8
    Gender:
    Male
    First Name:
    Duncan
    Vehicle:
    2011 Tacoma TRD 6 speed Manual
    Kenwood DNX893S Headunit
    DT52, May 25, 2017
    #215
  16. May 29, 2017 at 9:45 PM
    #216
    RevAdam

    #216
    RevAdam Impressive Member

    Joined:
    Aug 17, 2011
    Member:
    #61854
    Messages:
    1,272
    Gender:
    Male
    First Name:
    Adam
    Upstate SC
    Vehicle:
    11 TRD OR 4x4
    Icom 5100 radio, Baja Rack, Kenwood 6980, ARB Bull Bar, Lightforce HID lights, Warn winch, LED lights, 5100s, Switchbacks, Redarc TowPro
    RevAdam, May 29, 2017
    #216
  17. May 30, 2017 at 5:22 PM
    #217
    DT52

    #217
    DT52 Member

    Joined:
    Apr 23, 2017
    Member:
    #217094
    Messages:
    8
    Gender:
    Male
    First Name:
    Duncan
    Vehicle:
    2011 Tacoma TRD 6 speed Manual
    Kenwood DNX893S Headunit

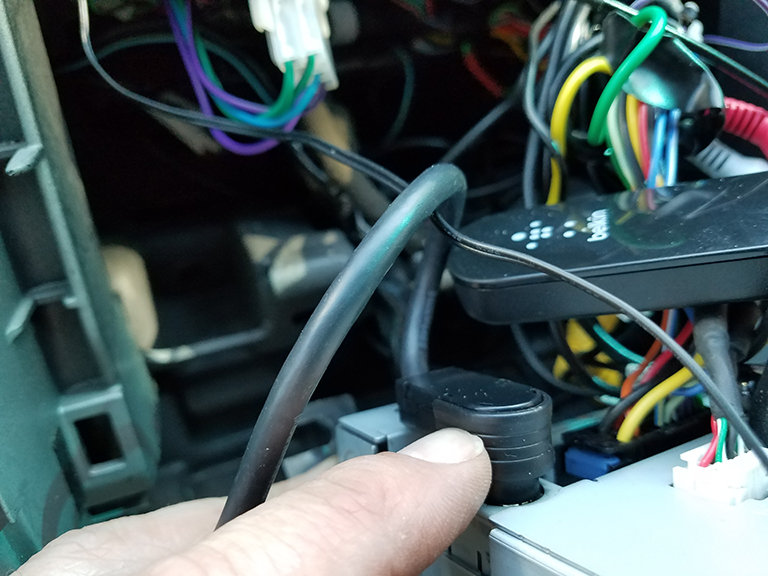

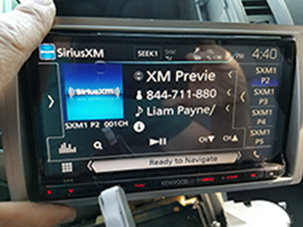

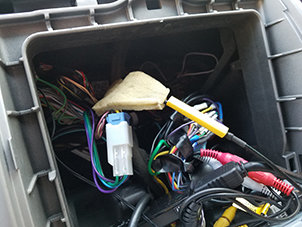

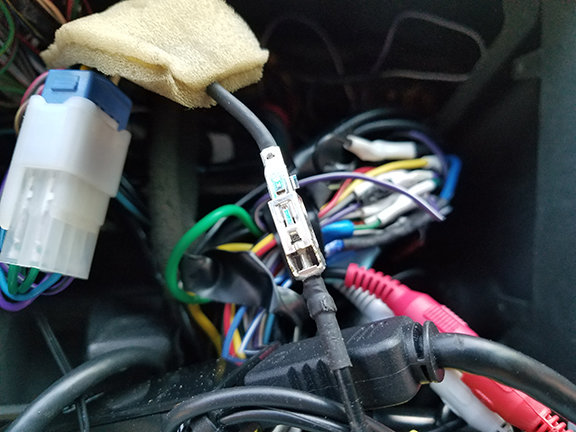

    5.jpg 1.jpg 2.jpg 3.jpg 4.jpg 6.jpg

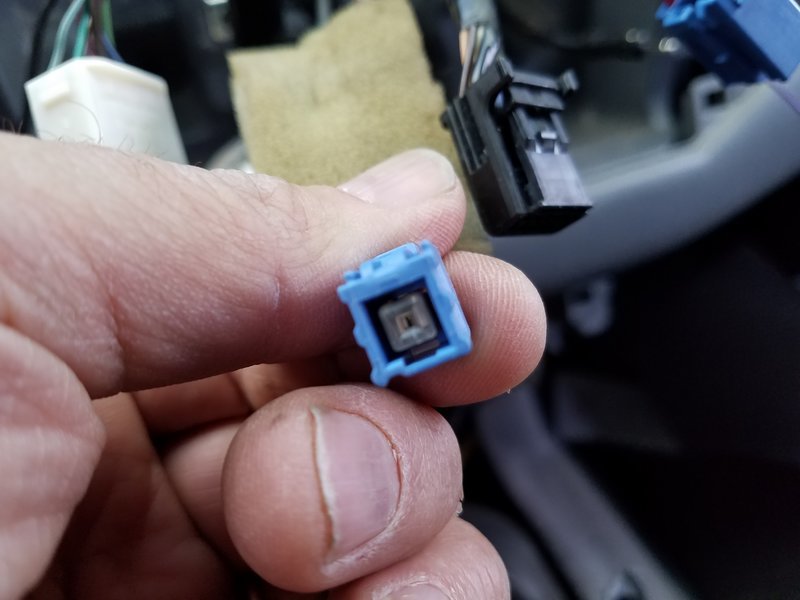

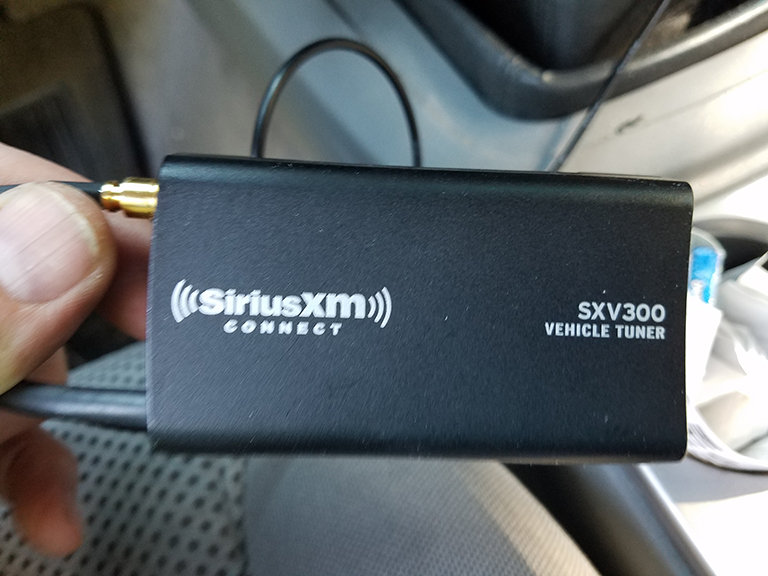

    So my adapter finally came and I was able to connect it by removing the Sirius/XM plastic blue cover and the adapters grey plastic cover. I put heat shrink tubing over the connection. I have an XM antenna on my Tacoma 2011. I bought it used so I don't know if this was ordered or stock. When I hooked everything up my Sirius/XM worked great. I was glad to see I had a functional antenna and didn't have to remove the headliner to install another.

    Last edited: May 30, 2017
    DT52, May 30, 2017
    #217
  18. Jun 9, 2017 at 2:57 AM
    #218
    RevAdam

    #218
    RevAdam Impressive Member

    Joined:
    Aug 17, 2011
    Member:
    #61854
    Messages:
    1,272
    Gender:
    Male
    First Name:
    Adam
    Upstate SC
    Vehicle:
    11 TRD OR 4x4
    Icom 5100 radio, Baja Rack, Kenwood 6980, ARB Bull Bar, Lightforce HID lights, Warn winch, LED lights, 5100s, Switchbacks, Redarc TowPro
    I so wish I had a factory sharkfin. My Sirius antenna is just threw up on my dash...

    RevAdam, Jun 9, 2017
    #218
  19. Jun 9, 2017 at 7:46 AM
    #219
    Doughnut Spaghetti

    #219
    Doughnut Spaghetti Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211939
    Messages:
    3,865
    Gender:
    Male
    First Name:
    Kristofer
    Lansing, Michigan
    Vehicle:
    2009 Tacoma SR5
    Excellent, I'm going to do this this weekend. Been wondering how to get my rear camera linked to my new stereo.

    Doughnut Spaghetti, Jun 9, 2017
    #219
  20. Jun 11, 2017 at 6:50 AM
    #220
    Kayoticworld

    #220
    Kayoticworld New Member

    Joined:
    Jun 3, 2017
    Member:
    #220581
    Messages:
    4
    Gender:
    Male
    Atlanta, GA
    Vehicle:
    2013 Blue Tacoma PreRunner TRD
    You guys and this forum are awesome! I can confirm that the method listed above works on a 2013 model. I was losing my mind trying to figure out how to split this to an aftermarket hu. Works great!


    Last edited: Jun 11, 2017
    Kayoticworld, Jun 11, 2017
    #220
