Discussion in 'Audio & Video' started by DNahas, Mar 19, 2009.

Page 12 of 18
  1. Jun 19, 2017 at 6:06 PM
    #221
    09doublecab83

    #221
    09doublecab83 Well-Known Member

    Joined:
    Nov 25, 2016
    Member:
    #203247
    Messages:
    107
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2009 Champagne doublecab
    Ok, ive got an 09 auto trd OR DCSB..... i cant get the reverse signal pointed out by the op ( red wire on top connector behind coin tray ) to work..... did i miss something? Ive got feed to my radio (pioneer avh-x4800bs) confirmed by going into the radio and choosing camera feed, but i cant get it to switch automatically when shifted into reverse...

    09doublecab83, Jun 19, 2017
    #221
  2. Jun 20, 2017 at 6:42 AM
    #222
    huff.jeremy

    #222
    huff.jeremy Well-Known Member

    Joined:
    Dec 11, 2009
    Member:
    #27387
    Messages:
    128
    Gender:
    Male
    Illinois
    Vehicle:
    2010 MagGray SR5 Access Cab, 4x4, 2.7L, 5spd
    OME 884's, OME shocks, Wheelers 1.5" AAL, Light Racing UCA, Jason Fiberglass top, URD Short Shifter, Fog Lights

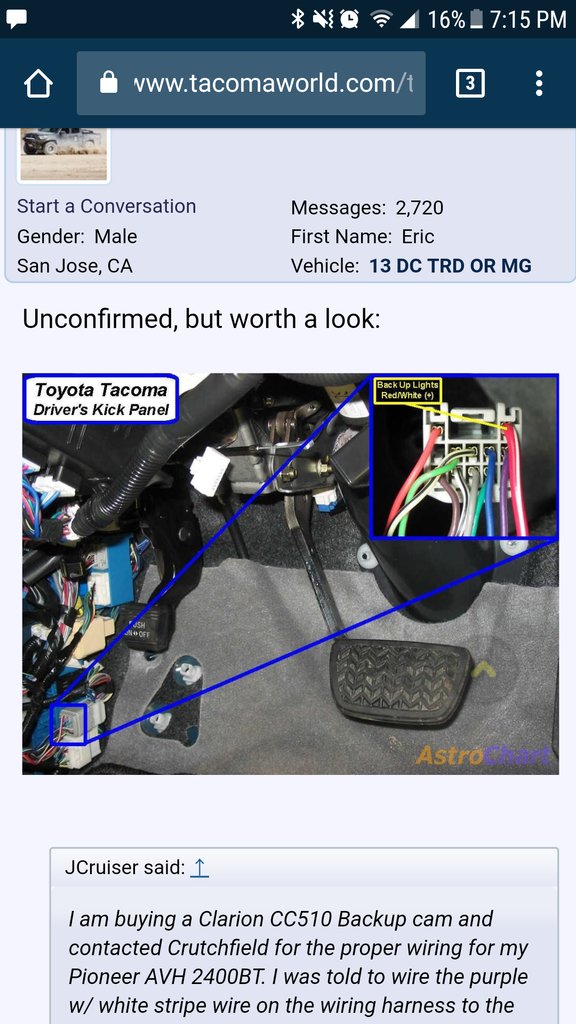

    I'm not sure about the reverse signal behind the coin tray, but several (including myself) have used a thick red wire found in the driver side kick panel. I believe (but not sure) it is pictured earlier in this thread. On my 2010 Manual 2.7L AC, it was a thick purple wire in the same position.

    Here is a link to a thread where I found such a pic: https://www.tacomaworld.com/threads/reverse-lamp-wire-near-dash.422442/

    huff.jeremy, Jun 20, 2017
    #222
  3. Jun 20, 2017 at 9:33 AM
    #223
    09doublecab83

    #223
    09doublecab83 Well-Known Member

    Joined:
    Nov 25, 2016
    Member:
    #203247
    Messages:
    107
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2009 Champagne doublecab


    You sir, are the man. Not sure how i missed this info, but thank you. Eternally grateful

    09doublecab83, Jun 20, 2017
    #223
  4. Jun 23, 2017 at 8:09 PM
    #224
    Doughnut Spaghetti

    #224
    Doughnut Spaghetti Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211939
    Messages:
    3,865
    Gender:
    Male
    First Name:
    Kristofer
    Lansing, Michigan
    Vehicle:
    2009 Tacoma SR5
    Just did this mod and want to confirm the reverse wire is RED on a 2009 manual.

    Mod worked perfect. Now have rear view on my HU. Picture is as fine as a camera from 09 can do.

    Nice to actually be able to see whats going on without looking at a tiny screen on the mirror.

    Doughnut Spaghetti, Jun 23, 2017
    #224
  5. Jul 16, 2017 at 8:59 AM
    #225
    09doublecab83

    #225
    09doublecab83 Well-Known Member

    Joined:
    Nov 25, 2016
    Member:
    #203247
    Messages:
    107
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2009 Champagne doublecab
    I have an auto 09 dcsb TRD OR.... when i try using the aforementioned red wire it pops my ig1 fuse resulting in not veing able to shift from park, and a few other things not working. ....

    09doublecab83, Jul 16, 2017
    #225
  6. Jul 16, 2017 at 9:19 AM
    #226
    TegoTaco

    #226
    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    7,236
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    ‘13 SUPERCHARGED DCLB TRD SPORT
    Have a picture of the harness you're plugging into?

    TegoTaco, Jul 16, 2017
    #226
  7. Jul 16, 2017 at 11:01 AM
    #227
    09doublecab83

    #227
    09doublecab83 Well-Known Member

    Joined:
    Nov 25, 2016
    Member:
    #203247
    Messages:
    107
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2009 Champagne doublecab

    09doublecab83, Jul 16, 2017
    #227
  8. Jul 17, 2017 at 11:00 AM
    #228
    09doublecab83

    #228
    09doublecab83 Well-Known Member

    Joined:
    Nov 25, 2016
    Member:
    #203247
    Messages:
    107
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2009 Champagne doublecab
    Anyone?

    09doublecab83, Jul 17, 2017
    #228
  9. Jul 17, 2017 at 2:45 PM
    #229
    TegoTaco

    #229
    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    7,236
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    ‘13 SUPERCHARGED DCLB TRD SPORT
    What are you trying to do?

    TegoTaco, Jul 17, 2017
    #229
  10. Jul 17, 2017 at 3:44 PM
    #230
    09doublecab83

    #230
    09doublecab83 Well-Known Member

    Joined:
    Nov 25, 2016
    Member:
    #203247
    Messages:
    107
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2009 Champagne doublecab
    Trying to find a the reverse signal wire so the backup camera will pop up automatically in my headunit like it does on my rearview

    09doublecab83, Jul 17, 2017
    #230
  11. Jul 17, 2017 at 4:35 PM
    #231
    TegoTaco

    #231
    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    7,236
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    ‘13 SUPERCHARGED DCLB TRD SPORT
    Try the black harness behind the glove box, think it's the red wire.


    TegoTaco, Jul 17, 2017
    #231
  12. Aug 15, 2017 at 10:31 PM
    #232
    Rydah

    #232
    Rydah Active Member

    Joined:
    Apr 10, 2012
    Member:
    #76658
    Messages:
    41
    Gender:
    Male
    First Name:
    Rob
    Houston, TX
    Vehicle:
    2014 TRD Off Road
    2012 X-Runner with non JBL stock head unit and backup camera in rear view mirror. I've read all the posts here, and can only conclude that just about every year has a different source for the backup camera trigger wire (some red, some red/white, some purple, some behind the kick panel, some behind the coin box, some behind the glove box... argh!!) I'll be searching tomorrow to find mine so wish me luck, or if anyone with a similar truck wants to save me the time, please chime in.

    My other big concern though is that everyone talks about only three wires: video signal +, video signal - (which make up the RCA plug) and camera power (from the backup camera trigger wire), but in the diagram below, it shows a 4th stock wire, the shielded body GND. On the harness I got from Crutchfield for my Pioneer AVH-X4800BS, sure enough, it has two wires going to an RCA plug, but then two other wires which I assume are to be attached to the camera trigger power (+) and the "shielded body ground". Should I not be concerned about not having this ground, or should I be tapping it into terminal #4 as in the IO1 diagram below?

    [​IMG]

    Rydah, Aug 15, 2017
    #232
  13. Dec 2, 2017 at 8:27 AM
    #233
    Caprini83

    #233
    Caprini83 New Member

    Joined:
    Dec 2, 2017
    Member:
    #237463
    Messages:
    1
    This is a great write up, I've been trying to find one for my 2011 tundra if anyone could help me out possibly?

    Caprini83, Dec 2, 2017
    #233
  14. Jan 22, 2018 at 1:47 PM
    #234
    Chiro22

    #234
    Chiro22 TacoTor

    Joined:
    Jan 15, 2018
    Member:
    #241307
    Messages:
    38
    Gender:
    Male
    First Name:
    Doc
    Bay Area
    Vehicle:
    2009 Tacoma manual
    This is a great thread, any advice for a 2009 Taco that doesn't have the back up mirror? It has the regular stock mirror. It does have the back up camera though. Which OEM Double Din stereos work with the stock back up camera?

    Chiro22, Jan 22, 2018
    #234
  15. Mar 3, 2018 at 7:03 AM
    #235
    1harrytaco

    #235
    1harrytaco New Member

    Joined:
    Mar 2, 2018
    Member:
    #246059
    Messages:
    4
    Gender:
    Male
    I just installed A Pioneer AVH-X2800BS - every thing is installed as described and working as i should, but I am not getting the backup camera image on the HU just a black screen with "image may be reversed...", I am getting it on the mirror. The Reverse switch is working correctly. I have also tested continuity on the video cable from the harness to the head unit and the cable is good. any ideas would be great.

    1harrytaco, Mar 3, 2018
    #235
  16. Mar 4, 2018 at 4:17 PM
    #236
    furi

    #236
    furi Active Member

    Joined:
    May 14, 2017
    Member:
    #219021
    Messages:
    25
    Gender:
    Male
    Puerto Rico
    Vehicle:
    2010 TRD Sport PreRunner
    You must connect the signal of the reverse cable to the cable that brings the radio so that there will be the images

    furi, Mar 4, 2018
    #236
  17. Mar 4, 2018 at 4:33 PM
    #237
    furi

    #237
    furi Active Member

    Joined:
    May 14, 2017
    Member:
    #219021
    Messages:
    25
    Gender:
    Male
    Puerto Rico
    Vehicle:
    2010 TRD Sport PreRunner
    how can I disconnect the camera from the rear view mirror and just leave the radio, since if I unplug the rearview mirror, the camera can not be seen on the radio

    furi, Mar 4, 2018
    #237
  18. Apr 12, 2018 at 2:29 PM
    #238
    xguntherc

    #238
    xguntherc Taco Time

    Joined:
    Dec 19, 2012
    Member:
    #93383
    Messages:
    1,836
    Gender:
    Male
    First Name:
    Cory
    East Dallas
    Vehicle:
    11 TRD Off Road - Black
    Icon Stage 5, Nexen Roadian MTX, Fuel KB43 Block wheels, Baja Design XL 80s, Baja Squad Pro WC fogs, TacoVinyl grill, "dudebro" lights, Prinsu rack, trail rash pinstripes, BAMF hybrid bumper, sliders, and LCA skids, and a few other things I can't think of.
    So this means my backup camera will stay in the backup mirror... but also be in my Pioneer head unit?

    xguntherc, Apr 12, 2018
    #238
  19. Apr 13, 2018 at 5:27 PM
    #239
    floodedkiwi

    #239
    floodedkiwi Well-Known Member

    Joined:
    Feb 27, 2013
    Member:
    #98631
    Messages:
    1,787
    Gender:
    Male
    First Name:
    Ken
    Naw'lins, Louisiana
    Vehicle:
    2019 GMC AT4
    Dog.
    Yes, that is how mine is working:cheers:

    floodedkiwi, Apr 13, 2018
    #239
  20. Apr 13, 2018 at 5:56 PM
    #240
    xguntherc

    #240
    xguntherc Taco Time

    Joined:
    Dec 19, 2012
    Member:
    #93383
    Messages:
    1,836
    Gender:
    Male
    First Name:
    Cory
    East Dallas
    Vehicle:
    11 TRD Off Road - Black
    Icon Stage 5, Nexen Roadian MTX, Fuel KB43 Block wheels, Baja Design XL 80s, Baja Squad Pro WC fogs, TacoVinyl grill, "dudebro" lights, Prinsu rack, trail rash pinstripes, BAMF hybrid bumper, sliders, and LCA skids, and a few other things I can't think of.
    Nice. and is this a hack/mod... Or is this something a stereo installer can easily do? And do without following this post.

    They said they can add my camera to my pioneer, but I don't want some random dude hacking my stuff. But if it's an easy process a professional can do, then sure.

    xguntherc, Apr 13, 2018
    #240
