Discussion in 'Audio & Video' started by DNahas, Mar 19, 2009.

  1. mizuh

    mizuh Member

    Joined:
    May 9, 2010
    Member:
    #36831
    Messages:
    9
    Gender:
    Male
    Texas
    Vehicle:
    PreRunner SR5
    No, that is a typo. You will see the harness has 2 black wires. You want to connect the shield to the black wire closest to the red. it should read:


    1. Connect the center of the shielded cable (V+) into the pin hole with the RED wire on the OEM connector.
    2. Connect the shield or jacket of the shielded cable (V-) into the pin hole with the BLACK wire on the OEM connector.
    Also, (at least on mine) that black wire LOOKED like a stranded shield connecting into the harness. It was different from the other three, with the strands exposed and visible.


    I've uploaded a photo to imgur that shows my harness, having used D-sub pins with heat shrink. I just shoved them in and used a bit of electrical tape to hold them in place. No problems yet...:)

    http://i.imgur.com/I9ELV.jpg


    The white heat shrink wire is my V+ (connected to red) and the blue heat shrink is the shield connected to the black.

  2. stanbp64

    stanbp64 Well-Known Member

    Joined:
    Jun 9, 2012
    Member:
    #80394
    Messages:
    132
    Gender:
    Male
    Greenville, SC
    Vehicle:
    2011PreRunner Sr5
    Thanks, I was pretty sure it was a typo but wanted to be positive. Thanks for the help.

    Stan

  3. stanbp64

    stanbp64 Well-Known Member

    Joined:
    Jun 9, 2012
    Member:
    #80394
    Messages:
    132
    Gender:
    Male
    Greenville, SC
    Vehicle:
    2011PreRunner Sr5
    One more question. I cut the end off a video cable and there is the center wire surrounded by white rubber which is then surrounded by copper mesh shield. Is this copper mesh shielding what needs to go to V- (Black wire) or should there be 2 wires in the cable? Stupid question I know.

    Stan

  4. wing103

    wing103 Well-Known Member

    Joined:
    Jul 8, 2008
    Member:
    #7807
    Messages:
    1,036
    Gender:
    Male
    Boston
    Vehicle:
    Tacoma TRD Sport / Dark Gray
    Grill Craft upper & Lower Grill WetOK Seat Cover, Devil Horn, Bug, Windows Deflector, Side step Bar, HID 55W 8000K Headlight, HID 35W 4000K Foglight, Fog Light Mod, Interior LED Map Light Mod, Electric Tail Gate Lock, Leer Cab, Key ring light, Bed LED lights Mod, Kenwood DNX5120, Signal Mirror with Heat
    Shield is v- or call ground wire!

  5. stanbp64

    stanbp64 Well-Known Member

    Joined:
    Jun 9, 2012
    Member:
    #80394
    Messages:
    132
    Gender:
    Male
    Greenville, SC
    Vehicle:
    2011PreRunner Sr5
    Ok, Thanks Guys!

  6. RevAdam

    RevAdam Impressive Member

    Joined:
    Aug 17, 2011
    Member:
    #61854
    Messages:
    1,082
    Gender:
    Male
    First Name:
    Adam
    Upstate SC
    Vehicle:
    11 TRD OR 4x4
    Icom 5100 2M70CM, Baja Rack, Kenwood 6980, ARB Bull Bar, Lightforce HID lights, Warn winch, LED lights, 5100s, Switchbacks.
    Thanks to the guys who traced down the wiring. I tapped into mine this morning, works great! I soldered my wiring in, and I have no problems at all.

  7. Toyotaco1670

    Toyotaco1670 Member

    Joined:
    Jan 8, 2013
    Member:
    #94763
    Messages:
    14
    Gender:
    Female
    Florida
    Vehicle:
    2010 Toyota Tacoma Prerunner Double Cab
    I did this and the camera comes on when I put it in reverse BUT the camera doesn't go off when I put it in drive or park. When I switch the camera off it keeps coming back on like every 10 or 15 seconds. Can anyone help me get this straightened out please??

  8. stanbp64

    stanbp64 Well-Known Member

    Joined:
    Jun 9, 2012
    Member:
    #80394
    Messages:
    132
    Gender:
    Male
    Greenville, SC
    Vehicle:
    2011PreRunner Sr5
    Check the settings on your head unit. Mine will do that unless i have the cam. setting on "battery". Not sure what your head unit is or what settings are available but give it a look-see.

    Stan

  9. Toyotaco1670

    Toyotaco1670 Member

    Joined:
    Jan 8, 2013
    Member:
    #94763
    Messages:
    14
    Gender:
    Female
    Florida
    Vehicle:
    2010 Toyota Tacoma Prerunner Double Cab
    I installed a Pioneer AVH-P2400BT HU. Did the parking brake bypass and that works fine. The camera will come on when I put it in reverse but it doesn't go off when go out of reverse. And then it pops on every 10 or 15 seconds no matter what I do. Unless I actually turn the camera off. But If I turn it off then it doesn't come on when I go into reverse.

    I'm not exactly sure where to hook the reverse sensor wire.

    I tried changing the setting. Tried off, tried ground and tried battery, it does the same thing on all the settings. I just need it to come on in reverse and go off when you take it out of reverse. But it keeps coming on every 10 to15 seconds. No matter what I do.

  10. fj40taz

    fj40taz Well-Known Member

    Joined:
    Oct 12, 2012
    Member:
    #88845
    Messages:
    281
    Gender:
    Male
    First Name:
    Carl
    Voorhees, NJ
    Vehicle:
    10 Toyota Tacoma
    Flowmaster Exhaust
  11. WhiteTacoma09

    WhiteTacoma09 Faketannydeluxe

    Joined:
    Sep 12, 2011
    Member:
    #63380
    Messages:
    477
    Gender:
    Male
    First Name:
    Curt
    summerville, sc
    Vehicle:
    09 Prerunner access cab
    ZXE Headlights Drop in k&n filter Kobalt slim toolbox Tinted 17" FJ trail edition wheels OEM foglights 265/70/17 BFGs AVS vent visors Pioneer AVH-X1500DVD

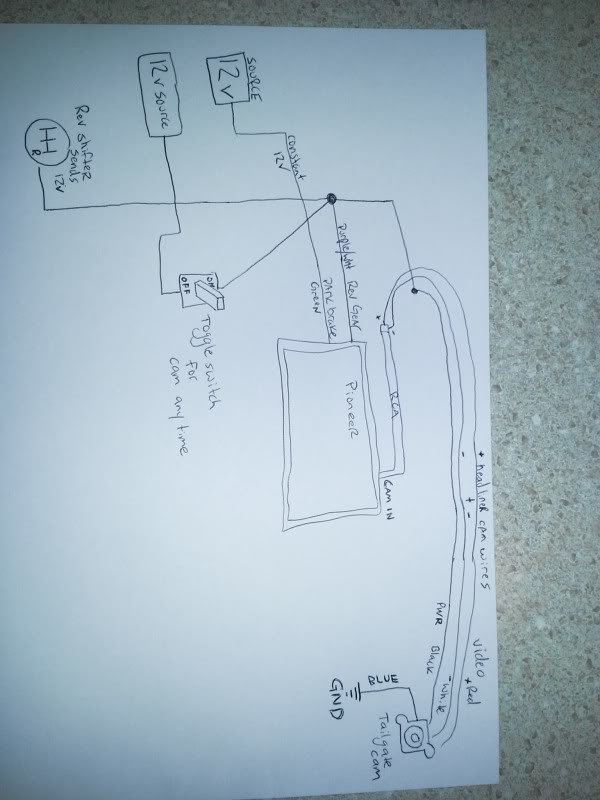

    i dont have the backup mirror, just factory wiring and rear camera. i quickly sketched this up and will see ig it works. [​IMG]

  12. CrazyDiamond

    CrazyDiamond Active Member

    Joined:
    Mar 4, 2013
    Member:
    #98956
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2011 4x4 TRD / DC / SB
    For future reference, here is a good place to tap into for a reverse trigger wire. I used this for my Pioneer's backup camera trigger. I believe this wire was previously mentioned, but I wanted to add a picture. I believe this is the backup light wire.

    This is from a 2011 double cab without the JBL system. Remove the driver's side sill plate and kick panel (you have to remove the foot rest as well). The trigger wire is the heavy red wire that the test light probe is pointing to. I tapped into this wire for the trigger, and used the video feed discussed earlier in this thread. It works perfectly. When you probe this wire with a test light, it lights up when you put the truck into reverse, and then turns off when you shift out of reverse.

    [​IMG]

  13. Yaozer

    Yaozer Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100689
    Messages:
    451
    Gender:
    Male
    North Jersey
    Vehicle:
    2011 Red DCSB TRD Sport
    Flowmaster exhaust, 3" Old Man Emu lift, Konig Countersteer Rims, and too much more.
    Did this yesterday and it worked like a charm. I used a video cable and the sub pin connectors. It was a little hard getting the pins to stay in the terminal, but a little electrical tape and a zip tie persuaded it. I may end up soldering it later.

    Thanks to the OP and the people who posted the info on the reverse trigger wire. I ended up soldering the rev wire from the stereo to the wire connected to the harness near the fuse box in the first photo.

  14. aubi1414

    aubi1414 War Eagle!!

    Joined:
    Nov 15, 2011
    Member:
    #67072
    Messages:
    2,074
    Gender:
    Male
    First Name:
    Justin
    Pensacola, FL
    Vehicle:
    2014 Tacoma TRD Sport Blue Ribbon Metallic
    LED Dome, LED Map, LED License Plate Bulbs, , Konig SixShooters Matte Black, Toyo Open Country ATII's 285 70 17, Satoshi, Bilstein 5100s (set to 0), 885s, LR UCA's, Icon RR 2.0 +2, All Pro Standard 3" Leaf Pack, All Pro Flip Kit, Sway Bar Relocate, Exhaust Chop, Antenna X 14", Debadged, Tint, Matt123 Black TRD Skid, Black Weathertech Mats
    This is what I connected the reverse too in my 2010.


  15. Yaozer

    Yaozer Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100689
    Messages:
    451
    Gender:
    Male
    North Jersey
    Vehicle:
    2011 Red DCSB TRD Sport
    Flowmaster exhaust, 3" Old Man Emu lift, Konig Countersteer Rims, and too much more.
    Ditto here.

  16. statchcook

    statchcook New Member

    Joined:
    Aug 12, 2012
    Member:
    #84594
    Messages:
    4
    Gender:
    Male
    First Name:
    Mike
    Mississauga, ON
    Vehicle:
    '11 4x4 Access Cab SR5
    I installed a Pioneer HU and a Toyota camera (6 Volt) into the tailgate handle of my truck (2011). I connected the video wires as shown in this thread but I was not getting any images on the screen. After checking the tailgate harness, I noticed that when the truck is in reverse there is no power going to the camera. I do not have the rear view mirror with backup display, so connector I8 is not plugged into anything. Does the mirror with rear display send the power source back to the camera? If so, on the I8 connector, is there a way to jump the reverse signal from Pin #3 (Reverse Signal) over to Pin #14 (Camera Power) to supply the power to the camera? I think I read somewhere that the reverse signal sends out 6 volts???

  17. mikesmith

    mikesmith Member

    Joined:
    Jan 5, 2013
    Member:
    #94525
    Messages:
    5
    Gender:
    Male
    First Name:
    Mike
    Utah
    Vehicle:
    06 TRD Sport 6" lift w/33's
    I have a stock Toyota cam as well, I just used the 12V methods above and mine has been working for quite a while with no issues. If it causes damage in the long term I plan to order one of the pioneer cams that can be retrofit in the tailgate handle. Hope this helps

  18. kcrob1

    kcrob1 Choot It!

    Joined:
    Sep 4, 2010
    Member:
    #42742
    Messages:
    876
    Gender:
    Male
    First Name:
    Casey
    Montgomery, TX
    Vehicle:
    TRD SPORT CC/LB
    Adjustable Billies, Debadged, Painted emblem on grille Kenwood Double din, polk components, co-ax, polk 8" sub & polk amp, TSB springs, 6000K hids, FJ Wheels
    Just did mine today (2011) The plug on bottom was wired the same as original post. The plug on top had a red and yellow but neither would work. Followed this way ^^^ and worked like a champ!

  19. JCruiser

    JCruiser Well-Known Member

    Joined:
    Oct 10, 2012
    Member:
    #88694
    Messages:
    172
    Gender:
    Male
    First Name:
    Master Chief (E-9) USN (Ret)
    Georgia
    Vehicle:
    05 Tacoma Prerunner SR-5 A/T 6Cyl
    Pioneer AVH P 2400BT, powder coated wheels, fog light mod, tail gate anti-theft, Classio leather seat covers, light bar with KC off-road lights, rocker panel protection strips, bed compartment door locks, addl. bed "D" rings, window tint & floor mats.
    I am buying a Clarion CC510 Backup cam and contacted Crutchfield for the proper wiring for my Pioneer AVH 2400BT. I was told to wire the purple w/ white stripe wire on the wiring harness to the red w/ white stripe wire behind the kick panel on the drivers side. This is the power wire that goes to the backup lights so what whenever the backup lights come on, the Pioneer AVH 2400BT will automatically go into camera mode. I was also told that since the video wire is attached, and there is a power wire & ground wire to the camera, that by selecting Home/Backup Camera from the head unit display that this would open the direct circuit to the camera. This would be convenient if you were driving and wanted to look back at a boat trailer or utility trailer. By selecting the Backup Camera button again, it would turn the camera "off". This can be confirmed by the subdued text under the Camera button as "off" or "on". On these head units, the "touch" sensitivity can also be adjusted. One of the reasons I selected the Clarion CC510 is because it provides grid lines going in both directions and you get the same image as if you were using your mirrors.

    Here is the illustration received from Crutchfield: (note that this is for a 2005-2011 Tacoma access cab)
    [​IMG]

    Last edited: Aug 14, 2013
  20. DMS

    DMS Well-Known Member

    Joined:
    Aug 25, 2011
    Member:
    #62330
    Messages:
    93
    Gender:
    Male
    HI
    Vehicle:
    '11 MGM DCSB TRD Sport
    Just wanted to say thanks to the OP and everybody else who contributed to this thread. Thanks to you guys, I was able to do this when I installed my new head unit. It took me a couple of tries to get it working. For some reason, the first video cable I made, the camera image was messed up...no matter how much I fiddled with it. So...I started over and made another cable...and that one worked on the first try! There doesn't seem to be any degradation in the camera image on the mirror, and the image on the head unit is pretty clear...no horizontal black lines or anything! Thanks everybody!!!
