OEM fog light wiring to aftermarket light assembly

Discussion in '2nd Gen. Tacomas (2005-2015)' started by appstate, Apr 11, 2011.

  1. Apr 11, 2011 at 11:04 PM
    #1
    appstate

    appstate [OP] New Member

    Joined:
    Dec 14, 2010
    Member:
    #47713
    Messages:
    4
    Gender:
    Male
    First Name:
    Mike
    North Carolina
    Vehicle:
    2010 TRD Off-Road Double-Cab
    ARB Bull Bar, Warn Winch
    Hello! I have a 2010 Toyota Tacoma and it had stock fog lights. I recently added an ARB bull bar and I want to be sure I'm doing the wiring correctly.

    [​IMG]

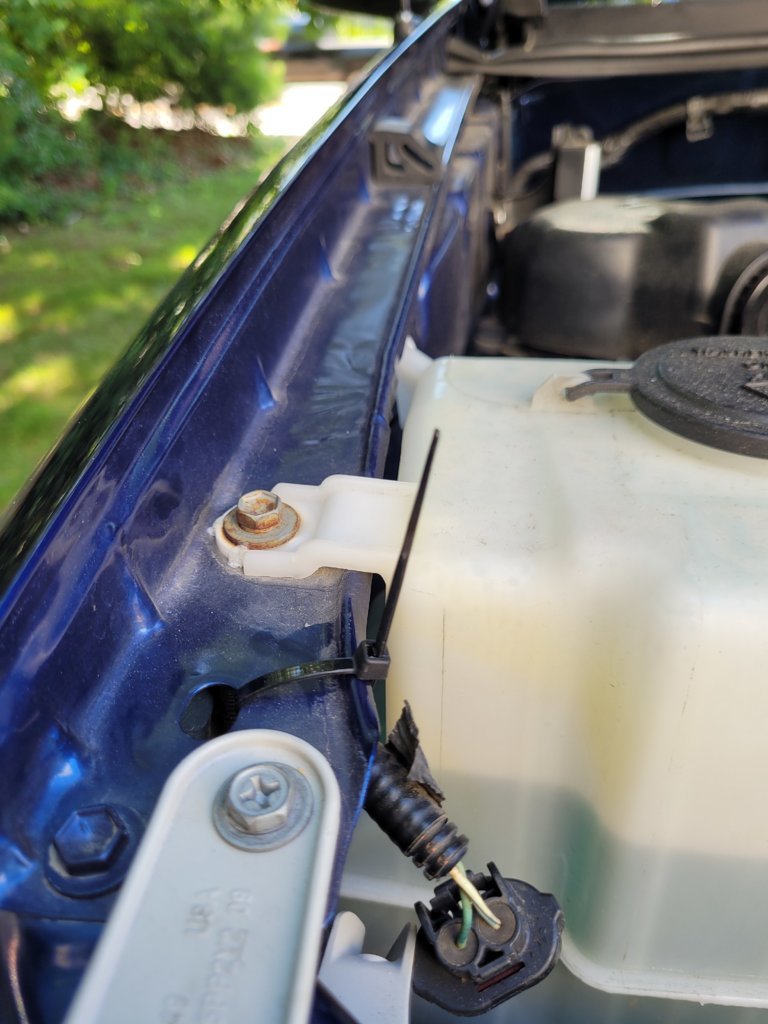

    This is the OEM fog light wiring. It has two wires going into that connector. One is green and the other is white/black. Green is negative/ground, right?

    [​IMG]
    This is the connections on the ARB fog light assembly. I know that white is positive and black is negative. I'm not sure why only the black wire has the clear seal on the end...

    My question is: what is the best way to connect my OEM fog light wiring to my ARB fog lights?

    Thank you! :)

    Mike

  2. Aug 19, 2011 at 7:12 PM
    #2
    06Bluez

    06Bluez Well-Known Member

    Joined:
    Jun 12, 2008
    Member:
    #7281
    Messages:
    960
    Gender:
    Male
    Phoenix, Arizona
    Vehicle:
    06 4x4
    Icon Coil-overs, TC UCA, with Bilstein 5150 and Icon 3 leaf pack. 17" Moto Metal 951 4.5" Backspacing wrapped in 285/70/17 BFG AT's. Demello front bumper and Avid offroad sliders.
    I'm dealing with the same situation right now. trying to wire my new fog lights on my Demello bumper to the OEM wiring.

    confused :confused:

  3. Aug 19, 2011 at 7:18 PM
    #3
    appstate

    appstate [OP] New Member

    Joined:
    Dec 14, 2010
    Member:
    #47713
    Messages:
    4
    Gender:
    Male
    First Name:
    Mike
    North Carolina
    Vehicle:
    2010 TRD Off-Road Double-Cab
    ARB Bull Bar, Warn Winch
    I just ended up sniping off the Toyota factory connectors and the fog light connectors and used heat shrink butt connectors. I haven't had any problems at all and it was easy.

  4. Aug 19, 2011 at 7:33 PM
    #4
    ksj

    ksj Well-Known Member

    Joined:
    Nov 20, 2008
    Member:
    #10907
    Messages:
    99
    Gender:
    Male
    Pacific NW
    Vehicle:
    09 TRD Offroad
    TRD S/C, Icon Coilovers, TC UCA, Icon RR Shocks, Demello hybrid sliders, Alcan leaf pack, Black FJ SE wheels, 265/75-16 Revo's, ARB CKMTA12 OBA, All-Pro front & rear plate bumpers, All-Pro IFS skid plate, Warn 9.5xp
    This worked for me as well...

  5. Apr 9, 2013 at 6:20 PM
    #5
    YOTA LOVER

    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    4,075
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    A slew of pricey stuff my wife hates me for.
    I am doing this right now for my All-Pro Apex bumper and a set of PIAAs. Is the green the ground? I cant find my voltmeter to check it.

  6. Apr 9, 2013 at 7:18 PM
    #6
    appstate

    appstate [OP] New Member

    Joined:
    Dec 14, 2010
    Member:
    #47713
    Messages:
    4
    Gender:
    Male
    First Name:
    Mike
    North Carolina
    Vehicle:
    2010 TRD Off-Road Double-Cab
    ARB Bull Bar, Warn Winch
    I believe the black/white was technically ground. As I recall, I tried both ways and it worked either way. Good luck!

  7. Apr 9, 2013 at 8:22 PM
    #7
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,404
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    White/black is ground.
    Look at the connectors... one is male and the one with the cover is female. The other end of the harness will have the opposite set... the hot will have the clear cover so it does not short to the body when the light is unplugged.

  8. Apr 10, 2013 at 6:50 AM
    #8
    YOTA LOVER

    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    4,075
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    A slew of pricey stuff my wife hates me for.
    Thank you very much gentlemen! Normally I wouldn't care about polarity when installing a bulb, but the PIAA 530s are LED and I don't want to fry something.

    [​IMG]

    Spliced right into the stock wiring, soldered and heat shrunk for protection.

    Last edited: Apr 11, 2013
  9. Jun 26, 2015 at 6:24 PM
    #9
    Just Chill

    Just Chill #1 H8r

    Joined:
    Feb 25, 2015
    Member:
    #149546
    Messages:
    48
    Gender:
    Male
    First Name:
    Jon
    Colorado Springs
    Vehicle:
    '10 Sport
    Expedition One bumper, OME 2.5", Pelfreybilt rear bumper, Prinsu roof racks
    So this plug here will snap right into the OEM plug?

  10. Mar 4, 2016 at 1:31 PM
    #10
    Tako9

    Tako9 Well-Known Member

    Joined:
    Aug 2, 2015
    Member:
    #160893
    Messages:
    205
    Gender:
    Male
    Gatineau, Québec
    Vehicle:
    07 Trd offroad access cab SWB
    I confirm that the green wire of fogs is the positive and black/white wire is negative... I just finished installing my led lights withe fogs switch and wires.

  11. Dec 4, 2016 at 7:30 PM
    #11
    SpeedwayTaco160

    SpeedwayTaco160 Well-Known Member

    Joined:
    Aug 25, 2013
    Member:
    #111117
    Messages:
    575
    Gender:
    Male
    TN
    Vehicle:
    10 Sport DC
    OEM Roof rack, bug guard, fog light anytime mod, Plasti-dipped lower bumper along with all eblems, Weathertech floor mats, trd pro wheels with 265/75/16 wrangler authorities
    Subbed.
    what about the led blinkers on the bumper

  12. Dec 4, 2016 at 7:34 PM
    #12
    Tako9

    Tako9 Well-Known Member

    Joined:
    Aug 2, 2015
    Member:
    #160893
    Messages:
    205
    Gender:
    Male
    Gatineau, Québec
    Vehicle:
    07 Trd offroad access cab SWB
    Are you talking to me?

  13. Dec 4, 2016 at 7:36 PM
    #13
    SpeedwayTaco160

    SpeedwayTaco160 Well-Known Member

    Joined:
    Aug 25, 2013
    Member:
    #111117
    Messages:
    575
    Gender:
    Male
    TN
    Vehicle:
    10 Sport DC
    OEM Roof rack, bug guard, fog light anytime mod, Plasti-dipped lower bumper along with all eblems, Weathertech floor mats, trd pro wheels with 265/75/16 wrangler authorities
    Sure, if you have any advice for the led turn signals

  14. Dec 4, 2016 at 8:01 PM
    #14
    Tako9

    Tako9 Well-Known Member

    Joined:
    Aug 2, 2015
    Member:
    #160893
    Messages:
    205
    Gender:
    Male
    Gatineau, Québec
    Vehicle:
    07 Trd offroad access cab SWB
    Ok you mean the main lights or the fogs?

  15. Dec 4, 2016 at 8:03 PM
    #15
    SpeedwayTaco160

    SpeedwayTaco160 Well-Known Member

    Joined:
    Aug 25, 2013
    Member:
    #111117
    Messages:
    575
    Gender:
    Male
    TN
    Vehicle:
    10 Sport DC
    OEM Roof rack, bug guard, fog light anytime mod, Plasti-dipped lower bumper along with all eblems, Weathertech floor mats, trd pro wheels with 265/75/16 wrangler authorities
    I dont have my fog light or blinkers hooked up on my ARB. I have a deluxe bumper

  16. Dec 4, 2016 at 8:05 PM
    #16
    Tako9

    Tako9 Well-Known Member

    Joined:
    Aug 2, 2015
    Member:
    #160893
    Messages:
    205
    Gender:
    Male
    Gatineau, Québec
    Vehicle:
    07 Trd offroad access cab SWB
    Ok just tell me what you want to know...

  17. Dec 5, 2016 at 1:34 PM
    #17
    Dekay

    Dekay New Member

    Joined:
    Jan 21, 2016
    Member:
    #175674
    Messages:
    2
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2013 DCSB TRD Sport
    Does anybody have radio interference when using the stock fog light wiring to hook up LED pods? I have radio interference when using my fogs but do not when using my light bar with it's own wiring harness.
