Off Road Trailer Build

Discussion in 'South West' started by mreimann, Jun 11, 2011.

  1. Jun 11, 2011 at 2:38 PM
    #1
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,128
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    Most Recent:
    [​IMG]

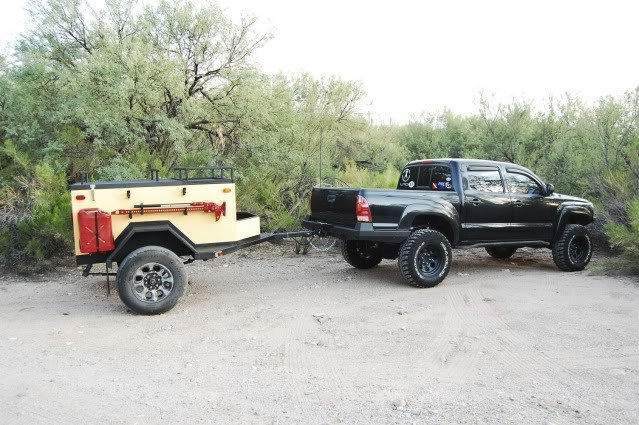

    The reason I'm posting in this section is because this trailer will be for sale once I move back up to Colorado. (so anyone in Colorado who's interested, start saving pennies!)

    Specs
    4x6 frame
    1/8" sheet metal floor
    14 ga. Sides
    Max Coupler hitch
    3500 lb axle
    6 on 5.5 hubs
    265/65/16 tires
    Jeep leaf springs
    5" shackles
    6" shocks
    2.5' bucket with a lid on hinges
    Tailgate
    Open tongue box storage
    Jerry cans on each side
    Rear receiver hitch for bike racks/storage racks
    Roof rack (should fit a roof top tent)
    Roof cargo rack
    Hi-Lift mounts
    Quick fists for a shovel/axe

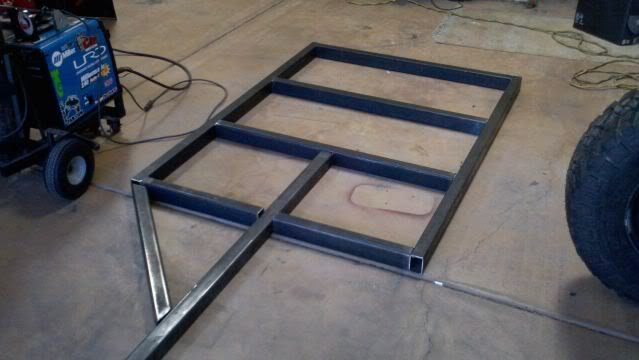

    Frame
    [​IMG]

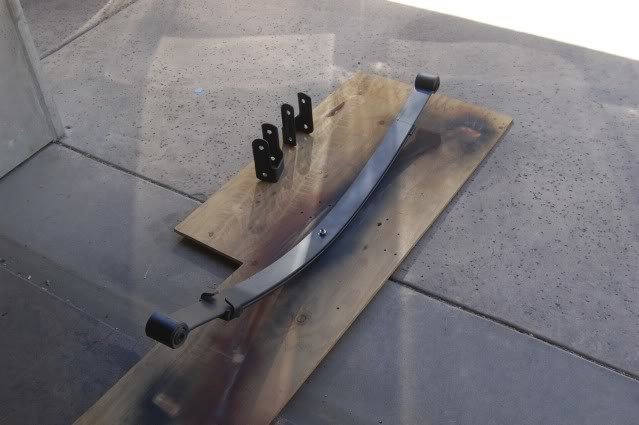

    Leaf springs, they're going to be spring over, this was just to see how they line up on the frame. they actually span a lot of the frame, so hopefully this thing will have good articulation. The shackles are about 5"
    [​IMG]

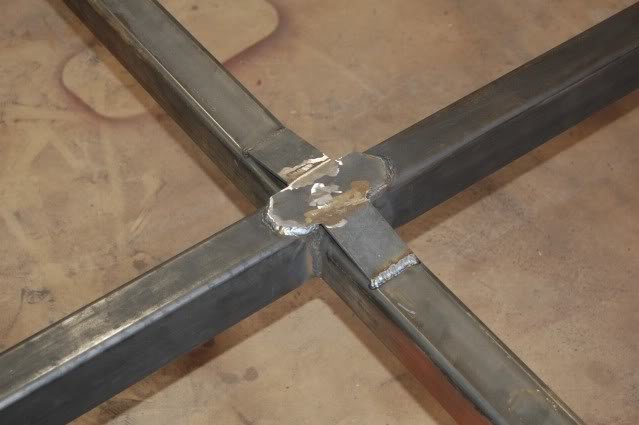

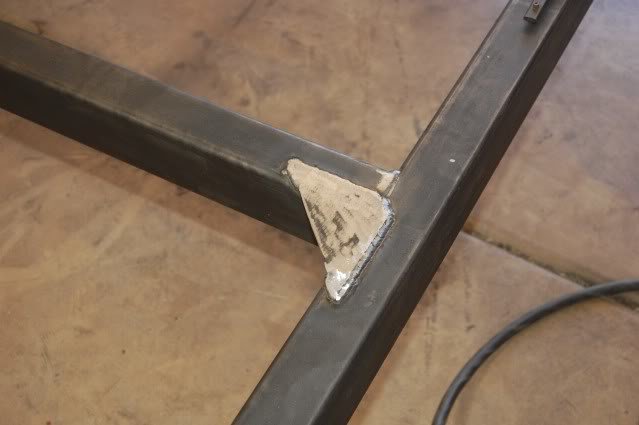

    Corner Gusset
    [​IMG]

    Tongue bracing. Still need to add some more
    [​IMG]

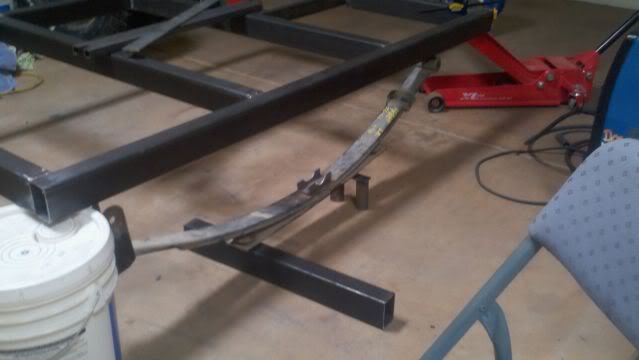

    I ended up taking the smallest leaf out of the pack because I didn't need it and it was more likely to get caught up on rocks
    Thats about where the springs are going to be mounted on the trailer. About 4" back from center
    [​IMG]

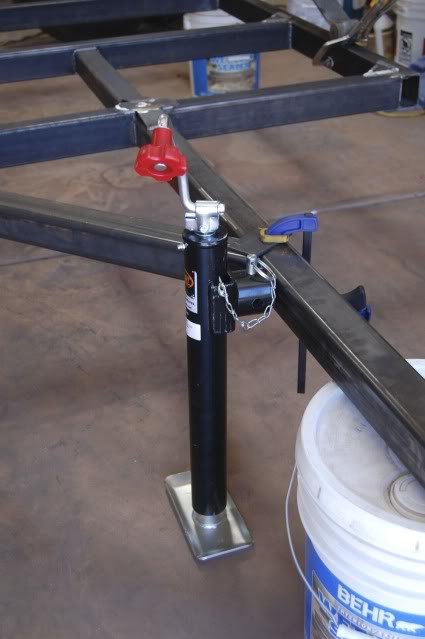

    Tongue stand that I picked up. It locks down like that or you pull the pin and spin it up 90* and replace the pin. Keeps it up out of the way. Obviously I'm not mounting it there because of the big support right next to it :p
    [​IMG]

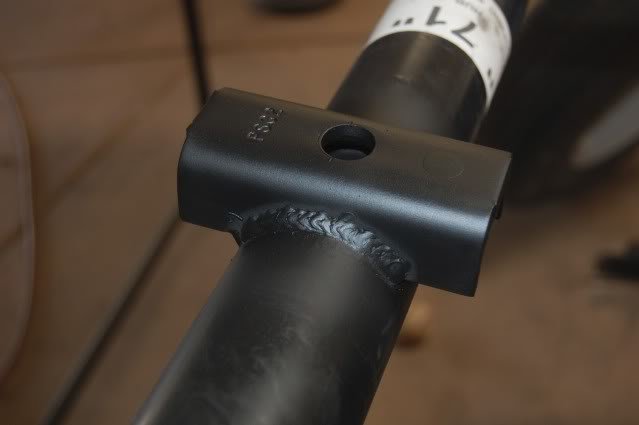

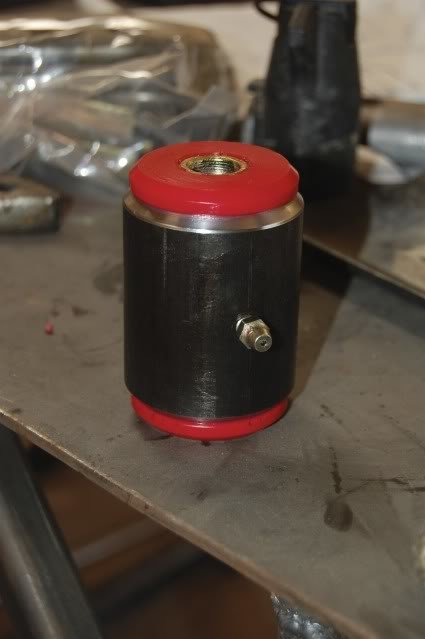

    Sweet shackle bushings that will be welded to the frame. They have a grease zerk as well. too bad I have to take them apart to weld them on. ooops.
    [​IMG]

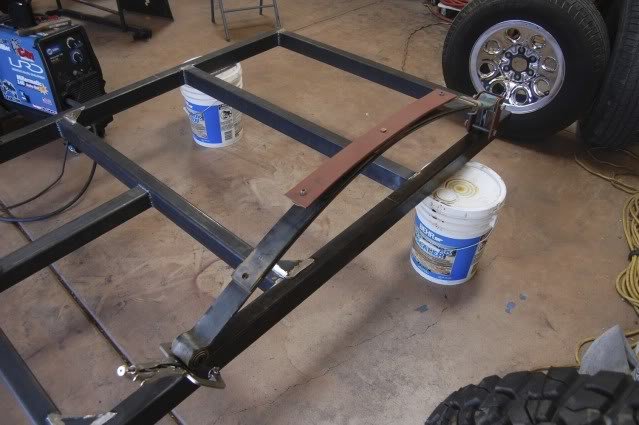

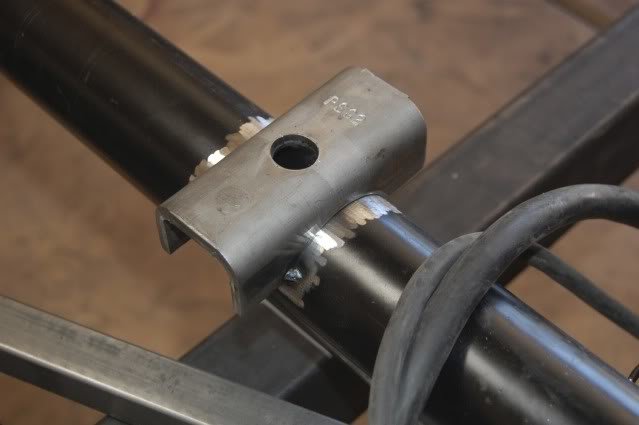

    Spring perches tacked on
    [​IMG]

    I picked up a u-bolt kit, but need to make a new plate because the one in the package doesn't fit around the leaf springs.

    Re-painting the springs
    [​IMG]

    My lamp post painting stand :p
    [​IMG]

    :drool:
    [​IMG]

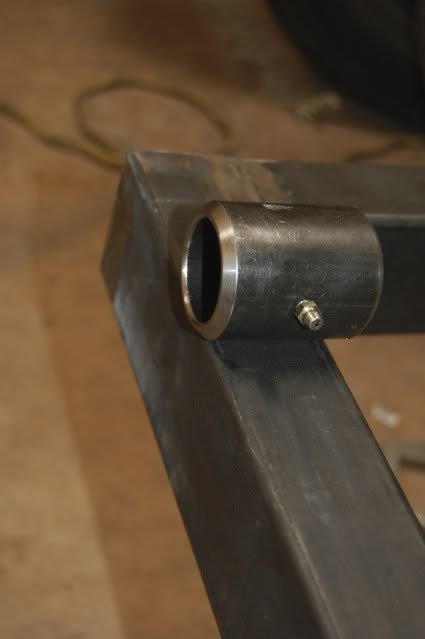

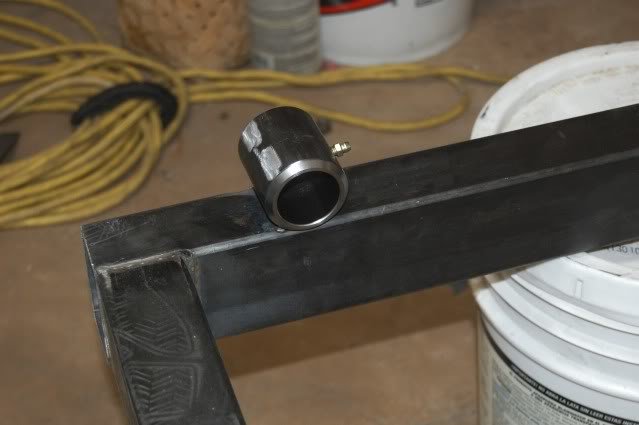

    These guys are all welded in. Now I can actually assemble the bushings for real haha
    [​IMG]

    [​IMG]

  2. Jun 11, 2011 at 2:59 PM
    #2
    NaYoung

    NaYoung What about my Member???

    Joined:
    Apr 1, 2011
    Member:
    #54178
    Messages:
    360
