oil leak on crankcase block

Discussion in 'Technical Chat' started by esse10, Jan 28, 2014.

  1. Jan 28, 2014 at 11:37 AM
    #1
    esse10

    esse10 [OP] Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27076
    Messages:
    264
    Gender:
    Male
    Texas
    Vehicle:
    05prerunner SR5 DBLCAB

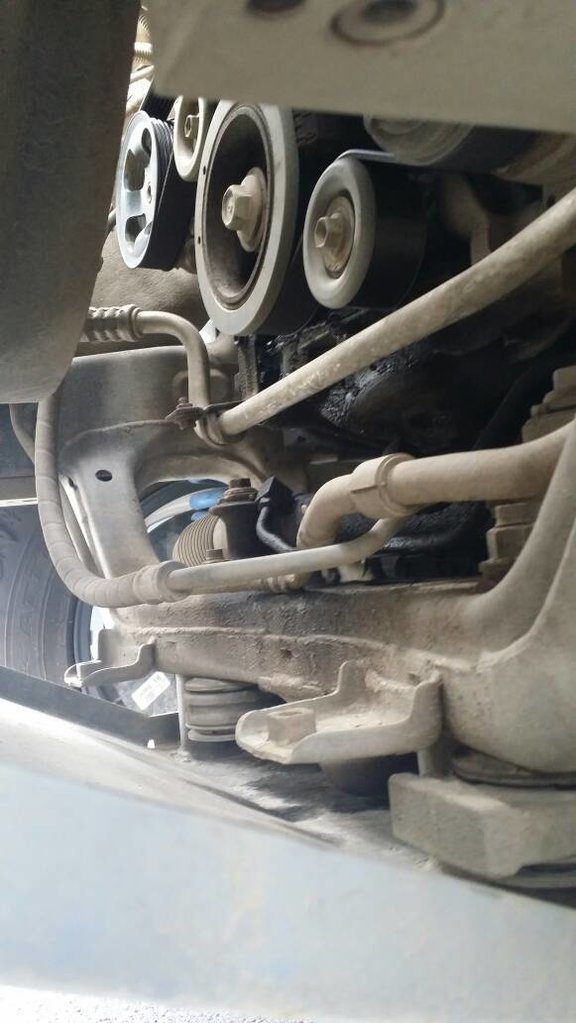

    Has anybody seen this oil leak right beneath the serpentine belt pulley ? I put a red arrow on this picture to show where I believe the leak is coming from or has anybody had this problem before and know if this leak start somewhere else like the timing belt cover?

    Any help or input would be appreciated folks.....


  2. Jan 28, 2014 at 3:17 PM
    #2
    Ryanv

    Ryanv Toyota Technician

    Joined:
    Nov 4, 2011
    Member:
    #66459
    Messages:
    218
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    15 4Runner
    Check the right side of the timing cover near the power steering pump that is a common place for the 05-07 to leak if that's clean your crank seal requires replacement

  3. Jan 30, 2014 at 1:08 PM
    #3
    esse10

    esse10 [OP] Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27076
    Messages:
    264
    Gender:
    Male
    Texas
    Vehicle:
    05prerunner SR5 DBLCAB
    I'll take a little looksee this weekend and see how bad it is around the power steering pump. Just as long as the oil doesn't get on the pulleys or serpentine belt I might just leave it like that for the time being since the engine oil level is not affected by this small leak.

  4. Jan 30, 2014 at 1:09 PM
    #4
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Looks like crank seal. If ur handy its about an hour job. Did mine about 4 years ago and never had so much as a drop since!

  5. Feb 12, 2014 at 5:51 AM
    #5
    esse10

    esse10 [OP] Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27076
    Messages:
    264
    Gender:
    Male
    Texas
    Vehicle:
    05prerunner SR5 DBLCAB
    update; I had no oil around the power steering pump so I guess it is the crankcase seal. It looks like a difficult job or is it just removing all the bottom bolts and pull down on the crankcase pan? mine seems to have another line attached to the crankcase pan. I need to take a picture of that I guess. Is there a diy on removing that crankcase pan? anybody know?

  6. Feb 12, 2014 at 6:07 AM
    #6
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Seal behind crankcase pulley is called the crank seal. You are speaking of the pan gasket.

    Remove the crank pulley, pry the old one out with a screwdriver. Tap new seal in and reinstall the pulley. Takes about 1 hr.

  7. Feb 12, 2014 at 7:38 AM
    #7
    esse10

    esse10 [OP] Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27076
    Messages:
    264
    Gender:
    Male
    Texas
    Vehicle:
    05prerunner SR5 DBLCAB
    hey thanks for responding back.,

    You are correct I was thinking it was the pan gasket. does it require special tools to remove the crank pulley? or just one nut? any pictures would be helpful I'm not a mechanic by trade but do my own repairs to keep from going to the high price Dealer.

  8. Feb 12, 2014 at 7:42 AM
    #8
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Normal hand tools are all you need. I used a ratchet strap hooked through a hole in the pulley and around the frame to hold it while I broke the nut/bolt (cant remember what it is) loose.

  9. Feb 12, 2014 at 7:51 AM
    #9
    esse10

    esse10 [OP] Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27076
    Messages:
    264
    Gender:
    Male
    Texas
    Vehicle:
    05prerunner SR5 DBLCAB
    Do you have to remove the radiator/shroud out of the way or is there enough room to tap or hammer the new seal in?

  10. Feb 12, 2014 at 8:01 AM
    #10
    KenpachiZaraki

    KenpachiZaraki Its Wicked Flow BITCHES!!

    Joined:
    May 24, 2009
    Member:
    #17581
    Messages:
    3,532
    Gender:
    Male
    First Name:
    Alex •﹏•
    Lubbock
    Vehicle:
    05 TRD OffRoad Poser ψ(`∇´)ψ
    ALL POSER- Afe Pro Dry S drop in filter, 3" AP leaf pack, Eibach w/5100's up front, 5100's rear, Fog Light Mod, ABS off mod, Dash Light MOD, Doug Thorley Long Tube Headers, Wicked Flow Bitches MAX Muffler, 4" floods, 20", 43" light bars, 265/75/16 Hankook Dynapro ATm, oil catch can, rear diff breather relocate, Custome Sliders, SOS concepts Front bumper, Demon Eye Mod, backlit TRD emblem on bumper, Morimoto D2S projectors,
    There's enough room. Easy fix. I replaced mine when I installed the NST lightweight crank pulley. The torque to spec is kinda hard, you need a 250+ torque wrench iirc.

  11. Feb 12, 2014 at 8:25 AM
    #11
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,906
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    German tight, lol. Breaker bar and a cheater. :D

  12. Feb 12, 2014 at 8:45 AM
    #12
    esse10

    esse10 [OP] Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27076
    Messages:
    264
    Gender:
    Male
    Texas
    Vehicle:
    05prerunner SR5 DBLCAB
    Believe it or not I actually do own a torque wrench that go's up to 275 ftlbs
    I bought it two years ago when I was tightening the Axle nut on my VW New Beetle. I know you can also rent one but a friend was selling one at a dirt cheap price .......why not

    THANKS FOR THE HELP FELLAS.........:thumbsup:

  13. Feb 12, 2014 at 8:48 AM
    #13
    Steves104x4

    Steves104x4 Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35468
    Messages:
    6,154
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2010 RC 2.7 4x4
    BUCKLE UP! It makes it harder for Aliens to pull you out of your Truck.
    ^^ Then the job is half done. Good luck.

  14. Feb 12, 2014 at 9:41 AM
    #14
    KenpachiZaraki

    KenpachiZaraki Its Wicked Flow BITCHES!!

    Joined:
    May 24, 2009
    Member:
    #17581
    Messages:
    3,532
    Gender:
    Male
    First Name:
    Alex •﹏•
    Lubbock
    Vehicle:
    05 TRD OffRoad Poser ψ(`∇´)ψ
    ALL POSER- Afe Pro Dry S drop in filter, 3" AP leaf pack, Eibach w/5100's up front, 5100's rear, Fog Light Mod, ABS off mod, Dash Light MOD, Doug Thorley Long Tube Headers, Wicked Flow Bitches MAX Muffler, 4" floods, 20", 43" light bars, 265/75/16 Hankook Dynapro ATm, oil catch can, rear diff breather relocate, Custome Sliders, SOS concepts Front bumper, Demon Eye Mod, backlit TRD emblem on bumper, Morimoto D2S projectors,
    Yea kinda what I did, put my torque wrench to the max, gave it more after the click. Meh good enough. Don't like half assing unless I'm getting paid, but it was dark and I was hungry probably :laugh:

  15. Apr 29, 2014 at 1:52 PM
    #15
    esse10

    esse10 [OP] Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27076
    Messages:
    264
    Gender:
    Male
    Texas
    Vehicle:
    05prerunner SR5 DBLCAB
    UPDATE, hope this helps the next guy doing this job.

    After doing a little research on the net I found out that the torque value for the crank pulley center bolt is 185 foot pounds, which is also 250nm and not 250 foot pounds. just fyi for the next guy .....

  16. Jun 2, 2014 at 10:15 AM
    #16
    esse10

    esse10 [OP] Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27076
    Messages:
    264
    Gender:
    Male
    Texas
    Vehicle:
    05prerunner SR5 DBLCAB
    Don't wish to resurrect this old thread but hoping to get a little clarity here. I bought the tools for this job, bought the parts and changed schedule between my cars to do this job, got myself motivated for the job......and now it's not leaking. WTH, Has anybody experience this before? the crank seal starts leaking and then it just stops on it's own? this will be the fourth week of not leaking and not that I'm complaining I won't mess with it now until or if it starts to leak again I just feel like somebody left behind after getting all dressed up for the PROM..LOL :p

  17. Nov 25, 2014 at 10:34 AM
    #17
    V5ioV

    V5ioV My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,507
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    Op,
    What was your outcome? Did you get it done yet?

    Sub'd... might be having same issue...

    Last edited: Nov 25, 2014
  18. Nov 25, 2014 at 10:40 AM
    #18
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    44,285
    Gender:
    Male
    CA
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
  19. Nov 25, 2014 at 11:17 AM
    #19
    V5ioV

    V5ioV My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,507
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
  20. Dec 2, 2014 at 5:51 AM
    #20
    esse10

    esse10 [OP] Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27076
    Messages:
    264
    Gender:
    Male
    Texas
    Vehicle:
    05prerunner SR5 DBLCAB
    Nope it hasn't leaked ever since I replaced the oil two intervals ago around June of this year.(read the update post#16 above). The only thing I can think I must have done wrong was overfill the crankcase when I change out the oil that time when it started leaking. I must have put 1/2 quart more than capacity. These past few oil changes I have been very cautious about the amount oil I put in, watch the dipstick very close, check and re-check the level, make sure the capacity is not acceded and so far I have not had a leak as of yet. (fingers crossed)

    Last edited: Dec 2, 2014
