Oil pan gasket

Discussion in '1st Gen. Tacomas (1995-2004)' started by Metalman1, Dec 4, 2022.

  1. Dec 4, 2022 at 8:18 AM
    #1
    Metalman1

    #1
    Metalman1 [OP] Active Member

    Joined:
    Nov 23, 2022
    Member:
    #411357
    Messages:
    30
    Gender:
    Male
    Vehicle:
    99 tacoma v-6

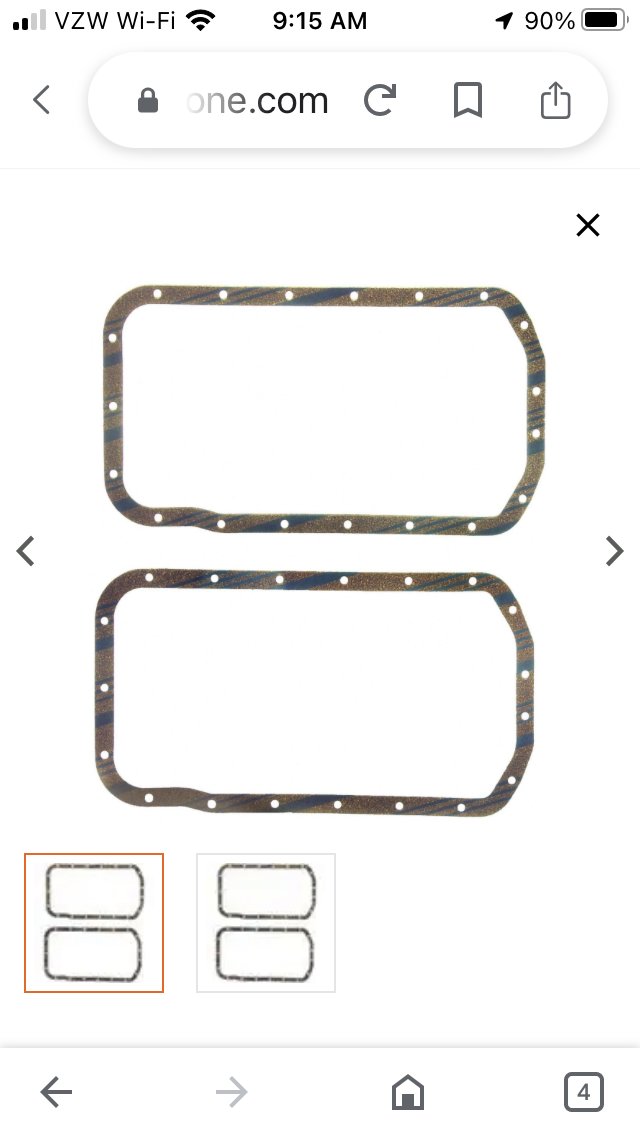

    What pan gasket is best. Autozone sells this. Why 2 pieces?


    Metalman1, Dec 4, 2022
    #1
  2. Dec 4, 2022 at 8:52 AM
    #2
    Kiloyard

    #2
    Kiloyard Road Warrior

    Joined:
    Oct 28, 2017
    Member:
    #234330
    Messages:
    1,031
    Gender:
    Male
    First Name:
    John
    Phoenix, AZ
    Vehicle:
    1999 3.4L SR5 4X4 410K miles
    Toytec Boss/Eibach Coils & Deaver J59's
    Toyota FIPG (black) would be my first idea. Less likely to leak than a paper gasket.

    Kiloyard, Dec 4, 2022
    #2
  3. Dec 4, 2022 at 8:56 AM
    #3
    Metalman1

    #3
    Metalman1 [OP] Active Member

    Joined:
    Nov 23, 2022
    Member:
    #411357
    Messages:
    30
    Gender:
    Male
    Vehicle:
    99 tacoma v-6
    Thx

    Metalman1, Dec 4, 2022
    #3
  4. Dec 4, 2022 at 10:02 AM
    #4
    TnShooter

    #4
    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,360
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Is that the transmission oil pan gasket?

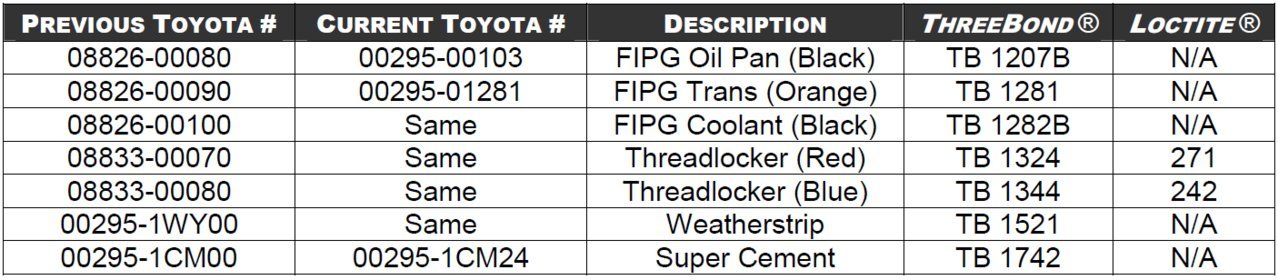

    Toyota uses 2 different types or RTV.
    One for motor oil, the other for transmission.

    Either way, I’d do a gasket with a skim coat of RTV.

    TnShooter, Dec 4, 2022
    #4
  5. Dec 4, 2022 at 10:05 AM
    #5
    Bishop84

    #5
    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    12,055
    Gender:
    Male
    No gasket, just sealant.

    Bishop84, Dec 4, 2022
    #5
    TnShooter likes this.
  6. Dec 4, 2022 at 10:07 AM
    #6
    TnShooter

    #6
    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,360
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK

    TnShooter, Dec 4, 2022
    #6
    Kiloyard likes this.
  7. Dec 4, 2022 at 12:53 PM
    #7
    Sfish2002

    #7
    Sfish2002 Well-Known Member

    Joined:
    Sep 2, 2022
    Member:
    #404954
    Messages:
    76
    Gender:
    Male
    First Name:
    Stanley
    Vehicle:
    2003 2wd M/T regular cab Tacoma
    Topper w/racks, bug/rock shield, hood thermal mat, bed liner, hitch
    I had a bolt hole that rusted through and was leaking on my old oil pan. When I replaced it I used black rtv around the new pan instead of Toyotas much more expensive version. It’s been holding beautifully for the last several thousand miles FWIW.

    Sfish2002, Dec 4, 2022
    #7
  8. Dec 4, 2022 at 1:05 PM
    #8
    TnShooter

    #8
    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,360
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Permatex - The right stuff

    It’s good stuff. I use it on about everything.

    TnShooter, Dec 4, 2022
    #8
