on-board air setup....first gen.

Discussion in '1st Gen. Tacomas (1995-2004)' started by tacomaman06, Jul 29, 2010.

  1. Jul 29, 2010 at 4:48 PM
    #1
    tacomaman06

    tacomaman06 [OP] Carolina Alliance: Enforcer

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,258
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '16 Tundra TRD Pro
    getting there....
    alrighty.......been thinking of doing this for a while, and have decided that i wanna go ahead and do it. may do it soon too, as im planning a mod day not too far from now.

    what i have already......[​IMG]

    a mv50 air compressor

    and this....[​IMG]

    a 7 gallon portable air tank

    been looking on my truck....under it for a mounting spot and have a couple of locations i can use. what i need to know....from folks who have done this before......besides the 2 things i have now.....what else will i need for an install??? i do plan on installing the regulator somewhere in the cab if that helps.

  2. Jul 29, 2010 at 4:54 PM
    #2
    amaes

    amaes Cuz Stock Sucks

    Joined:
    May 26, 2009
    Member:
    #17658
    Messages:
    8,124
    Gender:
    Male
    First Name:
    Alex
    Chandler, AZ
    Vehicle:
    2011 FJ Built
    ICON Stage 6, RCI Skids, Blacked out
    Why don't you do a C02 setup instead?

    Faster to air up tires
    Can still run air tools
    As long as there is c02 liquid in the tank you have pressure
    Portable
    Smaller
    about the same price


    Just a thought

  3. Jul 29, 2010 at 4:55 PM
    #3
    tacomaman06

    tacomaman06 [OP] Carolina Alliance: Enforcer

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,258
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '16 Tundra TRD Pro
    getting there....
    i HAD thought about it, but i already have this stuff and wanna put it to good use.

  4. Jul 29, 2010 at 4:56 PM
    #4
    amaes

    amaes Cuz Stock Sucks

    Joined:
    May 26, 2009
    Member:
    #17658
    Messages:
    8,124
    Gender:
    Male
    First Name:
    Alex
    Chandler, AZ
    Vehicle:
    2011 FJ Built
    ICON Stage 6, RCI Skids, Blacked out
    Got it! makes sense then.

  5. Jul 29, 2010 at 4:57 PM
    #5
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    4,969
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk

    Just curious why cant you run air tools with the compressed air

  6. Jul 29, 2010 at 4:59 PM
    #6
    tacomaman06

    tacomaman06 [OP] Carolina Alliance: Enforcer

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,258
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '16 Tundra TRD Pro
    getting there....
    you can...........depending on tank size and such. i'll be able to run small stuff off mine....but im mostly interested in airing up/down on trails..........things like that.

  7. Jul 29, 2010 at 6:46 PM
    #7
    exminnesotaboy

    exminnesotaboy Well-Known Member

    Joined:
    Aug 9, 2009
    Member:
    #20904
    Messages:
    126
    Gender:
    Male
    Maple Grove, MN
    Vehicle:
    01 Tacoma 4x4 V6 Xtra Cab
    Bilstein 5100's / OME 881's / Wheelers 5 leaf pack / ProComp 1069 wheels / 265/75-16 Michelin LTX tires
    I had the MV50 mounted under the hood of a Jeep I owned a couple of years ago - it ran hot as hell, but never let me down. Hands down, the best, cheap small compressor you can buy.

    Interested to see where you end up mounting it

  8. Jul 29, 2010 at 7:02 PM
    #8
    tacomaman06

    tacomaman06 [OP] Carolina Alliance: Enforcer

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,258
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '16 Tundra TRD Pro
    getting there....
    if my truck didnt have friggin abs......i'd have a perfect spot for it. im still looking for a good mounting spot for the mv50.

    anyone know what all else i'll need for the install??

  9. Jul 29, 2010 at 10:26 PM
    #9
    MowTaco

    MowTaco Well-Known Member

    Joined:
    Sep 9, 2009
    Member:
    #22530
    Messages:
    3,820
    Gender:
    Male
    First Name:
    Matt
    South Dakota
    Vehicle:
    03 GMC Sierra
    Yeah, ABS is sooo inconvenient... J/K but good luck... I think I've seen people put tanks up in the rear wheel well, kinda in front of the wheel up inside the bed wall.

  10. Jul 31, 2010 at 3:29 PM
    #10
    tacomaman06

    tacomaman06 [OP] Carolina Alliance: Enforcer

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,258
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '16 Tundra TRD Pro
    getting there....
    bump.....trying to figure out the rest of what i need for this setup.

  11. Aug 1, 2010 at 6:11 AM
    #11
    silver07taco

    silver07taco Well-Known Member

    Joined:
    Apr 27, 2008
    Member:
    #6241
    Messages:
    4,554
    Gender:
    Male
    First Name:
    COIL
    Maryland
    Vehicle:
    13 Tundra RCSB 5.7 4x4,07 Tacoma AC 4.0 4x4
    2013 Tundra RCSB 5.7 4x4, 2007 Tacoma AC 4.0 4x4

    Ive seen this set-up a few times, Depending on location of the comp your goin to want to run out a new on/0ff switch and a pressure switch.

    This is simler to my set-up.
    http://www.trail-recon.com/vforum/c...ng-a-Portable-Compressor-DIY-OBA-Installation

    Another good link
    http://www.4x4wire.com/tech/portable_oba/

  12. Aug 1, 2010 at 12:47 PM
    #12
    tacomaman06

    tacomaman06 [OP] Carolina Alliance: Enforcer

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,258
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '16 Tundra TRD Pro
    getting there....
  13. Aug 28, 2010 at 8:55 PM
    #13
    v8killerturbo4

    v8killerturbo4 Member

    Joined:
    Jul 28, 2010
    Member:
    #40881
    Messages:
    22
    Gender:
    Male
    First Name:
    Chris
    Ft Worth Texas
    Vehicle:
    2010 TRD Sport 4x4
    Stock!
    I have the same compressor and here's what I did, cover fits back perfectly, I kept the switch on the compressor and wired it into the 7 pin hitch plug.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  14. Aug 29, 2010 at 9:20 AM
    #14
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    13,095
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Where would that be?

    I don't have ABS :)

  15. Aug 29, 2010 at 9:25 AM
    #15
    TexasIslandBoy

    TexasIslandBoy THE RED DRAGON!!

    Joined:
    Jun 10, 2009
    Member:
    #18262
    Messages:
    3,282
    Gender:
    Male
    First Name:
    Andrew
    South Texas. SPI
    Vehicle:
    07' trd offroad 4X4 (For Sale)
    pro comp 6inch lift 35'' tires moto 950's radfo coilovers magnaflow exhaust 5/16" front skidplate usa spec ipod interface tree pin strip mod dry drop in filter full size BFG KM2 spare
    i did the same thing about a year ago but mine is up right and i have the air fitting down by my receiver

  16. Aug 29, 2010 at 10:23 AM
    #16
    rico334

    rico334 Active Member

    Joined:
    Aug 27, 2010
    Member:
    #42337
    Messages:
    36
    Gender:
    Male
    First Name:
    Rick
    Texas
    Vehicle:
    Tacoma TRD 2 WD
    On a previous Dodge diesel, I installed air horns. I mounted an inbed tool box in the bed and that's where my tank and compressor were mounted. Key secured and weatherproof, worked great.

  17. Aug 29, 2010 at 9:21 PM
    #17
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    13,747
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 Auto Trans With Lots of Mods King Extended Travel COs Camburg Uniball UCAs Alcan Custom 8-Leaf Rear Spring Packs Fox 2.0 Resi Rear Shocks FrankenFab Rear Shock Relocate All-Pro U-bolt Flip w/Timbren bumps Toytec 1" Extended Shackle 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor 15x8 D Window Steelies 33" BFG KM2s Limited Edition Relentless Front Bumper Smittybilt X2O 10K Winch Rugged Ridge 3" LED Pods w/Amber covers Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnaflow 18" Muffler Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    The ABS controller mounts under hood on top of the passenger side wheel well, between the cruise control assembly (if you have that) and the firewall. Right in front of the windshield wiper motor. You might have three holes already in that spot.

    It would make a good spot for something. I've thought about mounting a second battery in that spot. A small compressor should also fit.

  18. Oct 31, 2010 at 5:06 AM
    #18
    TurfTaco

    TurfTaco Is there a long john silvers on the island?

    Joined:
    Jul 2, 2008
    Member:
    #7704
    Messages:
    1,011
    Gender:
    Male
    URE
    Vehicle:
    07 Deer Collector
    285/75-16 BFG KM1's, AVS vent visors, AVS hood shield, pioneer avic F900BT, pac steering wheel control adapter, Boyo rearview camera, pac ipod interface, tinted windows, Toytec 1.5 AAL, Bistein 5100s (front set to .85) Eibach coils, Black headlights, grillcraft black billet insert, N-fab light bar, 4 Hella FF700 lights & color matched grille, Sockmonkey bedside decals. 16x8 MT sidebiters, Weathertechs, Fabtech spare carrier.
    I love this idea. How do you go about wiring it to the 7 pin?

  19. Oct 31, 2010 at 8:17 AM
    #19
    STLharry

    STLharry Lube: It's the key to penetration.

    Joined:
    Oct 11, 2008
    Member:
    #9899
    Messages:
    1,911
    Gender:
    Male
    First Name:
    Harry
    VT
    Vehicle:
    Yeti Rescue Package with 240k miles
    '95-'97 camouflaged, ARB bull bar, RAT Products skid plate kit, sliders, Green Mountain Customs rear tube bumper and overland bed rack, King coilovers with Icon neoprene covers, defenestrated sway bar, OME Rear Suspension: CS046R leafs + AAL/5125 shocks/NWOR greasable hardware/U-bolt flip kit; S13WL Tundra calipers/pads/rotors, IPF H4 lenses and bulbs, IPF 968 DCG 100W lights, clapped out CB radio, Aussie-spec FJ60 inclinometer, ARB CKMA12 compressor, Superwinch S9000 with 12V Guy clock switch, 4' Hi-Lift, deckplate mod/grey wire mod/dif breather extensions, Duratrac tires, Sockmonkey bedside decals, boat cupholder, Dakine bike pad
    You could mount the tank under the bed where the spare goes, with fittings coming out the sides or something.

  20. Oct 31, 2010 at 8:30 AM
    #20
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    4,969
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk

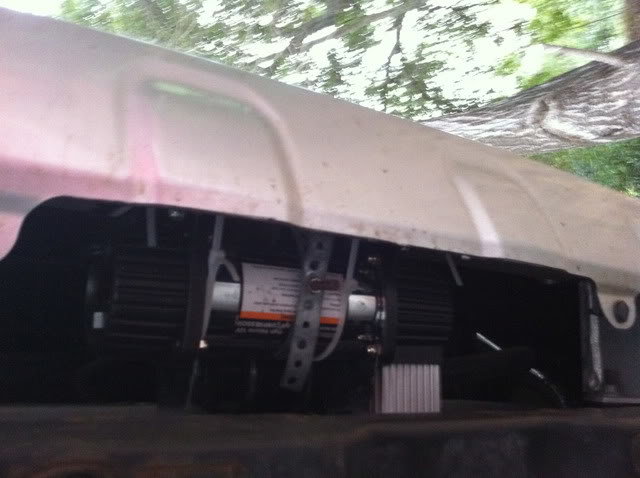

    Ive got my compressor mounted to the inside of my front bumper
    [​IMG]

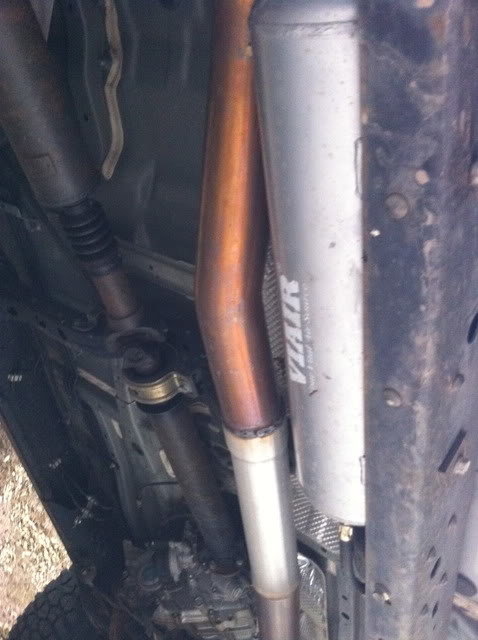

    Tank on the frame in the middle

    [​IMG]

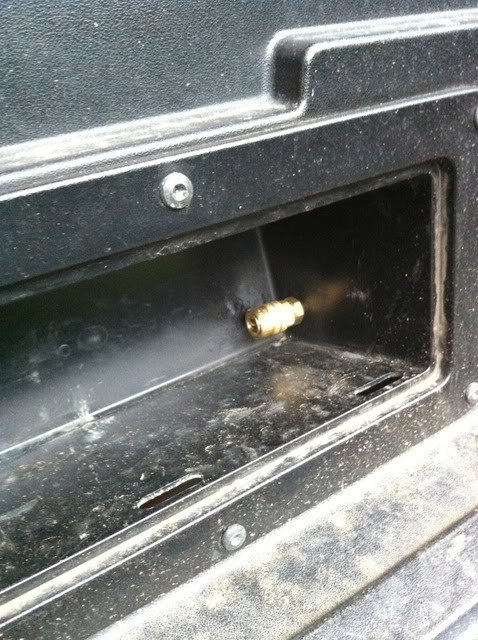

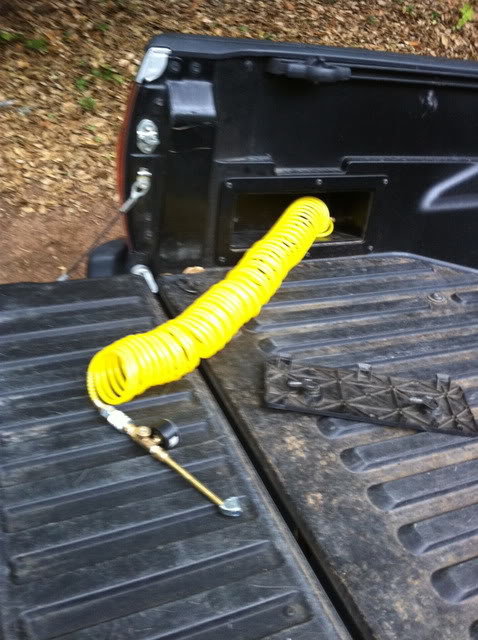

    and heres the outlet in the bed

    [​IMG]
    [​IMG]
