On board shower using exhaust heat?

Discussion in 'Technical Chat' started by Spencer, Jun 24, 2014.

  1. Andy.G

    Andy.G Well-Known Member

    Joined:
    Jan 31, 2014
    Member:
    #121972
    Messages:
    1,334
    Gender:
    Male
    First Name:
    Andy
    Virginia
    Vehicle:
    96 tacoma sx 4x4 2.7 5 speed
    Started automatic. Swapped to manual
    I see what you are after now. I converted my houses to on demand hot water.(Renai). Uses almost nothing to ignite,just need pressurized water source. But what you are after looks totally cool.:D

  2. Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,162
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    Bought all the parts today except hose etc
    Can't wait to get this thing set up!

  3. Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,162
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    If you come across this thread, go find the
    On Board Water thread by SkyGear- rather than chasing down info on 4 different ones I'm moving all questions and progress to there.

  4. skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,510
    Gender:
    Male
    Wow. um... just make sure theres a Heatshield where you decide to put the copper if you do.

  5. Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,162
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    [​IMG]

    Here goes nothin

  6. skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,510
    Gender:
    Male
    Son, you're gunna shoot your eye out with that thing.

  7. skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,510
    Gender:
    Male
    I'm opting for the larger surface area version and less plates as to not hinder the flow/ run into pressure issues

  8. Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,162
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate

    While I agree with your logic,
    I could whip out my nitrogen flow meter test gear from work & give a legitimate figure as to the resistance of this thing

    Or I could just tell you I went the old fashioned way and blew really hard in one end & felt very little resistance.
    I'm not sure exactly what pressure / flow rate the stock system circulates at, but I think this is gonna work perfectly.

    I'm about halfway through wrestling with putting fiberglass on it so expect a slow update for a couple days.
    I've gotta get this thing done before deer season opens though we're camping outta this truck for 8 days!

  9. skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,510
    Gender:
    Male
    It was mentioned before me ;)

  10. Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,162
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    Step one:
    Find a spot for your heat exchanger
    I chose next to the battery- close to the splices on the heater core hose & out of the way.
    [​IMG]

    This doodad was in the way.
    Found this
    [​IMG]

    Appears to be the fuel pump resistor & safe to relocate without screwing with VSC or airbags etc

    [​IMG]

    You need to pull it up, remove this L bracket, flip it over to mount upside down & put it off toward the fender in the hole that the wire loom clip was in.

    Here's where it went. [​IMG]


    Wires around it were zip tied up away from it for safety- this thing has heat sink fins on it for a reason & I don't want to know why when it's too late.

  11. memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    12,949
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    I have no actual use for this, but :popcorn: nonetheless. Awesome idea.

  12. tweeek

    tweeek Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    180
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    I built a onboard shower using the same concept.

    You will need a thermostatic mixing valve on the output. If you turn the shower off to lather/conserve water or something, the water will sit in the heat exchanger and become scaulding hot. It can severly burn you for the first few seconds!! With all those plates in that beast of an exchanger, I would seriosuly consider a thermostatic mixing valve. Will prevent scaulding and maintain a regulated temp. Especially if other people are going to want to use it (they will)

    They aren't cheap, but nothing in the project is. Worth the $$ though.

    I found you need to raise your engine idle slightly too. 1050 to 1100 seems to work fine. At idle, I find the engine doesn't circulate enough hot water to get the shower water more than lukewarm. A camera tripod against the seat works nicely ;)

    I have used mine many times now. It works flawlessly, and is amazingly refreshing. Great backcountry camping mod. Let me know of you have any questions.

  13. Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,038
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Spencer, what is the purpose of the fiberglass and where are you using it?

    Thanks.

    Curious about your setup. Did you write it up by chance? I've seen quoted posts by yourself in Skygear's On Board Water thread.

  14. skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,510
    Gender:
    Male
    If you click on the view original if you are on tapatalk, it takes you to the original thread/post. Same if you click the little blue arrow in the quoted text on a computer

  15. Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,162
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate

    I've got a thermostatic mixing valve just for this purpose! Glad to know I'm on the right track.

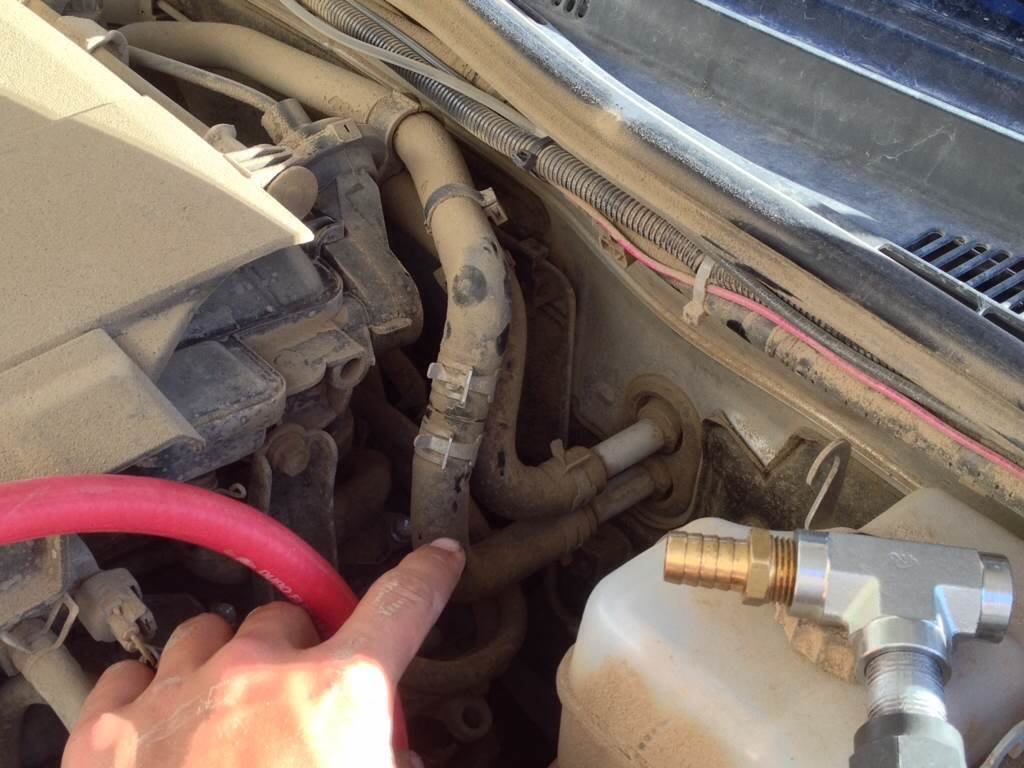

    My question now is
    Which of these is the supply / return? More specifically, which way does the water flow? My setup is using a 3 way ball valve & a hydraulic check valve so if I do it right, I'll have an idiot proof bypass & if I do it wrong, I'll have a busted tacoma.
    [​IMG]




    Any help would be appreciated! Standing here with fittings in Hand scratching my head

  16. tweeek

    tweeek Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    180
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    As far as I know, the top is input to heater core and bottom is return. I tapped into the bottom line, right where the factory splice is (why did they do that? ?)

    All I did to verify was turn the heater fan on full blast, the bottom hose was noticeably cooler. You may want to verify if you are using a check valve, why is the check valve necessary?

  17. Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,162
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate

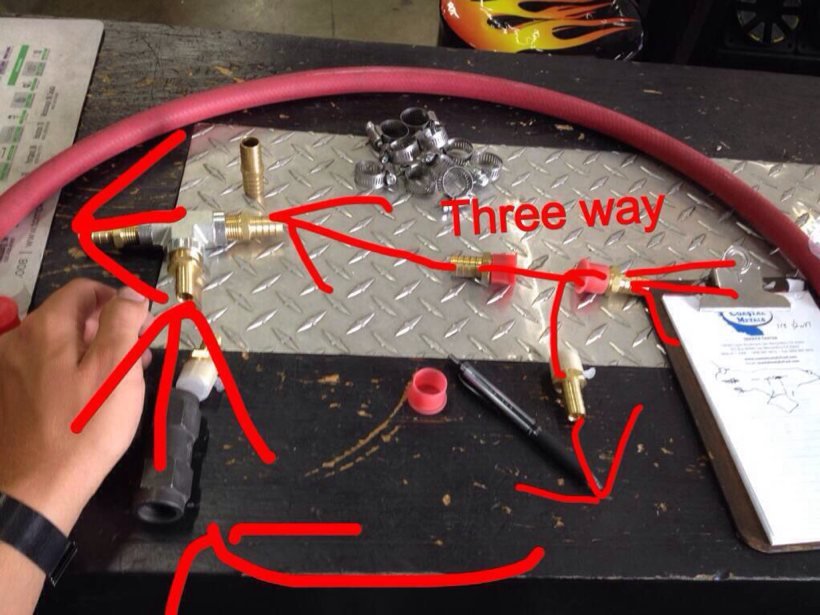

    [​IMG]

    This.

    My design has a check valve & one three way valve (labelled but not pictured )
    That way, it's idiot proof. No matter which way you turn it, engine is getting circulation. No chance of accidentally turning them shut & damaging something. And in case of damage, anyone could pop the hood throw the valve and keep it running.

  18. Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,162
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    [​IMG]

    Assembled version of poorly illustrated photo above.

  19. Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,038
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Spencer, does that heat exchanger use 1/2" hose barbs? Is it model B3-12A?

    Did you find out what sized fittings the Tacoma uses in the factory heater core hoses?

    Edit: According to a search at auto parts online the Tacoma factory heater hose is 5/8". Can you confirm that?

    Thanks is advance.

    Last edited: Jul 3, 2014
  20. Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,162
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate

    I got the 1/2" barbed model heat exchange to save me 4 fittings.

    The stock hose fits 5/8.... But not as tight as I'd like.
    I'm gonna use a good set of hose clamps & should be fine. It's likely some metric size I don't have access to readily in the states.
    But I worry too much as is. It works fine.
