On board shower using exhaust heat?

Discussion in 'Technical Chat' started by Spencer, Jun 24, 2014.

  1. Jul 4, 2014 at 8:14 AM
    #41
    Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,603
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    Many, see build thread.
    Thanks so much. Happy Independence Day!

  2. Jul 4, 2014 at 8:19 AM
    #42
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    16,551
    Gender:
    Male
    You hardly find these kinda threads anymore. Usually the op gives up before the finished product, good stuff right here for sure.

  3. Jul 4, 2014 at 2:00 PM
    #43
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate




    Happy fourth everyone!!

    Haha hey man there's still time for me to give up!

    But unlikely as I'm 200$ deep with all the parts in my garage.


    Pro tip:
    If you're gonna try a project like this, become very good friends with someone high up at McMaster Carr. Can't stress how important it is to get quality parts. Don't go to Home Depot or regular consumer stores. You'll get crap parts & frustration.
    Getting them at employee pricing doesn't hurt me either ;)

  4. Jul 5, 2014 at 7:34 AM
    #44
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    [​IMG]

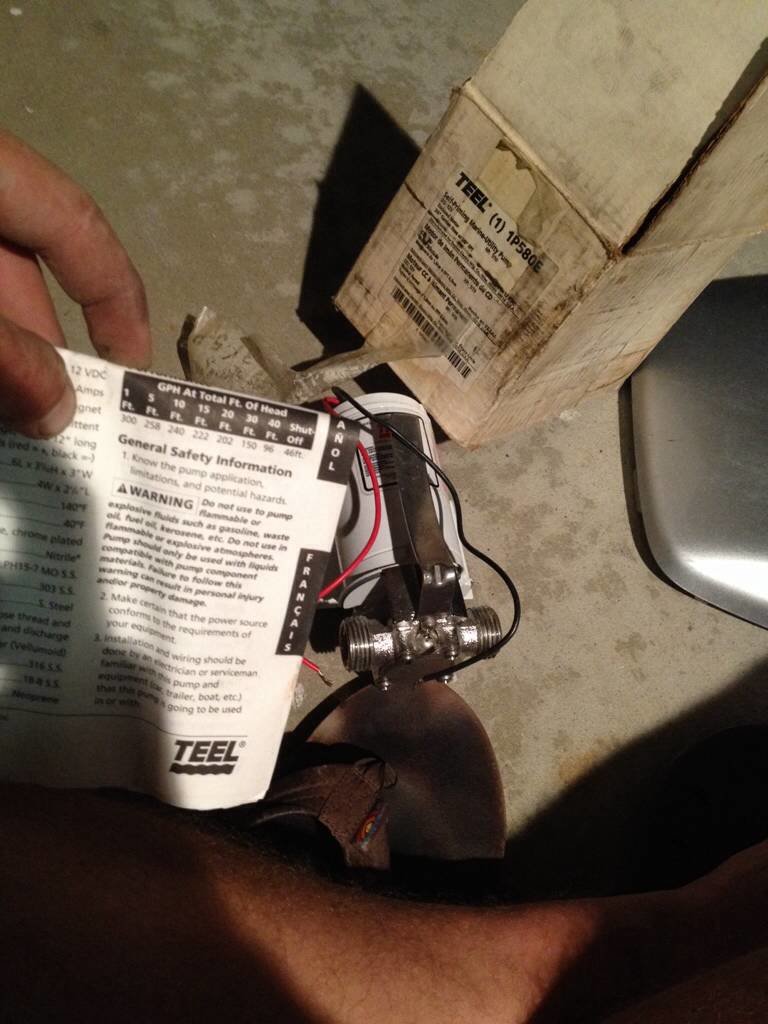

    Here's the water pump I'm using. Was a spare for our old motorhome.
    It says it can handle up to 40' of head! Which should kick ass for throwing a hose into a stream or whatever water source I can find.

  5. Jul 5, 2014 at 12:34 PM
    #45
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,622
    Gender:
    Male
    You should have a MOD change the title since you ended up not using the exhaust :spy: :pccoffee:

  6. Jul 5, 2014 at 4:58 PM
    #46
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate

    Why didn't I think of that...

  7. Jul 5, 2014 at 5:11 PM
    #47
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,622
    Gender:
    Male
    It keeps all the subscribers and no new thread needs to be made. Pm a mod

  8. Jul 5, 2014 at 5:12 PM
    #48
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,622
    Gender:
    Male
    Great job by the way. As money is budgeted properly on my end, I'll finish mine up.

  9. Jul 6, 2014 at 3:46 PM
    #49
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate

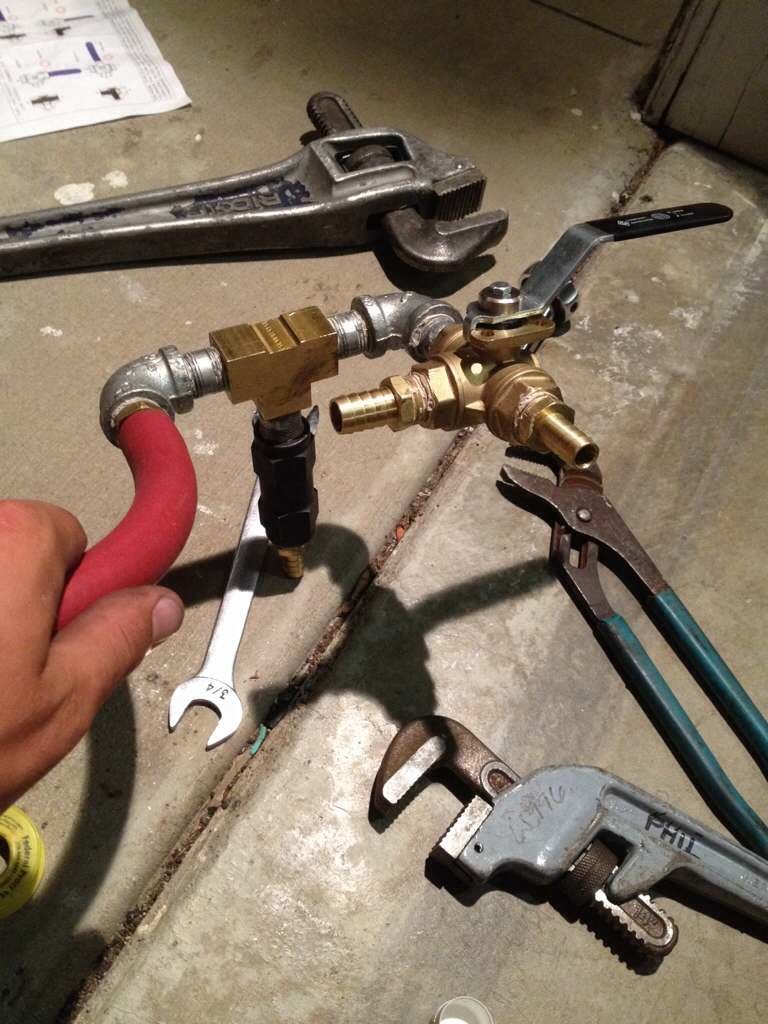

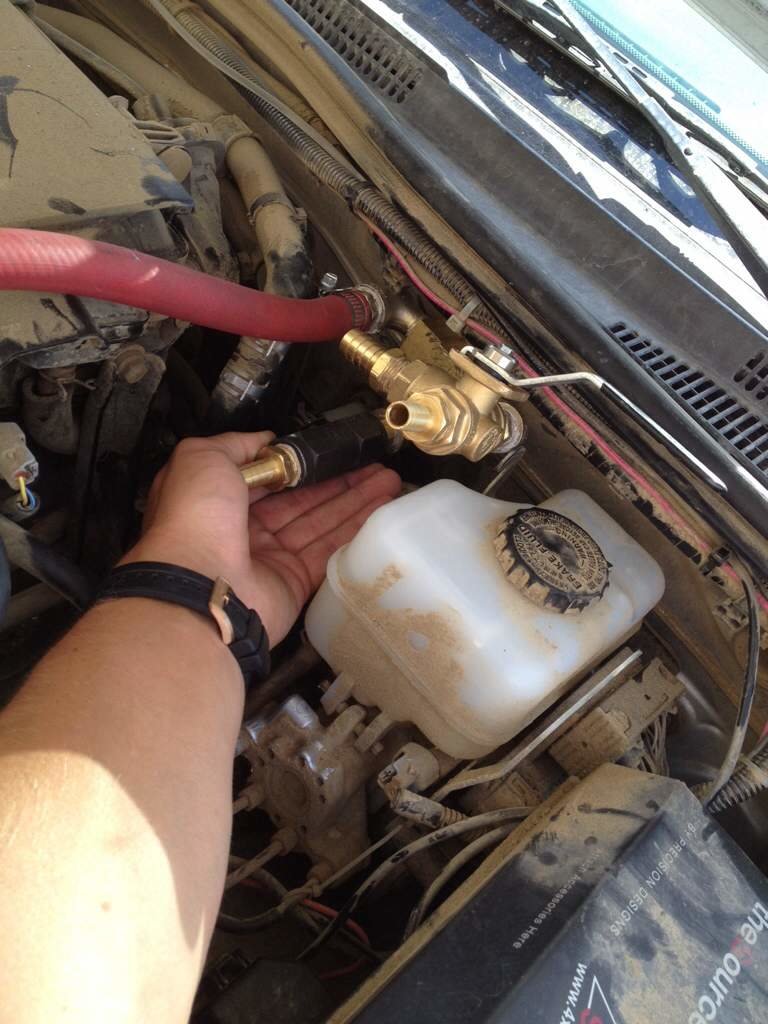

    Redid this bypass manifold
    [​IMG]

    Didn't like the idea of galvanized crap in the engine coolant, and I shrank the fitting by a couple inches.

    [​IMG]

    Fits much better here now

  10. Jul 6, 2014 at 7:59 PM
    #50
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,622
    Gender:
    Male
    I got to see the finished Final product. What are you still waiting on to come in the mail?

  11. Jul 6, 2014 at 10:36 PM
    #51
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate

    It's all here man!
    Thread title change pending bob's response.

    Okay now, troubleshooting time. The bypass is working, but I'm worried the shower mode isn't.... AHHHH

  12. Jul 6, 2014 at 10:38 PM
    #52
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    [​IMG]

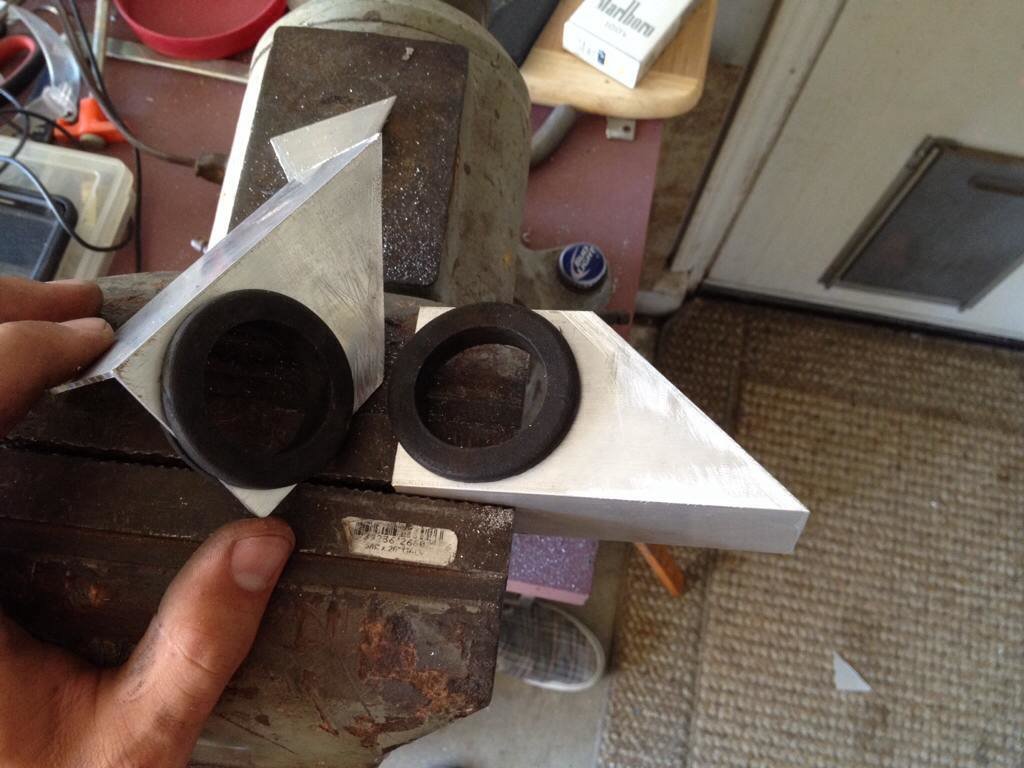

    Not too shabby for handmade parts with a hacksaw & file!

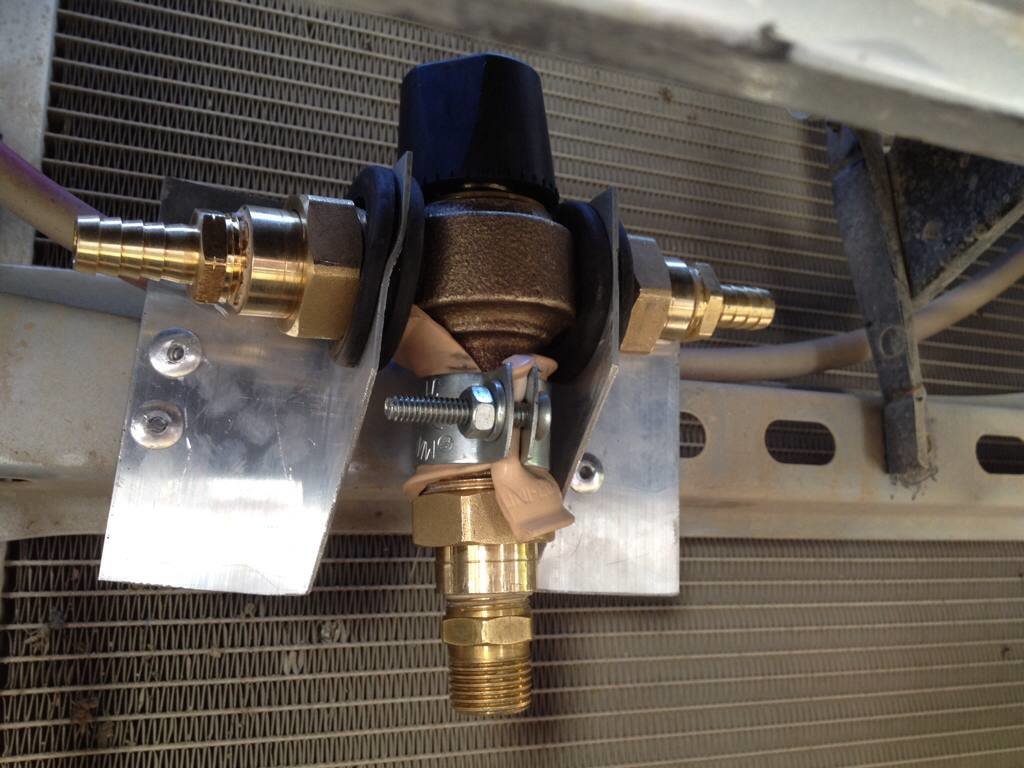

    [​IMG]

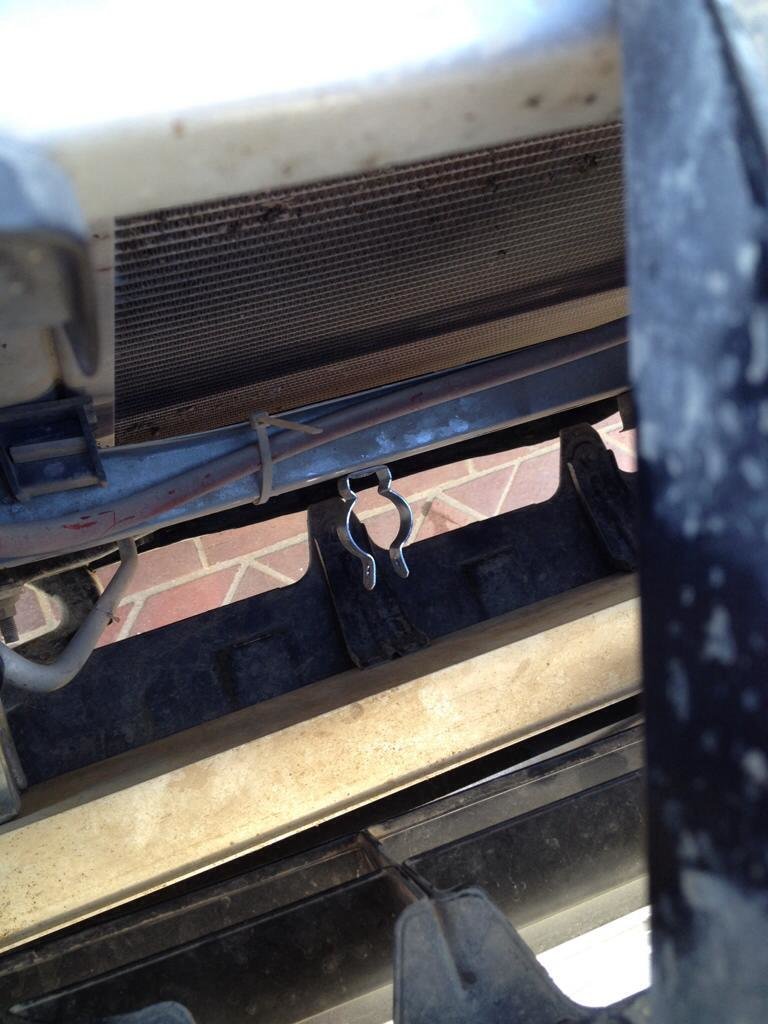

    Pipe clamp to hold thermostatic valve

    [​IMG]

    Goddamned beautiful work. I'll brag all day about

  13. Jul 6, 2014 at 10:40 PM
    #53
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate

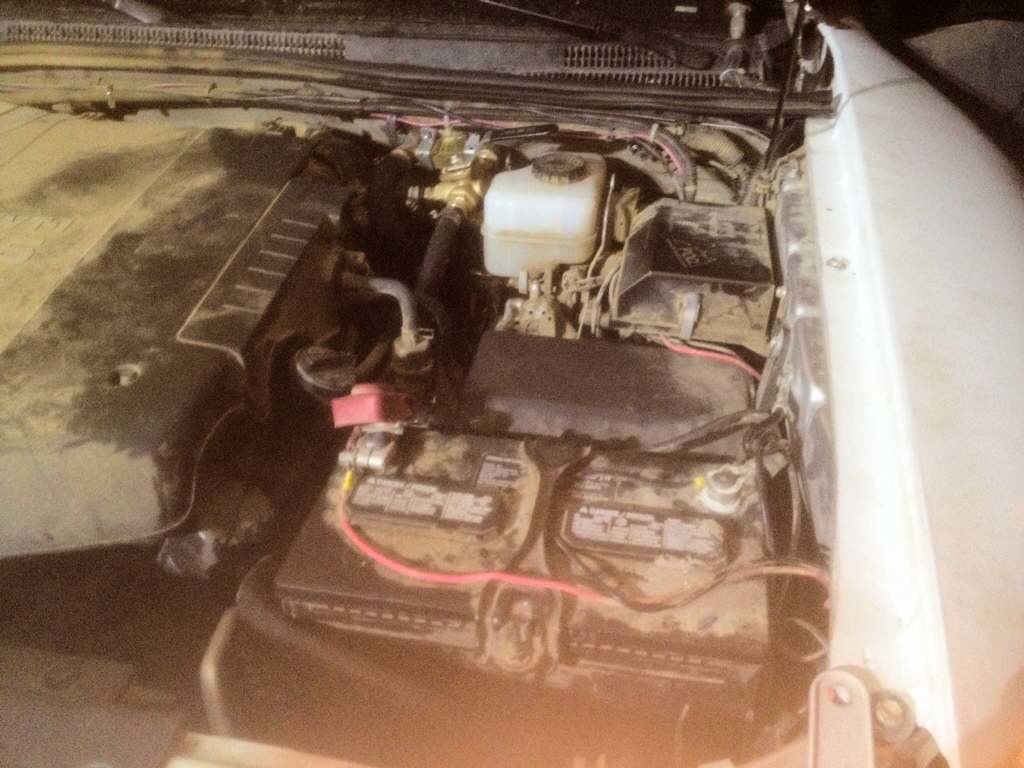

    [​IMG]
    Looks like part of the stock engine bay now. You'd hardly notice it if not for the ball valve handle.

  14. Jul 6, 2014 at 10:44 PM
    #54
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,622
    Gender:
    Male
    Could get fancy and make yourself a nice handle to replace the industrial one there. ;) :duel:

  15. Jul 6, 2014 at 10:49 PM
    #55
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,622
    Gender:
    Male
    Hood closes fine though, no hitting?

    You run water through her yet?

  16. Jul 6, 2014 at 10:52 PM
    #56
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    Alright now for the troubleshooting party.



    On bypass mode, cabin heater works well, but ONLY after accelerating & holding engine above 1700 RPM

    otherwise, spent 20 minutes at 190 degree idle temp and rpm & no change in cabin heat.



    Shower mode:

    I have not yet plumbed in the water pump to the "exchange side" of heat exchange, so unsure if this is a side effect or fault of that check valve-


    When in shower mode, cabin will NOT warm up when heater is on. No exception here- only cold air blows out on full heat.

    Took a very long time for heat exchange to get hot to the touch- my other concern is where the air bubble is-


    Heat exchange was empty upon install & I filled the coolant reservoir before starting engine, leaving only a tiny bubble in reservoir empty- this bubble had not grown, meaning the reservoir has not refilled the void in this system that needs to be filled.


    How do I flush the air out?

  17. Jul 6, 2014 at 10:53 PM
    #57
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    SkyGear can you copy my most recent posts into your thread?
    I think I'll get more input on issues & keep em both up to date. & it's not possible for me on the tapatalk app on iphone

  18. Jul 6, 2014 at 11:07 PM
    #58
    Spencer

    Spencer [OP] Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,249
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    Also, when valve was turned to shower mode, i assumed there was a bunch of air to purge out of the system and heat to discourse so I let it idle for 20 min or so, making sure water temp didnt get above 190.


    Nothing changed & cabin air never heated up
    So I drove around the block 7-8 times hoping the increased RPM would increase pressure & maybe blow the air out/ get things moving correctly.


    Nada.
    Heat exchange did heat up after 15 min of driving, but cabin air did not, and about 10 times I heard a motor running from footwell area- sounded a lot like a fuel pump kicking on... I've heard this noise on rare occasions when turning the key on, but never this frequently and never while driving like I just heard.

    Any idea what it coulda been?

  19. Jul 6, 2014 at 11:08 PM
    #59
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,622
    Gender:
    Male
    No stress. Will Do . On android, I just select the posts, click edit, then copy all the text.

  20. Jul 6, 2014 at 11:14 PM
    #60
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,622
    Gender:
    Male
    I'll tell you right now man, Since I have NOT done this YET*, I can't help on this one. made sure all the valves are in the right position? Just starting out with the small stuff.
