On Board Water Build....(pic heavy)

Discussion in '3rd Gen. Tacomas (2016+)' started by nevadabugle, Aug 21, 2016.

  1. Aug 21, 2016 at 7:09 AM
    #1
    nevadabugle

    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,956
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    Well, I have wanted a good on board water set up for a long time. I had all kinds of ideas, read all kinds of threads here and at expedition portal, and I ended up building the set up below. The water set up itself is done I just have to finish some wiring in the truck now. I decided to go with a mobile set up that I could run in my wall tent as well. I am happy for the most part on how it turned out.

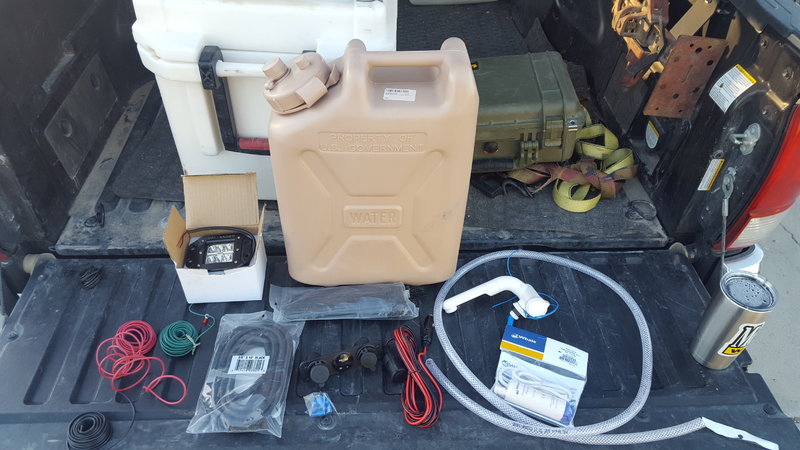

    Here are all the supplies:
    LCI Water Can
    Whale Submersible pump
    Shurflo faucet
    12v outlet
    12v cord
    3/8" tubing
    wire ties
    wire loom
    electrical tape
    wire connectors
    Coffee!

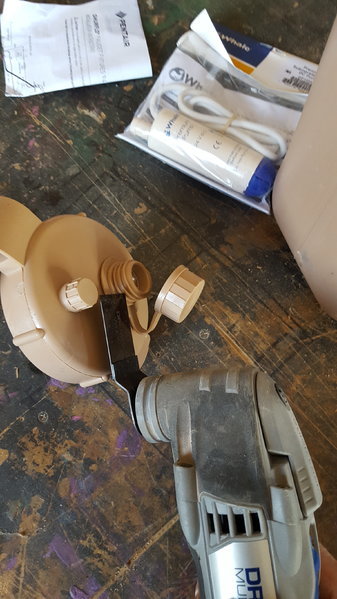

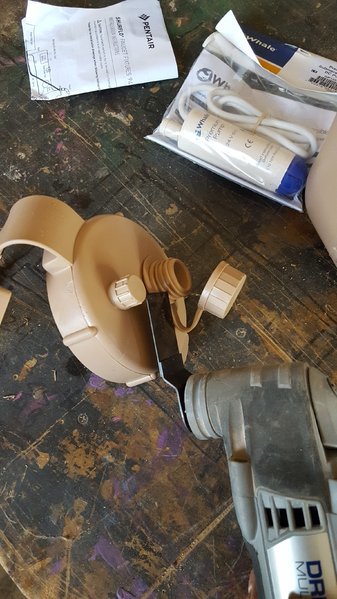

    Step 1: Cut the Spout off the Can
    20160820_133339.jpg 20160820_133522.jpg

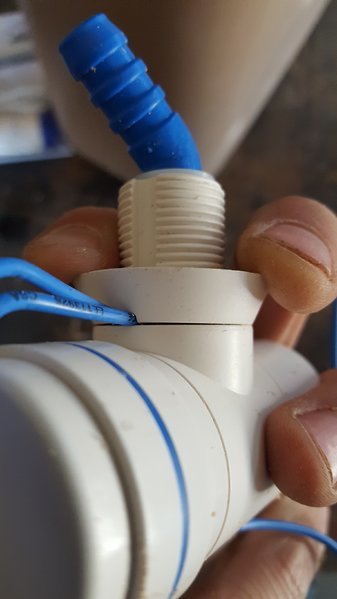

    Step 2: Notch the white base on the faucet so you can run the wires outside of the water can. If you don't do this the electrical wires that are not intended to see moisture would end up inside the water can.

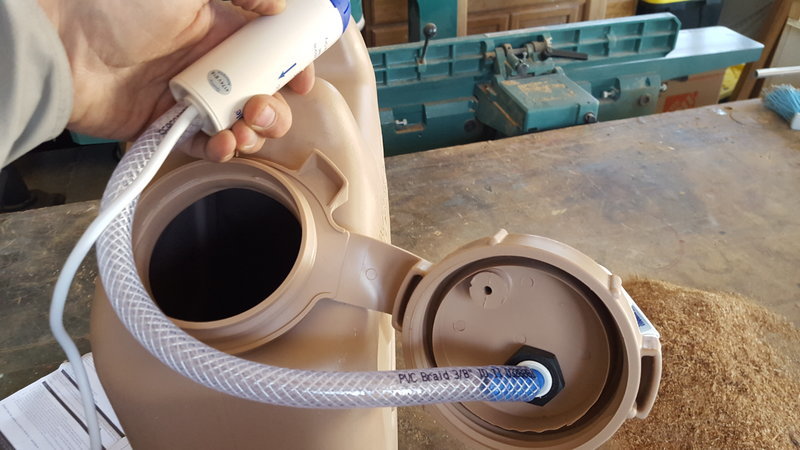

    Step3: Install Faucet through hole in can and cut 3/8" hose to length so you can connect it to the pump and the faucet.

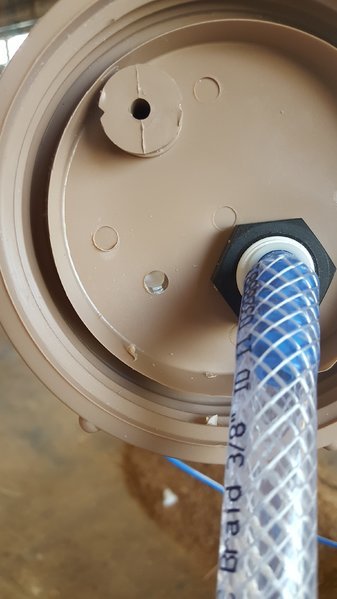

    Step 4: Drill hole 1/4" hole in lid for submersible wires to pass through. Disclaimer: I was planning on using a rubber grommet in this hole to make it a tight water seal. however the thickness of the lid made using a grommet impossible. So, I ended up siliconing around the hole after I drilled it. If I had known the grommet would not fit I would have drilled a smaller hole to make the wire a tighter fit.

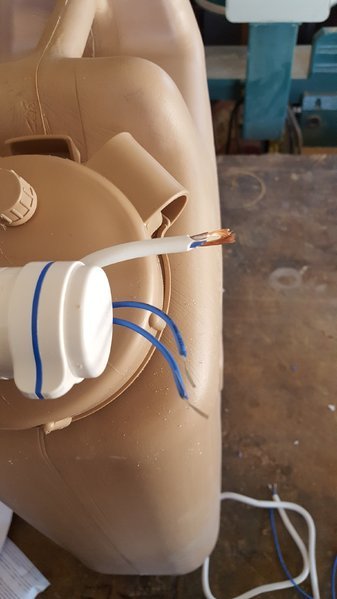

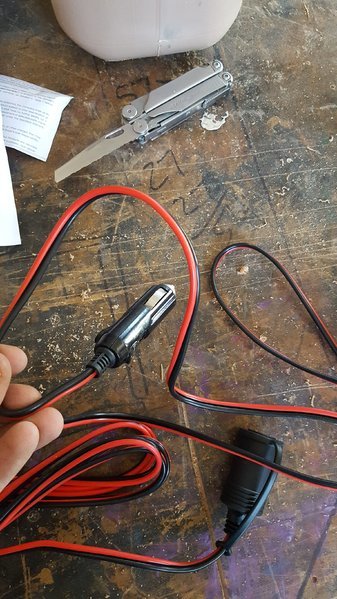

    Step 5: Run wires through the hole in the lid, cut off the male end of a heavy duty 12v cord, and strip all wire ends.
    20160820_140446.jpg 20160820_140856.jpg

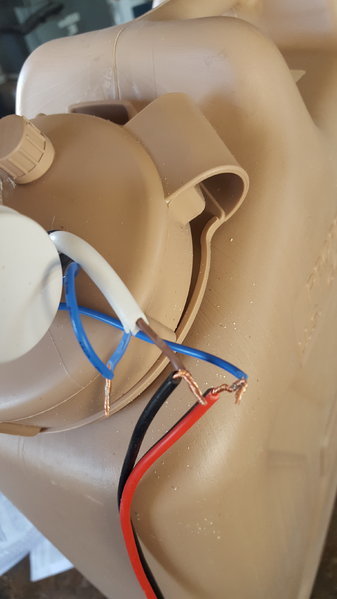

    Step 6: Do a test connection of the wiring to make sure you have it wired correctly. Here is how I did it:
    Faucet Blue A to Pump Blue
    Faucet Blue B to 12V positive
    Pump Brown to 12v negative
    Step 7: Make final wire connections, place all wire in wire loom, wrap with electrical tape and test!

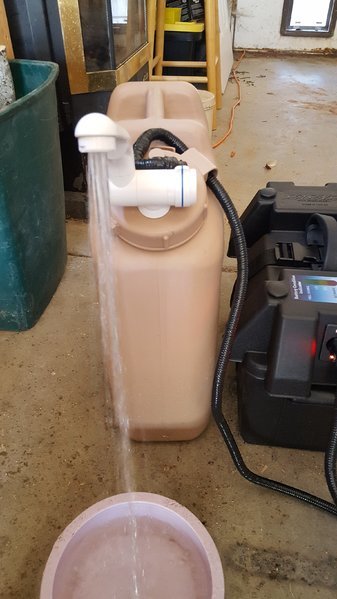

    There is the water!


    Attached Files:

    Last edited: Aug 21, 2016
  2. Aug 21, 2016 at 7:18 AM
    #2
    nevadabugle

    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,956
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    The next step is to install a 12v outlet in the bed of my truck. This outlet will be switched off of my auxiliary fuse block and switch panel (build here: https://www.tacomaworld.com/threads/wiring-an-aux-fuse-block-relays-and-switches-in-a-2016.401253/ ). It will be switched so i can control when the on board water is operational. This will help with accidental activation's of the pump.

    Since I have the auxiliary fuse block, switch panel and relays installed already, all I need to do is run the wires from an open relay, to the 12v outlet location and mount the outlet. I'll update picks when that is complete.

    Danactive, Akroedge540 and bobrown14 like this.
  3. Aug 21, 2016 at 8:15 AM
    #3
    Danactive

    Danactive Instagram: xxdanactivexx

    Joined:
    Apr 15, 2016
    Member:
    #184403
    Messages:
    972
    Gender:
    Male
    First Name:
    Dan
    Upstate New York
    Vehicle:
    2016 MGM TRD Sport 4x4 DCSB
    Check Out My Build Thread :)
    brilliant! I could definitely see a sink base attachment or a strainer attachment that would work well with that!

    nevadabugle [OP] likes this.
  4. Aug 21, 2016 at 8:23 AM
    #4
    nevadabugle

    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,956
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    Thanks!

    Danactive likes this.
  5. Aug 21, 2016 at 8:45 AM
    #5
    Hobbs

    Hobbs Let Spare Parts Go Free!

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    7,559
    ***El Camino Sierra
    Vehicle:
    2016 TRD Off-Road Quicksand, AC, AT, Fun Machine!
    < < I gotta go! > >
    Very well done and nice write-up NevadaBugle! What would you estimate you have invested in this, excluding your labor?

  6. Aug 21, 2016 at 10:17 AM
    #6
    nevadabugle

    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,956
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
  7. Aug 21, 2016 at 4:32 PM
    #7
    Hobbs

    Hobbs Let Spare Parts Go Free!

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    7,559
    ***El Camino Sierra
    Vehicle:
    2016 TRD Off-Road Quicksand, AC, AT, Fun Machine!
    < < I gotta go! > >
    Cool. I like the ingenuity. I am trying to figure out my water situation and enjoyed your post.

    nevadabugle [OP] likes this.
  8. Aug 21, 2016 at 5:16 PM
    #8
    nevadabugle

    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,956
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    I stole the idea from some overland blog I found and then have not been able to relocate.

    Hobbs likes this.
  9. Aug 21, 2016 at 5:28 PM
    #9
    Acerwin

    Acerwin The unNORM NORM

    Joined:
    Nov 20, 2014
    Member:
    #142732
    Messages:
    32,580
    Gender:
    Male
    First Name:
    Andrew
    South Carolina
    Vehicle:
    Stock 2001 jeep Cherokee xj
    King 2.5 coilovers, TC ucas, King 2.0 12" smoothies, BAMF shock relocation, dakars
    Sub'd

    justinalldredge19 likes this.
  10. Aug 21, 2016 at 5:34 PM
    #10
    crazysccrmd

    crazysccrmd Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181592
    Messages:
    3,600
    Gender:
    Male
    Ive been looking into the same idea. I want to rig an aux fuse block in the bed (Blue Sea 5025) with all the extra electrical draws run through that. The plan is to make it a simple one wire change to that aux block when I eventually upgrade to a dual battery setup.

    http://beaujohnstontest.blogspot.com/2013/08/12-volt-water-system-scepter.html

    nevadabugle [OP] likes this.
  11. Aug 21, 2016 at 7:13 PM
    #11
    nevadabugle

    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,956
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    Yes. This is the blog I used for my design. Good find.

  12. Aug 21, 2016 at 7:14 PM
    #12
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,620
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    How do you like that battery pack? I'm looking at building one for with my old battery.

  13. Aug 21, 2016 at 10:01 PM
    #13
    nevadabugle

    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,956
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    I just bought the battery box. Haven't used it till I tried the water set up. Seems pretty slick. I plan on using it to run the water jug and charge cell phones and tablets in our wall tent. It will be in use for 2 weeks in September. I'll report back later.
