Onboard Pressurized Water System for the 2005-Current Toyota Tacoma OBW

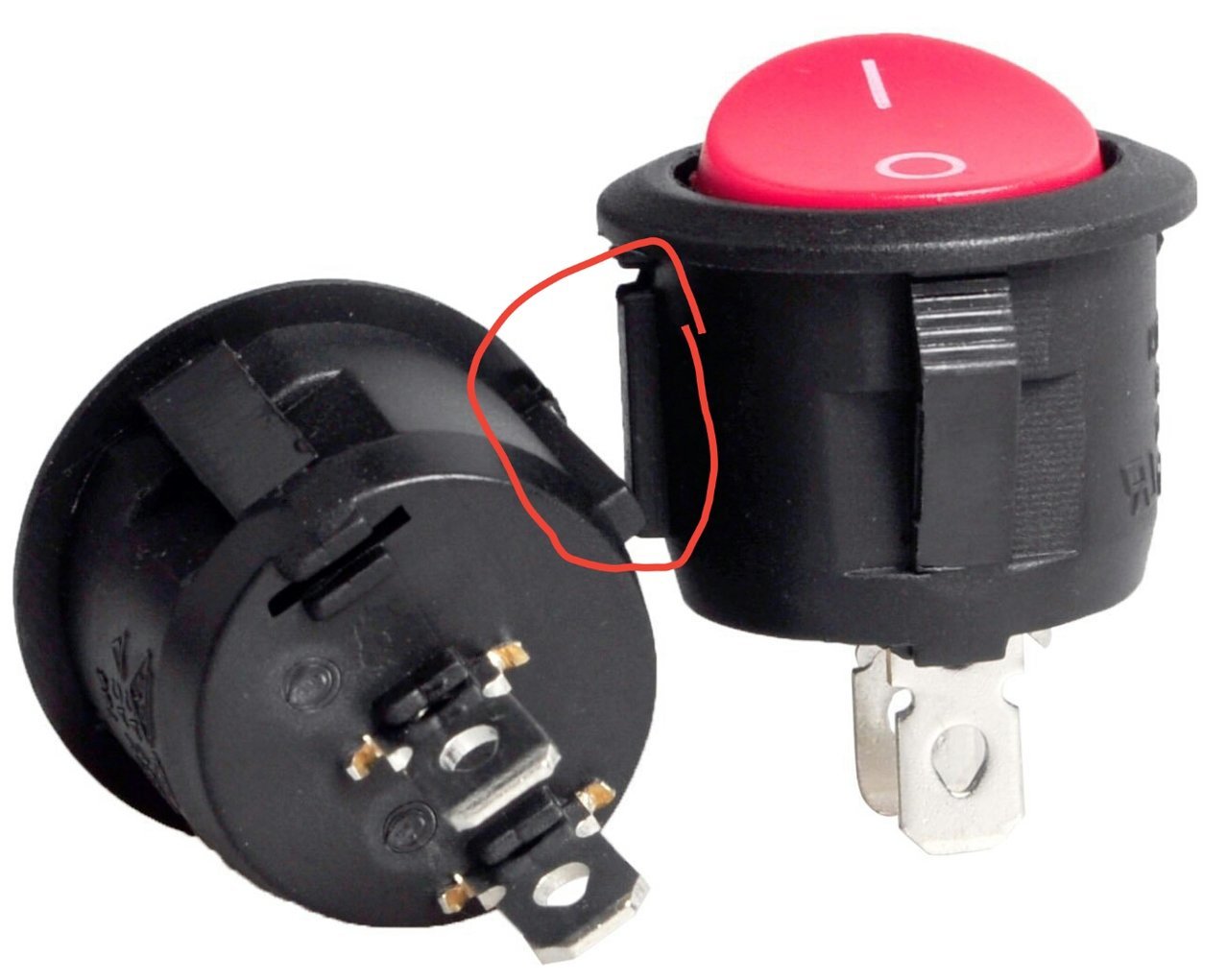

See the little tab in the red circled area. I think i already shaved them off before i shipped them though



Ohh yep that was already shaved. Still had to round out a bit but it's a real snug nice fit now.



@dskakie has brought a small issue to my attention that id like to address incase anyone else has the same issue. I have determined that *ONLY 5* Kits out of the 30 are affected and if Dan is 1 then there are only 4 others out there. I dont know who those 4 went to so I am posting here so you are all aware.

During the end of production I changed brands of connectors that i was using on the wire harnesses which caused mismatched connections between the harness and pump. See picture below...

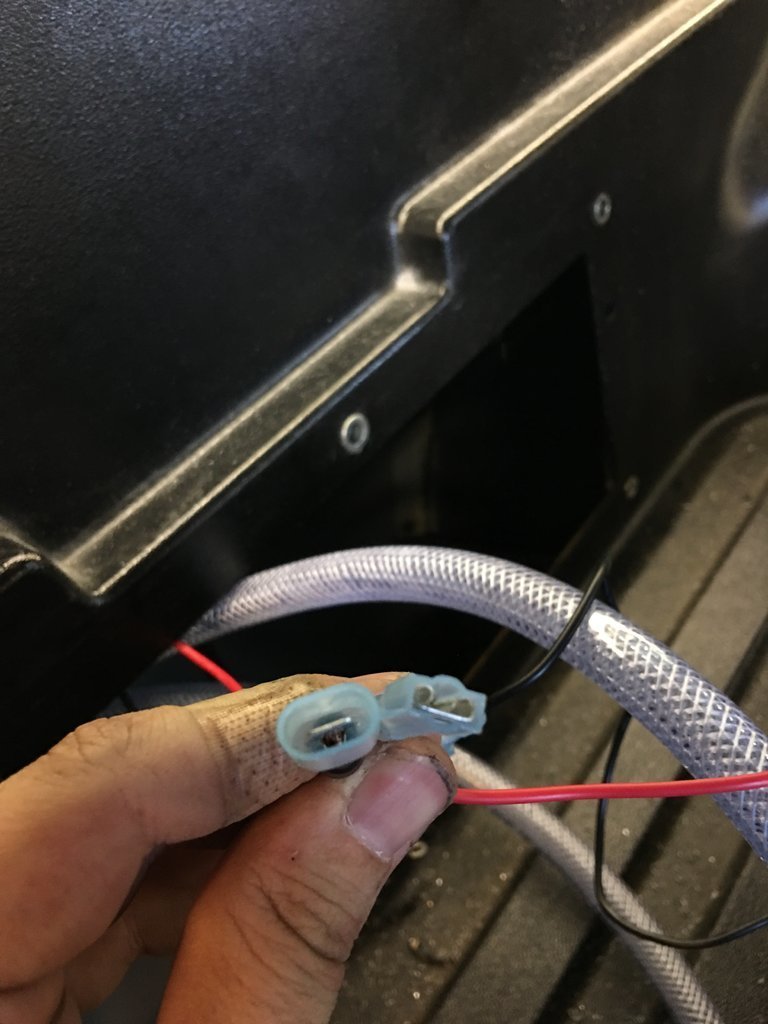

The pumps all have female terminals (right) and the wire harness has male terminals (left). The new brand of male terminals have a slightly different shape (as seen in pic) causing fitment issues. The connections WILL fit together, but will take a bit of extra persuasion to get plugged in. If you have one of these 5 kits, please do your best to get them connected and just know itll be a snug fit. If you have tried and are just unable to connect them, ill gladly mail 2 replacement female terminals which match the male terminals on the harness but you'll have to swap them out using a crimper once you get them. If you want a replacement but cant crimp on new terminals, I can send an alternative type of connection that screws down onto the wires instead of crimps.

Again please keep in mind only 5 kits are affected by this issue and all of them should still be able to connect with a little work but if you'd prefer another option please PM me and I can address individual concerns accordingly.

Thank you for understanding.

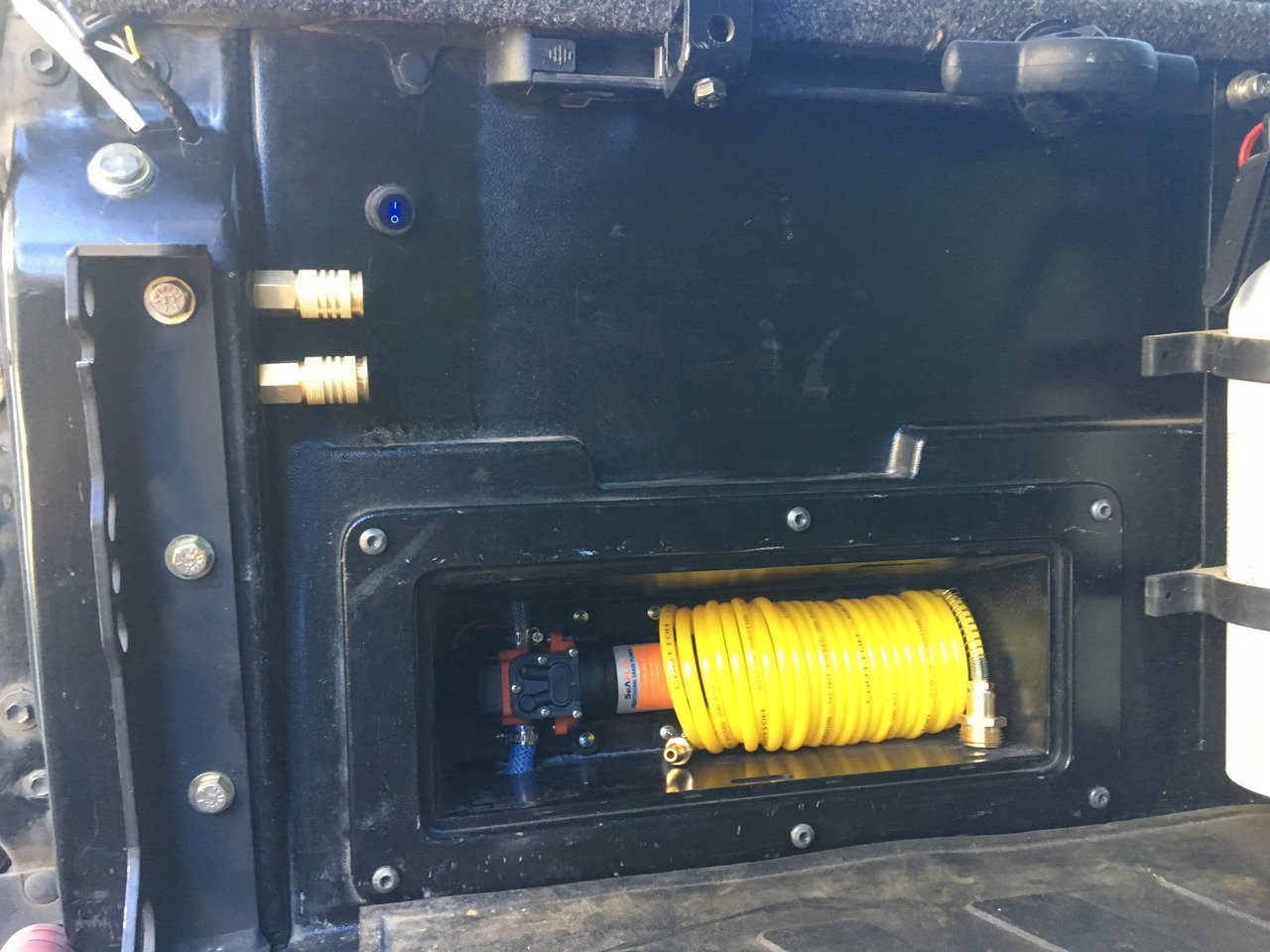

I'm all dialed in now! I used a hair dryer on really low to just get the male terminal more pliable and that was enough to convince it in, slow and steady definitely wins the race. Had to trim down the upper washer because I made my hole a bit too high, also..was worried my ATH Fab bed stiffeners may get in the way if I went too low so ended up drilling a hair too high. Everything else was smooth sailing, so stoked on this kit!!

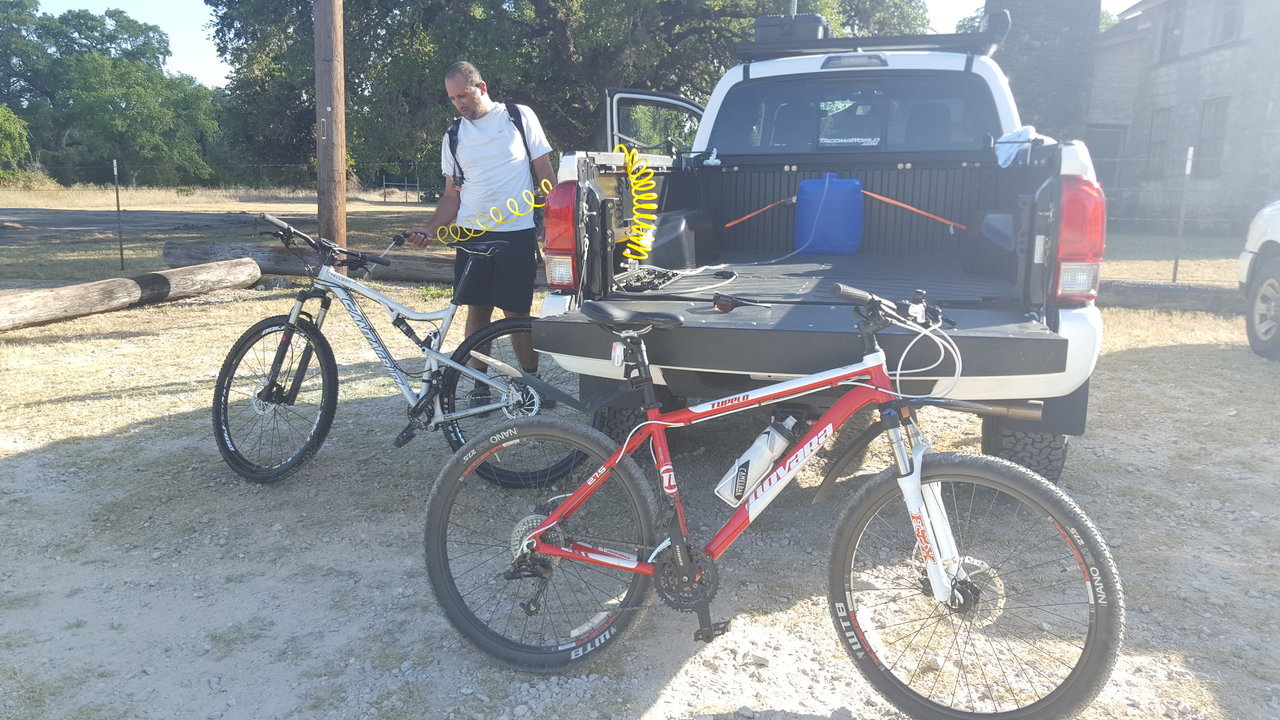

The pressurized water kit continues to be one of my most favorite and used mods! Here you can see me washing off the bike tires after a dusty ride yesterday with @ChadsPride. Im using those aqua-tainers currently for water storage but I have plans for a more integrated storage container in the future (maybe one of those slick front runner 15 gallon tanks). At the last camp, my GF and I had enough water for showers, dish washing, washing up, brushing teeth, and what ever else. Great kit!! Highly recommended!



​



This is exactly what I want mine for. Now I need to see what I can find for water tanks and places to mount them next.



Is there any kits left?



The stealthy tank is on my future list. Im moving my spare to my rear bumper so a tank in the original spare area feels like it could be a good solution if I can find a tank that wont get punctured.



There are not unfortunately but if you are interested in pre-ordering for round 3 i am considering making more. Just let me know

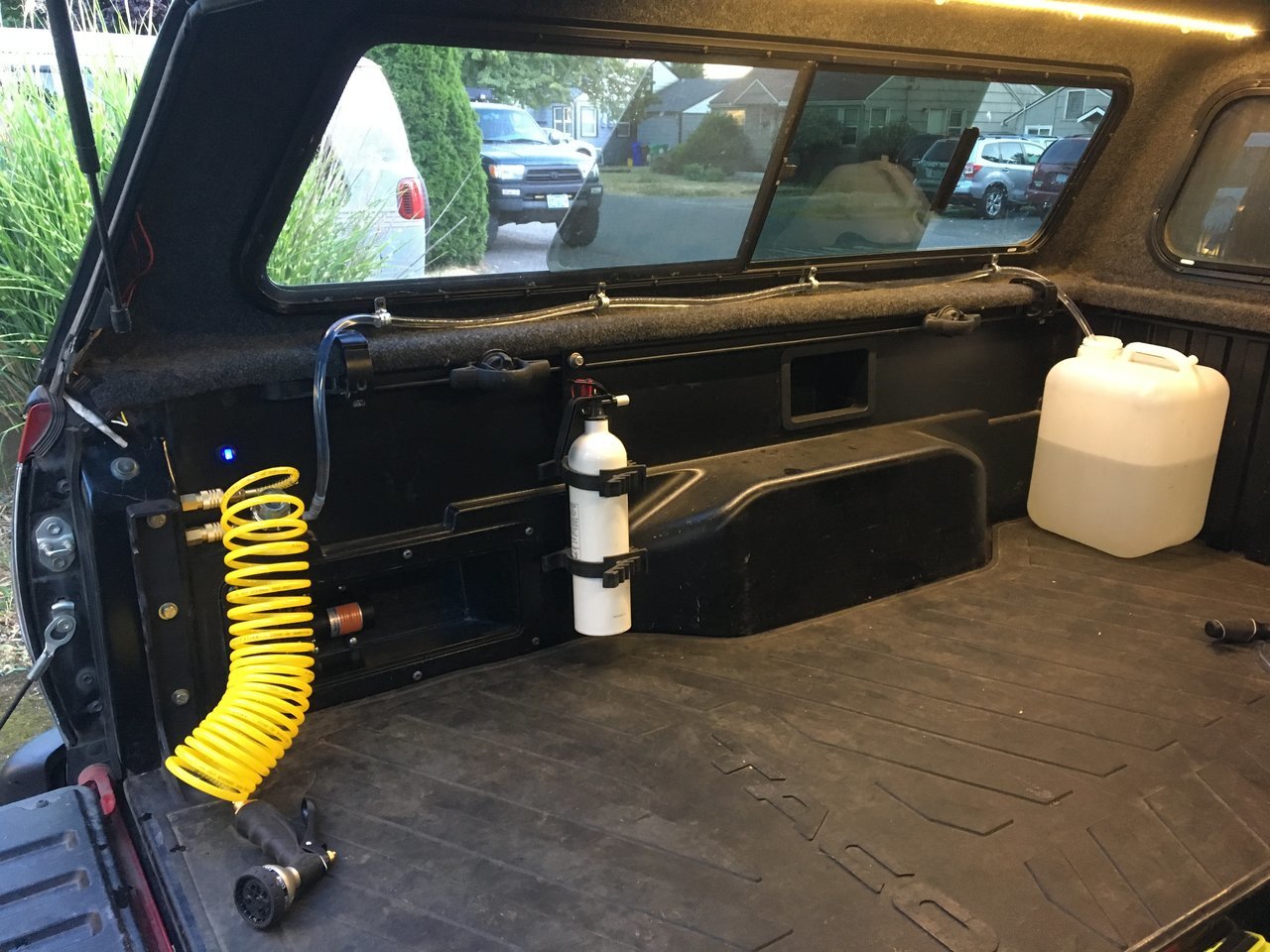

Great success! Works awesome! Just need to tap the lid of my water jug and add a couple D rings to secure it with a strap and I'm good to go. Thanks @ProForce for a cool product.



That came out GREAT! did you end up even needing the extension? I added like 4 ft even though you only asked for 2 I didn't want it to be to short. Figured you could cut off what you don't need



I did. Used another 1.5 feet



But there's enough to run to the other side of the bed so I have the option of where to place it. Install went preeeety good. I had a bunch of other crap behind that taillight that I had to move but that was nothing to do with your kit. I know I'm going to find random reasons to use it. Rinsing dishes at the house or something! Very cool!



Besides aaen and Tski, anyone not get their kit yet? They should have all been there already. Just making sure.

Also, round 3 is likely a go if i can get 1 or 2 more people willing to preorder them. Please let me know if you are interested.



Add me to the pre-order list! Should I PM you?



Got you down



Awesome! Thanks bud!



@Maximus Gradient



*ROUND 3 IS LIVE*

PRE-SALE ORDERS TAKING PLACE NOW! PM TO PLACE YOUR ORDER

FREE SHIPPING AND AN ADDITIONAL $10 OFF ON ALL PRE-PAID ORDERS (LIMIT 10)
TOTAL PRICING IS $190 SHIPPED

*Lead time will again be quoted as 4-6 weeks, but realistically I should have them ready to ship within 4 weeks. However as always, I will keep everyone updated on timeframes as we progress. There is a chance that earlier order will ship within just a couple weeks just like round 2.

**NEW UPGRADES BEING TESTED FOR ROUND 3!! I am working on a longer and more flexible coil hose which will be included at no additional charge. I have to run a few pressure and performance tests but my bigger concern is if it will all still fit inside the cubby and in my current shipping boxes as well. More to come!
