Overhead cluster 12v ignition switched power pin outs

Discussion in '3rd Gen. Tacomas (2016-2023)' started by OnHartung'sRoad, Sep 28, 2017.

Page 4 of 4
  1. Dec 4, 2019 at 12:14 PM
    #61
    caribe makaira

    #61
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,424
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    HOPE? Don't guess, take a Multimeter and verify, Toyota loves to change wiring in same model different years...

    caribe makaira, Dec 4, 2019
    #61
    Danbest82 likes this.
  2. Dec 4, 2019 at 2:58 PM
    #62
    The_Devil

    #62
    The_Devil Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268281
    Messages:
    1,425
    Gender:
    Male
    First Name:
    E
    Vehicle:
    2018 Tacoma TRD Off-Road
    DIY Tonneau, Toolbox, Lift, TRD Wheels, TRD Grill
    By hope I meant that I already ordered the connectors you referenced. If the 12v is not keyed power that is great news, if it is, then I will tap a line I already ran into the cab since I will already be in there.

    I don't plan to open up the pillar until the connectors arrive but I will test.

    The_Devil, Dec 4, 2019
    #62
  3. Dec 14, 2019 at 6:08 PM
    #63
    The_Devil

    #63
    The_Devil Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268281
    Messages:
    1,425
    Gender:
    Male
    First Name:
    E
    Vehicle:
    2018 Tacoma TRD Off-Road
    DIY Tonneau, Toolbox, Lift, TRD Wheels, TRD Grill
    Update:. The pin you recommended worked great. This indeed adds a hot constant and the wore can easily be tucked under the headliner and into the over head cluster.

    This was true for 2018 TRD OR without sunroof.

    The_Devil, Dec 14, 2019
    #63
    Danbest82 likes this.
  4. Dec 14, 2019 at 6:29 PM
    #64
    caribe makaira

    #64
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,424
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You did lower the fuse amp to what the cam needs...right?

    caribe makaira, Dec 14, 2019
    #64
  5. Dec 14, 2019 at 8:19 PM
    #65
    The_Devil

    #65
    The_Devil Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268281
    Messages:
    1,425
    Gender:
    Male
    First Name:
    E
    Vehicle:
    2018 Tacoma TRD Off-Road
    DIY Tonneau, Toolbox, Lift, TRD Wheels, TRD Grill
    Was not too worried about it as I only have the 4.2 Amp USB converter on there, but considering adding a second. Good suggestion

    The_Devil, Dec 14, 2019
    #65
  6. Dec 18, 2019 at 6:37 AM
    #66
    Tunngavik

    #66
    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    3,126
    Gender:
    Male
    Alberta, Canada
    Vehicle:
    2018 TRD Off-Road Access Cab 6 speed manual
    KC-HiLites Fog Lamps, Kicker speaker and tweeter upgrade, USB in center console, Power tailgate lock, Soundproofing, 32" lightbar

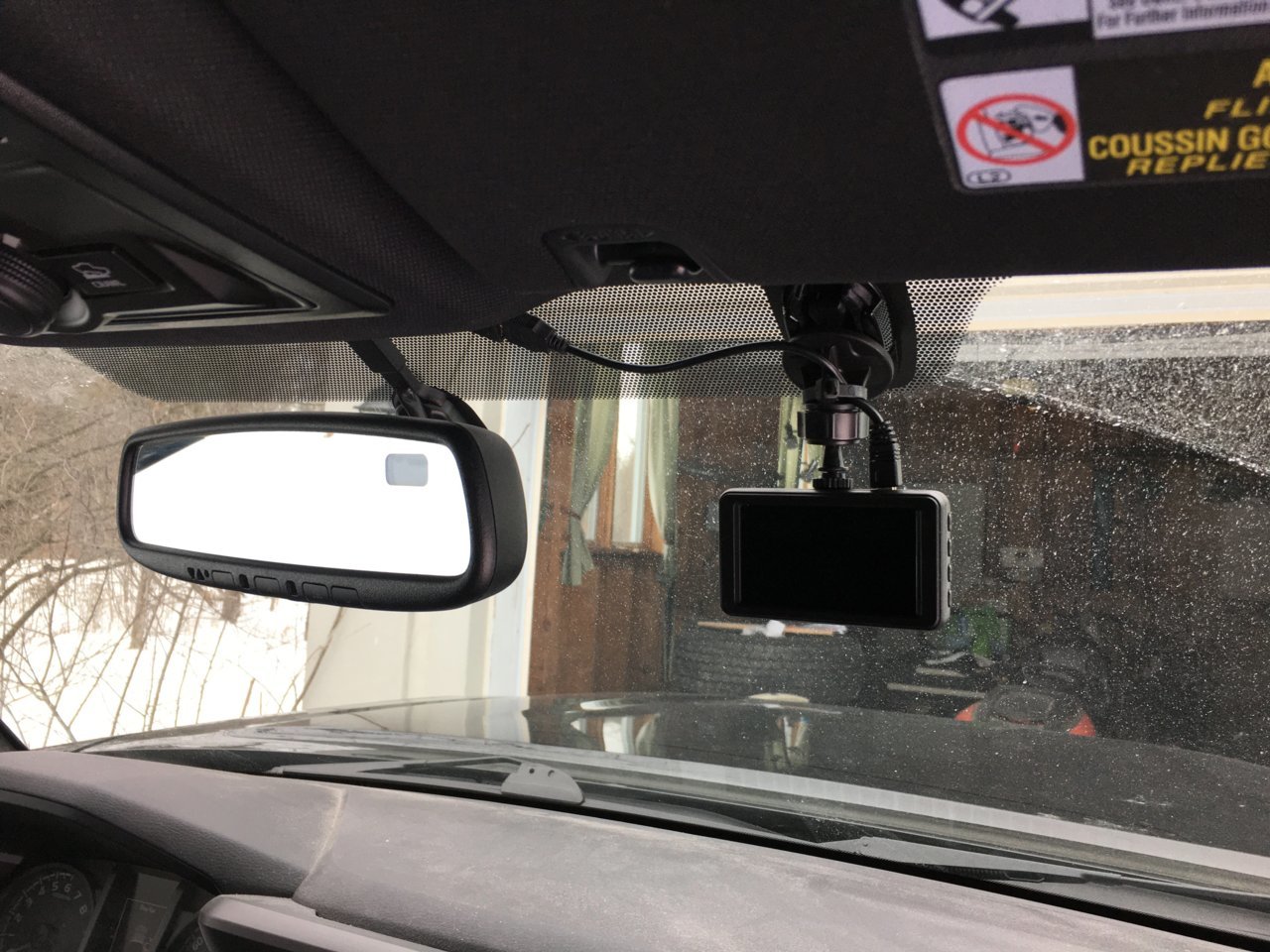

    Not sure if this is common knowledge, but for those who don't want to tap into / splice wires or run a length of wire to the drivers foot well fuse panel, this might be an option.

    [​IMG]

    https://www.amazon.com/dp/B07DMW3DML

    I came across it on Amazon, can't vouch for it though - I went a similar route as others in this thread.

    Tunngavik, Dec 18, 2019
    #66
  7. Dec 19, 2019 at 8:04 AM
    #67
    BSK

    #67
    BSK Keyboard not responding. Press any key to continue

    Joined:
    Apr 3, 2018
    Member:
    #249320
    Messages:
    778
    Vehicle:
    Trabant 501 Kombi
    Cigarette Lighter Delete
    believe the above is made by a fellow TW poster. Remember posting it and he came on in a different thread. He dumped discount codes for fellow members.

    BSK, Dec 19, 2019
    #67
  8. Jan 1, 2020 at 8:56 PM
    #68
    Team Scream

    #68
    Team Scream Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310198
    Messages:
    252
    Gender:
    Male
    Los Angeles Kali
    Vehicle:
    2018 TRD DCOR Quicksand 4x4
    Old Man $538.00 Sound System Upgrade w/Kicker DS in the doors, and a Cerwin Vega VPAS10 powered (10") sub under the drivers seat.
    Im trying to hardwire my dash cam using this thread.
    Under the overhead console/panel, the bundle leading down to the mirror has several brown(ish) wires and one or more wires with a white stripe that looks almost brown(ish) with a white stripe.

    Are all of these browns(ish) wires 12v switched? I can't imagine multiple wires that are the same color, in the same bundle being different, but would rather ask before committing.

    It is way tight up there and I have a neck injury that prevents me from spending too much time with my head wrenched around, so a little clarification would be awesome.

    Thanks!

    Team Scream, Jan 1, 2020
    #68
    MR E30 likes this.
  9. Jan 25, 2020 at 7:58 AM
    #69
    FPCat

    #69
    FPCat Active Member

    Joined:
    Jan 22, 2020
    Member:
    #316927
    Messages:
    41
    Gender:
    Male
    I used the instructions in this thread to tap into the switched supply and it worked great. Very happy to get my dashcam hooked up without having to add a fuse and run a long wire. Thanks OP!



    FPCat, Jan 25, 2020
    #69
    m3bassman likes this.
  10. Jun 13, 2020 at 2:55 PM
    #70
    blitzkrieg3002

    #70
    blitzkrieg3002 Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188296
    Messages:
    1,128
    Gender:
    Male
    First Name:
    Rick
    California
    Vehicle:
    2019 Tacoma SR5 4x4 5.29’s
    BP51 Complete Kit, Medium Duty Dakar Pack, Firestone ride rite airbags w/Daystar Cradles, 2015 Four Wheel Camper Swift Shell Custom build, 5.29 Gears, Valley Runner Tune, Harrop E Lockers Front & Rear, SCS F5 Wheels 16x8 3.5bs, Cooper Discoverer ST Maxx 285/75/16, Cali Raised 0 Deg Sliders, BHLM, DD SS3 Yellow Pro Fogs, Debadged/Stickers Removed, Paint to match Bumper caps, Start-X Remote Start, N2 Designs Smart Phone module, Pop N Lock Tailgate lock, Taco Garage TRD PRO grille, Prodigy P3 Trailer Brake Controller, Rockblokz XL Mud Flaps.
    any ideas which wire is the is the dash light wire? i'm installing a switch in the overhead console and need to tap a wire that comes on with the dash lights

    edit. it's the green wire!

    Last edited: Jun 13, 2020
    blitzkrieg3002, Jun 13, 2020
    #70
  11. Jul 20, 2020 at 10:21 AM
    #71
    DarthPat1977

    #71
    DarthPat1977 Well-Known Member

    Joined:
    Jul 2, 2020
    Member:
    #333208
    Messages:
    244
    Gender:
    Male
    First Name:
    Patrick
    Alabama
    Vehicle:
    2016 Tacoma SR5 DCSB
    I wonder if my 2016 SR5 has this harness even though I don't have a powered mirror...

    DarthPat1977, Jul 20, 2020
    #71
  12. Jul 24, 2020 at 2:56 PM
    #72
    DarthPat1977

    #72
    DarthPat1977 Well-Known Member

    Joined:
    Jul 2, 2020
    Member:
    #333208
    Messages:
    244
    Gender:
    Male
    First Name:
    Patrick
    Alabama
    Vehicle:
    2016 Tacoma SR5 DCSB
    Nope!

    DarthPat1977, Jul 24, 2020
    #72
  13. Mar 7, 2021 at 7:37 AM
    #73
    MillbrookMike

    #73
    MillbrookMike Well-Known Member

    Joined:
    Feb 10, 2021
    Member:
    #355666
    Messages:
    85
    Gender:
    Male
    New York State's Hudson Valley region
    Vehicle:
    2018 Tacoma TRD Sport
    Justin, May I ask where on your windshield you installed the DRV-N520? I'm about to put one in my '18 Tacoma and I'm curious what you found to be the best location for it. I'm thinking of behind the mirror and close to the left side of the front camera housing, but I don't want the lens to pick up that housing in the view. Thanks!
    Mike

    MillbrookMike, Mar 7, 2021
    #73
  14. Jul 7, 2021 at 6:42 PM
    #74
    Greedo

    #74
    Greedo Active Member

    Joined:
    Jun 11, 2013
    Member:
    #106088
    Messages:
    28
    Gender:
    Male
    First Name:
    Rex
    Vehicle:
    2016 D-Cab TRD Off-Road Magnetic Gray Metallic
    Toyotec Boss 2" lift & level, UWS black chest/toolbox, Xeon Led interior lighting, Toyota bed mat, Gentex Homelink Mirror, predator step bars, black TACOMA tailgate lettering.
    Shout out for this as mine were discolored as well, and I was confused. Installed the 12v converter, just waiting on the dash cam

    Greedo, Jul 7, 2021
    #74
    m3bassman[QUOTED] likes this.
  15. Nov 19, 2021 at 12:11 PM
    #75
    MR E30

    #75
    MR E30 Well-Known Member

    Joined:
    Oct 22, 2018
    Member:
    #270223
    Messages:
    2,093
    Gender:
    Male
    First Name:
    Michael
    Wherever it's parked
    Vehicle:
    2021 Silver TRD OR DCLB w/ AluCab and All the Mods
    I'm doing the same thing, but in my 2021. I also have a few brown wires, and a couple of white w/ black striped wires in the bundle that runs to the rearview mirror. My harness in that location does not look like the photos posted throughout this thread.

    Did you ever figure this out? I suppose I could wrench apart the wires that run down to the rearview mirror and find them that way, but it's tight up there and there is so much glue holding things together that I am worried about damaging things.

    MR E30, Nov 19, 2021
    #75
  16. Nov 19, 2021 at 12:15 PM
    #76
    poopshute

    #76
    poopshute Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19385
    Messages:
    720
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Tacoma TRD Pro Storm Trooper
    Honestly, the best way to determine this is to use a volt meter and a needle (sewing needle to poke through the insulation and to make contact with the wire). There's definitely a switched wire under there as well as constant. I got a dash camera that needed to be on constant power instead of switched and was able to find it fairly quickly using a volt meter. In my 2017, the brown was switched and the blue was constant. I used the colors going into the plug for the powered rear view mirror to help me get started on what wires to check.

    poopshute, Nov 19, 2021
    #76
  17. Nov 19, 2021 at 1:19 PM
    #77
    caribe makaira

    #77
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,424
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Touch the rear of the terminals at the connector where the wires exit for circuit verification with a multimeter probe.
    The wires differ in color, verify slot locations.
    Toyota has ground wire as white with black trace throughout the vehicle.

    caribe makaira, Nov 19, 2021
    #77
  18. Jul 11, 2022 at 10:53 AM
    #78
    cjpeavy

    #78
    cjpeavy Member

    Joined:
    Jul 5, 2022
    Member:
    #400720
    Messages:
    6
    Gender:
    Male
    First Name:
    Joel
    Vehicle:
    2017 Silver Tacoma SR5
    Subbed! Great freaking thread.

    cjpeavy, Jul 11, 2022
    #78
  19. May 27, 2023 at 1:10 PM
    #79
    dtrantaco

    #79
    dtrantaco Well-Known Member

    Joined:
    May 25, 2019
    Member:
    #294360
    Messages:
    100
    Gender:
    Male
    Great post! Thanks!

    dtrantaco, May 27, 2023
    #79
