Discussion in '2nd Gen. Tacomas (2005-2015)' started by misc, Nov 9, 2008.

Page 90 of 115
  1. Sep 10, 2015 at 1:09 PM
    #1781
    smitty9190

    #1781
    smitty9190 Member

    Joined:
    Dec 27, 2014
    Member:
    #145064
    Messages:
    5
    Gender:
    Male
    First Name:
    shawn
    germany
    Vehicle:
    09 trd sport
    6" procomp lift, flowmaster exhaust, 35" toyo open country m/t
    pictures don't work for me. does anyone have a different link to the pictures or could someone send them to me. any help is appreciated

    smitty9190, Sep 10, 2015
    #1781
  2. Sep 10, 2015 at 5:07 PM
    #1782
    NBBAZ

    #1782
    NBBAZ Well-Known Member

    Joined:
    Jan 19, 2013
    Member:
    #95541
    Messages:
    132
    Gender:
    Male
    Arizona
    Vehicle:
    2010 Toyota Tacoma DCSB Sport 4x4
    I just did this fix last weekend. When I opened her up I found the previous owner had done this fix before (messy soldering job). I re-did it and BAM, works again. I expect it to be needing to be re-done periodically, as it seems to be a design flaw based on how often people complain about it. Mine has been working intermittently for 6 months.

    NBBAZ, Sep 10, 2015
    #1782
  3. Sep 11, 2015 at 3:23 PM
    #1783
    06tacodude

    #1783
    06tacodude Well-Known Member

    Joined:
    Nov 18, 2009
    Member:
    #26149
    Messages:
    65
    Gender:
    Male
    First Name:
    IG: @go_nesw
    Morgan Hill, CA
    Vehicle:
    06 TRD Sport 4x4
    Icon Stage 4, TC UCA, K&N filter, SG-II, Relentless Fabrication bumpers, RCI Sliders and tank skid, BajaDesigns LED, URDMAF, 4.56 Yukon Gears, Rear ARB locker, ARB dual air compressor, RLD cap, Prinsu cab rack, FNWheels Six Shooter.

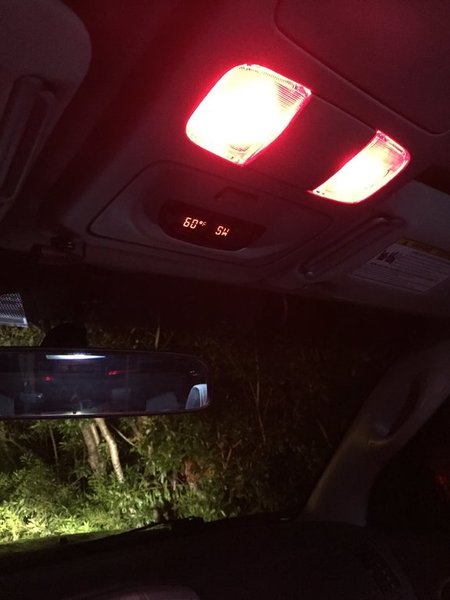

    We have been in the high 90s even 100+ in some areas ... so far the overhead temp display is holding up.

    06tacodude, Sep 11, 2015
    #1783
  4. Sep 12, 2015 at 7:14 AM
    #1784
    ThunderCookies

    #1784
    ThunderCookies This is the Wait

    Joined:
    May 11, 2015
    Member:
    #155046
    Messages:
    8,907
    Gender:
    Male
    First Name:
    Jon
    North Carolina
    Vehicle:
    06 Wolfpack Edition
    5100s at 2.5 setting up front 5100s with 2" AAL around back TC Uniball UCAs 285/70/17 Fierce Attitude M/T SCS Ray 10s 17” 14" Magnaflow w/3.5" Stainless Tip SOS aluminum armor front bumper SOS high clearance rear bumper Stealth grill light bar and pods 4" Westin Nerf Bars Weathertech in-channel visors Window tint Bed Mat Proven Ground Locking Roll-Up Tonneau Cover All-weather rubber floor mats Custom Wolfpack TRD Decal TOYOTA Vintage Tailgate Decal 4 Wheel Drive vintage decal Tailgate Anti-Theft Mod Bed Mat Anti-Theft Mod Sliding back glass Anti-Theft Mod Future Mods: Bedside bottle opener Bedside storage lock/key mod Bed pod lights
    Tagged this post when my compass quit working back in May and have been waiting for a day to finally try and fix it. After having to google how to solder as I had never done so before this fix was so easy. I had all the tools and materials needed in my shop so it was a free simple fix. Thanks for the great instructions!

    ThunderCookies, Sep 12, 2015
    #1784
  5. Sep 14, 2015 at 2:49 PM
    #1785
    Nominal

    #1785
    Nominal Member

    Joined:
    Sep 13, 2015
    Member:
    #164188
    Messages:
    7
    Gender:
    Male
    Arlington, TX
    Vehicle:
    2007 DCSB 4X4, TRD Sport, Factory Towing Package
    A big thanks to everyone who posts solutions like this. I had planned to take this apart for more than a year, thinking I'd need to sand a little corrosion from some contacts. If I'd have dropped the console before reading this thread, I probably would have wasted a lot of money on a whole new console.

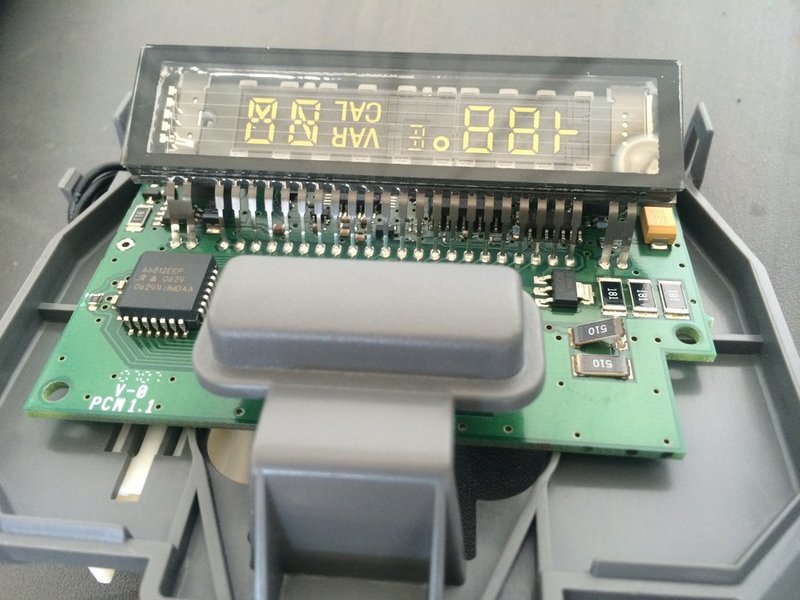

    Here a picture of mine after I removed it. The bent resistor is exactly how I found it. The other resistor bent the same way with just light pressure. You can also see the tell-tale heat damage on the corner of the display. It doesn't show when installed. All in all, this was a twenty minute fix.



    Nominal, Sep 14, 2015
    #1785
  6. Sep 21, 2015 at 3:18 PM
    #1786
    08TacoTrD

    #1786
    08TacoTrD Well-Known Member

    Joined:
    Oct 30, 2008
    Member:
    #10385
    Messages:
    1,598
    Gender:
    Male
    Vehicle:
    08 TRD Offroad
    5100's and 883 OME Coils TRD Exhaust Deaver 1.5" AAL Rear Differential Breather Extension, 4WD Light, Tailgate Pipe clamp, Fog lights on while High Beams on, Carrier Bearing flip
    Had to solder one end a few years ago and yesterday it went black again. Pulled it down and now both of them were popped up. A bit of solder and right now it works.

    Last edited: Sep 21, 2015
    08TacoTrD, Sep 21, 2015
    #1786
    CanuckPT likes this.
  7. Sep 21, 2015 at 3:20 PM
    #1787
    pudge151

    #1787
    pudge151 Well-Known Member

    Joined:
    Apr 4, 2010
    Member:
    #34558
    Messages:
    4,066
    Gender:
    Male
    First Name:
    Sean
    Connecticut
    Vehicle:
    2015 Tundra Platinum
    I did this a few weeks ago. $4 solder iron and $2 solder from harbor freight and 10 minutes of my time. Worked perfect

    pudge151, Sep 21, 2015
    #1787
    CanuckPT likes this.
  8. Sep 22, 2015 at 12:07 AM
    #1788
    Taco Fan

    #1788
    Taco Fan Well-Known Member

    Joined:
    Jul 24, 2013
    Member:
    #108980
    Messages:
    302
    Gender:
    Male
    Fort Worth, TX
    Vehicle:
    2017 White TRD PRO AT 5 ft bed
    Console Organizer, black tailgate letters, chrome glove box letters.
    Exactly! I have a 2014...temp is now in a weather app that pulls the info from a local weather station instead of just telling you the temperature outside the truck?!! Drove 300 miles in 31-33 rain. Would have been nice to know. Toyota shouldn't have "fixed" what wasn't broken...o/h console time and temp.

    Taco Fan, Sep 22, 2015
    #1788
  9. Sep 26, 2015 at 5:44 AM
    #1789
    US1973MC

    #1789
    US1973MC Well-Known Member

    Joined:
    Sep 25, 2015
    Member:
    #165157
    Messages:
    49
    Gender:
    Male
    First Name:
    Greg
    Vehicle:
    2007 4wd Taco Access
    K&N, XM, Trifecta Tonneau
    I gotta go do this, my 07 display has been out for 3 years now. Makes me Nucking Futs..

    US1973MC, Sep 26, 2015
    #1789
    mightym likes this.
  10. Oct 19, 2015 at 4:52 PM
    #1790
    hcm

    #1790
    hcm Well-Known Member

    Joined:
    Apr 18, 2015
    Member:
    #153444
    Messages:
    539
    Gender:
    Male
    Vehicle:
    2007 AC 4x4 TRD Offroad
    I know the op hasn't been on tacomaworld for years, but this mod (fix) was a huge help.

    hcm, Oct 19, 2015
    #1790
  11. Oct 20, 2015 at 6:12 AM
    #1791
    oldstick

    #1791
    oldstick Medicare Member

    Joined:
    Feb 17, 2011
    Member:
    #51331
    Messages:
    1,026
    Gender:
    Male
    GA
    It is a design flaw. Replace the two resistors with the equivalent axial/wire type that can handle a lot more power (heat dissipation) and you will have a more permanent fix. There are examples and pictures earlier in the thread. Also I believe some were offering to do it for a reasonable fee.

    oldstick, Oct 20, 2015
    #1791
  12. Nov 3, 2015 at 10:48 AM
    #1792
    BLACK08TRD

    #1792
    BLACK08TRD Active Member

    Joined:
    Oct 25, 2015
    Member:
    #167609
    Messages:
    28
    Gender:
    Male
    New Brunswick, Canada
    Vehicle:
    2008 Toyota Tacoma TRD Double Cab - Black

    Awesome, good to know! I had mine replaced under warranty.

    BLACK08TRD, Nov 3, 2015
    #1792
  13. Nov 8, 2015 at 2:13 PM
    #1793
    DSduce

    #1793
    DSduce Member

    Joined:
    Aug 3, 2015
    Member:
    #160922
    Messages:
    6
    Gender:
    Male
    Southeast US
    Vehicle:
    2011 Tacoma TRD Off-Road
    3" lift, Wheels and Tires.
    1st mod I did. Too easy, just take your time and get a friend to help. Or take it apart and let someone who knows how to solder do the repair. Then you reassemble.

    DSduce, Nov 8, 2015
    #1793
  14. Nov 8, 2015 at 3:08 PM
    #1794
    Davcos

    #1794
    Davcos Member

    Joined:
    Sep 21, 2015
    Member:
    #164795
    Messages:
    13
    Gender:
    Male
    Clarington,Ontario
    Vehicle:
    05 Taco TRD
    Just did mine today, previous owner said it had been out for a few years. Nice & easy 10 minute fix

    Davcos, Nov 8, 2015
    #1794
  15. Nov 16, 2015 at 3:01 PM
    #1795
    hkbeliever

    #1795
    hkbeliever Well-Known Member

    Joined:
    Mar 1, 2010
    Member:
    #32341
    Messages:
    58
    Gender:
    Male
    Western Colorado
    Vehicle:
    TRD sport
    anyone know what the metal clips that hold in the assembly are called or where I can get them? One flicked into the roof liner somewhere...

    hkbeliever, Nov 16, 2015
    #1795
  16. Nov 20, 2015 at 9:37 AM
    #1796
    RickG

    #1796
    RickG It seemed like a good idea at the time...

    Joined:
    Feb 13, 2010
    Member:
    #31287
    Messages:
    367
    Gender:
    Male
    Southern NH
    Vehicle:
    2010 SR5 4x4 Pyrite Mica
    Color matched grille, Access tonneau, OEM Temp/compass, De-badged, OEM hitch, Custom rear storage/dog deck, LED foot well lighting, Illuminated 4x4 switch
    One of mine did that too... went zinging off over the passenger side of the headliner. Try this: get a good sized magnet and run it around the headliner for a bit then move it back towards the console hole. The clip will probably be right there with it. That recovered mine.

    Last edited: Dec 8, 2015
    RickG, Nov 20, 2015
    #1796
  17. Nov 20, 2015 at 9:42 AM
    #1797
    cabo wabo

    #1797
    cabo wabo Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83370
    Messages:
    2,620
    Gender:
    Male
    First Name:
    billy
    virginia
    Vehicle:
    2019 dbc short bed trd sport
    excellent write up

    cabo wabo, Nov 20, 2015
    #1797
  18. Dec 17, 2015 at 11:30 AM
    #1798
    inept

    #1798
    inept New Member

    Joined:
    Dec 17, 2015
    Member:
    #172447
    Messages:
    3

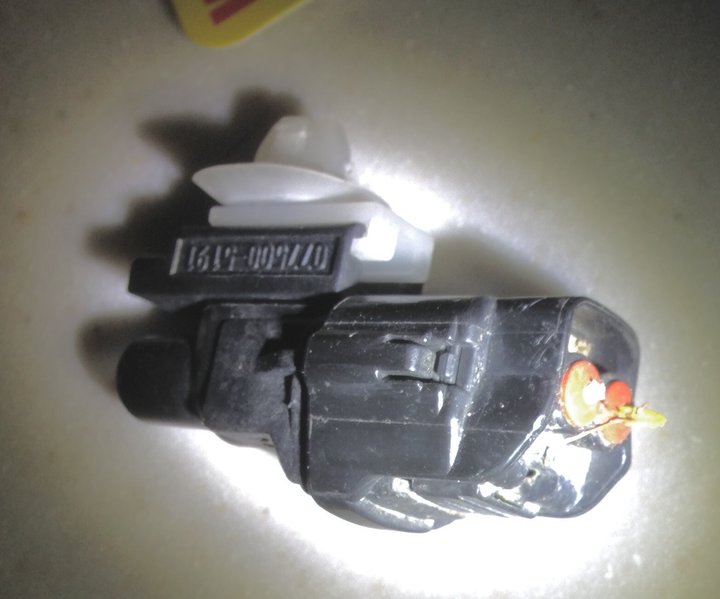

    FullSizeRender 3.jpg My problem is the thermometer reads just dashes but the compass is fine. I took out the display, no sign of cracks in the 510s but I re-soldered anyway. Still no temperature reading, just the dashes. Pressing the 510s while installed doesn't do anything either. Pressing the button shows ˚F, ˚C and v as it should. Is it possible my temperature sensor is shot? 2009 with off-road pkg. Thank you!

    OK FOUND THE PROBLEM. Looks like mice shredded the wire right at the sensor!?

    NEW QUESTION - any way to fix the harness or do I buy a new one? Thanks!

    Last edited: Dec 17, 2015
    inept, Dec 17, 2015
    #1798
  19. Dec 17, 2015 at 3:44 PM
    #1799
    othater

    #1799
    othater Well-Known Member

    Joined:
    Aug 22, 2009
    Member:
    #21558
    Messages:
    355
    Gender:
    Male
    SoCal-Walnut
    Vehicle:
    06 Prerunner SR5 TRD Sport
    Pull the connector and remove the wire boot.
    You may be able to open the pin and crimp new wire so you can piece it out with a pigtail.
    There's a thread that shows it with a rear camera connector.
    If I find it, I will post the link.

    othater, Dec 17, 2015
    #1799
  20. Dec 17, 2015 at 3:48 PM
    #1800
    othater

    #1800
    othater Well-Known Member

    Joined:
    Aug 22, 2009
    Member:
    #21558
    Messages:
    355
    Gender:
    Male
    SoCal-Walnut
    Vehicle:
    06 Prerunner SR5 TRD Sport
    othater, Dec 17, 2015
    #1800
    inept likes this.
