overriding video feed to rear view mirror screen

Discussion in '2nd Gen. Tacomas (2005-2015)' started by twoboxen, Sep 13, 2011.

  1. Sep 13, 2011 at 11:02 AM
    #1
    twoboxen

    twoboxen [OP] Well-Known Member

    Joined:
    Jul 18, 2011
    Member:
    #60130
    Messages:
    52
    Gender:
    Male
    I have see the posts about overriding the rev line to the backup camera with a switch to have the ability to turn this screen on at any time.

    has anyone taken this another step and intercepted the video feed? It is likely just an analog feed (probably rca). It would be great to put a video switch (maybe tied to a rotating, discrete position knob installed in a blank).

    I would also install an aux RCA video input near the aux audio input. You could hook up a smartphone or ipod to this (navigation in stock mirror?).

    other uses
    - a small camera facing down on rear seats to watch your kids in rear facing seats
    - forward facing camera under the rear bumper to get a ground view of the terrain and clearance
    - cheaper handheld GPS unit with video out


    I haven't even bought my taco yet (next week), but this is my style of project. Also, I heard that the resolution went up for the 2012 (I know the screen size went from 2.7" to 3.3", but wasn't sure about res numbers).

  2. Sep 13, 2011 at 1:13 PM
    #2
    twoboxen

    twoboxen [OP] Well-Known Member

    Joined:
    Jul 18, 2011
    Member:
    #60130
    Messages:
    52
    Gender:
    Male
    can you also mod that? :)

  3. Sep 13, 2011 at 1:35 PM
    #3
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,357
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Hey OP, I found the connectors for the video camera right on the fuse block next to your knee in the cab. There is a junction point, which makes the mod very easy to do if you want to.

    See post #1 for a wiring diagram and post #13 for a pictures.
    09 Always-On Rear View Camera Wiring diagram (check my work)

  4. Sep 13, 2011 at 6:24 PM
    #4
    twoboxen

    twoboxen [OP] Well-Known Member

    Joined:
    Jul 18, 2011
    Member:
    #60130
    Messages:
    52
    Gender:
    Male
    Probably more of a safety feature so you dont get distracted. the screen is less suseptible to burn in since it is an lcd. crts and plasmas are the screens to worry about.

  5. Sep 13, 2011 at 6:50 PM
    #5
    twoboxen

    twoboxen [OP] Well-Known Member

    Joined:
    Jul 18, 2011
    Member:
    #60130
    Messages:
    52
    Gender:
    Male
    i see the wiring harness... it doesnt seem like anyone has probed the actual video line--only the power line. ill have to give this a go it seems.

  6. Sep 15, 2011 at 2:18 PM
    #6
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,357
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions

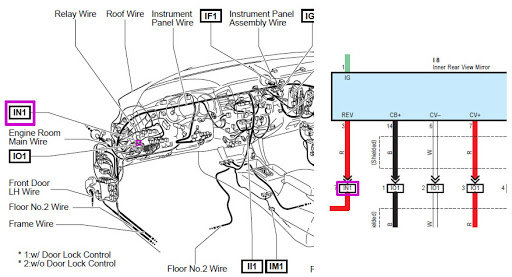

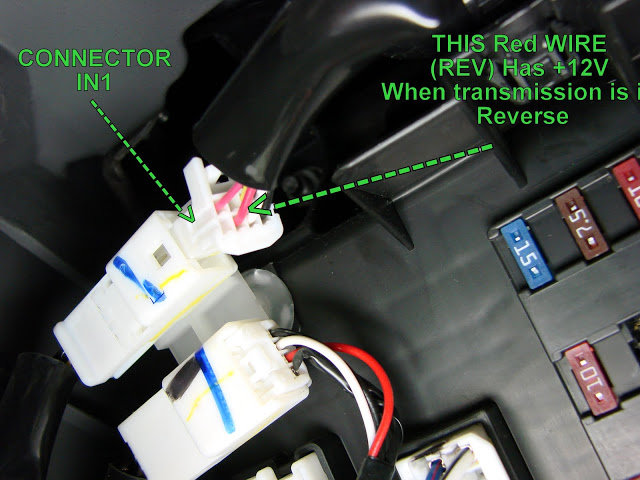

    The video line is contained in connector IO1 which is just below connector IN1. FWIW, I have read reports of aftermarket devices using the video feed. If you search you may find a thread or two on the subject. Good luck with it.

    [​IMG][​IMG]

    [​IMG]
