owners manual, 4x4 question?

Discussion in '1st Gen. Tacomas (1995-2004)' started by bhh2000, Dec 18, 2010.

  1. Dec 18, 2010 at 1:10 PM
    #1
    bhh2000

    bhh2000 [OP] Well-Known Member

    Joined:
    Dec 18, 2010
    Member:
    #47888
    Messages:
    238
    Gender:
    Male
    First Name:
    Ben
    NorCal
    Vehicle:
    96 3.4 maroon ext cab. 4X4
    Hi, I recently got my first taco and am very happy with it! but had a questions about the 4x4 system in. My last truck a GMC had electronic 4x4 and I knew I could put it in to 4hi at any speed under about 60. but how does it work with the lever in the Tacoma? do I have to be stopped? or can I do it at any speed?

    I would of looked it up the the owners manual but I am the third owner and I don't have it so if anyone has a PDF of one for a 1996 SR5 I would appreciate it if you could post it.

    Thanks.

  2. Dec 18, 2010 at 2:50 PM
    #2
    goomba

    goomba It is a Fluid Situation

    Joined:
    Sep 3, 2010
    Member:
    #42666
    Messages:
    1,216
    Gender:
    Male
    First Name:
    Josh
    San Antonio Fl
    Vehicle:
    96 White Ex. Cab Tacoma TRD 4X4
    3" lift Up front(Donahoe Racing ext. travel coil overs, Camburg UCA's), 1.5-2" lift in the back(aal and some billy 10" stroke short bodies), Bushwhacker Cut-Out fender flairs, 16"x10" Procomp Street locks, and 305/70 Procomp X-Terrains.
    You can shift into 4H only if you are under 50 mph. You can shift out of 4H to 2H at any speed as long as you keep up your speed or slightly speed up. If you want to go into 4L you have to be stooped and in neutral with your foot off the break and not moving.

    It could sound like it is slamming out of 4H of 4L if you have not used the 4wd in a long time. Toyota recommends you drive in 4wd 10 miles every month so your 4wd drive-train stays lubed up.

    EDIT: had to change speed to engage 4WD because if you have a leaver with no button you have to be going less than 50 mph to engage it.
    If you have a button you can be going 62 and under to engage 4WD. That is the only difference.

  3. Dec 18, 2010 at 2:52 PM
    #3
    Unknown

    Unknown He who angers you conquers you

    Joined:
    Apr 18, 2010
    Member:
    #35554
    Messages:
    8,158
    Gender:
    Male
    First Name:
    Brian
    Los Angeles
    Vehicle:
    Unknown
    Unknown
    I always stop and put it on N, then i'll switch it to HI4

  4. Dec 18, 2010 at 2:57 PM
    #4
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,936
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    The OP has a 1996... are you sure? If he has an ADD perhaps... If he has manual hubs, then maybe not.

    Isn't there a web site that has all the old Tacoma manuals online to see?

  5. Dec 18, 2010 at 3:00 PM
    #5
    goomba

    goomba It is a Fluid Situation

    Joined:
    Sep 3, 2010
    Member:
    #42666
    Messages:
    1,216
    Gender:
    Male
    First Name:
    Josh
    San Antonio Fl
    Vehicle:
    96 White Ex. Cab Tacoma TRD 4X4
    3" lift Up front(Donahoe Racing ext. travel coil overs, Camburg UCA's), 1.5-2" lift in the back(aal and some billy 10" stroke short bodies), Bushwhacker Cut-Out fender flairs, 16"x10" Procomp Street locks, and 305/70 Procomp X-Terrains.
    ^^ ya if you have hubs you have to be going 25mph or less to engage 4WD. Sorry.

  6. Dec 19, 2010 at 12:06 AM
    #6
    BoostingMS6

    BoostingMS6 Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43565
    Messages:
    780
    Gender:
    Male
    First Name:
    Alex
    El Paso, TX
    Vehicle:
    1995.5 Tacoma Xtra Cab V6
    Whaaaaaat? :confused:

  7. Dec 19, 2010 at 12:15 AM
    #7
    tacomadude18

    tacomadude18 Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43595
    Messages:
    508
    Gender:
    Male
    First Name:
    carlitos
    Glenwood Springs, CO
    Vehicle:
    SR5 TRD Sport DCLB
    AFE cold air intake,tinted windows, Snug top, Brand New XD Addicts 17x9 with a -12 offset. (hopefully get a 6 inch lift kit, also wanna get an exuast system..) new! Exelon Kenwood with 12" rockford punch
    wait so at any speed under 50 mph u can swith to 2 Wd. ( in other words if you were on 4hi)

  8. Dec 19, 2010 at 1:28 AM
    #8
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,000
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    You should be able to go onto toyotaowners.com and register a new account with your VIN and then download the PDF of the owners manual for your specific year.

    Also, you can get a two day license for complete online access to all the service guides for $15. They're not in a format that makes for convenient downloading, but it's good to know if you're taking on a major (or minor) job and want the most complete info.

  9. Dec 19, 2010 at 2:11 AM
    #9
    Unknown

    Unknown He who angers you conquers you

    Joined:
    Apr 18, 2010
    Member:
    #35554
    Messages:
    8,158
    Gender:
    Male
    First Name:
    Brian
    Los Angeles
    Vehicle:
    Unknown
    Unknown
    I have the owners manual, let me read it and ill let you know, btw mines a 95.5 so its the same .

  10. Dec 19, 2010 at 12:36 PM
    #10
    bhh2000

    bhh2000 [OP] Well-Known Member

    Joined:
    Dec 18, 2010
    Member:
    #47888
    Messages:
    238
    Gender:
    Male
    First Name:
    Ben
    NorCal
    Vehicle:
    96 3.4 maroon ext cab. 4X4
    Thanks guys I'll go get the manual from toyotaowners.com.

    I'm new to 4x4 trucks, I'm 16 and this is only my second vehicle what does manual hubs mean??

  11. Dec 19, 2010 at 1:19 PM
    #11
    BoostingMS6

    BoostingMS6 Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43565
    Messages:
    780
    Gender:
    Male
    First Name:
    Alex
    El Paso, TX
    Vehicle:
    1995.5 Tacoma Xtra Cab V6
    Manual versus automatic locking hubs. Manual hubs you have to get out of the truck, pop off the little hub caps, then switch the hubs to lock. Takes all of 5 seconds to do.

    Welcome to TW. Got an awesome truck at your age :)

  12. Dec 19, 2010 at 1:40 PM
    #12
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,936
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    There's plenty to read up... I will be happy to give you some tips or info on the various parts of four wheeling... It is a great world!

    HUBS:

    In short, to save wear and tear on the front drive parts and get better gas mileage, while you are in 2WD you can 'free-up' the front drive parts. In 2WD your rear tires do the driving... in 4WD you add in the front tires.

    To free up the front parts from rotating needlessly, locking 'hubs' are added (in the center of each front wheel at the end of the axle is a dial you rotate from lock to unlock free the front end up).

    Because some folks didn't want to get out and manually lock their hubs, 'automatic hubs' were invented... they would lock at the same time as you put the truck into 4WD. However, to unlock them... you had to drive in reverse a bit.

    A few years ago a newer system was invented called an ADD (Automatic locking Differential)... It still frees up most of the front drive parts and doesn't require backing up to dis-engage. This allows 'shift-on-the-fly' into and out of 4WD (high range).

    So, if you have locking hubs, you will need to go out and turn BOTH of them to lock before going into 4WD, and should unlock them when you are done four wheeling.

    If there is nothing on your front wheels to dial or rotate, then you probably have an ADD. Only the old WWII Jeeps seem to have non-locking hubs, so I doubt your truck is missing locking hubs or doesn't have an ADD.

  13. Dec 19, 2010 at 1:51 PM
    #13
    Unknown

    Unknown He who angers you conquers you

    Joined:
    Apr 18, 2010
    Member:
    #35554
    Messages:
    8,158
    Gender:
    Male
    First Name:
    Brian
    Los Angeles
    Vehicle:
    Unknown
    Unknown
    are you auto or stick?

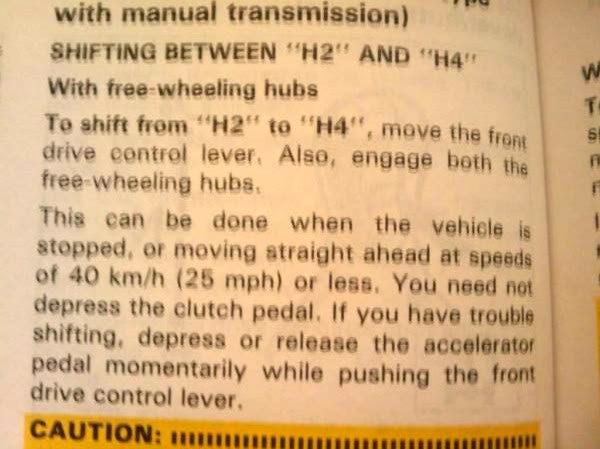

    [​IMG]

  14. Dec 19, 2010 at 2:01 PM
    #14
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,936
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags

    [​IMG]

    easier to read?

  15. Dec 19, 2010 at 2:12 PM
    #15
    Unknown

    Unknown He who angers you conquers you

    Joined:
    Apr 18, 2010
    Member:
    #35554
    Messages:
    8,158
    Gender:
    Male
    First Name:
    Brian
    Los Angeles
    Vehicle:
    Unknown
    Unknown
    I rather just type it here...

    Shifting procedures (Lever/button type with automatic transmission)

    SHIFTING BETWEEN "H2" AND "H4"

    To shift from "H2" to "H4", reduce your speed to less then 100 km/h (62MPH) and "4WD" button.

    If the indicator light does not come on when you push in the "4WD" button, drive straight ahead while accelerating or decelerating.

    If the indicator light flashes and the buzzer sounds when you push in the "4WD" button, reduce your speed or stop the vehicle and reset.

    In extremely cold conditions, the transfer may not shift even if you push in the "4WD" button while driving. This is to protect the transfers. Stop the vehicle and try again.




    Page 69

  16. Dec 20, 2010 at 6:20 AM
    #16
    goomba

    goomba It is a Fluid Situation

    Joined:
    Sep 3, 2010
    Member:
    #42666
    Messages:
    1,216
    Gender:
    Male
    First Name:
    Josh
    San Antonio Fl
    Vehicle:
    96 White Ex. Cab Tacoma TRD 4X4
    3" lift Up front(Donahoe Racing ext. travel coil overs, Camburg UCA's), 1.5-2" lift in the back(aal and some billy 10" stroke short bodies), Bushwhacker Cut-Out fender flairs, 16"x10" Procomp Street locks, and 305/70 Procomp X-Terrains.
    No you can be going at any speed if you are to shift out of 4H.

  17. Dec 20, 2010 at 8:46 AM
    #17
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,936
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    What is the difference between shifting OUT of H4 or shifting into 2WD??? Isn't that the same thing?

    Remember to note the YEAR of his truck... he may not have the ADD (shift-on-the-fly) and the older 25 mph or less instructions posted above might apply.

  18. Dec 20, 2010 at 8:50 AM
    #18
    98tacoma27

    98tacoma27 is gooder 'en chicken Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    49,771
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+250k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED)
    5100's all on fours

    These are free.

    http://www.ncttora.com/fsm/
