Passenger Door Smart Key System

Discussion in '3rd Gen. Tacomas (2016+)' started by Victory, Apr 22, 2018.

  1. Mar 7, 2019 at 7:12 AM
    #441
    MAS

    MAS Well-Known Member

    Joined:
    Dec 14, 2018
    Member:
    #275771
    Messages:
    202
    Gender:
    Male
    Va Beach
    Vehicle:
    2017 Tacoma TRD Off-Road

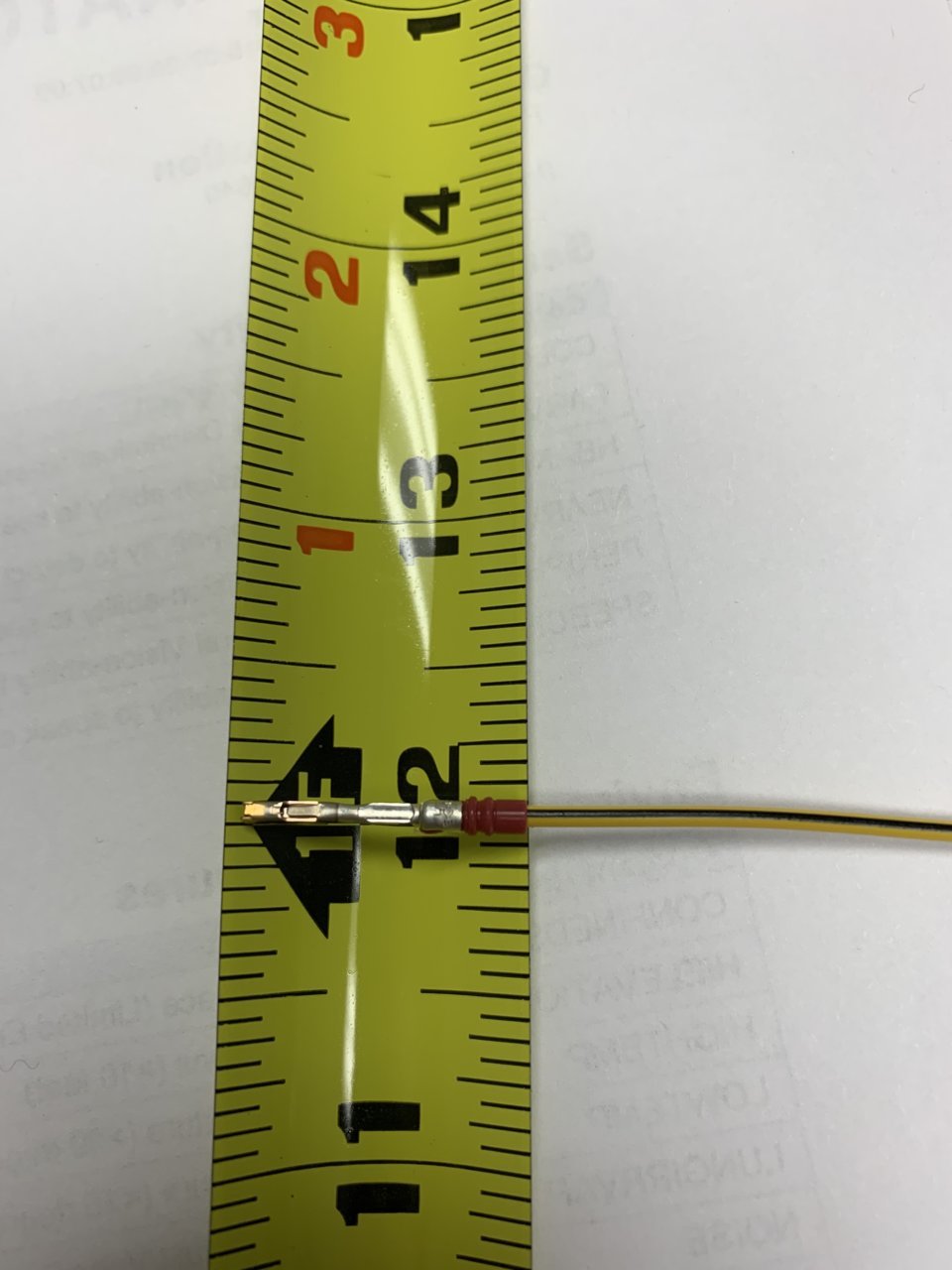

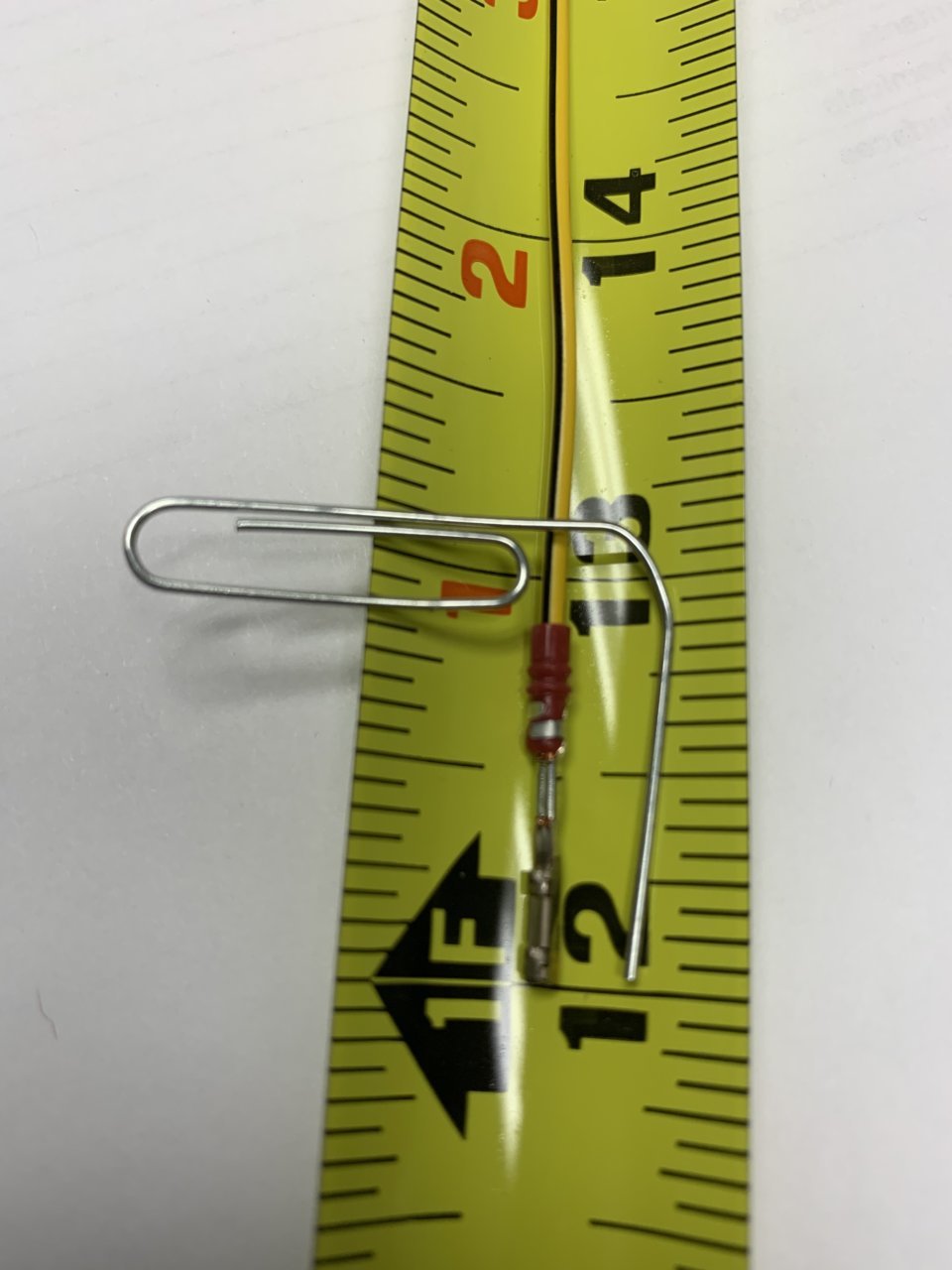

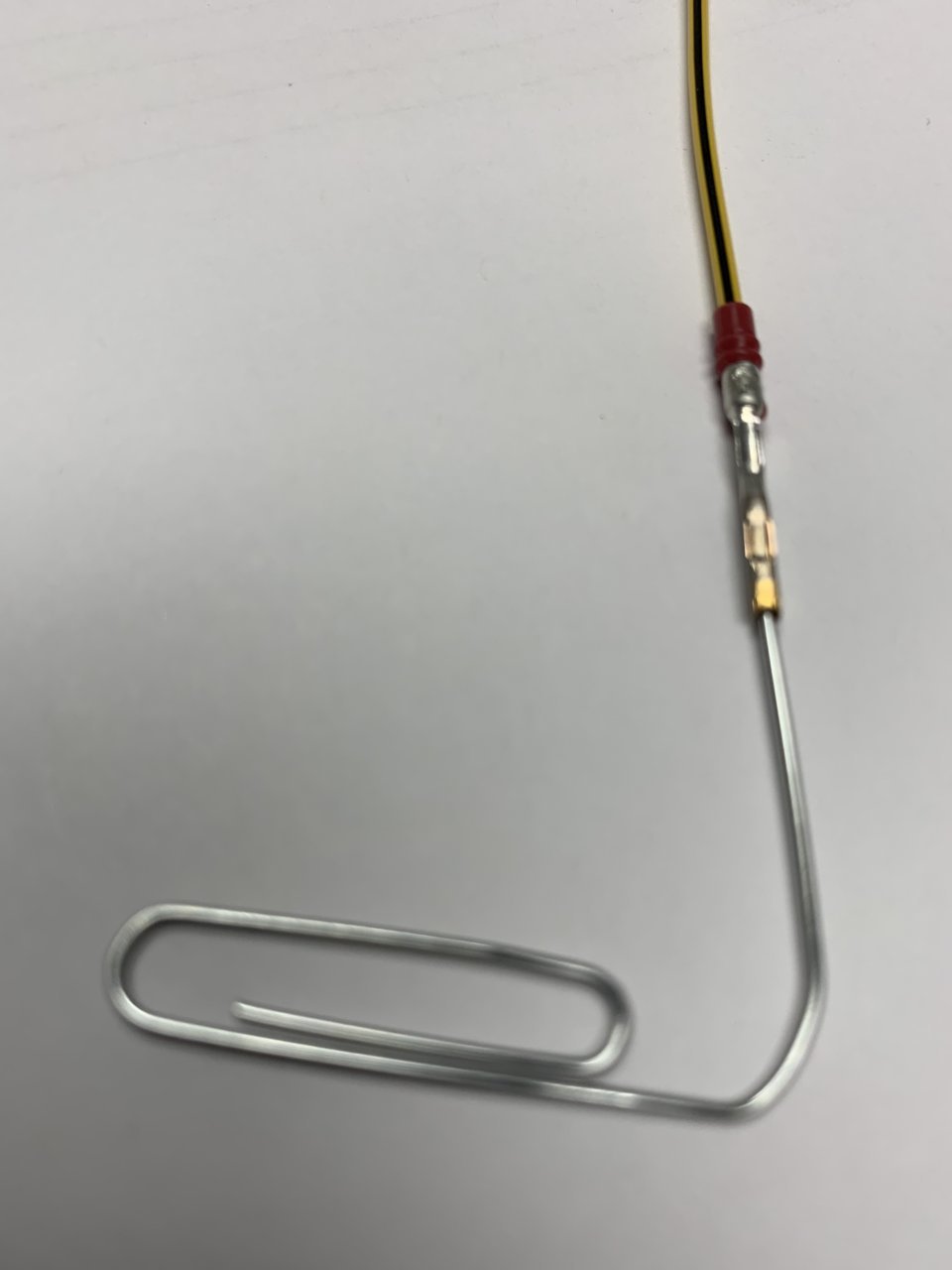

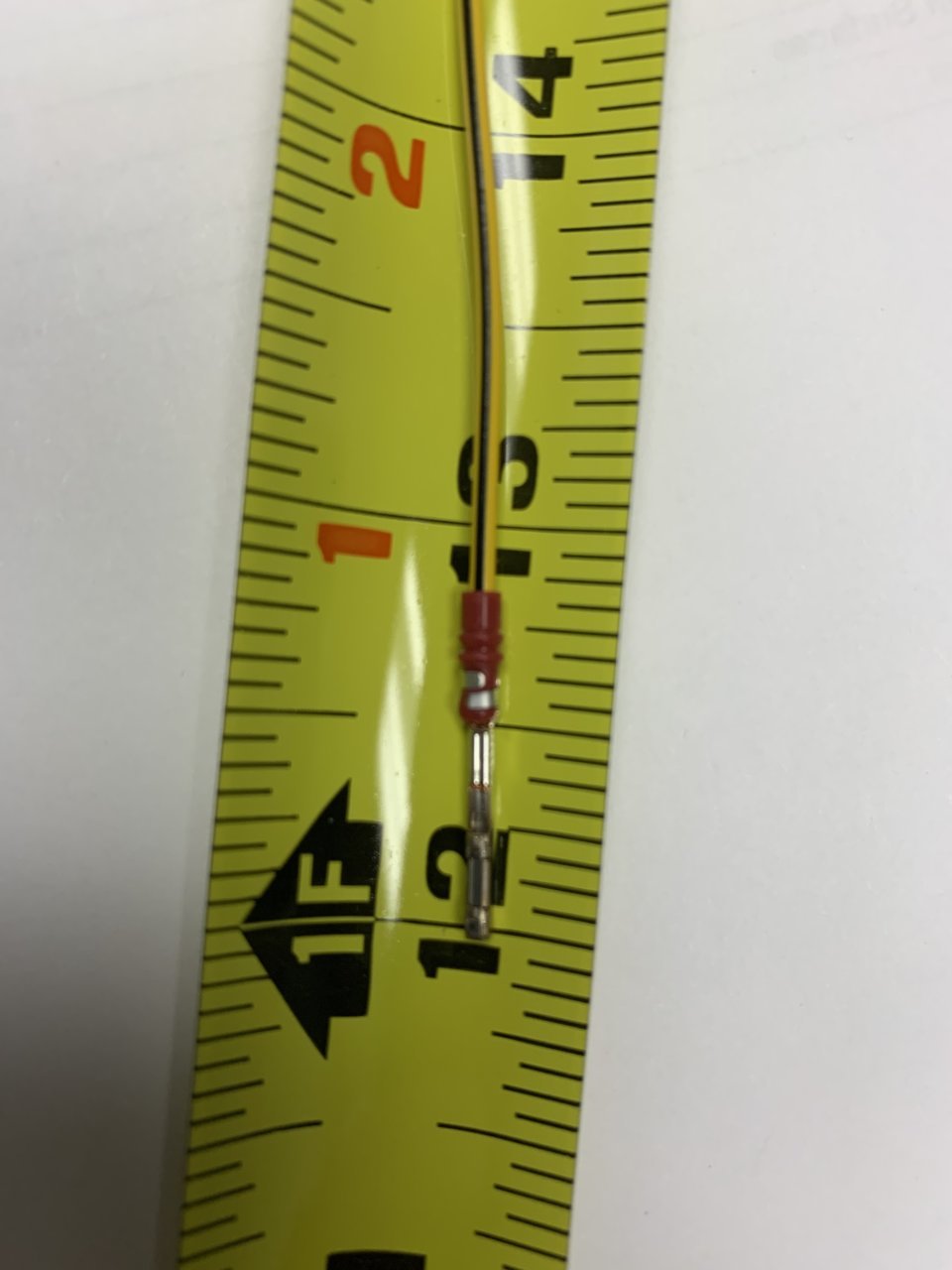

    Here’s a couple of pictures. I’m not sure if they will help. The paper clip is a size #1 (small).
    DAC2CCF0-D715-49B1-A06A-B71C1A50FF32.jpg E0185F2E-1C74-48E0-A3E6-0D131D8F4DC3.jpg C60C22C2-F9C3-47C2-82B6-6F3CDA92FFED.jpg 1F95648D-26FA-422E-8226-8A58043F47F0.jpg image.jpg The pins in the door handle are roughly 1/4” to 3/8” long and maybe 1/64” thick. They’re recessed in the handle and hard to get measurements or good pictures. Hope this helps.

  2. Mar 7, 2019 at 7:16 AM
    #442
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    1,736
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    If you want more accurate dimensions, you could pull the one out from the Driver side door handle. Might give you more info then what you can get from pictures.

    MAS likes this.
  3. Mar 7, 2019 at 9:35 AM
    #443
    treimche

    treimche Well-Known Member

    Joined:
    Dec 2, 2016
    Member:
    #203883
    Messages:
    817
    Gender:
    Male
    Fargo, ND
    Vehicle:
    3rd Gen Tacoma Accessories for sale!
    @MAS Thanks for the pics!

    I actually took some time and dissected the driver's side door handle connector, and ended up finding some pins and wires that will work perfectly. I'll post a bunch of pics later on tonight after work. So it turns out that I have a bunch of these pins w/ wires attached, and can sell them for much less than what Toyota wants for theirs. Also, there is a wire cover that snaps onto the connector and the wires attach to it in order to protect them inside the door. I have pics of that part, and the part number that I'll share too.

  4. Mar 7, 2019 at 10:21 AM
    #444
    Double Phister

    Double Phister Punch it Chewie

    Joined:
    Jul 23, 2017
    Member:
    #224795
    Messages:
    514
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    2017 DCSB TRD OR
    I'm hoping the 2020's will have this as an option so I can retrofit the brains too. I don't want all of the doors to unlock when I unlock the drivers door. MY wife's Forester also has keyless entry on the hatch. It's just an antenna and two rubberized buttons (open and lock). Keyless on the Taco tailgate would be sick too.

    MAS likes this.
  5. Mar 7, 2019 at 10:39 AM
    #445
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    1,021
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    It has been confirmed that 2020s will have passenger door handle included in the Smart Key system.
    Retrofitting the Smart Key computer will most likely be big money though.

  6. Mar 7, 2019 at 11:58 AM
    #446
    Omarats

    Omarats Active Member

    Joined:
    Oct 26, 2018
    Member:
    #270696
    Messages:
    35
    Gender:
    Male
    First Name:
    Tom
    Vehicle:
    2018 White Tacoma Limited
    I will be doing this mod soon and look forward to what you find out. These pins are fairly cheap, but I know how difficult it is to try and find ones compatible.

    Thanks!
    Tom

  7. Mar 12, 2019 at 1:08 PM
    #447
    Toms 17

    Toms 17 Well-Known Mumbler

    Joined:
    Sep 22, 2017
    Member:
    #230753
    Messages:
    257
    Gender:
    Male
    First Name:
    Tom
    Central Ohio
    Vehicle:
    17 MGM DCSB TRD Sport

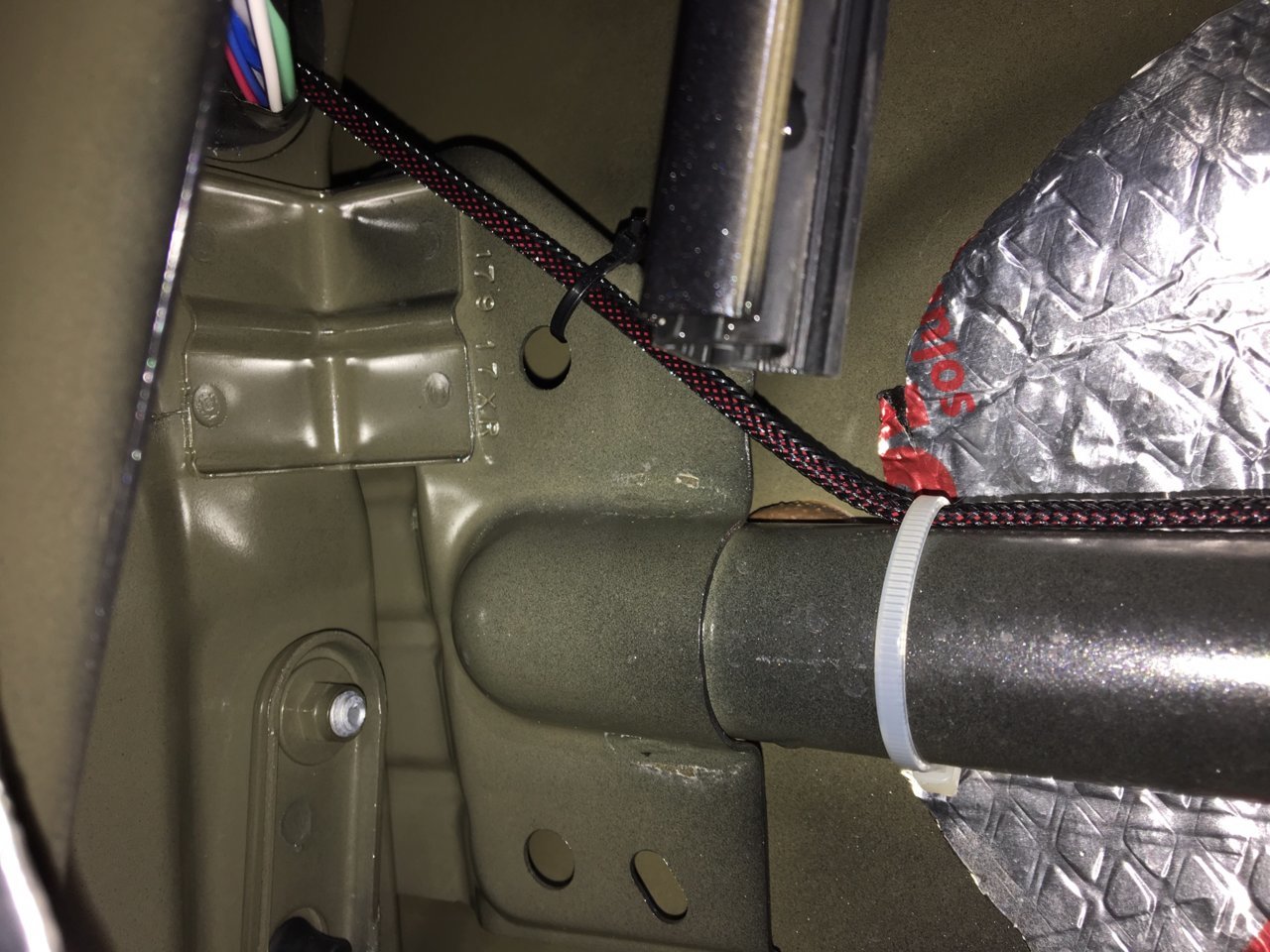

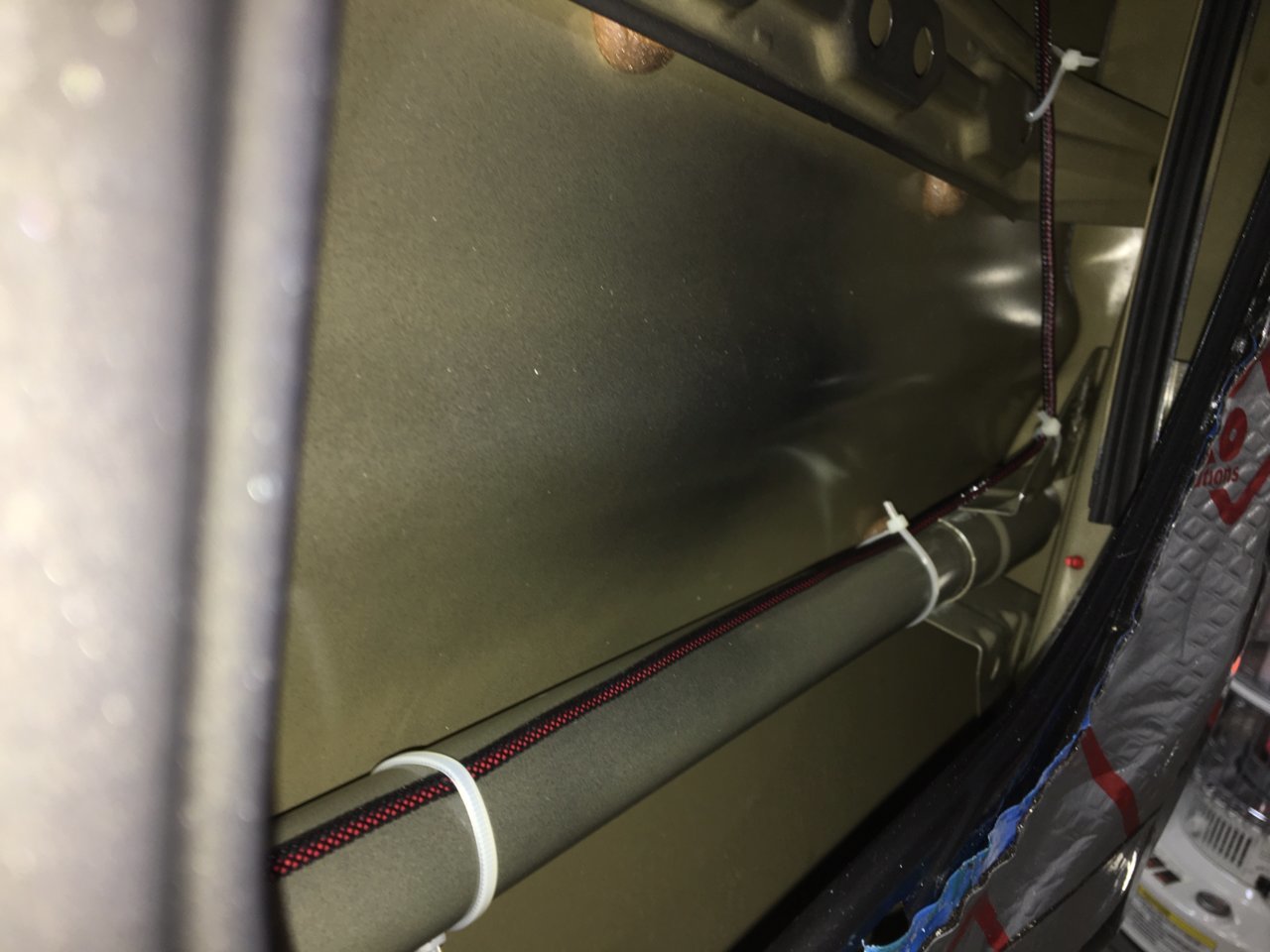

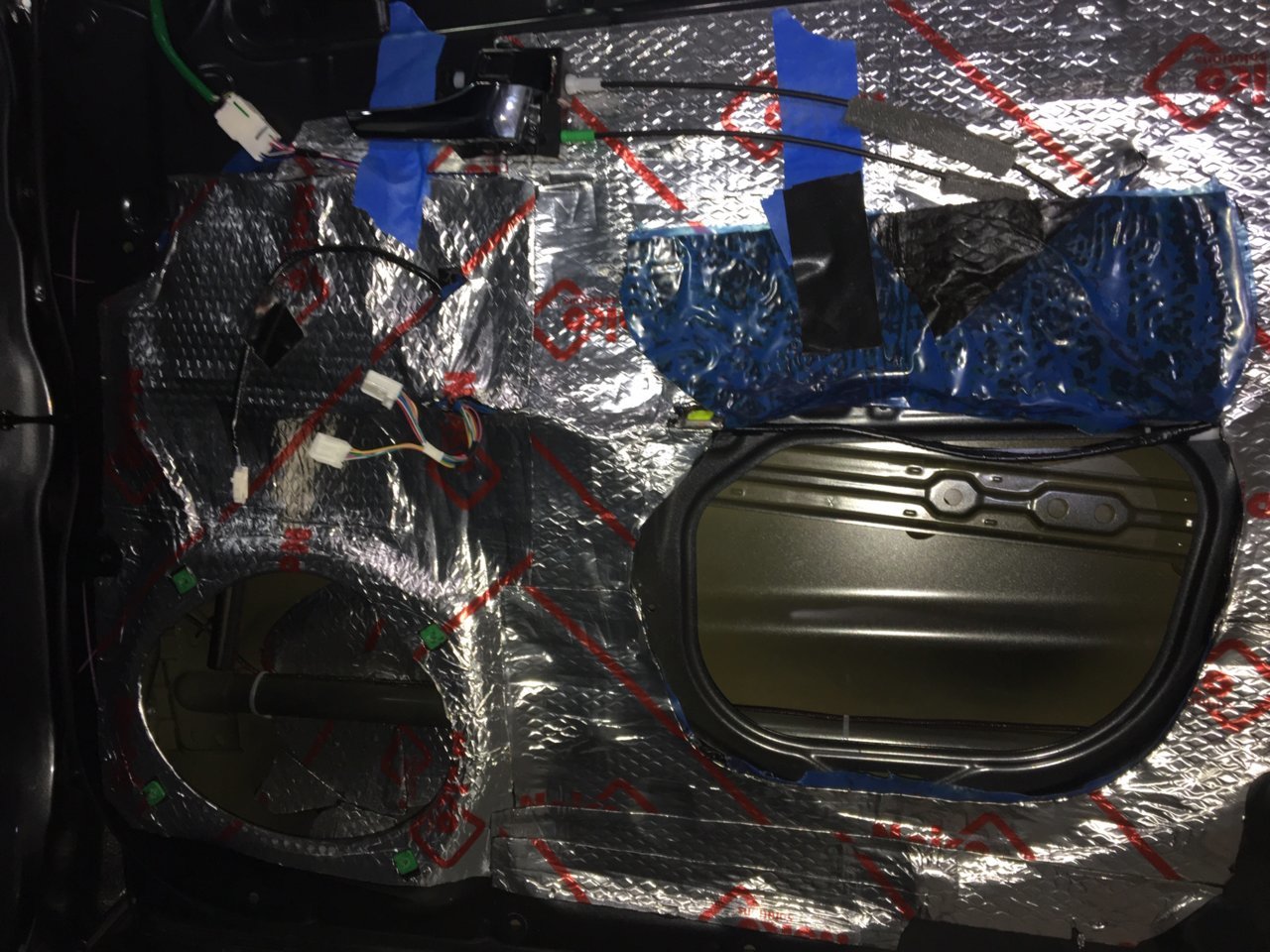

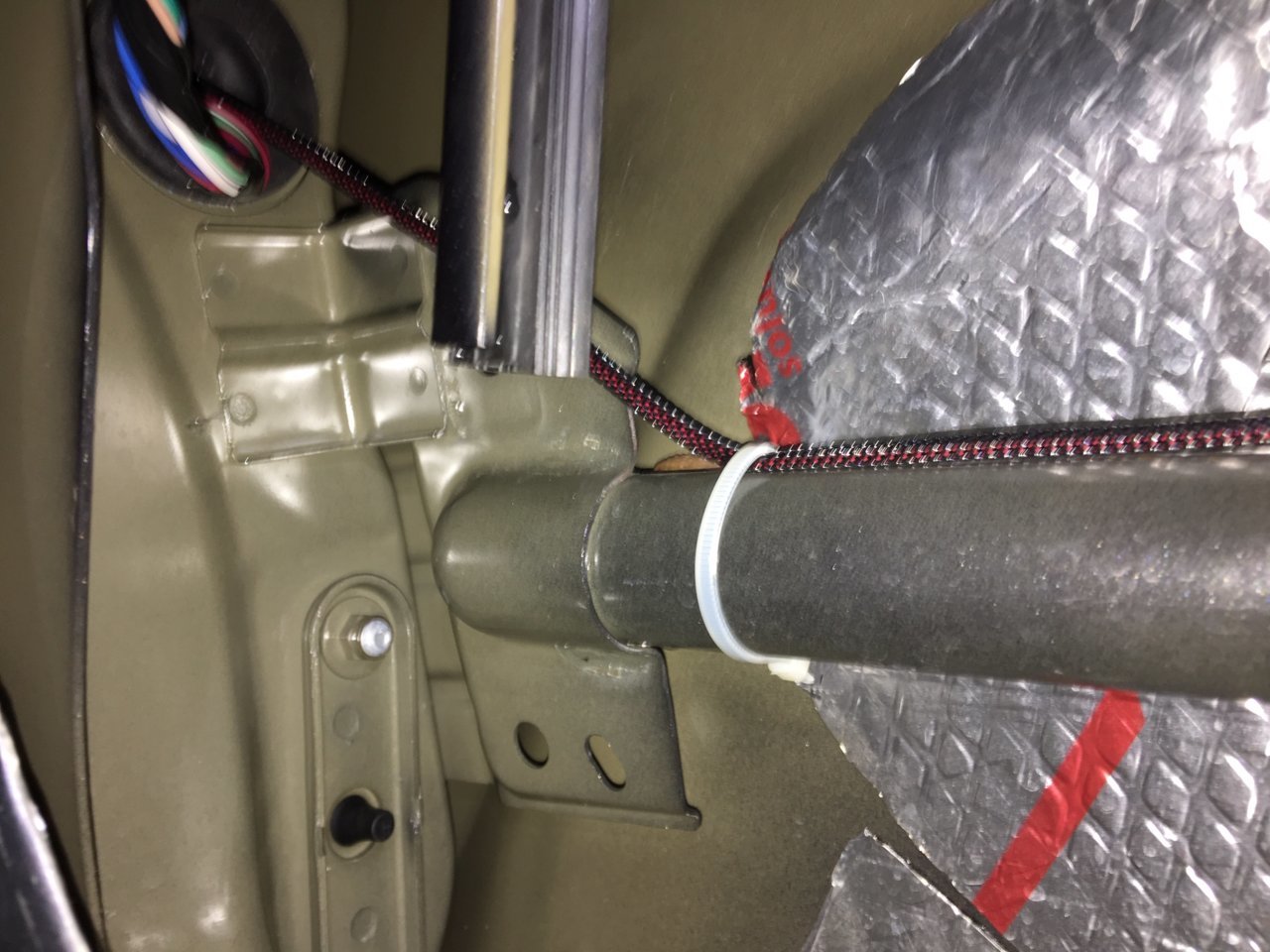

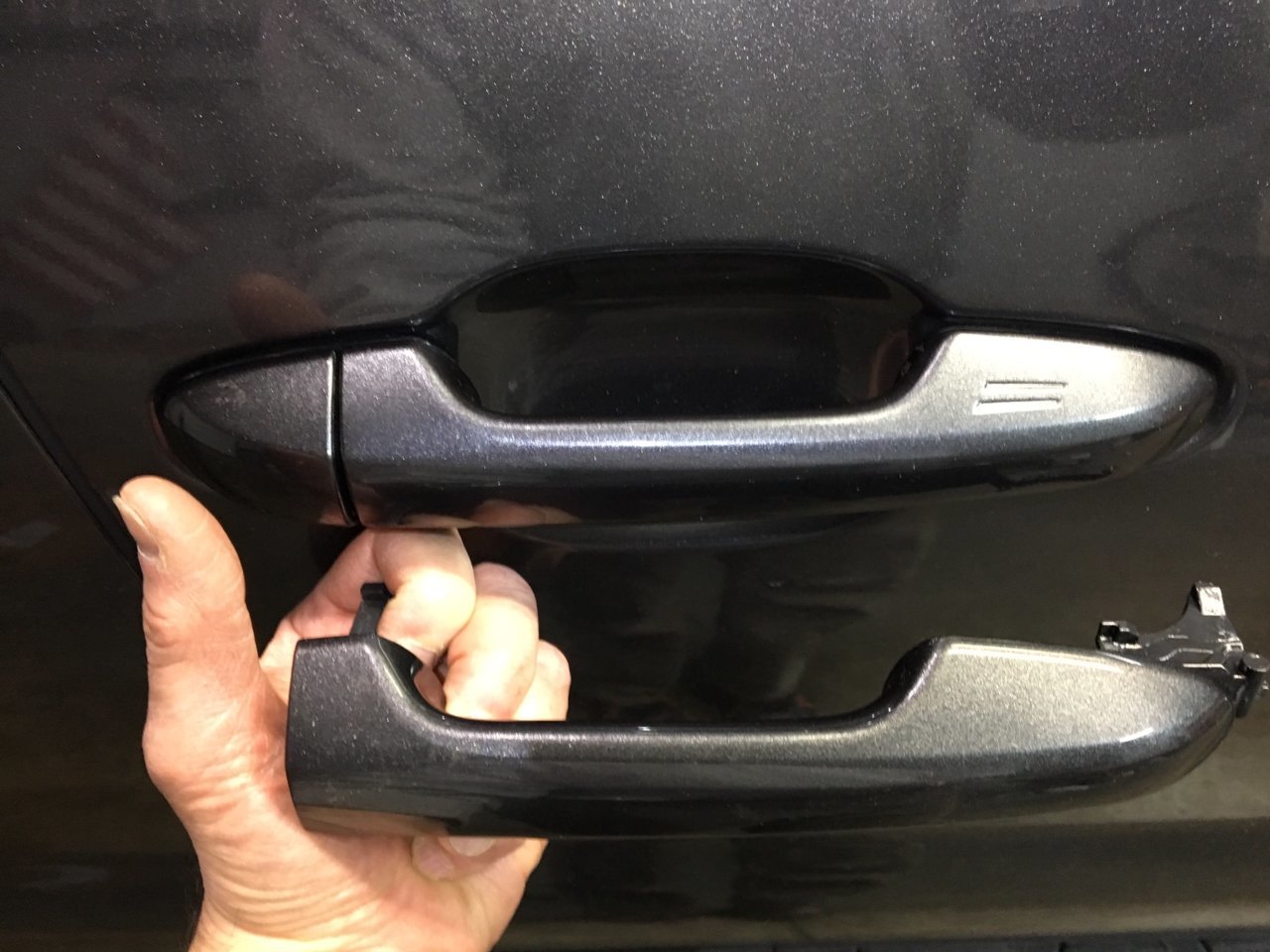

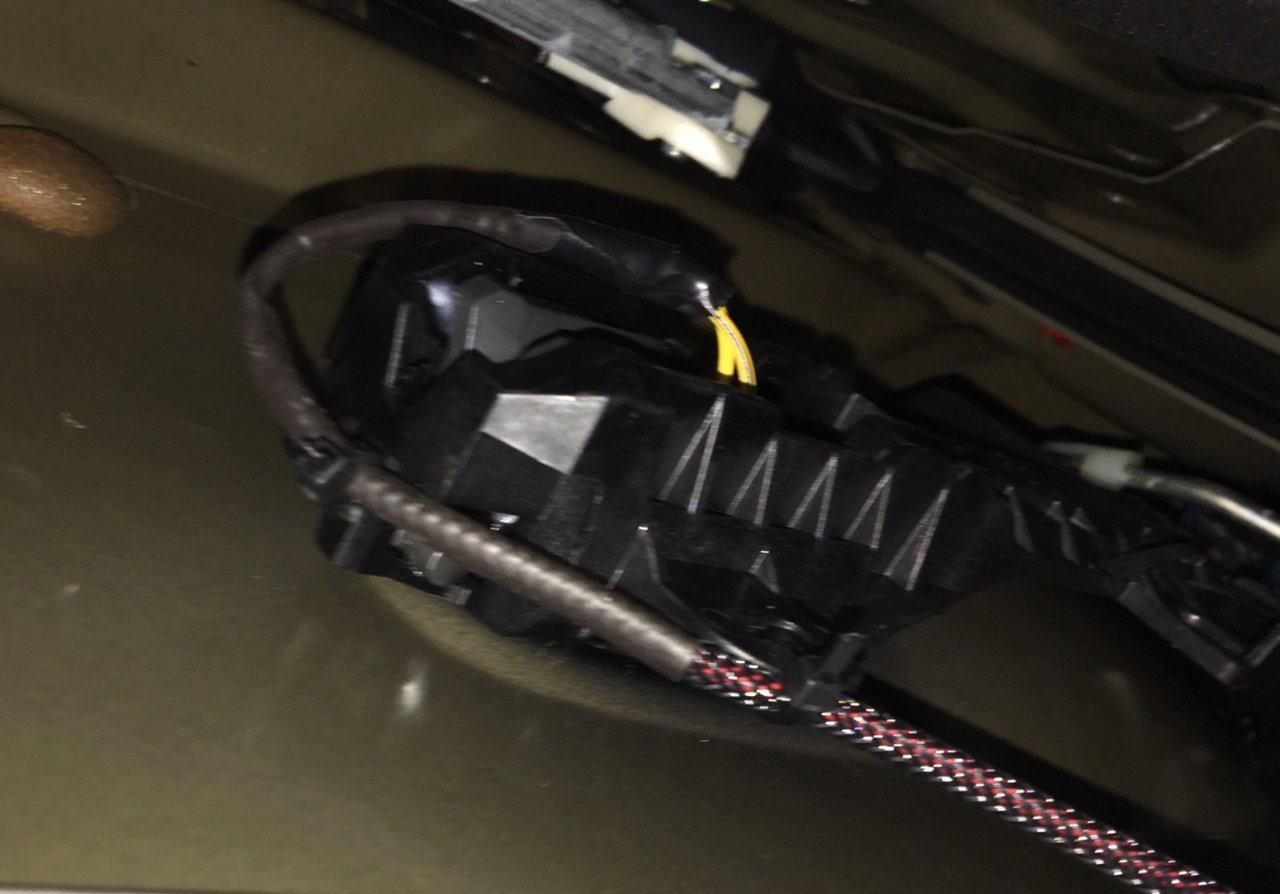

    Finished the handle mod just now. Like many have already posted, I want to also thank @Victory for his time in documenting his mod process and then posting it. I had reached out to a few of you also in my preparation stages and want to also say thank you to you guys in taking the time in helping me.
    Fishing the wires through the rubber boot was made simple by others sharing their tricks from their installations. What took the longest for me in the installation was carefully cutting and peeling back the sound deadening material I added last year when I upgraded my speakers. It was truly worth the time in doing. Cheers
    :cheers:

    handle5.jpg handle4.jpg handle6.jpg handle1.jpg handle2.jpg handle3.jpg

    Last edited: Mar 12, 2019
    dskakie, 1bad2k, Victory [OP] and 9 others like this.
  8. Mar 17, 2019 at 7:35 PM
    #448
    Pilvr83

    Pilvr83 Well-Known Member

    Joined:
    Jan 2, 2015
    Member:
    #145426
    Messages:
    239
    Gender:
    Male
    Panhandle, Florida
    Vehicle:
    2018 Tacoma Limited, Quicksand
    2020 Tacoma Limited, Voodoo Blue upgrade
    I just ordered the handle but had trouble with the pin prices until now. I have been looking for a suitable sub for the pins as $13 each seemed a little steep.

    I mistakenly had not looked at this full post until a few minutes ago. I now know (from the pictures) the pins come with some wire already attached. That should make the installation a lot easier...I think.

    I now need to try and modify my order to add the connector and the two pins. Can't wait to finish this project.

    Thank you @Victory for sharing.

    Victory [OP] likes this.
  9. Mar 17, 2019 at 7:55 PM
    #449
    treimche

    treimche Well-Known Member

    Joined:
    Dec 2, 2016
    Member:
    #203883
    Messages:
    817
    Gender:
    Male
    Fargo, ND
    Vehicle:
    3rd Gen Tacoma Accessories for sale!
    @Pilvr83 would you like to try the pins that I have? I have a bunch that work very well and won’t charge nearly what Toyota charges. You could be a test mule, but I’m pretty sure these pins will be great. I’ve test fit them in my drivers door already too.


  10. Mar 17, 2019 at 9:00 PM
    #450
    seanranger3

    seanranger3 Well-Known Member

    Joined:
    Apr 29, 2017
    Member:
    #217677
    Messages:
    481
    Gender:
    Male
    First Name:
    Sean
    Brunswick, Ga
    Vehicle:
    2017 TRD Sport 4x4
    Curious if these work. I really want to do this mod and even price savings would help

    Toms 17 likes this.
  11. Mar 18, 2019 at 5:30 AM
    #451
    treimche

    treimche Well-Known Member

    Joined:
    Dec 2, 2016
    Member:
    #203883
    Messages:
    817
    Gender:
    Male
    Fargo, ND
    Vehicle:
    3rd Gen Tacoma Accessories for sale!
    Yes they will work. Message me if you'd like to try a couple. I'm going to be ordering some of the door handle connectors too.

  12. Mar 18, 2019 at 6:23 AM
    #452
    Pilvr83

    Pilvr83 Well-Known Member

    Joined:
    Jan 2, 2015
    Member:
    #145426
    Messages:
    239
    Gender:
    Male
    Panhandle, Florida
    Vehicle:
    2018 Tacoma Limited, Quicksand
    2020 Tacoma Limited, Voodoo Blue upgrade
    I am tempted but the "test mule" quote scared me. I am a "one trick pony" so to speak. I don't want to dismantle and try again. I have a feeling the rubber ribbed boots on the original parts are there to keep the pins from vibrating loose. I sure do like your idea...maybe a little glue or RTV to hold the wires...

  13. Mar 18, 2019 at 7:49 AM
    #453
    Toms 17

    Toms 17 Well-Known Mumbler

    Joined:
    Sep 22, 2017
    Member:
    #230753
    Messages:
    257
    Gender:
    Male
    First Name:
    Tom
    Central Ohio
    Vehicle:
    17 MGM DCSB TRD Sport

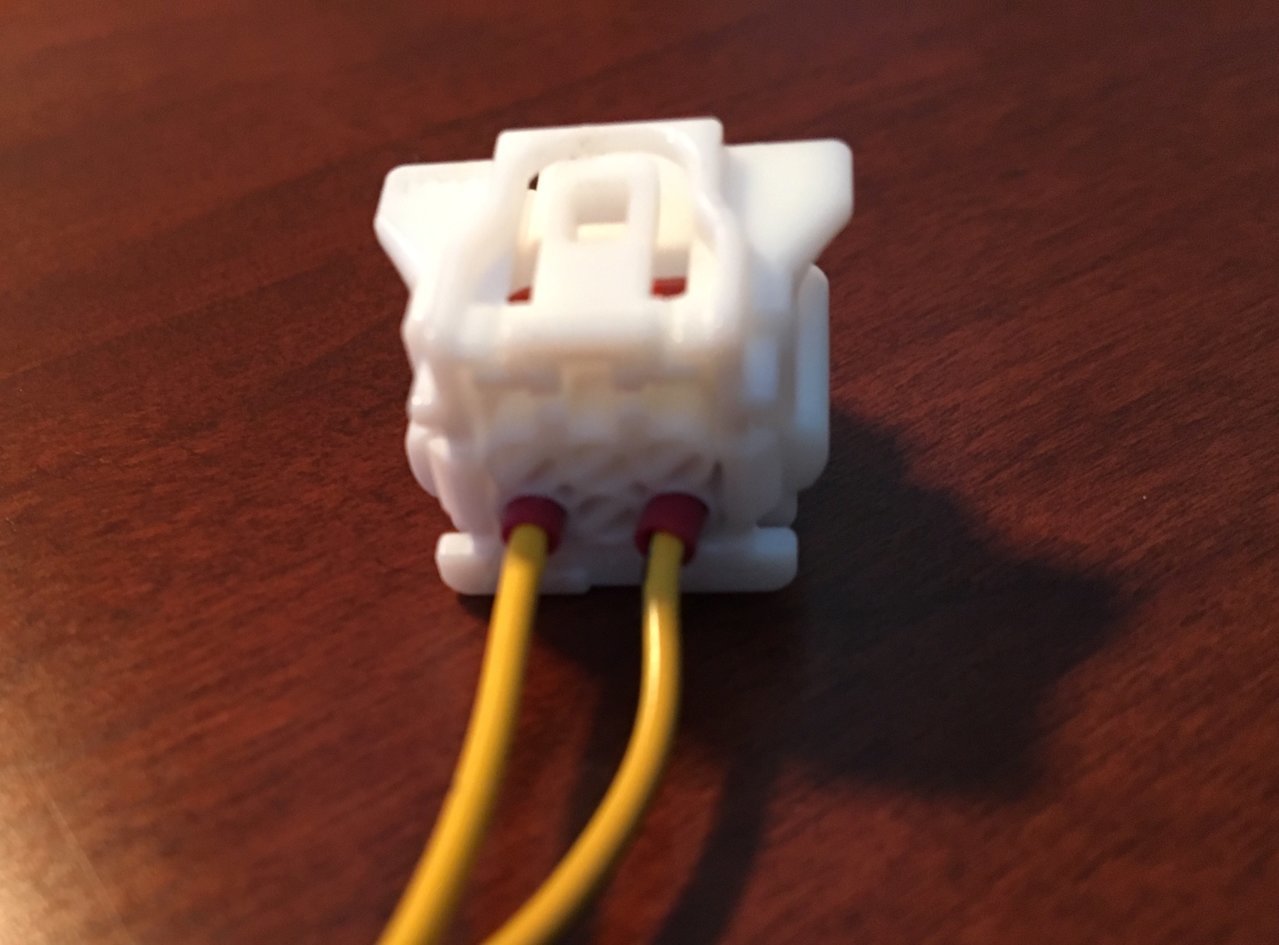

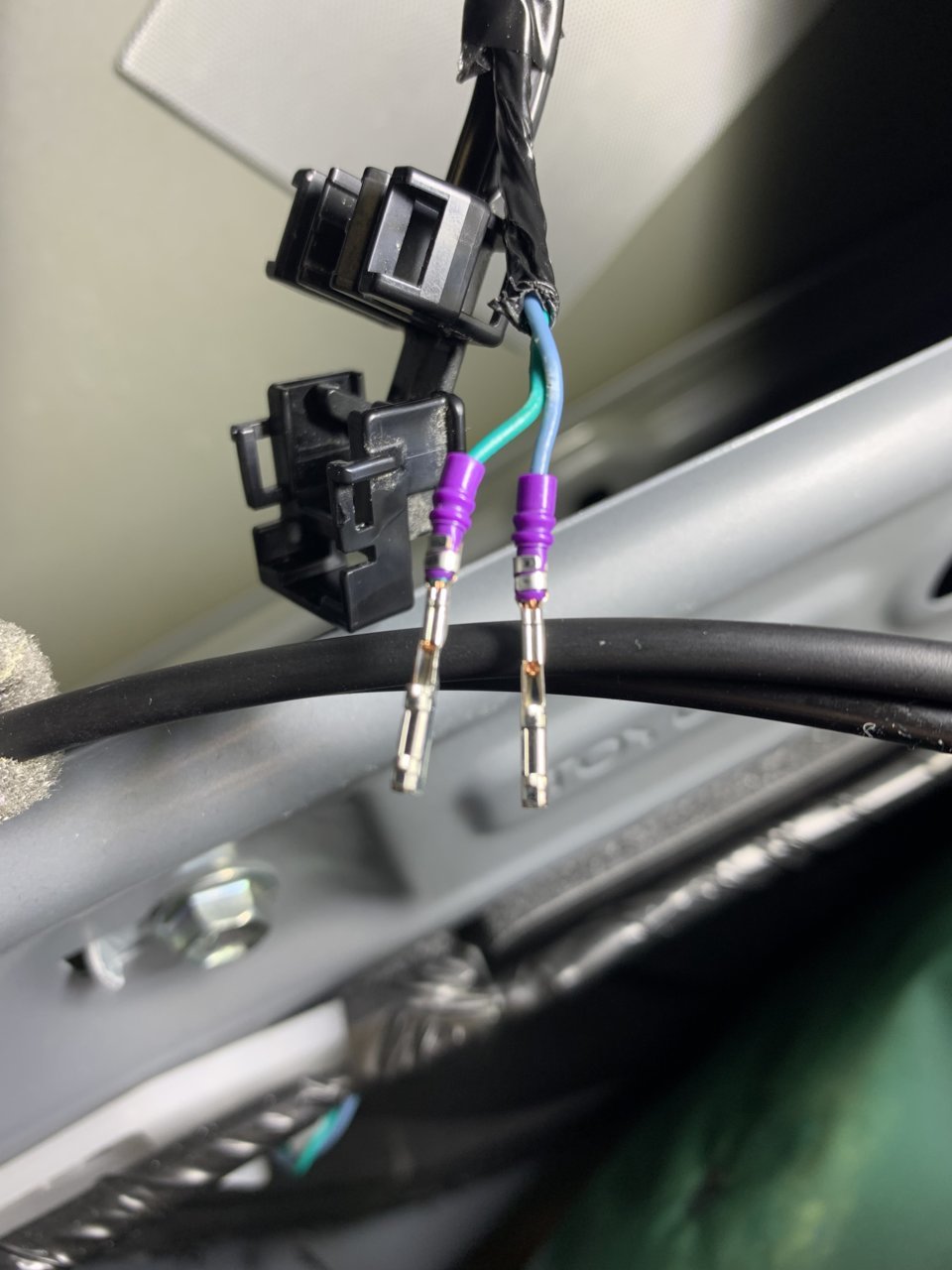

    After having put these together in the last week, I agree that the rubber ribbed sleeves serve a good purpose.

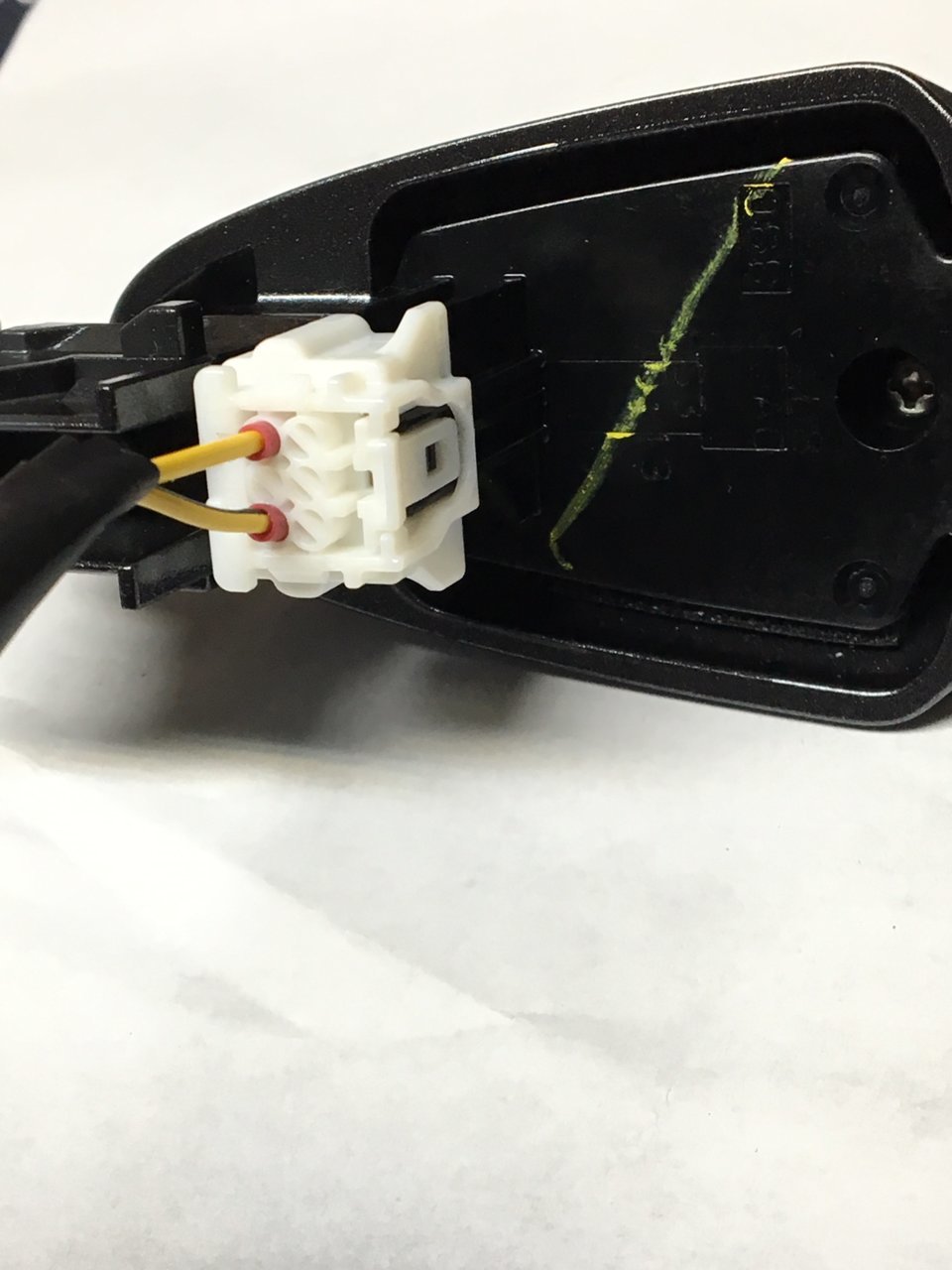

    plug1.jpg plug2.jpg

  14. Mar 18, 2019 at 8:18 AM
    #454
    treimche

    treimche Well-Known Member

    Joined:
    Dec 2, 2016
    Member:
    #203883
    Messages:
    817
    Gender:
    Male
    Fargo, ND
    Vehicle:
    3rd Gen Tacoma Accessories for sale!
    Totally understandable. The rubber boots are there to seal out moisture. Its really not much of an issue inside the door up there, but I'll be ordering some to add onto the pins/wires I have.

  15. Mar 18, 2019 at 6:35 PM
    #455
    MAS

    MAS Well-Known Member

    Joined:
    Dec 14, 2018
    Member:
    #275771
    Messages:
    202
    Gender:
    Male
    Va Beach
    Vehicle:
    2017 Tacoma TRD Off-Road
    If I didn’t already have the expensive Toyota wires I would purchase these. I see no issues using them if they fit snug on the pins in the handle. Just my 2 cents.

    treimche likes this.
  16. Mar 19, 2019 at 10:56 AM
    #456
    pdenajim

    pdenajim Well-Known Member

    Joined:
    Oct 24, 2017
    Member:
    #233985
    Messages:
    2,340
    Gender:
    Male
    First Name:
    Jim
    Pasadena, MD
    Vehicle:
    2017 Inferno Tacoma TRD OR DCSB
    Black MBRP dual exhaust, aftermarket TRD Pro grille, AVS dark smoke hood deflector & dark smoke vent visors, BedRug, BAK Industries Revolver X2 bed cover, aftermarket TRD Pro Tail light assemblies (DEPO), orange vinyl decals on engine cover, door sills, and glove box, LED headlights & fog lights, KICKER speakers, piano black tailgate TACOMA inserts, center console organizer tray, black stainless steel licence plate frames, smoked license plate "protectors", ME-SO Customs Ultimate LED mirror turn signals, Ultimate Dome Light, V2 Map Lights & coin holder, Toyota bed extender, Pop & Lock Power Tailgate Lock, Fortin EVO ALL Plug & Play Remote Start, TRD PRO headlights, Redline Hood Struts, FJ Cruiser 2007-2014 TRD Pro SEMA 17" MATTE GRAY Alloy Rims, COOPER DISCOVERER S/T MAXX 255/80-17 Tires LR E, Gen 2 TRD Pro Suspension, 2" AAL, TRD Pro CAI, Mobtown sliders and full aluminum skids, ARB Safari snorkel. On deck waiting installation: under hood LED lights, bed, U-Bolt flip, Sport Hood, passenger door touch sensitive door handle. Future Mods: "Always On" console USB power mod, "Default On" ECT Power mod, LED lights strips inside the bed, diff vent extension
    If your Taco has the Entune radio you can control how the doors unlock. For my truck ('17 Tacoma OR) the default was one click to unlock the drivers door and two clicks to unlock all of the doors.
    I changed my truck to have all of the doors unlock with a single click (tail gate too since I installed the Pop-n-Lock).

  17. Mar 19, 2019 at 10:58 AM
    #457
    pdenajim

    pdenajim Well-Known Member

    Joined:
    Oct 24, 2017
    Member:
    #233985
    Messages:
    2,340
    Gender:
    Male
    First Name:
    Jim
    Pasadena, MD
    Vehicle:
    2017 Inferno Tacoma TRD OR DCSB
    Black MBRP dual exhaust, aftermarket TRD Pro grille, AVS dark smoke hood deflector & dark smoke vent visors, BedRug, BAK Industries Revolver X2 bed cover, aftermarket TRD Pro Tail light assemblies (DEPO), orange vinyl decals on engine cover, door sills, and glove box, LED headlights & fog lights, KICKER speakers, piano black tailgate TACOMA inserts, center console organizer tray, black stainless steel licence plate frames, smoked license plate "protectors", ME-SO Customs Ultimate LED mirror turn signals, Ultimate Dome Light, V2 Map Lights & coin holder, Toyota bed extender, Pop & Lock Power Tailgate Lock, Fortin EVO ALL Plug & Play Remote Start, TRD PRO headlights, Redline Hood Struts, FJ Cruiser 2007-2014 TRD Pro SEMA 17" MATTE GRAY Alloy Rims, COOPER DISCOVERER S/T MAXX 255/80-17 Tires LR E, Gen 2 TRD Pro Suspension, 2" AAL, TRD Pro CAI, Mobtown sliders and full aluminum skids, ARB Safari snorkel. On deck waiting installation: under hood LED lights, bed, U-Bolt flip, Sport Hood, passenger door touch sensitive door handle. Future Mods: "Always On" console USB power mod, "Default On" ECT Power mod, LED lights strips inside the bed, diff vent extension
    A generous application of dielectric grease will provide the same protection with the added benefit of corrosion protection between the terminals.
    Just a little FYI. :thumbsup:

    MAS and treimche like this.
  18. Mar 19, 2019 at 11:18 AM
    #458
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    1,021
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    He is referring to the fact that you have to set all doors to unlock with drivers door (via smart handle) if you want to install the passenger door smart handle. Because the passenger smart handle connects to the driver side the way we have it installed, if you didn’t set all doors to unlock when you grabbed your new passenger handle only the drivers door would unlock defeating the purpose.
    The new 2020 models with a passenger smart handle from the factory would be able to keep the settings to only unlock the specific handle wanted since they will be able to code that into the ECU, an option is 2016-2019 owners don’t have.
    Of course the settings for the remote are separate from this and can be left with the one press, two press settings you describe, two different settings in Entune which work two different ways (remote vs handle touch)

    MAS and Double Phister like this.
  19. Mar 19, 2019 at 11:22 AM
    #459
    pdenajim

    pdenajim Well-Known Member

    Joined:
    Oct 24, 2017
    Member:
    #233985
    Messages:
    2,340
    Gender:
    Male
    First Name:
    Jim
    Pasadena, MD
    Vehicle:
    2017 Inferno Tacoma TRD OR DCSB
    Black MBRP dual exhaust, aftermarket TRD Pro grille, AVS dark smoke hood deflector & dark smoke vent visors, BedRug, BAK Industries Revolver X2 bed cover, aftermarket TRD Pro Tail light assemblies (DEPO), orange vinyl decals on engine cover, door sills, and glove box, LED headlights & fog lights, KICKER speakers, piano black tailgate TACOMA inserts, center console organizer tray, black stainless steel licence plate frames, smoked license plate "protectors", ME-SO Customs Ultimate LED mirror turn signals, Ultimate Dome Light, V2 Map Lights & coin holder, Toyota bed extender, Pop & Lock Power Tailgate Lock, Fortin EVO ALL Plug & Play Remote Start, TRD PRO headlights, Redline Hood Struts, FJ Cruiser 2007-2014 TRD Pro SEMA 17" MATTE GRAY Alloy Rims, COOPER DISCOVERER S/T MAXX 255/80-17 Tires LR E, Gen 2 TRD Pro Suspension, 2" AAL, TRD Pro CAI, Mobtown sliders and full aluminum skids, ARB Safari snorkel. On deck waiting installation: under hood LED lights, bed, U-Bolt flip, Sport Hood, passenger door touch sensitive door handle. Future Mods: "Always On" console USB power mod, "Default On" ECT Power mod, LED lights strips inside the bed, diff vent extension
    Ahhh, thank you for the clarification. That makes perfect sense.

  20. Mar 20, 2019 at 6:11 PM
    #460
    treimche

    treimche Well-Known Member

    Joined:
    Dec 2, 2016
    Member:
    #203883
    Messages:
    817
    Gender:
    Male
    Fargo, ND
    Vehicle:
    3rd Gen Tacoma Accessories for sale!

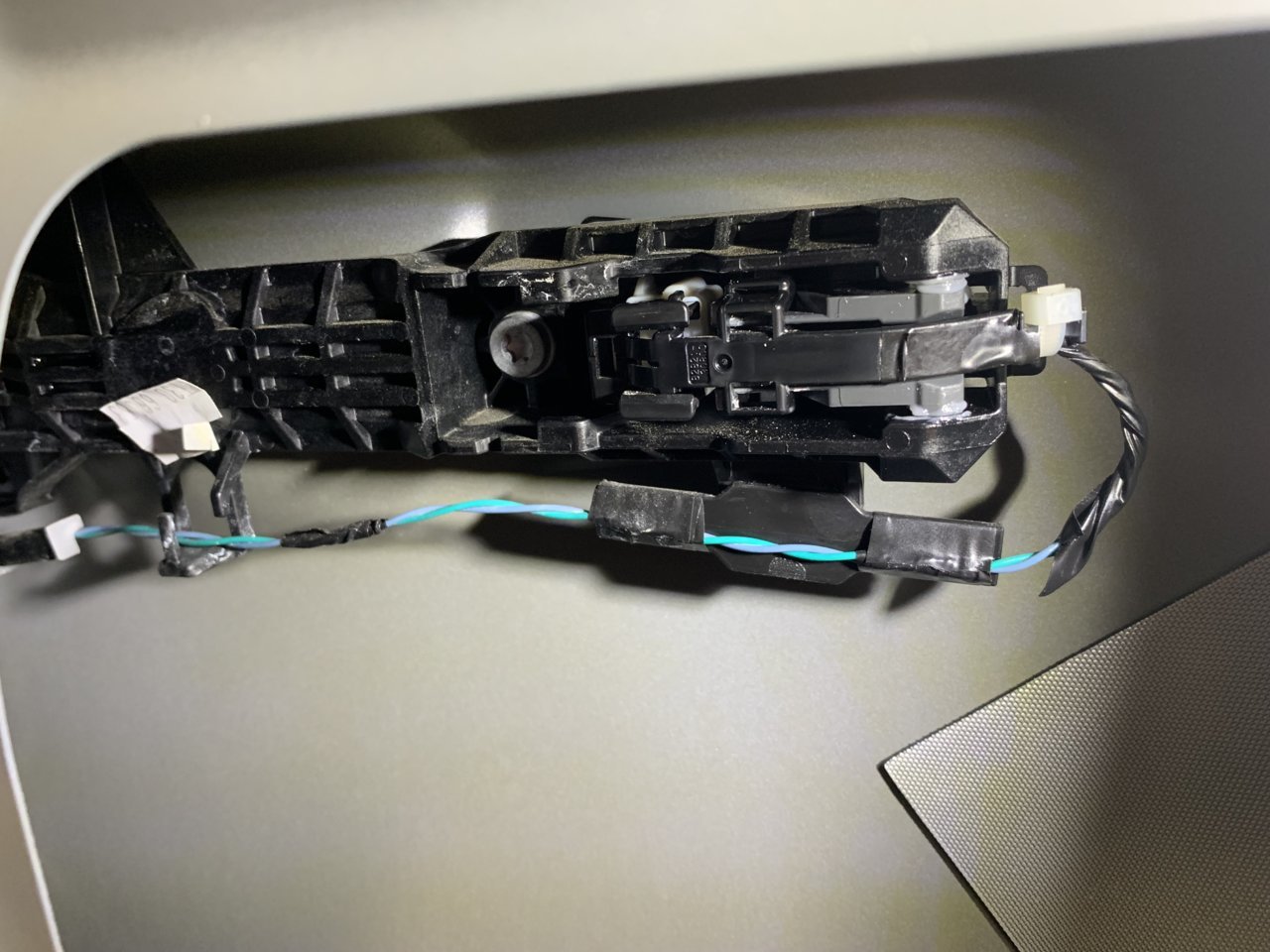

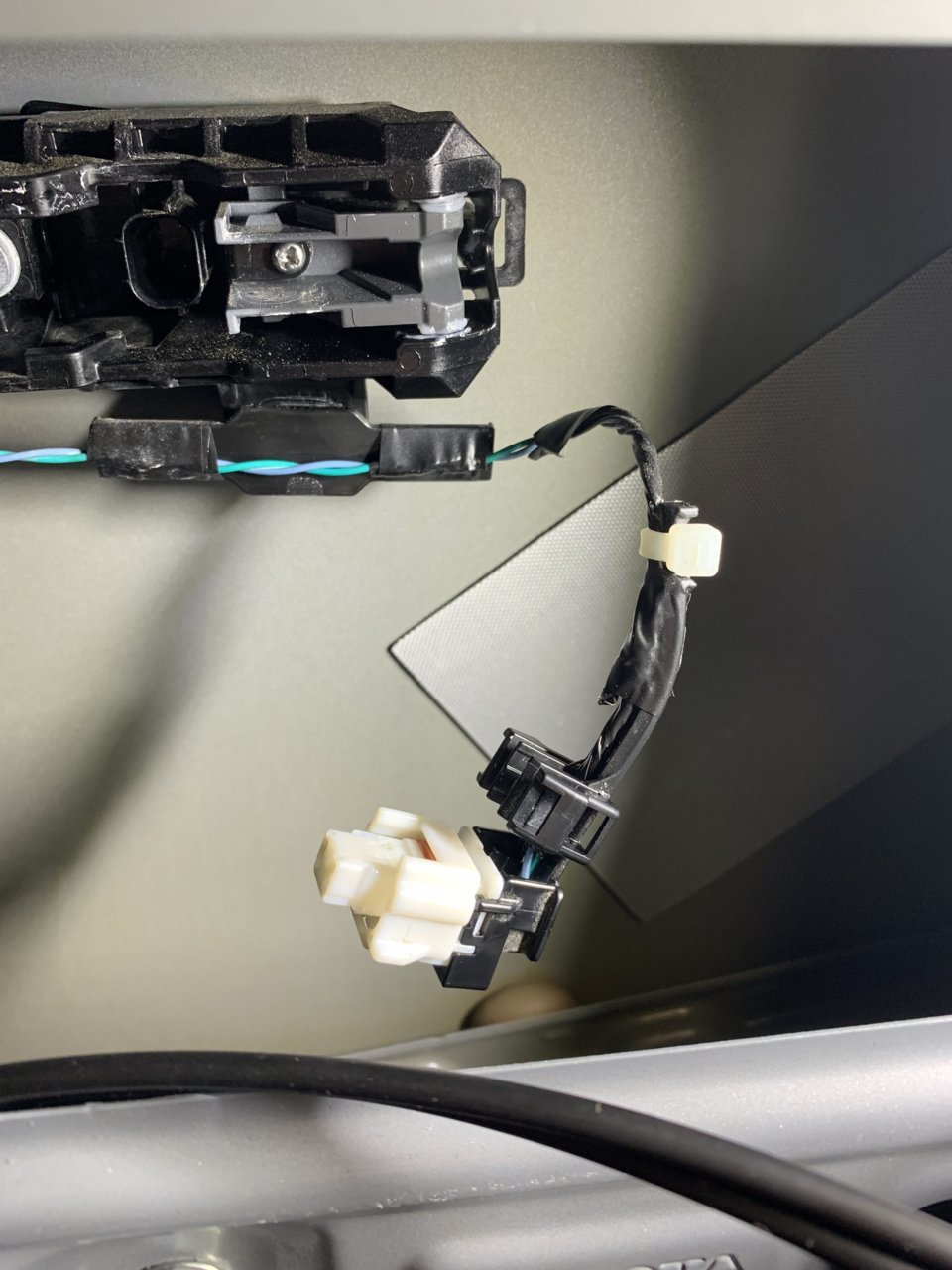

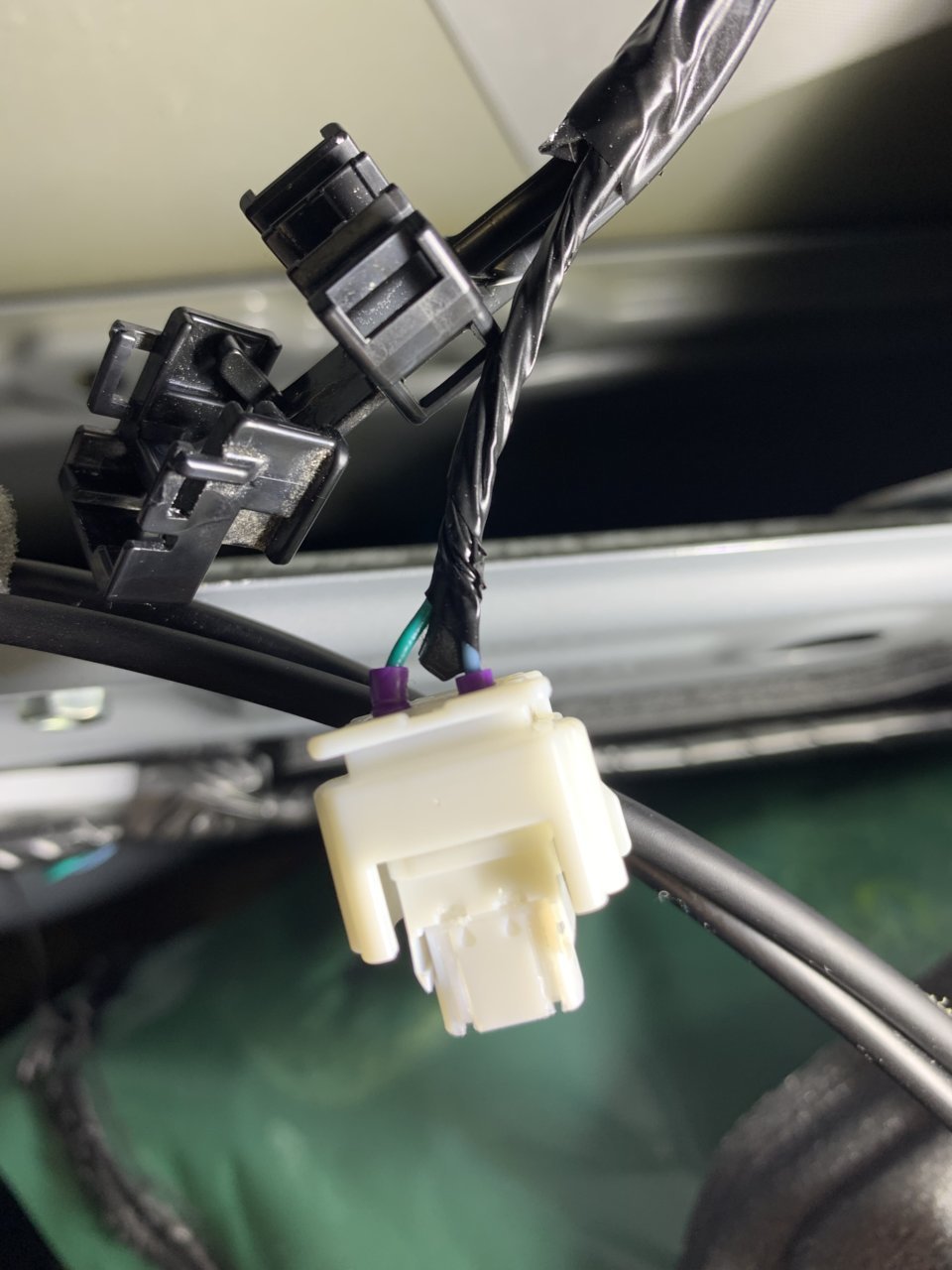

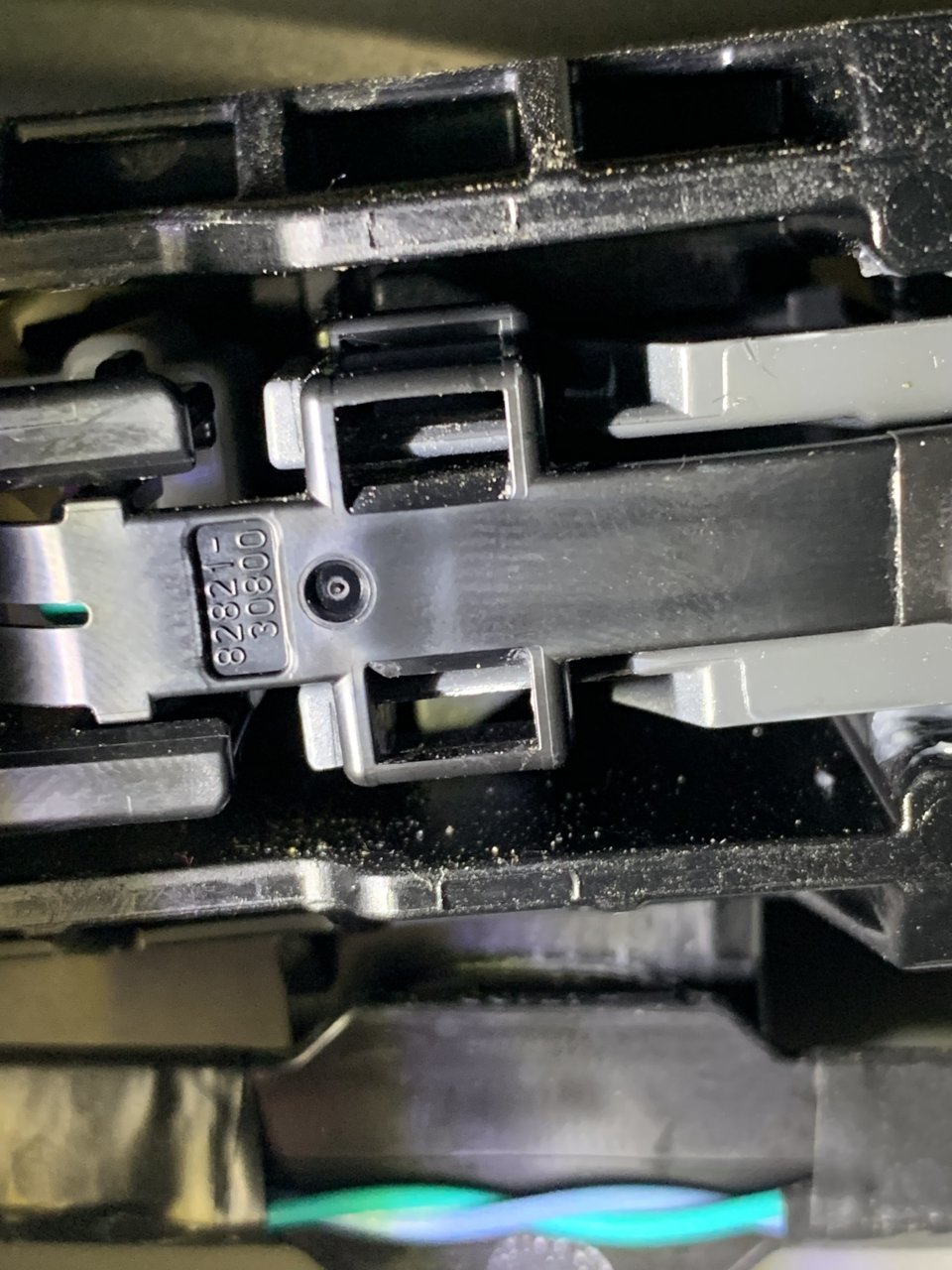

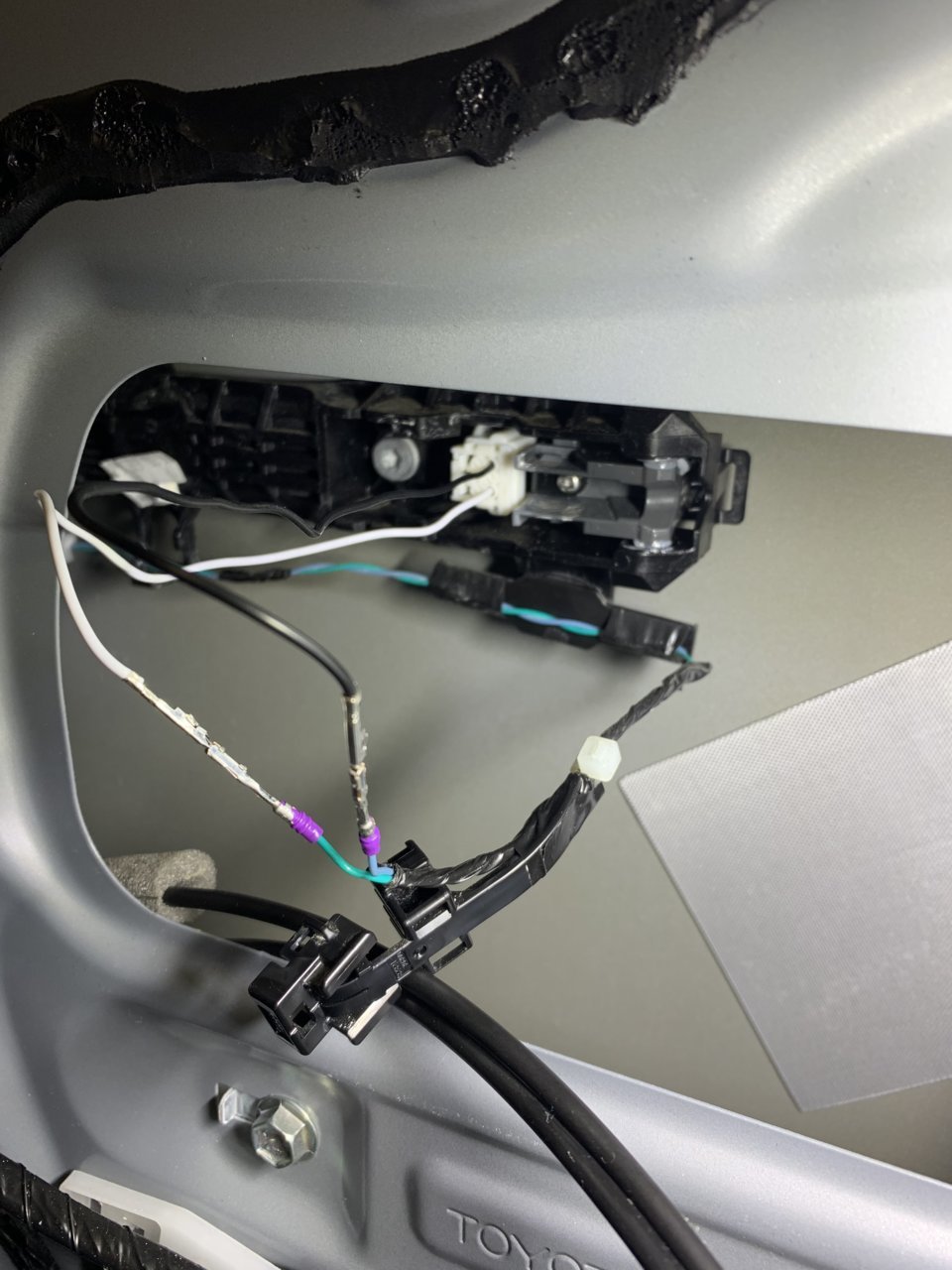

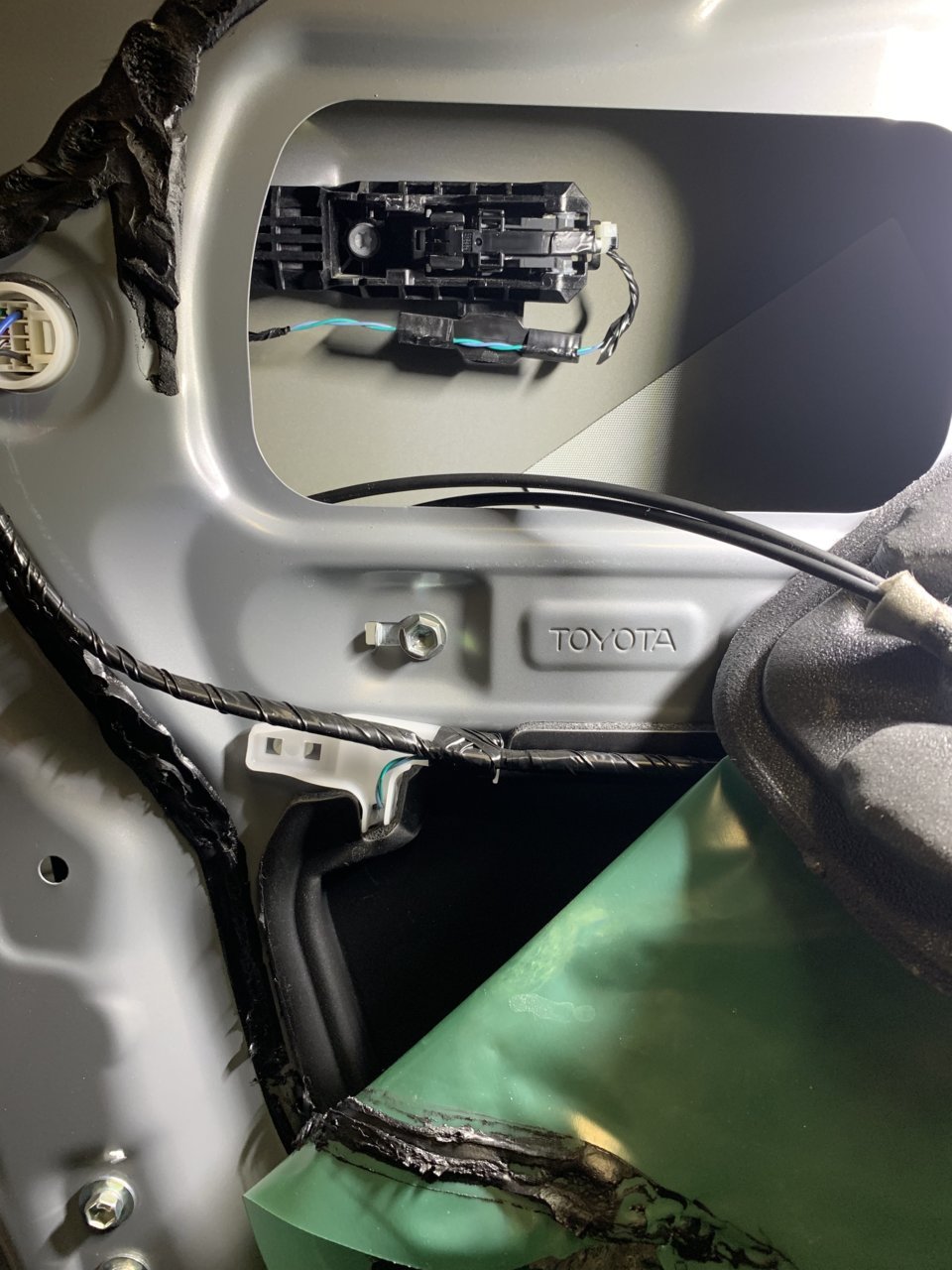

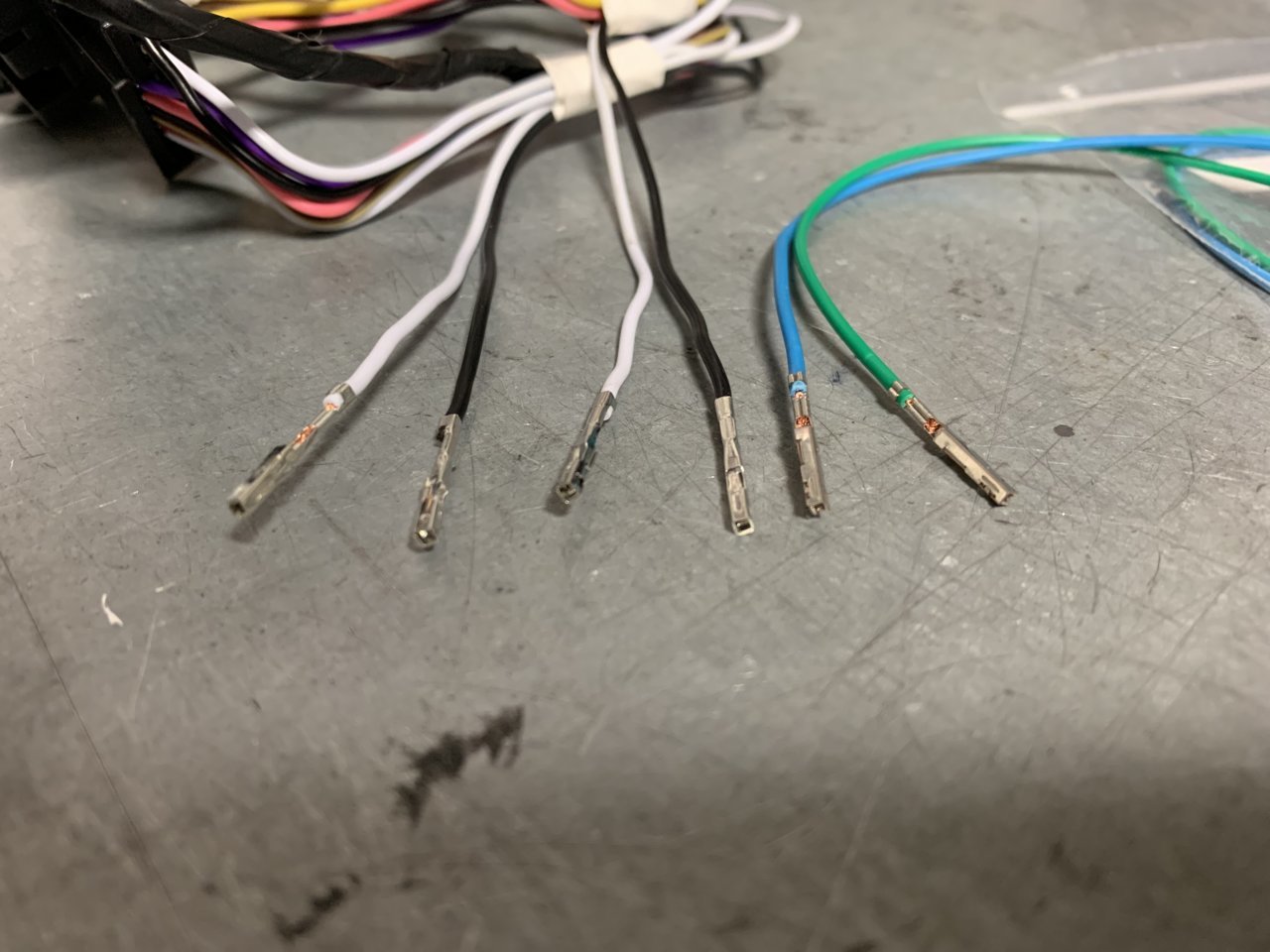

    I forgot to share some more photos of inside the driver's door with the wiring and connector that is connected to the driver's touch handle. You can see that there is a black plastic protector over the connector and wires if you want to add that for some extra protection. Last pic shows how I discovered that I have a bunch of wires/pins that fit in the door handle connector :bananadance:


    BountyOR_VF2, seanranger3 and MAS like this.
