Passenger Door Smart Key System

Discussion in '3rd Gen. Tacomas (2016+)' started by Victory, Apr 22, 2018.

  1. Apr 17, 2019 at 8:16 PM
    #481
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    995
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    The sensor is also the antenna, so signal will reach anywhere the sensor sensor or handle is installed.

    MAS likes this.
  2. Apr 17, 2019 at 8:46 PM
    #482
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    2,054
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    MAS and BountyOR_VF2 like this.
  3. Apr 18, 2019 at 5:27 PM
    #483
    MAS

    MAS Well-Known Member

    Joined:
    Dec 14, 2018
    Member:
    #275771
    Messages:
    202
    Gender:
    Male
    Va Beach
    Vehicle:
    2017 Tacoma TRD Off-Road
    That’s some good info. Something to think about in the future. Thanks

  4. May 1, 2019 at 9:34 PM
    #484
    Sgrif513

    Sgrif513 Well-Known Member

    Joined:
    Nov 5, 2018
    Member:
    #271823
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2019 Cement TRD Sport DCSB
    Not sure what I'm doing wrong, but it won't work for me. Checked the correct wiring and taps. Tried to even reverse the polarity to make sure everything was set up right. All doors set to unlock. Drivers side still works.

  5. May 1, 2019 at 11:12 PM
    #485
    BountyOR_VF2

    BountyOR_VF2 "If in doubt, flat out!"

    Joined:
    Feb 13, 2017
    Member:
    #210511
    Messages:
    480
    Gender:
    Male
    NorCal Bay Area
    Vehicle:
    2017 WHITE TRD TCSB OR
    Bad connection. Use the volt meter to check if possible.

  6. May 1, 2019 at 11:44 PM
    #486
    Sgrif513

    Sgrif513 Well-Known Member

    Joined:
    Nov 5, 2018
    Member:
    #271823
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2019 Cement TRD Sport DCSB
    Thanks. I'll check it with the voltmeter and see. I appreciate your help.

  7. May 2, 2019 at 2:38 AM
    #487
    seanranger3

    seanranger3 Well-Known Member

    Joined:
    Apr 29, 2017
    Member:
    #217677
    Messages:
    462
    Gender:
    Male
    First Name:
    Sean
    Brunswick, Ga
    Vehicle:
    2017 TRD Sport 4x4
    I would say you did not set your pins in far enough to the handle

  8. May 2, 2019 at 5:25 AM
    #488
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    995
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    Sean may be on to something here, those pins on your wiring harness you are assembling need to be pushed pretty far into the new connector housing. If you think that is it, use a mini flat head screwdriver to help.

    BountyOR_VF2 likes this.
  9. May 2, 2019 at 6:38 AM
    #489
    muffyinva

    muffyinva Well-Known Member

    Joined:
    Mar 7, 2019
    Member:
    #285707
    Messages:
    83
    Gender:
    Male
    First Name:
    Reid
    Lynchburg, VA
    Vehicle:
    2019 Cement Tacoma DCSB OR
    Part number for this OEM harness?

    Last edited: May 2, 2019
    RushT likes this.
  10. May 2, 2019 at 6:44 AM
    #490
    DSIM

    DSIM Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    792
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road

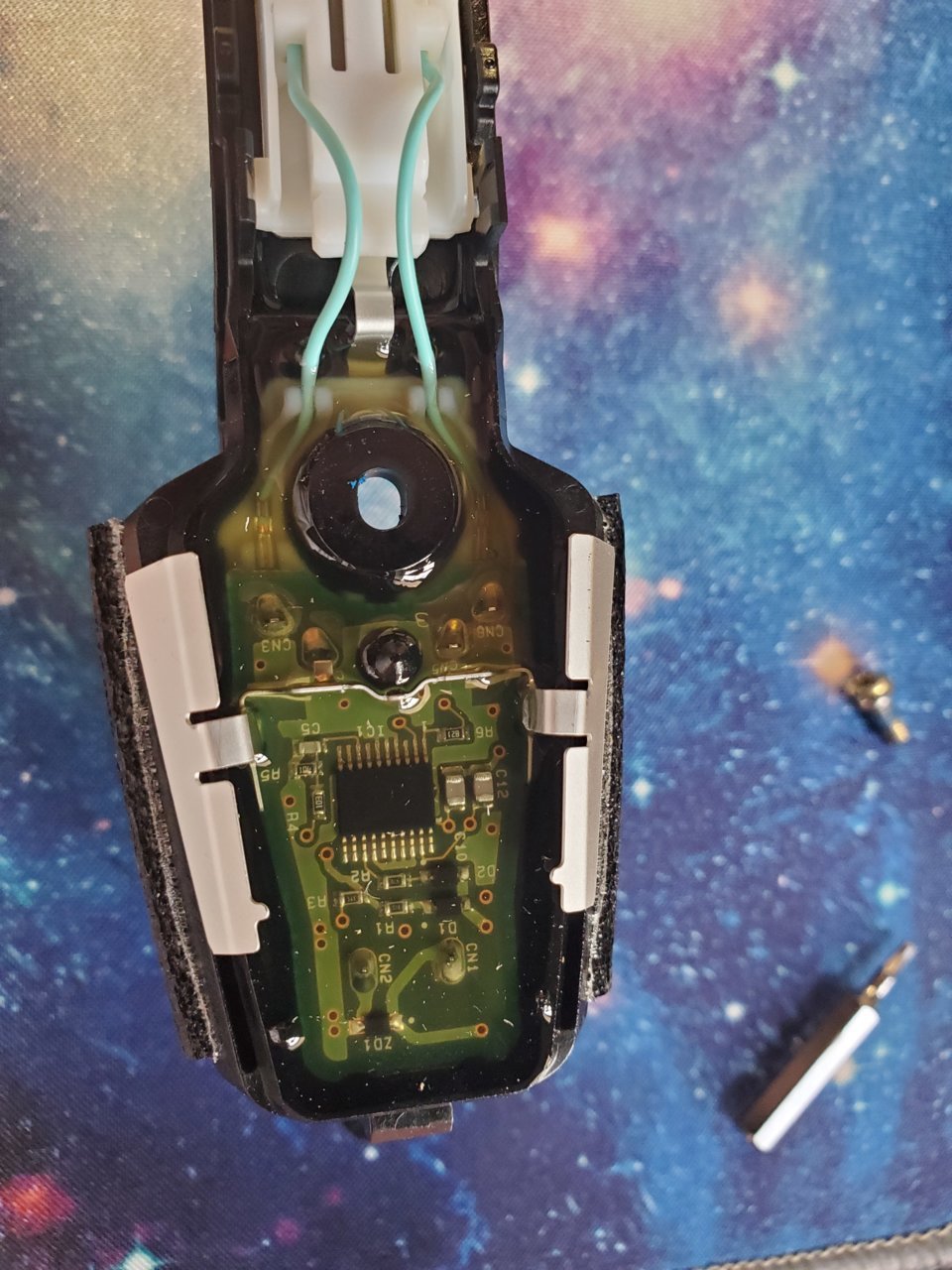

    FYI to those thinking this could work in the tailgate. Not without a LOT of hacking. I bought a handle to to this mod but also wanted to take it apart and see if it'd be feasible to incorporate the internals in or around the tailgate handle.

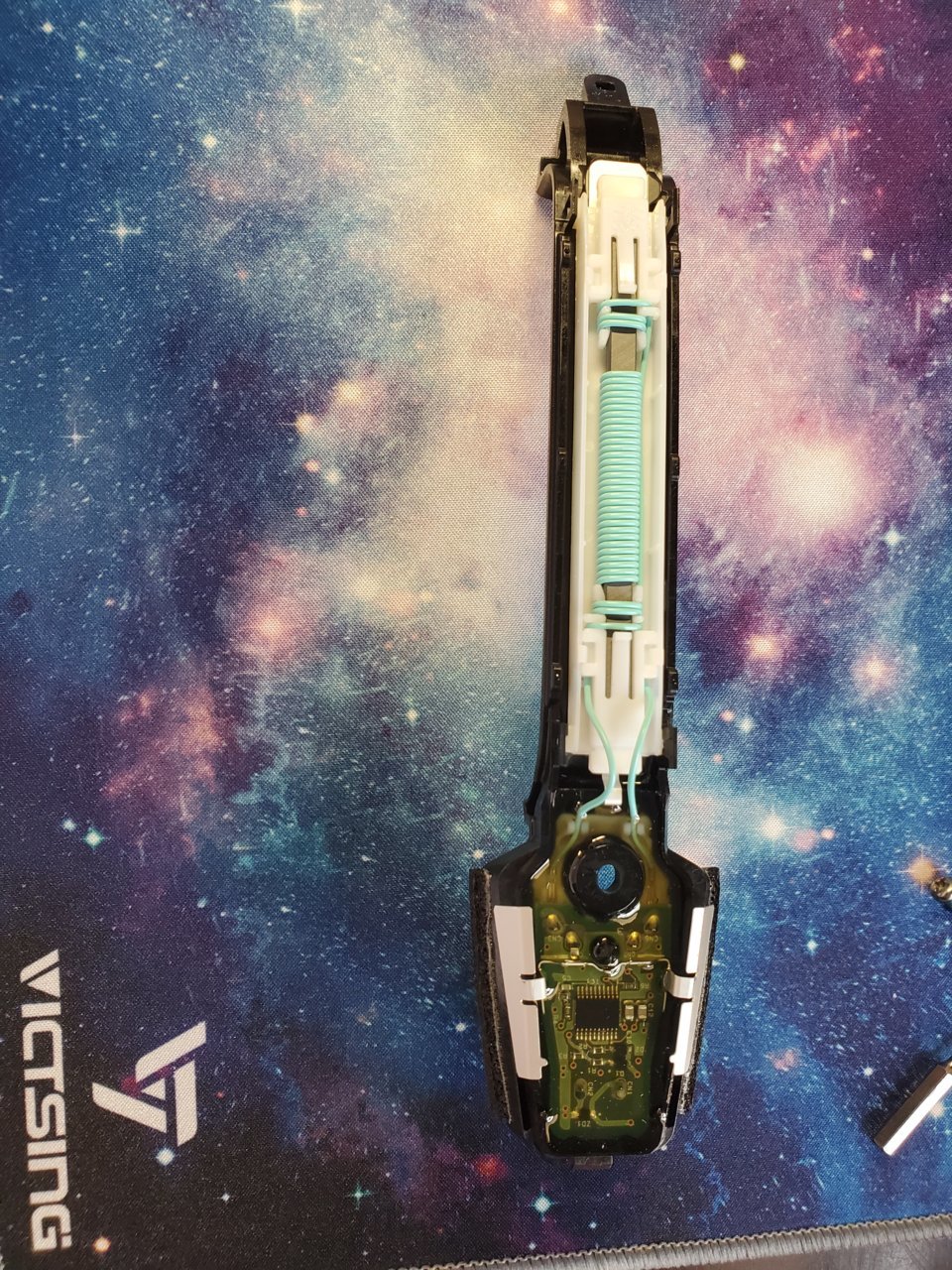

    The green wire is the touch sensor, that could probably be switched out for a different touch sensor. The lock touch sensors are the metal flanges near the board. Those could also "maybe" be switched out for a different touch sensor.


    But the board is absolutely BURIED. "Potted" for water resistance. Would be some effort to get it out.


    So I guess the point is it "could" be done but with a ton of effort/hacking. And to destroy a $150 handle just to get to the pieces idk. If someone wants to try then great!

    BountyOR_VF2 likes this.
  11. May 2, 2019 at 7:23 AM
    #491
    Sgrif513

    Sgrif513 Well-Known Member

    Joined:
    Nov 5, 2018
    Member:
    #271823
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2019 Cement TRD Sport DCSB
    I actually slid the pins directly onto the terminals of the handle, still nothing. I'll try to troubleshoot again.
    Thank you.

  12. May 2, 2019 at 7:31 AM
    #492
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    995
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    :confused: Must be a bad connection or even a bad handle, you could try swapping handles with the drivers if you can’t find a bad connection.
    Double check that you are tapped into the correct wire locations on the ecu- sometimes colors can change by year, so wire color on my 2016 could (but probably isn’t) different from your 2019, but the wire location should still be the same.

  13. May 2, 2019 at 8:21 AM
    #493
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    1,582
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    Lexus SUV’s has a button on the tailgate with a proximity sensor of some sort. Would that be able to connect up to the tailgate to just unlock and lock the tailgate? Of course it would be Lexus parts so it may be a bit pricey.

  14. May 2, 2019 at 8:35 AM
    #494
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    2,054
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Show us this LEXUS item...o_O:D

  15. May 2, 2019 at 8:41 AM
    #495
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    2,054
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Actually the green wrap wire is an AM antenna...

  16. May 2, 2019 at 8:44 AM
    #496
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    1,582
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    I can take a picture of the switch on my wifes NX. Its just a soft touch button covered with rubber on the rear tailgate. I just dont know where the proximity sensor is located. It is probably in the tailgate somewhere. When i have some time, i will see if i can find a parts list or something for her car.

    There is one that locks/unlocks the doors and one that opens/closes the tailgate.

    DSIM likes this.
  17. May 2, 2019 at 8:44 AM
    #497
    DSIM

    DSIM Well-Known Member

    Joined:
    Feb 5, 2018
    Member:
    #243518
    Messages:
    792
    Gender:
    Male
    First Name:
    Daniel
    Raleigh, NC
    Vehicle:
    2017 MGM Tacoma TRD Off-Road

    I started trying to research that but I could not find it.

  18. May 2, 2019 at 8:46 AM
    #498
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    1,582
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    I will see what i can find on a Lexus parts site.

    DSIM likes this.
  19. May 2, 2019 at 8:52 AM
    #499
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    1,582
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM

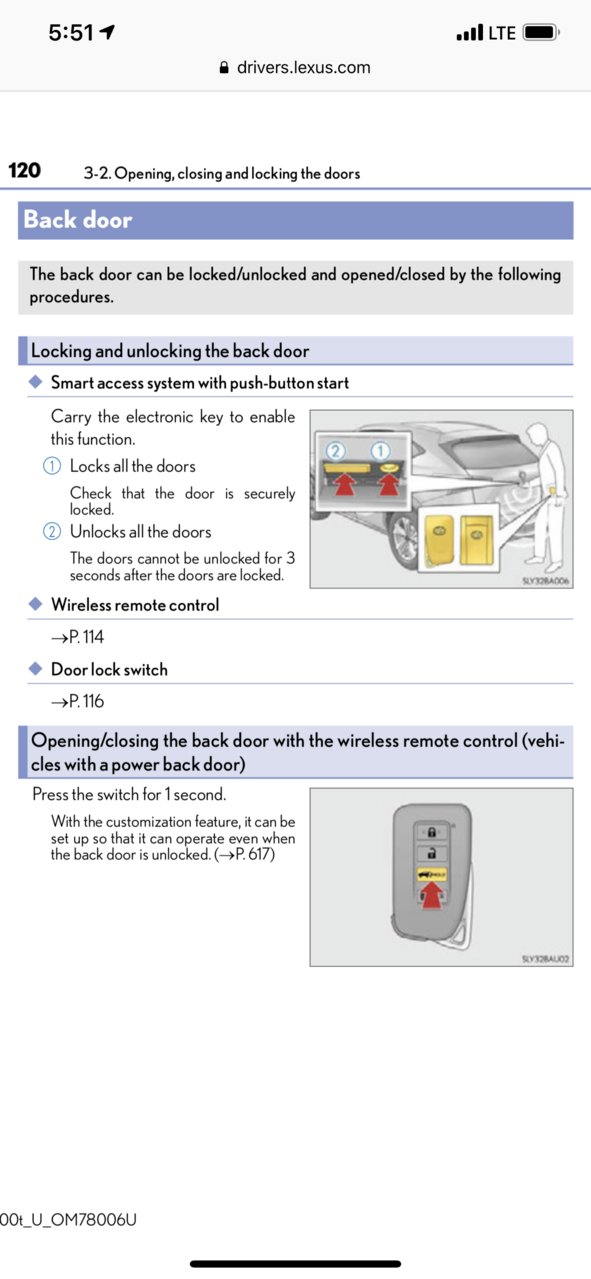

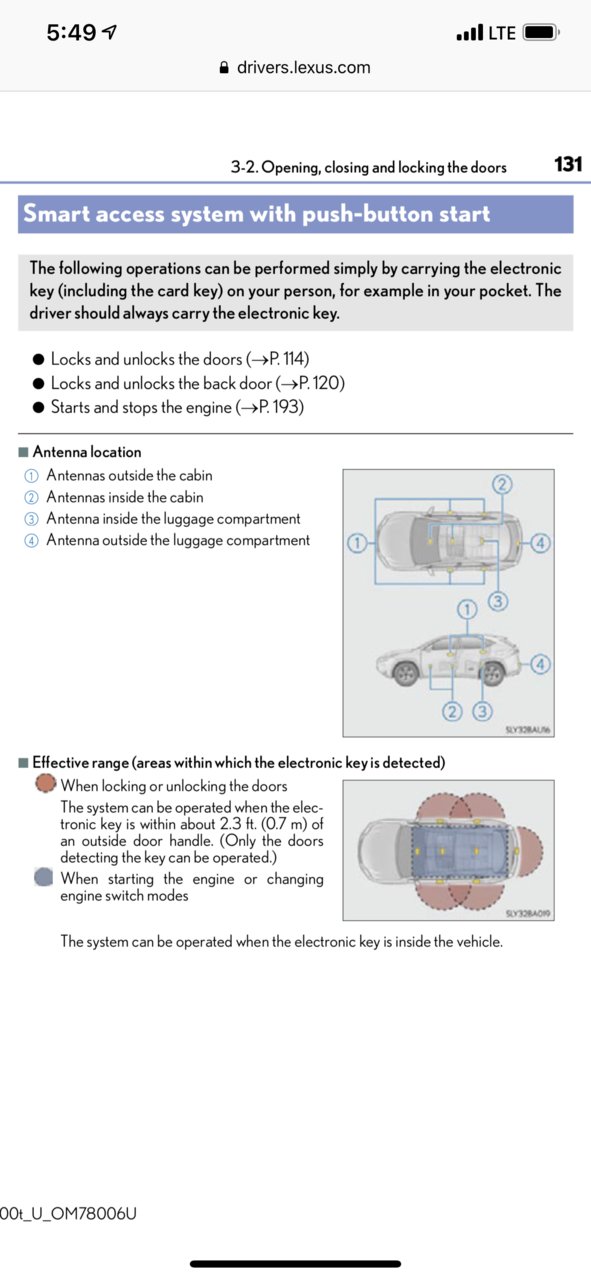

    I found this in the manual but will see if i can find some parts for the system.

    DSIM likes this.
  20. May 2, 2019 at 8:54 AM
    #500
    Sgrif513

    Sgrif513 Well-Known Member

    Joined:
    Nov 5, 2018
    Member:
    #271823
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2019 Cement TRD Sport DCSB
    Thanks. The ecu wires are exactly as you described. Hopefully it's not a bad handle. I'm going to remove the passenger side handle and connect it to the ecu outside of the door to see if I can get it to work. If not, I'll swap or for another handle.
