Passenger Door Smart Key System

Discussion in '3rd Gen. Tacomas (2016+)' started by Victory, Apr 22, 2018.

  1. Nov 22, 2020 at 1:35 PM
    #901
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,174
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB

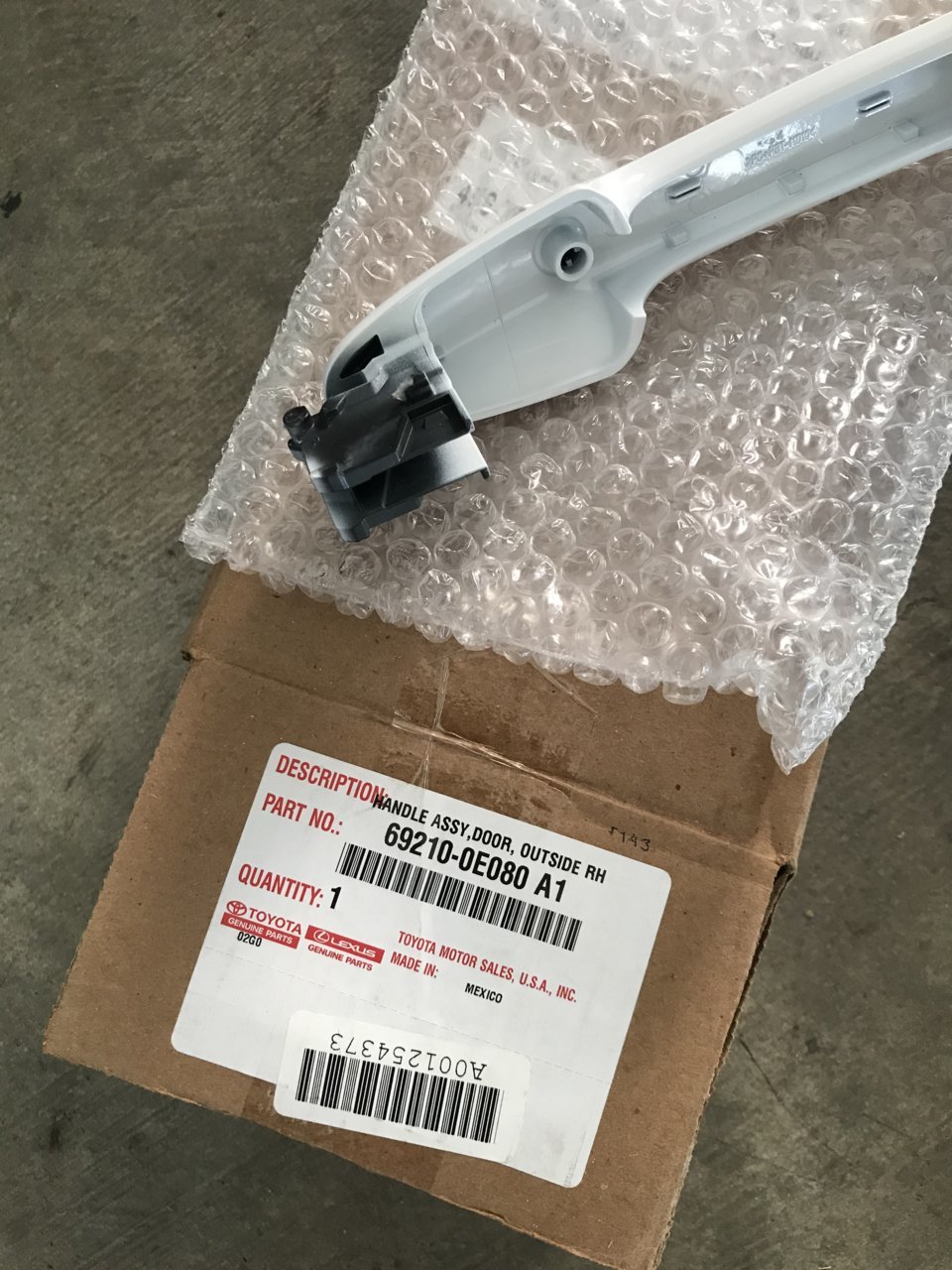

    Guys, just want to make sure I’m not going crazy. I know the box says RH, which I’m assuming now is for right hand, but this is the correct part number correct?

    And the handle I bought doesn’t have the electrical connections needed to complete the mod, right?


  2. Nov 22, 2020 at 1:57 PM
    #902
    Frsh2df

    Frsh2df Well-Known Member

    Joined:
    Jun 7, 2018
    Member:
    #255772
    Messages:
    1,281
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2017 MGM TRD Off Road 4x4

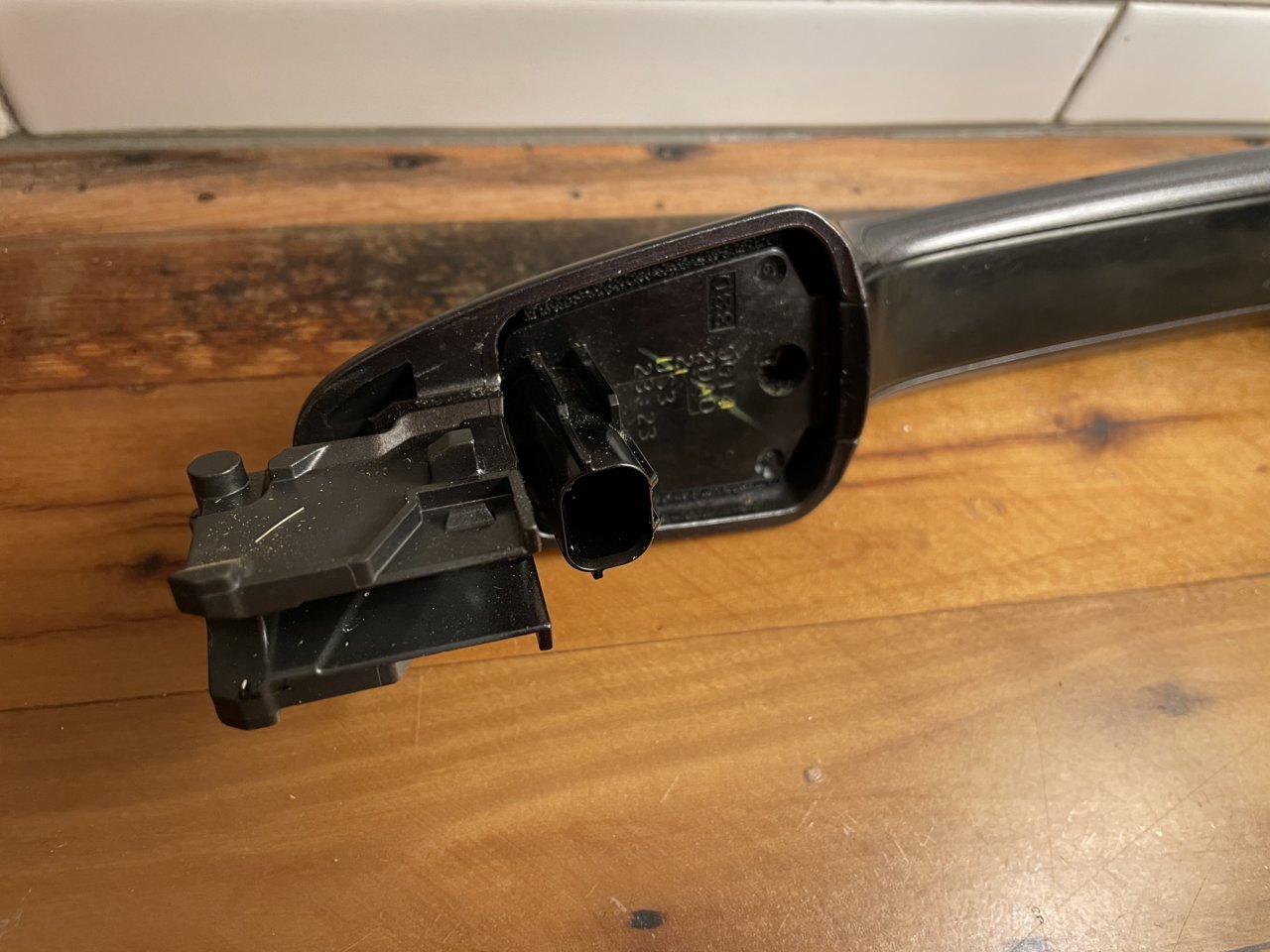

    Does the handle have the smart handle bars like this ?


    As for the electrical connections, you have to purchase them separately.


    The part numbers for the electrical parts should be in the first page of the thread.

    I can search my email and see if I can find my invoice for the part numbers if you need me to.

  3. Nov 22, 2020 at 2:26 PM
    #903
    Harcourt

    Harcourt __________

    Joined:
    Nov 30, 2011
    Member:
    #67978
    Messages:
    18
    Gender:
    Male
    First Name:
    Alex
    Louisville, KY
    Vehicle:
    Waiting for that Tacoma diesel..
    14 Dodge diesel longhorn 17 DCLB TRD-OR 09 TRD OR 6spd
    Where’s the rest of the internals? There should be a socket for the connection


    Last edited: Nov 22, 2020
    Frsh2df likes this.
  4. Nov 22, 2020 at 3:30 PM
    #904
    DSRamsey13

    DSRamsey13 Well-Known Member

    Joined:
    Aug 26, 2019
    Member:
    #303324
    Messages:
    589
    Gender:
    Male
    Vehicle:
    2018 TRD Sport Inferno (DCSB)
    The electronics are built into the handle. Once you get the other pieces it'll all make sense. :) Happy trailing through the boot!

  5. Nov 22, 2020 at 3:48 PM
    #905
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,174
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB

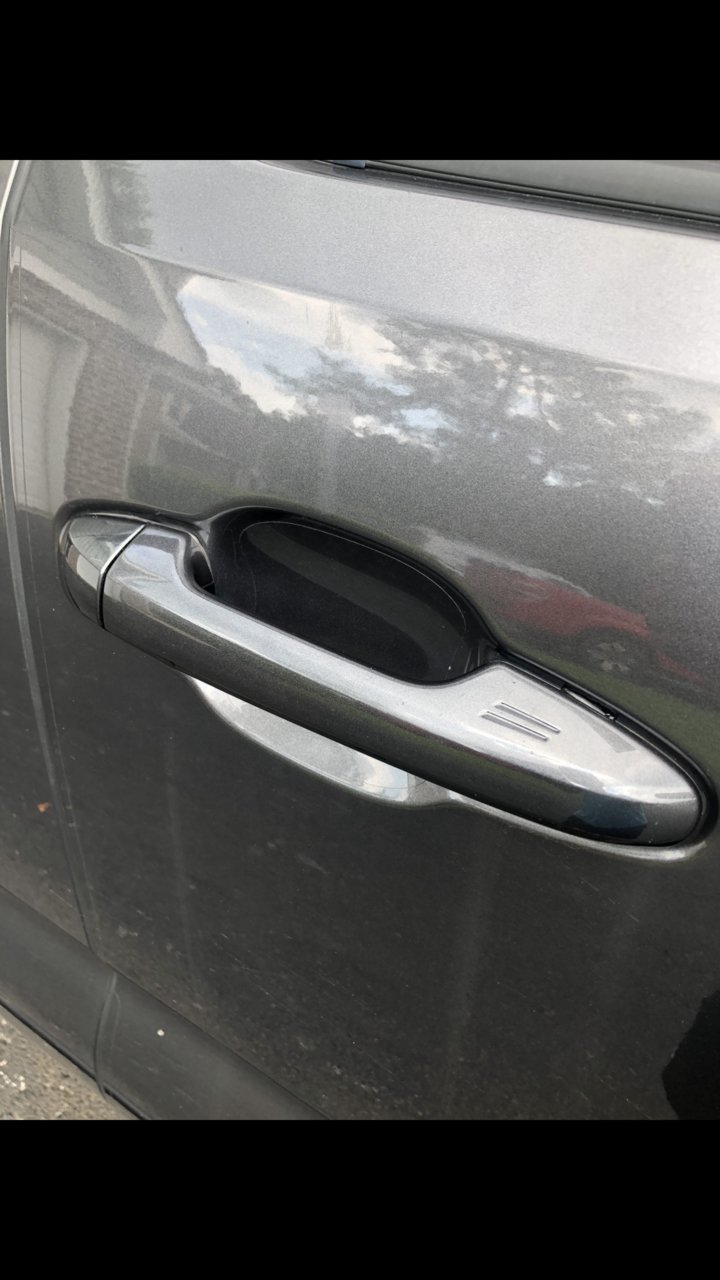

    Yeah, the handle I bought/received has those grooves


    Threw me off because I was like wait, where are the electrical plugs supposed to go on my blank handle!

    Thanks for posting your actual handle guys, definitely looks like I’m missing the electrical internals on the new handle I ordered.

    As far as wiring, I ordered the @Accessorides harness.

    Have a good rest of your Sunday everyone.

    Frsh2df likes this.
  6. Nov 24, 2020 at 11:42 AM
    #906
    Harcourt

    Harcourt __________

    Joined:
    Nov 30, 2011
    Member:
    #67978
    Messages:
    18
    Gender:
    Male
    First Name:
    Alex
    Louisville, KY
    Vehicle:
    Waiting for that Tacoma diesel..
    14 Dodge diesel longhorn 17 DCLB TRD-OR 09 TRD OR 6spd
    That’s super weird, I guess that’s just the shell of the handle. Didn’t know they sold that as a standalone part. (Or maybe they don’t??!!)

  7. Nov 25, 2020 at 11:36 AM
    #907
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    1,034
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road

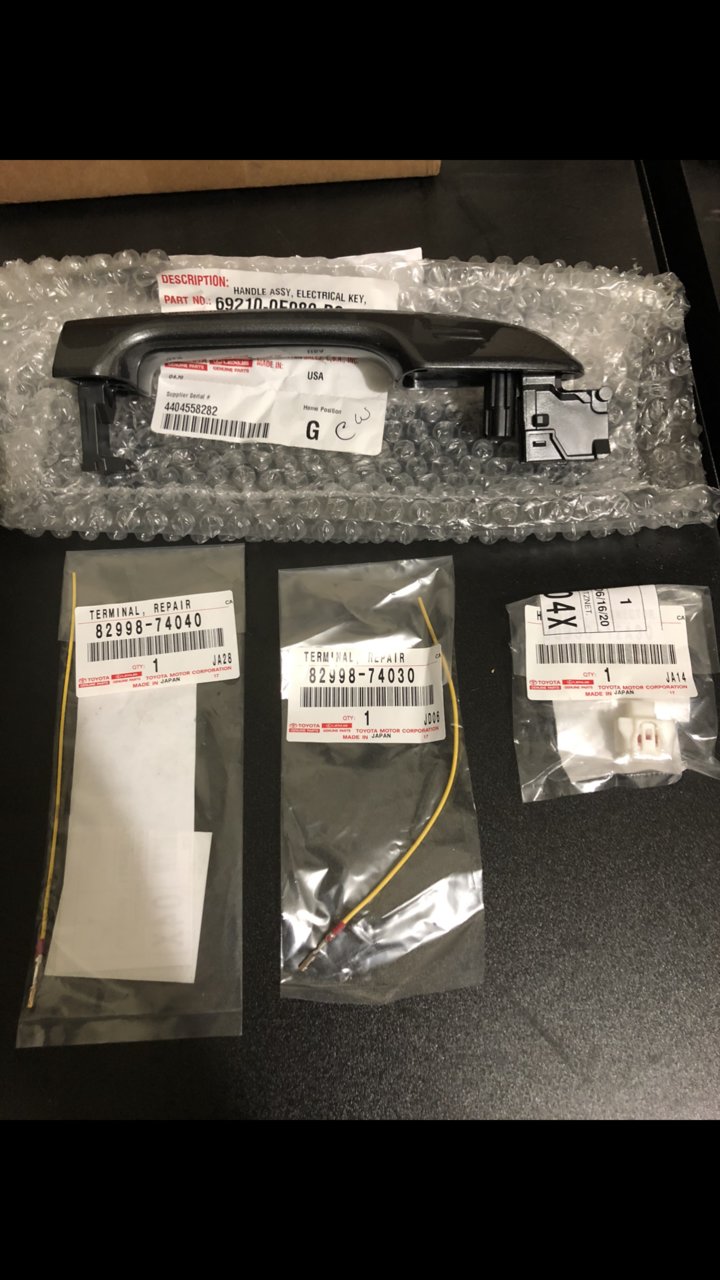

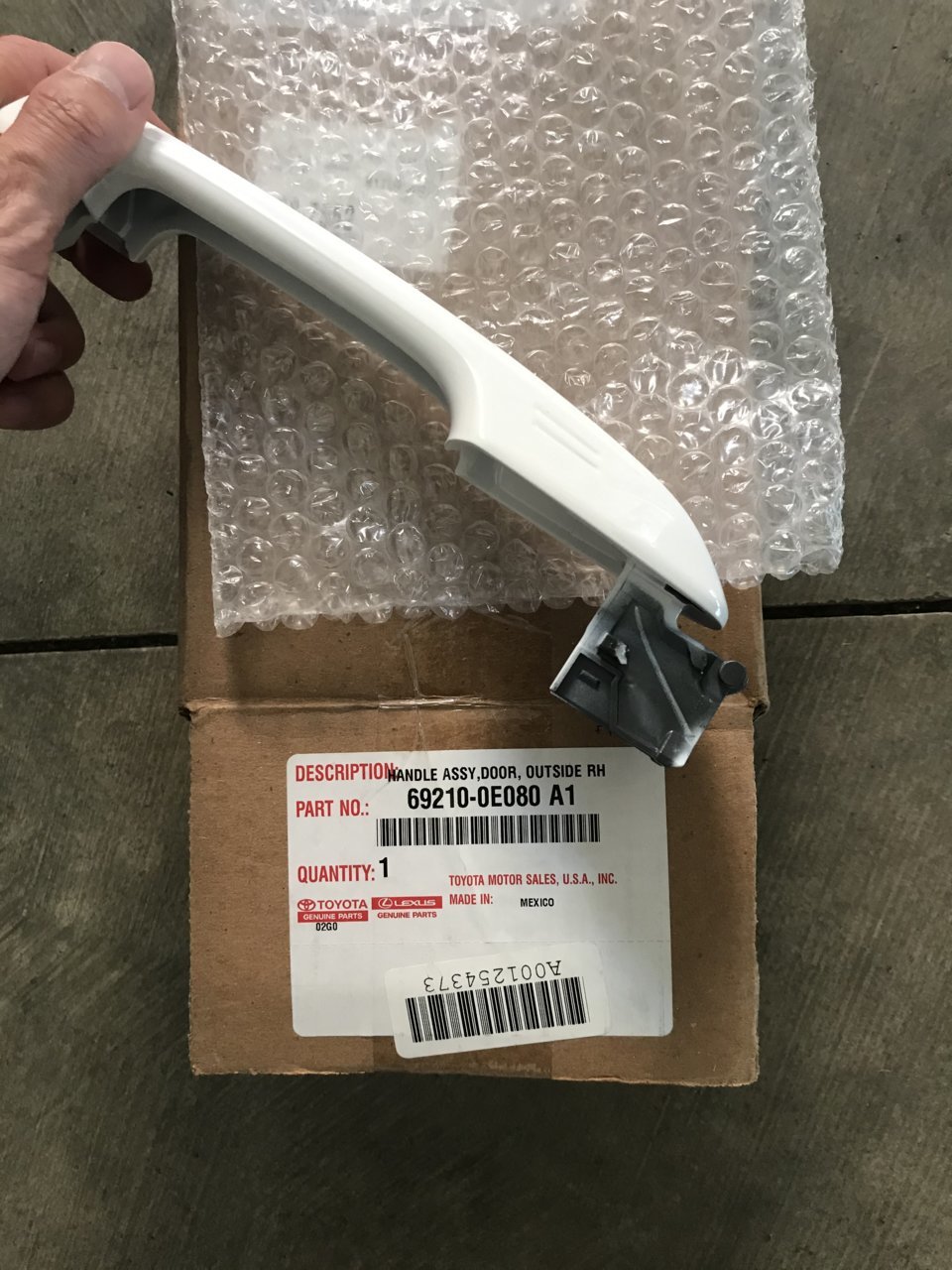

    That’s not a full handle. Maybe they changed something for 2020/2021, but your missing half the handle.
    Curious how much did you pay?
    Part number looks correct

  8. Nov 25, 2020 at 2:21 PM
    #908
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,174
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    I paid $152 from trdshop.com... any place you guys suggest I buy the handle from? Hopefully they didn't change the p/n for '20/21

  9. Nov 25, 2020 at 2:59 PM
    #909
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    1,034
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    I think you ordered the correct thing but part of the handle is missing. I was wondering cost because if you said it was half that I would understand why, but you paid the same price as the full smart handle.

    Maybe a manufacturing error or maybe someone may have purchased, gutted what they needed and returned the shell scamming the parts guy that doesn’t know better, who then sold to you.

    I’d return and order another, even if from another place to be sure you don’t get the same one back.
    Good luck.

    patdeezy likes this.
  10. Nov 25, 2020 at 3:58 PM
    #910
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,174
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    Already started a return with them, going to source another handle from another place

    Thanks guys, happy thanksgiving

  11. Nov 25, 2020 at 4:30 PM
    #911
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,087
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    I bought mine from McGeorge. Was the cheapest i found when i was shopping for the handle. This included the shipping cost to Hawaii though. You folks on the mainland have more options.

    https://toyotaparts.mcgeorgetoyota.com/

    ktbell444 and Rainoffire like this.
  12. Dec 12, 2020 at 12:05 PM
    #912
    patdeezy

    patdeezy Well-Known Member

    Joined:
    Jun 19, 2016
    Member:
    #190028
    Messages:
    1,174
    Gender:
    Male
    souLcaL
    Vehicle:
    '19 OR 4x4 SuperWhite DCSB
    Thanks for the feedback everyone, finally had a chance to install this morning w/ the correct parts :thumbsup: Used the @Accessorides harness as well, very well made harness. I just wish this was around back in the day when I did the MESO puddle lights cuz I forgot how much of a beez that rubber boot is :rofl:

    This should have been STOCK on our trucks! Smh Toyota

    Tacoma1845 and DSRamsey13 like this.
  13. Dec 12, 2020 at 1:04 PM
    #913
    Harcourt

    Harcourt __________

    Joined:
    Nov 30, 2011
    Member:
    #67978
    Messages:
    18
    Gender:
    Male
    First Name:
    Alex
    Louisville, KY
    Vehicle:
    Waiting for that Tacoma diesel..
    14 Dodge diesel longhorn 17 DCLB TRD-OR 09 TRD OR 6spd
    Right? At least an option.

    I feel like the Tacoma is purposely using tried and true systems that are bulletproof, but old. Love the Tacoma but my ‘14 Ram has more options than a ‘20 Taco.

  14. Dec 13, 2020 at 6:43 PM
    #914
    slapntz

    slapntz Well-Known Member

    Joined:
    Jun 30, 2020
    Member:
    #332991
    Messages:
    180
    Gender:
    Male
    Anyone try this for the rear doors on a 2020/2021? Asked same question in another thread but this one has more activity. TIA!

  15. Dec 13, 2020 at 6:47 PM
    #915
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    1,034
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    Should work just fine. If you tap the wires coming from pin 1&2 from the smart key ECU you can tap off the factory passenger side handle.

    BigWhiteTRD likes this.
  16. Dec 13, 2020 at 7:07 PM
    #916
    slapntz

    slapntz Well-Known Member

    Joined:
    Jun 30, 2020
    Member:
    #332991
    Messages:
    180
    Gender:
    Male
    awesome! Thank you - will try this over the next few days and report back. Already bought the parts in a leap of faith.

  17. Dec 23, 2020 at 5:34 PM
    #917
    slapntz

    slapntz Well-Known Member

    Joined:
    Jun 30, 2020
    Member:
    #332991
    Messages:
    180
    Gender:
    Male
    Just reporting back that I got pin 1 & 2 to work on my 2021. I made the looms and fished them through the doors, but broke a pin in the process (ARRRGH!) so had to stop there. Waiting for the new one to come in, but once I fix that, I'll swap handles, tie up the taps and should be GTG.

    Thanks you @Victory

  18. Jan 5, 2021 at 12:07 PM
    #918
    jhollist99

    jhollist99 Member

    Joined:
    Dec 5, 2020
    Member:
    #348732
    Messages:
    14
    Gender:
    Male
    Does anyone have a link to a video or forum for swapping out the passenger handles? I want to swap out my chrome handles for cement....This forum is helpful for the drivers/passengers handles but the rear/passenger handles do not have the same easy removal option....

  19. Jan 5, 2021 at 12:33 PM
    #919
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    2,272
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    I just ordered the part from BAM and the harness from Accessorides. :thumbsup:

    $305.40 total. Here we go...

    Last edited: Jan 5, 2021
    cemented likes this.
  20. Jan 5, 2021 at 12:52 PM
    #920
    slapntz

    slapntz Well-Known Member

    Joined:
    Jun 30, 2020
    Member:
    #332991
    Messages:
    180
    Gender:
    Male
    I followed this: https://www.tacomaworld.com/threads/removing-rear-door-handles-finally.468804/

    They are all pretty much the same. Relatively straightforward. The nut that holes the handles on is a T30 Torx, and it is captive so, it will stay in handle (a nice touch to prevent it form dropping down into the door.).

    In the rear you have undo the three T30 tori that hold the door latching mechanism in place (in the door jam area of the door itself) and then lower the latching mechanism into the door a bit to expose the T30 bolt that holds the door handle on. Its best to take a razor and cut some of the tar holding the plastic sheeting (moisture barrier) away, and move the the big black felt/foam sound insulator so you can reach inside the door and manipulate the latching mechanism out of the way. Also helps to undo the latching mechanism wiring harness to get it out of the way.

    It sounds complex but once you're there its not.
    1. remove door panel (screw behind door handle and in armrest - then pull from Botton to top, front to back): Remove door panel and speaker 2016 and up Toyota Tacomawww.youtube.com › watch
    2. cut take (gently pull moisture barrier plastic back)
    3. undo latching wiring harness
    4. undo three T30 bolts holding latch in place and push it down
    5. look through hole where latch was and spot T30 bolt holding handle on - undo bolt. while doing this reach around to the outside of the door and hold the end cap at the back of the exterior handle (it is captive as well, but might fall off).
    6. pull handle from outside (rear to front). Insert new handle and reverse process.

    Last edited: Jan 5, 2021
    Victory [OP] and DSRamsey13 like this.
