Passenger Door Smart Key System

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Victory, Apr 22, 2018.

  1. Apr 30, 2018 at 8:23 PM
    #121
    treimche

    treimche Well-Known Member

    Joined:
    Dec 2, 2016
    Member:
    #203883
    Messages:
    824
    Gender:
    Male
    Fargo, ND
    Well, if there's a huge backorder and the next wave of available connectors does not fulfill demand, then it could be worth it.

    TacoTruck808[QUOTED] likes this.
  2. Apr 30, 2018 at 8:25 PM
    #122
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    Sounds like another Meso opportunity!

    KTJO 4x4 likes this.
  3. May 1, 2018 at 2:13 AM
    #123
    96ti

    96ti Well-Known Member

    Joined:
    Aug 2, 2017
    Member:
    #225772
    Messages:
    56
    Gender:
    Male
    Vehicle:
    2017 ACOR
    You can use female spades. Cheaper and readily available. No one will ever know but you ;)

  4. May 1, 2018 at 8:09 AM
    #124
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    You could probably just use the 2 wires in the parts list without the white connector for now by inserting it directly onto the terminals of the handle, then when the connector comes in, just pull them off the terminal, plug them into the connector, then plug back into the handle. This will require taking the door panel off twice, but if you don’t want to wait, this will work.

    Thats if they ship it separately of course.

  5. May 1, 2018 at 12:10 PM
    #125
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    Just don’t forget to shrink tube them or wrap them in electrical tape to isolate them from shorting each other or better yet, preventing them from contacting the cars frame from the inside, allowing you to touch anywhere on your car from the out side to unlock haha...wait a minute...that would be kinda cool actually...

  6. May 1, 2018 at 6:40 PM
    #126
    treimche

    treimche Well-Known Member

    Joined:
    Dec 2, 2016
    Member:
    #203883
    Messages:
    824
    Gender:
    Male
    Fargo, ND
    So how does the door handle sensor work? What are the blue and green wires doing? Judging by your install instructions, it doesn't matter which pin of the door handle sensor goes to blue or green? Kinda curious to see what would happen if a person did all 4 doors with the touch sensor handles. Sure its a good chunk of money, but damn that would be so convenient.

    ScottyR likes this.
  7. May 1, 2018 at 6:59 PM
    #127
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    1,044
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    Yes it does matter which wire goes where. The top pin or wire on the passenger door handle (when viewed from inside the door panel will tap into a Green wire, the bottom wire will tap into a Blue wire. You need to use wiring that you can tell each side apart (my speaker wire one side was gold and the other silver).

    No harm should be done if you cross the wires, but the door handle will not function.

    Toms 17, EagleUSMCRet and opentang like this.
  8. May 1, 2018 at 7:33 PM
    #128
    treimche

    treimche Well-Known Member

    Joined:
    Dec 2, 2016
    Member:
    #203883
    Messages:
    824
    Gender:
    Male
    Fargo, ND
    Ok cool, good to know. Have you tested the wires to see what they are actually doing? I'm a long time remote start installer, which is why this makes me curious. I'll probably end up metering the blue and green wires when I get everything and install, just to see. What computer is it that you are tapping into?

  9. May 1, 2018 at 7:37 PM
    #129
    RushT

    RushT Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    5,473
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    Anybody know any dealerships with Inferno handles in stock?

  10. May 1, 2018 at 7:58 PM
    #130
    pembol

    pembol Member

    Joined:
    Nov 15, 2016
    Member:
    #202462
    Messages:
    23

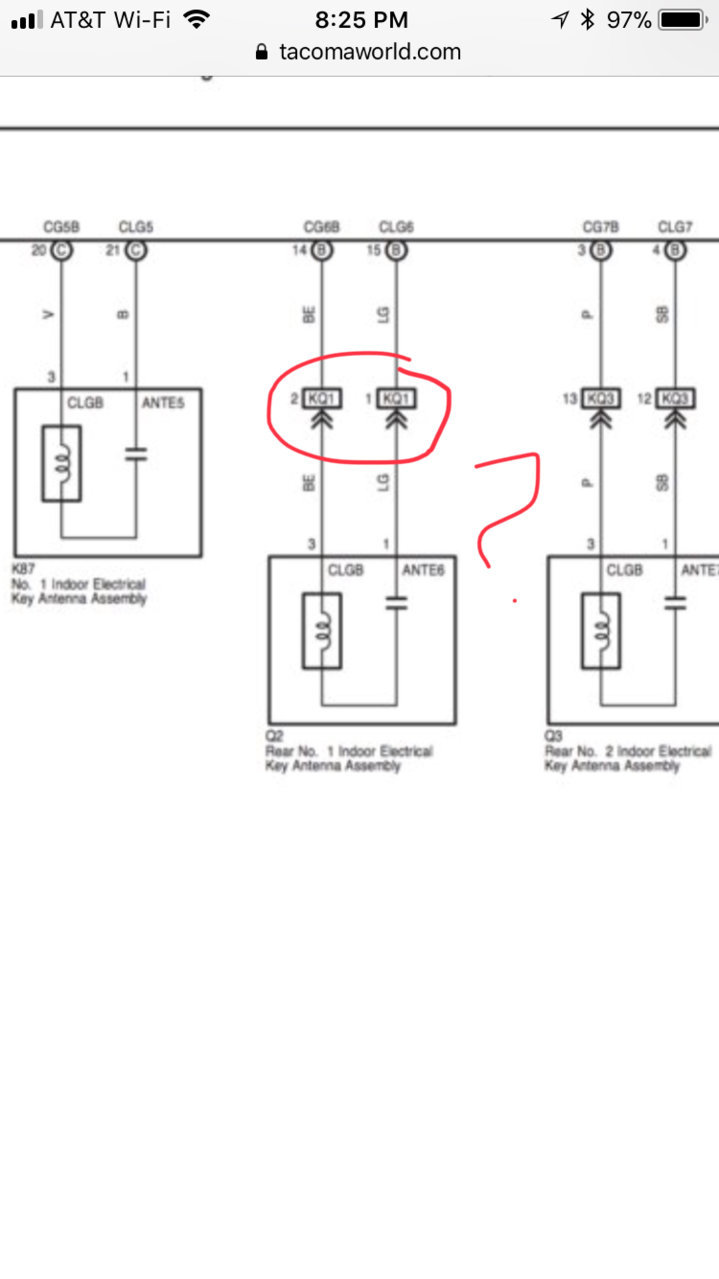

    Smart Access System with Push-Button Start.jpg It seems like the Certification ECU is the same one used in the Lexus IS, which has smart key sensors on both front doors. If this is the case, pins 1 and 2 on the top connector on the ECU are actually where the passengers side door handle should connect. Using these pins would mean the smart key would work like a factory installation with the correct door unlocking when approached. Here is the IS wiring diagram showing the connection.

  11. May 1, 2018 at 8:03 PM
    #131
    Loudog504

    Loudog504 Well-Known Member

    Joined:
    Dec 22, 2015
    Member:
    #172854
    Messages:
    916
    Gender:
    Male
    First Name:
    Luis
    Baton Rouge, LA
    Vehicle:
    2017 Tacoma TRD Off-Road 4X4 DCLB
    Looks like Part# - 90980-12A30 in on back order until 5/21/18. Looks like about 4 weeks for someone to confirm. :fingerscrossed:

  12. May 1, 2018 at 8:07 PM
    #132
    treimche

    treimche Well-Known Member

    Joined:
    Dec 2, 2016
    Member:
    #203883
    Messages:
    824
    Gender:
    Male
    Fargo, ND
    Now to see if that will actually work correctly. Then sourcing the correct pins to add to that plug for a nice install.

    Does the IS allow you to unlock the passenger's side door only from that handle? Or does it unlock all the doors from the passenger side handle?

  13. May 1, 2018 at 8:09 PM
    #133
    pembol

    pembol Member

    Joined:
    Nov 15, 2016
    Member:
    #202462
    Messages:
    23
    I don't know for sure, but if it is like my Prius you can have the drivers side door just unlock the drivers side when approached, and all doors unlock if you approach the passengers side door.

    TacoTruck808 likes this.
  14. May 1, 2018 at 8:17 PM
    #134
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    I wouldn’t be surprised if they left those pins empty only to add this feature next year or so...I mean after all I think they knew they were going to add the TSS because they molded the pre 18 TRD pro grills to be able to remove that honeycomb trap door and be replaced with the glossy garnish...let us know if it works out for you, then no fishing wires or tapping required, even simpler install!

  15. May 1, 2018 at 8:17 PM
    #135
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    My wife’s NX is like your Prius. When selected on the headunit, the drivers door handle only unlocks the drivers door, the other 3 door handles (pass front and both rears) unlocks all the doors.

  16. May 1, 2018 at 8:20 PM
    #136
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    Let us know if you decide to try it and successful or not. I thought I read in the other thread that @Victory may have researched this already, but I could be mistaken.

  17. May 1, 2018 at 8:24 PM
    #137
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    Where exactly are you looking, I can’t spot pins 1 and 2...can you highlight it or circle it? These?


  18. May 1, 2018 at 8:26 PM
    #138
    pembol

    pembol Member

    Joined:
    Nov 15, 2016
    Member:
    #202462
    Messages:
    23

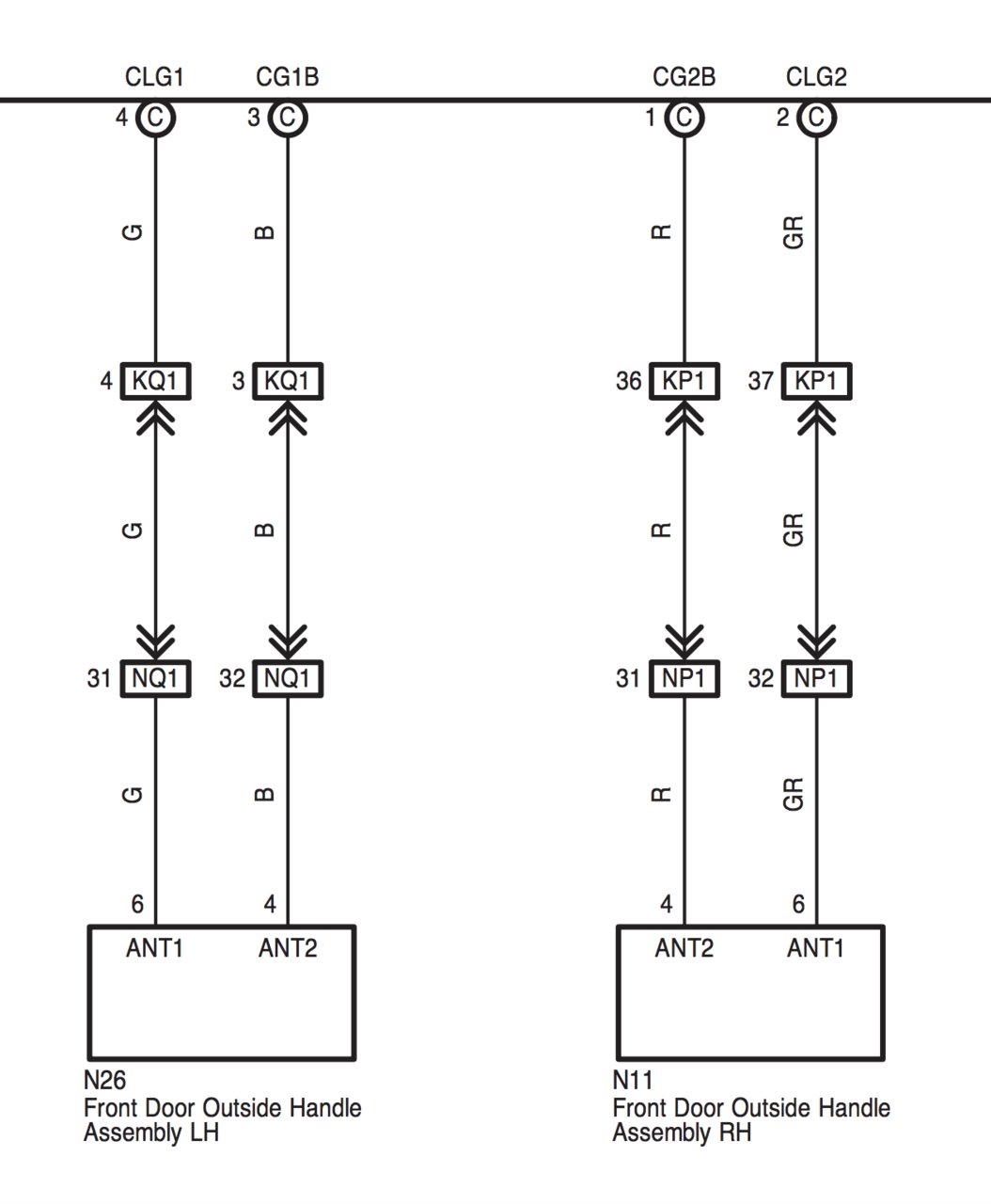

  19. May 1, 2018 at 8:29 PM
    #139
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    Ahh there they are...ok I’m officially blind. Thanks dude, anyone going to try this? But this is on the ECU side right? So it would seem we would still have to fish the our wires through and find the correct crimps to pop in, unless they’re the same as the ones outlined in the OPs BOM then I would get two sets of each and just solder the leads I fished through when I get to the ECU side. Is this a correct statement? I would do it but I’m still price shopping to replace all my handles to body colored from the Limited’s chrome...

  20. May 1, 2018 at 8:29 PM
    #140
    pembol

    pembol Member

    Joined:
    Nov 15, 2016
    Member:
    #202462
    Messages:
    23
    I don't plan on doing this - but it would be easy enough to try (just shove the wires from the RH handle in the connector to test) and if it does work, it would be the 'right' way to do it. You would still need to fish wire from the RH door to the ECU as I assume these wired aren't in the harness.
