Pelfreybilt ::: 3rd Gen Tacoma - Dual Swingout Rear Bumper ::: PRE-ORDER

Pelfreybilt ::: 3rd Gen Tacoma - Dual Swingout Rear Bumper ::: Pre-Order
AVAILABLE IN STANDARD AND HI-CLEARANCE OPTIONS
- Dual Swing Arms (NOT available in single gate)
- Fold Down Table (passenger side, inside gate)
- Dual Antenna Mounts
- Hi-Lift Mount
- Reverse Light Cutouts (for Baja Designs S2 Flush Mounts. filler plates are included)
- Spare Tire Carrier
- Backup Camera Relocation (for your stock camera)
- Flip Up License Plate Mount (covers hidden rear hitch)
- Hidden Rear Hitch (bumper requires removal of stock hitch)
- (2) Mounting Plates allowing installation of any 2 mounts we offer (propane, CO2, NATO can, Rotopax) mounts sold separately
- Backup Sensor Cutouts (plugs includes for those without)
- Completely Sealed Bearing Hinges (no maintenance required)
- Lockout Pins & Internal Stops (prevents gate from opening too far and damaging vehicle)

Standard - $1620 ($1924 Powder Coated)*
Hi-Clearance - $1825 ($2186 Powder Coated)*
*Pricing may change very slightly. If pricing does change Pelfreybilt will contact you directly


WEIGHT
Standard (135-145lbs)*
Hi-Clearance (180-190lbs)*
*Production weights may vary


LEAD TIMES
12-14 weeks once production is started.


PRE-ORDER DETAILS
Email your FULL NAME, PHONE #, ADDRESS, and BUMPER (standard or hi-clearance) to michael@pelfreybilt.com. Please include subject "TW 3rd GEN REAR BUMPER".
If you would like any mounting solutions please check them out here, and include details in your email to Michael.


FAQ
Q - If I order my bumper today (6/20) when should I expect to see it?
A - THE BUMPERS ARE STILL IN THE DEVELOPMENT STAGE. WE HAVE DONE ALL OF OUR DESIGNS IN OUR CAD PROGRAM, WE HAVE DONE OUR STRESS ANALYSIS AND NOW HAVE TO BUILD AND TEST A PROTOTYPE IN THE REAL WORLD APPLICATION. THIS WILL TAKE ROUGHLY 6 WEEKS AND THEN IT WILL GO INTO PRODUCTION. ONCE PRODUCTION STARTS 12-14 WEEKS.

Q - Will you email us if the pricing changes?
A - ABSOLUTELY! WE DON'T EXPECT IT TO CHANGE, BUT THERE IS ALWAYS THE CHANCE SOMETHING CHANGES DURING PROTOTYPING. A SMALL COMPONENT CHANGE COULD IMPACT THE PRICE SLIGHTLY.

Q - Should we call or email if we need to change our order?
A - EMAIL WOULD BE PREFERRED (michael@pelfreybilt.com)


-Pelfreybilt
www.pelfreybilt.com



Ordered a couple a days ago! Cant wait! Been patiently waiting for Pelfreybilt to get this out and now the WAITING GAME IS ON!!!!

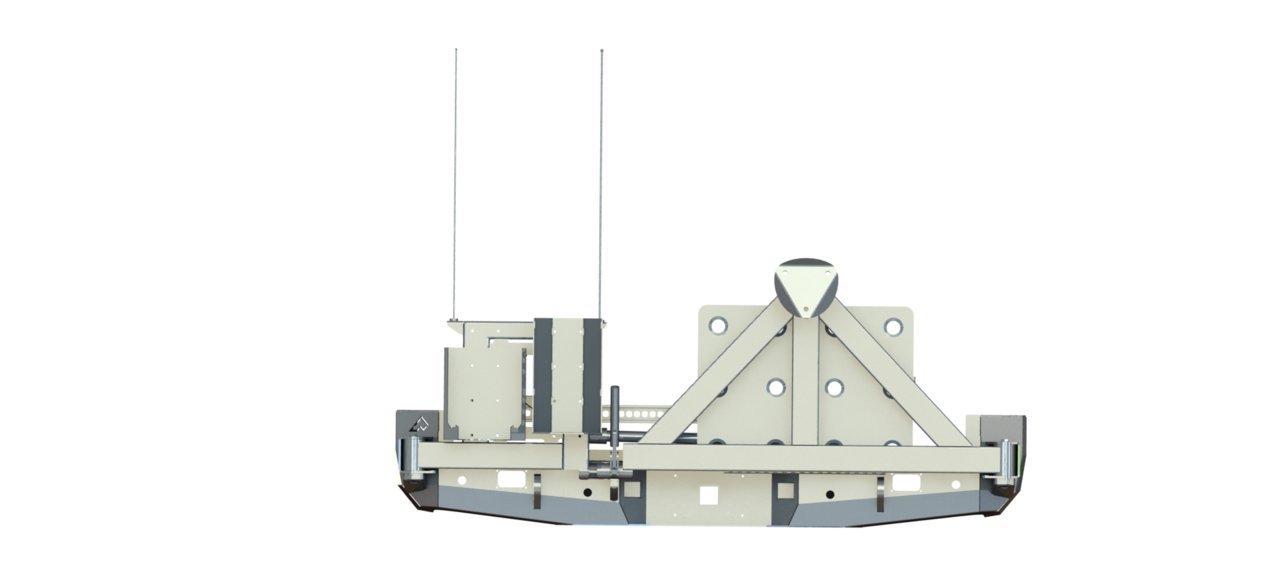

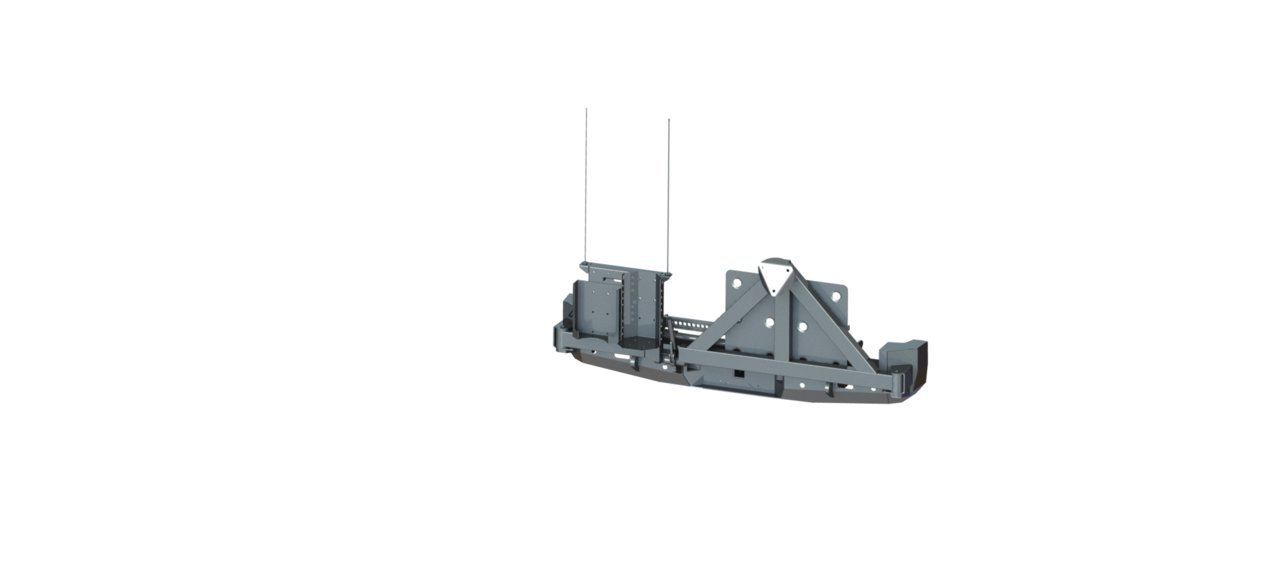

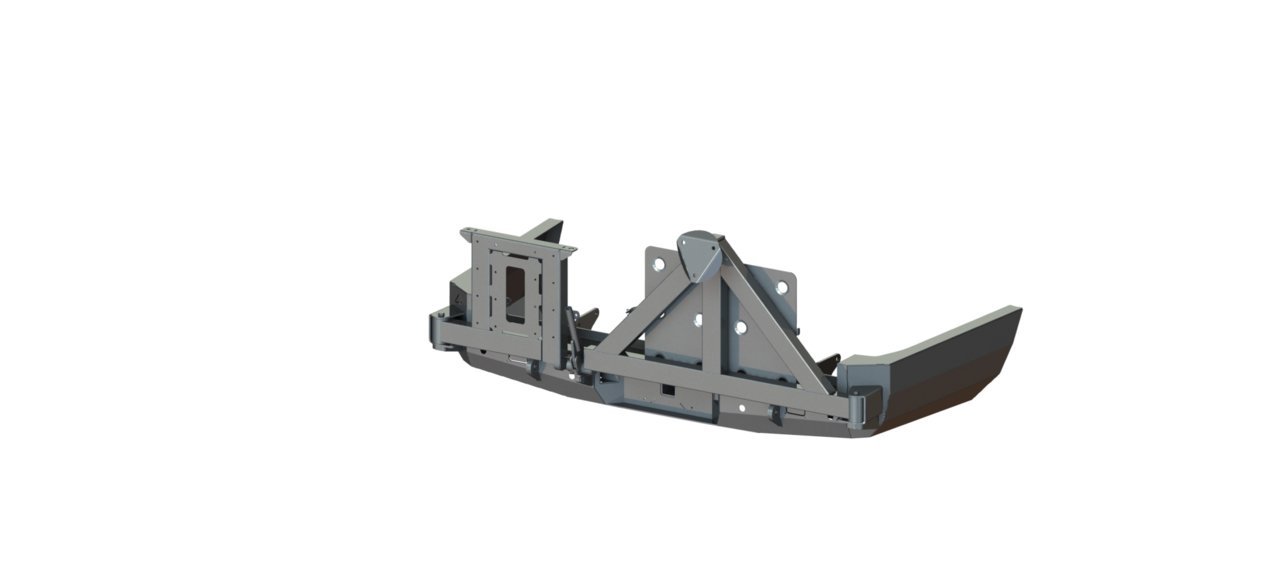

Any cad pics swung out?



Or pics of the test model



None yet, but I'm sure we'll have some more in the next couple of weeks.

-Pelfreybilt
www.pelfreybilt.com



Tempt me



Took long enough, guess I am going full pelfrey on this build again

Why isn't there an option of a dual jerry can set up like you have on the second gens? From what I see its just two single can mounts? And are you guys going to allow for any custom additions?

I definitely want to see how this thing is going to be once its mounted also. Really want to see how the hilift is on there =D

Whatever though youll be getting my money soon enough



The single can allows for more options to be paired. You can run one gas can, one propane tank. Or pair the gas can with another accessory.

We do still have the Dual Can mounts, although I'm not 100% sure if we will continue producing them with the singles. We aren't on doing a lot of custom work, but are happy to discuss what you're looking for.

michael@pelfreybilt.com

-Pelfreybilt
www.pelfreybilt.com



@Sandtaco

Here is what I was talking about after you destroyed your rear bumper on Miller Jeep Trail last weekend.



So sick !! Look forward to the 2nd Gen version



Is it possible to modify an existing hi-clearance rear to add the swingouts?



Unfortunately they will be completely different bumpers.



So I did a thing today and I’m now even more interested in this bumper, but not the 5 month lead time



We dont like the lead time either as we would like to be selling them already but alas, good things take time!



Since it isn't done yet, perhaps some constructive criticism. That's a pretty terrible place to put an antenna. I imagine that you have some kind of bushing or bearing on the swingout hinge? That's going to electrically isolate the jerry can holder from the rest of the truck. There are some ham antennas that don't require a ground plane, but if you are going to use it with a grounded antenna or cb. it might be worth adding a grounding strap between the jerry can swingout and the bumper. The shorter the better, and the bigger the better. Also, antennas shouldn't be closed so closely together, even VHF antennas should be several feet apart to avoid interaction. CB antennas, forget it, they should be about 18 feet apart.

Beyond those things, looks amazing. Very cool design.



I appreciate the feedback, not sure those are the final locations for the antenna mounts but I will talk to Tyler about it!



Can't wait to see the final design and product!



Most people will not use both if any at all for antennas. People that are looking for good radio performance will select an area of the vehicle that provides a better ground plane. The holes are there as an option for those that want to go the bumper mount route. Most people will use these holes for a light or flag in areas that require whip flags.

-Tyler
