Pelfreybilt Hi-Clearance Rear Bumpers

Discussion in 'Pelfreybilt Off-Road' started by Socalduckslayer, Feb 27, 2013.

  1. Feb 27, 2013 at 11:32 AM
    #1
    Socalduckslayer

    Socalduckslayer [OP] Pelfreybilt Off-Road Vendor

    Joined:
    Feb 13, 2012
    Member:
    #72745
    Messages:
    6,017
    Gender:
    Male
    First Name:
    Tyler
    San Diego, Ca
    Vehicle:
    12 Tacoma
    Odds and Ends

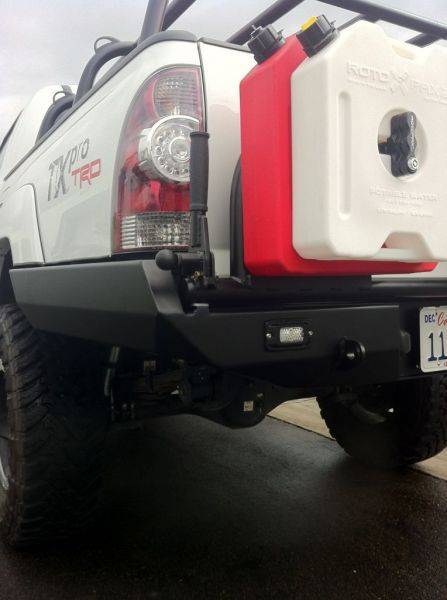

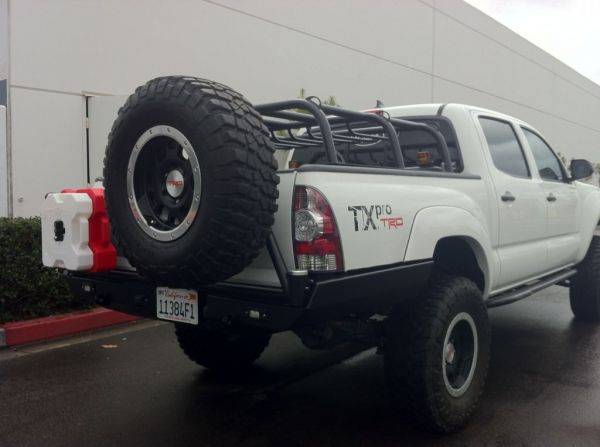

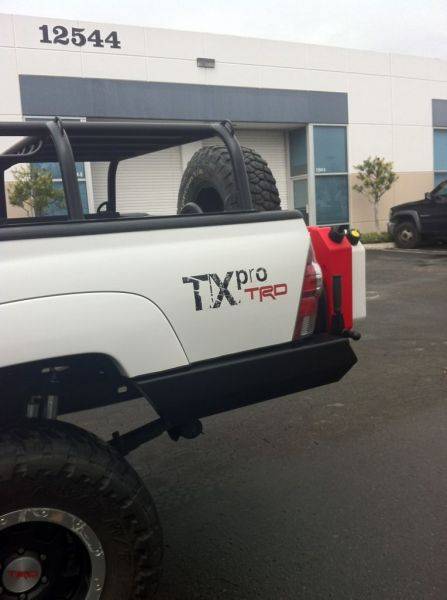

    This is the Hi-Clearaance rear that is designed to work with a swingout. Bumpers without swingouts will be modified to be closer to the corners of the truck as the extra space for the spindles is not needed. I will post that configuration as soon as it is complete. The standard replacement rears that do not require bedside sutting will be available very soon.

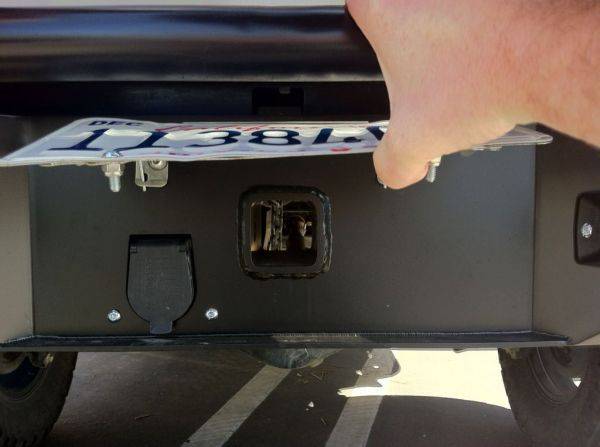

    These are fully formed and welded plate. The main mounts to the frame are one piece through the bumper for ultimate strength. The main mounts are 3/8" Steel, all of the other plate components are 3/16" thick. The hidden hitch option behind the license plate is additionally supported with 2" square tubing that is 3/16" wall. The factory license plate lights are reused. Light cutouts for Rigid Flush-mounts are also optional.

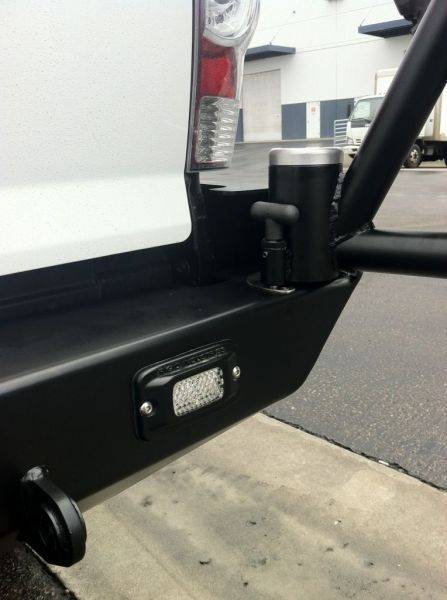

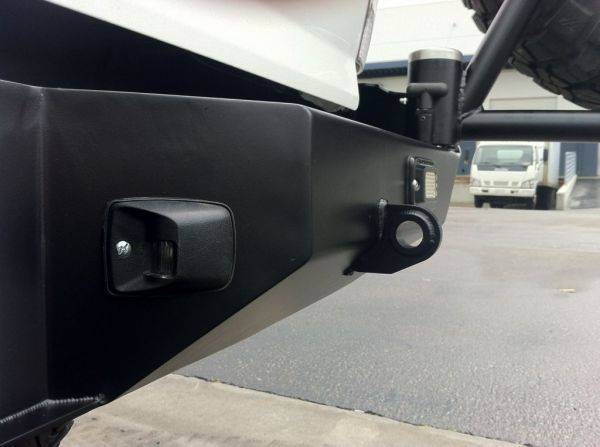

    Swing outs hinges are massive 1.75" spindles with ball bearings and zerk fittings. The latch is a Synergy Suspension rotary lock that is completely fail safe. The gate is made from 1.75" x .120 Wall Tubing. The swing out automatically locks open when its fully extended using a spring lock pin. The pin rides on a stainless track to prevent corrosion and galling into steel.

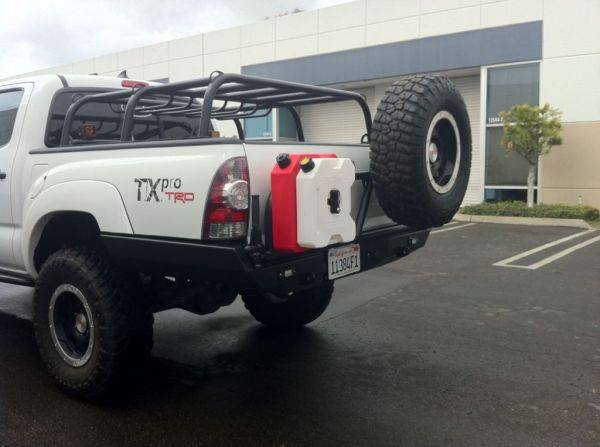

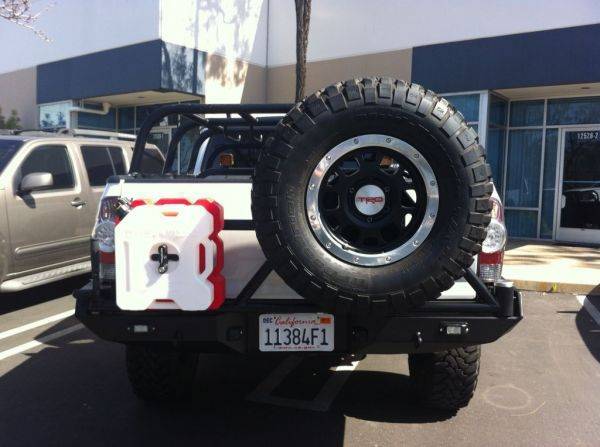

    Swing out pictured is pretty standard, additional options are available at customers request.

    Base bumper 875.00
    Optional Hidden Hitch 150.00 (not rated but bombproof)
    Optional Reverse Light cutouts 50.00
    Swing out, basic starts at 450.00, includes tire carrier. Adding Nato Can holders, Rotopax mounts, etc are additional.
    Powdercoat is 150.00 for base 75.00 for swing out



    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Oct 13, 2013
  2. Feb 27, 2013 at 11:52 AM
    #2
    VolcomTacoma2011

    VolcomTacoma2011 Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    8,554
    Gender:
    Male
    First Name:
    Jeff
    Fairfield, NorCal
    Vehicle:
    2011 TRD TX|Pro PreRunner DC
    Stock-trading in soon
    Holy crap that is sexy!! Once again Tyler, you pump out an amazing product!

  3. Feb 27, 2013 at 1:07 PM
    #3
    MikeyTG

    MikeyTG Oh Herro

    Joined:
    Mar 22, 2012
    Member:
    #75398
    Messages:
    815
    Gender:
    Male
    First Name:
    Mike
    Oahu
    That is a damn good looking bumper, lots of nice details really make it standout.

  4. Feb 27, 2013 at 1:10 PM
    #4
    chris5255

    chris5255 Me mber

    Joined:
    Dec 5, 2011
    Member:
    #68244
    Messages:
    240
    Gender:
    Male
    First Name:
    Chris
    Renton WA
    Vehicle:
    12 Tacoma DCLB TRD Sport
    BAMF Sliders Fog light switch mod, Pelfreybilt Front bumper, Warn Zeon10 winch pinstriping for speed
  5. Feb 27, 2013 at 1:56 PM
    #5
    AZBACKCOUNTRY

    AZBACKCOUNTRY Well-Known Member

    Joined:
    Dec 30, 2009
    Member:
    #28443
    Messages:
    709
    Gender:
    Male
    First Name:
    Doug
    AZ-between the hammer and the anvil
    Vehicle:
    11' AC TRD OFF-ROAD 4x4
    AVID off road bolt on sliders, upper grillcraft, OEM color matched front grill color matched-rear bumper, ARE MX camper shell, wet Okole realtree seat covers,pelfreybuilt hi lift mounts,Timcha shackle receiver,bulaculla trailer harness relocate harness,ICON 2.5 Coilovers, ICON tubular UCA's. Allpro expo leafs, SS lines.Bilstein 110 extended rear shocks.
    Sweet bumper- that spare looks HUGH! Lol

    Az

  6. Feb 27, 2013 at 3:17 PM
    #6
    kyoung.709

    kyoung.709 Active Member

    Joined:
    Sep 7, 2012
    Member:
    #86403
    Messages:
    38
    Gender:
    Male
    do you ship freight to canada??????

  7. Feb 27, 2013 at 3:18 PM
    #7
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    15,737
    Gender:
    Male
    You should do a write up on the install, I want a HC wrap around but Idk how to cut the bed sides.. and that thing is SEKS

  8. Feb 27, 2013 at 3:22 PM
    #8
    armyoffoo

    armyoffoo Scrotie McBoogerballs

    Joined:
    May 21, 2011
    Member:
    #56988
    Messages:
    270
    Gender:
    Male
    Houston, TX
    Vehicle:
    Silver 2012 DCSB 4x4 V6
    TRD SC, URD 2.8" pulley, NST Pulleys, BullyDog Tuner, Cometic Headgaskets, ARP Head studs, rod bolts, flex plate bolts, header studs, CP Pistons, Molnar Rods, Clevite Bearings, APR Exhaust cam gears, 170* thermostat, URD TCAI, DTLT Headers, URD Y Pipe, URD MK2 Catback exhaust, URD Fuel Pump upgrade, Fuelab Fuel filter, AEM Adjustable FPR, AEM Datalogger with AFR, Boost, Fuel Press, Oil Press, Oil Temp, Trans Press, Trans Temp, Coolant Temp Sensors, TR Drop Kit, StopTech BBK, TR Disc Conv, Stainless braided brake lines, -6AN Stainless braided Fuel lines from rail to tank, -6AN Stainless braided transmission cooler lines w/Earls Cooler, Stainless braided Powersteering lines w/Custom reservoir
    You're killin' me...this thing is badass!

    Time to go work the corner so I can afford this one to go with my front that I haven't finished paying for :D

  9. Feb 27, 2013 at 3:29 PM
    #9
    RelentlessFab

    RelentlessFab Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    13,397
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the Taco's.... new truck is pretty stock
    Looks pretty good. :cool:

  10. Feb 27, 2013 at 3:30 PM
    #10
    LoadedTaco

    LoadedTaco Kick A$$ Member

    Joined:
    Aug 21, 2012
    Member:
    #85218
    Messages:
    2,789
    Gender:
    Male
    First Name:
    Peter
    Burr Ridge Il
    Vehicle:
    2012 Red Baja
    Looks so good! I cannot wait to see the no-cut bumper!

  11. Feb 27, 2013 at 3:36 PM
    #11
    Socalduckslayer

    Socalduckslayer [OP] Pelfreybilt Off-Road Vendor

    Joined:
    Feb 13, 2012
    Member:
    #72745
    Messages:
    6,017
    Gender:
    Male
    First Name:
    Tyler
    San Diego, Ca
    Vehicle:
    12 Tacoma
    Odds and Ends
    Thanks guys

    Thanks Eric, means a lot coming from you.

  12. Feb 27, 2013 at 3:41 PM
    #12
    tostidos

    tostidos Well-Known Member

    Joined:
    Dec 24, 2010
    Member:
    #48149
    Messages:
    4,710
    Gender:
    Male
    First Name:
    Chris
    Apple Valley, CA
    Vehicle:
    07 LT 6spd
    Tyler looks bad ass! I like the spare tire mount alot!

  13. Mar 4, 2013 at 10:08 AM
    #13
    Socalduckslayer

    Socalduckslayer [OP] Pelfreybilt Off-Road Vendor

    Joined:
    Feb 13, 2012
    Member:
    #72745
    Messages:
    6,017
    Gender:
    Male
    First Name:
    Tyler
    San Diego, Ca
    Vehicle:
    12 Tacoma
    Odds and Ends
    Thanks Chris, I'm really happy with the results and look forward to getting the standard, no cut version going.

  14. Mar 4, 2013 at 10:14 AM
    #14
    RockyMtnTRD

    RockyMtnTRD McBuckets

    Joined:
    May 4, 2011
    Member:
    #56088
    Messages:
    5,888
    Gender:
    Male
    First Name:
    Noah
    Colorado
    Vehicle:
    '11 TRD OR
    35 Toyo RT, BAMF Towers + Sliders, Brute HC w/table + Hybrid Front, King 12.0, Alcan Springs, TC Upper
    :drool: savin my pennies ;)

  15. Mar 31, 2013 at 4:45 PM
    #15
    ckeene9

    ckeene9 Well-Known Member

    Joined:
    Sep 20, 2012
    Member:
    #87325
    Messages:
    8,537
    Gender:
    Male
    Chesterfield, VA
    Vehicle:
    '12 DCSB Supercharged 4x4 TRD Sport
    See Build Thread
    Can the swing out be ordered separately down the line?

  16. Apr 2, 2013 at 2:39 PM
    #16
    VolcomTacoma2011

    VolcomTacoma2011 Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    8,554
    Gender:
    Male
    First Name:
    Jeff
    Fairfield, NorCal
    Vehicle:
    2011 TRD TX|Pro PreRunner DC
    Stock-trading in soon
    Yea I'm wondering about this as well...

  17. Apr 3, 2013 at 7:24 AM
    #17
    Socalduckslayer

    Socalduckslayer [OP] Pelfreybilt Off-Road Vendor

    Joined:
    Feb 13, 2012
    Member:
    #72745
    Messages:
    6,017
    Gender:
    Male
    First Name:
    Tyler
    San Diego, Ca
    Vehicle:
    12 Tacoma
    Odds and Ends

    It could be ordered separately but the spindle and latch mechanism would need to be welded into the base on the first part of the order. Those are a major part of the swing out cost.

  18. Apr 3, 2013 at 7:46 AM
    #18
    VolcomTacoma2011

    VolcomTacoma2011 Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    8,554
    Gender:
    Male
    First Name:
    Jeff
    Fairfield, NorCal
    Vehicle:
    2011 TRD TX|Pro PreRunner DC
    Stock-trading in soon
    Awwww so there's no way to have just the base bumper made..have that on the truck fr a month or a few months, then come back and have the swing out installed? Even if you have to leave a hole or something for the spindle lol

  19. Apr 3, 2013 at 11:54 AM
    #19
    Desert Drifter

    Desert Drifter Well-Known Member

    Joined:
    Aug 23, 2012
    Member:
    #85385
    Messages:
    1,185
    Gender:
    Male
    First Name:
    Bill
    Central Arizona
    Vehicle:
    Tacoma 4x4, SR5
    Icon MT suspension, Pelfreybuilt front bumper, Relentless skids, Avid sliders, Avid custom rack. Pelfreybilt HC Rear bumper.
    Just buy it full up, you know you want it! (I want one too, but probably without the swing-out as I can't handle the rear visibility loss of that big tire in the rear view mirror or loss of the nifty rear view camera..)

  20. Apr 5, 2013 at 6:38 PM
    #20
    ckeene9

    ckeene9 Well-Known Member

    Joined:
    Sep 20, 2012
    Member:
    #87325
    Messages:
    8,537
    Gender:
    Male
    Chesterfield, VA
    Vehicle:
    '12 DCSB Supercharged 4x4 TRD Sport
    See Build Thread
    Another question, where are you hooking your chains up when towing?
