Physics question

Discussion in 'Off-Topic Discussion' started by svdude, Apr 12, 2019.

  1. Apr 12, 2019 at 9:04 PM
    #41
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    1,221
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    Nah

  2. Apr 12, 2019 at 9:11 PM
    #42
    Inferno!

    Inferno! Well-Known Member

    Joined:
    Nov 7, 2018
    Member:
    #271952
    Messages:
    355
    Gender:
    Male
    Location: Source
    Vehicle:
    2018 TRD OR Inferno 2/1 Lift 285/70/16 Grapplers
    Here and there....
    Need to know the weight of the cable. The shorter cable carries more tension from the beam, and the longer cable carries additional tension cause of the increased cable mass.

    Registered engineer here: where do I send my invoice? :D

    mynewtoy likes this.
  3. Apr 12, 2019 at 9:26 PM
    #43
    Toyko Joe

    Toyko Joe Here for the pictures

    Joined:
    Sep 19, 2014
    Member:
    #138654
    Messages:
    2,840
    I've been away from this type of problem for a few years but I think the cables can't be 90* to the ceiling. I think the load would balance between the two connections slightly shifting the beam to the left because gravity is acting on the entire beam.


    Cable on the left would have more tension than the right cable because it's holding the weight of the beam and the force of the different lenth of cable causing the beam to shift towards the left.

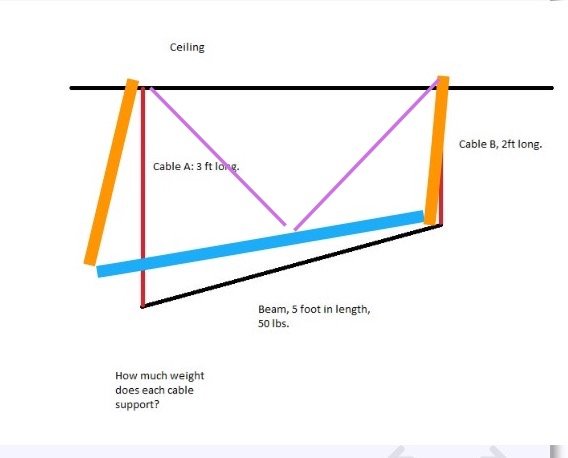

    Yellow lines are showing what I think the cables would actually do, blue is the beam and the purple is to show something...




  4. Apr 12, 2019 at 9:51 PM
    #44
    Fuergrissa

    Fuergrissa Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94858
    Messages:
    1,264
    Gender:
    Male
    First Name:
    Devin
    San Jose
    Vehicle:
    2000 Cinco speed 4x4


    Op in this case, you can neglect the mass of the cable for you situation as the load is small.

    But if your in a windy area, we’re guna have to start considering vortex induced vibrations.

    Last edited: Apr 12, 2019
  5. Apr 12, 2019 at 10:18 PM
    #45
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    1,221
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR
    How close is it to the event horizon?

    Fuergrissa likes this.
  6. Apr 12, 2019 at 10:34 PM
    #46
    hiPSI

    hiPSI Laminar Flow

    Joined:
    May 21, 2017
    Member:
    #219544
    Messages:
    4,559
    Gender:
    Male
    Appalachians
    Vehicle:
    2019 Toyota Tundra 4WD Crew Cab 5.7L Limited with TRD Off Road Package and Cement
    Beyond the Event Horizon....

  7. Apr 12, 2019 at 10:37 PM
    #47
    svdude

    svdude [OP] Well-Known Member

    Joined:
    Sep 30, 2012
    Member:
    #88055
    Messages:
    404
    Gender:
    Male
    First Name:
    jonathan
    So I'm going to make a hoisting system for my garage and this problem is to be sure the load stays level. Imagine lifting this beam (weight may be upwards of 200 lbs) using a double or triple pulley system on both ends of the beam and one single cable through both pulley systems. If in the problem I posted, the high side of the beam is essentially the heavy side, then with a pulley system the load will always self level when raising or lowering the load.

  8. Apr 12, 2019 at 10:45 PM
    #48
    BillyToy

    BillyToy Well-Known Member

    Joined:
    Sep 15, 2017
    Member:
    #230049
    Messages:
    1,029
    Gender:
    Male
    PNW
    Vehicle:
    2017 Tacoma TRD Pro 6MT
    OEM crossbars Predator steps (Yeah, I "dadded" it. What?!...punk)
    This better not be for one of them damn rooftop treehouses we been fighting over...

  9. Apr 12, 2019 at 10:50 PM
    #49
    svdude

    svdude [OP] Well-Known Member

    Joined:
    Sep 30, 2012
    Member:
    #88055
    Messages:
    404
    Gender:
    Male
    First Name:
    jonathan
    Actually it's for a hardtop on my Jeep. Toyota guys are smarter than Jeep guys so I asked here. Thanks!:thumbsup:

    BillyToy likes this.
  10. Apr 13, 2019 at 12:24 AM
    #50
    Fuergrissa

    Fuergrissa Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94858
    Messages:
    1,264
    Gender:
    Male
    First Name:
    Devin
    San Jose
    Vehicle:
    2000 Cinco speed 4x4
    You don’t understand what you’ve just done. :anonymous:

  11. Apr 13, 2019 at 4:22 AM
    #51
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    1,221
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    It gone!

  12. Apr 13, 2019 at 4:42 AM
    #52
    dweagle79

    dweagle79 Active Member

    Joined:
    Jun 22, 2018
    Member:
    #257181
    Messages:
    30
    Gender:
    Male
    First Name:
    Denny
    Vehicle:
    2018 Blue Tacoma Limited
    Was this one of those Friday Night Posts but for smart people?

    Mtn Mike likes this.
  13. Apr 13, 2019 at 5:14 AM
    #53
    stun gun

    stun gun Squad designated shitposter

    Joined:
    Nov 18, 2016
    Member:
    #202729
    Messages:
    7,608
    Gender:
    Male
    First Name:
    Aaron
    Goondocks, TW
    Vehicle:
    Tacomas.
    01 glass and long travel, 2017 sr(5)
    In that case, no information received, irrelevant.


    Op. Overbuild it and take a nap.

    hiPSI likes this.
  14. Apr 13, 2019 at 6:11 AM
    #54
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    470
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, Custom Car Grille, MESO Ultimate Turn Signal, RIGID fogs, BHLM with LED upgrade, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, DE-badged, TVD blackout kit, Sienna mirror control swap, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal.
    Equilibrium is at the beam level situation. I was just trying to show, by means of example, that the short cable carries the higher load. By taking the example to an extreme, I had hoped to help show that.

    Sometimes that technique is useful in double checking your work to see if the calculated answer for the question makes sense or if there is something else that needs considered.

  15. Apr 13, 2019 at 6:31 AM
    #55
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    470
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, Custom Car Grille, MESO Ultimate Turn Signal, RIGID fogs, BHLM with LED upgrade, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, DE-badged, TVD blackout kit, Sienna mirror control swap, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal.
    If the cables were attached to the ceiling first at "some" distance apart yes. When I did the quick math, there were some assumptions. i.e. Massless cables, true frictionless connecting points, no variation in the weight distribution of the beam, the attachment points in the ceiling were exactly 4.89897...feet apart, the cable lengths were exactly as outlined, no stretch in the cables under load, etc, etc ,etc.

    For application, in the question posed by OP, the results showed that he the difference in tension of the 2 cables was so low as to be considered negligible.
    I say follow @stun gun advice and overbuild it.

    Use cable that is at least rated for twice the load, 2 lengths of cable at each connection, Use 1 size bigger than needed eyebolts, and leave a few inches clearance all around your hard top.

    RocTaco and stun gun like this.
  16. Apr 13, 2019 at 6:49 AM
    #56
    Mtn Mike

    Mtn Mike Well-Known Member

    Joined:
    Oct 29, 2017
    Member:
    #234494
    Messages:
    510
    Gender:
    Male
    First Name:
    Mike
    Spokane, WA
    Vehicle:
    2017 TRD OR AC
    Excellent thread. Time to go to the lab. Who's going to model this in their garage this weekend?

  17. Apr 13, 2019 at 6:54 AM
    #57
    Twitcher

    Twitcher Active Member

    Joined:
    Jul 2, 2018
    Member:
    #258105
    Messages:
    43
    Gender:
    Male
    First Name:
    Tom
    Vehicle:
    2018 TRD Sport
    It doesn’t matter if the cables are attached to the ceiling at 90 degrees or not (even to a sloping ceiling) as long as the cables are plumb. It doesn’t matter if the beam is sloping or not. Gravity loads are completely vertical. If no lateral load is applied (as implied in this case), the beam cannot move laterally. And the tension (load in each cable is identical if the beam load is symmetrical).

    In the case of a tandem crane pick the load can vary because it is almost impossible to keep the cables exactly plumb during the pick.

    I’m a retired structural engineer. This discussion always came up with newly minted engineers concerning sloped bridges or walkways. They don’t slide off their piers because they are sloped.

    birry likes this.
  18. Apr 13, 2019 at 6:58 AM
    #58
    RocTaco

    RocTaco Habitual line stepper

    Joined:
    Nov 12, 2016
    Member:
    #202199
    Messages:
    1,282
    First Name:
    Pete
    Rochester NY
    Vehicle:
    2017 Tacoma SR 2.7L 5-spd 4x4
    Agreed.

    If OP really wants to know, mock it up and hang your beam from 2 luggage scales at your desired angle and cable lengths. That'll tell you what the difference is if any.

  19. Apr 13, 2019 at 7:41 AM
    #59
    takoashihaisen

    takoashihaisen Well-Known Member

    Joined:
    Sep 2, 2015
    Member:
    #163287
    Messages:
    63
    Gender:
    Male
    island, WA
    Vehicle:
    2015 AC 4X4 4cyl M/T SR MGM
    successfully installed 3 windshield cracks
    same.

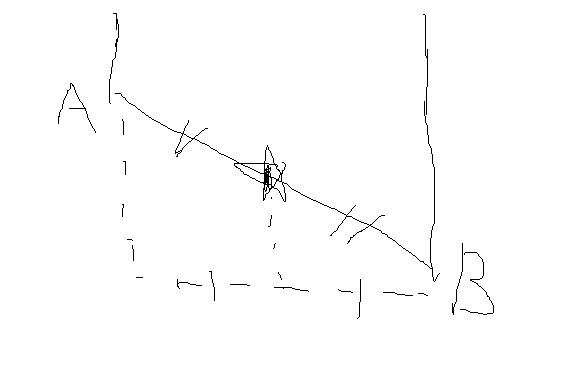

    the torque at the both side is arm length x mass. The center of mass of the the 50 lb bar is at the center of the bar, which is marked as my artistic STAR. Since the center of the mass is located 2.5 ft from the each side and cables are 90 degrees from the ceiling, the effective arm length (single small vertical lines) from A and B are equal. Therefore the torque at the A and B are the same.

    Points A and B will feel the same force.

    I think, if you imagine the infinite length of 50 lb bar, the difference of 2' and 3 ' will be negligible. Without thinking of math or complicated stuff, you can guess same tension at the both sides.

    Last edited: Apr 13, 2019
  20. Apr 13, 2019 at 9:10 AM
    #60
    duckytw

    duckytw Well-Known Member

    Joined:
    Aug 11, 2016
    Member:
    #194351
    Messages:
    382
    100% the same tension in the cable on both ends.
