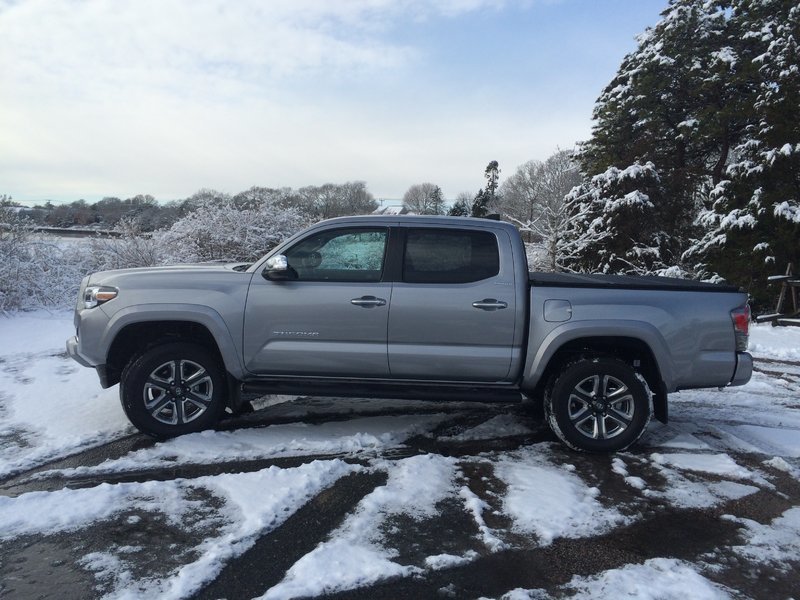

Picture of my 2017 Limited Tacoma.

I tried programming the opener again. No go. Do a little more research.



Congratulations!



I got opener in truck programmed to open garage door. It is a Genie opener. Thought I would past instructions.

HOMELINK IN-CAR REMOTE PROGRAMMING INSTRUCTIONS
To program a built-in-car transmitter to a rolling code garage door opener (Genie rolling code is called Intellicode, Liftmaster/Sears is called Security plus), you should take the following steps.

1. Clear out anything previously programmed into the in-car system from the factory by holding down on the 2-outside buttons simultaneously, until the in-car LED starts flashing rapidly. This may take up to a minute (in most cases, the key should be on auxilary, and/or the car door must be shut).
2. Decide which button you want to make to be your in-car garage door transmitter. Hold your transmitter up near the selected button, pressing both the garage door remote and the selected in-car transmitter button simultaneously. Hold down on the buttons until the in-car, LED light flashes rapidly. This sets the in-car remote transmitter to be your garage door openers make transmitter, but you are not done. You now need to make this in-car transmitter your personal transmitter.
3. Go to the Learn Button on your garage door opener. The button is usually next to the area where the floppy antenna is connected to the motor head. With Genie it is most often behind the light lens, and an indicator light flashes red when pressed. With Sears or Liftmaster (Chamberlain) it is near, or part of, the terminal screw board, and is a red, green or purple square button with a green, amber or purple indicator light. Press this learn button momentarily. The indicator light will turn on and blink if Genie or otherwise stay lit. For Genie systems, go back to the in-car transmitter button you programmed and press this button 3 or 4 times, or until the door starts moving. This should set your in-car transmitter to your garage door opener. For Liftmaster, Sears, or Linear Megacode press and hold the in-car button you programmed until the garage opener light flashes. Your in-car is now programmed to operate your door.

Programming a Fixed-Code Device (Majority of units made prior to 1996)

These devices have internal dip-switches located near the battery of your remote.

1. Clear out anything previously programmed into the in-car system from the factory by holding down on the 2-outside buttons simultaneously, until the in-car LED starts flashing rapidly. This may take up to a minute. (In most cases, the key should be on auxilary, and/or the car door must be shut).
2. Press and hold the in-car button you want to use to operate your garage door while simultaneously pressing and holding the button to your hand held remote until the LED on the in-car remote flashes rapidly.
3. Test the in-car remote by pressing the button you chose to operate your door.
4. When the door operates your in-car remote is programmed



Google it for instructions from the Homelink website. Call their 1-800 help line at a last resort. I was able to find the correct directions via Google.



Hello everyone, there's some, I guess bad news, there's is going to be a recall on some 2016 and 17 Tacoma's, something about the rear diff. leaking oil, just be patient and wait for the letter from Toyota, good luck to everybody



My truck looked like this for 2 weeks.. then the modding began... and now im broke.



Thank YOU! I've been wrestling with Homelink in my GT350. Ford's instructions are pathetic and worst of all they don't work. I followed your instructions and voila! it works for Fords too! Now before y'all accuse me of being a Ford guy, I do have a Tacoma; it just doesn't have Homelink.



Nice!!



Thank you so much! This worked like a charm. Other instructions I found said to do EITHER step 2 or step 3 but not both.



The Sr5 and Limited have always shared the same grille/surround. I don't know why Toyota didnt just go with one standard grill with different surrounds like before. Eh. I like my cheese grater.



Yanno, I sub'd this thread for the homelink programming doc, then you drop in a very nice pic...its like the cherry topping...very nicely done



Congrats OP, they aren't as bad as everyone makes them out to be, 6 tacoma and by far my favorite.



The sr5 grill is more black where the limited is like a dark grey



How does it look now?



I'm glad they didn't.



So the limited comes with 18" wheels? Sweet, very nice



Yes.



I bought the limited so I wouldn't have a chrome grill. To me it looks like a cheese grater.
