Pigtail Connector Help

Found the pigtail for it. Looks like I threw it away at some point while taking the engine out or it got lost at some point.



Actually since I’m running the Holley fuel pump wire directly to the black/red do I even need to buy a new fuel pump resistor?



No you won't be using it with a single speed fuel pump.
The original system has a dual speed fuel pump thus the resistor for low speed.



sweet, I’ll just run that green wire over to that pigtail and call it good then. Thank you for all your help



One more...

I probably cut the pigtail off responsible for telling the truck its in reverse.

What wire on the ECM or any module can I give 12V to turn on my reverse lamps?

The new shifter for the truck has a reverse switch. One side ill put to IGN 12v and the other ill feed to the correct wire or terminal if you can provide me with it.



Pretty sure one of the wires in IH1 is the reverse lights but I need to look.



Yeah if you could check that’d be awesome

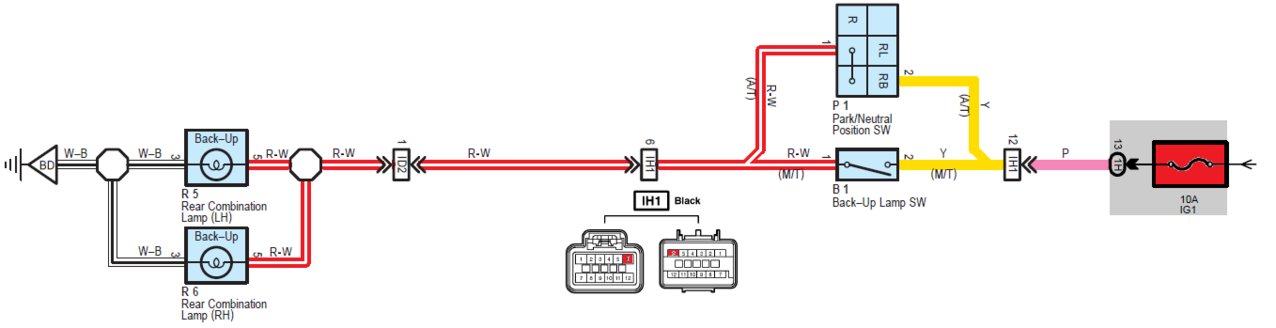

IH1 Pin 6 (Red/White) goes to the reverse lights.

How are you doing the transmission range lights on the cluster?



Thanks!

I’m not, it’s a MT cluster, so no range lights.

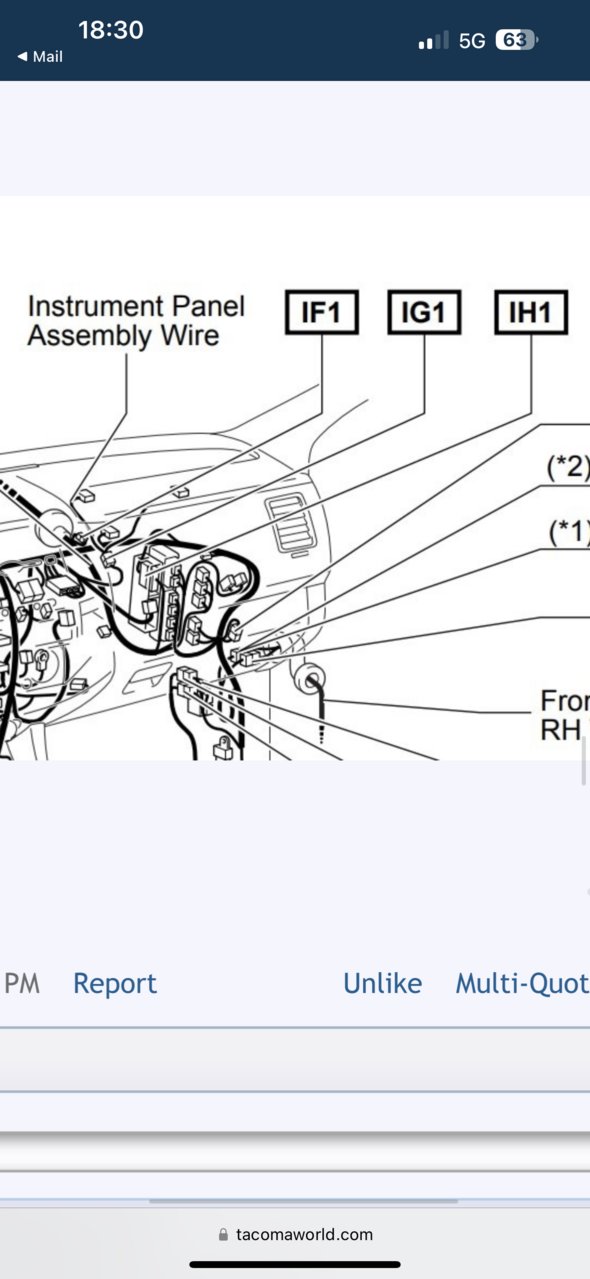

I see IH1 there, do you have a picture of it where it’s at?



We covered it already in Post 10 and Post 13.

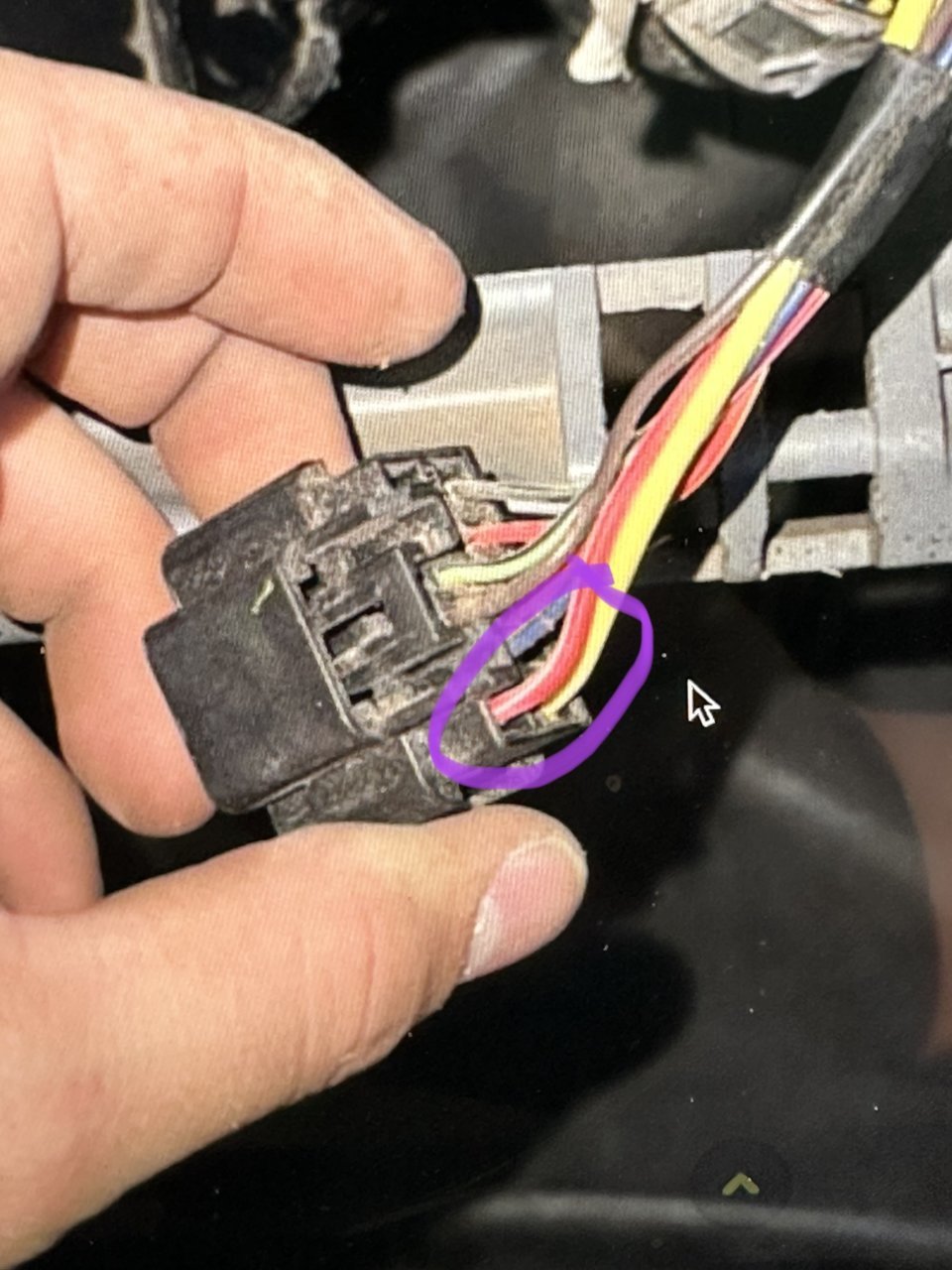

So this guy is the reverse wire?



I'm pretty sure, there's only 2 Red/White wires in that connector. The smaller gauge wire is the A/C Lock Sensor and the larger gauge wire is the Reverse Lights.



Which wire on IH1 Supplies IGN 12V to the back up lamp switch? I see its yellow but what pin?



Look closer...12



Gotcha okay thanks!



It would be Pin 12 (Yellow) on that end but the source from the IG1 fuse is on the mating end of that connector which I'm assuming you removed?



I still have both sides of IH1 under the dash plugged in, I cut off the reverse switch pigtail on the trans harness for sure though, lol.



Actually there may be one more thing you can help me out with. The alternator sensor wires... I have the pigtail still for the alternator sensor, and I have a new GM alternator sensor. Could you tell me if it's possible to just splice the gm pigtail onto the correct wires from the Toyota alternator sensor pigtail and have everything function as normal?

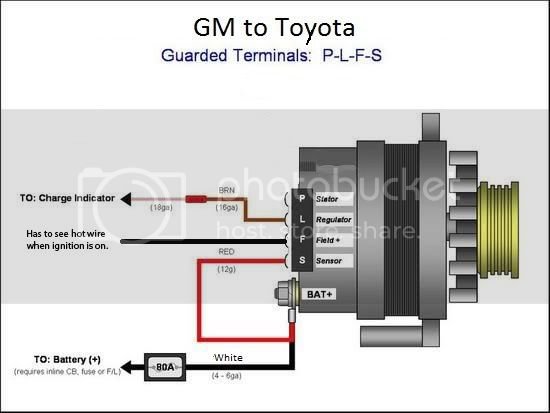

I found this but it doesn't really answer my question because I don't know what wire does what on the Toyota alternator pigtail.
