Pinout for Grey Auto Trans Gear Position Connector?

Discussion in '1st Gen. Tacomas (1995-2004)' started by treyus30, Mar 1, 2024.

  1. Mar 1, 2024 at 4:38 PM
    #1
    treyus30

    treyus30 [OP] 70% complete 70% of the time

    Joined:
    Jun 24, 2015
    Member:
    #158054
    Messages:
    8,406
    Gender:
    Male
    First Name:
    Trey
    Mesa / AJ, AZ
    Vehicle:
    '99 5VZ-FE Twin K03s w/Haltech
    Historic plates and 2 bar

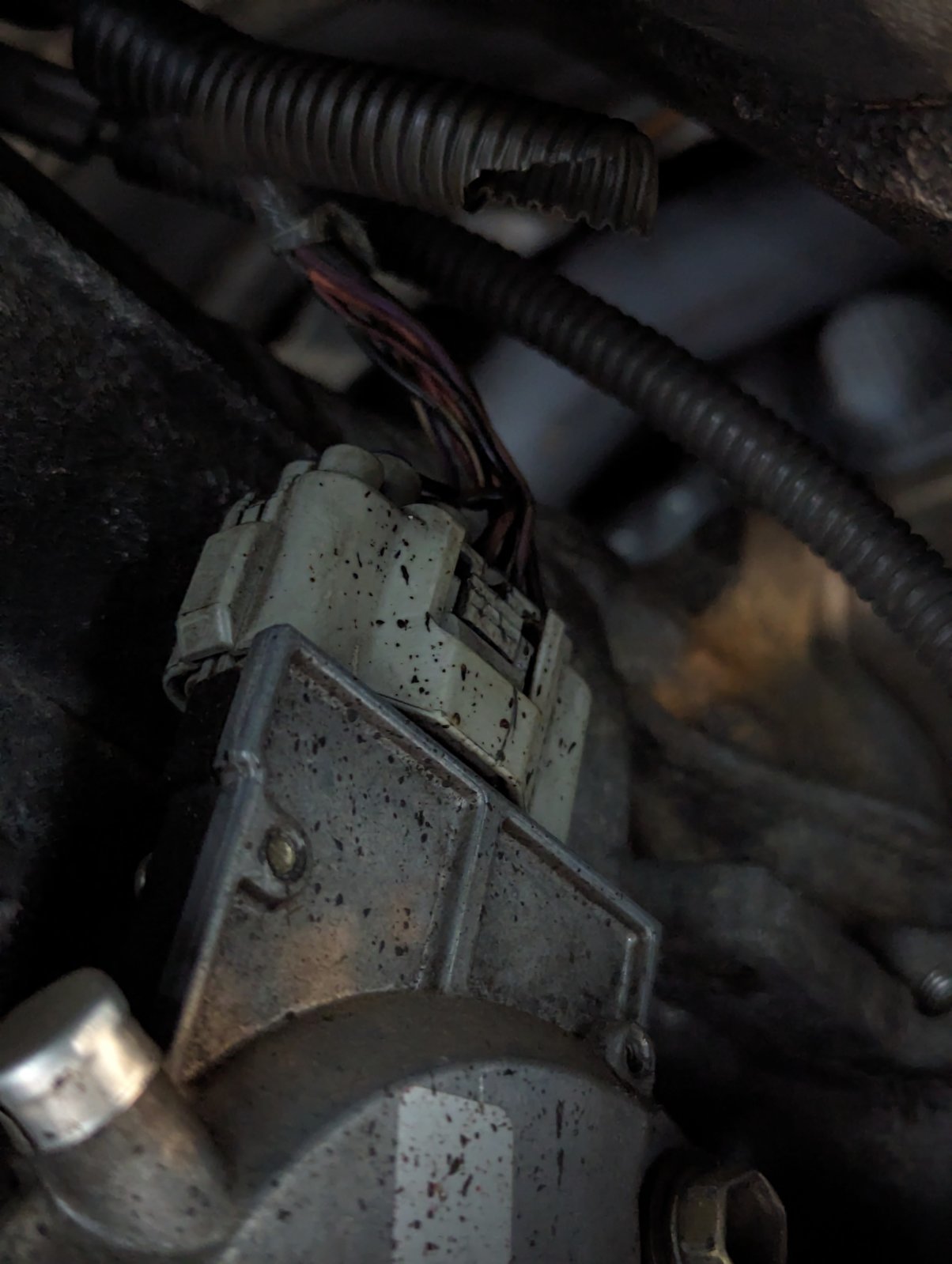

    Just wasted a bunch of time splicing into 3 of these wires just to not get what I needed.

    Does anyone have a Pinout or a spare trans lying around they can probe?


    Attached Files:

    Last edited: Mar 1, 2024
  2. Mar 1, 2024 at 4:45 PM
    #2
    treyus30

    treyus30 [OP] 70% complete 70% of the time

    Joined:
    Jun 24, 2015
    Member:
    #158054
    Messages:
    8,406
    Gender:
    Male
    First Name:
    Trey
    Mesa / AJ, AZ
    Vehicle:
    '99 5VZ-FE Twin K03s w/Haltech
    Historic plates and 2 bar

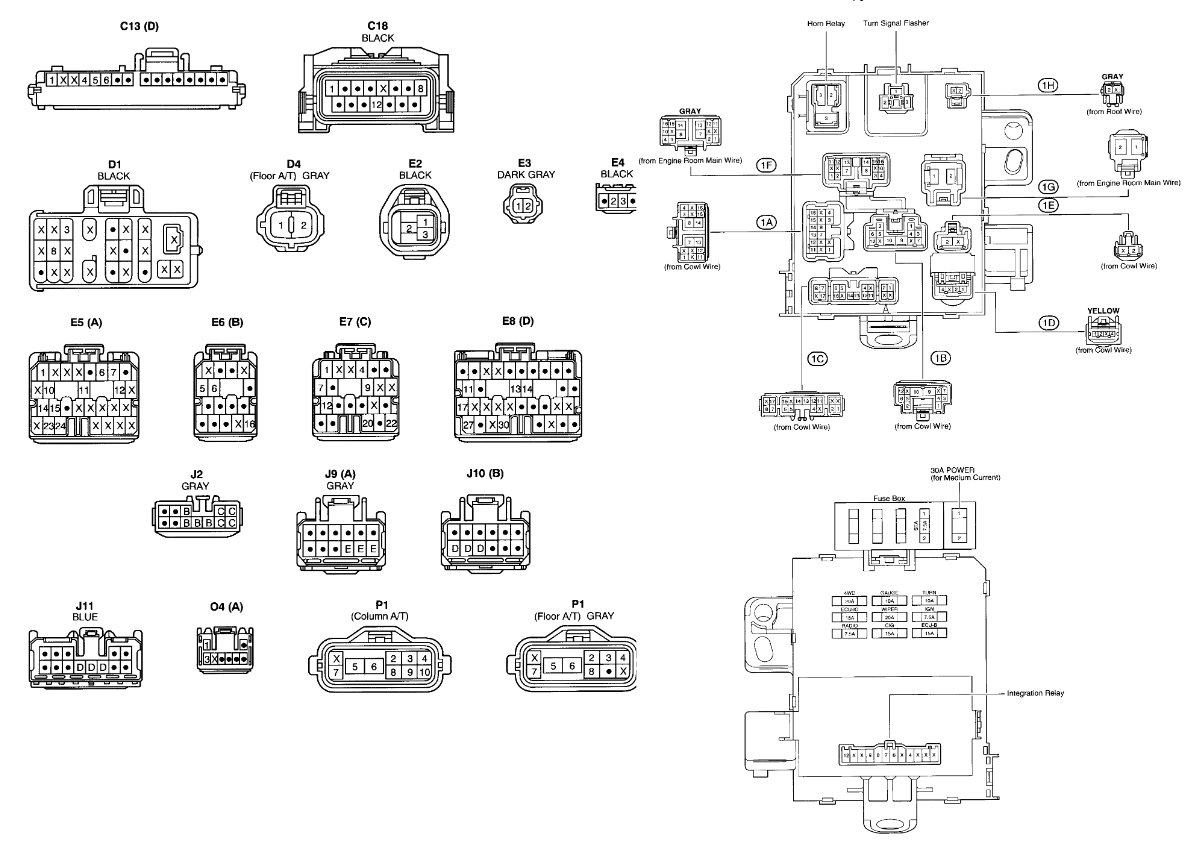

    It may be this connector, but 7 and 10 are unpopulated. 6 at least I probed at near +12V when ON


  3. Mar 1, 2024 at 4:53 PM
    #3
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    58,362
    Gender:
    Male
    FCQM+VG Cheney, Washington
    Vehicle:
    96 Turbo Taco V6 405WHP & 482lbft
    It's less Tacoma and more mod

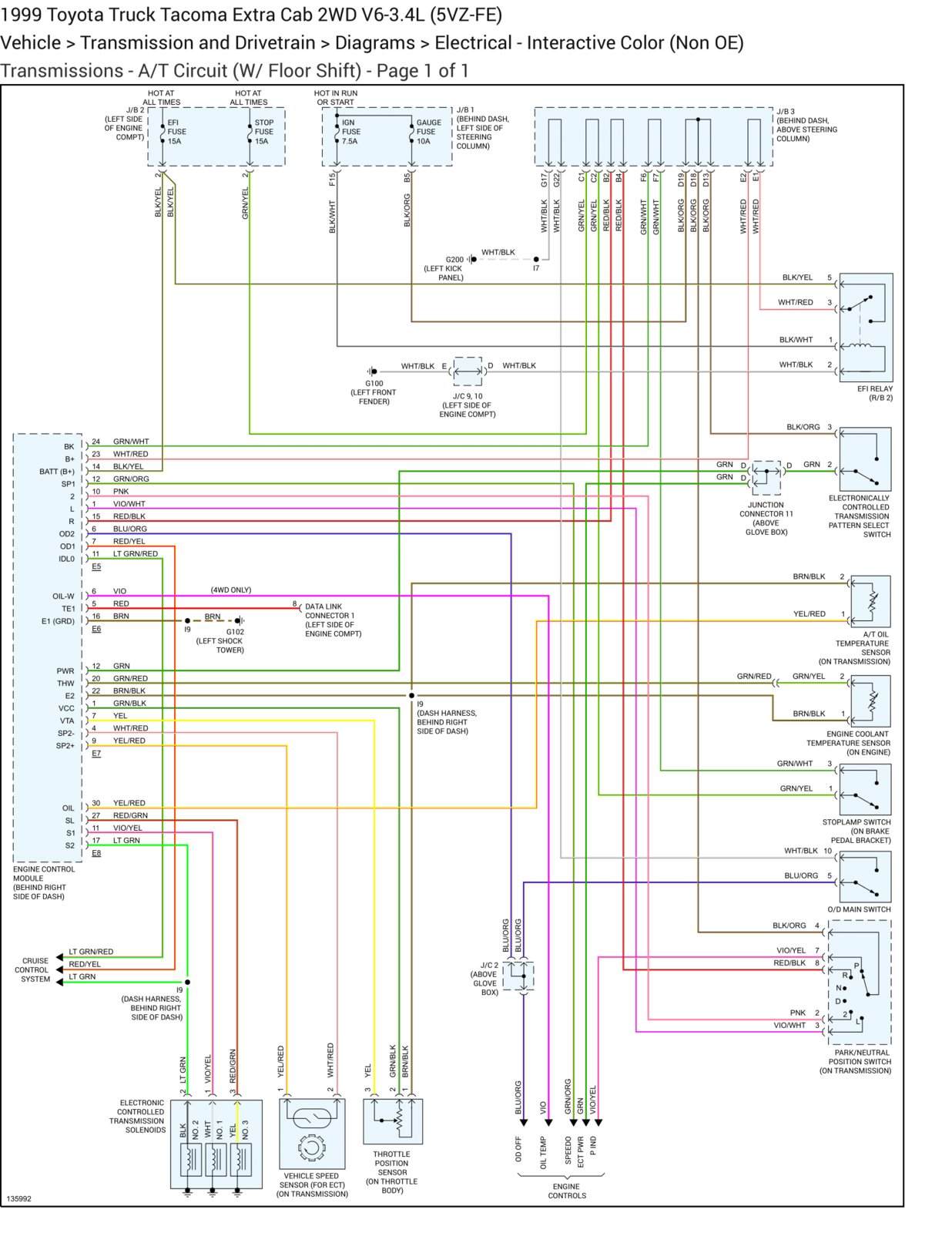

    Transmissions - A_T Circuit (W_ Floor Shift) (Transmission and Drivetrain) - ALLDATA Repair-1.png

    I have pinouts for everything, shoot me a PM if you ever need em

    TnShooter and treyus30[OP] like this.
  4. Mar 1, 2024 at 5:34 PM
    #4
    treyus30

    treyus30 [OP] 70% complete 70% of the time

    Joined:
    Jun 24, 2015
    Member:
    #158054
    Messages:
    8,406
    Gender:
    Male
    First Name:
    Trey
    Mesa / AJ, AZ
    Vehicle:
    '99 5VZ-FE Twin K03s w/Haltech
    Historic plates and 2 bar
    Thanks. This seems to be incomplete though. Missing 5 and 9. I do know 5 is the other side of the P/N switch, so 9 is the remaining mystery (not sure what a dot means but it was populated on mine). It seems like it is Drive, which shows it goes to the cruise control harness, now that the "P1" has been confirmed.

  5. Mar 1, 2024 at 5:35 PM
    #5
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    58,362
    Gender:
    Male
    FCQM+VG Cheney, Washington
    Vehicle:
    96 Turbo Taco V6 405WHP & 482lbft
    It's less Tacoma and more mod
    It might be that it isn't listed on that because I only selected things that pertain to the automatic transmission control. Is there something else in there that pertains to another system. Technically the actual gear shift in the truck is a different system
