    #81
    Chad

    #81
    Chad Well-Known Member

    Joined:
    Oct 2, 2008
    Member:
    #9636
    Messages:
    2,371
    Gender:
    Male
    First Name:
    Chad
    Cary, NC
    Vehicle:
    09 V6 Access Cab TRD Sport
    Kenwood DMX-7704S Headunit -- Blackvue DR-470 Dashcam -- Pioneer TS-A1685R Speakers in Front -- Suntek CXP 40 Front Tint -- Access Vanish Roll-up Tonneau -- Wet Okole Seat Covers -- Fog Lights on Anytime -- PnL Powered Tailgate Lock -- DTRL "Stealth Mode" -- LED Footwell and Cup Holder Lights -- Map Lights ON with Dome Light -- Shorty Antenna -- AC Line Extension Mod -- Access Cab Rear Headrest Removal

    I would have assumed they would be, but I don't know why they only have 4 wires on the adapter when there are 6 speakers.

    Chad, Apr 28, 2010
    #81
  2. Apr 28, 2010 at 7:01 AM
    #82
    Lurkin

    #82
    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    22,374
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    Because the stock front door speakers (main and tweeters) are wired off of the same HU outputs, in series I believe. In other words, there are only two wires per door.

    Lurkin, Apr 28, 2010
    #82
  3. Apr 28, 2010 at 7:36 AM
    #83
    epa4wd

    #83
    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2019 SR
    Clazzio Seat Covers OR Wheels 40% tint Side Steps KC Fog Lights
    I agree, but I think they are configured in parallel form with the "tweeter" connected to a capacitor to filter some frequencies. I used the metra harness I get sound from speaker and tweeter.

    epa4wd, Apr 28, 2010
    #83
  4. Apr 28, 2010 at 12:41 PM
    #84
    Chad

    #84
    Chad Well-Known Member

    Joined:
    Oct 2, 2008
    Member:
    #9636
    Messages:
    2,371
    Gender:
    Male
    First Name:
    Chad
    Cary, NC
    Vehicle:
    09 V6 Access Cab TRD Sport
    Kenwood DMX-7704S Headunit -- Blackvue DR-470 Dashcam -- Pioneer TS-A1685R Speakers in Front -- Suntek CXP 40 Front Tint -- Access Vanish Roll-up Tonneau -- Wet Okole Seat Covers -- Fog Lights on Anytime -- PnL Powered Tailgate Lock -- DTRL "Stealth Mode" -- LED Footwell and Cup Holder Lights -- Map Lights ON with Dome Light -- Shorty Antenna -- AC Line Extension Mod -- Access Cab Rear Headrest Removal
    Thanks, that makes sense.

    I was looking at getting the scoshe one since it is like $4, but I may pay the extra $10 and get the metra... I would assume the scoshe one would do the same though.

    Chad, Apr 28, 2010
    #84
  5. May 8, 2010 at 2:05 AM
    #85
    Leadgolem

    #85
    Leadgolem Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35238
    Messages:
    997
    Gender:
    Male
    First Name:
    Greg
    Littleton, CO
    Vehicle:
    98 Tacoma SR5 2.7L 4x4 stick
    Herculiner bed liner, White LED instrument lights, Custom painted hood, Homemade leather steering wheel wrap, Avic u310bt gps stereo, 1.5" bushwacker fender flares, 1.25" bilstein lift front, 1" shackle lift rear, rear bilstein 5100 shocks, ridiculous helper spring lift rear, wet okole seat covers, mutilated exhaust, boom mat under hood
    Did you have any trouble hooking up the parking break wire? Or did you just use a bypass? I've got the same head unit but haven't had an opportunity to install it yet.

    Leadgolem, May 8, 2010
    #85
  6. May 8, 2010 at 2:17 AM
    #86
    derekabraham

    #86
    derekabraham [OP] Living vicariously through everybody

    Joined:
    Jul 8, 2008
    Member:
    #7822
    Messages:
    28,873
    Gender:
    Male
    First Name:
    TW'S Hippy Liberal
    Portland, OR
    Vehicle:
    2002 4x4 4Runner
    Stick on hood scoop from Autozone.
    Bypass. ;)

    derekabraham, May 8, 2010
    #86
  7. May 8, 2010 at 2:42 AM
    #87
    Leadgolem

    #87
    Leadgolem Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35238
    Messages:
    997
    Gender:
    Male
    First Name:
    Greg
    Littleton, CO
    Vehicle:
    98 Tacoma SR5 2.7L 4x4 stick
    Herculiner bed liner, White LED instrument lights, Custom painted hood, Homemade leather steering wheel wrap, Avic u310bt gps stereo, 1.5" bushwacker fender flares, 1.25" bilstein lift front, 1" shackle lift rear, rear bilstein 5100 shocks, ridiculous helper spring lift rear, wet okole seat covers, mutilated exhaust, boom mat under hood
    Was that just a straight ground bypass, or did you need a relay or something?

    Leadgolem, May 8, 2010
    #87
  8. May 8, 2010 at 7:11 AM
    #88
    Chad

    #88
    Chad Well-Known Member

    Joined:
    Oct 2, 2008
    Member:
    #9636
    Messages:
    2,371
    Gender:
    Male
    First Name:
    Chad
    Cary, NC
    Vehicle:
    09 V6 Access Cab TRD Sport
    Kenwood DMX-7704S Headunit -- Blackvue DR-470 Dashcam -- Pioneer TS-A1685R Speakers in Front -- Suntek CXP 40 Front Tint -- Access Vanish Roll-up Tonneau -- Wet Okole Seat Covers -- Fog Lights on Anytime -- PnL Powered Tailgate Lock -- DTRL "Stealth Mode" -- LED Footwell and Cup Holder Lights -- Map Lights ON with Dome Light -- Shorty Antenna -- AC Line Extension Mod -- Access Cab Rear Headrest Removal
    Why would you need a parking brake wire when the unit plays no video? :confused:

    Chad, May 8, 2010
    #88
  9. May 8, 2010 at 7:40 AM
    #89
    epa4wd

    #89
    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2019 SR
    Clazzio Seat Covers OR Wheels 40% tint Side Steps KC Fog Lights
    because it won't let you enter addresses and some other things while moving, I don't remember exactly what else right now. I bypass mine too, connected it to ground.

    epa4wd, May 8, 2010
    #89
  10. May 8, 2010 at 8:30 AM
    #90
    Chad

    #90
    Chad Well-Known Member

    Joined:
    Oct 2, 2008
    Member:
    #9636
    Messages:
    2,371
    Gender:
    Male
    First Name:
    Chad
    Cary, NC
    Vehicle:
    09 V6 Access Cab TRD Sport
    Kenwood DMX-7704S Headunit -- Blackvue DR-470 Dashcam -- Pioneer TS-A1685R Speakers in Front -- Suntek CXP 40 Front Tint -- Access Vanish Roll-up Tonneau -- Wet Okole Seat Covers -- Fog Lights on Anytime -- PnL Powered Tailgate Lock -- DTRL "Stealth Mode" -- LED Footwell and Cup Holder Lights -- Map Lights ON with Dome Light -- Shorty Antenna -- AC Line Extension Mod -- Access Cab Rear Headrest Removal
    That was my other reason why they would make you do that. So all you do is connect it to a ground and it'll work?

    Chad, May 8, 2010
    #90
  11. May 8, 2010 at 8:43 AM
    #91
    epa4wd

    #91
    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2019 SR
    Clazzio Seat Covers OR Wheels 40% tint Side Steps KC Fog Lights
    Yes, I grounded it to the unit's ground wire.

    epa4wd, May 8, 2010
    #91
  12. May 8, 2010 at 10:38 AM
    #92
    derekabraham

    #92
    derekabraham [OP] Living vicariously through everybody

    Joined:
    Jul 8, 2008
    Member:
    #7822
    Messages:
    28,873
    Gender:
    Male
    First Name:
    TW'S Hippy Liberal
    Portland, OR
    Vehicle:
    2002 4x4 4Runner
    Stick on hood scoop from Autozone.


    This.

    derekabraham, May 8, 2010
    #92
  13. May 8, 2010 at 2:03 PM
    #93
    Leadgolem

    #93
    Leadgolem Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35238
    Messages:
    997
    Gender:
    Male
    First Name:
    Greg
    Littleton, CO
    Vehicle:
    98 Tacoma SR5 2.7L 4x4 stick
    Herculiner bed liner, White LED instrument lights, Custom painted hood, Homemade leather steering wheel wrap, Avic u310bt gps stereo, 1.5" bushwacker fender flares, 1.25" bilstein lift front, 1" shackle lift rear, rear bilstein 5100 shocks, ridiculous helper spring lift rear, wet okole seat covers, mutilated exhaust, boom mat under hood
    Ok, got mine mostly installed. Here's some pics.
    1. The installed head unit it's self. It fit the stock mounting bracket so all you really need is the wiring harness.
    2. I used the usb extension cable included with the head unit to put the usb connection in the glove box. That way its out of sight, but still accessible.
    3. This is where I'm planning on mounting the mic. I'm going to mock up that location for the mic with cardboard and make sure the audio pickup works well before drilling the plastic cover for the mic. The green wire on the floor is the part you are supposed to connect to the parking break indicator wire.

    I put my gps antenna behind the airbag inside the dash. The antenna is magnetic and it hooked to a pipe there without difficulty. It works just fine through the plastic dash.

    I'm planning on getting the HD radio module, as there are not a lot of mounting options that will probably go in the glove box as well. Though I'm open to other suggestions on where to mount the module.


    Leadgolem, May 8, 2010
    #93
  14. May 8, 2010 at 2:52 PM
    #94
    epa4wd

    #94
    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2019 SR
    Clazzio Seat Covers OR Wheels 40% tint Side Steps KC Fog Lights
    Looking good man!!

    epa4wd, May 8, 2010
    #94
  15. May 18, 2010 at 3:47 PM
    #95
    BIG EYE

    #95
    BIG EYE Well-Known Member

    Joined:
    Mar 26, 2010
    Member:
    #33987
    Messages:
    698
    Gender:
    Male
    First Name:
    David
    San Diego, CA
    Vehicle:
    Sold
    Looks great! I just ordered the same setup last week! Should be here any day now.....

    Where did you put the GPS antenna?

    BIG EYE, May 18, 2010
    #95
  16. May 18, 2010 at 3:50 PM
    #96
    epa4wd

    #96
    epa4wd Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2019 SR
    Clazzio Seat Covers OR Wheels 40% tint Side Steps KC Fog Lights
    I put mine behind the radio, there is a small space between the dash and the A/C air duct.

    epa4wd, May 18, 2010
    #96
  17. May 19, 2010 at 7:38 AM
    #97
    BIG EYE

    #97
    BIG EYE Well-Known Member

    Joined:
    Mar 26, 2010
    Member:
    #33987
    Messages:
    698
    Gender:
    Male
    First Name:
    David
    San Diego, CA
    Vehicle:
    Sold
    Nice!

    BIG EYE, May 19, 2010
    #97
  18. May 19, 2010 at 8:17 AM
    #98
    jonny

    #98
    jonny Betty White Edition Heep ZJ

    Joined:
    Jun 21, 2007
    Member:
    #1887
    Messages:
    8,349
    Gender:
    Male
    First Name:
    John

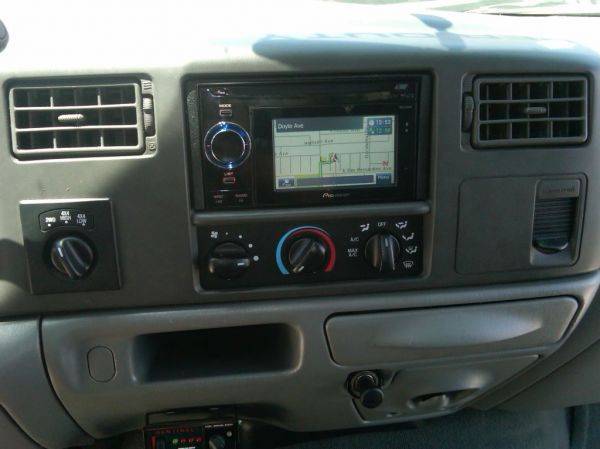

    installed one in my dad's superduty. the stock head unit face plate is a double din...but behind the radio is a single din. sooo much cutting/trimming....also found a universal dash kit to fit :laugh:
    i think it turned out pretty damn good
    [​IMG]

    jonny, May 19, 2010
    #98
  19. May 19, 2010 at 8:22 AM
    #99
    derekabraham

    #99
    derekabraham [OP] Living vicariously through everybody

    Joined:
    Jul 8, 2008
    Member:
    #7822
    Messages:
    28,873
    Gender:
    Male
    First Name:
    TW'S Hippy Liberal
    Portland, OR
    Vehicle:
    2002 4x4 4Runner
    Stick on hood scoop from Autozone.
    Mine's on the roof, coming out of the third brake light.


    Nice work Jonny. :D

    derekabraham, May 19, 2010
    #99
  20. May 19, 2010 at 9:00 AM
    #100
    jonny

    #100
    jonny Betty White Edition Heep ZJ

    Joined:
    Jun 21, 2007
    Member:
    #1887
    Messages:
    8,349
    Gender:
    Male
    First Name:
    John
    thanks man...
    i may be ordering one for myself now :laugh:

    jonny, May 19, 2010
    #100
