Pioneer DMH-WT7600NEX | Toyota Tacoma 2016 Installation

Discussion in 'Audio & Video' started by ZoilaLP, Oct 10, 2021.

  1. Oct 10, 2021 at 9:35 AM
    #1
    ZoilaLP

    #1
    ZoilaLP [OP] Member

    Joined:
    Sep 7, 2020
    Member:
    #340075
    Messages:
    8
    Vehicle:
    2016 Grey Tacoma TRD OR AC

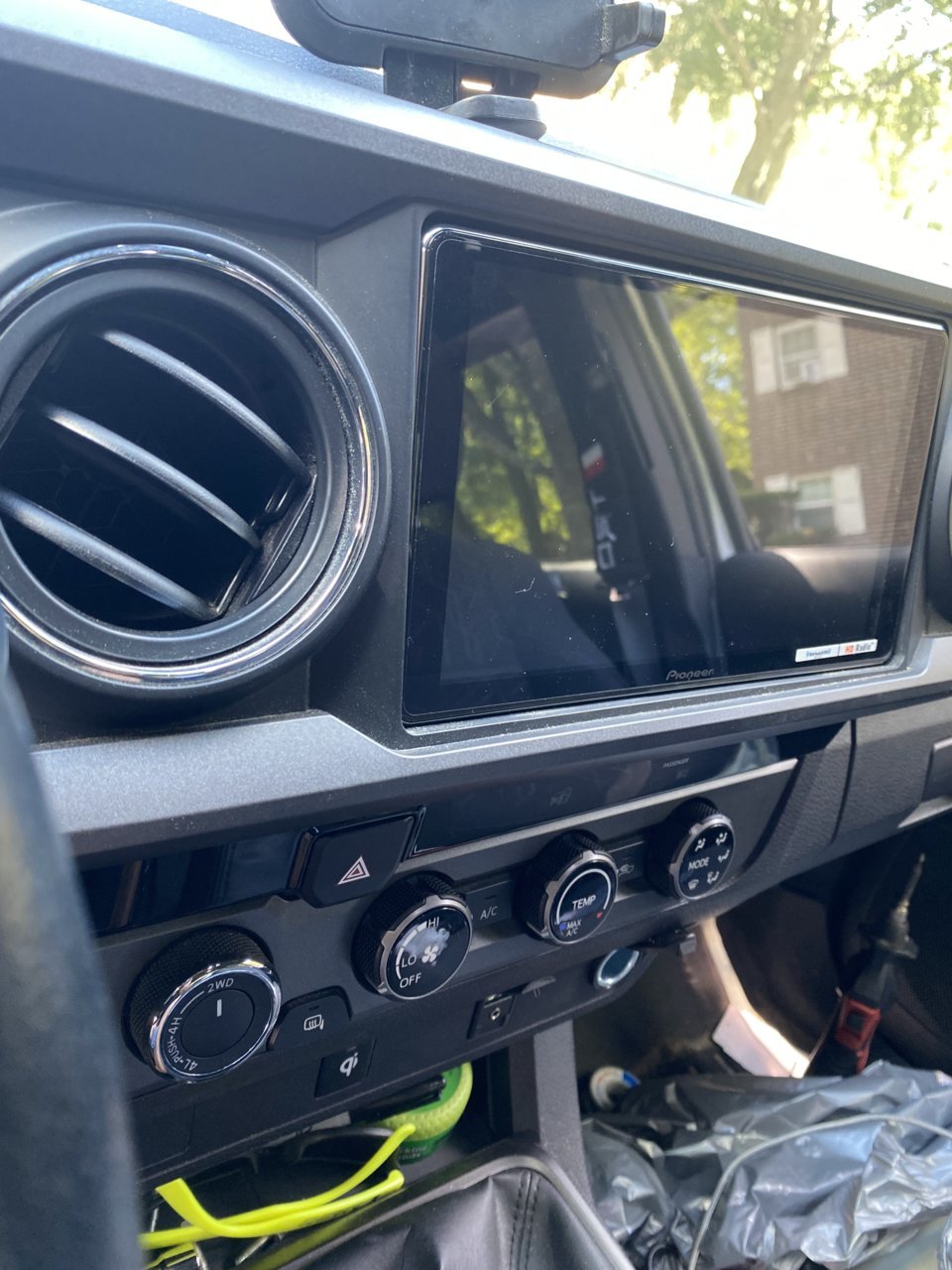

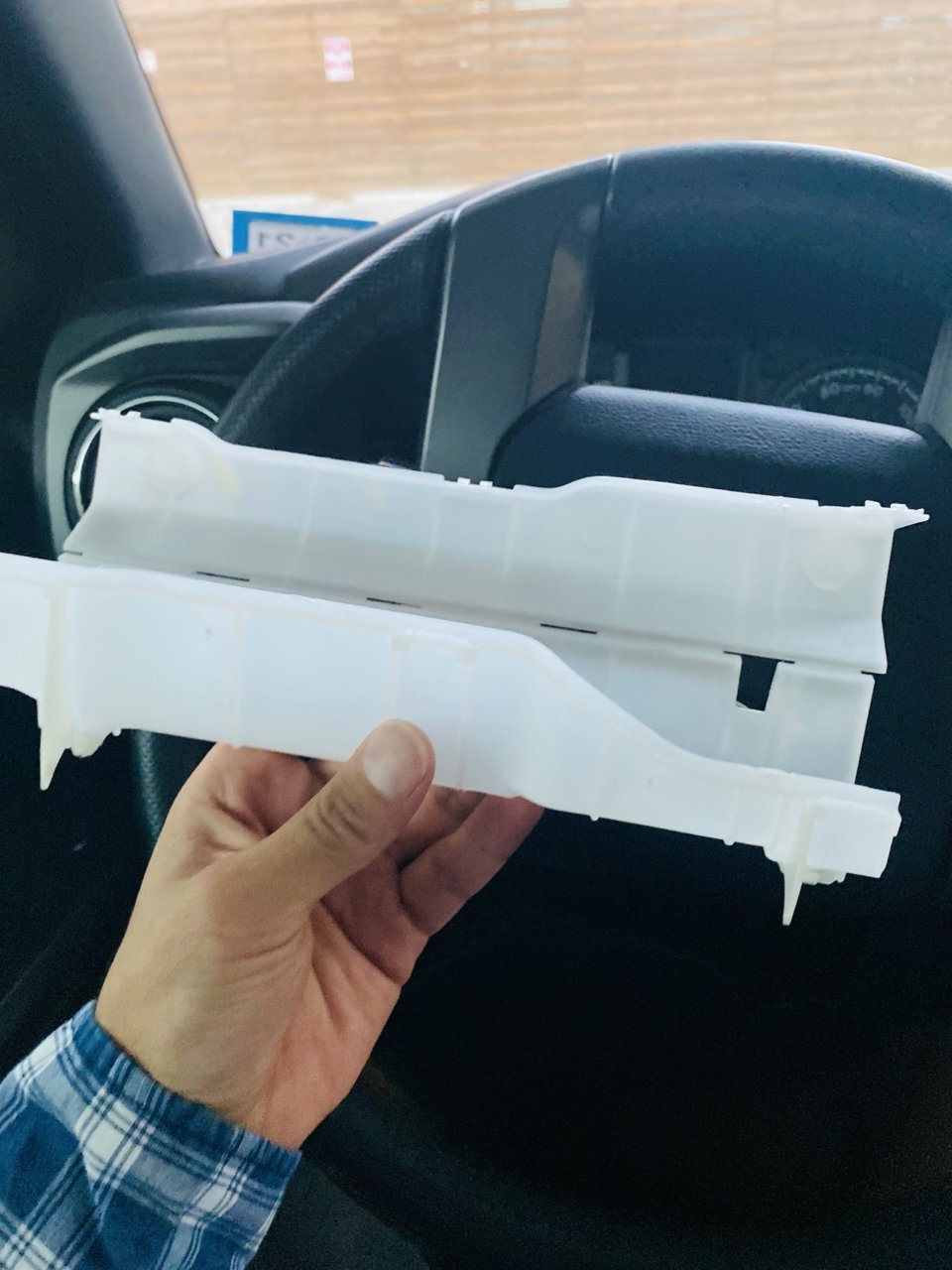

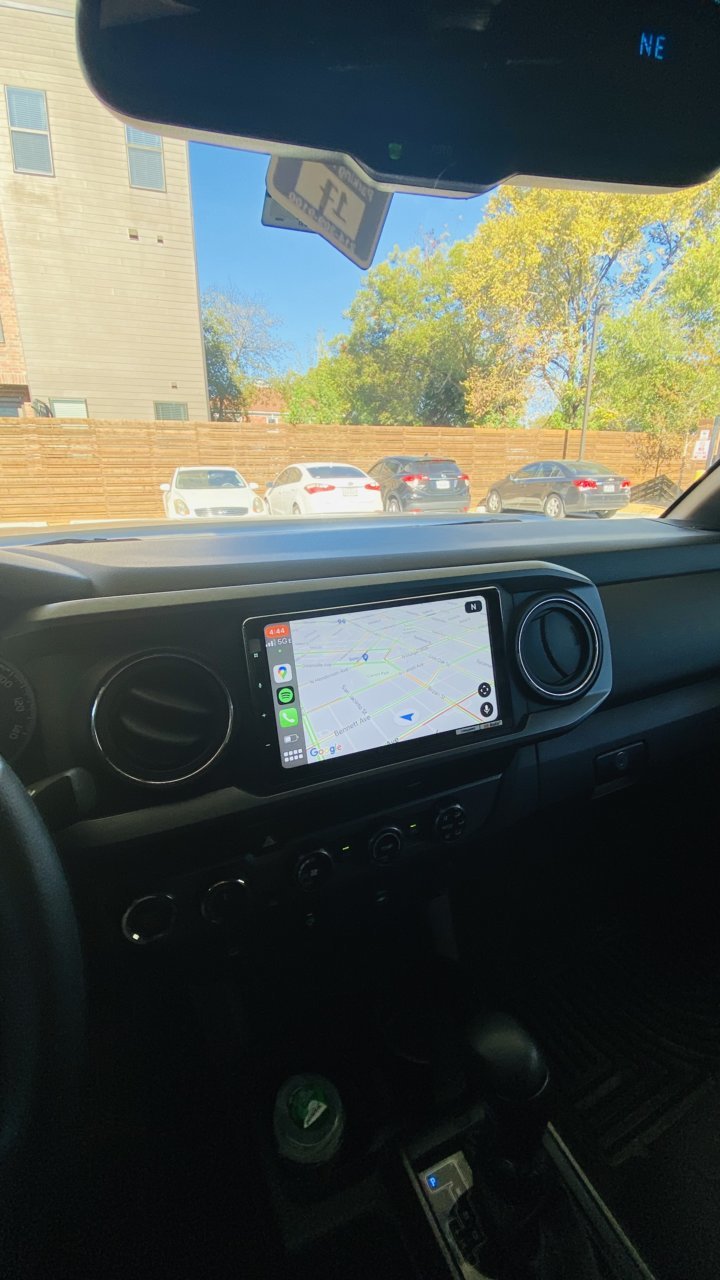

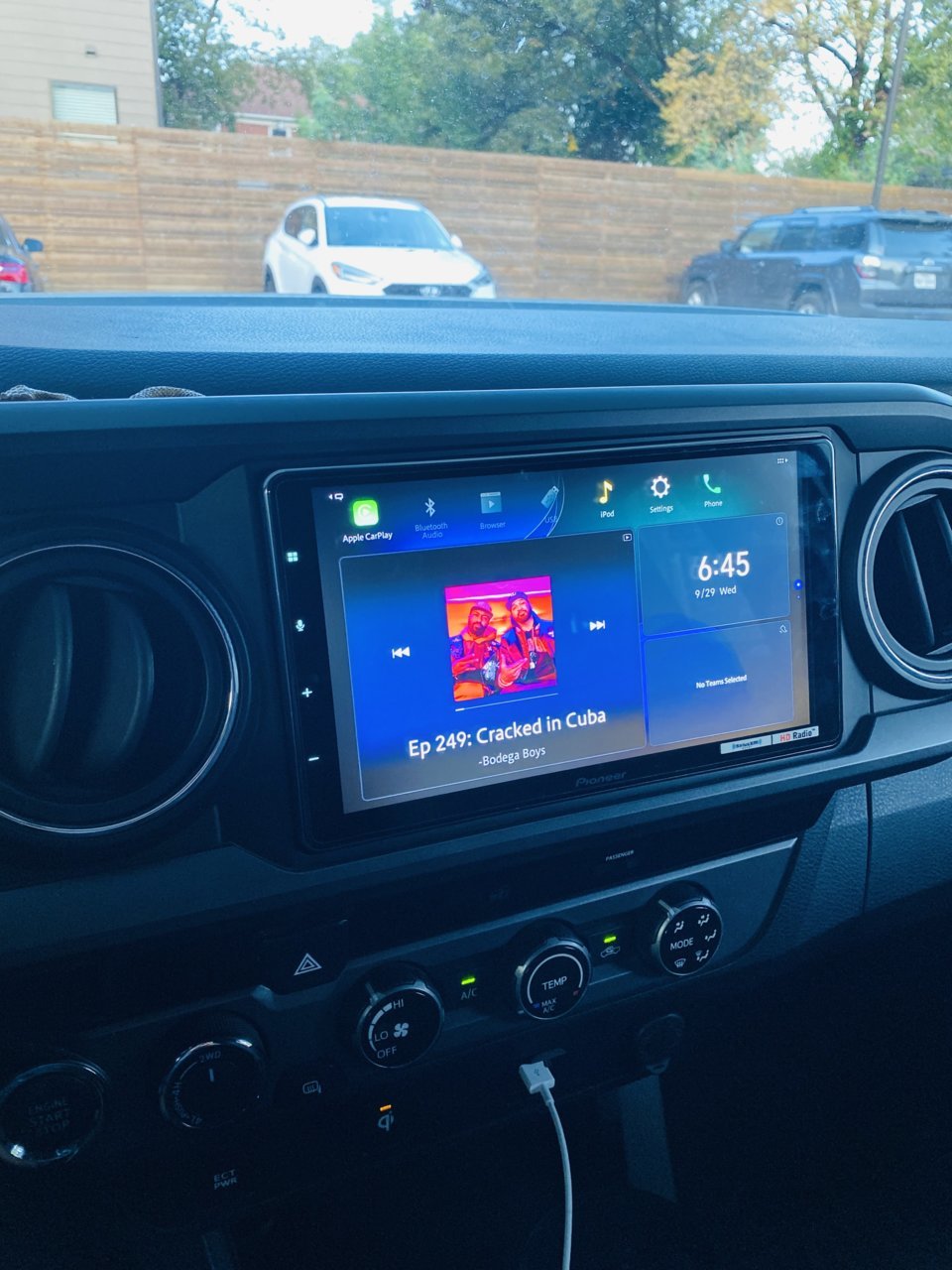

    Installed this receiver with these parts. Please be aware that this requires the wires to be soldered and the dash kit bracket to be used in order for it to get this close to flush. I highly recommend professional installation since it is a pain to install.

    Also soldering wires sucks so choose to have those pre-soldered if that's an option at purchase.

    Pioneer DMH-WT7600NEX 9" HD Multimedia Receiver w/ Capacitive Touch Floating Display
    Maestro HRN RR TO2 Plug Play T Harness for 2012 Toyota Vehicles
    Maestro Radio Replacement and Steering Wheel Interface for
    $180 ADS-MRR Universal Radio Replacement and Steering Wheel Interface
    ADS-MRR
    Metra - Antenna Adapter for Most 2009 and Later Lexus Vehicles - Black
    AXXESS - 4-Pin OE USB Retention Adapter for Select 2012-2013 Toyota Vehicles - Black/Gray
    Metra - Dash Kit for Select 2016 Toyota Tacoma Vehicles - Matte black


    Last edited: Oct 22, 2021
    ZoilaLP, Oct 10, 2021
    #1
    taco slc likes this.
  2. Oct 10, 2021 at 2:15 PM
    #2
    Electrify135

    #2
    Electrify135 Trd offroad

    Joined:
    Sep 7, 2016
    Member:
    #196652
    Messages:
    70
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    2020 trd off road
    Looks awesome!
    I’ve been debating which head unit to go with.
    How are you liking the 7600

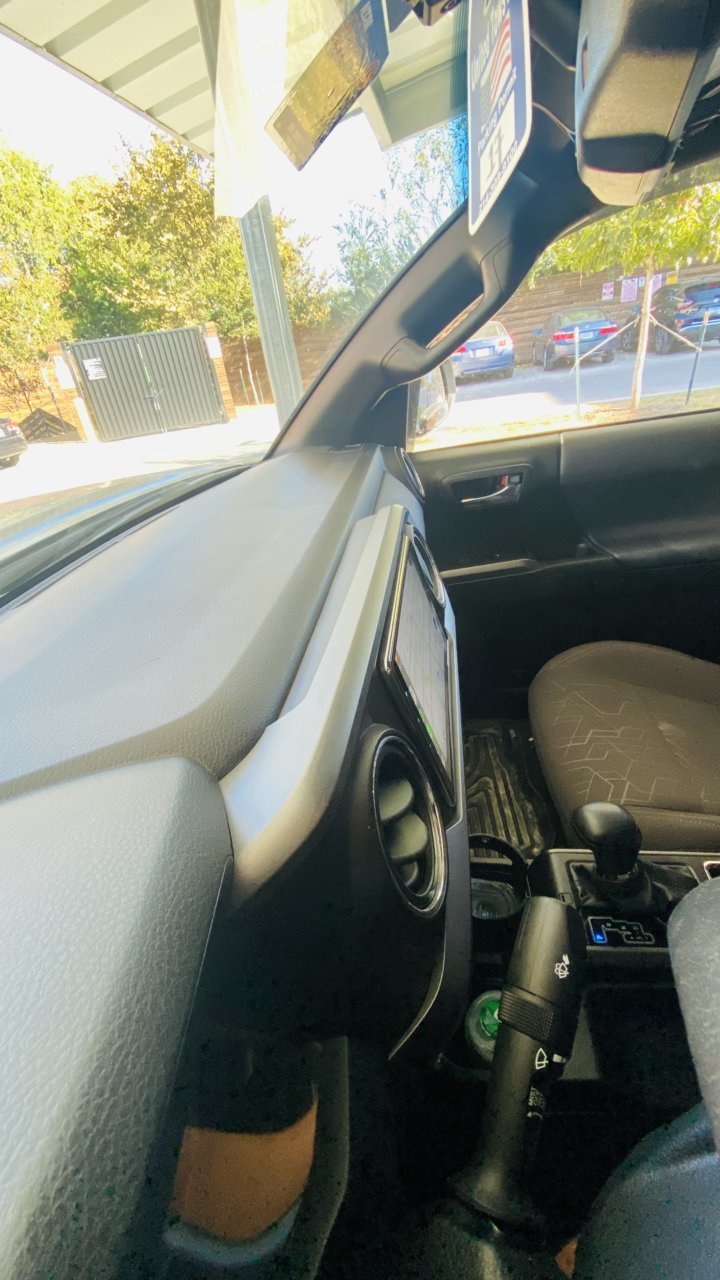

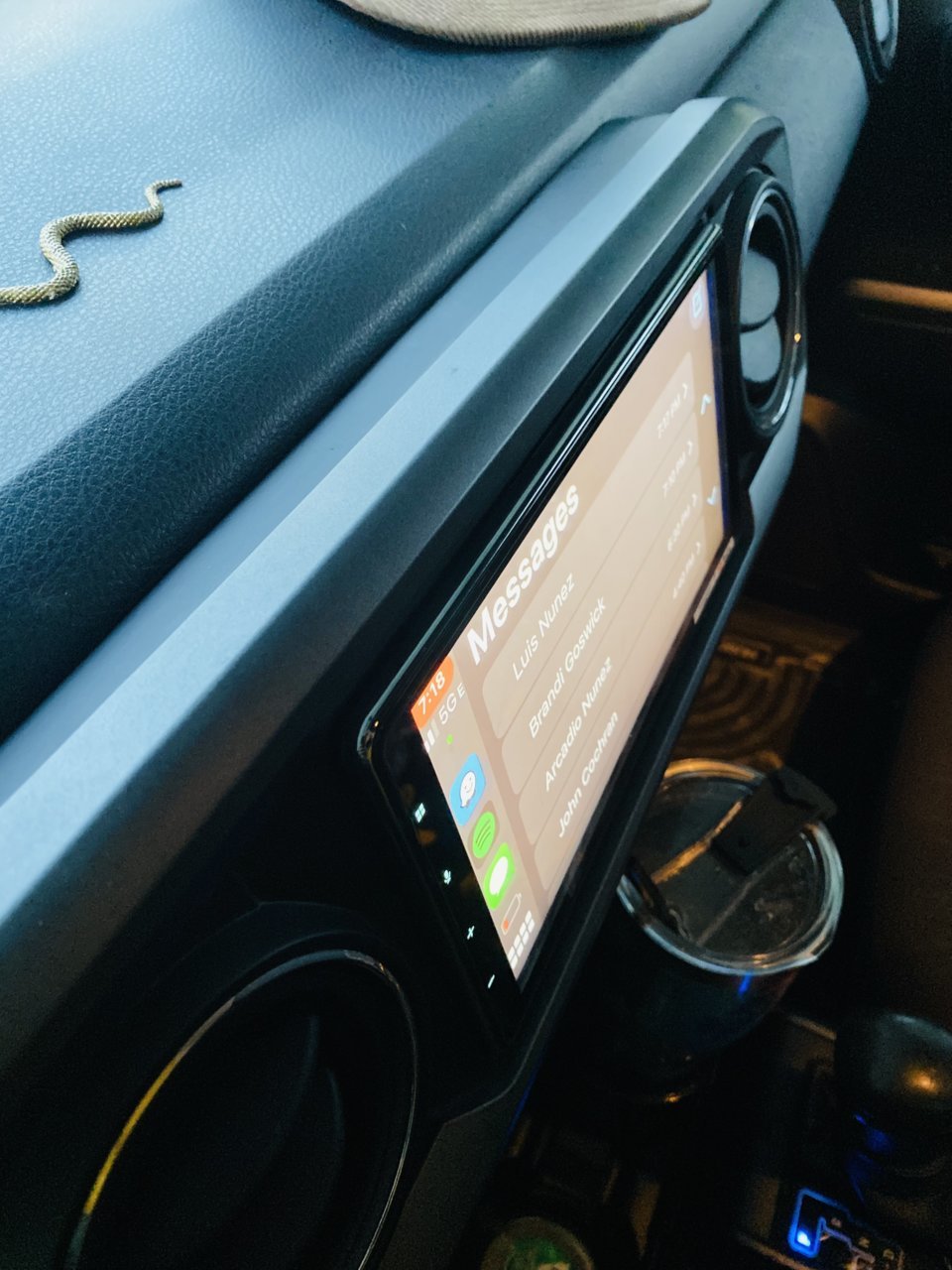

    i see that there’s some tilt in that, is that adjustable?

    Electrify135, Oct 10, 2021
    #2
  3. Oct 11, 2021 at 8:12 AM
    #3
    ZoilaLP

    #3
    ZoilaLP [OP] Member

    Joined:
    Sep 7, 2020
    Member:
    #340075
    Messages:
    8
    Vehicle:
    2016 Grey Tacoma TRD OR AC

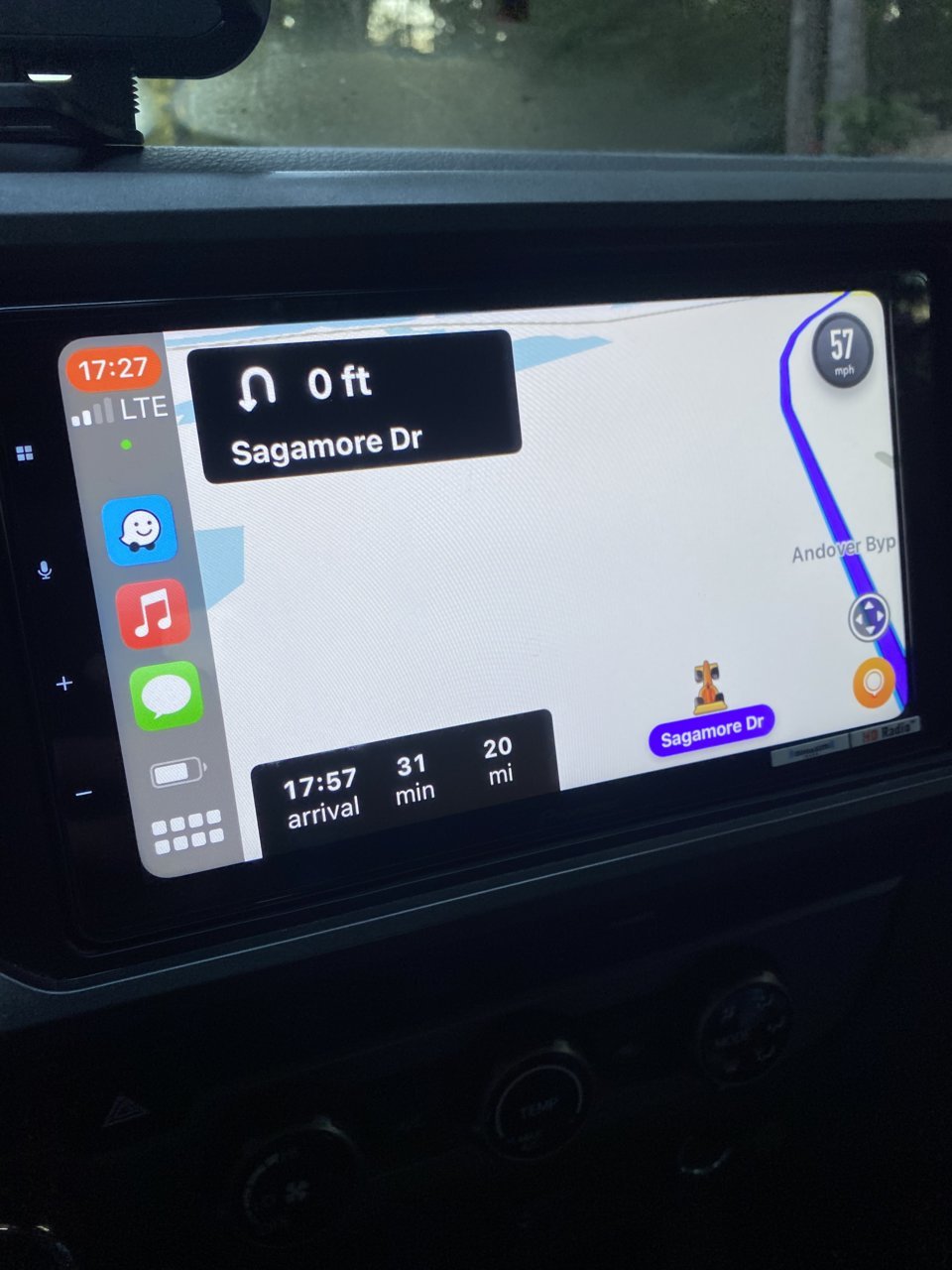

    I like the 7600. Having it connect wirelessly is worth it to me. Keeps cables out of the way. Carplay in the tacoma is long overdue and it makes a world of difference.

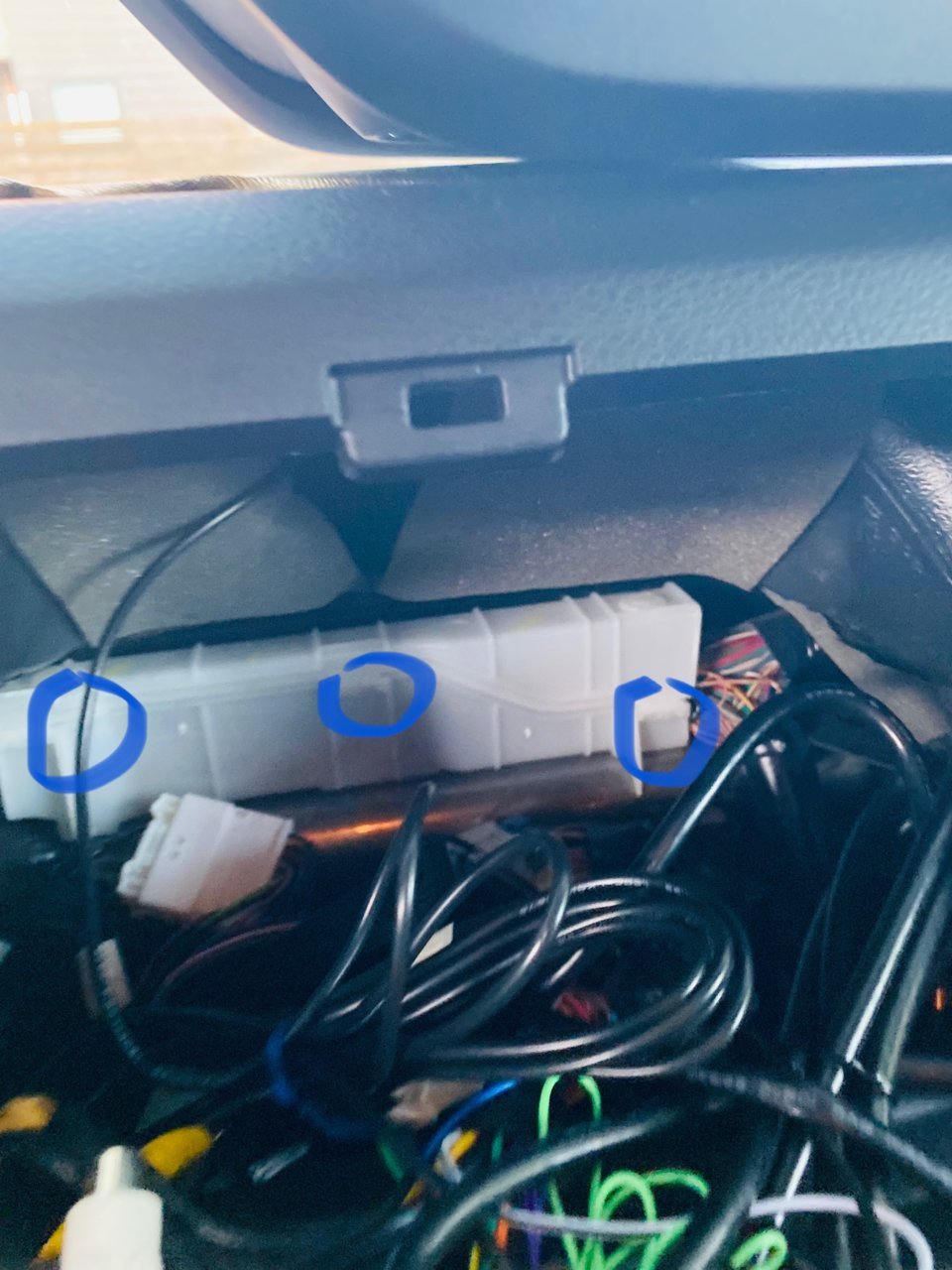

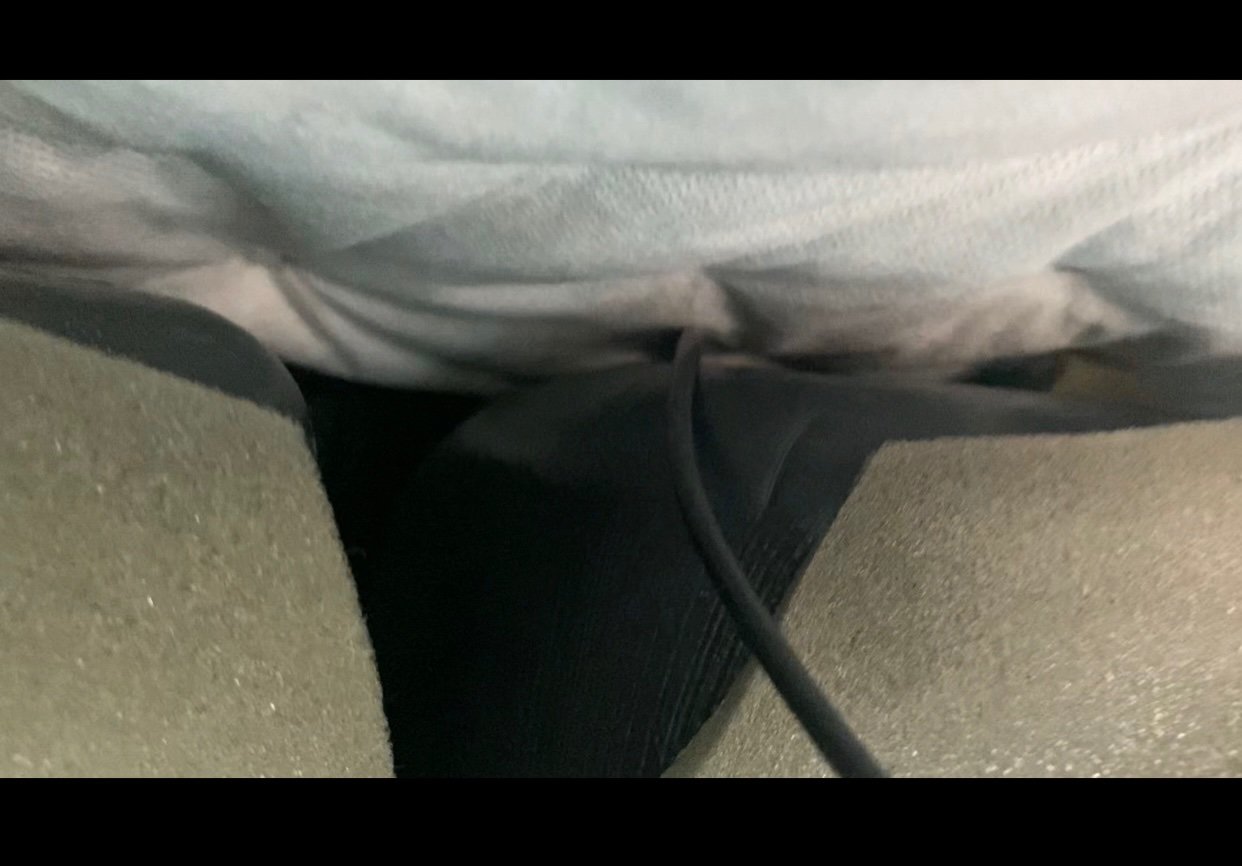

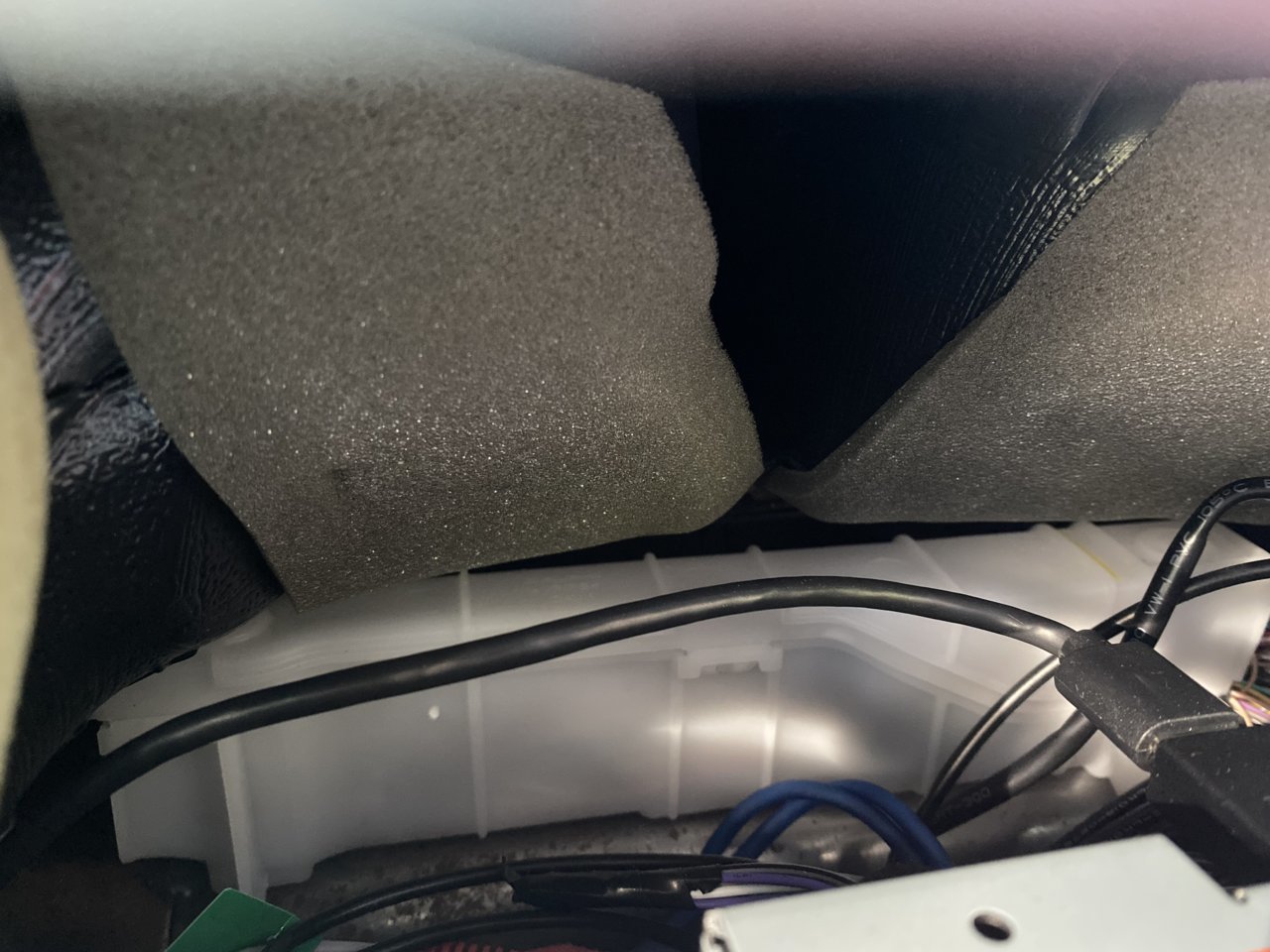

    One issue that i've been having is with the GPS antenna. In that first image you can see I jammed underneath the dashboard without having it on the dashboard. It's been acting oddly and I can't quite figure out what the issue is (i'm assuming some sort of interference somewhere).

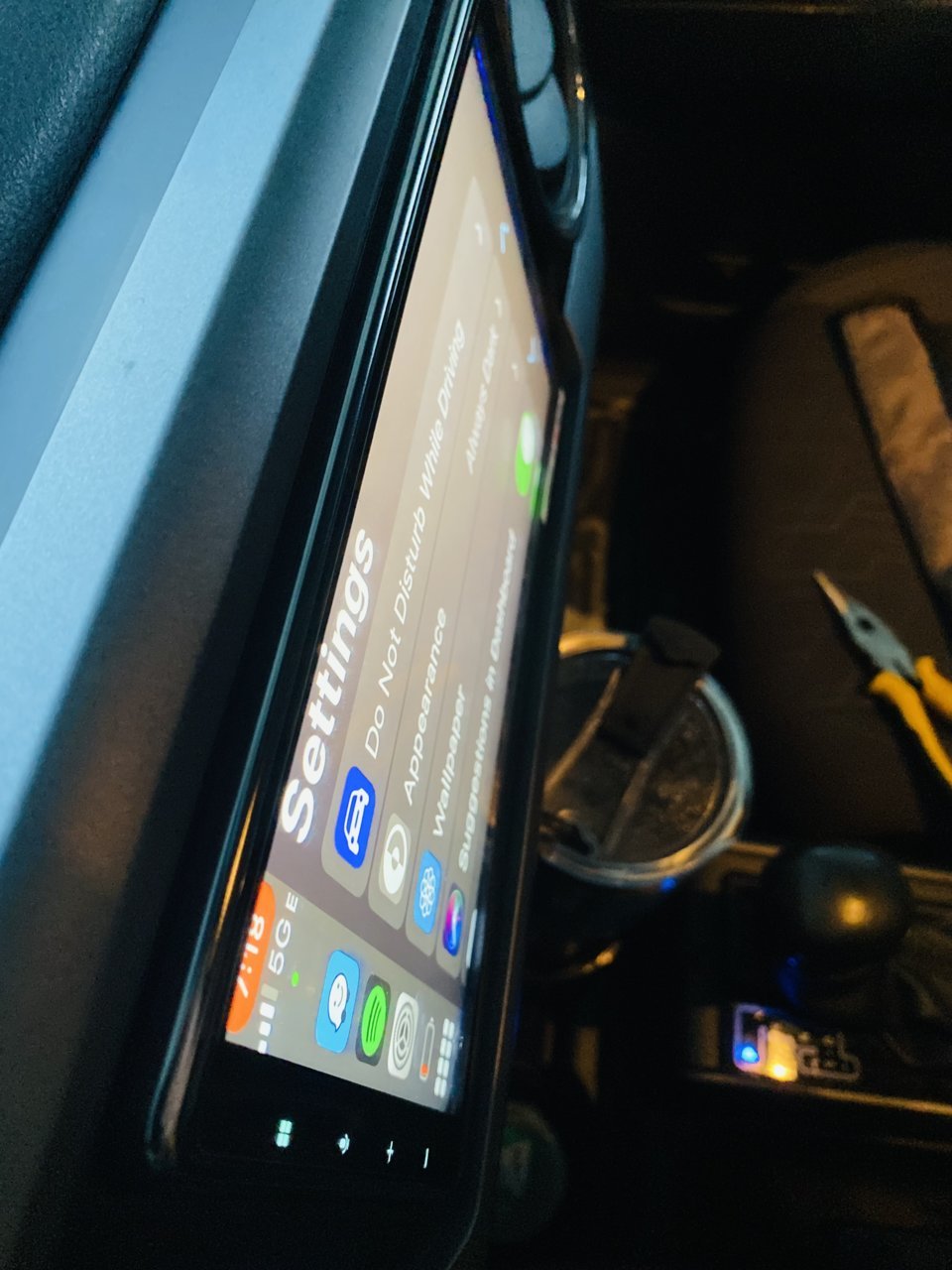

    The tilt is adjustable but it's a pain to do. for me it's barely noticeable and I prefer it tilted up. Like I said I can't stress enough how much easier it would have been to have paid for professional installation.

    ZoilaLP, Oct 11, 2021
    #3
  4. Oct 21, 2021 at 5:37 PM
    #4
    Electrify135

    #4
    Electrify135 Trd offroad

    Joined:
    Sep 7, 2016
    Member:
    #196652
    Messages:
    70
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    2020 trd off road
    did the unit come with a gps in it?
    i currently have a 2020 with no gps, so im trying to figure out if i need to also purchase a gps antenna with the 7600

    now i just gotta find someone in so cal who can install it

    Electrify135, Oct 21, 2021
    #4
  5. Oct 21, 2021 at 5:40 PM
    #5
    Electrify135

    #5
    Electrify135 Trd offroad

    Joined:
    Sep 7, 2016
    Member:
    #196652
    Messages:
    70
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    2020 trd off road
    also did you have to do anything to the bezel?

    Electrify135, Oct 21, 2021
    #5
  6. Oct 22, 2021 at 9:18 AM
    #6
    ZoilaLP

    #6
    ZoilaLP [OP] Member

    Joined:
    Sep 7, 2020
    Member:
    #340075
    Messages:
    8
    Vehicle:
    2016 Grey Tacoma TRD OR AC
    yes it comes with the antenna

    ZoilaLP, Oct 22, 2021
    #6
  7. Oct 22, 2021 at 9:19 AM
    #7
    ZoilaLP

    #7
    ZoilaLP [OP] Member

    Joined:
    Sep 7, 2020
    Member:
    #340075
    Messages:
    8
    Vehicle:
    2016 Grey Tacoma TRD OR AC
    I didn't do anything with the bezel. Installed the parts as they are.

    ZoilaLP, Oct 22, 2021
    #7
