Plate bumper frame reinforcement plates - plate before you break!

Discussion in '2nd Gen Tacoma Marketplace' started by Mxpatriot, Nov 4, 2011.

  1. Nov 4, 2011 at 3:07 PM
    #1
    Mxpatriot

    Mxpatriot [OP] Busted Knuckles Fabrication

    Joined:
    Nov 18, 2009
    Member:
    #26163
    Messages:
    2,688
    Gender:
    Male
    First Name:
    Chase
    Vehicle:
    '06 4x4 AP LT
    Money pit.
    Hey all, I wanted to offer these plates up for sale (TcBob approved) for those of you running steel plate/winch bumpers.

    The factory mounts are inadequate to support the weight, impact, and pulling forces that a plate bumper or winch exerts on them. If your plate bumper seems to be shifting position or moving more than it used to, and your mounting bolts are tight, your factory mounts are probably broken. The plates do not need to be welded on, but I recommend it for them to be most effective.

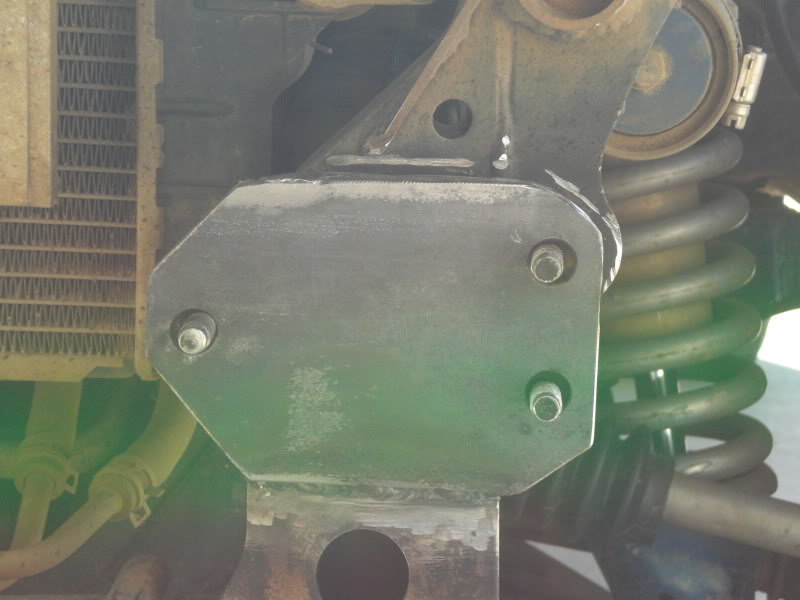

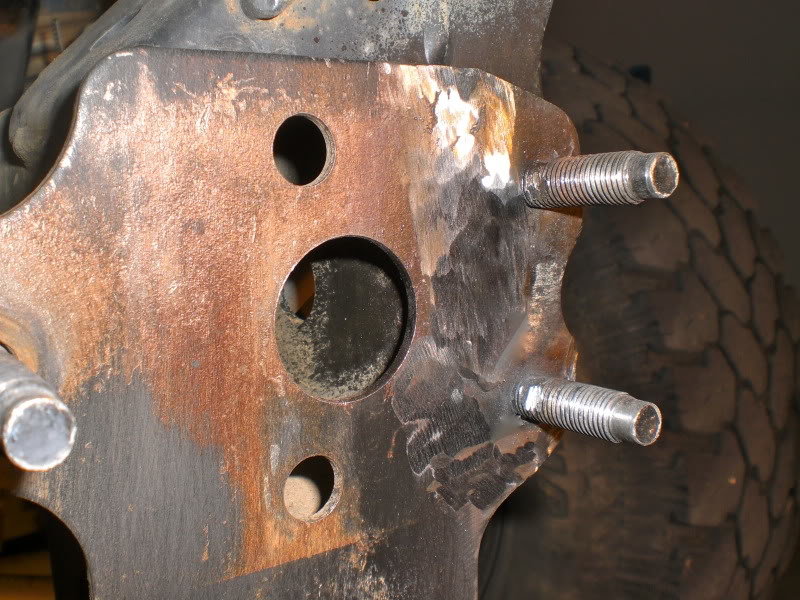

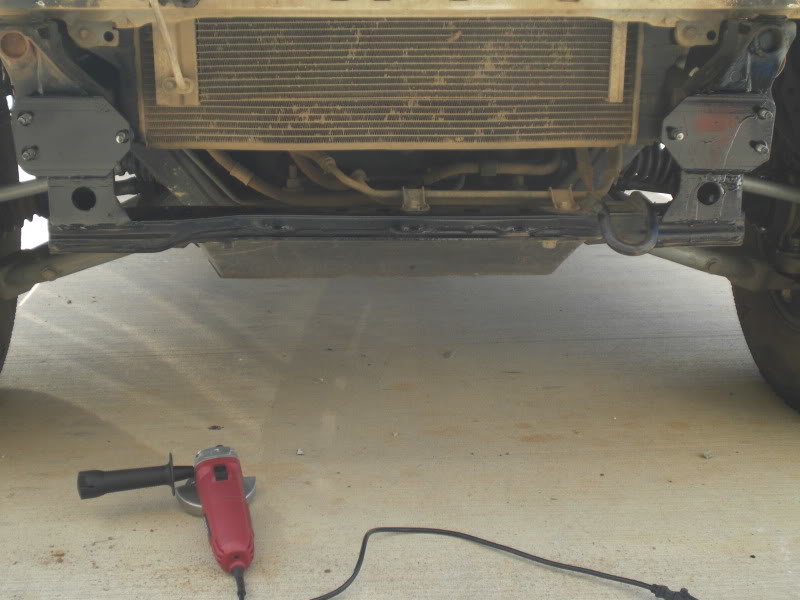

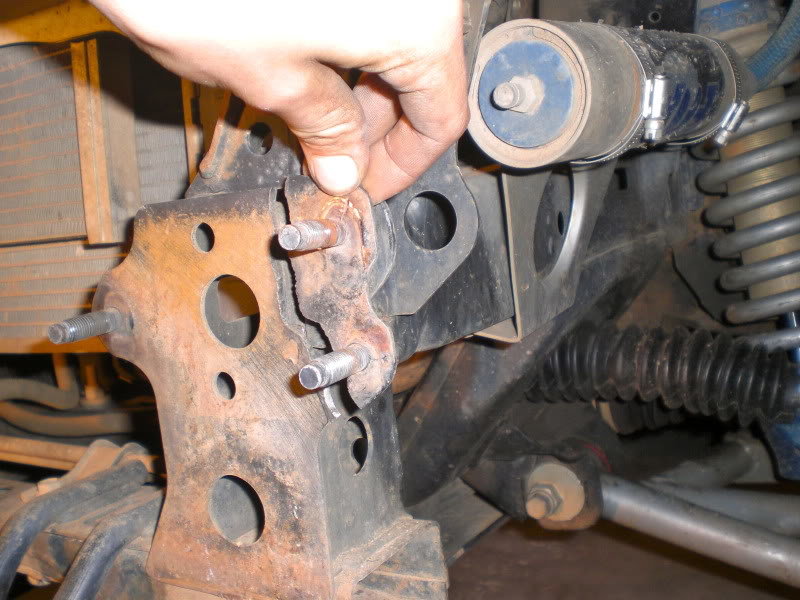

    The following pictures are of my broken mounts, repaired mounts, a bare plate welded in place, and a pair of plates mounted and painted.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    The price for these frame plates is $35 shipped for a pair. They are 1/4'' steel and will be shipped unpainted. Welding them in place is recommended, but not required.

    Paypal or MO accepted; MO's given $3.00 discount.

  2. Nov 4, 2011 at 3:18 PM
    #2
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,154
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Cool idea it's about time someone did it :thumbsup:

    FREE BUMP!!

  3. Nov 4, 2011 at 6:52 PM
    #3
    HomerTaco

    HomerTaco That "grill guy" Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    26,896
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    07' DCSB cut to pieces...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad / Safari Snorkel / Illuminated 4x4 switch / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust Dump / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift
  4. Nov 4, 2011 at 7:23 PM
    #4
    ink junky

    ink junky I phucking hate people >:(

    Joined:
    Jan 27, 2010
    Member:
    #30142
    Messages:
    4,808
    Gender:
    Male
    First Name:
    TACO LOVER
    TEXAS
    Vehicle:
    2010 4x4 trd off road DC,
    Aero turbine 2525, Snorkel, AFE pro dry drop in filter, BFG 33s, spydertraxwheel spacers :/. Debadged, rebadged black, TW sticker :D, bed lights, rod holders, OEM roof rack, Complete OME lift, bed lined fenders. Armor Tech Off road wrap around HC rear bumper w/ tire carrier swing out. Relentless front aluminum bumper. Le Devil Horns (_)
