Please help diagnose my abandoned TACO in the mountains

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TRDBandit, Jul 23, 2011.

  1. Jul 23, 2011 at 3:10 AM
    #1
    TRDBandit

    TRDBandit [OP] TACOMANATOR

    Joined:
    Nov 11, 2010
    Member:
    #46039
    Messages:
    991
    Gender:
    Male
    First Name:
    Justin
    CRAWLORADO
    Vehicle:
    07 Dbl Cab TRD O.R. Dark Blue
    Afe Stage 2 CAI Tinted windows Many to come
    I hope its an Alignment issue. From the looks of it I cant tell the difference from the bad side and the good side. It just looks like my tire is leaning in rubbing on the UCA. The bottom ball joint is facing outwords towards the tire.

    I was on my way down the trail in 4 low. I was going a good steady speed about 10 mph I think? On the driver side was a shelf road so I had my attention on my side making sure I dont go over the edge. Next thing I know I hit that rock on my passenger side. The I felt the rubbing, kind of like my tire was skipping. So I got out and looked and the tire didnt look nearly as crooked as the first picture below. but I seen small rubbing. Got back in and tried to see if I can go one enough to get out the trail. I went forward about 10 feet(I can feel the rubbing get worse to where I would give it about 3000rpm and it wouldnt move) and the tire just stopped moving. Got out and noticed the tire is now facing inward even more. My buddy said as I drove forward that 10 feet my tire would lean inwards more and more. Now its rubbing so bad the truck wont move.... Took the tire off and checked everything tried to fix it but I dont know what im doing so I just left it.

    Called NYCO to see if he can give me any info on what it can be or how to rig it to get me out. But It was hard to explain. So he came to the rescue and picked us up about 1.5 miles from the truck where we hiked, Crossed a knee deep river and met him on the main trail at about midnight. Drove up to the truck and we still couldnt figure out what it is.


    A wheel spacer looks like it can push the tire out far enough to be able to get home. Anyone have one I can use for a day? or know where I can buy one ASAP?

    Anyone have an idea of what it can be?

    NYCO has more pics to show tomorrow.

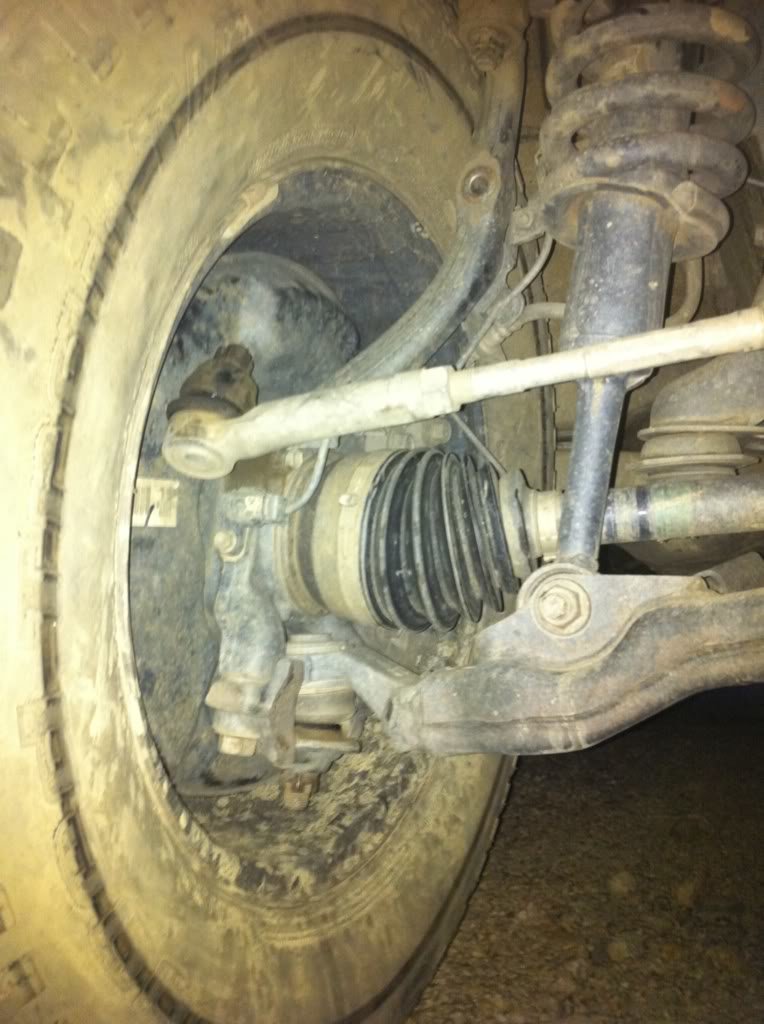

    [​IMG]

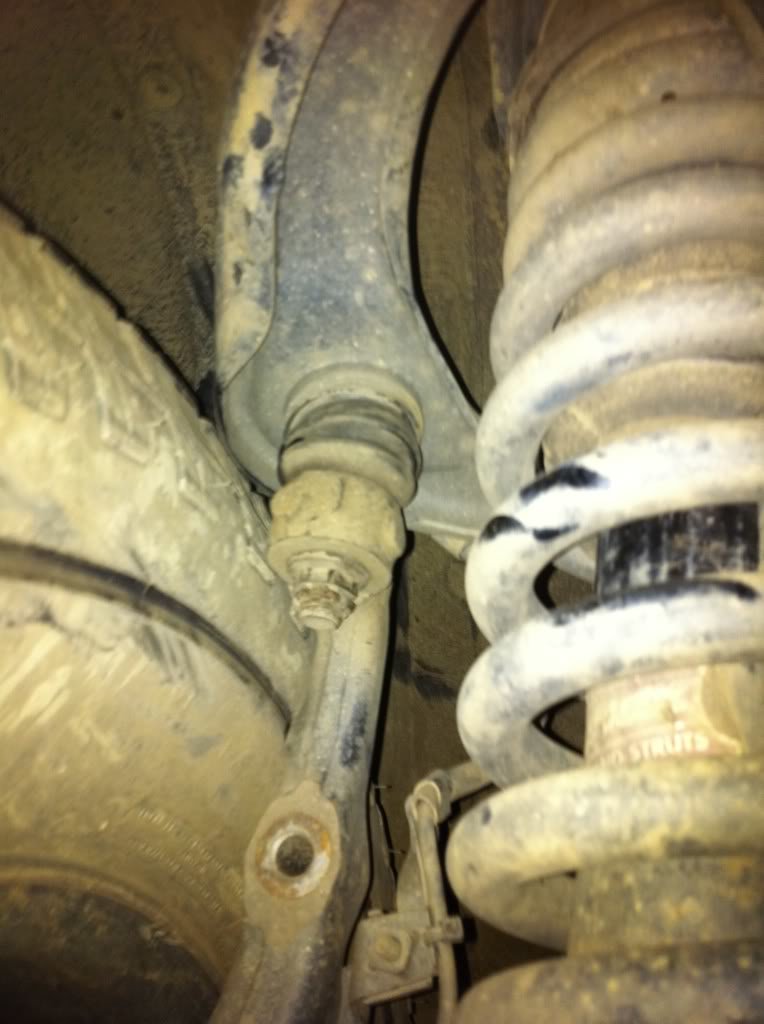

    Ball joint bent? Is it supposed to do that?
    [​IMG]
    [​IMG]

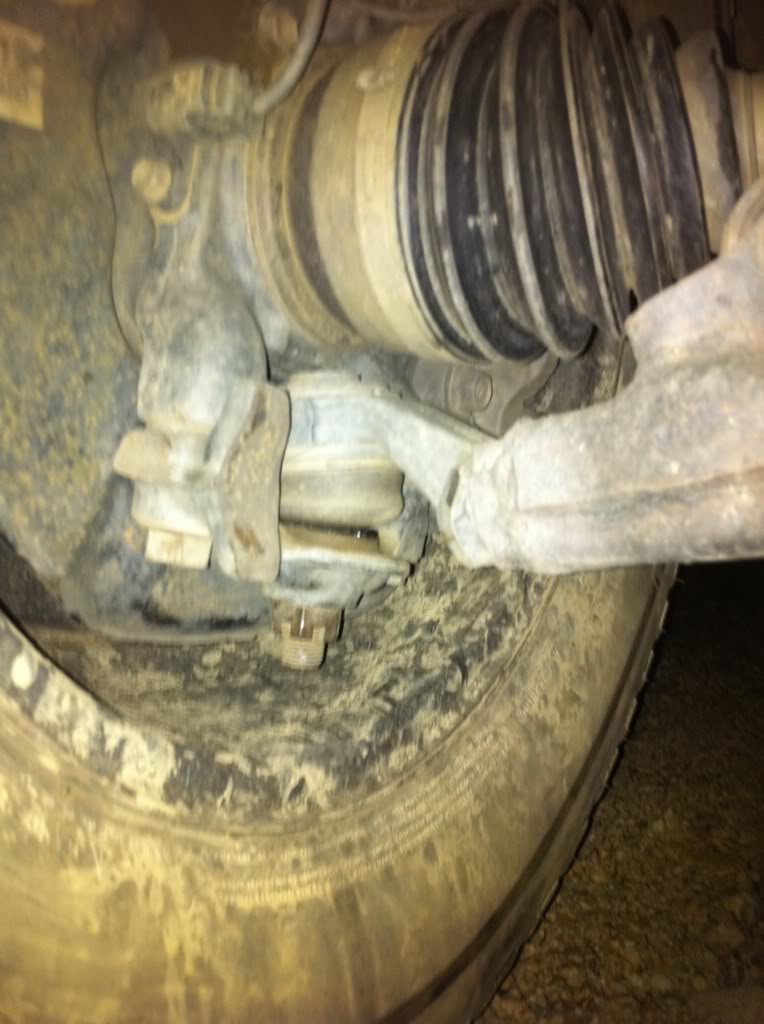

    Right here you can see where the tire is rubbing.
    [​IMG]

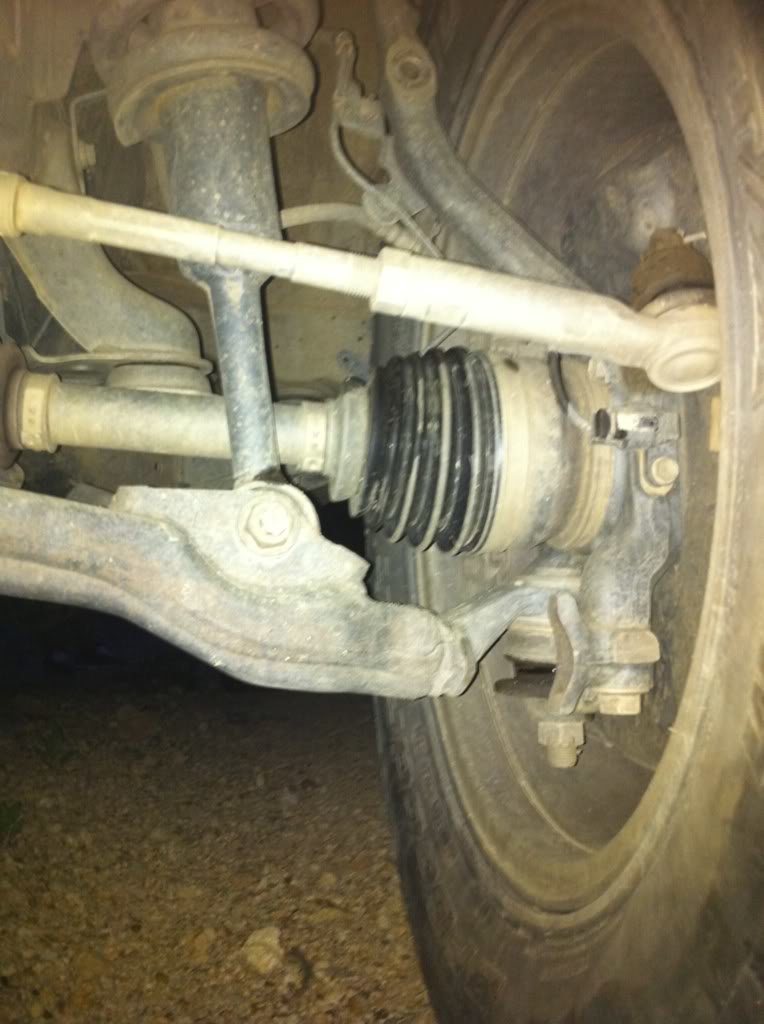

    This is the good side.
    [​IMG]

    The rock my tire hit

    [​IMG]

  2. Jul 23, 2011 at 3:34 AM
    #2
    TRDBandit

    TRDBandit [OP] TACOMANATOR

    Joined:
    Nov 11, 2010
    Member:
    #46039
    Messages:
    991
    Gender:
    Male
    First Name:
    Justin
    CRAWLORADO
    Vehicle:
    07 Dbl Cab TRD O.R. Dark Blue
    Afe Stage 2 CAI Tinted windows Many to come
    Bent spindle? Hard to replace? And how much for a new one?

  3. Jul 23, 2011 at 3:44 AM
    #3
    EL TACOROJO

    EL TACOROJO SNAPPIN NECKS AND CASHIN CHECKS.

    Joined:
    Jun 9, 2009
    Member:
    #18220
    Messages:
    9,922
    Gender:
    Male
    First Name:
    BURRY
    south mills NORCAK
    Vehicle:
    03 dblcab prerunner sr5 v6
    smoked taillights,smoked front turnsignals,smoked 3rd brake light,black badges,black roof rack,removed mud flaps,debadged, camburg 2.5 coilovers,camburg uca's, cobra 25 cb, 4ft firestick ant, dust light/bed lights , 4 hellas on the front
    im leaning towards bent spindle just from where the tire rubs

  4. Jul 23, 2011 at 3:53 AM
    #4
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    From what I see, I don't really see an issue, you can't tell from your ptcs. Maybe I'm blind but the pic I see, your pass. side wheel looks fairly straight, it aint a ball joint,, dude I'll find you a pic of blown ball joint & you'll see what a wheel does when theres nothing to hold it in place.

    But need better pics from short distance so you can see entire front end Both wheel angle etc; but I think you may be over reacting..

    I did notice the holes in spindles for swaybar link

  5. Jul 23, 2011 at 4:00 AM
    #5
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
    I half retract the above statement


    Haha, ok NOW I SEE !!!



    prolly alignment, still didn't see anything really fucked up

    & yeah thats what CV's look like, thats why I really don't like IFS for 4 wheeling, but maybe bent hub/center wheel ?

  6. Jul 23, 2011 at 4:05 AM
    #6
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Seems like an angle issue from that type of rub, but can't rule out alignment , a few guys I've trailed with have hammered some shit pretty hard, potholes & big rocks will knock the LCA out of alignment before bending a spindle I think

  7. Jul 23, 2011 at 4:32 AM
    #7
    FLtaco

    FLtaco Well-Known Member

    Joined:
    Jul 15, 2010
    Member:
    #40249
    Messages:
    647
    Gender:
    Male
    First Name:
    Nick
    Cocoa beach, fl
    Vehicle:
    05 prerunner dc
    Painted stock wheels, bfg km2s, 5100s front and rear, tc spindles, add a leaf, 3" block, debaged, flowmaster exhaust, 2nd air filter removed, wheel spacers and k&n air filter
    If you find that is the problem I could hook you up with my old ones off a 05 dc prerunner. If they are the same and work. There used from when I bought the total chaos spindles so I can give you a fair price. There just sitting in my garage.

  8. Jul 23, 2011 at 5:19 AM
    #8
    PMK

    PMK Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,057
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors
    Stupid question, is the wheel secure, as in the lug nuts aren't loose. Can you get a jack under the suspension arm and see if the wheel bearing failed?

    My off-road adventures are not in trucks, is it a known issue to bend the suspension upright? The funky angle the stud comes out of the ball joint does give the impression of the upright is bent.

    Might consider getting an acetylene torch and some protectors from the heat, add in some leverage tools and straighten it to get home.

    Get it straightened and then have both sides beefed up with some gussets.

    PK

  9. Jul 23, 2011 at 5:24 AM
    #9
    TRDKenE

    TRDKenE DAMN GOOD DEAL!!

    Joined:
    Jul 6, 2009
    Member:
    #19348
    Messages:
    698
    Gender:
    Male
    First Name:
    Kenny
    Richmond, Virginia
    Vehicle:
    '10 D-CAB OFF-ROAD 4X4
    TRD CAI, GrillCraft.
    Just by the fact that the tire is rubbing on the upper control arm I would have to say that the spindle and or hub is bent. Not much to replacing it with some basic tools and jacks and stands. Let us know how it goes and good luck!

  10. Jul 23, 2011 at 5:29 AM
    #10
    PMK

    PMK Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    1,057
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors
    Understood, but with the upright, axle, and wheel always tied together on a rigid assembly, moving any alignment adjustment will move the entire assembly. This shows the assembly itself shifted or bent. I just don't see how having the alignment slip could make the tire constantly contact the upright.

    PK

  11. Jul 23, 2011 at 5:43 AM
    #11
    EL TACOROJO

    EL TACOROJO SNAPPIN NECKS AND CASHIN CHECKS.

    Joined:
    Jun 9, 2009
    Member:
    #18220
    Messages:
    9,922
    Gender:
    Male
    First Name:
    BURRY
    south mills NORCAK
    Vehicle:
    03 dblcab prerunner sr5 v6
    smoked taillights,smoked front turnsignals,smoked 3rd brake light,black badges,black roof rack,removed mud flaps,debadged, camburg 2.5 coilovers,camburg uca's, cobra 25 cb, 4ft firestick ant, dust light/bed lights , 4 hellas on the front
    no way the uca is rubbing the tire. the rub mark is in the center of the tire indicating that it could be the sway bar mounting point on the spindle.


    how hard has the hit from the rock did you hit it head on jamming the suspension in to the wheel well causing it to bottom out and force the spindle to bend right above the the hub

  12. Jul 23, 2011 at 6:14 AM
    #12
    2008taco

    2008taco Well-Known Member

    Joined:
    Mar 4, 2011
    Member:
    #52323
    Messages:
    2,196
    Gender:
    Male
    First Name:
    chris
    san diego
    I'm leaning towards a bent spindle. Were you aired down or at full pressure? looks full to me. Anyways a wheel space SHOULD get you to safety, but take it slow. Don't use this as a long term fix as your alignment will be off quite a bit, your cv angle will be at a weird angle, and your tire will wear uneven. My best bet would be you hit the rock at an angle. Tires at full pressure didn't abosorb much, and energy went into the next weakest link. I'd jump on a set of used ones if this is indeed the case and gusset them, or have a shop gusset them before you reinstall them. Cheap insurance in the long run.

  13. Jul 23, 2011 at 7:00 AM
    #13
    TRDBandit

    TRDBandit [OP] TACOMANATOR

    Joined:
    Nov 11, 2010
    Member:
    #46039
    Messages:
    991
    Gender:
    Male
    First Name:
    Justin
    CRAWLORADO
    Vehicle:
    07 Dbl Cab TRD O.R. Dark Blue
    Afe Stage 2 CAI Tinted windows Many to come
    I wasn't aired down like I was supposed to. The tire is secure on there as well. It's just stuck up there. I hope a wheel spacer can get me out.

  14. Jul 23, 2011 at 7:12 AM
    #14
    TRDBandit

    TRDBandit [OP] TACOMANATOR

    Joined:
    Nov 11, 2010
    Member:
    #46039
    Messages:
    991
    Gender:
    Male
    First Name:
    Justin
    CRAWLORADO
    Vehicle:
    07 Dbl Cab TRD O.R. Dark Blue
    Afe Stage 2 CAI Tinted windows Many to come

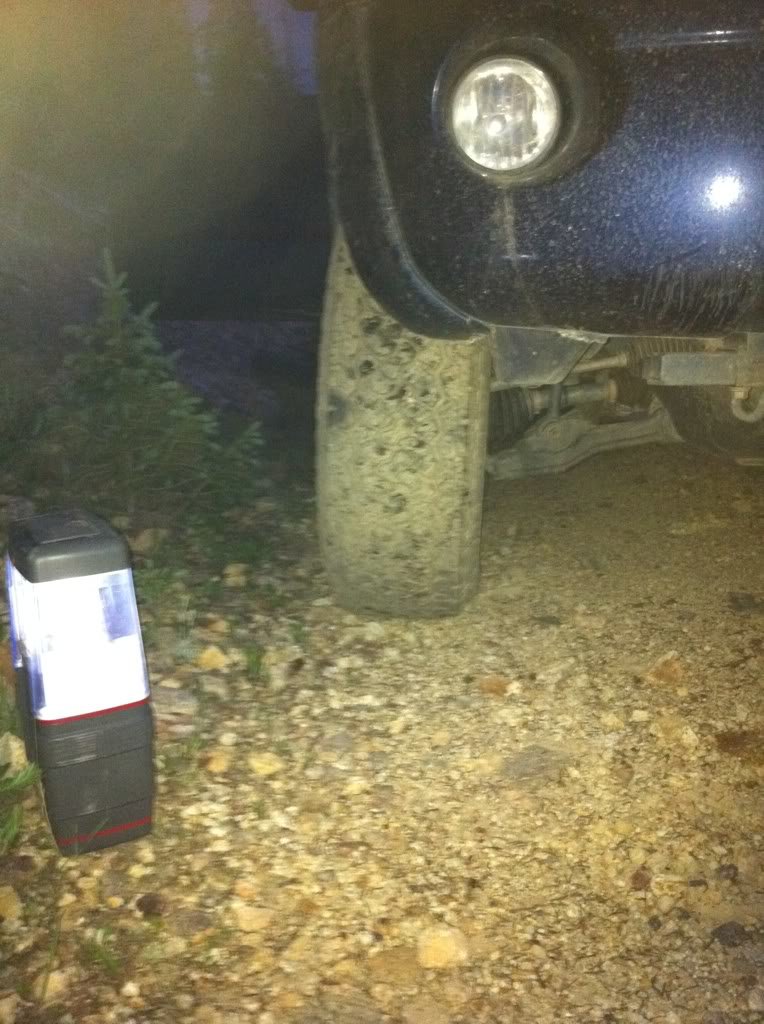

    More pics
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  15. Jul 23, 2011 at 7:26 AM
    #15
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Bad lower ball joint would allow wheel to lean inwards at the top where it looks like its making contact with spindle, kinda like yours in pic

    Bad upper joint would allow lean outwards,,, hmmmm ??

  16. Jul 23, 2011 at 7:35 AM
    #16
    06rubi

    06rubi Well-Known Member

    Joined:
    May 1, 2010
    Member:
    #36309
    Messages:
    806
    Gender:
    Male
    First Name:
    Kenney
    Pueblo West, CO
    Vehicle:
    10 MGM (wife's truck)
    Debadged, tinted windows, 7 pin relocated, bed lights, 12 volt socket in bed of truck, on board air, auxiliary fuse box, grill craft, hella 500's, t-rex eyelids, pink budbuilt skids, icon remote resi coil over, camburg uca, alcan rear springs, ubolt flip, icon 2.5 remote rear resi shocks
    That really sucks! I really don't see much wrong neither. Addicted off-road may have some wheel spacers for you to limp it home. I would put it in 2wd all the way home if it were me. Less stress on that corner.

  17. Jul 23, 2011 at 7:37 AM
    #17
    TiMe

    TiMe Well-Known Member

    Joined:
    Oct 8, 2010
    Member:
    #44388
    Messages:
    229
    Gender:
    Male
    CA
    Vehicle:
    05 Dbl Cab 4x4
    6" Fabtech with coilovers 33" nitto mud grapplers
    Bent lower control arm

  18. Jul 23, 2011 at 7:38 AM
    #18
    Dark Knight

    Dark Knight Well-Known Member

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,591
    Gender:
    Male
    First Name:
    Jeff
    NC/SC
    Vehicle:
    4Runner Trail
    <-- Thinks bent spindle??

  19. Jul 23, 2011 at 7:38 AM
    #19
    TRDBandit

    TRDBandit [OP] TACOMANATOR

    Joined:
    Nov 11, 2010
    Member:
    #46039
    Messages:
    991
    Gender:
    Male
    First Name:
    Justin
    CRAWLORADO
    Vehicle:
    07 Dbl Cab TRD O.R. Dark Blue
    Afe Stage 2 CAI Tinted windows Many to come
    Think a wheel spacer can get me home?

  20. Jul 23, 2011 at 7:41 AM
    #20
    ExpoSpy

    ExpoSpy Well-Known Member

    Joined:
    Nov 1, 2009
    Member:
    #25260
    Messages:
    664
    Gender:
    Male
    First Name:
    Brian
    S.D.
    Vehicle:
    08 DCLB 4X4
    I dunno but it looks like the bushing is missing on this lca. :confused:
