Plik's 2011 TDR sport DCSB build

Discussion in '2nd Gen. Builds' started by Plik, Nov 18, 2012.

  1. Dec 30, 2012 at 7:21 PM
    #21
    KPT

    KPT sees what you did there.

    Joined:
    Sep 3, 2009
    Member:
    #22227
    Messages:
    32,399
    Gender:
    Male
    Vehicle:
    09 Prerunner
    Katskin leather interior, Satoshi grille, Bilstein 5100's @ 1.75, rear leaf TSB, magnaflow exhaust, 18x9 BBS RW's, 275/65/18 Nitto TG's, black headlights, black taillights, Hella Supertones, weathertechs, EFX tri-fold tonneau, n-Fab steps
    Love it. Absolutely love it

  2. Dec 30, 2012 at 8:43 PM
    #22
    Eagledynasty

    Eagledynasty The White Knight

    Joined:
    Dec 8, 2011
    Member:
    #68427
    Messages:
    1,660
    Gender:
    Male
    First Name:
    AJ
    Worcester, MassHole
    Vehicle:
    09 Super White DoubleCab Off-Road
    2009 SWDC O/R. Check Build!
    X2^^^^^^:D

  3. Dec 31, 2012 at 12:22 PM
    #23
    Plik

    Plik [OP] Ragin Cajun

    Joined:
    Aug 13, 2011
    Member:
    #61618
    Messages:
    309
    Gender:
    Male
    Houston
    Vehicle:
    '11 DCSB PreRunner TRD Sport
    Click my sig pic for build thread
    I got the emblem off a toyota online parts site ...toyota part # 75311-90K00
    The light bar is made by BAMF now, check out their vendor page... http://www.tacomaworld.com/forum/bay-area-metal-fabrication/

    Thanks for all the positive feed back guys! The fiance order a set of avid step bars for me (for her really). So more pics to come in a few weeks.

  4. Dec 31, 2012 at 3:09 PM
    #24
    Eagledynasty

    Eagledynasty The White Knight

    Joined:
    Dec 8, 2011
    Member:
    #68427
    Messages:
    1,660
    Gender:
    Male
    First Name:
    AJ
    Worcester, MassHole
    Vehicle:
    09 Super White DoubleCab Off-Road
    2009 SWDC O/R. Check Build!
    Cool thanks a lot!

  5. Jan 8, 2013 at 12:36 PM
    #25
    Ubeslife

    Ubeslife Active Member

    Joined:
    Nov 27, 2012
    Member:
    #91964
    Messages:
    37
    Gender:
    Male
    First Name:
    Eric
    Orrville, OH
    Vehicle:
    05 TRD Off Road
    Level 8 mk6 17" wheels, 265/70r17 nitto terra grapplers, Powerstop Drilled and Slotted Rotors and pads, 2015 New frame swap (courtesy of toyota), Carseat
    Nice set up man! classy look. Do your tires rub at all with that set up?

  6. Jan 8, 2013 at 12:42 PM
    #26
    Warputer

    Warputer Dirt Road Inspector

    Joined:
    Jul 31, 2011
    Member:
    #60864
    Messages:
    6,352
    Gender:
    Male
    First Name:
    Chris
    Lake Murray, South Carolina
    Vehicle:
    2011 TRD Off Road
    Enough modifications to piss the wife off!!
    Sweet ride you've set up! Love the grill emblem and wheel/tire combo!

  7. Jan 10, 2013 at 4:55 AM
    #27
    Plik

    Plik [OP] Ragin Cajun

    Joined:
    Aug 13, 2011
    Member:
    #61618
    Messages:
    309
    Gender:
    Male
    Houston
    Vehicle:
    '11 DCSB PreRunner TRD Sport
    Click my sig pic for build thread
    Needed a little trimming on the front wheel well lining. No other rubbing.

  8. Jan 11, 2013 at 4:51 PM
    #28
    Plik

    Plik [OP] Ragin Cajun

    Joined:
    Aug 13, 2011
    Member:
    #61618
    Messages:
    309
    Gender:
    Male
    Houston
    Vehicle:
    '11 DCSB PreRunner TRD Sport
    Click my sig pic for build thread
    Aux. Fuse Box Wright Up

    I've had a few members ask for a wright up on my fuse box design, so here it goes..

    items you will need...

    - 12 slot Blue Sea Fuse block

    - 100 amp blue sea panel mount breaker

    - Hammond heavy duty ABS project box, PN: 1594EBK

    - Sheet of 1/4" thick plexiglass

    - 4 ft, of 4 or 6 gauge copper core wire

    - qty 4, crimp on ring terminals

    - qty 4, #8 x 2-1/2" machine screws w/ lock nuts and washers

    - qty 4, #8 x 3/4" aluminum spacers

    - qty 2, M8 x 25mm socket cap screw w/ washers

    - qty 2, M6 x 25mm socket cap screw w/ nuts

    - qty 3, 1/2" rubber hole grommets

    Step1: Fab up your Bracket mount:

    Basically just get a piece of cardboard and mock up your bracket to position the box as you want. Trace the cardboard out on to the plexiglass with a sharpie, make sure to mark the mount holes and bend line locations. The plexiglass can be scribed with a safety knife and "snapped" for long strait lines cuts, otherwise use a hack saw. Drill out your two 8M mounting holes a this point too.

    Once you have your basic shape cut out, use a blow torch to heat the plexiglass along the bend line.. once you start to see tiny bubbles in the glass it should be hot enough to bend.. I used two pieces of 2x4 and a table vise for this.. bend to desired angle and hold until the glass hardens.

    Step 2: Mounting the block and breaker:

    You will want to space the fuse block up about 3/4" from the bottom of the project box to allow clearance for running the wires underneath.. this is where the aluminum spacers come in. First position the block to one end of the box and use a punch to mark your 4 mounting holes. Line up your box and bracket and drill out your holes. Test fit by fastening the box to the bracket using the #8 screws and the spacers. You can now finish off the bracket by rounding off the corners and painting it if you wish.

    Cut out a square section on the front of the box to mount the breaker. You will need to space the breaker forward about 1/8" to allow for more clearance. I used the piece I cut out to fab up some spacers, but you can also use washer. .. once you have the breaker positioned strait (Batt terminal up) , punch and drill your mounting holes, fasten with the M6 socket cap screws ans nuts.

    Drill out three 1/2" holes near the rear of the box and pop in your 1/2" hole grommets.. this should leave you with 3/8" holes, just big enough to fit a 4 gauge wire through.

    Step 3: Wiring:

    All the wiring will feed under the fuse box, I routed everything into the box and then out, so there is 12v main in (hole one), 12v switch in (hole 2), 12v lights power and relay bundle out (hole 3). Once you have all of your wires run, bolt it all together then connect the positive terminal on your fuse block.


    lessons learned/ ideas:

    - take your time with the plexiglass i cracked one bracket by letting it cool to long and bending it.

    - instead of spacers you may want to consider using hex unions.. that way you can remove the fuse block will keeping the box mounted to the bracket.

    -4 gauge is thick, takes some manhandling to position it in the box, if you don't plan of fully populating the fuse block, maybe go with 6 gauge.

    - I'm noticing some surface rust on the socket head cap screws, you may want to go with stainless.

    -The project box will probably fit a 6 slot fuse block with ground terminals, all you would need to do is drill an extra hole for the ground wire.

  9. Jan 11, 2013 at 5:31 PM
    #29
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,460
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    Nice build. I really like the fuse box.

  10. Jan 26, 2013 at 11:27 AM
    #30
    Plik

    Plik [OP] Ragin Cajun

    Joined:
    Aug 13, 2011
    Member:
    #61618
    Messages:
    309
    Gender:
    Male
    Houston
    Vehicle:
    '11 DCSB PreRunner TRD Sport
    Click my sig pic for build thread

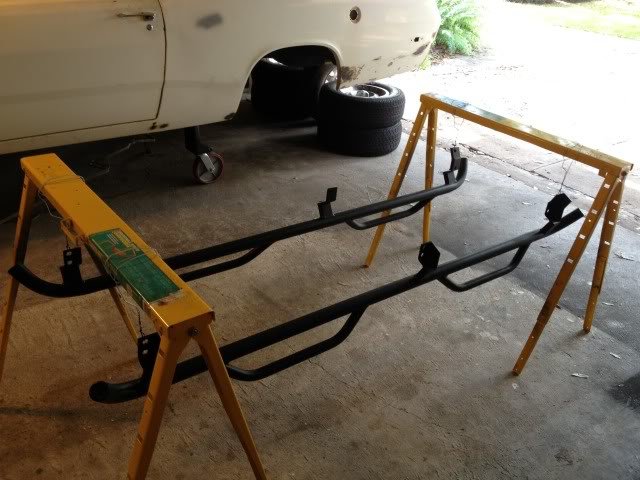

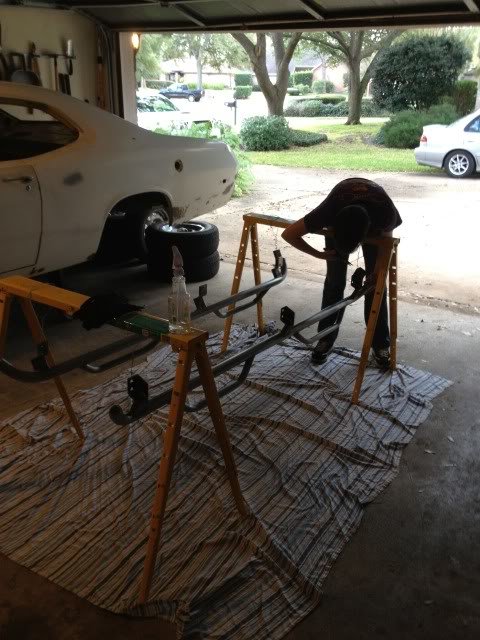

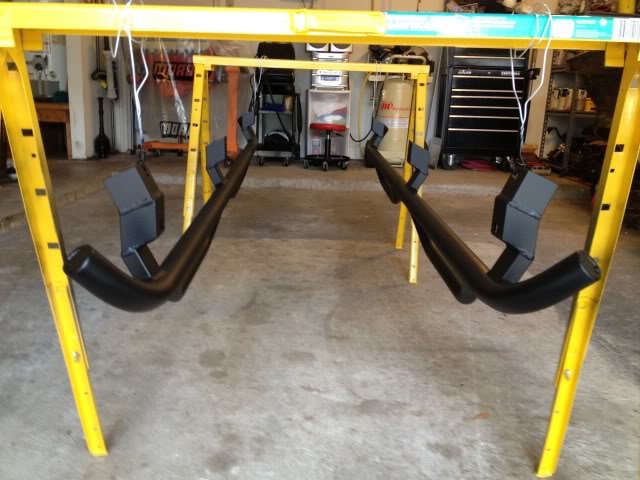

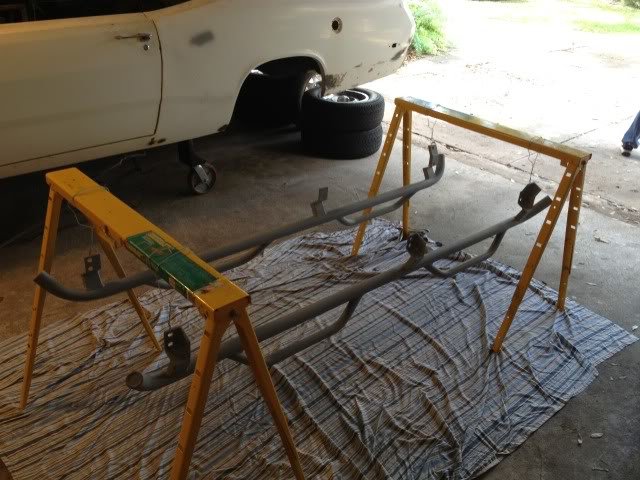

    Got my Avid step bars in yesterday... sanded, primed and painted them this morning. I used rustoleum truck bed liner, stuff looks amazing. I'm going to wait the full 72 hours for it to cure before I install them. More pics to come.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  11. Jan 26, 2013 at 5:44 PM
    #31
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,460
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    Nice work.

  12. Jan 26, 2013 at 5:53 PM
    #32
    60driver

    60driver Well-Known Member

    Joined:
    Nov 21, 2009
    Member:
    #26292
    Messages:
    215
    Gender:
    Male
    First Name:
    Sean
    CT
    Vehicle:
    10 DC TRD Sport 4x4 Tim Mica
    Illum 4x4 switch, 20" LED bar in lower grill, LED in scoop, aux fuse box, avid light bar and 'sliders'
    They are looking good! Also, that means I'm one more order closer to getting mine!

  13. Jan 26, 2013 at 10:05 PM
    #33
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,460
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    '72 Duster in the background?

  14. Jan 27, 2013 at 7:05 AM
    #34
    Plik

    Plik [OP] Ragin Cajun

    Joined:
    Aug 13, 2011
    Member:
    #61618
    Messages:
    309
    Gender:
    Male
    Houston
    Vehicle:
    '11 DCSB PreRunner TRD Sport
    Click my sig pic for build thread
    Yep, that's her.. Waiting to get media blasted

  15. Jan 27, 2013 at 8:16 AM
    #35
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,460
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    We used to have one, that is why I can recognize it. What color are you going with it?

  16. Jan 27, 2013 at 8:28 AM
    #36
    Plik

    Plik [OP] Ragin Cajun

    Joined:
    Aug 13, 2011
    Member:
    #61618
    Messages:
    309
    Gender:
    Male
    Houston
    Vehicle:
    '11 DCSB PreRunner TRD Sport
    Click my sig pic for build thread
    B5 blue

  17. Jan 27, 2013 at 8:29 AM
    #37
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,460
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    Sweet. Post a follow up pic when completed, if you would.

  18. Jan 27, 2013 at 10:59 AM
    #38
    Plik

    Plik [OP] Ragin Cajun

    Joined:
    Aug 13, 2011
    Member:
    #61618
    Messages:
    309
    Gender:
    Male
    Houston
    Vehicle:
    '11 DCSB PreRunner TRD Sport
    Click my sig pic for build thread
    yeah, no problem.. I was thinking about starting a build thread for it.. once i get into the good stuff like patch/body work.

  19. Jan 29, 2013 at 3:14 PM
    #39
    Plik

    Plik [OP] Ragin Cajun

    Joined:
    Aug 13, 2011
    Member:
    #61618
    Messages:
    309
    Gender:
    Male
    Houston
    Vehicle:
    '11 DCSB PreRunner TRD Sport
    Click my sig pic for build thread

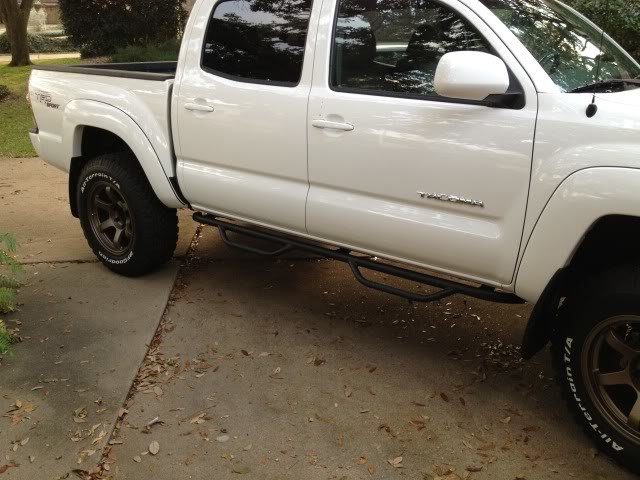

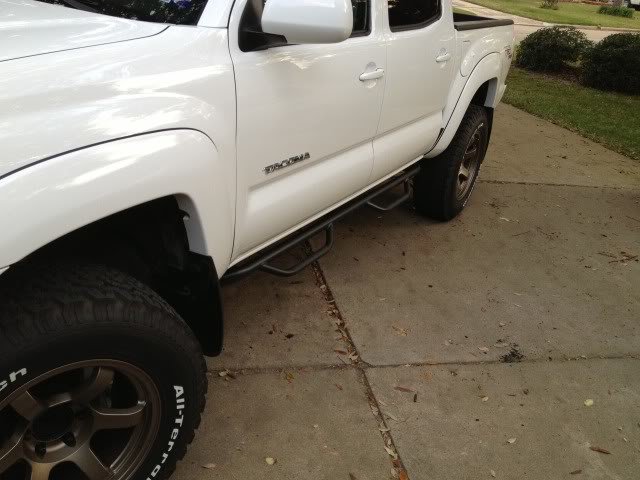

    Mounted the step bars today.. and the fiance couldn't be happier lol. I have to give props to Avid, they did a nice job on these.

    [​IMG]

    [​IMG]

  20. Jan 29, 2013 at 3:31 PM
    #40
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,460
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    Looks good
