Plunge switch for tailgate.

Discussion in '3rd Gen. Tacomas (2016+)' started by porterx, Jan 23, 2019.

  1. Jan 23, 2019 at 10:44 PM
    #1
    porterx

    porterx [OP] Well-Known Member

    Joined:
    Dec 3, 2018
    Member:
    #274643
    Messages:
    286
    Gender:
    Male
    I have a 2018 Tacoma Limited 2WD.

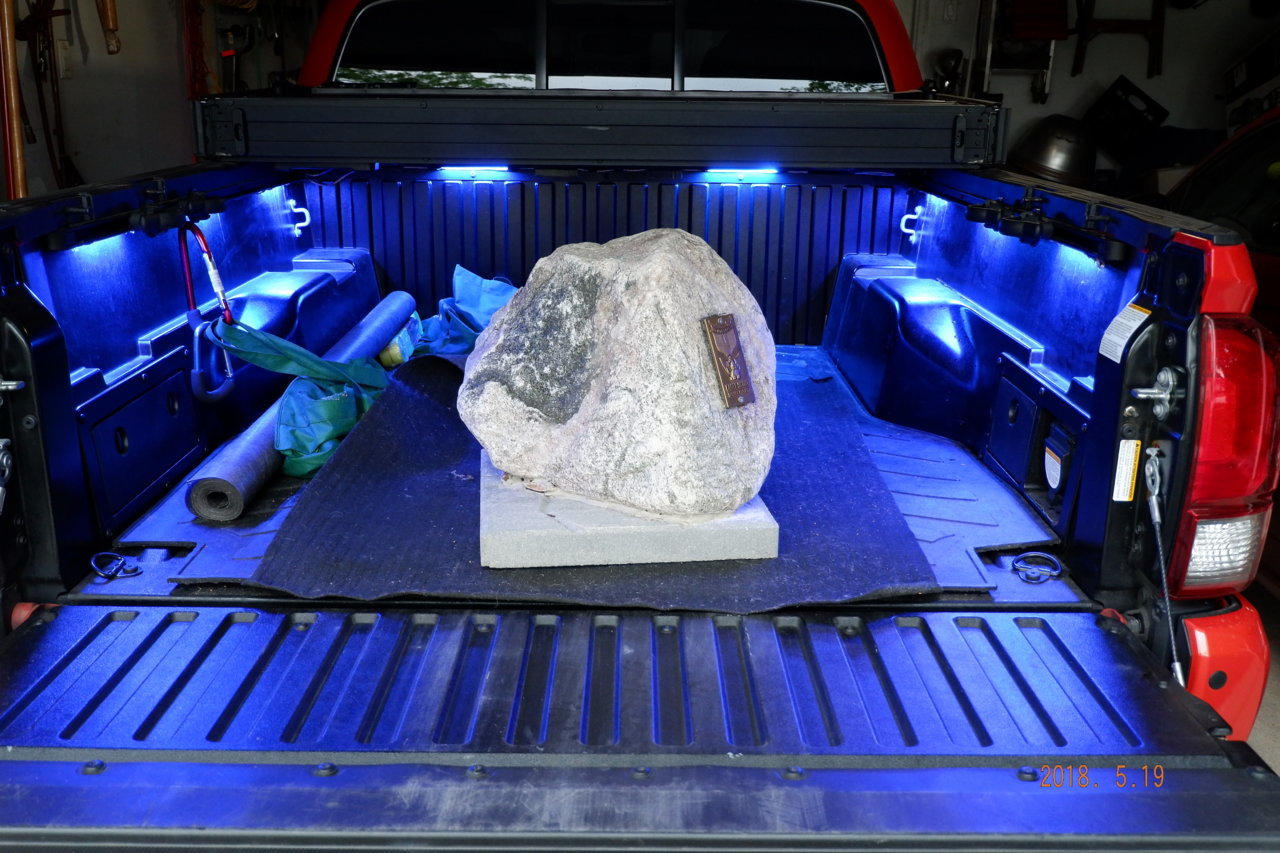

    I'm installing strip led's under my hood and have already installed them in the bed. I bought 2 plunge switches, one for under the hood and one for the bed. I have the under hood plunge switch mounted. It's just waiting on me to install the lighting.

    For the bed, I bought a 18650 parallel battery holder that has a switch built in. (I grab discarded laptop batteries and use the good batteries. You'd be surprised the uses that they have. The way it's going, I'll probably only have to charge the batteries once a year or longer. I'm using 2000mAh batteries. So they're 3.7V nominal at 4000mAh.) Now I want to tap off of the built in switch and install one of the plunge switches in the bed so when the bed is open, the lights come on. I'll be leaving the builtin switch inline for when I need to leave the tailgate open for extended periods. I'm having a hard time figuring out where to install the plunge switch.

    Does anyone have any ideas?

    One thought that I've had is to install a piece of 90 degree angled metal/plastic to a pre existing bolt hole that the tailgate would hit when it is raised. That's probably what I'll go with. Just looking to see if anyone has a better idea.

    I've added a photo to give a better idea of what I'm trying to do.

    I have thought about tying into the inverter circuitry among other options but this ain't a bad option either. Especially when I'll only have to charge the batteries rarely.

    tailgate switch.jpg

    Last edited: Jan 24, 2019
    toofast4u752 likes this.
  2. Jan 24, 2019 at 1:49 AM
    #2
    porterx

    porterx [OP] Well-Known Member

    Joined:
    Dec 3, 2018
    Member:
    #274643
    Messages:
    286
    Gender:
    Male

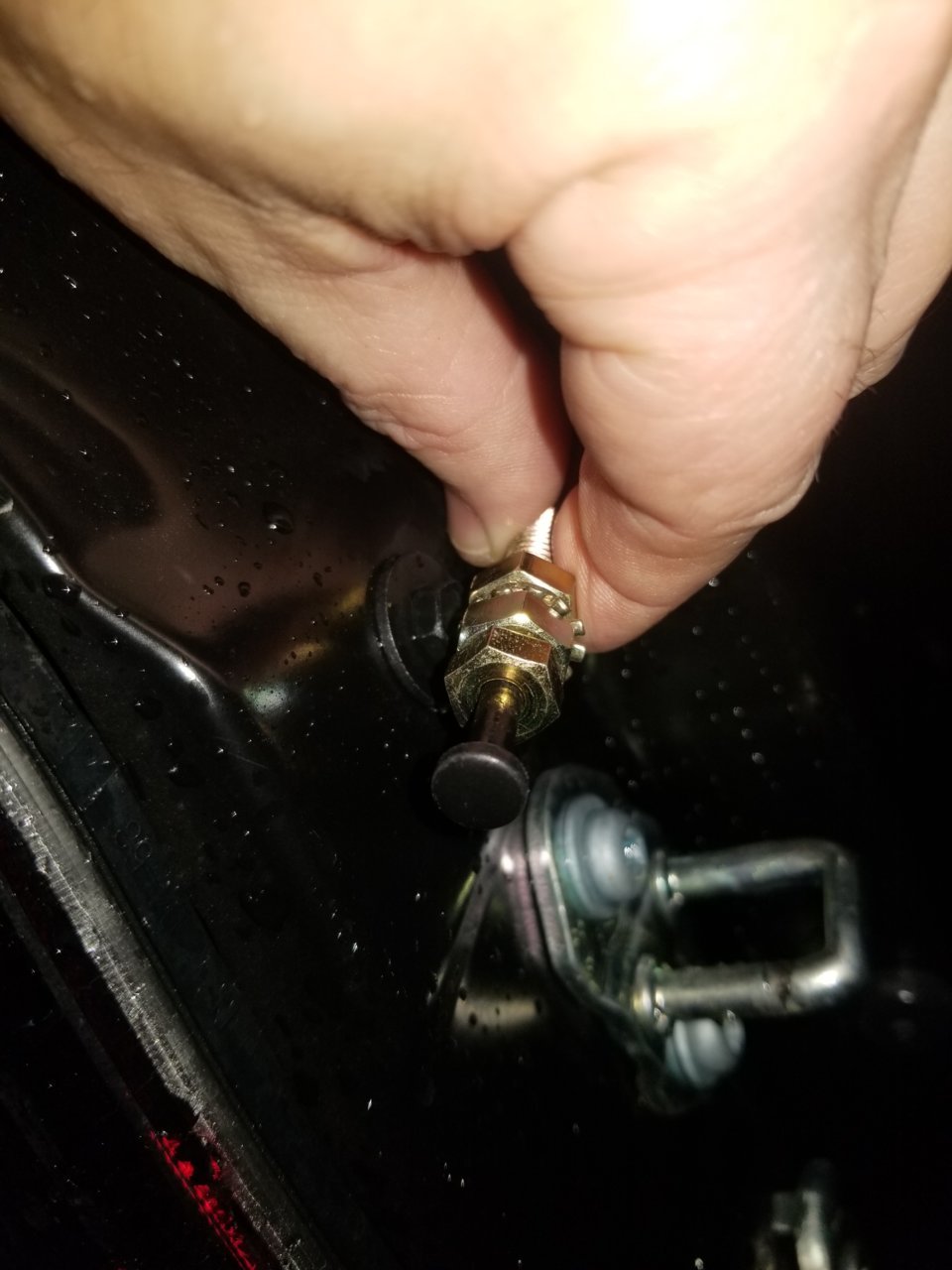

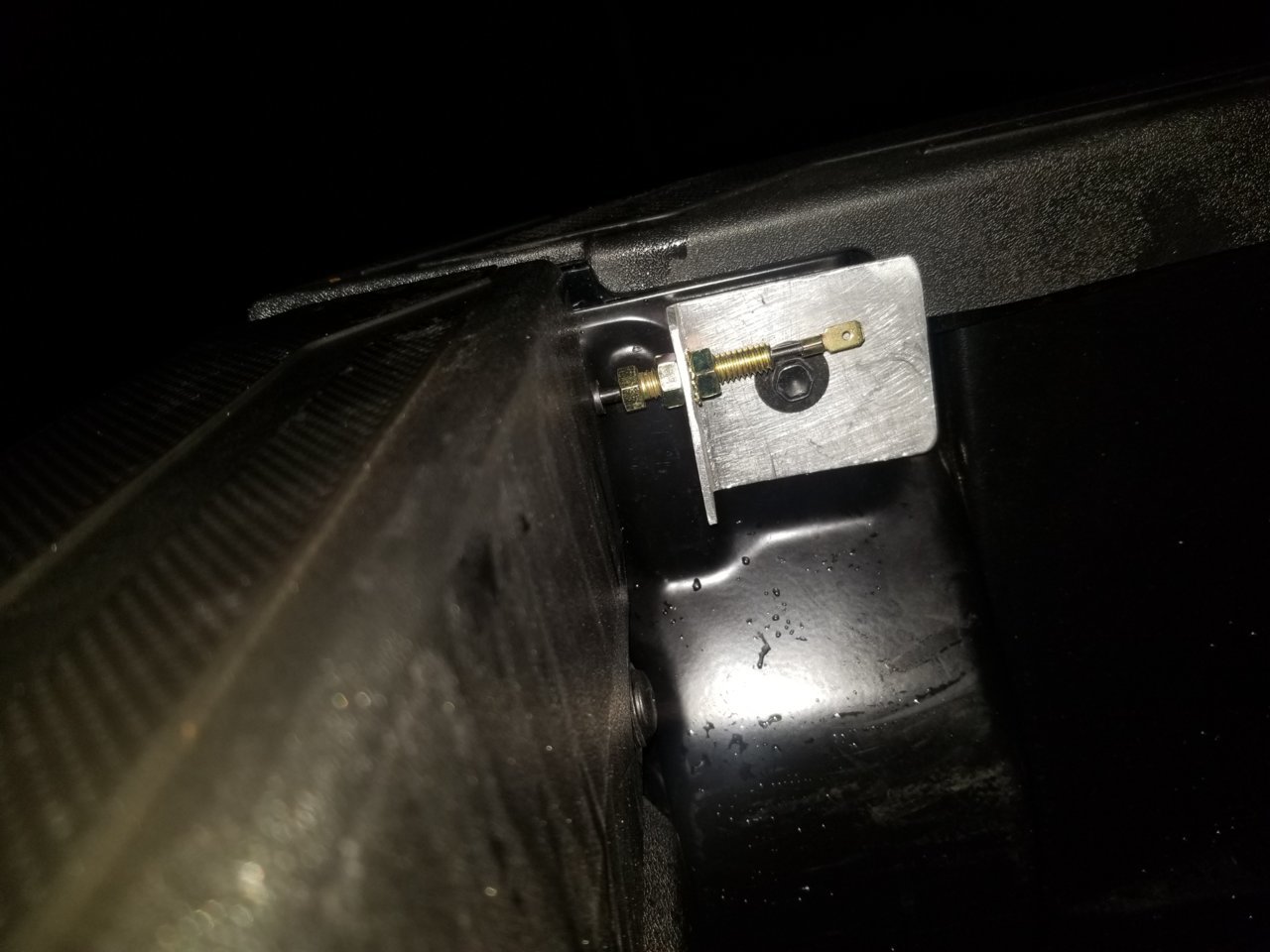

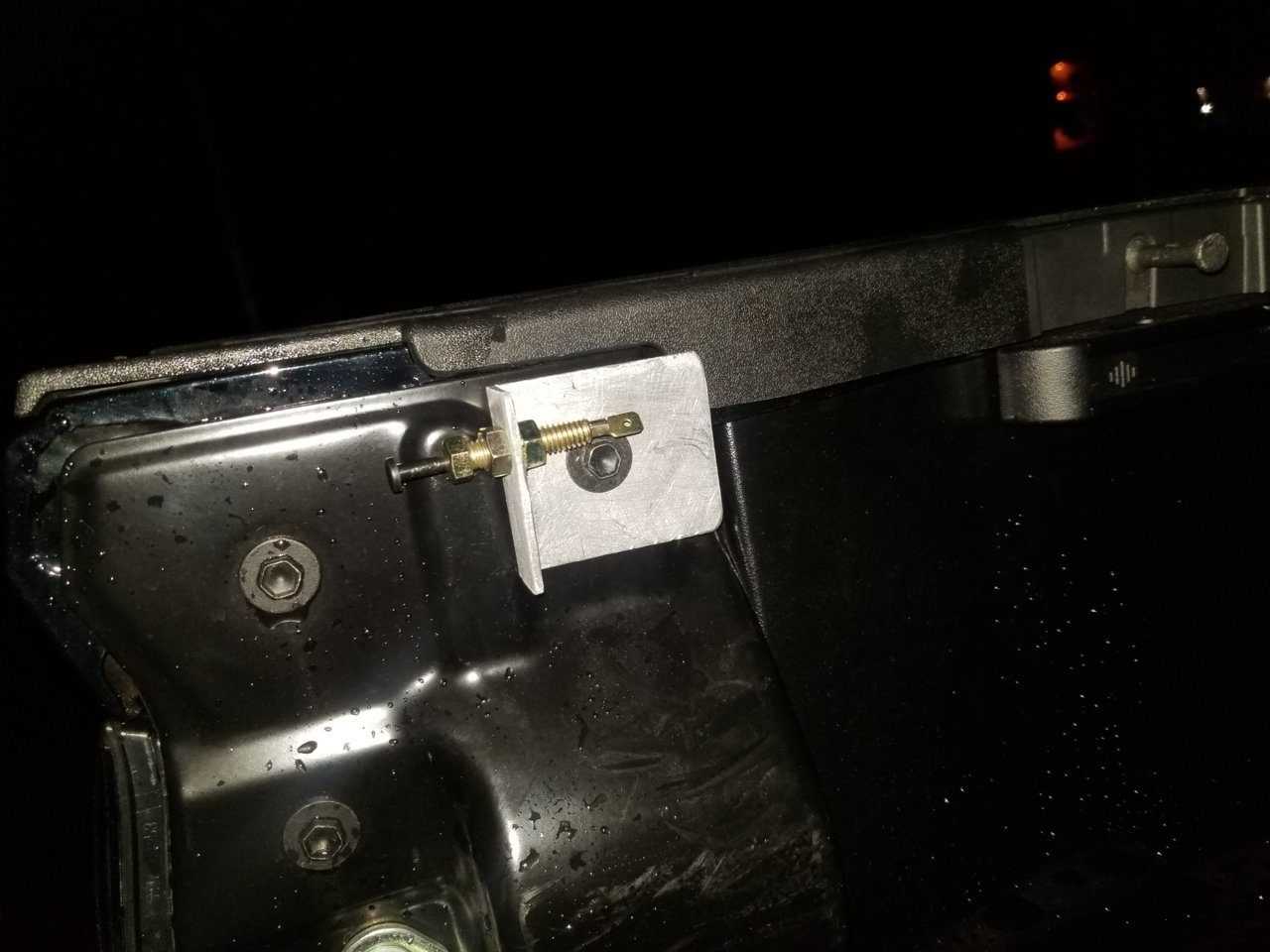

    So this is what I ended up doing. I'll end up cutting the bracket down some and painting it black but it works with an ohmmeter.

    If anyone else decides to do this mod, watch out for the tonneau cover closing on it. I thought it was perfect as the pictures show but the tonneau cover hit it forcing it not to properly close. I ended up drilling another hole in the bracket and moved it down enough to miss the tonneau cover. Which might force me to make another one. Maybe not. It depends on how loud it beckons me.

    Now I've got to wire it so I can turn off the lights even when the tailgate is open. 2 series switches show accomplish that.

    Maybe one day I'll get around to finishing all of the projects I've started on this truck.
    1. Bed lights - Done.
    2. Tailgate/bed lights plunge switch - installed but not yet wired.
    3. Hood lights - Plunge switch installed but not yet wired.
    4. Hood struts - To be done.
    5. Passenger door smart key - Purchased and to be done.
    6. Bumper End Cover - Rear ended and looking for parts.
    7. Either remote start or Lexus fob. I'm leaning remote start but can't do both.
    8. Dash cam and grill cam all tied into the Entune radio so I'd have switchable dash cam, grill cam and backup cam.
    9. More to be added I'm sure.

    open.jpg closed.jpg

    Last edited: Jan 24, 2019
    mgmdclb, AthensTac, Pyrotech and 2 others like this.
  3. Feb 8, 2019 at 3:37 AM
    #3
    porterx

    porterx [OP] Well-Known Member

    Joined:
    Dec 3, 2018
    Member:
    #274643
    Messages:
    286
    Gender:
    Male
    I'm thinking of going a different way with the bed lighting. I've come across a strip of 12V LED lights that I'm thinking about using under the hood because they are so much brighter/better looking than the LEDs I intended to use in the bed. The original LED strip is 4.5V, I think.

    If I go with the 12V strip, I'd like to tie them into the wiring around the inverter. I'd still be running them through the plunge switch so they'd only be drawing current when activated. Does anyone know if there is an always on 12V wire at the inverter. I'd rather not go punching through wires with my tester if someone can tell me.

    Thanks.

  4. Sep 9, 2019 at 7:12 PM
    #4
    porterx

    porterx [OP] Well-Known Member

    Joined:
    Dec 3, 2018
    Member:
    #274643
    Messages:
    286
    Gender:
    Male
    Here's a warning not to go cheap.

    The last 2 weekends, my truck wouldn't start because the battery was dead. Thank goodness for the little car starters that are all the rage these days. The 1st time was a fluke, right? The 2nd time I investigate. It turns out the plastic part of the pin switch I had mounted under my hood to control the LED strip had broken off causing the switch to stay closed all of the time. One pic is the broken switch and the other pic is a good switch. I've ordered some that are metal mostly and especially the part that plunges. Maybe it'll last.

    Does anyone have any recommendations for a more heavy duty pin switch? TIA.


    AthensTac likes this.
  5. Sep 9, 2019 at 7:50 PM
    #5
    Ronzio

    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    2,701
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR

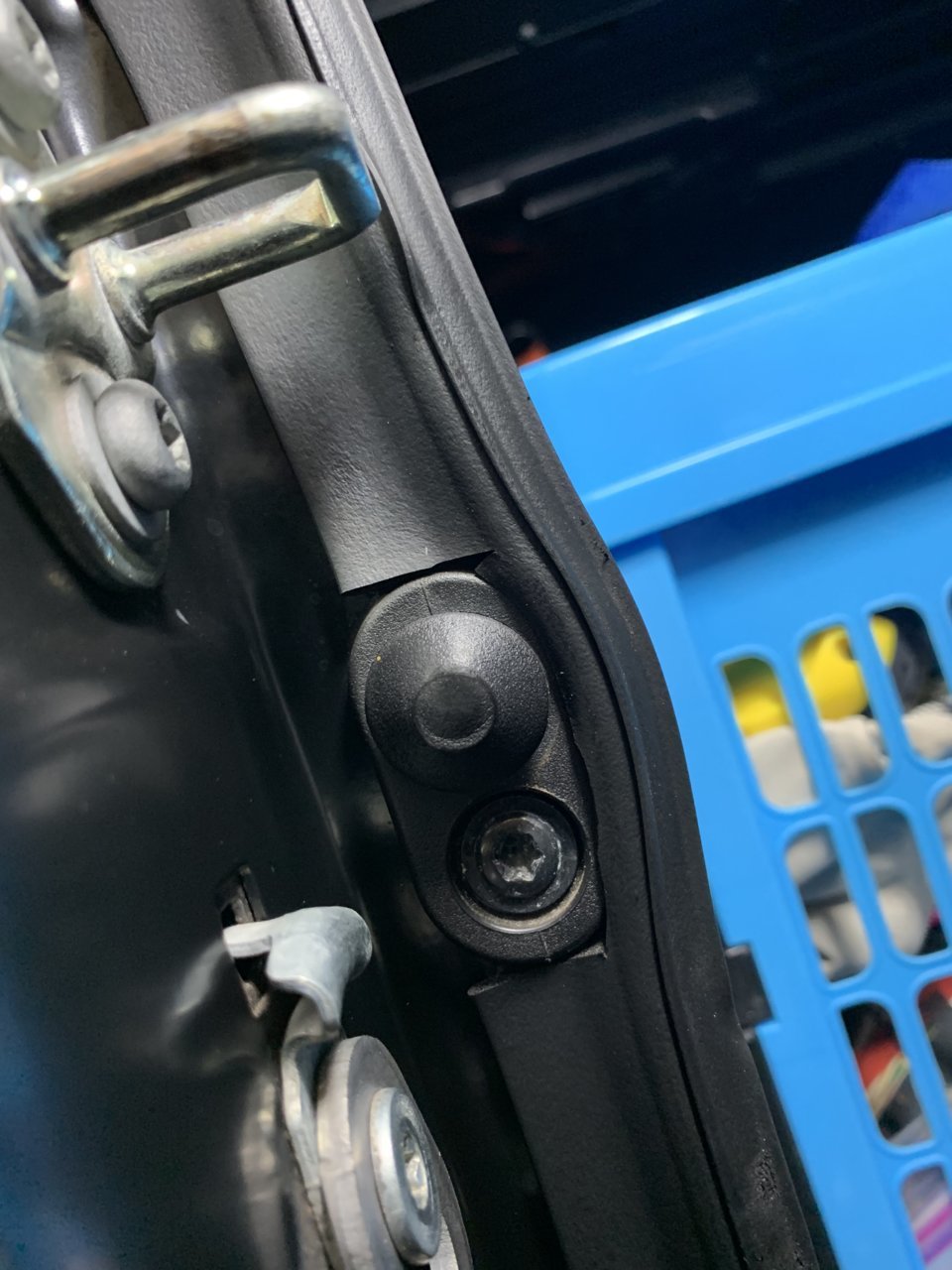

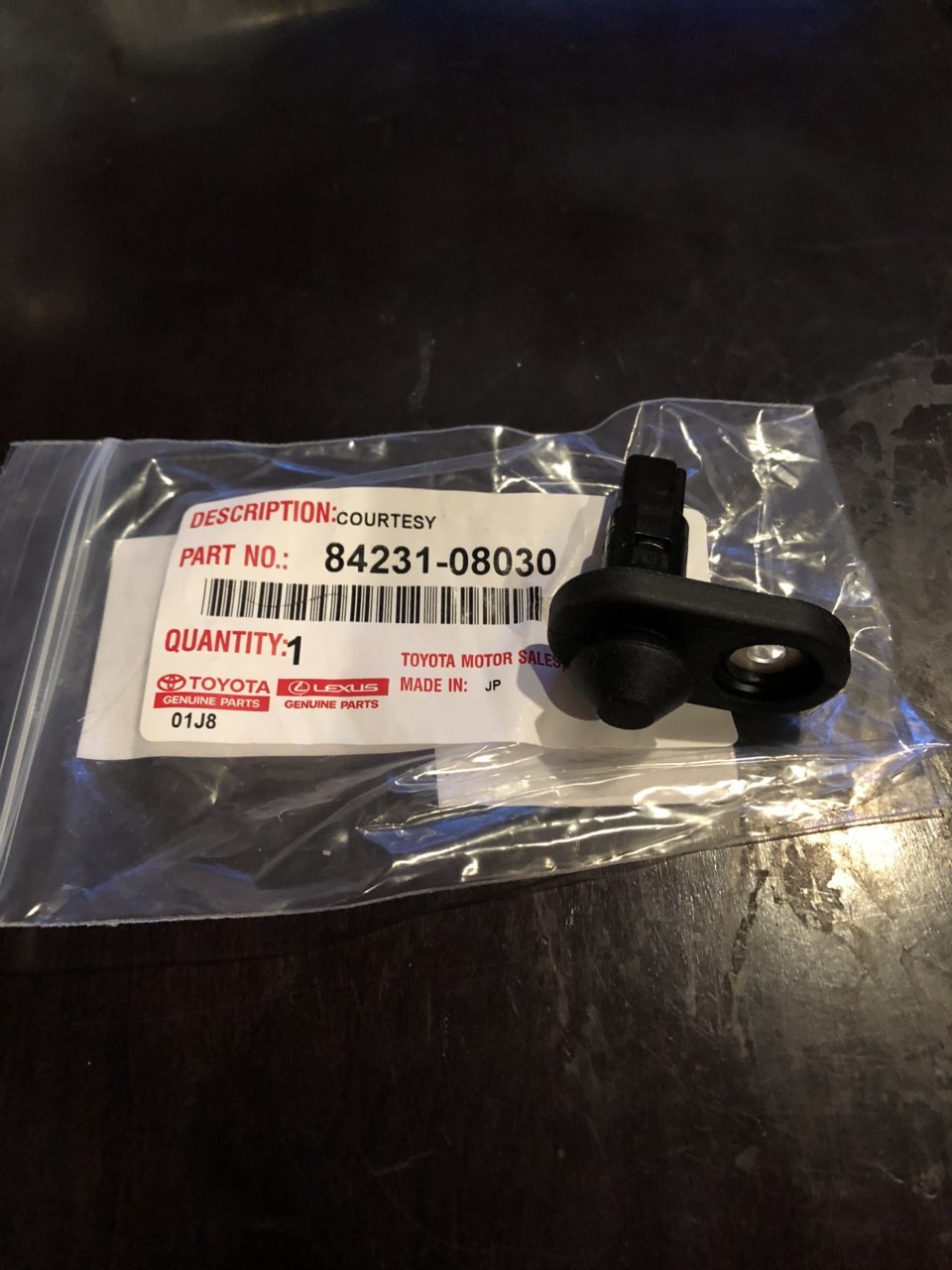

    I would use a courtesy lamp switch same one in the doors but they are not cheap at $17 bucks a pop.

    porterx [OP] and TacoTruck808 like this.
  6. Sep 9, 2019 at 9:05 PM
    #6
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,075
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM

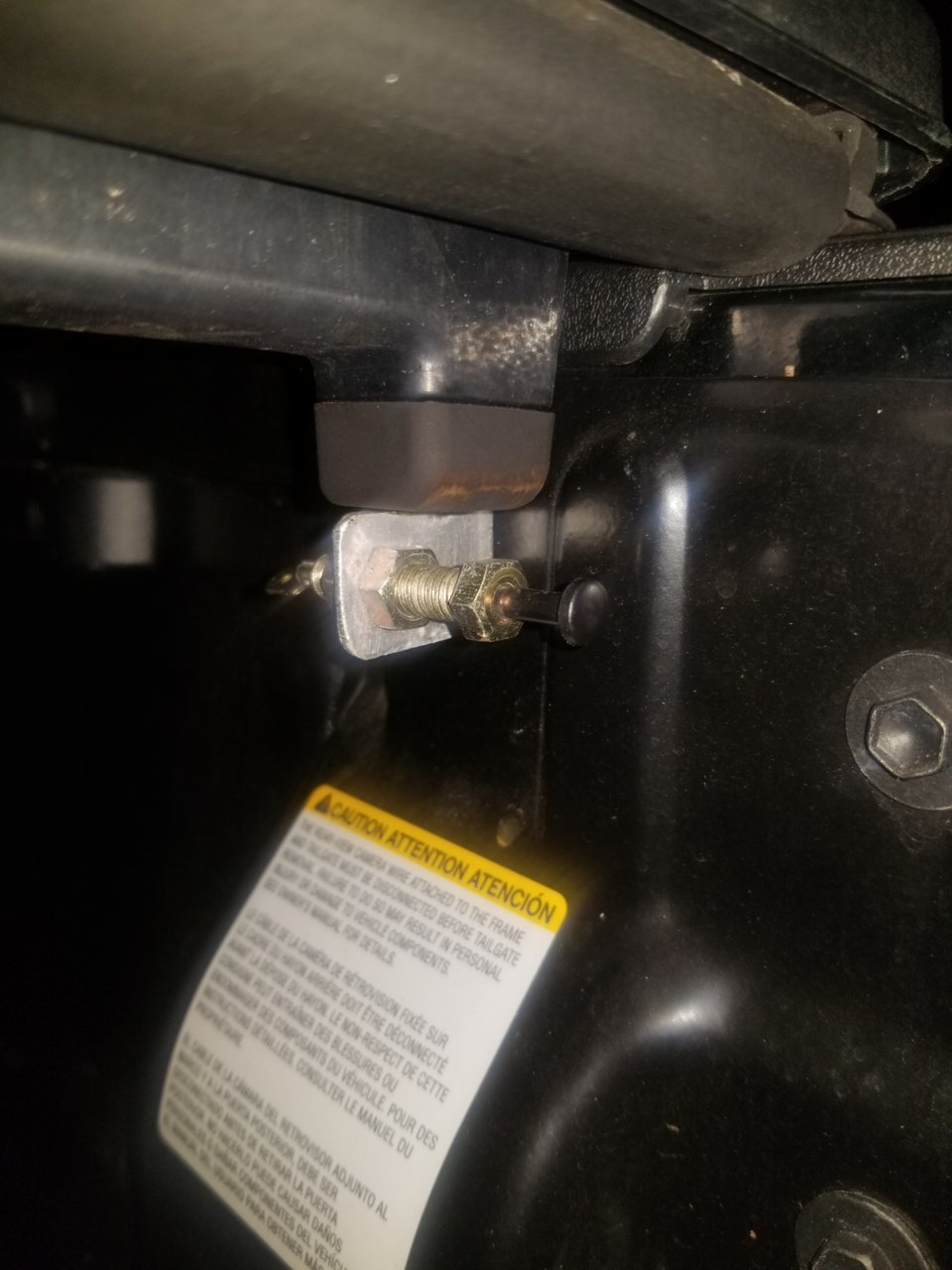

    Thats what i used. I also bought a factory screw so it looks like the ones on the door. I installed it where the rubber bump stop was located. It pushes in about the same as the bumpstop that it replaced. I had to drill out the hole alittle bigger but it looks factory. I tapped it into the rear door pin switch so when i open the tailgate, the lights in the bed light up. It also triggers the factory security system if it is opened. I did install an inline cut off switch to the plunger switch in case i need to transport cargo with the tailgate down.

    JIMMEISTER, porterx [OP] and Ronzio like this.
  7. Sep 9, 2019 at 9:32 PM
    #7
    Ronzio

    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    2,701
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR
    Thought I was the only one...as it make sense to take advantage of what the factory spent thousands designing... Nice job!

    AthensTac and porterx [OP] like this.
  8. Sep 9, 2019 at 9:36 PM
    #8
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,075
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    I like to make things look like they came on the truck from the factory. Thanks for the compliment!

  9. Sep 9, 2019 at 9:59 PM
    #9
    jerkwithkeyboard

    jerkwithkeyboard Well-Known Member

    Joined:
    Feb 15, 2016
    Member:
    #178231
    Messages:
    811
    Gender:
    Male
    Western suburbs Chicago, ILL
    Vehicle:
    2016 TRD Sport DCSB Inferno 4x4, loaded /JBL/Tonneau Cover/ Roof Rack
    17" Black TRD rims Tacoma Stainless Steel Rear Tailgate Letter Inserts Brake light flasher Center LED 110v and 2-3amp USB plugs mod in back seat center 400w on all the time mod SSR-610-40 SumoSprings 32 INCH 180W CREE LIGHT BAR (5D ) AUXBEAM BedStep and Pop & Lock Power Tailgate Lock Blue LED glove box light (fix no light) Bed light Blue LED's Wired to turn on when Gate is opened Tempered Glass Center Touch Screen Protector Rear Camera anytime Navigation Bypass ( a must) Rexing V1 3rd Generation Dash Cam hard wired in OXILAM 912 921 LED Reverse Light 2000 Lumens TRD Pro Grill TRD Skid plate

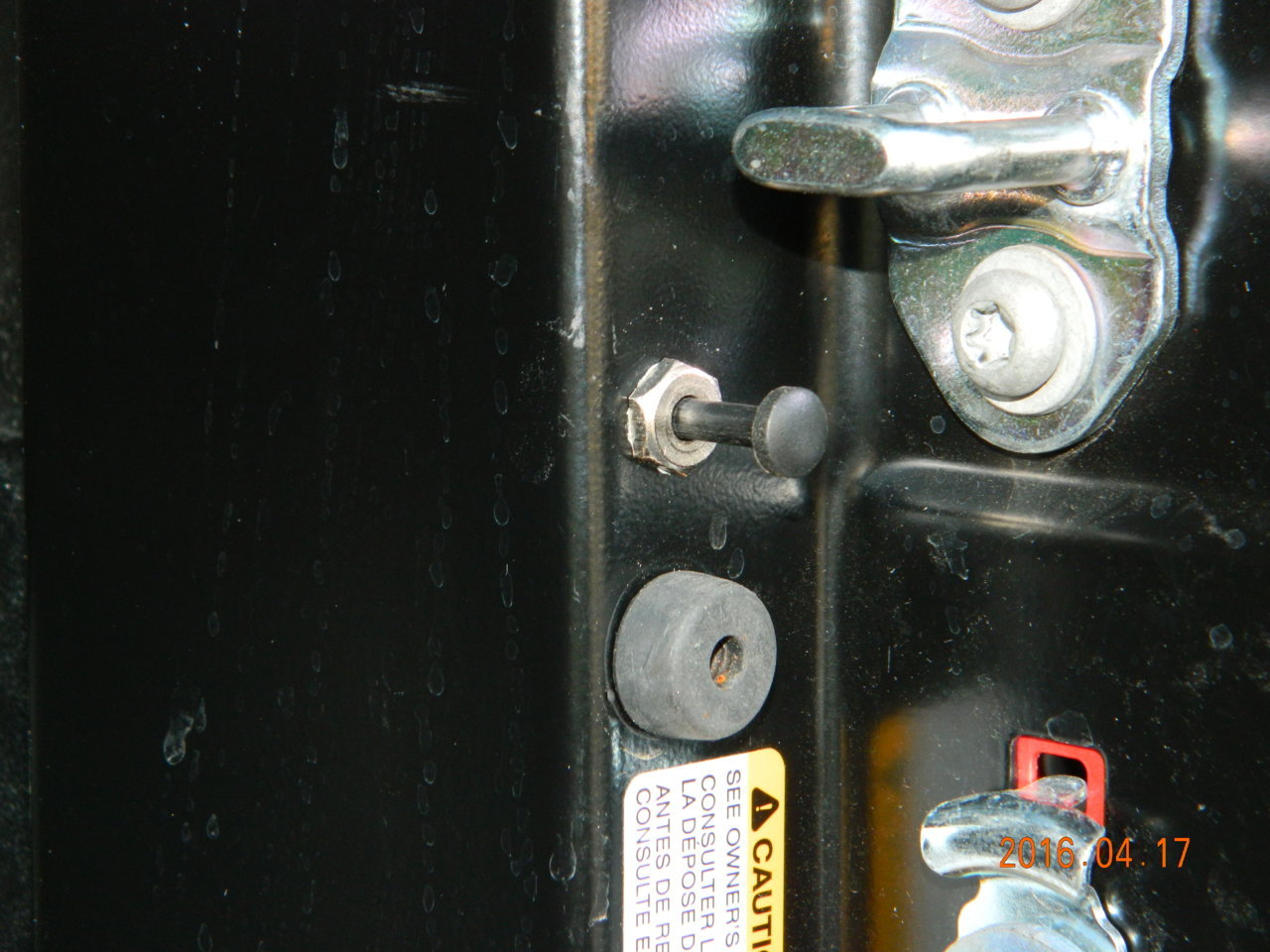

    You mean like this ?



    With a over ride switch ?



    With Blue led under the rails? ( had white,didnt like it)




    A bolder for my sons Eagle Scout Project.. !

    I have it wired to 12V constantly on so when i open it i have light .

    But yes there is a way to do this..

  10. Sep 9, 2019 at 10:11 PM
    #10
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,674
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    The post above yours has the switch and shows the connector piece. Did you buy the male connector to wire/plug in or how did you wire it up with the switch?

    porterx [OP] likes this.
  11. Sep 9, 2019 at 10:34 PM
    #11
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,075
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    I actually found a used one on ebay that included the factory connector that the seller cut out from a Toyota vehicle. If i could have found the part number, i would have bought the OEM switch and connector brand new. Looked like new when i bought it.

  12. Sep 9, 2019 at 10:42 PM
    #12
    jerkwithkeyboard

    jerkwithkeyboard Well-Known Member

    Joined:
    Feb 15, 2016
    Member:
    #178231
    Messages:
    811
    Gender:
    Male
    Western suburbs Chicago, ILL
    Vehicle:
    2016 TRD Sport DCSB Inferno 4x4, loaded /JBL/Tonneau Cover/ Roof Rack
    17" Black TRD rims Tacoma Stainless Steel Rear Tailgate Letter Inserts Brake light flasher Center LED 110v and 2-3amp USB plugs mod in back seat center 400w on all the time mod SSR-610-40 SumoSprings 32 INCH 180W CREE LIGHT BAR (5D ) AUXBEAM BedStep and Pop & Lock Power Tailgate Lock Blue LED glove box light (fix no light) Bed light Blue LED's Wired to turn on when Gate is opened Tempered Glass Center Touch Screen Protector Rear Camera anytime Navigation Bypass ( a must) Rexing V1 3rd Generation Dash Cam hard wired in OXILAM 912 921 LED Reverse Light 2000 Lumens TRD Pro Grill TRD Skid plate
    Well that was over 3 years ago , but the pin switch is a ground and i wired the button over ride to only light up when the gate is open and is in over ride mode ( lights off) so i have a fuse and its wired hot to the battery in case it shorts out. but by pushing the button in it opens the circuit for the LED in the bed and turns on the button led thru the pin switch ground. ( I think).. bed time have to get up in 5 hour.

    The door pin switch is almost to thick when i looked into it.

  13. Sep 9, 2019 at 10:43 PM
    #13
    jerkwithkeyboard

    jerkwithkeyboard Well-Known Member

    Joined:
    Feb 15, 2016
    Member:
    #178231
    Messages:
    811
    Gender:
    Male
    Western suburbs Chicago, ILL
    Vehicle:
    2016 TRD Sport DCSB Inferno 4x4, loaded /JBL/Tonneau Cover/ Roof Rack
    17" Black TRD rims Tacoma Stainless Steel Rear Tailgate Letter Inserts Brake light flasher Center LED 110v and 2-3amp USB plugs mod in back seat center 400w on all the time mod SSR-610-40 SumoSprings 32 INCH 180W CREE LIGHT BAR (5D ) AUXBEAM BedStep and Pop & Lock Power Tailgate Lock Blue LED glove box light (fix no light) Bed light Blue LED's Wired to turn on when Gate is opened Tempered Glass Center Touch Screen Protector Rear Camera anytime Navigation Bypass ( a must) Rexing V1 3rd Generation Dash Cam hard wired in OXILAM 912 921 LED Reverse Light 2000 Lumens TRD Pro Grill TRD Skid plate
    read above please.

  14. Sep 9, 2019 at 10:45 PM
    #14
    porterx

    porterx [OP] Well-Known Member

    Joined:
    Dec 3, 2018
    Member:
    #274643
    Messages:
    286
    Gender:
    Male
    I was asking about the hood but I havent even gotten to completing my tailgate wiring yet. I gotta thank you and the previous poster for this great idea. I'll end up getting this switch as I like the factory look as well. I have already ran power to the rear of the truck since there isn't a live 12V back there and have put in an inline cutoff switch already. I mounted a terminal strip behind the right side compartment. I'll wire whatever I need power to from there. I'm trying to wrap my head around how you wired it all up. Would you care to go a little more in depth on how you wired it. It sounds like you're using it as a trigger for your alarm and to turn on your bed lights. A schematic would be great if it's not too much trouble. I'm sure I could figure it out if it's too much trouble. Regardless, thanks for the info.

    Last edited: Sep 9, 2019
    TacoTruck808 likes this.
  15. Sep 9, 2019 at 10:48 PM
    #15
    porterx

    porterx [OP] Well-Known Member

    Joined:
    Dec 3, 2018
    Member:
    #274643
    Messages:
    286
    Gender:
    Male

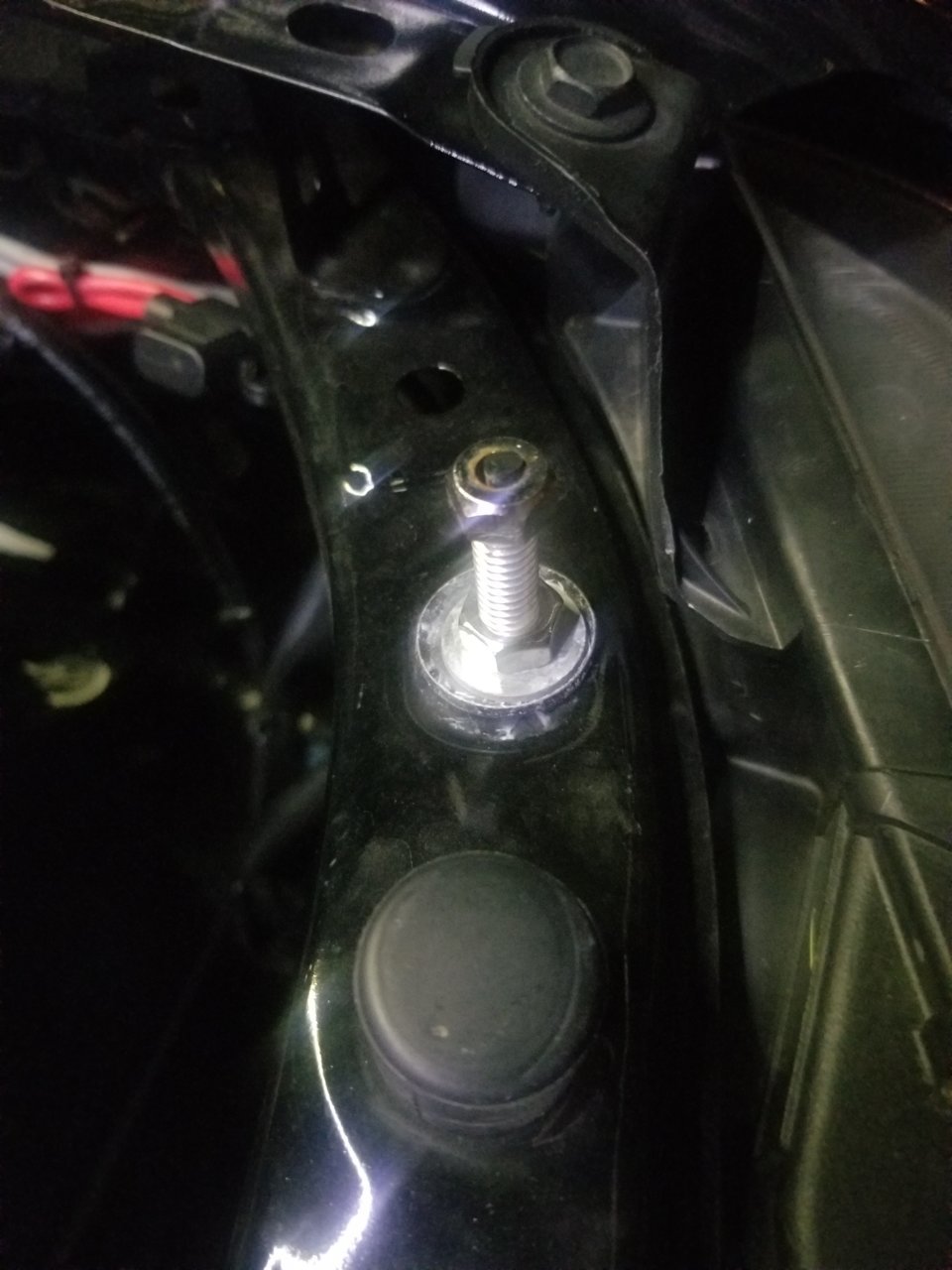

    I mounted my cutoff switch inside of the passenger side compartment. I figured it wouldn't get accidentally tripped if it were in there.

  16. Sep 9, 2019 at 10:51 PM
    #16
    porterx

    porterx [OP] Well-Known Member

    Joined:
    Dec 3, 2018
    Member:
    #274643
    Messages:
    286
    Gender:
    Male
    Did you run the 12V power from the front? I couldn't find an always on 12V anywhere on the rear of the truck. The trailer hitch wiring is even dead without the ignition at least on accessory power.

  17. Sep 9, 2019 at 10:56 PM
    #17
    EmanC19

    EmanC19 Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265211
    Messages:
    298
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2018 Tacoma TRD Sport
    Never seen this before. Where does it go and how would I install it?

  18. Sep 9, 2019 at 11:02 PM
    #18
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,075
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    I used the following link instructions to wire up my bed lights. By doing it this way, it works with the dome lights.

    https://www.toyotapartsdeal.com/resources/installation/TPD/my16 tacoma bed light-dio issb.pdf

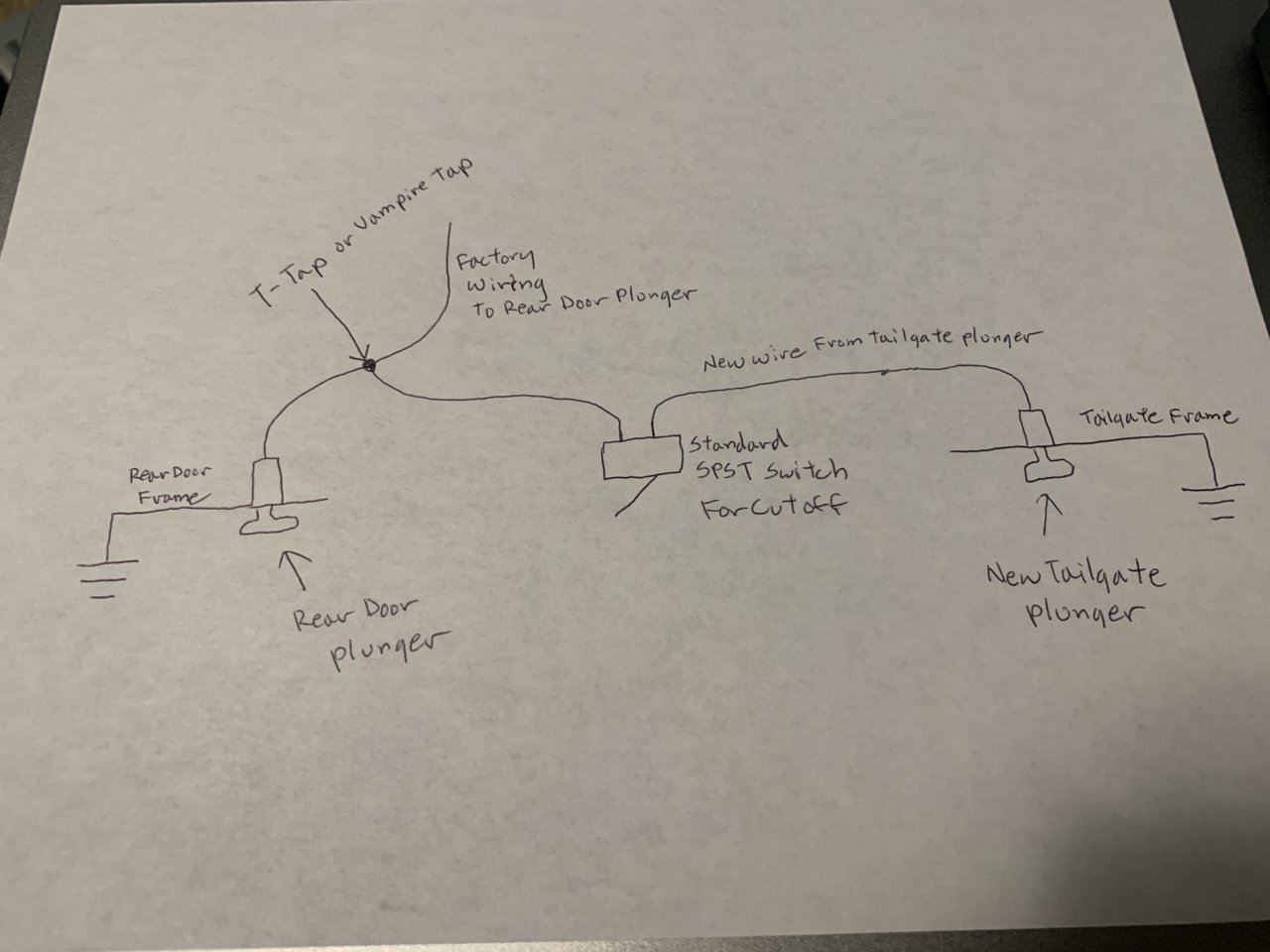

    Then i ran a wire from the new switch to the rear door plunger switch. The switch grounds the wire which in turn, turns on the lights. So basically extended the same functionality of the door switches to the tailgate.

    I used my own LED light strips i bought on Amazon. I am just glad they didnt draw too much current since i didnt know what the max load on the factory relay was.

  19. Sep 9, 2019 at 11:02 PM
    #19
    porterx

    porterx [OP] Well-Known Member

    Joined:
    Dec 3, 2018
    Member:
    #274643
    Messages:
    286
    Gender:
    Male
    Oops! There were so many good answers that I was answering each before I got to your explanation of how you wired it. I'm still gonna have to read it again. Maybe a couple of times. If you could draw up a schematic, I'd be in your debt. I'm getting the lighting. The pin switch is giving that circuit a ground. I'm not getting how the alarm/rear door pin switch ties into it all.

    As Forest Gump said, "I'm not a smart man."

  20. Sep 9, 2019 at 11:34 PM
    #20
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,075
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    This is how i wired my rear tailgate plunger and it has worked so far. Not sure how others have done it. I wired the bed lights following the instructions in the link above i posted so it works the same as the interior dome lights.


    By doing it this way, it basically works the same as when the rear door is open so if you open the tailgate, it will show the rear door open on the dash info display. Thus if you open the tailgate when the factory security is armed, it will trigger the alarm like if you opened the rear door. I dont take any responsibility if you follow my rudimentary instructions...lol

    AthensTac likes this.
