Pop and Lock PL8521 Power Tailgate Install (2012 Tacoma)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by JTyfz450, Apr 13, 2012.

  1. Jun 24, 2013 at 4:29 PM
    #261
    Zarny

    Zarny Well-Known Member

    Joined:
    May 29, 2013
    Member:
    #105191
    Messages:
    51
    Gender:
    Male
    First Name:
    Prem
    Mississauga, Ontario
    Vehicle:
    13 MGM DCLB TRD Sport +leather
    I wanted to save some money so instead of pop'n'lock I installed this

    [​IMG]

  2. Jun 27, 2013 at 7:22 AM
    #262
    sbechtold

    sbechtold SAC'D FJC

    Joined:
    Feb 11, 2009
    Member:
    #13531
    Messages:
    86
    Gender:
    Male
    CA
    Vehicle:
    07 FJC
    Thanks to the OP for creating this thread. I installed my pop n lock on my 2013 last weekend. I can confirm that the wire colors are the same. I did my install slightly different.

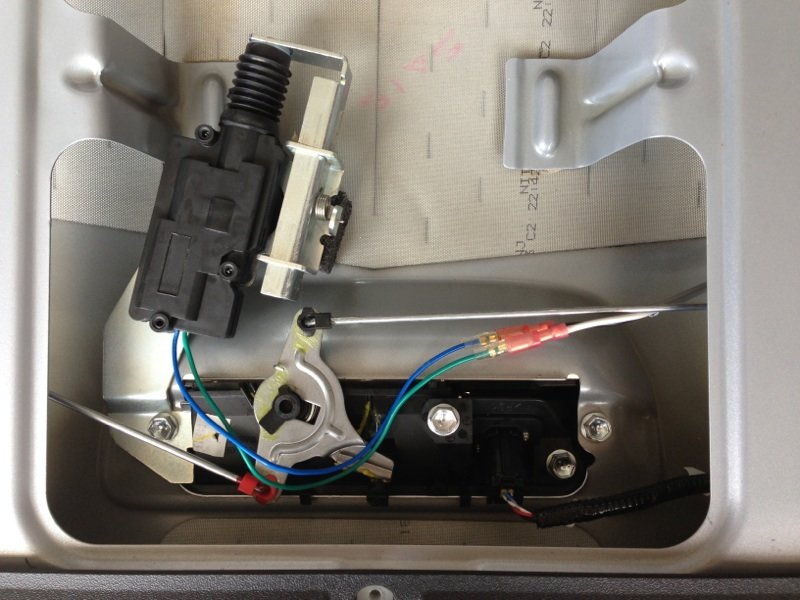

    First when I installed the lock mechanism in the tail gate I cut off the quick connects and soldiered the connections. When I ran the wiring from the tail gate to the cab, I took out all of the slack and trimmed the wires to the right length before connecting the wiring to the factory harness in the passenger kick panel. I don't have any extra length of wire wrapped up in the tail gate. I didn't take a picture of the connections in the tail gate...

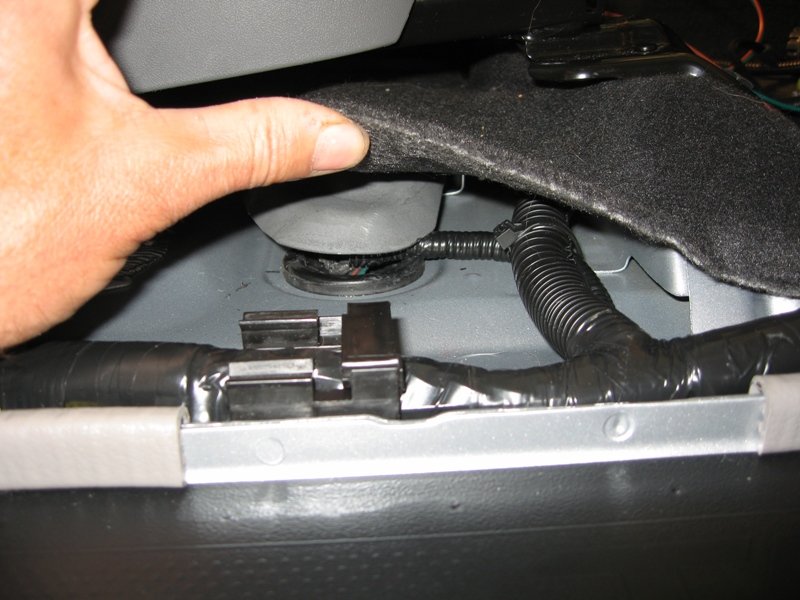

    I passed the wires up into the cab via the grommet under the passenger seat. Afterwards, I sealed it up good afterwards to ensure no water infiltration into the cab.

    [​IMG]

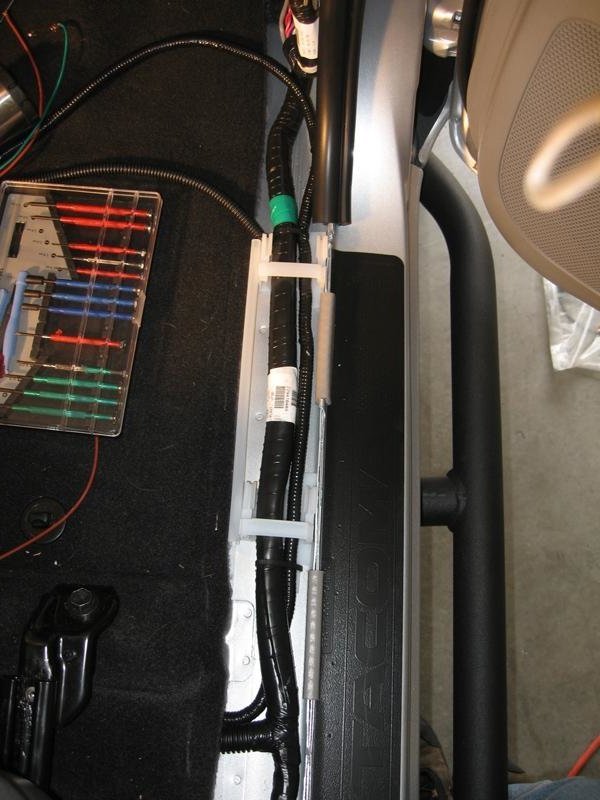

    I wrapped the pop n lock wire loom with electrical tape and ran it along side the factory harness in the door sill.

    [​IMG]

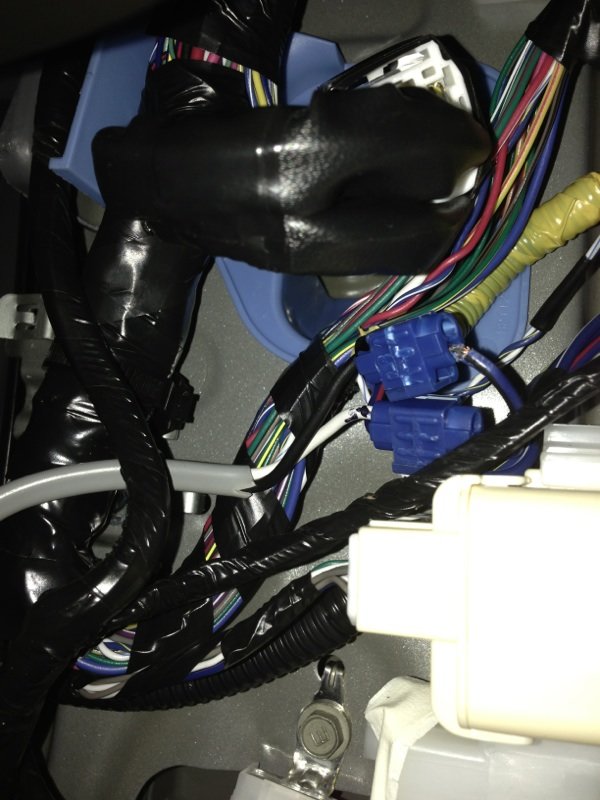

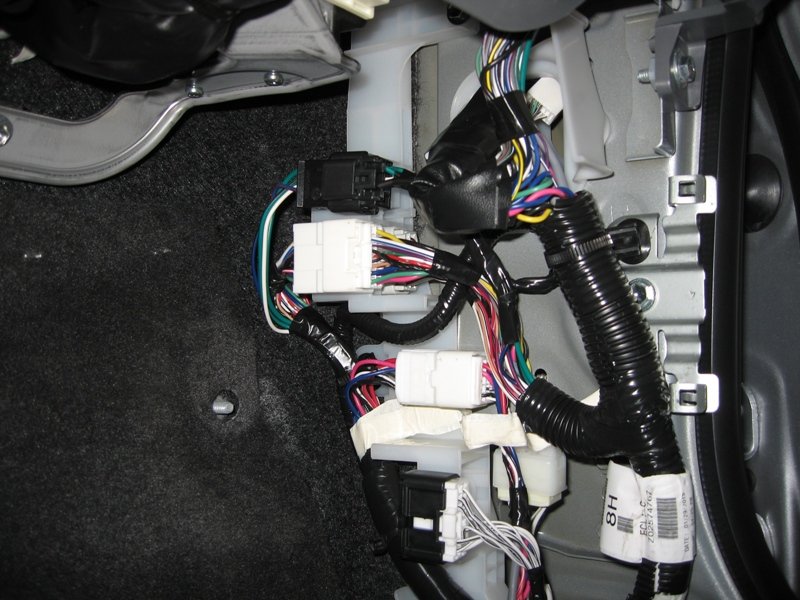

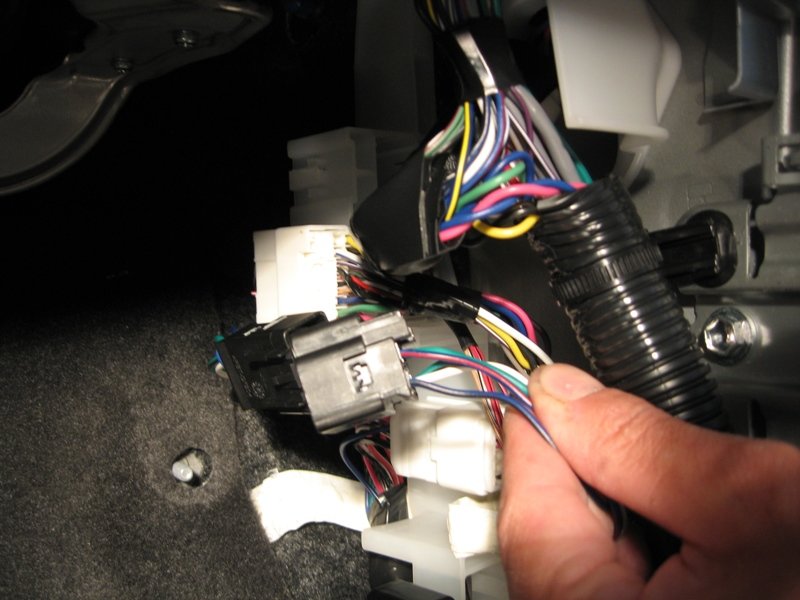

    Next I located the connector with the blue wires (see original post for colors). Pulled it off the white plastic mount in the top of the picture and separated the connector.

    [​IMG]

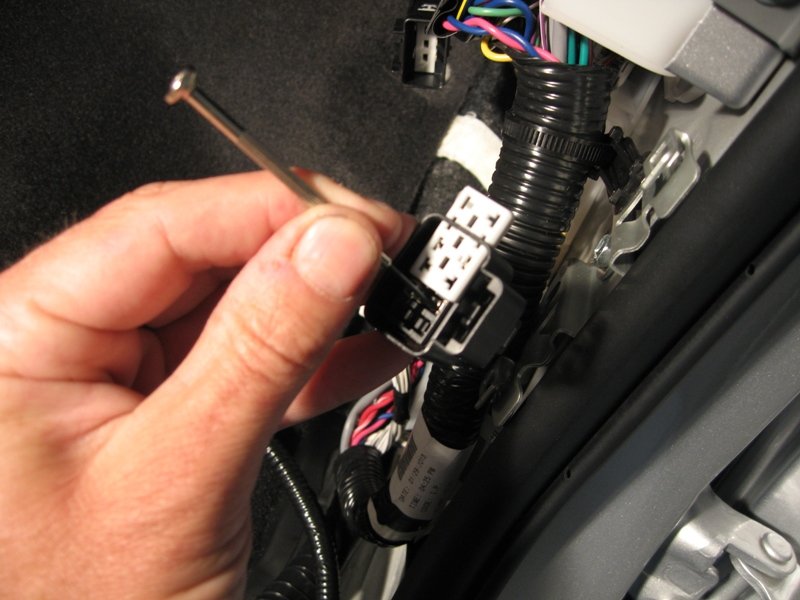

    Then I removed the pins from the connector.

    [​IMG]

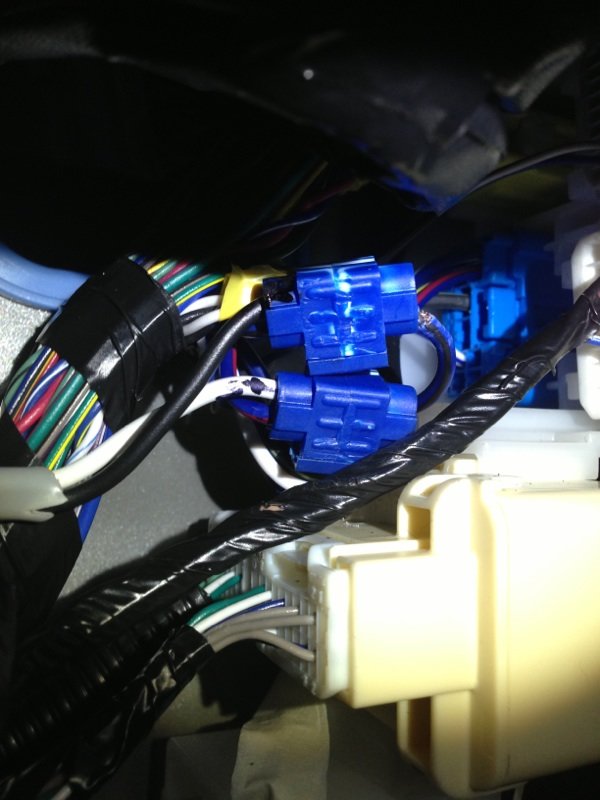

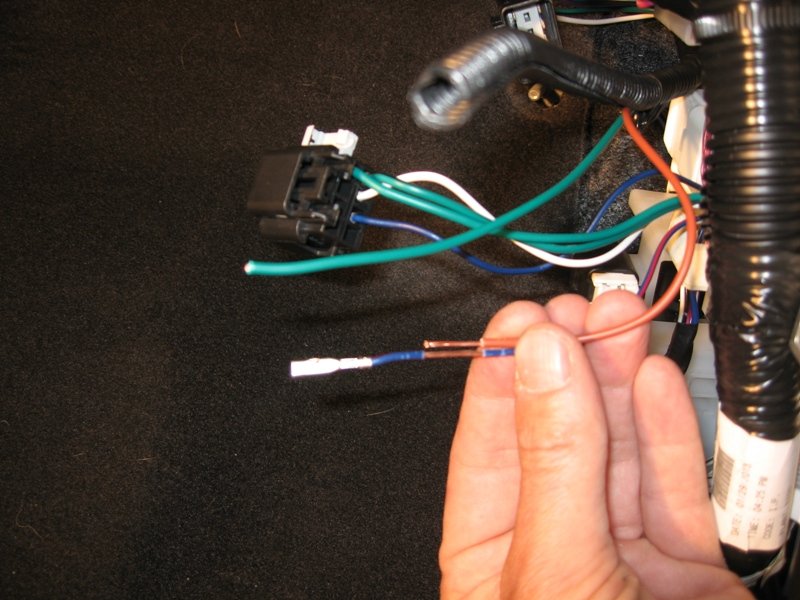

    Stripped the wire housing back a little and soldiered the wires together. Of course you'll want to test the pop n lock before soldiering the connections to make sure you have them wired up correctly and that the lock mechanism actually works.

    [​IMG]

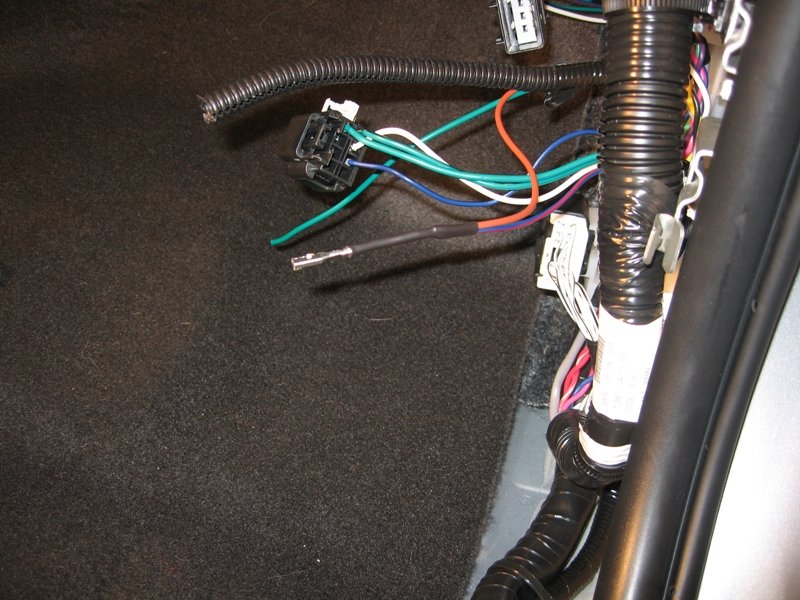

    A little shrink tubing and then reinstalled the pins into the connectors.

    [​IMG]

    I wrapped the harness with electrical tape and neatly pushed in into place. I reinstalled the factory connector back into the original location and put everything back together. Everything works like it should...

    [​IMG]

  3. Jun 27, 2013 at 7:26 AM
    #263
    lembowski

    lembowski Rompin Around

    Joined:
    Jul 29, 2009
    Member:
    #20347
    Messages:
    7,020
    Gender:
    Male
    Rolando
    Vehicle:
    09 LT, Caged, 4WD
    I've had this a few years on my 09, make sure you grease the sliding mechanism with some white lithium grease so it doesn't bind/stick.

  4. Jul 12, 2013 at 8:33 PM
    #264
    Goose8651

    Goose8651 Well-Known Member

    Joined:
    Mar 16, 2013
    Member:
    #99870
    Messages:
    387
    Gender:
    Male
    DFW
    Vehicle:
    13 PreRunner SR5
    Just finished installing mine on my passenger door. Over all, not too complicated. I went pretty slow to make sure I did not have any wires hanging under my frame and am very pleased. Now the bed of my truck is fully secure!

  5. Jul 12, 2013 at 10:28 PM
    #265
    JTyfz450

    JTyfz450 [OP] Well-Known Member

    Joined:
    Feb 12, 2012
    Member:
    #72677
    Messages:
    720
    Gender:
    Male
    First Name:
    Jeryck
    SoCal
    Vehicle:
    2012 TRD Sport DCSB MGM
    Good to see this thread is still going and helping out fellow TW members. Looks like there have been a few improvements to the install.

    Overall after having mine on for a year and some change it still works like a charm. No issues so far. The sound when locking and unlocking has died down a bit (unless I just got use to it) and will definitely check the slide to make sure it well lubricated.

  6. Jul 13, 2013 at 5:44 PM
    #266
    kennnyli

    kennnyli New Member

    Joined:
    Jul 13, 2013
    Member:
    #108209
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2013 4-banger SR5

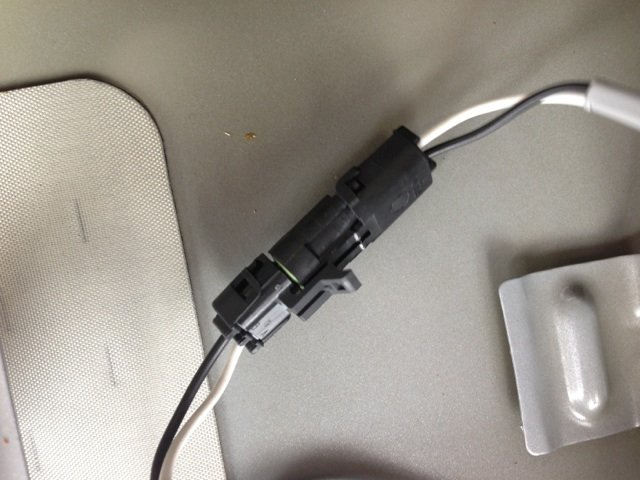

    I just tried installing my Pop n Lock Power on my '13 Tacoma. I followed this guide. At first, I used the provided wire taps but it didn't work when I tried to use the remote to lock the car. Then I went out and got the Radio Shack wire taps and tried that too. It still doesn't work! Any help? Thanks a bunch.



    [​IMG]



    [​IMG]



    [​IMG]



    [​IMG]

  7. Jul 13, 2013 at 5:55 PM
    #267
    Goose8651

    Goose8651 Well-Known Member

    Joined:
    Mar 16, 2013
    Member:
    #99870
    Messages:
    387
    Gender:
    Male
    DFW
    Vehicle:
    13 PreRunner SR5
    My PL8521 does not look like that, specifically the wiring. My plugs look more like a trailer harness, rather than clips. I don't think my cables are black and white tied in at my passenger door.

  8. Jul 13, 2013 at 5:58 PM
    #268
    bjboucher

    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,245
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    Either your unit is faulty or you don't have a good connection to the wires. Those radio shack connectors are very hard to push down all the way. Are you sure you're tapped in to the wires fully? Looks like you kind of mangled the stock wires, hopefully you didn't damage them.

    I think there are a few variants out there but they're all basically the same. Different colored wired and sliders on some but they work the same.

  9. Jul 13, 2013 at 6:18 PM
    #269
    kennnyli

    kennnyli New Member

    Joined:
    Jul 13, 2013
    Member:
    #108209
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2013 4-banger SR5
    I made sure the connection was good. I'm pretty sure the wires aren't damaged. Just lightly stripped. It should be fine.
    If it is indeed faulty, how's TruckAlterations with their replacement policies?

  10. Jul 13, 2013 at 6:21 PM
    #270
    bjboucher

    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,245
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    Not sure, I got mine from amazon.

    It's a pretty basic set-up, if you have it hooked up to the right wires (looks like you do, even if they were reversed it would still do something) it should work.

  11. Jul 25, 2013 at 4:25 PM
    #271
    bjboucher

    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,245
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    Well, my pop-n-lock failed me the first time I actually needed it. Took a quick 3 day vacation with the Tacoma. Obviously had all my luggage secured under my G4 Elite with built in locks and my pop-n-lock. Get to my destination and the pop-n-lock quick locking. It was still clicking but it wasn't actually locking. Got home, opened up the tailgate and found that the little spring that supports the sliding lock mechanism had come loose. So it was locking but without the spring to support it, the mechanism was just sliding back into the unlocked position. All fixed now but was kind of frustrating not being able to secure anything in my bed when I really needed to.

  12. Jul 26, 2013 at 11:36 AM
    #272
    BikPickle

    BikPickle Well-Known Member

    Joined:
    Oct 11, 2012
    Member:
    #88790
    Messages:
    46
    Gender:
    Male
    First Name:
    Nick
    NOVA
    Vehicle:
    12 TRD Sport
    Did you figure it out Kenny? No offense but your wire connections look pretty bad. That Blue and Black wire doesn't even look like it is going in the right terminal. You might want another set of eyes/hands to check your connections. Even if they are good right now those connections won't last.

  13. Jul 29, 2013 at 12:41 PM
    #273
    stephenw13

    stephenw13 Member

    Joined:
    Mar 5, 2012
    Member:
    #74258
    Messages:
    20
    Gender:
    Male
    Phoenix
    Vehicle:
    2012 4x4 DCLB Sport Upgrade
    Debadged and painted grill emblem red, tailgate hose clamp mod, removed mudflaps, AVS Bugflector II, AVS In-Channel Ventvisor, anytime fog lights, AntennaX.com 13" EuroStyle Antenna, 866 bulb reverse light mod
    I assume the answer to this would be yes, but I thought I would throw it out there...

    Were any of these done with a Double Cab and did you need additional wiring?

    What about with a Double Cab long bed?

    Regards.

  14. Jul 29, 2013 at 1:47 PM
    #274
    bjboucher

    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,245
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    Double cab long bed here and still had too much wiring. No need to worry about that.

  15. Jul 30, 2013 at 8:34 PM
    #275
    cstallings

    cstallings Well-Known Member

    Joined:
    Mar 25, 2013
    Member:
    #100538
    Messages:
    867
    Gender:
    Male
    Arkansas
    Vehicle:
    2013 MGM DCSB TRD Sport 4x4
    SOS Front Bumper, SOS Sliders, OME Lift (885x Coils, Nitro Charger Shocks, Dakar Leafs), LR UCAs, Leer Shell, OKLED 30" light bar, Wet Okle Seat covers, etc, etc
    How did you mount that eyelet to the tailgate?

  16. Aug 5, 2013 at 11:11 AM
    #276
    stephenw13

    stephenw13 Member

    Joined:
    Mar 5, 2012
    Member:
    #74258
    Messages:
    20
    Gender:
    Male
    Phoenix
    Vehicle:
    2012 4x4 DCLB Sport Upgrade
    Debadged and painted grill emblem red, tailgate hose clamp mod, removed mudflaps, AVS Bugflector II, AVS In-Channel Ventvisor, anytime fog lights, AntennaX.com 13" EuroStyle Antenna, 866 bulb reverse light mod
    Sweet, thx Brad

  17. Aug 15, 2013 at 6:08 AM
    #277
    MNStealth13Taco

    MNStealth13Taco Junior Member +1

    Joined:
    Jun 4, 2013
    Member:
    #105588
    Messages:
    32
    Gender:
    Male
    First Name:
    Tom
    Albertville, MN
    Vehicle:
    13 Black DCSB TRD Sport
    TRD Supercharger, TRD Exhaust System, TRD Quickshifter w/ TRD Shift Knob, Katzkin Leather w/Heat and Ventilation, BAK Roll-X Tonneau Cover, OEM Tacoma Bed Mat, OEM Bed Extender, Smoke Weathertech Window Vents, Black Weathertech DigitalFits, Tint, 265/60R18 Silent Armor Tires on 18" XD Monster Wheels
    From the picture it looks like it's threaded into a tailgate cover screw hole.

  18. Aug 16, 2013 at 6:53 PM
    #278
    DavidR

    DavidR Well-Known Member

    Joined:
    Jul 19, 2013
    Member:
    #108592
    Messages:
    76
    Gender:
    Male
    First Name:
    David
    Northern NY
    Vehicle:
    2011 Tacoma TRD Sport DCSB
    I just want to say thank you for this thread. I just finished installing one of these, and this thread definitely saved me a lot of time. The install, from opening the package to putting my tools away, took around and hour and was very easy. I bet it would've taken me two or three hours, had I needed to follow the supplied instructions.

    Thanks again!

  19. Aug 16, 2013 at 8:02 PM
    #279
    bjboucher

    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,245
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    My spring is falling out again, so it is not staying locked. Amazon is sending me a new one 4 months after purchase though which is good.

  20. Aug 27, 2013 at 10:08 PM
    #280
    Solo707

    Solo707 Well-Known Member

    Joined:
    Jul 16, 2013
    Member:
    #108429
    Messages:
    144
    Gender:
    Male
    NorCal
    Vehicle:
    2013 TRD Off-Road
    Plasti-Dipped Badges
    I did it! Thanks TW members for all your help!
