Pop and Lock PL8521 Power Tailgate Install (2012 Tacoma)

Discussion in '2nd Gen. Tacomas' started by JTyfz450, Apr 13, 2012.

  1. 2006KJ

    2006KJ Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79907
    Messages:
    579
    Gender:
    Male
    i also installed mine using this write up... great job and thank you!!! i'll post a few pictures to help clear anything up with the wiring through the backup camera wire loom. Also i chose to strip some covering off the wires and solder them to the wires up front under the kick panel. I've never had any luck with those quick connectors. and for the plug under the cab i just poked a very small hole in it with a screw driver and ran the wires up though it then put the wire loom back on when i was finished.

    *thanks for the sponge hint!*

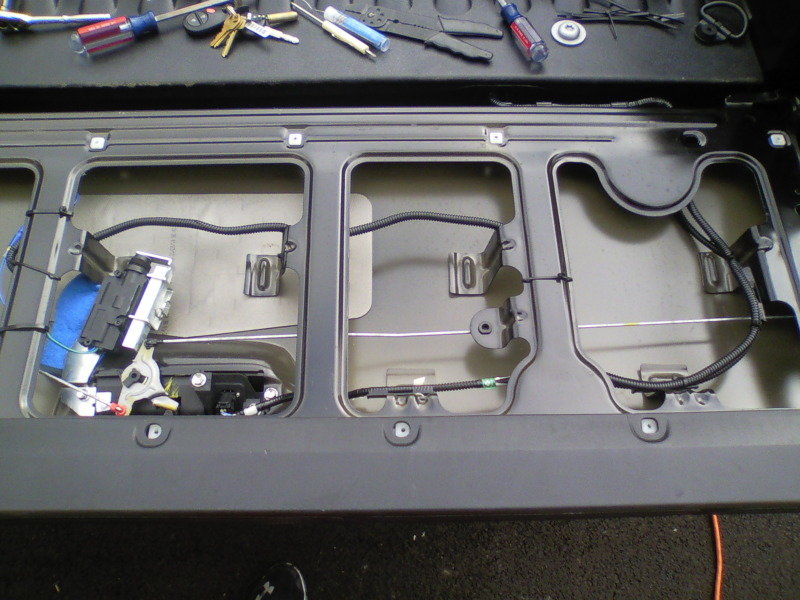

    this is how i wired it through the gate... i put the weather proof plug under the truck near the back up camera plug so removing the gate would be very easy.
    [​IMG]

    i put the pop&lock wires in the back up camera wire loom and ran them the exact way the back up camera is ran.
    [​IMG]

    underneath.. black is pop&lock white is back up camera
    [​IMG]

    into the cab
    [​IMG]

    in the cab
    [​IMG]

    final soldering/taping
    [​IMG]

    and put back together looks like it's completely factory.
    [​IMG]



    thanks again for the write up! made it SO much easier then figuring it out myself (particularly what tires to tap into.)

  2. stewartx

    stewartx Well-Known Member

    Joined:
    Jan 9, 2012
    Member:
    #70271
    Messages:
    1,828
    Gender:
    Male
    Huntsville AL
    Vehicle:
    2012 Silver DC SB TRD Off-Road
    Winch, front hitch, step bars, bed extender, bed step, gull-wing toolbox, tailgate lock, security system, cb radio, etc.
    Where did you run the wires into the cab? Under the back seat? There's large, very flexible, plugs under both front seats. Most use one of those, depending on which side of the truck (driver or passenger) they're connecting the wiring to. Both plugs easily stretch enough for the wires, along with the plastic protective sleeve, to fit into (in addition to the wire bundles already there).

  3. 2006KJ

    2006KJ Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79907
    Messages:
    579
    Gender:
    Male

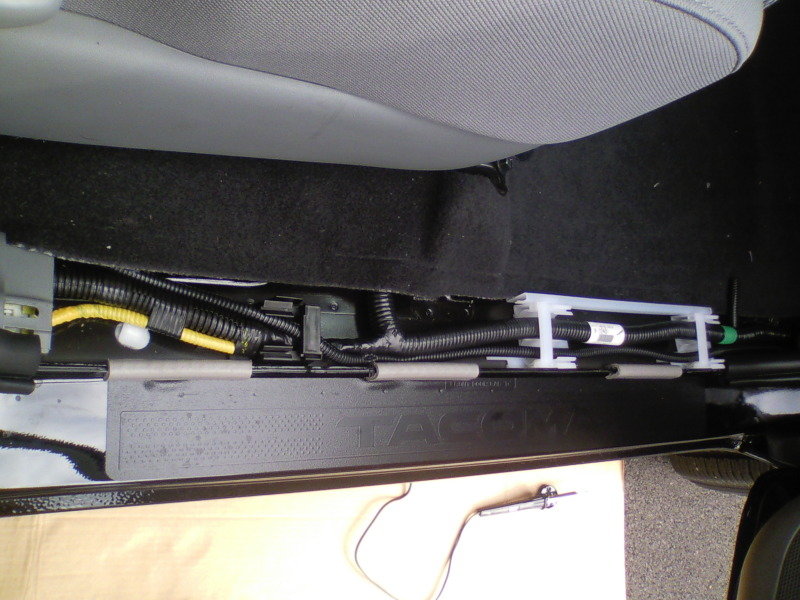

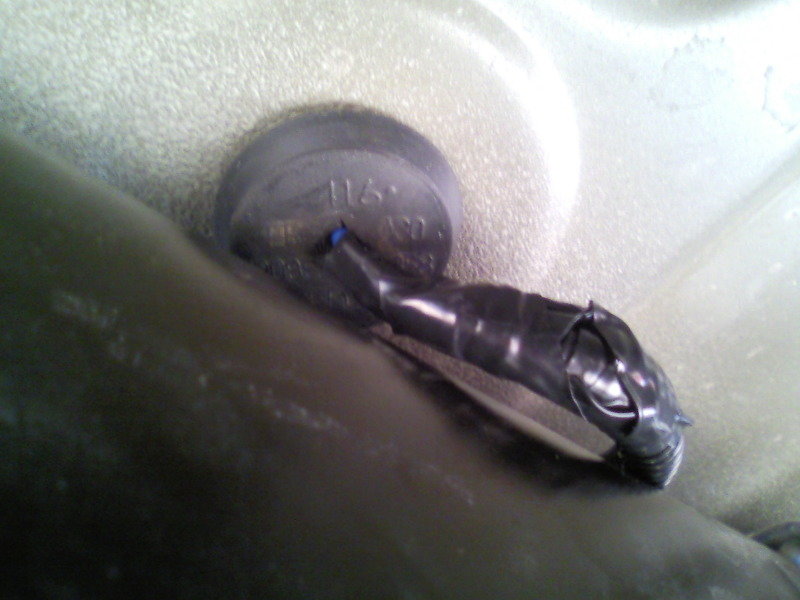

    the plug i used was under the front passenger seat. i wanted to keep it sealed as much as possible.

  4. stewartx

    stewartx Well-Known Member

    Joined:
    Jan 9, 2012
    Member:
    #70271
    Messages:
    1,828
    Gender:
    Male
    Huntsville AL
    Vehicle:
    2012 Silver DC SB TRD Off-Road
    Winch, front hitch, step bars, bed extender, bed step, gull-wing toolbox, tailgate lock, security system, cb radio, etc.
    Just curious after seeing the images. I didn't see that plug under my front seats, but, of course, wasn't really looking for it. Instead, I ran my wiring (protective sleeve and all) through the large plug used by the existing wire bundle. It stretched easily with a screwdriver, closing to create a very effective seal afterwards. Anyway, your setup looks good, so certainly nothing wrong with it.

  5. Beers

    Beers Well-Known Member

    Joined:
    May 17, 2012
    Member:
    #79038
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    12 TRD OR
    The plug I used was just to the outside of the frame and under the passenger seat. I'd guess it was between quarter and half-dollar sized.

  6. joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,067
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    I have not bought one of these yet, I'm not all that concerned about security. I figure a campershell is pretty easy to force open, with or without a tailgate lock, and glass is easy to smash. With that said, it seems to me that for maximum security with one of these, you would install an aftermarket alarm or keyless entry, with an available auxillary channel that can be connected to just the tailgate actuator. Less wear and tear on the actuator to wear it out and cause you grief when it fails locked, plus if someone smashes the cab windows and hits the unlock button, the tailgate stays locked, and there does not need to be an auxillary switch mounted anywhere, the remote could be the only way to unlock it. This has the potential to save you from having large, locked toolboxes, or large equipment from being stolen out of the back of your truck. Anything that would not be removable by simply forcing the shell lid open is that much safer. Something to think about anyway.

  7. 2006KJ

    2006KJ Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79907
    Messages:
    579
    Gender:
    Male

    that is true.. the pop&lock doesnt make the truck bed fort knox but it does help ALOT with security. I have a soft tonneau cover so if someone really wants in all they have to do is cut it with a knife... however without the pop&lock all they have to do is open the tail gate... take whatever they want.. and close the tailgate (it would look like it was THEIR truck). Where if they are breaking windows or knifing my tonneau cover and someone saw it they would Know it was a thief. plus the pop&lock locks the gate so it cant be opened.. if it cant be opened the gate its self cant be taken. In my opinion the pop&lock is well worth the $94 shipped.

  8. joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,067
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    That's why I wound up with a hard campershell instead of a softtopper. No locks on the soft ones, so just unzip and look casual and nobody knows it's a thief.

    I was just thinking of the guys who use their trucks for work and have expensive stuff back there under a shell. It's all about adding time for the thief.

  9. Chad

    Chad Rand Paul 2016

    Joined:
    Oct 2, 2008
    Member:
    #9636
    Messages:
    2,752
    Gender:
    Male
    First Name:
    Chad
    Raleigh, NC
    Vehicle:
    09 V6 Access Cab TRD Sport
    Pioneer AVIC-X920BT Headunit -- BHLM -- Pioneer TS-A1685R 4-way Coax Speakers in Front -- Suntek CXP 40 Front Tint -- Access Vanish Roll-up Tonneau -- Wet Okole Seat Covers -- Fog Lights on Anytime -- PnL Powered Tailgate Lock -- DTRL "Stealth Mode" -- LED Footwell and Cup Holder Lights -- Map Lights ON with Dome Light -- Shorty Antenna -- AC Line Extension Mod -- 09+ Access Cab Rear Headrest Removal
    FWIW, I got my powered PnL for like $65 shipped on amazon a few months ago.

  10. stewartx

    stewartx Well-Known Member

    Joined:
    Jan 9, 2012
    Member:
    #70271
    Messages:
    1,828
    Gender:
    Male
    Huntsville AL
    Vehicle:
    2012 Silver DC SB TRD Off-Road
    Winch, front hitch, step bars, bed extender, bed step, gull-wing toolbox, tailgate lock, security system, cb radio, etc.
    No tonneau cover or camper shell, so my lock was installed just to keep people honest when it comes to the tailgate itself (mostly for my own peace of mind). My tools and similar are stored in metal toolbox in the otherwise open bed.

  11. tacomonazul

    tacomonazul Well-Known Member

    Joined:
    Mar 4, 2012
    Member:
    #74163
    Messages:
    3,378
    Gender:
    Male
    First Name:
    Luis
    SOCAL
    Vehicle:
    07 DCSB LT/4LINK
    http://www.tacomaworld.com/forum/2nd-gen-builds/227832-my-never-end-build.html
    do you need the pop tail gate lock handle for this or will the oem one will do?

  12. parboy

    parboy FORE!

    Joined:
    Aug 24, 2012
    Member:
    #85440
    Messages:
    176
    Gender:
    Male
    First Name:
    Brian
    Sherwood, AR
    Vehicle:
    '13 MGM DCSB 4x4 TRD sport, Tow and Entune
    Tonnopro tonneau cover, Weathertech digital fit mats, Magnaflow 18" muffler with black exhaust tip, blacked out badges/emblems, Beltronics RX65 pro, Pop & Lock PL8521, EZdown tailgate mod, 17" KMC XD addicts, 265/70/17 Nitto Terra Grapplers, OME 884 springs, Bilstein 5100's at zero, BHLM, FX-R retrofit, amber halo's, LED's for dome, maps, reverse, license plate, parking lights, switchback DTRL's, ultra-gauge, Kenwood DNX690HD, Hertz HDP4, Hertz HSK165's, Memphis 12" in custom box, Black/Grey Roadwire leather kit with seat heaters, cool white interior led's from oznium.com, 20" AVEC dual row light bar in lower bumper, 19" AVEC single row light bar in grill,
    If you are doing the PL8521 power pop n lock, you keep your original tailgate handle.

  13. Spot50

    Spot50 Member

    Joined:
    Aug 13, 2012
    Member:
    #84636
    Messages:
    16
    Gender:
    Male
    First Name:
    Bob
    Kansas
    Vehicle:
    2012 2WD V6 Prerunner
    Curtis Front End Hitch BaKFlip VP Tonneau cover Pop & Lock PL 8521 AMP Power Steps AMP-75142-01A
    JTyfz450 -
    That was a great write up. I followed your directions to the letter, only found a way to avoid removing the plastic piece that holds the backup camera wires (I can send a pic of this if anyone wants) and did not use the Radio Shack squeeze connectors. Things work well, but I do have a question. When I use the FOB to unlock the doors, the tailgate unlocks as it should, but a few seconds later re-locks along with all the doors. Also, only pressing the fob one time to unlock the drivers door works, but again, a few seconds later everything locks back up. Electrical short possibly because I did not use the Radio Shack squeeze connectors? Any ideas would be helpful. Unlocking the doors by using the keys and turning them twice keeps them unlock, so something is amiss with the fob. Thanks for any help.

  14. joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,067
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2
    You are describing normal operation. Mine does the same thing when unlocked remotely. It's been discussed on here before, particularly in regard to power tailgate locks. So far nobody seems to have an answer, unless you were to install an aftermarket alarm or keyless entry. The stock system isn't programmable to turn off the auto relock.

  15. Beers

    Beers Well-Known Member

    Joined:
    May 17, 2012
    Member:
    #79038
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    12 TRD OR
    The only option right now to keep it from relocking is to open one of the doors on the cab after unlocking the truck remotely. Our Highlander has the same feature. If you unlock the car via the remote but don't open a door within a short period of time the car will relock itself. Like the previous poster said, this is a normal operation and not a short.

  16. JTyfz450

    JTyfz450 [OP] Well-Known Member

    Joined:
    Feb 12, 2012
    Member:
    #72677
    Messages:
    716
    Gender:
    Male
    First Name:
    Jeryck
    SoCal
    Vehicle:
    2012 TRD Sport DCSB MGM
    It isn't an electrical short. If you don't open your doors (not the tailgate) after you unlock the truck the truck will lock automatically (safety feature). Unlike the passenger and driver doors the tailgate doesn't have a sensor that indicates if it is open or not. So if you unlock the truck as you would and only open up the tailgate a few seconds later the passenger and driver doors will lock along with the tailgate.


  17. JTyfz450

    JTyfz450 [OP] Well-Known Member

    Joined:
    Feb 12, 2012
    Member:
    #72677
    Messages:
    716
    Gender:
    Male
    First Name:
    Jeryck
    SoCal
    Vehicle:
    2012 TRD Sport DCSB MGM
    Also I didn't take the plastic piece off of where the backup camera exits the tailgate. I cut a piece of the plastic off to accommodation both of the wire bundles.

  18. Spot50

    Spot50 Member

    Joined:
    Aug 13, 2012
    Member:
    #84636
    Messages:
    16
    Gender:
    Male
    First Name:
    Bob
    Kansas
    Vehicle:
    2012 2WD V6 Prerunner
    Curtis Front End Hitch BaKFlip VP Tonneau cover Pop & Lock PL 8521 AMP Power Steps AMP-75142-01A
    Wow, thanks for the quick responses, this forum is fantastic. Joes06Tacoma, Beers, TJYfz450, all of you - thanks for easing my mind. I am a retired biology instructor, this electrical stuff rather baffles me. Murphy's law seems to haunt me when I'm outside my normal comfort zone, nice to know that I didn't screw up this time.

  19. Spot50

    Spot50 Member

    Joined:
    Aug 13, 2012
    Member:
    #84636
    Messages:
    16
    Gender:
    Male
    First Name:
    Bob
    Kansas
    Vehicle:
    2012 2WD V6 Prerunner
    Curtis Front End Hitch BaKFlip VP Tonneau cover Pop & Lock PL 8521 AMP Power Steps AMP-75142-01A
    Oh, by the way - I've ordered a BakFlip VP. The unit is suppose to arrive this coming Tuesday (that is why I installed the Pop & Lock PL8521). Once installed and checked out, I'll post a review.

  20. PT2000

    PT2000 Member

    Joined:
    Sep 24, 2012
    Member:
    #87629
    Messages:
    12
    Gender:
    Male
    Vehicle:
    tacoma sr5
    Thanks for the awesome picture guides. Much easier to follow than the instructions.

    One hint, helpful to atleast me. Once you've made the final connections and are testing the lock / unlock, make sure the cab doors are shut. I thought I had a problem when the unlock function worked fine, but the lock function produced a steady beep and no movement. :eek: once the doors were shut, everything worked perfectly. It took several minutes longer than I'd like to admit to figure that it was not a wiring fail!
